Nissan Pathfinder (2011 year). Manual - part 73

AV

BOSE AUDIO SYSTEM

AV-403

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

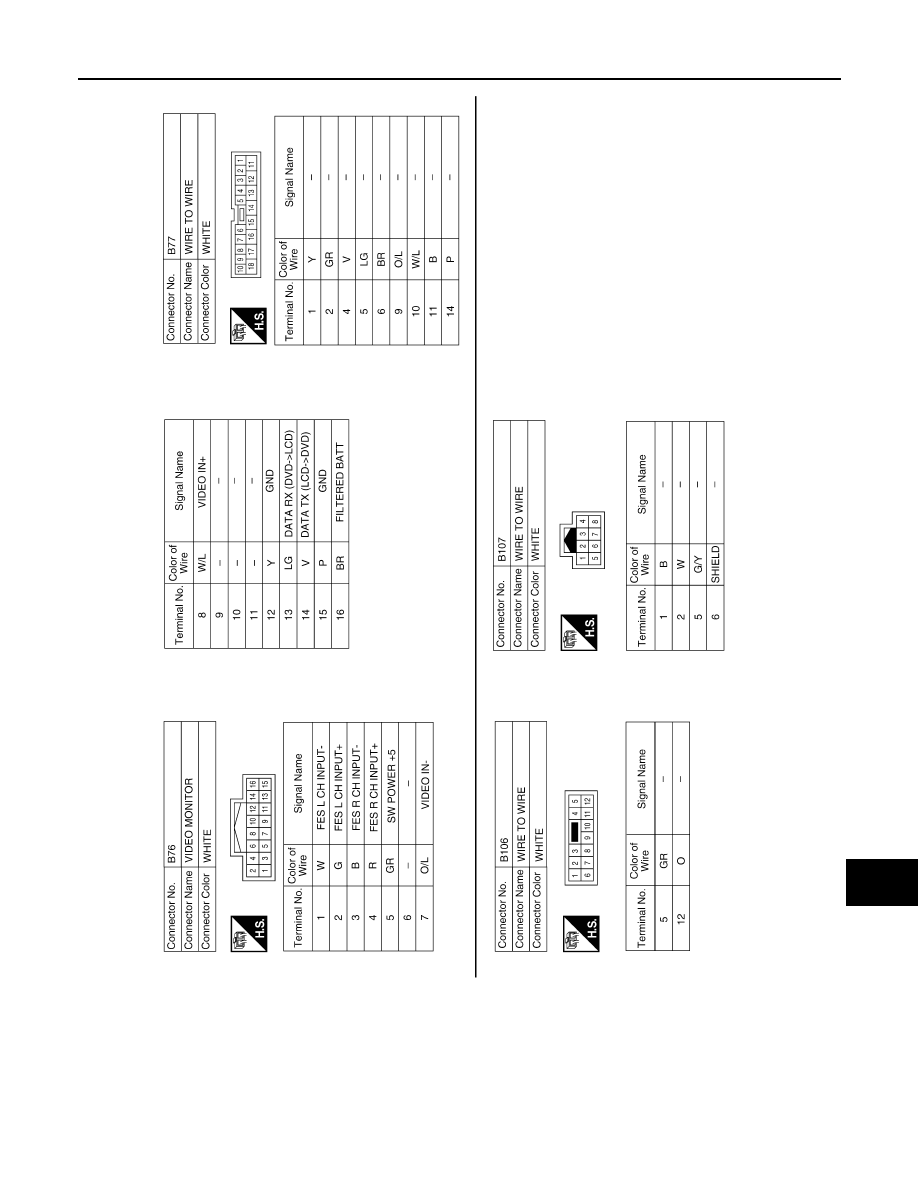

ABNIA2650GB

2011 Pathfinder

AV-404

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO SYSTEM

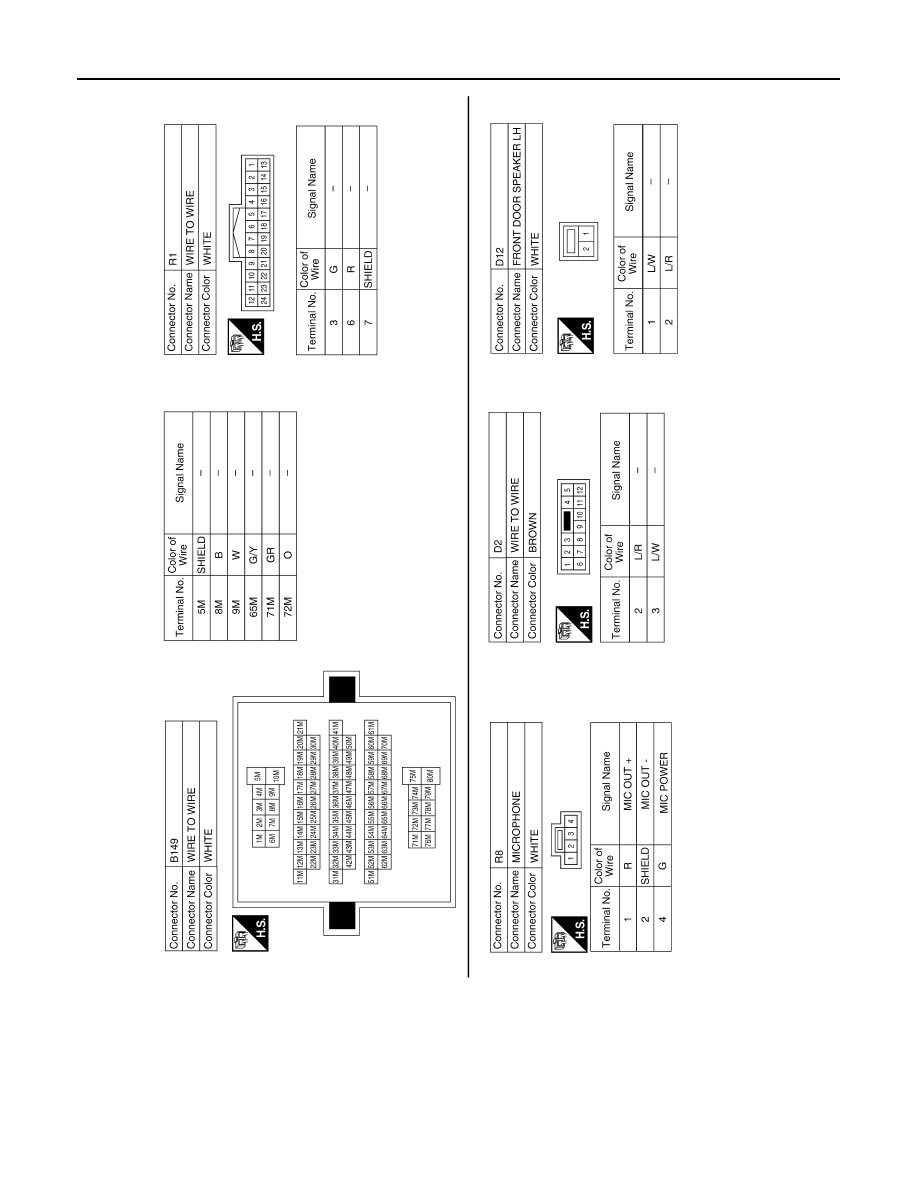

ABNIA2651GB

2011 Pathfinder

AV

BOSE AUDIO SYSTEM

AV-405

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

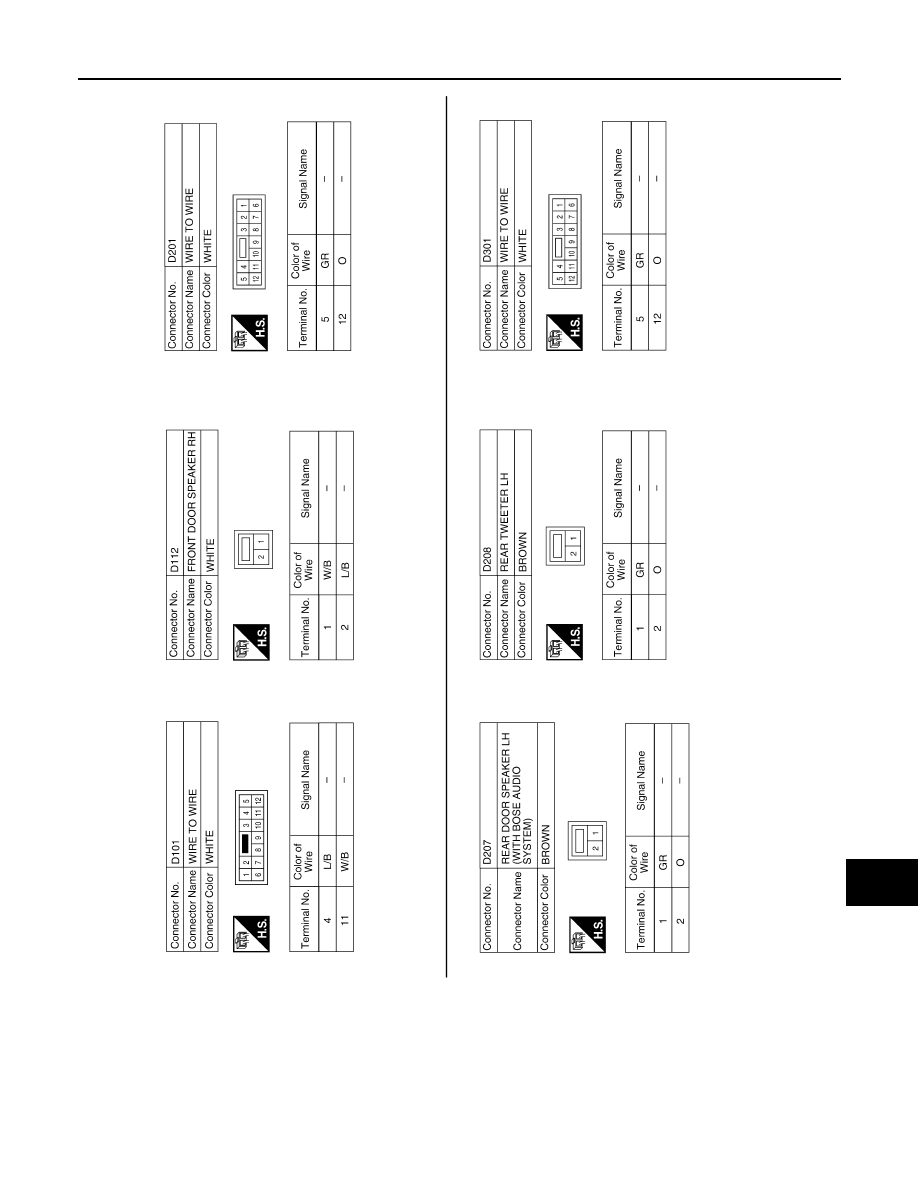

ABNIA2652GB

2011 Pathfinder

AV-406

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO SYSTEM

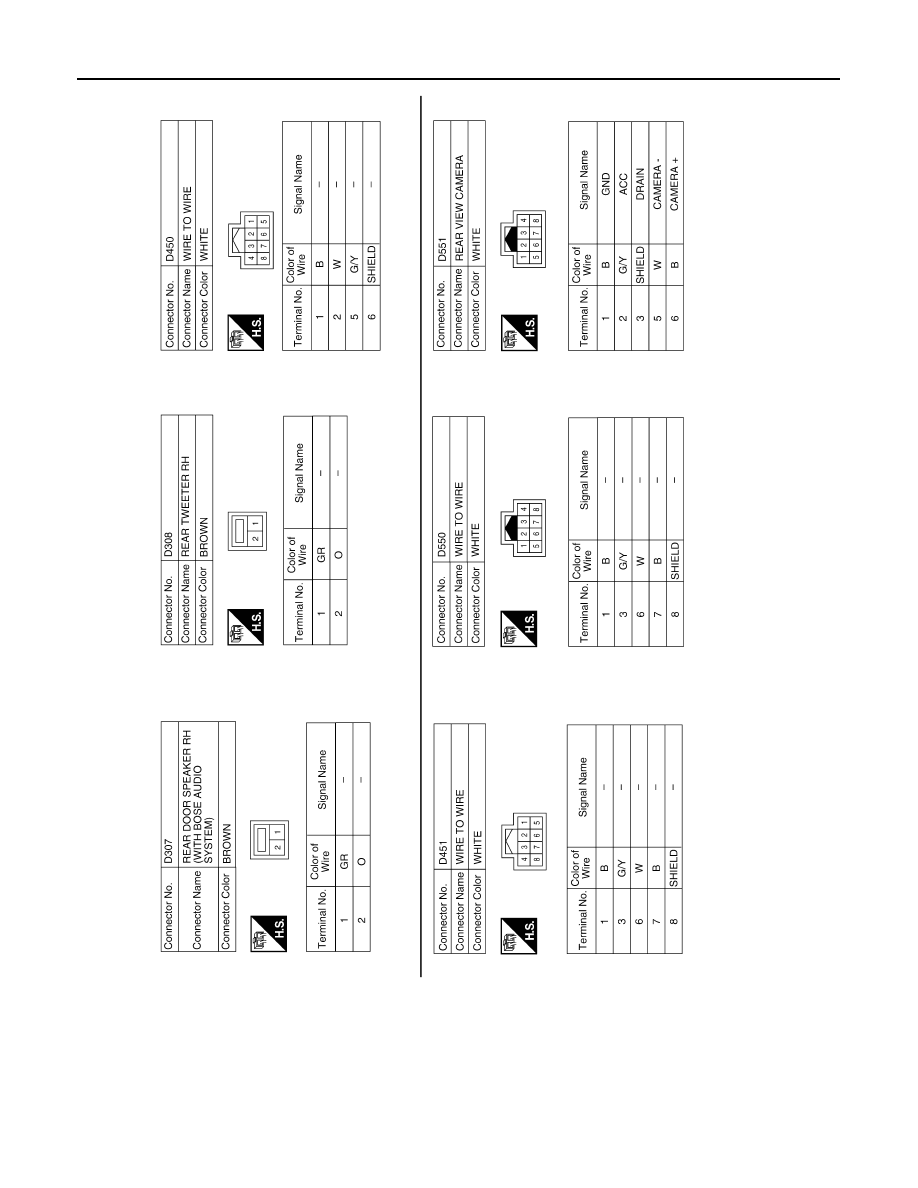

ABNIA2653GB

2011 Pathfinder

AV

MULTI AV SYSTEM

AV-407

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM

Symptom Table

INFOID:0000000006246793

AUDIO SYSTEM

NAVIGATION SYSTEM

HANDS-FREE PHONE SYSTEM

REAR VIEW MONITOR

Symptom

Possible cause

Reference page

Inoperative

• AV control unit power and ground circuit
• AV control unit

•

•

Steering wheel audio control switch does not oper-
ate

• Steering wheel audio control switch
• AV control unit

•

•

All speakers do not sound

• Speaker circuit shorted to ground
• AV control unit power and ground circuit
• BOSE speaker amp. ON signal
• BOSE speaker amp. power and ground circuit
• BOSE speaker amp.
• AV control unit

•

•

•

•

•

•

One or several speakers do not sound

• Front door speaker
• Front tweeter
• Rear tweeter
• Rear door speaker
• Subwoofer

•

•

•

•

•

Buzz/rattle sound from speaker

The majority of buzz/rattle sounds are not indicative of an
issue with the speaker, usually something nearby the
speaker is causing the buzz/rattle.

Refer to "SQUEAK
AND RATTLE
TROUBLE DIAG-
NOSIS" in the ap-
propriate interior
trim section.

Symptom

Possible cause

Reference page

Inoperative

• AV control unit power and ground circuit
• AV control unit

•

•

Steering wheel audio control switch does not oper-
ate

• Steering wheel audio control switch
• AV control unit

•

•

Voice activated control does not operate

• Microphone
• Steering switch
• AV control unit

•

•

•

Symptom

Possible cause

Reference page

Inoperative

• AV control unit power and ground circuit
• AV control unit

•

•

Steering wheel audio control switch does not oper-
ate

• Steering wheel audio control switch
• AV control unit

•

•

Voice activated control does not operate

• Microphone
• Steering switch
• AV control unit

•

•

•

2011 Pathfinder

AV-408

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

DVD PLAYER

Symptom

Possible cause

Reference page

Inoperative

• Rear view camera power and ground circuit
• Camera image signal circuit
• Rear view camera
• AV control unit
• Display unit

•

•

•

•

•

Symptom

Possible cause

Reference page

DVD player inoperative

• Power supply and ground circuits
• DVD player

•

•

No sound when playing a DVD

• Audio signal circuits
• AV control unit
• DVD player

•

•

•

Video monitor is inoperative/does not display properly

• Power supply and ground circuits
• Video out circuit
• DVD player
• Video monitor

•

•

•

•

DVD remote control is inoperative/does not operate
properly

• DVD player
• Video monitor

•

•

Headphones inoperative

• Headphone batteries
• Headphone audio signal circuits from AV control unit
• AV control unit
• Video monitor

•

•

•

2011 Pathfinder

AV

NORMAL OPERATING CONDITION

AV-409

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000006246794

AUDIO SYSTEM

The majority of the audio troubles are the result of outside causes (bad CD, electromagnetic interference,

etc.).

Noise

The following noise results from variations in field strength, such as fading noise and multi-path noise, or

external noise from trains and other sources. It is not a malfunction.

• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-

tains or buildings blocking the signal.

• Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the

antenna at a different time from the waves which reflect off mountains or buildings.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-

tion of each piece of electrical equipment, and determine the cause.

NOTE:

The source of the noise can be found easily by listening to the noise while removing the fuses of electrical

components, one by one.

Type of Noise and Possible Cause

NAVIGATION SYSTEM

Basic Operation

Vehicle Mark

Occurrence condition

Possible cause

Occurs only when engine is ON.

A continuous growling noise occurs. The speed of
the noise varies with changes in the engine speed.

• Ignition components

The occurrence of the noise is linked with the operation of the fuel pump.

• Fuel pump condenser

Noise only occurs when various
electrical components are oper-
ating.

A cracking or snapping sound occurs with the op-
eration of various switches.

• Relay malfunction, audio unit malfunction

The noise occurs when various motors are operat-
ing.

• Motor case ground
• Motor

The noise occurs constantly, not just under certain conditions.

• Rear defogger coil malfunction
• Open circuit in printed heater
• Poor ground of antenna feeder line

A cracking or snapping sound occurs while the vehicle is being driven, especially when
it is vibrating excessively.

• Ground wire of body parts
• Ground due to improper part installation
• Wiring connections or a short circuit

Symptom

Cause

Remedy

No image is shown.

Display brightness adjustment is set fully to DARK
side.

Adjust the display brightness.

No guide sound is heard.
Audio guide volume is too low or
too high.

Volume control is set to OFF, MIN or MAX.

Adjust the audio guide volume.

Audio guidance is not available while the vehicle is
driving on a dark pink route.

System is not malfunctioning.

Screen is too dark.
Motion of the image is too slow.

Temperature inside the vehicle is low.

Wait until the temperature inside the vehicle
reaches the proper temperature.

Small black or bright spots appear
on the screen.

Symptom peculiar to a liquid crystal display (dis-
play unit).

System is not malfunction.

2011 Pathfinder

AV-410

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

Destination, Passing Points and Menu Items Cannot be Selected/Set

Symptom

Cause

Remedy

Map screen and BIRDVIEW™
Name of the place vary with the
screen.

Some thinning of the character data is done to pre-
vent the display becoming to complex. In some
cases and in some locations, the display contents
may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.

System is not malfunctioning.

Vehicle mark is not positioned cor-
rectly.

Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.

Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.

Screen will not switch to nighttime
mode after the lighting switch is
turned ON.

The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function.

Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.

Map screen will not scroll in accor-
dance with the vehicle travel.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Vehicle mark will not be shown.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.

GPS satellite signal is intercepted because the ve-
hicle is in or behind a building.

Move the vehicle out to an open space.

GPS satellite signal cannot be received because
an obstacle is placed on top of the instrument pan-
el.

Do not place anything on top of the meter dis-
play (instrument panel).

GPS satellites are not visible from current location. Wait until GPS satellites are visible by mov-

ing the vehicle.

Vehicle location accuracy is low.

Accuracy indicator (GPS satellite mark) on the
map screen stays gray.

Current location is not determined.

Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is fit-
ted or the system has been used on another vehi-
cle.

Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h (19 MPH)] and
the deviation will be automatically adjusted. If
advancement or retard still occur, perform
the distance adjustment by CONFIRMA-
TION/ADJUSTMENT mode of diagnosis
function.

Map data has error or omission. (Vehicle mark is
always deviated to the same position.)

As a rule, an updated map DVD–ROM will be
released once a year.

Symptom

Cause

Remedy

Destination cannot be set.

Destination to be set is on an expressway.

Set the destination on an ordinary road.

Passing point is not searched
when re-searching the route.

The vehicle has already passed the passing point,
or the system judged so.

To include the passing points that have been
passed into the route again, set the route
again.

Route information will not be dis-
played.

Route searching has not been done.

Set the destination and perform route
searching.

Vehicle mark is not on the recommended route.

Drive on the recommended route.

Route guide is turned OFF.

Turn route guide ON.

Route information is not available on the dark pink
route.

System is not malfunctioning.

After the route searching, no guide
sign will appear as the vehicle
goes near the entrance/exit to the
toll road.

Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the rec-
ommended route will be shown.)

Drive on the recommended route.

2011 Pathfinder
