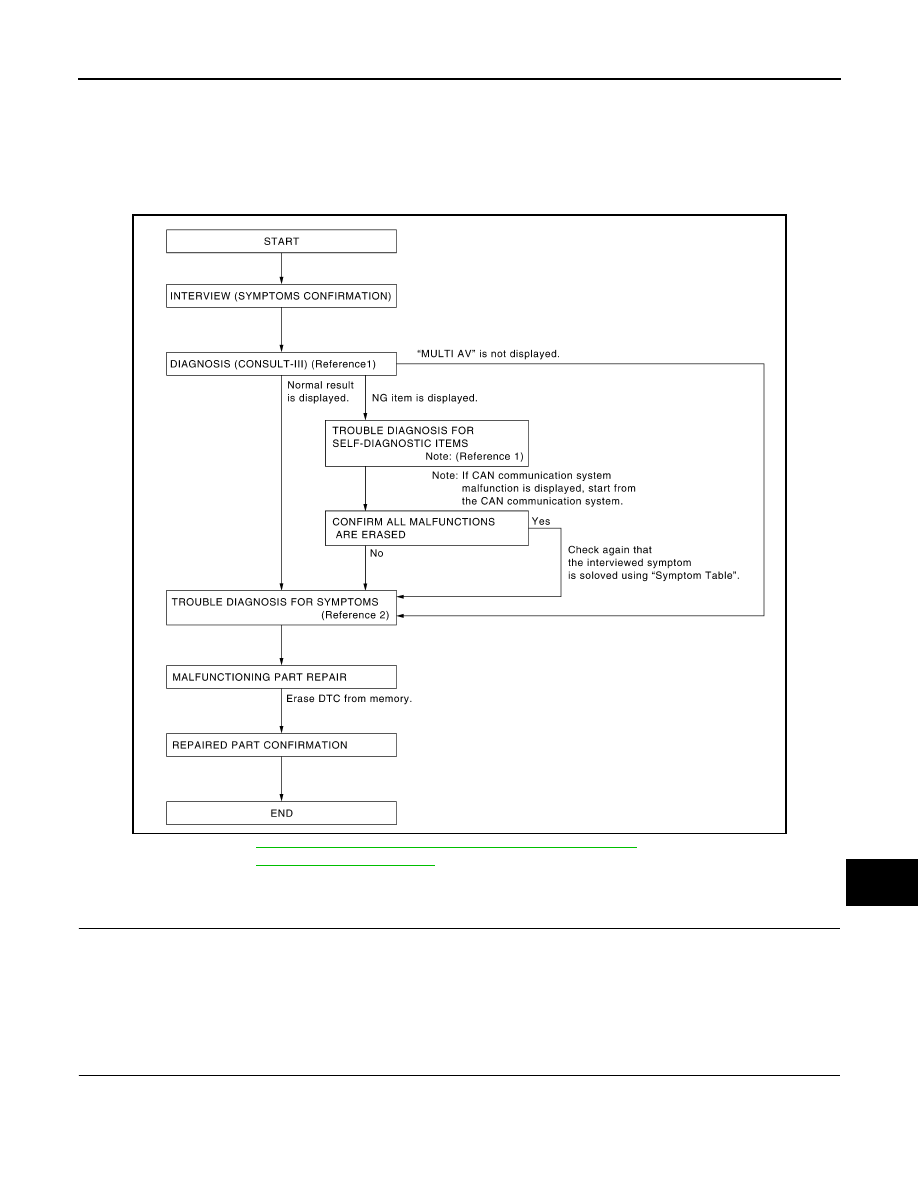

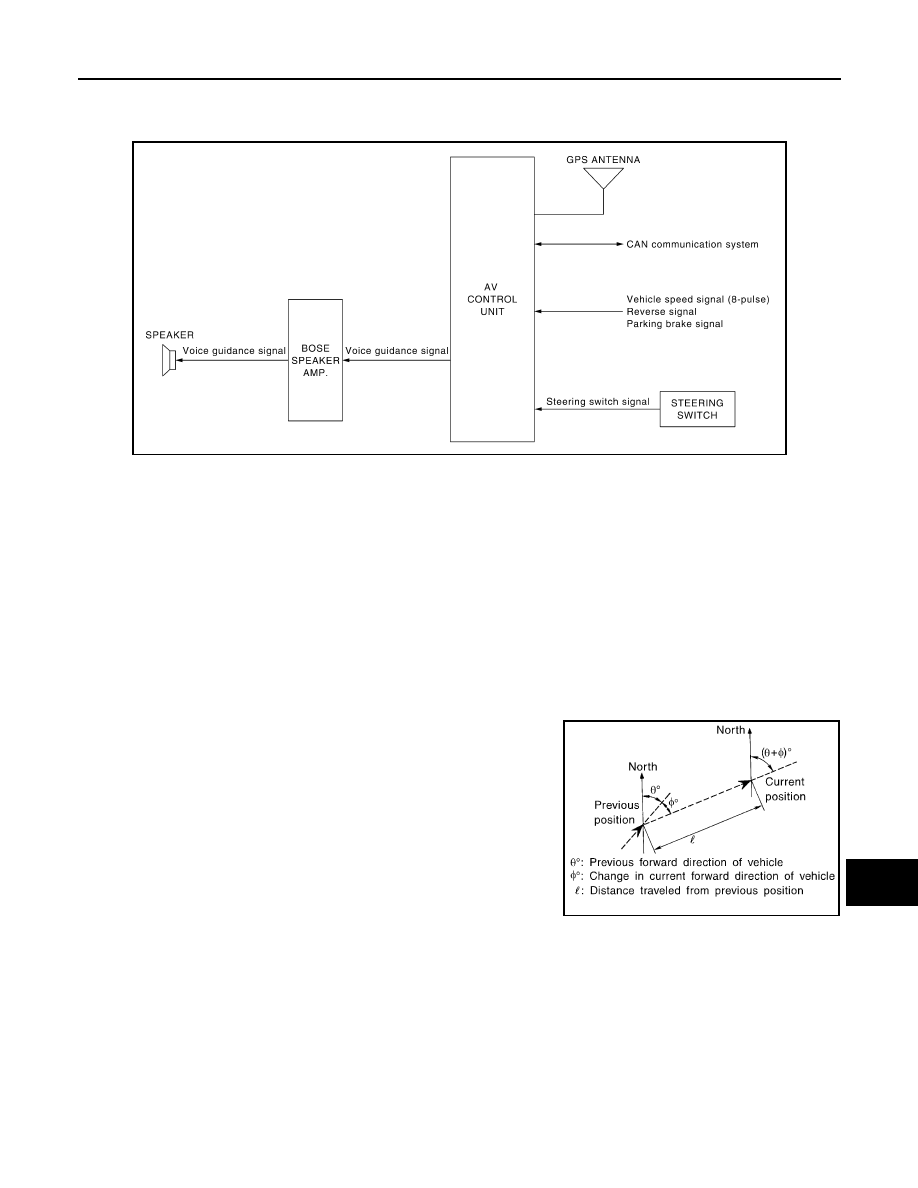

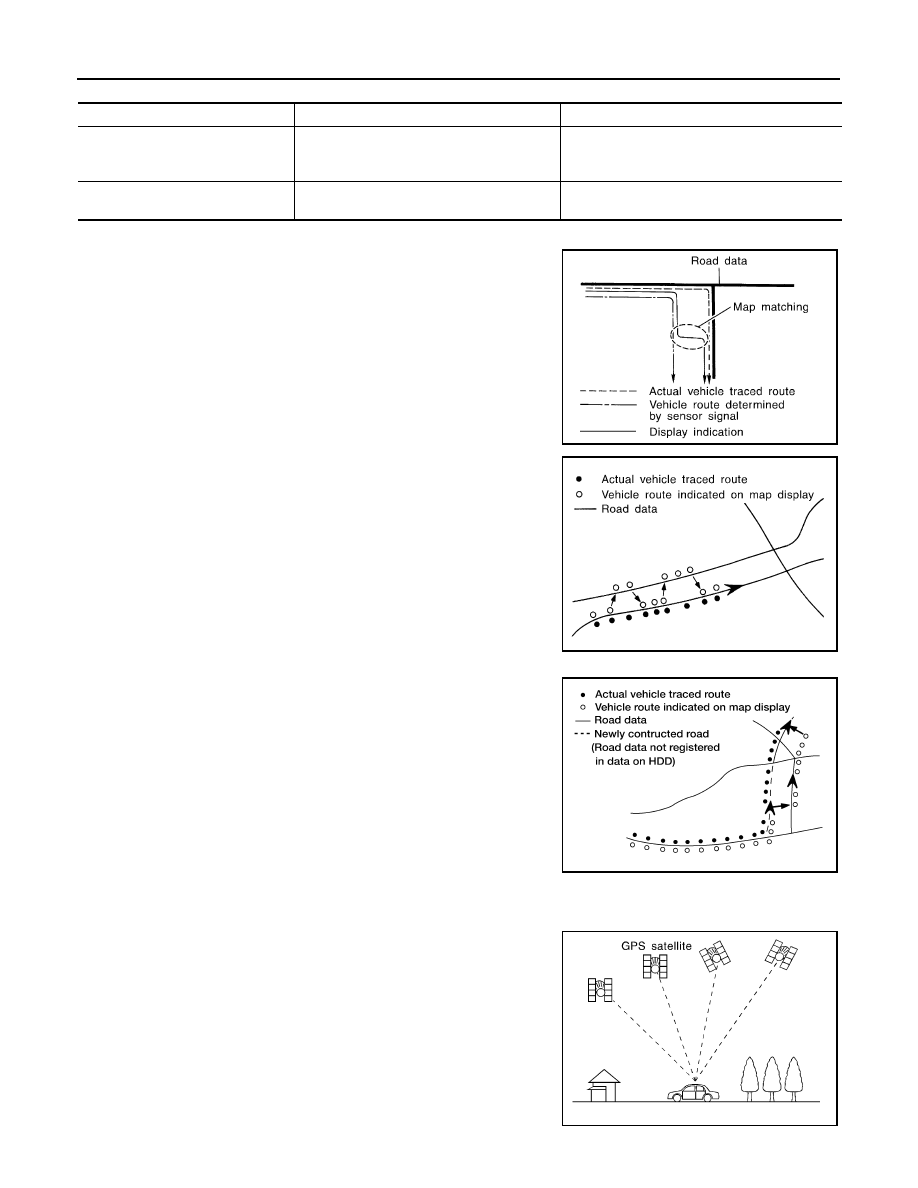

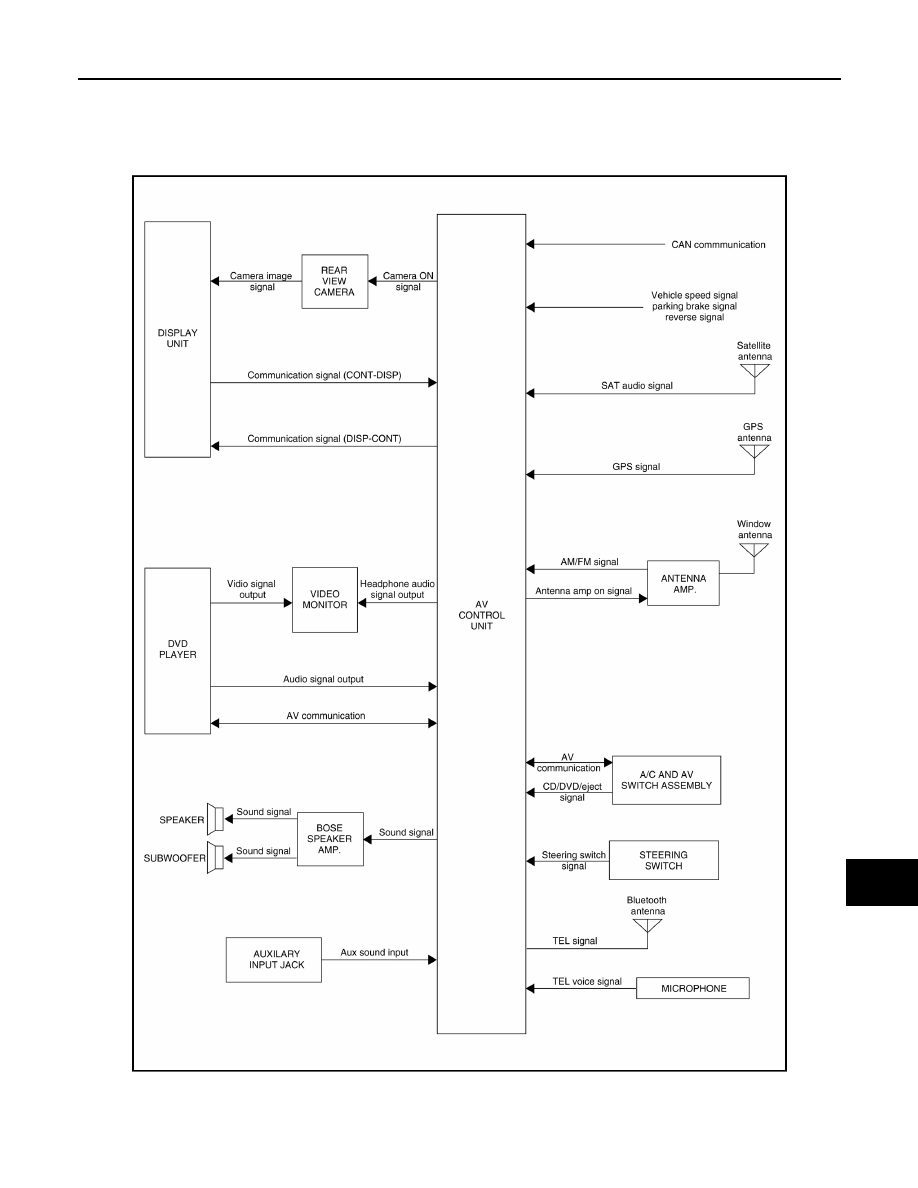

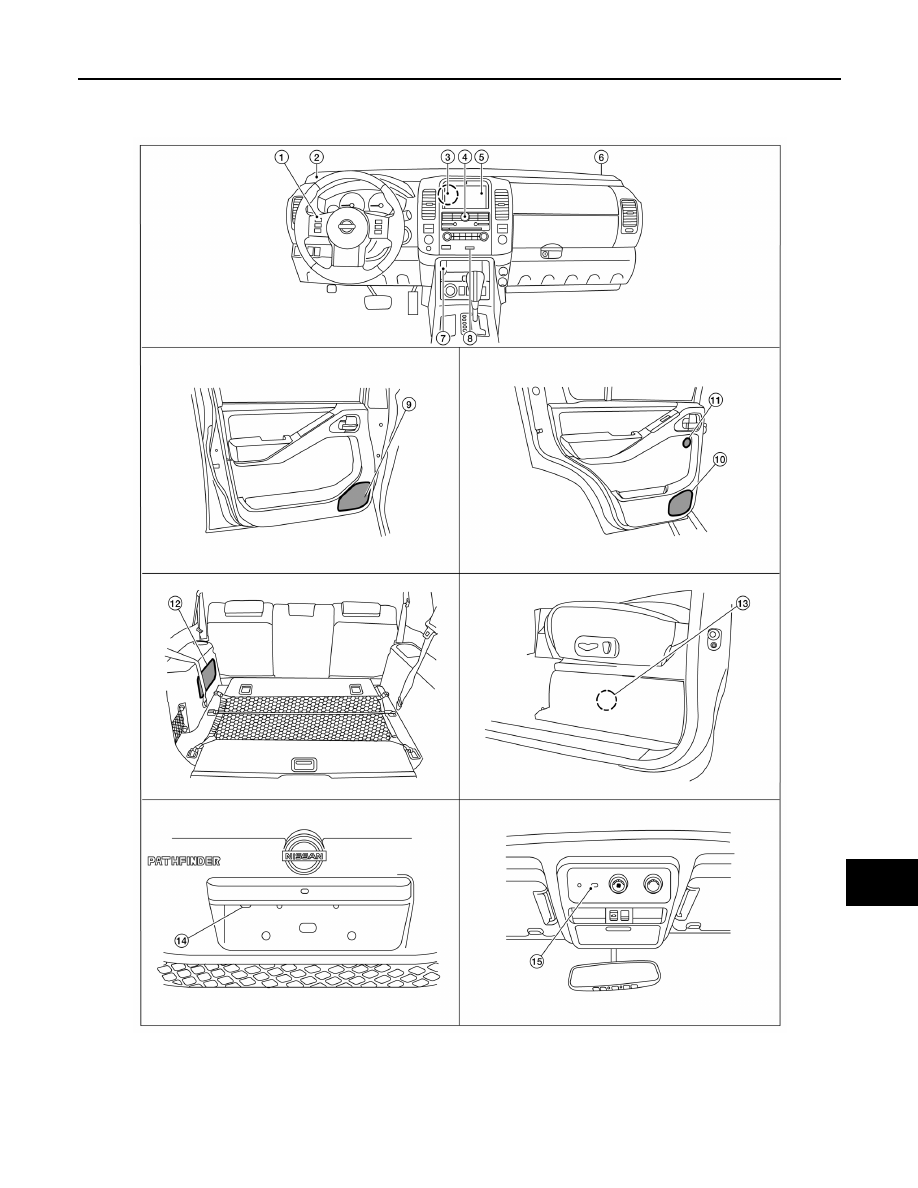

AV DIAGNOSIS AND REPAIR WORKFLOW AV-275 < BASIC INSPECTION > [BOSE AUDIO WITH NAVIGATION] C D E F G H I J K L M B A O P BASIC INSPECTION DIAGNOSIS AND REPAIR WORKFLOW Work Flow INFOID:0000000006246666 OVERALL SEQUENCE • Reference 1··· Refer to AV-306, "AV CONTROL UNIT : CONSULT-III Function" . • Reference 2··· Refer to DETAILED FLOW 1. CHECK SYMPTOM Check the malfunction symptoms by performing the following items. • Interview the customer to obtain the malfunction information (conditions and environment when the malfunc- tion occurred). • Check the symptom. >> GO TO 2 2. SELF-DIAGNOSIS (CONSULT-III) 1. Connect CONSULT-III and perform “SELF-DIAGNOSIS” for “MULTI AV”. NOTE: Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed. 2. Check if any DTC No. is displayed in the self-diagnosis results. AWNIA0030GB 2011 Pathfinder |
