Nissan Pathfinder (2011 year). Manual - part 47

AV

SUBWOOFER

AV-195

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

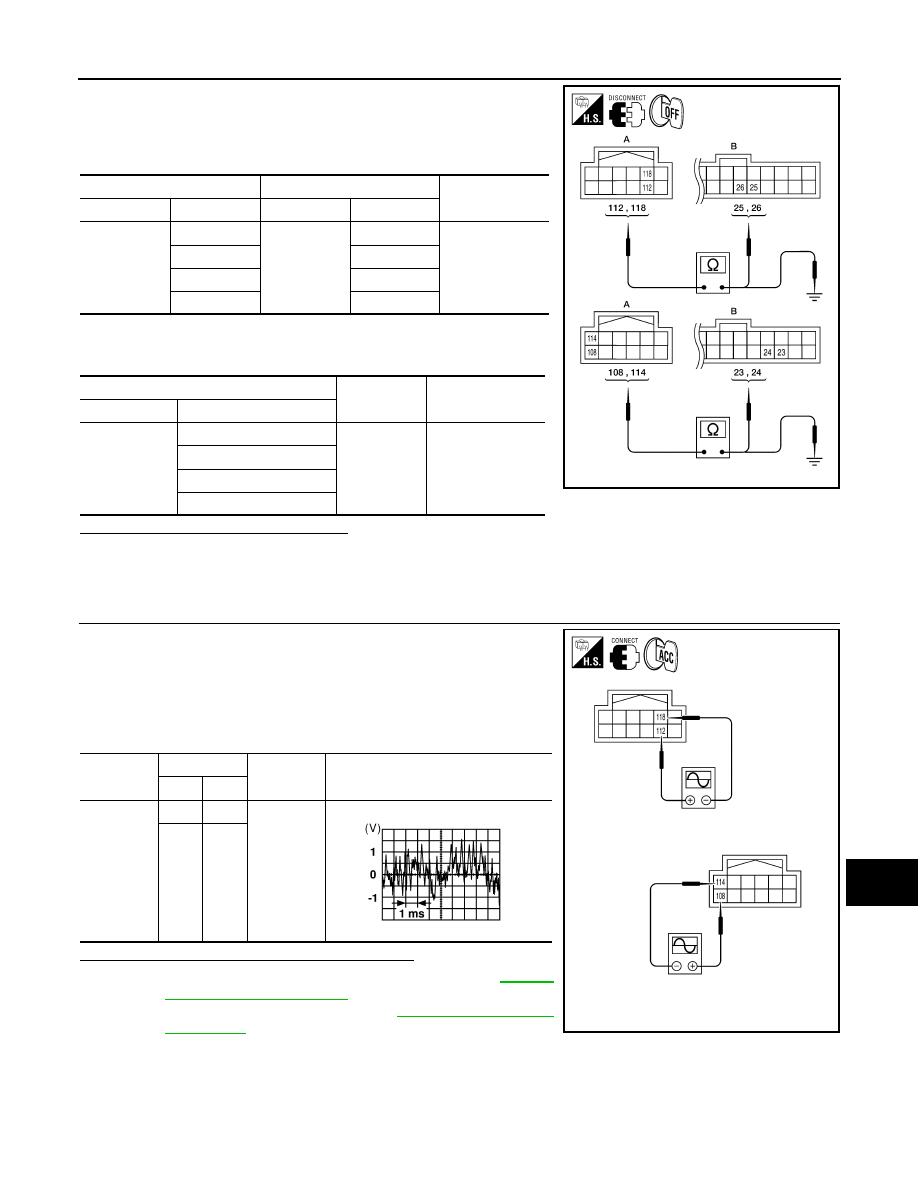

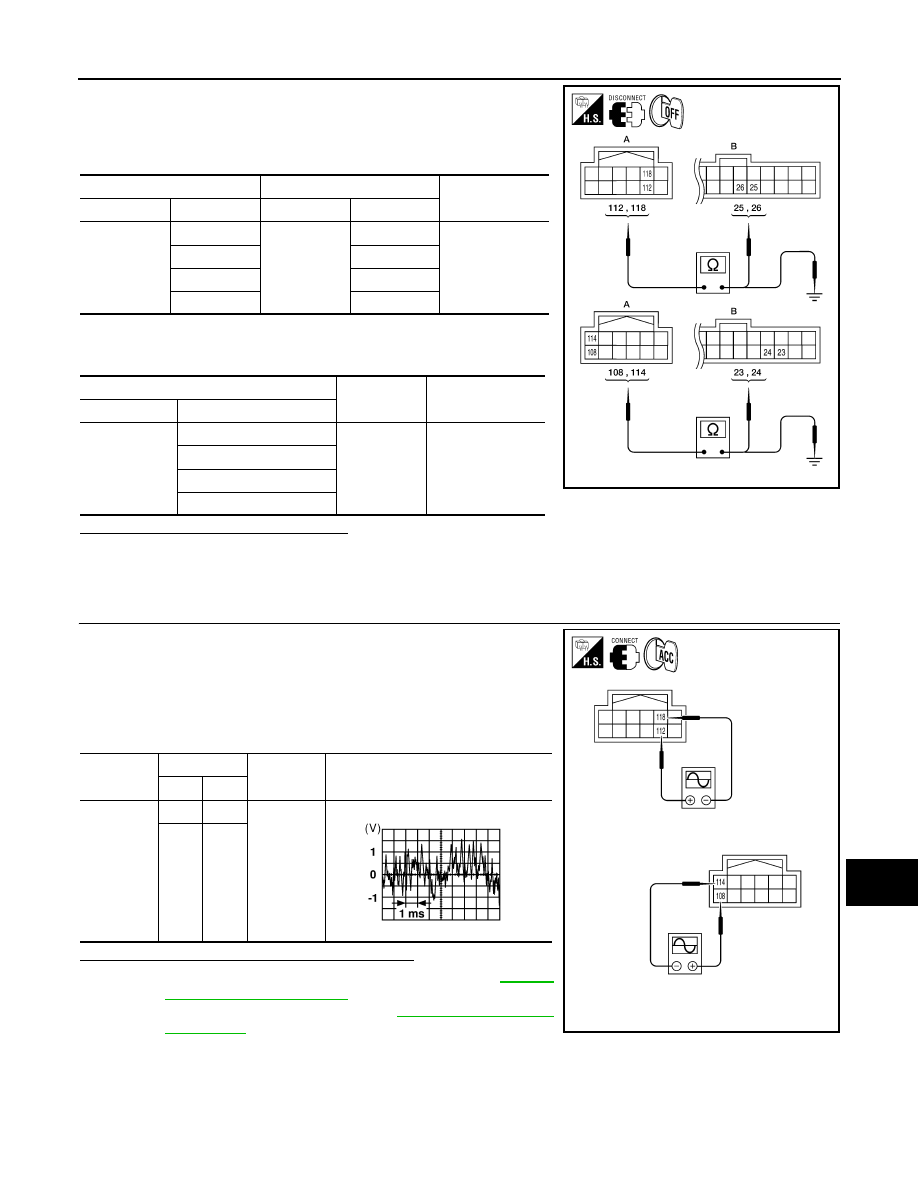

2. Disconnect AV control unit connector M69 and BOSE speaker

amp. connector B75.

3. Check continuity between AV control unit harness connector

M69 (A) and BOSE speaker amp. harness connector B75 (B).

4. Check continuity between AV control unit harness connector

M69 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 7.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

7.

BACK DOOR SPEAKER SIGNAL CHECK

1. Connect AV control unit connector M69 and BOSE speaker

amp. connector B75.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M69 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-265,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-256, "Removal and

Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M69

112

B75

26

Yes

118

25

108

24

114

23

A

—

Continuity

Connector

Terminal

M69

112

Ground

No

118

108

114

ALNIA0538GB

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M69

112

118

Receive
audio sig-
nal

108

114

ALNIA0356GB

SKIA0177E

2011 Pathfinder

AV-196

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

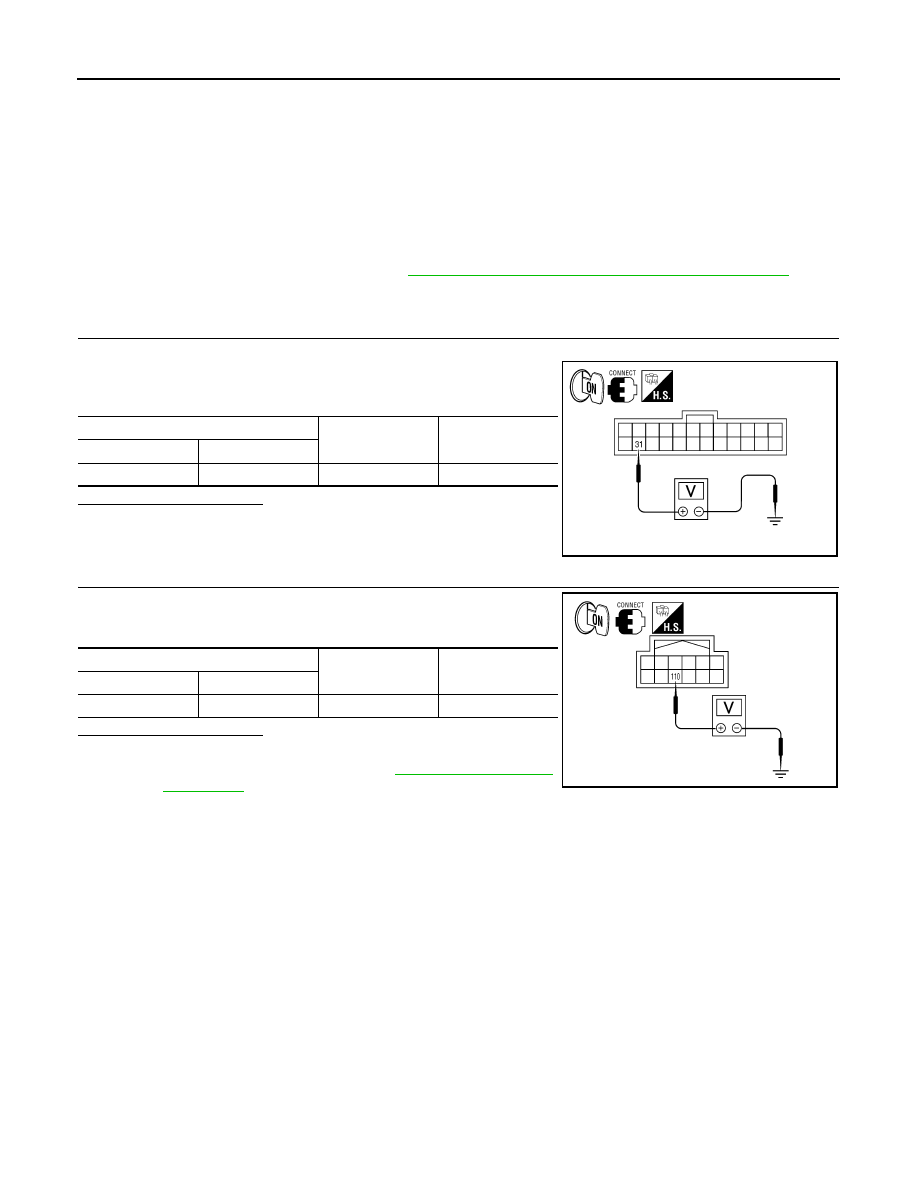

AMP ON SIGNAL CIRCUIT

AMP ON SIGNAL CIRCUIT

Description

INFOID:0000000006246620

When the audio system is turned on, a voltage signal is supplied from the AV control unit to the BOSE speaker

amp. When this signal is received, the BOSE speaker amp. will turn on.

Diagnosis Procedure

INFOID:0000000006246621

Regarding Wiring Diagram information, refer to

AV-226, "Wiring Diagram - Without Navigation System"

.

1.

CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)

1. Turn audio system ON.

2. Check voltage between BOSE speaker amp. harness connector

B75 terminal 31 and ground.

Is battery voltage present?

YES

>> Inspection End.

NO

>> GO TO 2

2.

CHECK AMP ON SIGNAL (AV CONTROL UNIT)

Check voltage between AV control unit harness connector M69 ter-

minal 110 and ground.

Is battery voltage present?

YES

>> Repair harness or connector.

NO

>> Replace AV control unit. Refer to

AV-256, "Removal and

Installation"

.

(+)

(-)

Value (Approx.)

Connector

Terminal

B75

31

Ground

Battery Voltage

ALNIA0539GB

(+)

(-)

Value (Approx.)

Connector

Terminal

M69

110

Ground

Battery Voltage

ALNIA0370GB

2011 Pathfinder

AV

STEERING SWITCH

AV-197

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

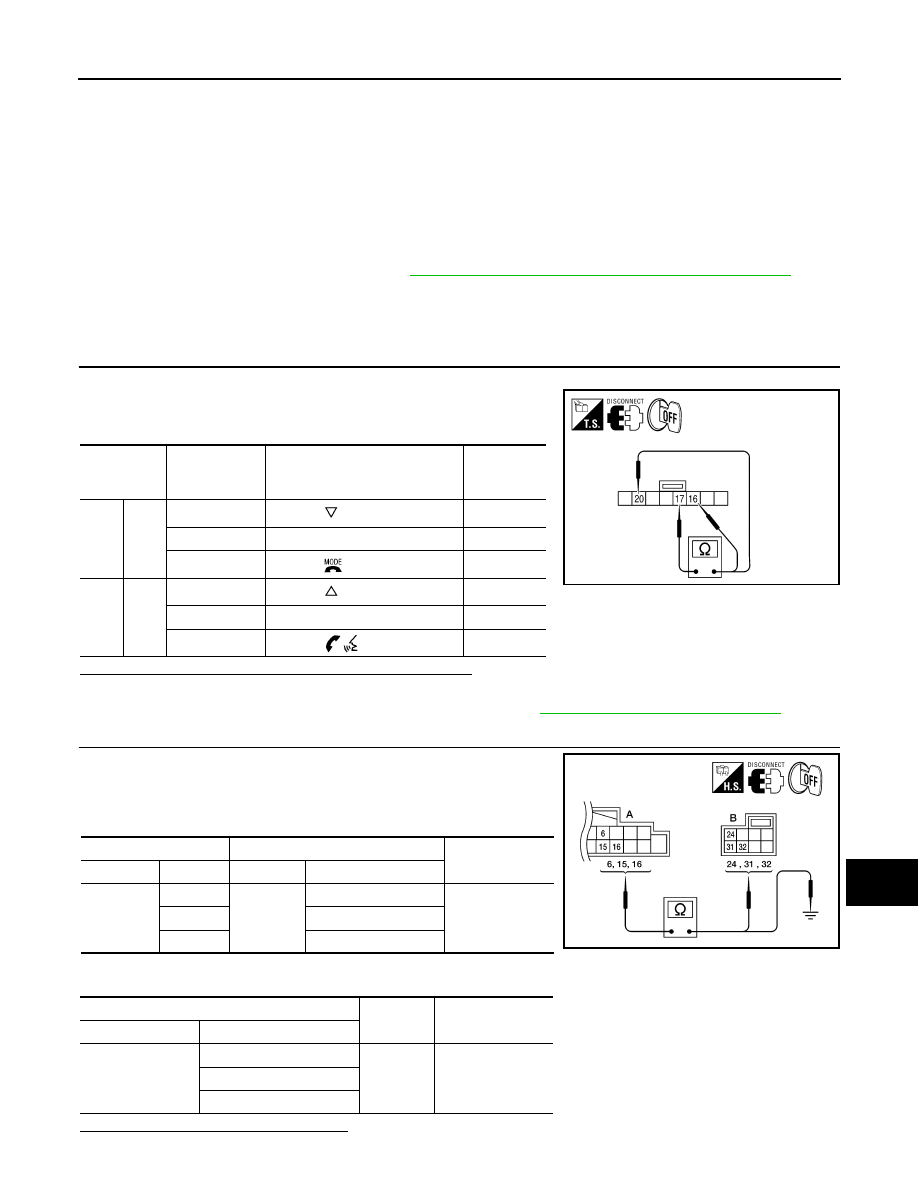

STEERING SWITCH

Description

INFOID:0000000006246622

When one of the steering wheel AV control switches is pushed, the resistance in the steering wheel AV control

switch circuit changes depending on which button is pushed.

Diagnosis Procedure

INFOID:0000000006246623

Regarding Wiring Diagram information, refer to

AV-226, "Wiring Diagram - Without Navigation System"

.

1.

CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE

1. Turn ignition switch OFF.

2. Disconnect steering wheel audio control switch connector M102.

3. Check resistance between steering switch connector terminals.

Do the steering wheel audio control switches check OK?

YES

>> GO TO 2

NO

>> Replace steering wheel audio control switch. Refer to

AV-262, "Removal and Installation"

.

2.

CHECK HARNESS

1. Disconnect AV control unit connector M42 and spiral cable con-

nector M30.

2. Check continuity between AV control unit harness connector

M42 (A) and spiral cable harness connector M30 (B).

3. Check continuity between AV control unit connector M42 (A) and ground.

Are the continuity results as specified?

Terminal

Signal name

Condition

Resistance

(

Ω

)

(Approx.)

16

17

Seek (down)

Depress

switch.

165

Volume (down)

Depress VOL down switch.

652

Mode/End

Depress

switch.

0

20

17

Seek (up)

Depress

switch.

165

Volume (up)

Depress VOL up switch.

652

Phone/Send

Depress

switch.

0

WKIA4457E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

6

M30

24

Yes

15

31

16

32

A

—

Continuity

Connector

Terminal

M42

6

Ground

No

15

16

ALNIA0332GB

2011 Pathfinder

AV-198

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

YES

>> GO TO 3

NO

>> Repair harness.

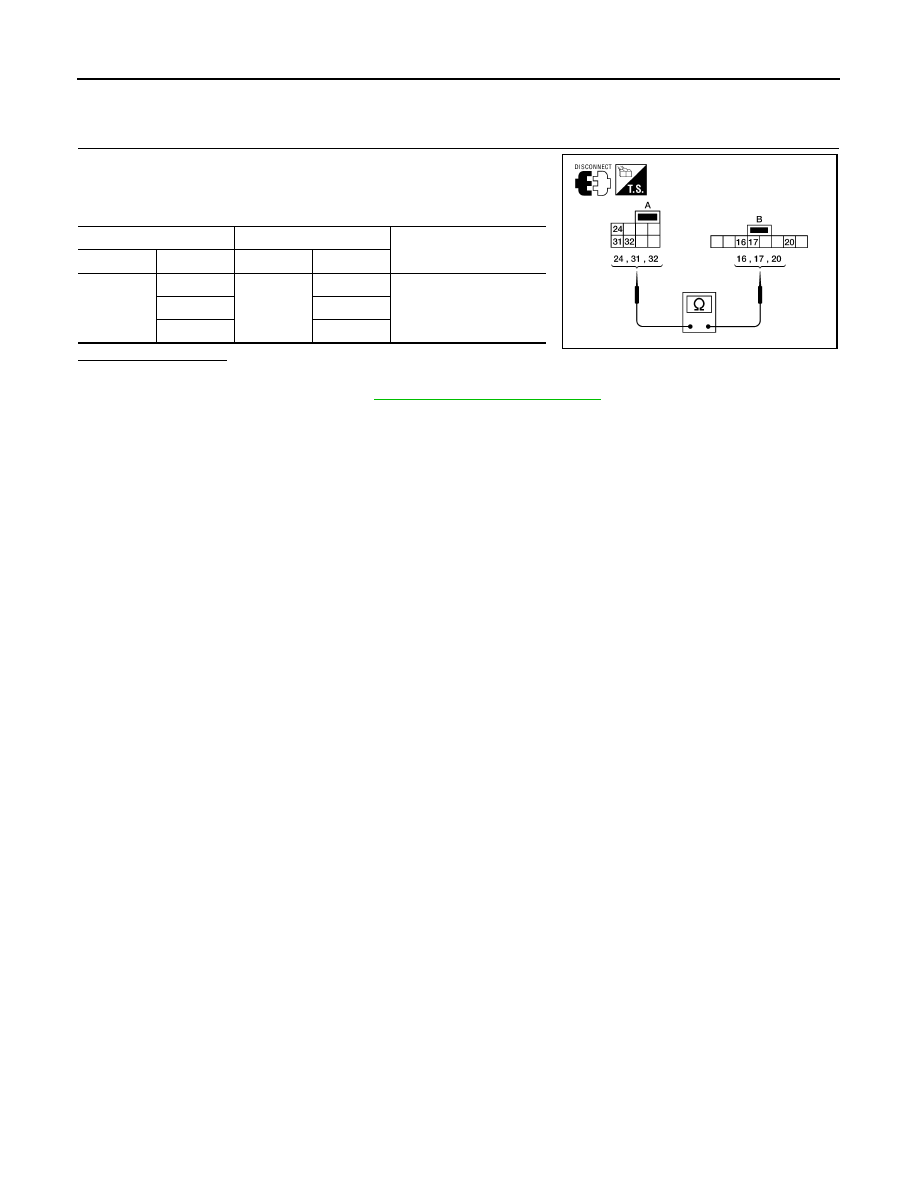

3.

SPIRAL CABLE CHECK

1. Disconnect spiral cable connector M102.

2. Check continuity between spiral cable harness connector M30

(A) and M102 (B).

Is continuity present?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

SR-7, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M102

20

Yes

31

17

32

16

AWLIA1602ZZ

2011 Pathfinder

AV

COMMUNICATION SIGNAL CIRCUIT

AV-199

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

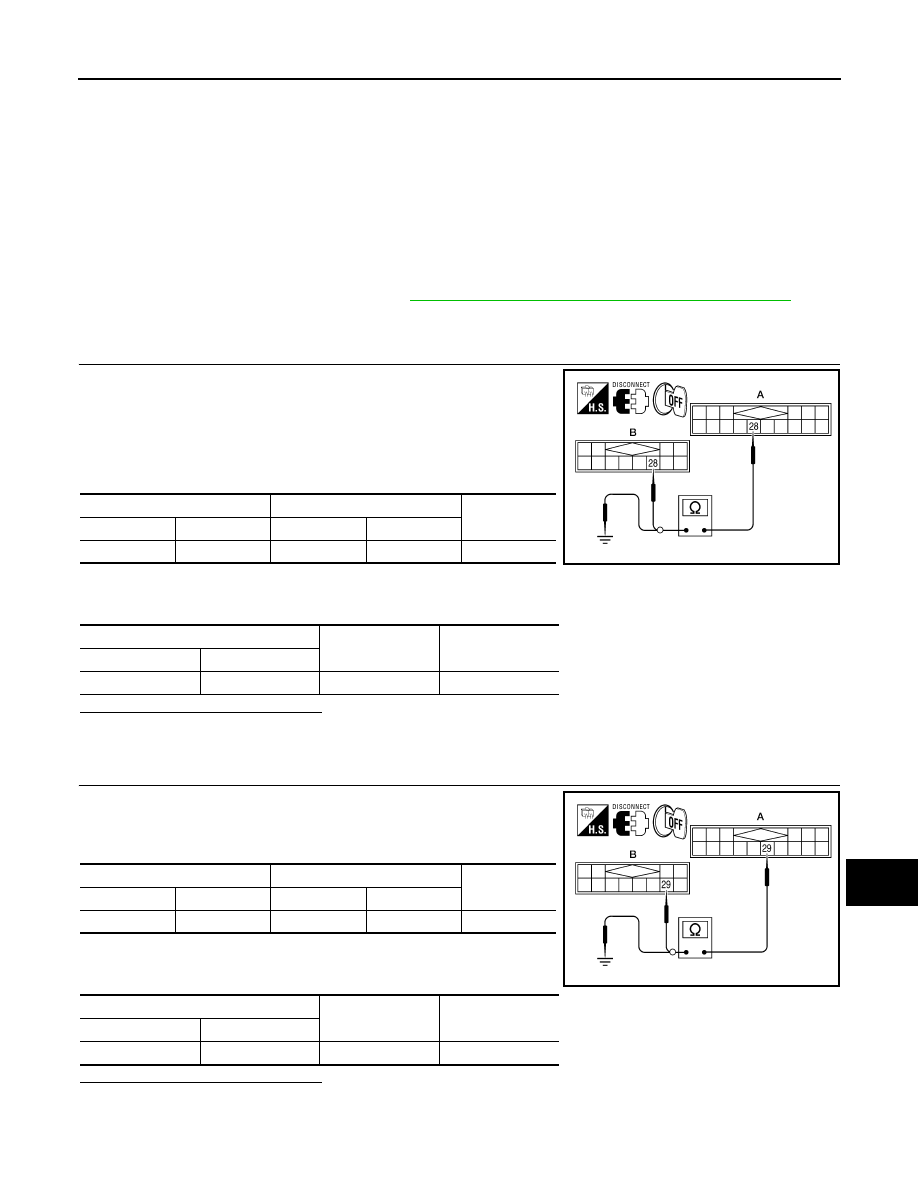

COMMUNICATION SIGNAL CIRCUIT

SATELLITE RADIO TUNER
SATELLITE RADIO TUNER : Description

INFOID:0000000006246624

Communication signals are exchanged between the AV control unit and satellite radio tuner using the commu-

nication circuits.

SATELLITE RADIO TUNER : Diagnosis Procedure

INFOID:0000000006246625

Regarding Wiring Diagram information, refer to

AV-226, "Wiring Diagram - Without Navigation System"

.

1.

CHECK HARNESS - 1

1. Turn ignition switch OFF.

2. Disconnect satellite radio tuner (factory installed) connector M41

and AV control unit connector M136.

3. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 28 and AV control unit har-

ness connector M136 (B) terminal 28.

4. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 28 and ground.

Are continuity results as specified?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK HARNESS - 2

1. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 29 and AV control unit har-

ness connector M136 (B) terminal 29.

2. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 29 and ground.

Are continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

28

M136

28

Yes

A

—

Continuity

Connector

Terminal

M41

28

Ground

No

ALNIA0334GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

29

M136

29

Yes

A

—

Continuity

Connector

Terminal

M41

29

Ground

No

ALNIA0867GB

2011 Pathfinder

AV-200

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

COMMUNICATION SIGNAL CIRCUIT

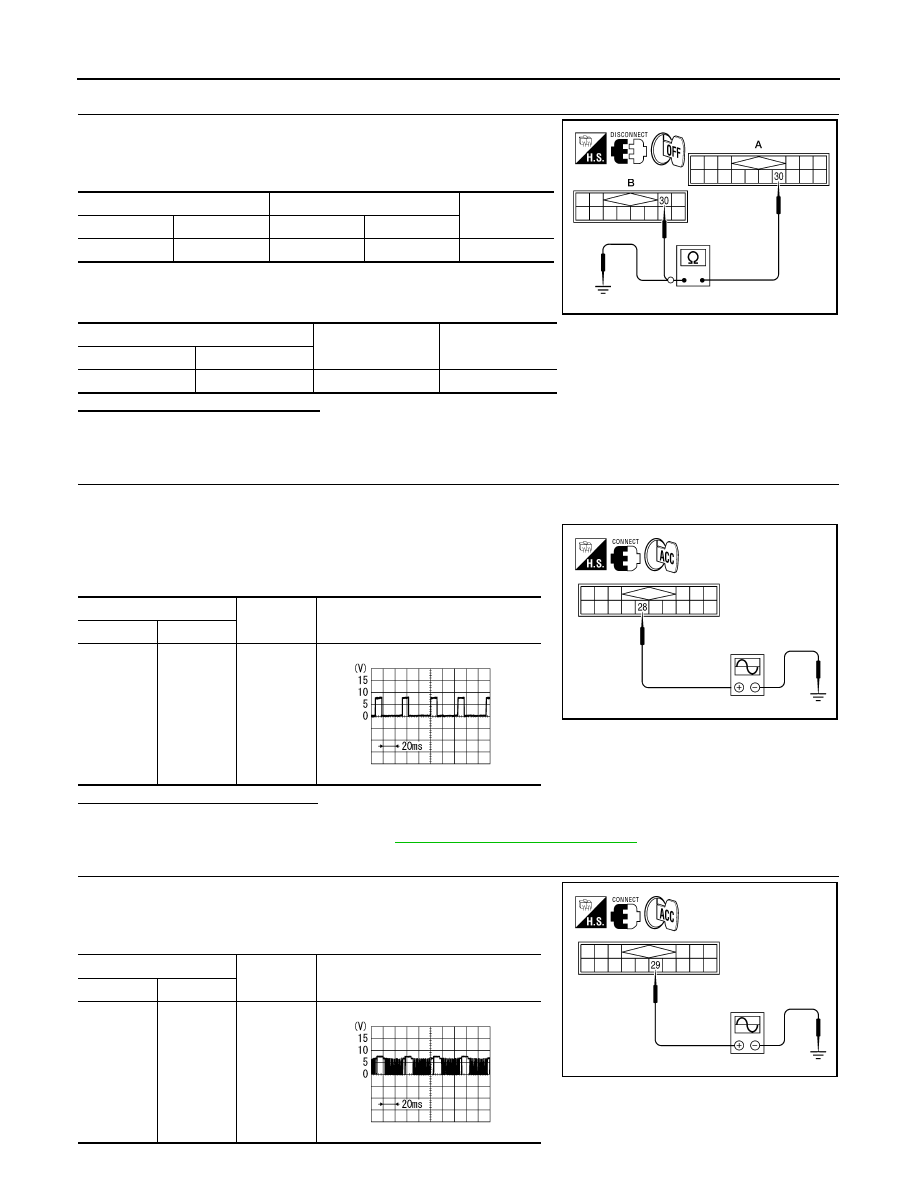

3.

CHECK HARNESS - 3

1. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 30 and AV control unit har-

ness connector M136 (B) terminal 30.

2. Check continuity between satellite radio tuner (factory installed)

harness connector M41 (A) terminal 30 and ground.

Are continuity results as specified?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK REQ1 SIGNAL

1. Connect satellite radio tuner (factory installed) connector and AV control unit connector.

2. Turn ignition switch to ACC

3. Check signal between satellite radio tuner (factory installed) har-

ness connector M41 terminal 28 and ground with CONSULT-III

or oscilloscope.

Are voltage readings as specified?

YES

>> GO TO 5

NO

>> Replace AV control unit. Refer to

AV-256, "Removal and Installation"

.

5.

CHECK TXD SIGNAL

Check signal between satellite radio tuner (factory installed) harness

connector M41 terminal 29 and ground with CONSULT-III or oscillo-

scope.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

30

M136

30

Yes

A

—

Continuity

Connector

Terminal

M41

30

Ground

No

ALNIA0877GB

(+)

(-)

Reference signal

Connector

Terminal

M41

28

Ground

WKIA4544E

SKIB3825E

(+)

(-)

Reference signal

Connector

Terminal

M41

29

Ground

WKIA4545E

SKIB3824E

2011 Pathfinder

AV

COMMUNICATION SIGNAL CIRCUIT

AV-201

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

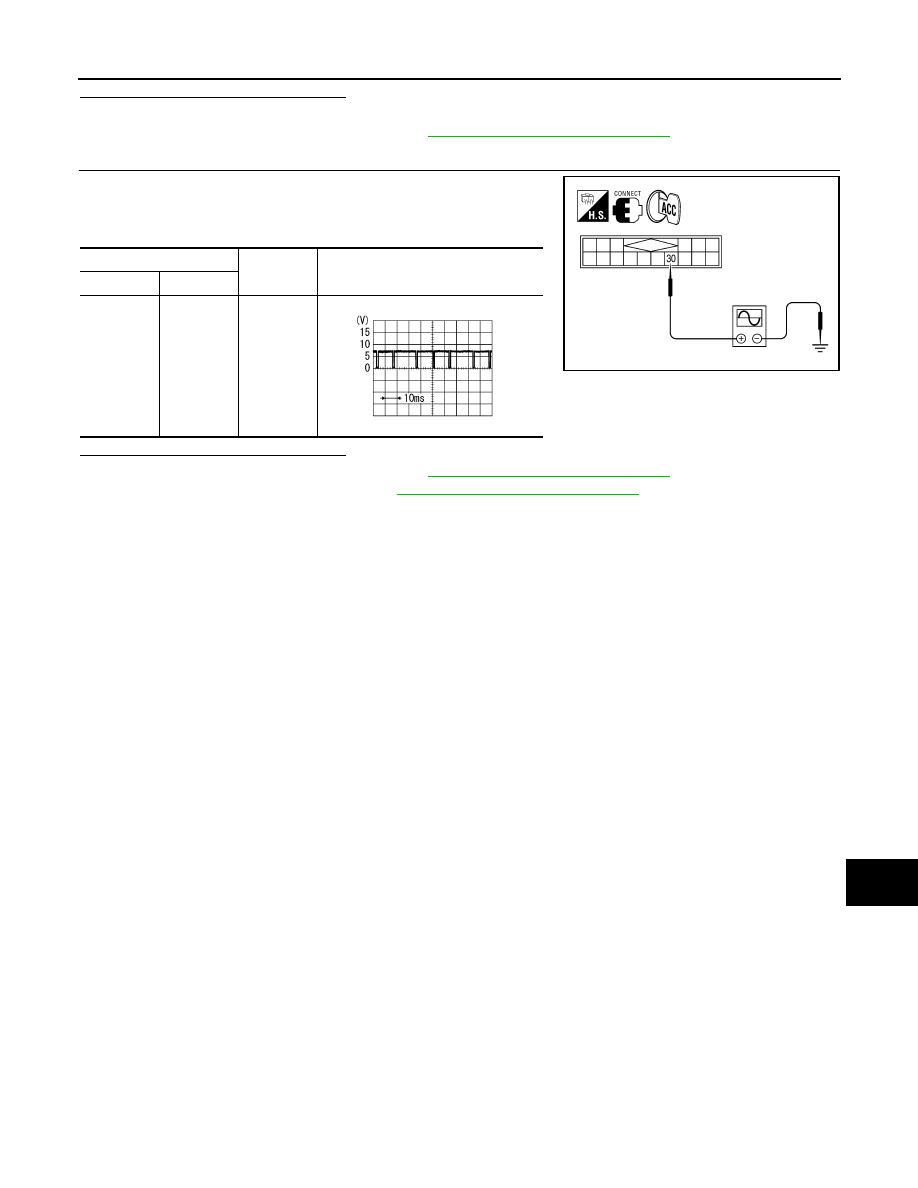

Are the voltage readings as specified?

YES

>> GO TO 6

NO

>> Replace satellite radio tuner. Refer to

AV-273, "Removal and Installation"

.

6.

CHECK RXD SIGNAL

Check signal between satellite radio tuner (factory installed) harness

connector M41 terminal 30 and ground with CONSULT-III or oscillo-

scope.

Are the voltage readings as specified?

YES

>> Replace satellite radio tuner. Refer to

AV-273, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-256, "Removal and Installation"

.

(+)

(-)

Reference signal

Connector

Terminal

M41

30

Ground

WKIA4546E

SKIB3826E

2011 Pathfinder

AV-202

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

SOUND SIGNAL CIRCUIT

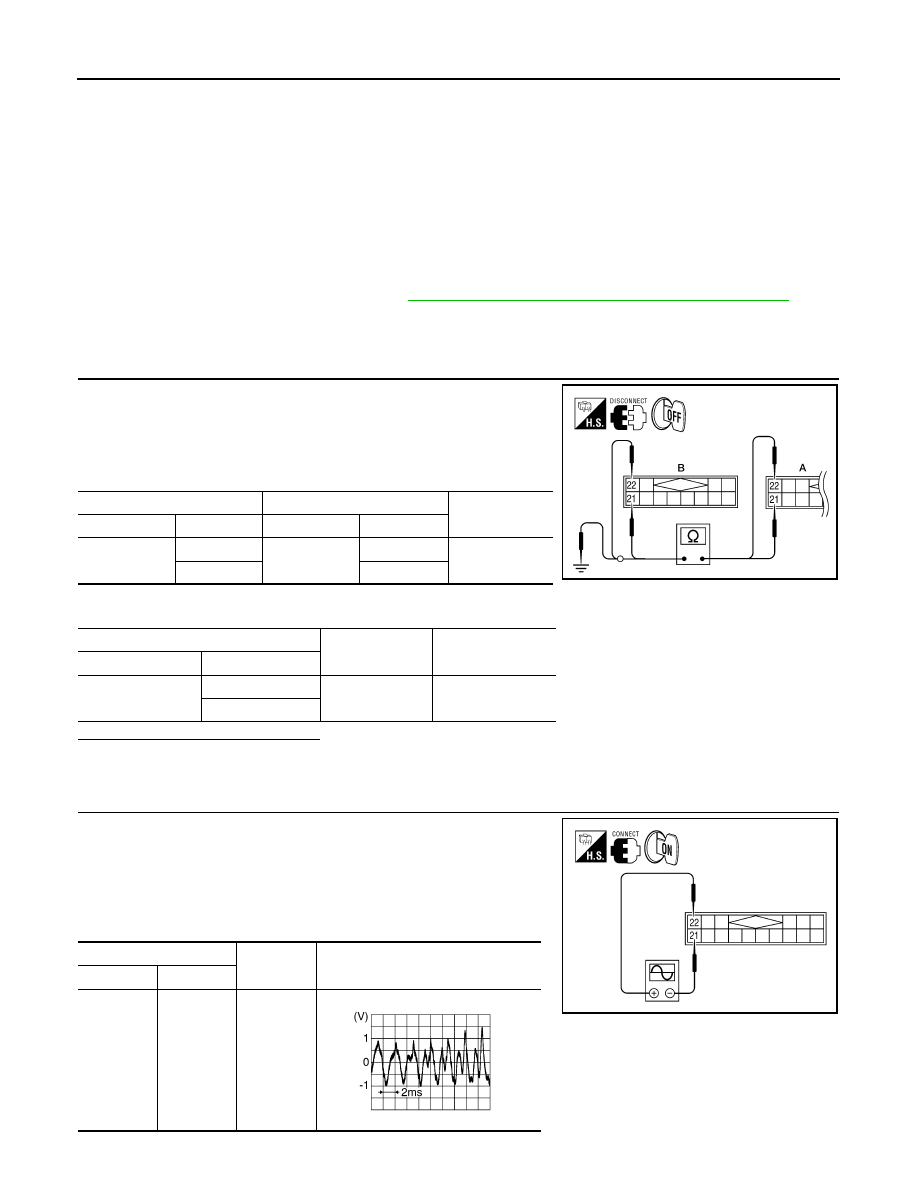

SOUND SIGNAL CIRCUIT

SATELLITE RADIO TUNER
SATELLITE RADIO TUNER : Description

INFOID:0000000006246626

Left and right channel audio signals are supplied from the satellite radio tuner to the AV control unit through

the sound signal circuits.

SATELLITE RADIO TUNER : Diagnosis Procedure

INFOID:0000000006246627

Regarding Wiring Diagram information, refer to

AV-226, "Wiring Diagram - Without Navigation System"

.

LEFT CHANNEL

1.

CHECK HARNESS

1. Turn ignition switch OFF.

2. Disconnect satellite radio tuner (factory installed) connector M41

and AV control unit connector M136.

3. Check continuity between satellite radio tuner (factory installed)

connector M41 (A)  and AV control unit connector M136 (B).

4. Check continuity between satellite radio tuner (factory installed) connector M41 (A) and ground.

Are continuity results as specified?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK LEFT CHANNEL AUDIO SIGNAL

1. Connect satellite radio tuner (factory installed) and AV control

unit.

2. Turn ignition switch ON.

3. Check signal between satellite radio tuner (factory installed)

connector M41 terminals 21 and 22 with CONSULT-III or oscillo-

scope.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

21

M43

21

Yes

22

22

A

—

Continuity

Connector

Terminal

M41

21

Ground

No

22

ALNIA0337GB

(+)

(-)

Reference signal

Connector

Terminal

M41

22

21

ALNIA0880GB

SKIB3609E

2011 Pathfinder
