AV

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

AV-75

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

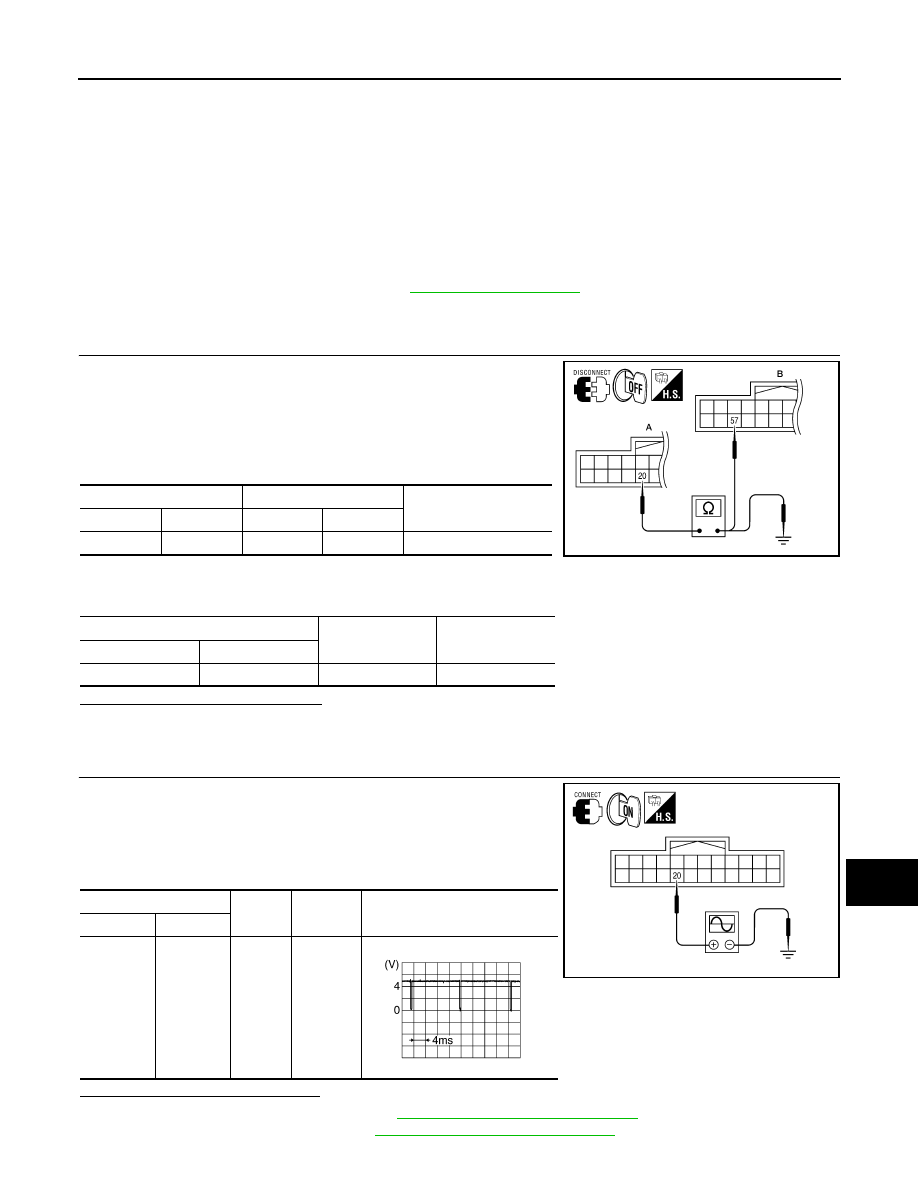

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

Description

INFOID:0000000006246496

In composite image (AUX image, camera image), transmit the vertical synchronizing (VP) signal and horizon-

tal synchronizing (HP) signal from display unit to AV control unit so as to synchronize the RGB images dis-

played with AV control unit such as the image quality adjusting menu, etc.

Diagnosis Procedure

INFOID:0000000006246497

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CHECK CONTINUITY VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect display unit connector M93 and AV control unit con-

nector M133.

3. Check continuity between display unit harness connector M93

(A) terminal 20 and AV control unit harness connector M133 (B)

terminal 57.

4. Check continuity between display unit harness connector M93

(A) terminal 20 and ground.

Are continuity results as specified?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK VERTICAL SYNCHRONIZING (VP) SIGNAL

1. Connect display unit connector M93 and AV control unit connec-

tor M133.

2. Turn ignition switch ON.

3. Check signal between display unit harness connector M93 ter-

minal 20 and ground.

Are voltage readings as specified?

YES

>> Replace AV control unit. Refer to

AV-113, "Removal and Installation"

.

NO

>> Replace display unit. Refer to

AV-115, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M93

20

M133

57

Yes

A

—

Continuity

Connector

Terminal

M93

20

Ground

No

ALNIA0392GB

(+)

(-)

Condition

Reference signal

Connector

Terminal

M93

20

Ground

Receive
audio sig-
nal

ALNIA0393GB

SKIB3598E

2011 Pathfinder

AV-76

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

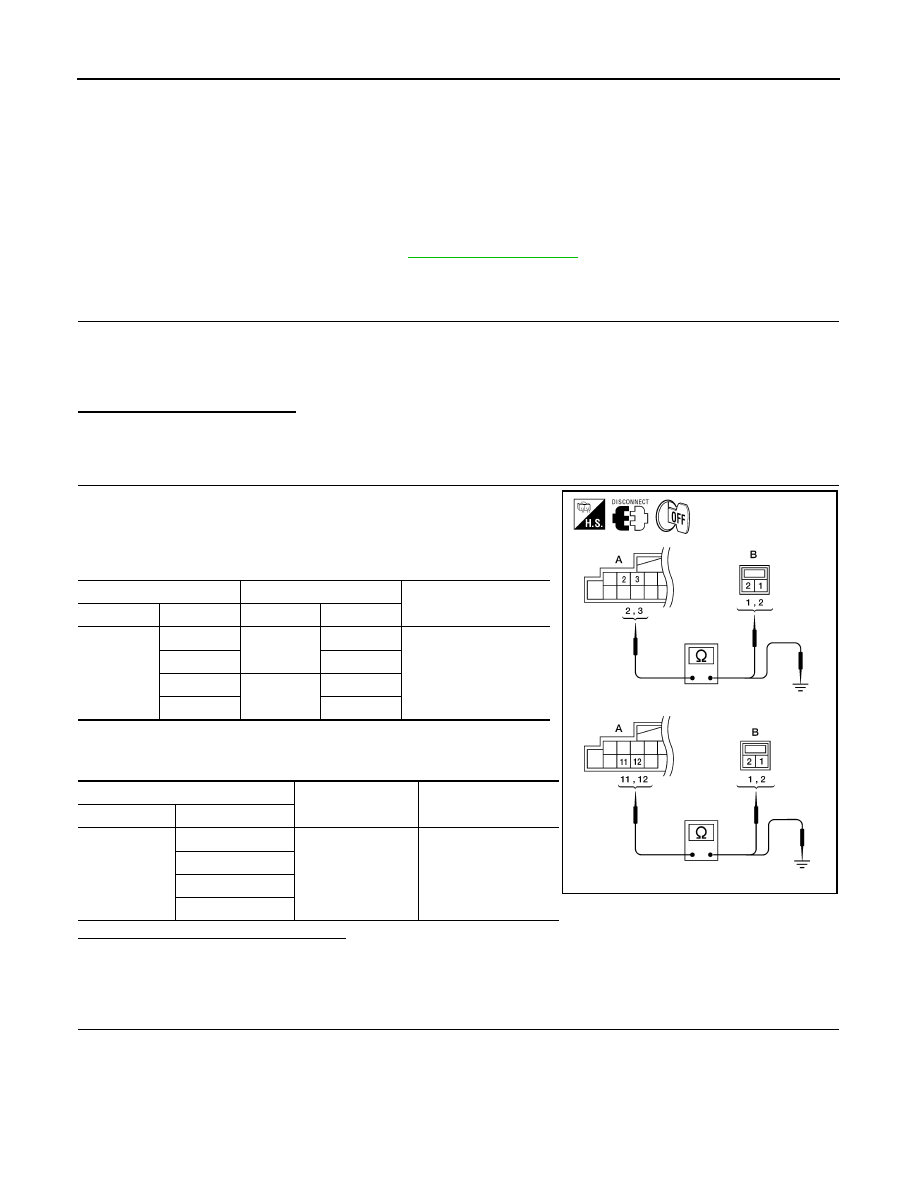

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Description

INFOID:0000000006246498

The AV control unit sends audio signals to the front door speakers using the front door speaker circuits.

Diagnosis Procedure

INFOID:0000000006246499

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

HARNESS CHECK

1. Disconnect AV control unit connector M131 and suspect

speaker connector.

2. Check continuity between AV control unit harness connector

M131 (A) terminal and suspect speaker harness connector (B)

terminal.

3. Check continuity between AV control unit harness connector

M131 (A) terminal and ground.

Are continuity results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

FRONT SPEAKER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

M131

2

D12

1

Yes

3

2

11

D112

1

12

2

A

—

Continuity

Connector

Terminal

M131

2

Ground

No

3

11

12

AWNIA0031ZZ

2011 Pathfinder

AV

FRONT DOOR SPEAKER

AV-77

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

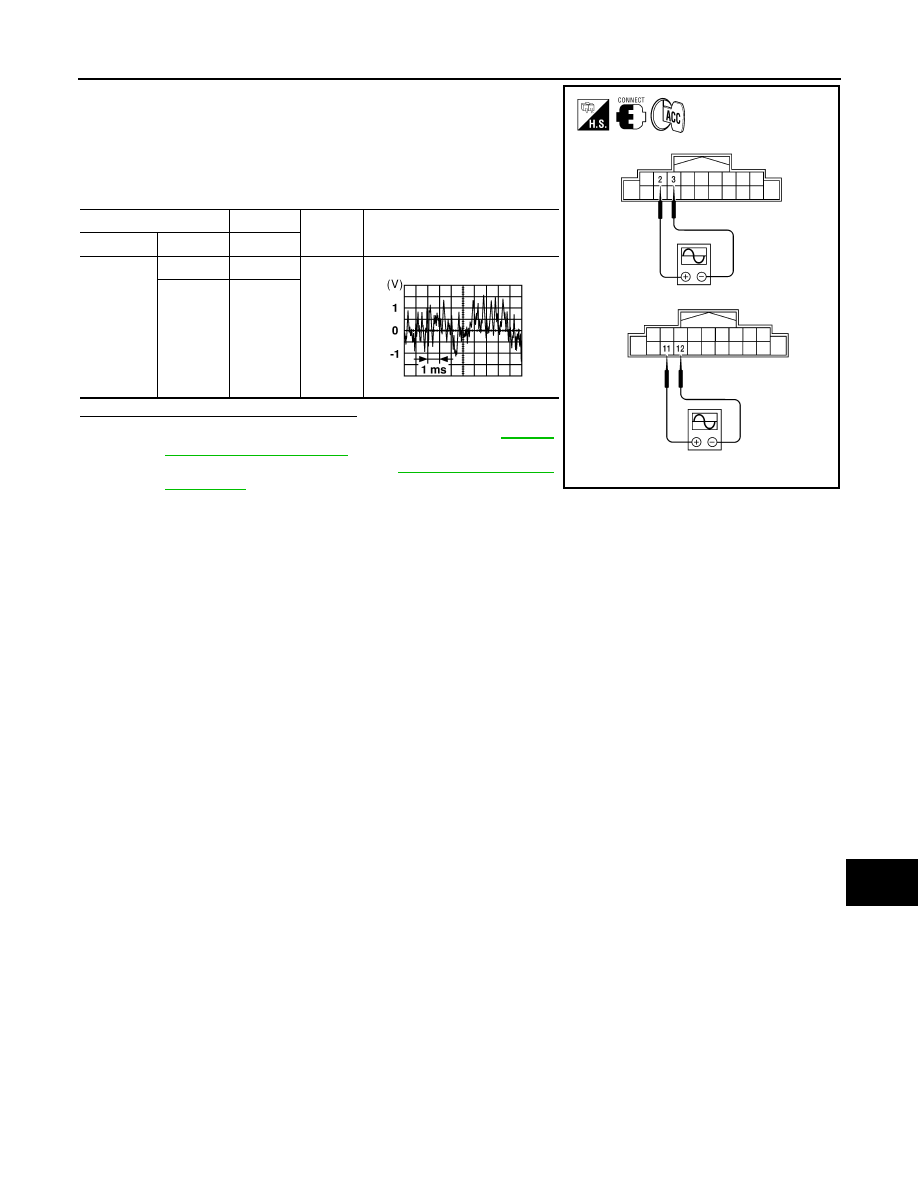

1. Connect AV control unit connector M131 and front speaker con-

nector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M131 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace speaker. Refer to

AV-117, "Removal and Instal-

lation"

.

NO

>> Replace AV control unit. Refer to

AV-113, "Removal and

Installation"

.

(+)

(-)

Condi-

tion

Reference signal

Con-

nec-

tor

Termi-

nal

Termi-

nal

M131

2

3

Receive
audio
signal

11

12

AWNIA0032ZZ

SKIA0177E

2011 Pathfinder

AV-78

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

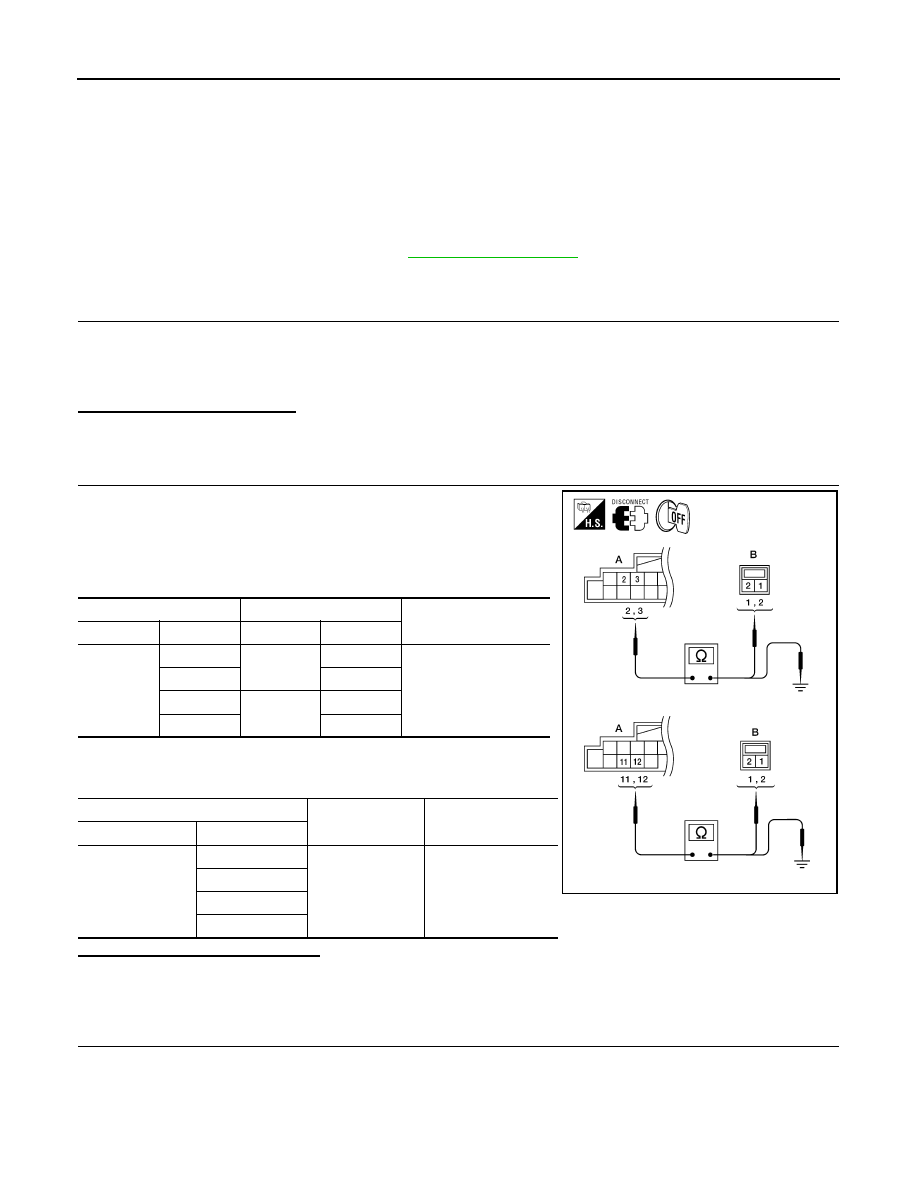

FRONT TWEETER

FRONT TWEETER

Description

INFOID:0000000006246500

The AV control unit sends audio signals to the front tweeters using the front tweeter circuits.

Diagnosis Procedure

INFOID:0000000006246501

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

HARNESS CHECK

1. Disconnect AV control unit connector M131 and suspect front

tweeter connector.

2. Check continuity between AV control unit harness connector

M131 (A) and suspect front tweeter harness connector (B).

3. Check continuity between AV control unit harness connector

M131 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

FRONT TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

M131

2

M109

1

Yes

3

2

11

M111

1

12

2

A

—

Continuity

Connector

Terminal

M131

2

Ground

No

3

11

12

AWNIA0031ZZ

2011 Pathfinder

AV

FRONT TWEETER

AV-79

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

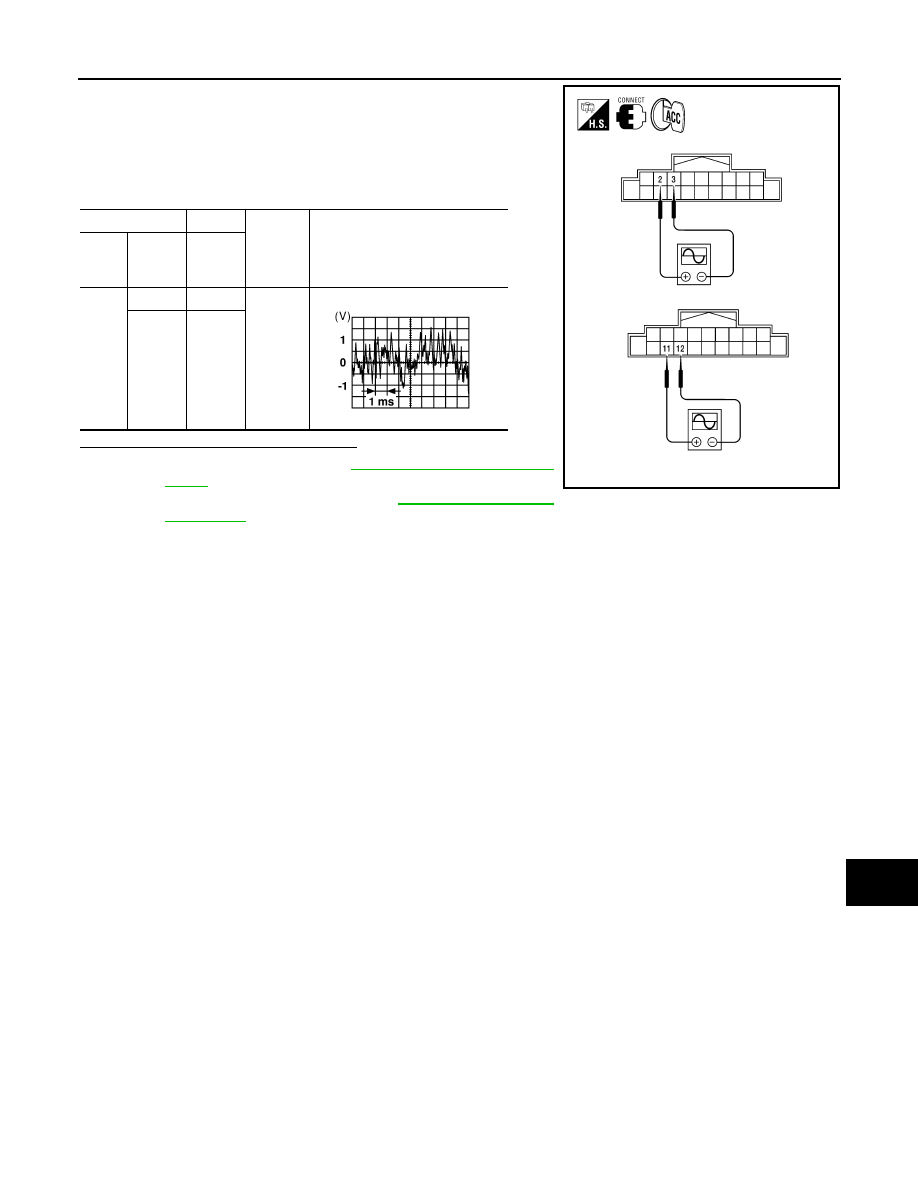

1. Connect AV control unit connector M131 and front tweeter con-

nector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M131 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace the suspect front tweeter. Refer to

AV-116,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-113, "Removal and

Installation"

.

(+)

(-)

Condi-

tion

Reference signal

Connector

Terminal

Terminal

M131

2

3

Receive
audio
signal

11

12

AWNIA0032ZZ

SKIA0177E

2011 Pathfinder

AV-80

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

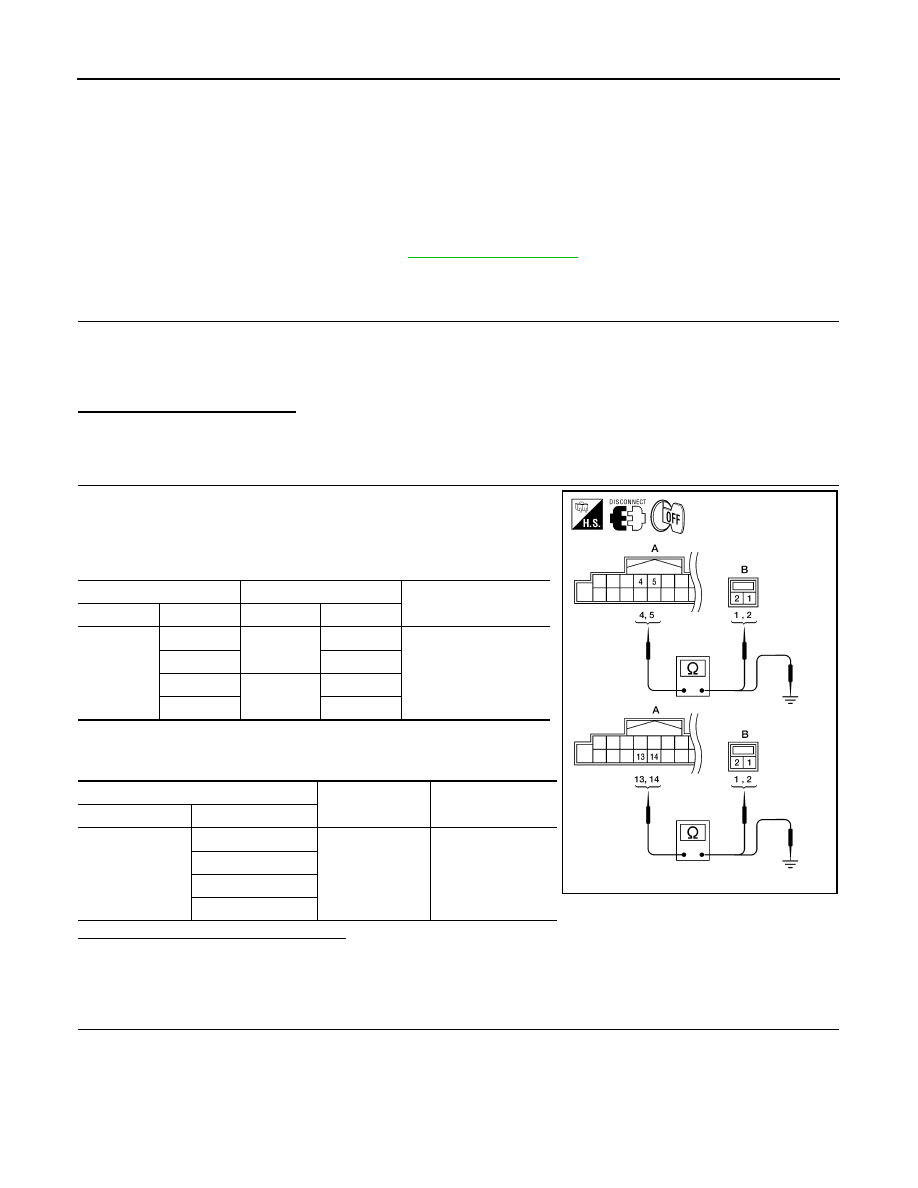

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000006246502

The AV control unit sends audio signals to the rear speakers using the rear speaker circuits.

Diagnosis Procedure

INFOID:0000000006246503

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CONNECTOR CHECK

Check the AV control unit and speaker connectors for the following:

• Proper connection

• Damage

• Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

HARNESS CHECK

1. Disconnect AV control unit connector M131 and suspect rear

speaker connector.

2. Check continuity between AV control unit harness connector

M131 (A) and suspect rear speaker harness connector (B).

3. Check continuity between AV control unit harness connector

M131 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

REAR SPEAKER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

M131

4

D209

1

Yes

5

2

13

D309

1

14

2

A

—

Continuity

Connector

Terminal

M131

4

Ground

No

5

13

14

AWNIA0033ZZ

2011 Pathfinder

AV

REAR DOOR SPEAKER

AV-81

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

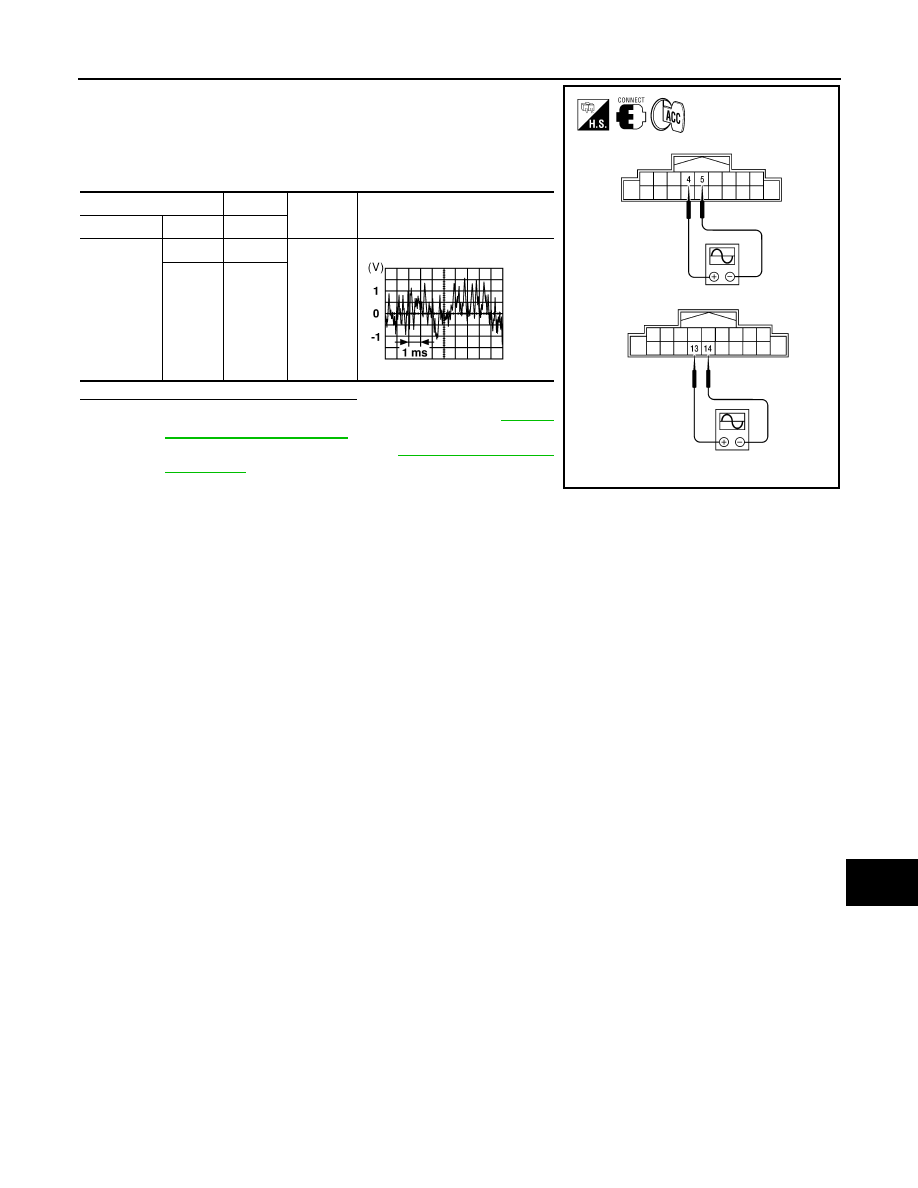

1. Connect AV control unit connector and rear speaker connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M131 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace the suspect rear door speaker. Refer to

AV-118,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-113, "Removal and

Installation"

.

(+)

(-)

Condition

Reference

signal

Connector

Terminal

Terminal

M131

4

5

Receive
audio sig-
nal

13

14

AWNIA0034ZZ

SKIA0177E

2011 Pathfinder

AV-82

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO]

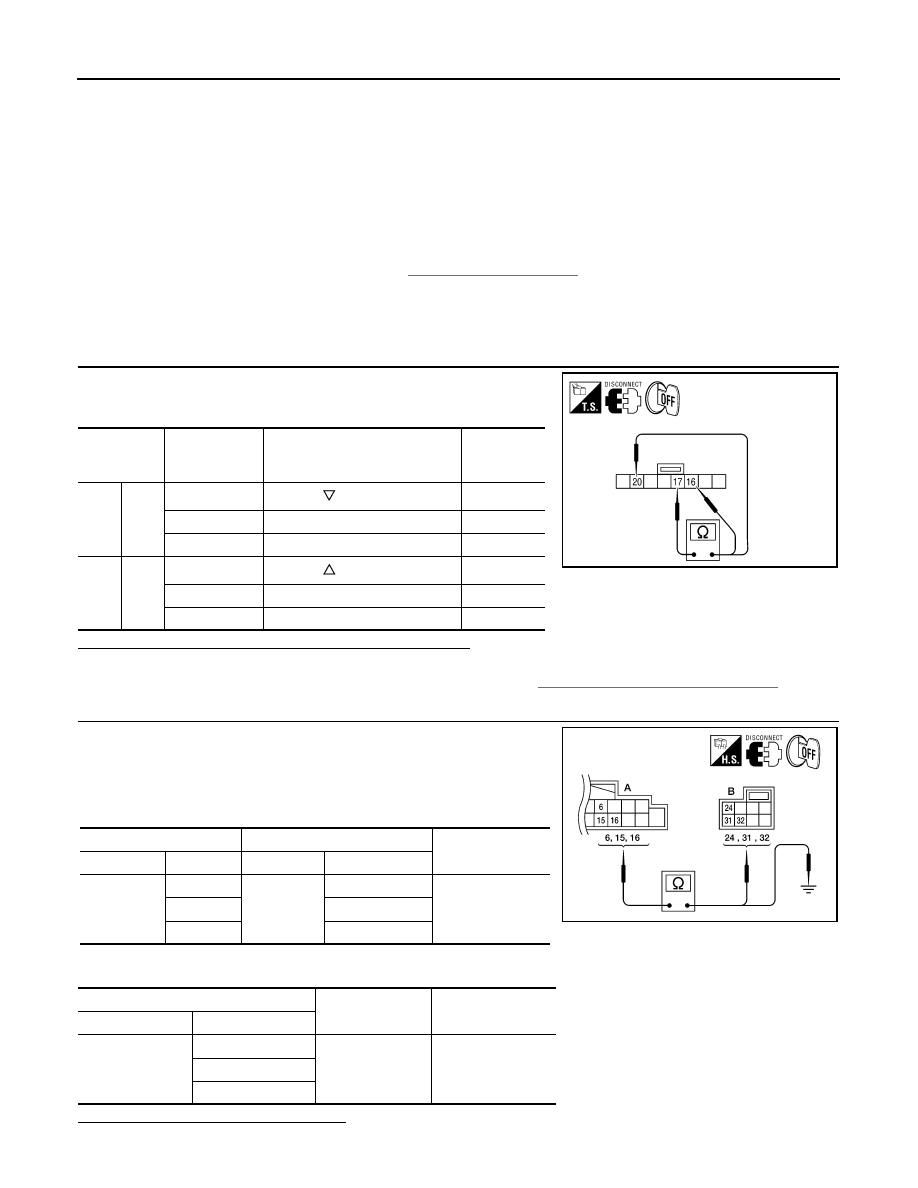

STEERING SWITCH

STEERING SWITCH

Description

INFOID:0000000006246504

When one of the steering wheel AV control switches is pushed, the resistance in the steering wheel AV control

switch circuit changes depending on which button is pushed.

Diagnosis Procedure

INFOID:0000000006246505

Regarding Wiring Diagram information, refer to

AV-94, "Wiring Diagram"

.

1.

CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE

1. Disconnect steering wheel audio control switch connector M102.

2. Check resistance between steering switch connector terminals.

Do the steering wheel audio control switches check OK?

YES

>> GO TO 2

NO

>> Replace steering wheel audio control switch. Refer to

AV-119, "Removal and Installation"

.

2.

CHECK HARNESS

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector M131 and spiral cable

connector M30.

3. Check continuity between AV control unit harness connector

M131 (A) and spiral cable harness connector M30 (B).

4. Check continuity between AV control unit connector 1312 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

Terminal

Signal name

Condition

Resistance

(

Ω

)

(Approx.)

16

17

Seek (down)

Depress

switch.

165

Volume (down)

Depress VOL down switch.

652

Power

Depress PWR switch.

0

20

17

Seek (up)

Depress

switch.

165

Volume (up)

Depress VOL up switch.

652

Mode

Depress MODE switch.

0

WKIA4457E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M131

6

M30

24

Yes

15

31

16

32

A

—

Continuity

Connector

Terminal

M131

6

Ground

No

15

16

ALNIA0332GB

2011 Pathfinder
