Nissan Pathfinder (2010 year). Manual - part 674





FRONT WIPER AND WASHER SYSTEM

WW-79

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

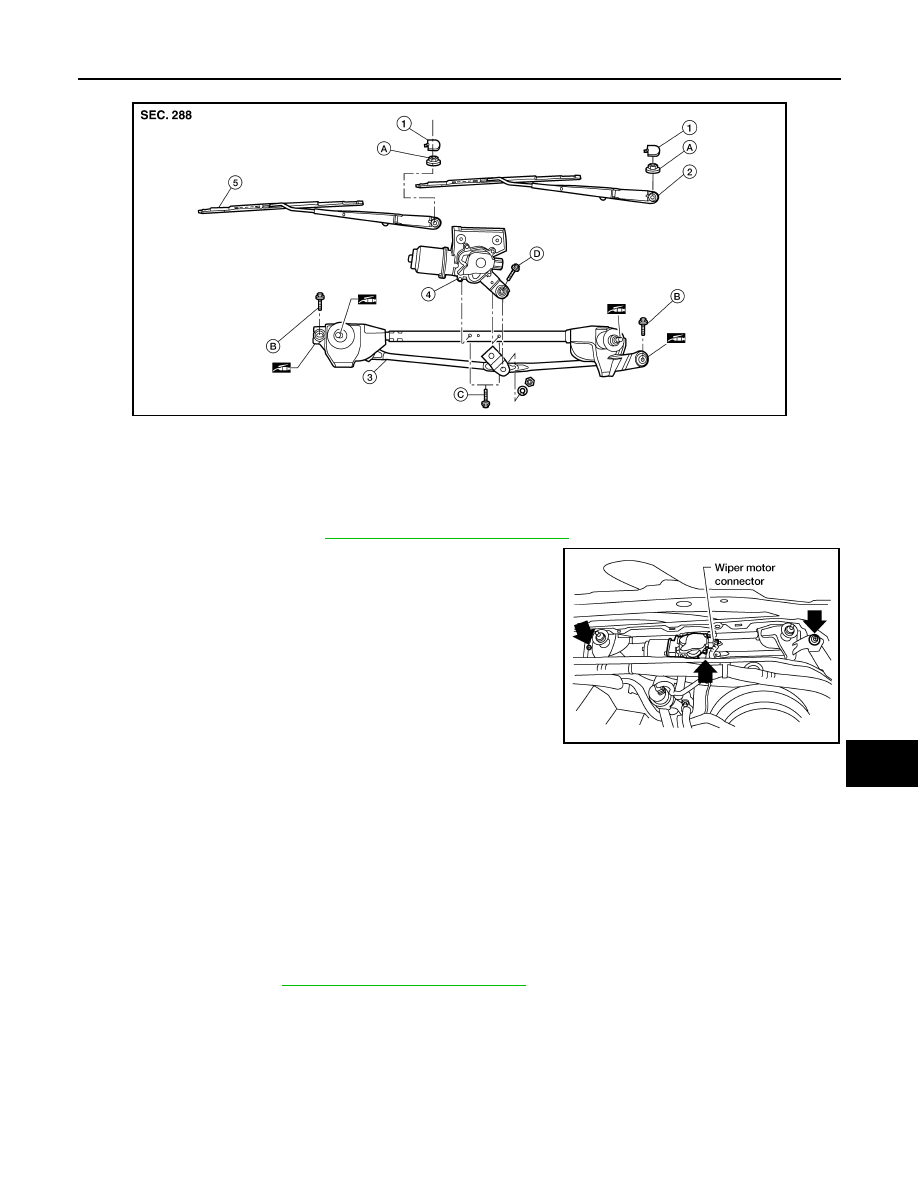

WIPER MOTOR AND LINKAGE

Removal

1. Remove the cowl top. Refer to

EXT-19, "Removal and Installation"

.

2. Remove wiper frame bolts, disconnect the wiper motor connec-

tor and remove the wiper frame assembly.

3. Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.

• Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.

1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper

switch OFF (auto stop).

2. Disconnect wiper motor electrical connector.
3. Install wiper motor to wiper frame assembly, and install wiper frame assembly.
4. Connect wiper motor electrical connector.
5. Install cowl top. Refer to

EXT-19, "Removal and Installation"

.

AWKIA1471ZZ

1. Wiper arm covers

2. Front LH wiper arm and blade assembly 3. Wiper frame assembly

4. Wiper motor

5. Front RH wiper arm and blade assembly A. Wiper arm nuts

B. Wiper arm frame bolts

C. Wiper motor bolts

D. Wiper motor pivot arm bolt

LKIA0534E

2010 Pathfinder

WW-80

< ON-VEHICLE REPAIR >

FRONT WIPER AND WASHER SYSTEM

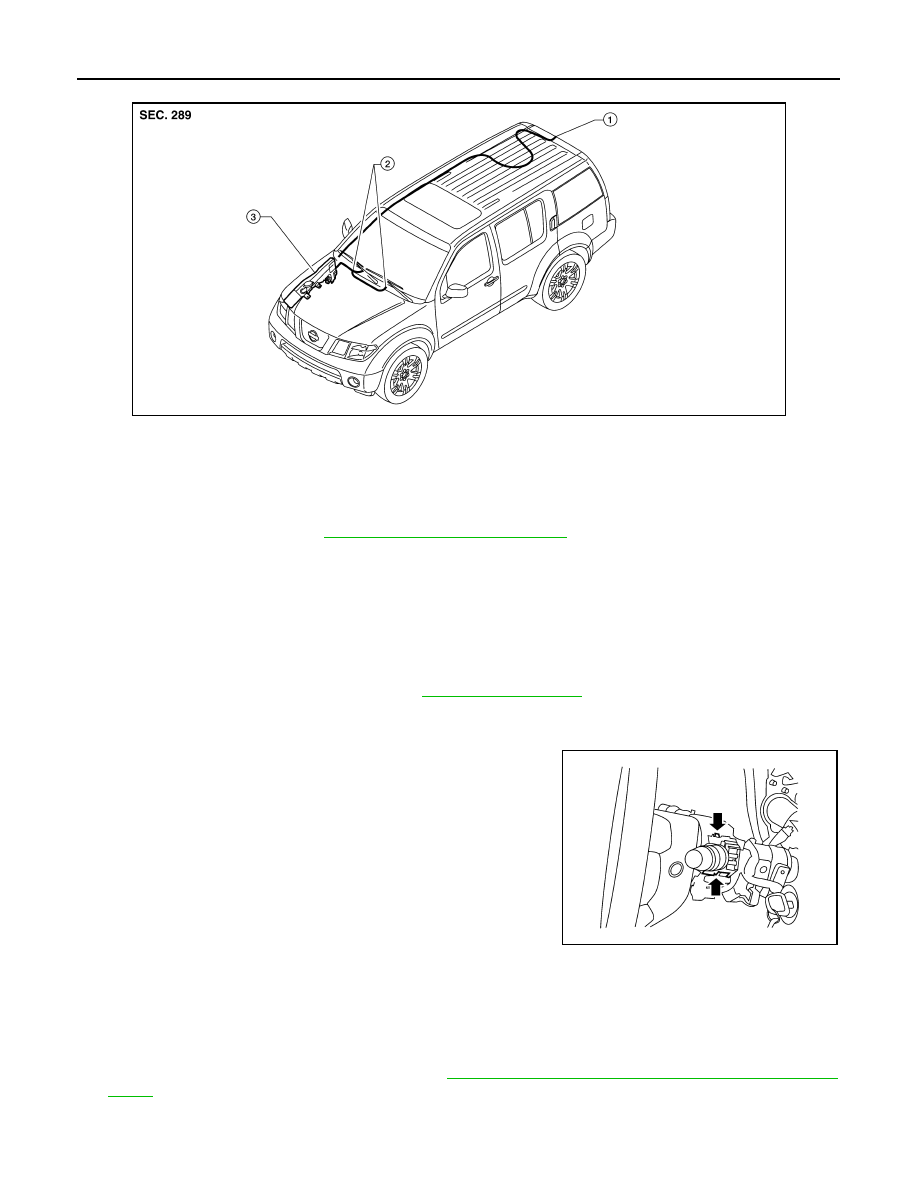

WASHER HOSE LAYOUT

WASHER NOZZLES

Removal

1. Remove the cowl top. Refer to

EXT-19, "Removal and Installation"

.

2. Remove washer nozzles.

Installation

Installation is in the reverse order of removal.

WIPER AND WASHER SWITCH

Removal

1. Remove instrument lower cover LH. Refer to

IP-11, "Exploded View"

.

2. Remove steering column cover lower and steering column cover upper.
3. Disconnect wiper and washer switch connector.
4. Pinch tabs at wiper and washer switch base and slide switch

away from steering column.

Installation

Installation is in the reverse order of removal.

WASHER FLUID RESERVOIR

Removal

1. Remove the front fender protector RH. Refer to

EXT-23, "Removal and Installation of Front Fender Pro-

tector"

.

WKIA4139E

1.

Rear washer nozzle

2.

Washer nozzles

3.

Washer fluid reservoir

WKIA0071E

2010 Pathfinder

FRONT WIPER AND WASHER SYSTEM

WW-81

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

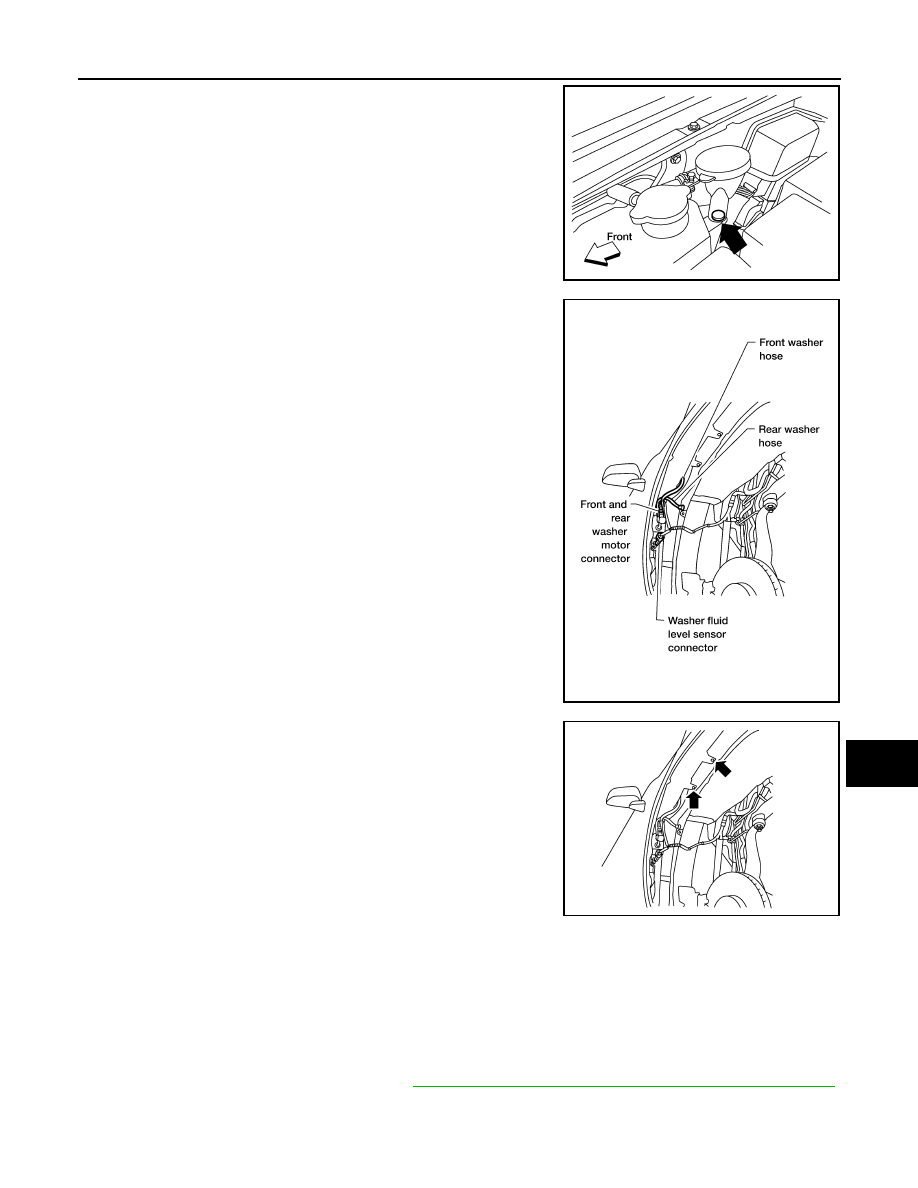

2. Remove clip, then remove washer fluid reservoir filler neck from

washer fluid reservoir.

3. Disconnect front and rear washer hoses.
4. Disconnect front and rear washer motor connector.
5. Disconnect washer fluid level sensor connector.

6. Remove washer fluid reservoir screws and remove washer fluid

reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water

leaks.

WASHER MOTOR

Removal

1. Remove RH front fender protector. Refer to

EXT-23, "Removal and Installation of Front Fender Protector"

.

2. Disconnect the front  washer hoses.
3. Disconnect the front washer motor connectors.

LKIA0538E

LKIA0537E

LKIA0539E

2010 Pathfinder

WW-82

< ON-VEHICLE REPAIR >

FRONT WIPER AND WASHER SYSTEM

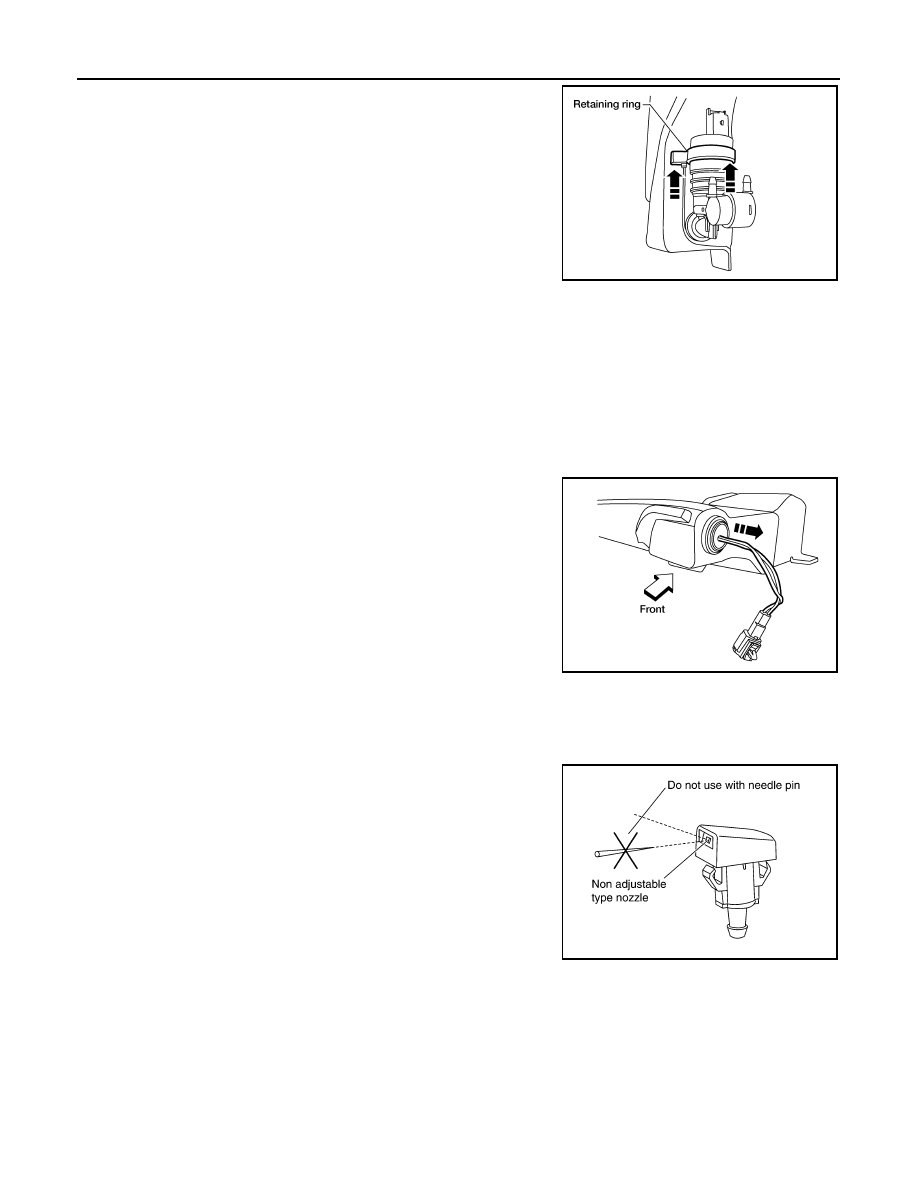

4. Slide retaining ring upward to release front and rear washer

motor.

5. Remove front washer motor from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing front washer motor, there should be no packing twists, etc.

WASHER FLUID LEVEL SENSOR

Removal

1. Remove washer fluid reservoir.
2. Lift level sensor out of washer fluid reservoir in the direction of

the arrow as shown.

Installation

Installation is in the reverse order of removal.

Washer Nozzle Adjustment

INFOID:0000000005256395

• This vehicle is equipped with non-adjustable washer nozzles.

• If not satisfied with washer fluid spray coverage, confirm that the

washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid

spray coverage is not satisfactory, replace the washer nozzle.

LKIA0540E

LKIA0541E

PKIA2552E

2010 Pathfinder

REAR WIPER AND WASHER SYSTEM

WW-83

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER AND WASHER SYSTEM

Removal and Installation

INFOID:0000000005256396

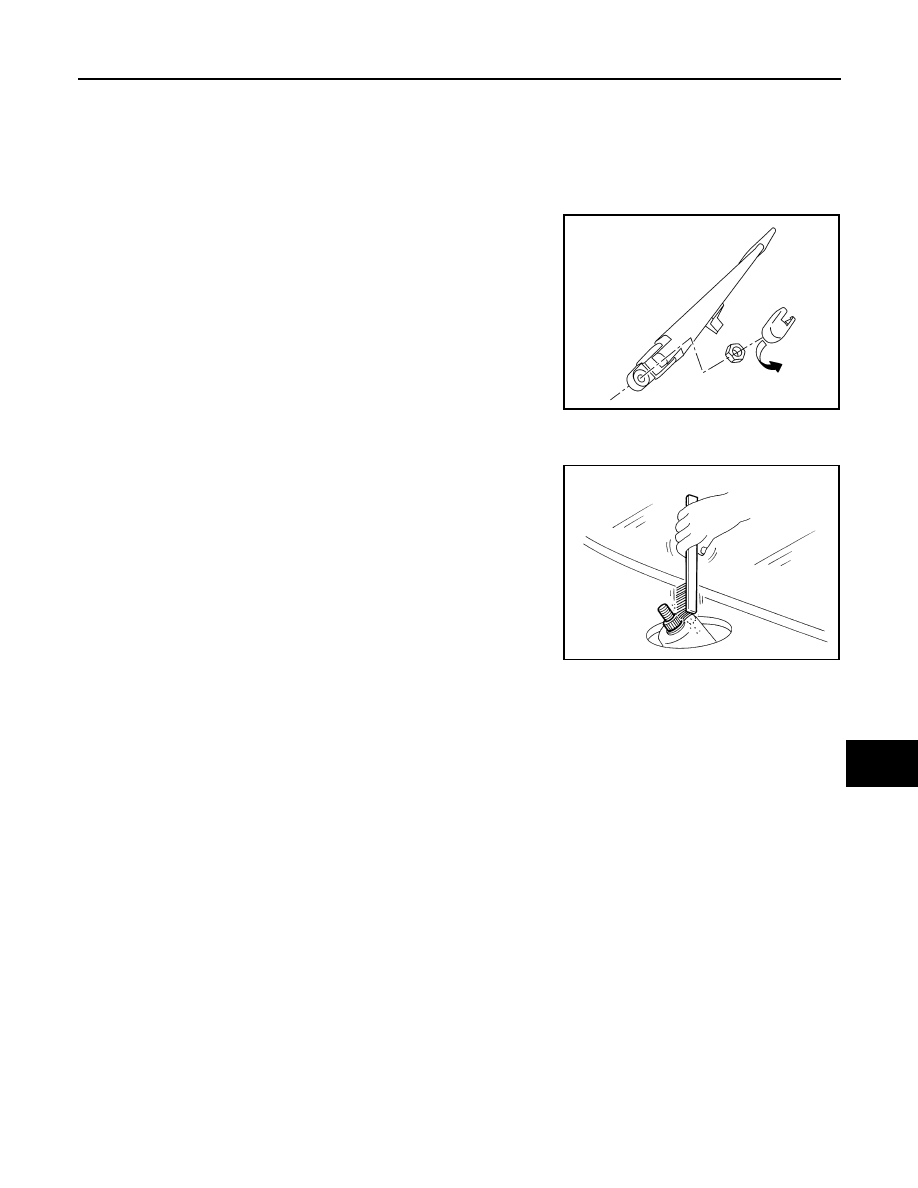

REAR WIPER ARM

Removal

1. Remove wiper arm cover, and remove rear wiper arm nut.
2. Remove the wiper arm.
3. Remove wiper blade from the wiper arm.

Installation

1. Operate rear wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean pivot area as shown. This will reduce the possibility of

wiper arm looseness.

3. Install wiper blade on the wiper arm.
4. Install wiper arm so that the arm rests in the stopper and tighten rear wiper arm nut.
5. Install wiper arm cover.

REAR WIPER MOTOR

LKIA0608E

SEL024J

2010 Pathfinder

WW-84

< ON-VEHICLE REPAIR >

REAR WIPER AND WASHER SYSTEM

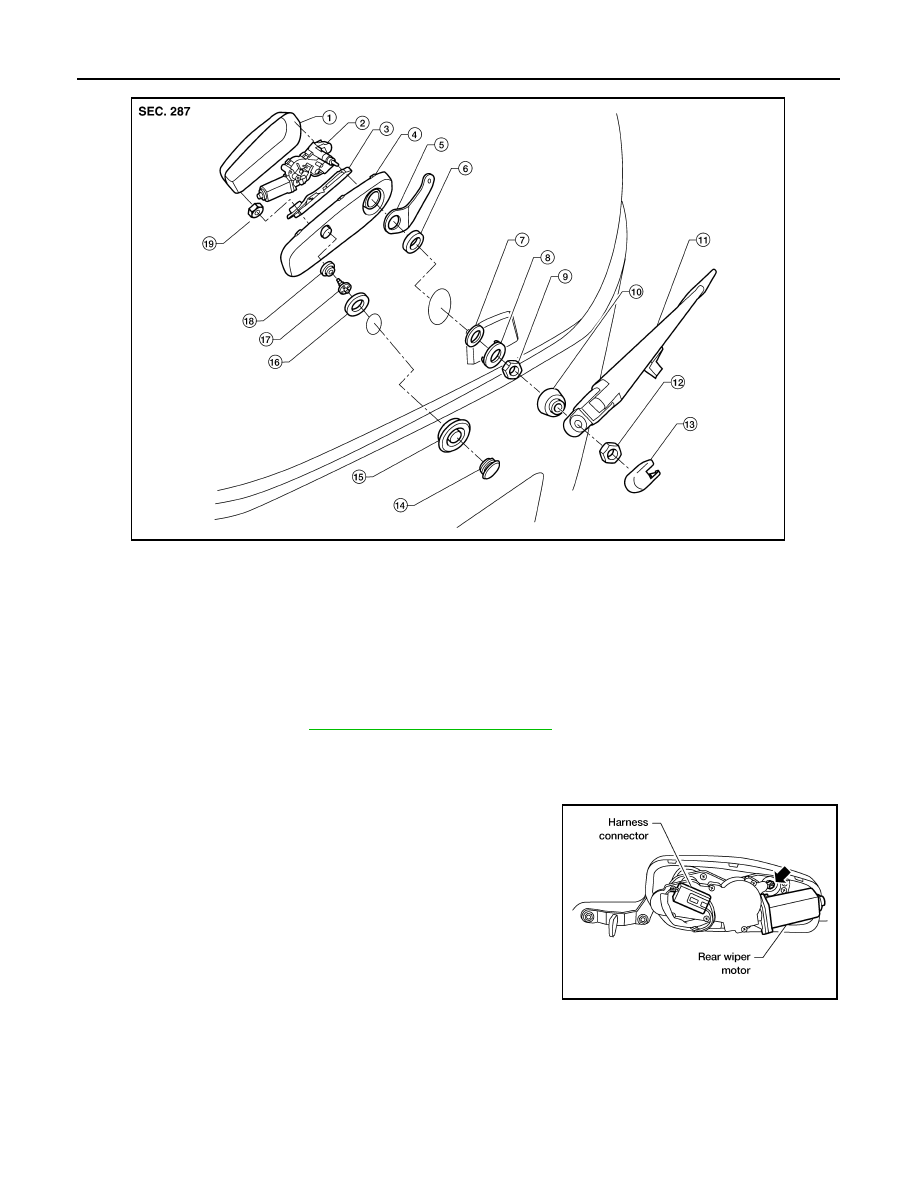

Removal

1. Remove wiper arm. Refer to

WW-83, "Removal and Installation"

.

2. Remove pivot cap.
3. Remove rear wiper motor nut.
4. Remove rear wiper motor cover.
5. Disconnect rear wiper motor connector.
6. Remove nut and remove rear wiper motor.

7. Remove rear wiper motor cover base.
8. Remove bracket.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.

Installation is in the reverse order of removal.

1.

Rear wiper motor cover

2.

Rear wiper motor

3.

Plate

4.

Rear wiper motor cover base

5.

Bracket

6.

Grommet

7.

Spacer

8.

Washer

9.

Rear wiper motor nut

10. Pivot cap

11. Rear wiper arm and blade

12. Wiper arm nut

13. Wiper arm cover

14. Cap nut

15. Gasket

16. Gasket

17. Stud

18. Grommet

19. Nut

WKIA4867E

LKIA0543E

2010 Pathfinder

REAR WIPER AND WASHER SYSTEM

WW-85

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

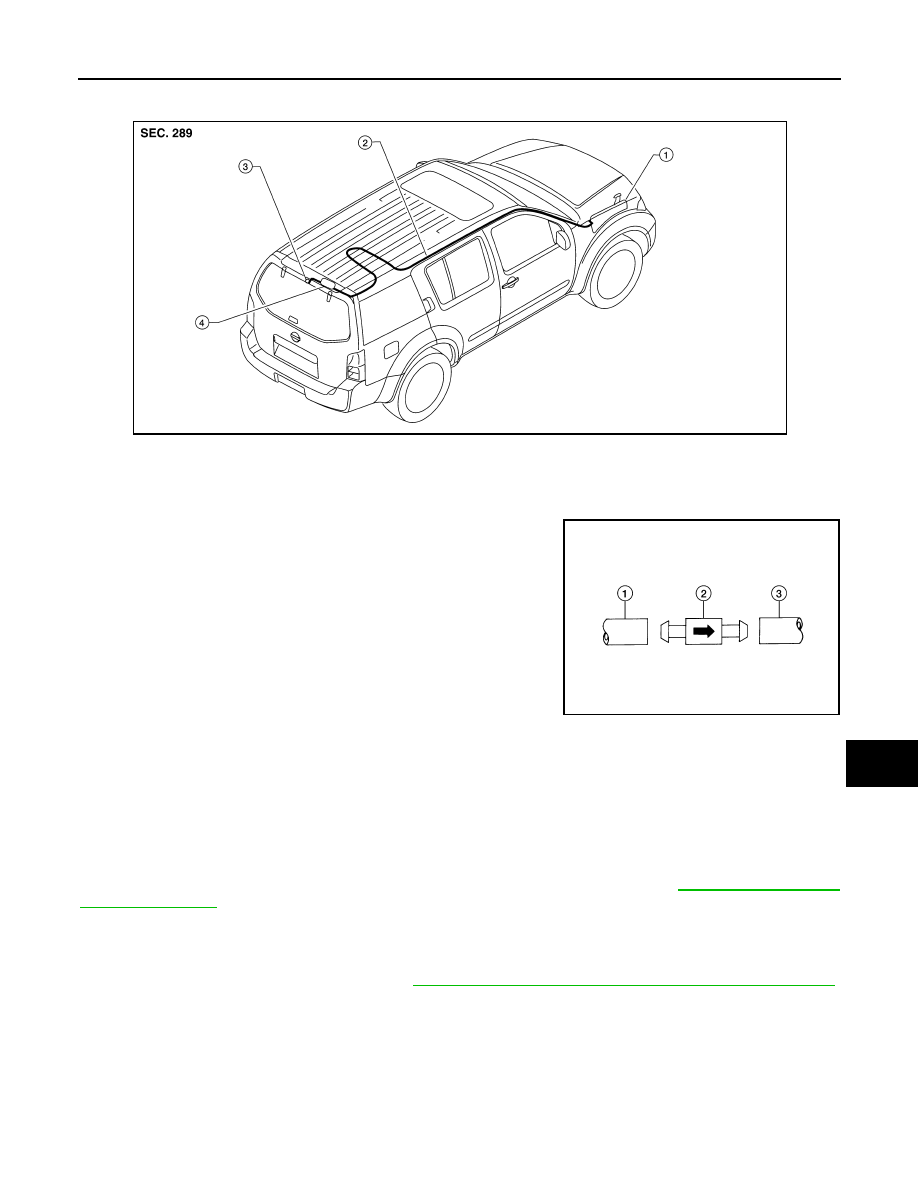

REAR WASHER TUBE LAYOUT

NOTE:

Connect the check valve (2) to the washer fluid tube (1) so that the

directional arrow on the check valve (2) points towards the washer

nozzle tube (3).

REAR WASHER NOZZLE

Removal

1. Disconnect rear washer tube from rear washer nozzle.
2. Release retaining clips and remove washer nozzle.

Installation

Installation is in the reverse order of removal.

NOTE:

Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to

WW-86, "Rear Washer

Nozzle Adjustment"

.

WASHER MOTOR

Removal

1. Remove RH front fender protector. Refer to

EXT-23, "Removal and Installation of Front Fender Protector"

.

2. Disconnect the rear washer hoses.
3. Disconnect the rear washer motor connectors.

1

Washer fluid reservoir

2

Washer fluid tube to rear door

3

Rear washer nozzle

4

Check  valve

WKIA4143E

WKIA4242E

2010 Pathfinder

WW-86

< ON-VEHICLE REPAIR >

REAR WIPER AND WASHER SYSTEM

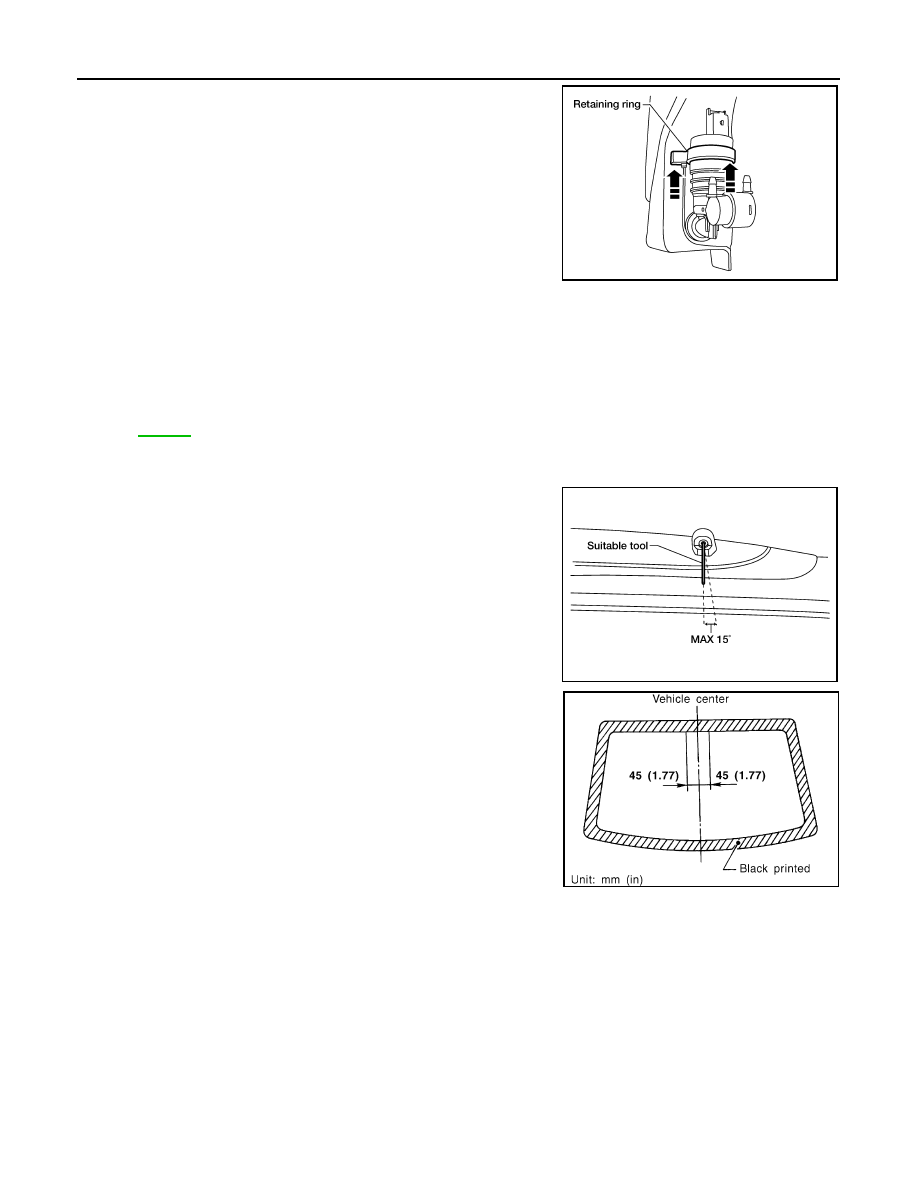

4. Slide retaining ring upward to release rear washer motor.

5. Remove rear washer motor from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing rear washer motor, there should be no packing twists, etc.

WASHER MOTOR

Refer to

WW-78

.

Rear Washer Nozzle Adjustment

INFOID:0000000005256397

• Adjust washer nozzle with suitable tool as shown in the figure.

LKIA0540E

Adjustable range

:

±

15

°

 (In any direction)

LKIA0349E

WEL912A

2010 Pathfinder
