Nissan Pathfinder (2010 year). Manual - part 654





WCS

COMBINATION METER

WCS-43

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

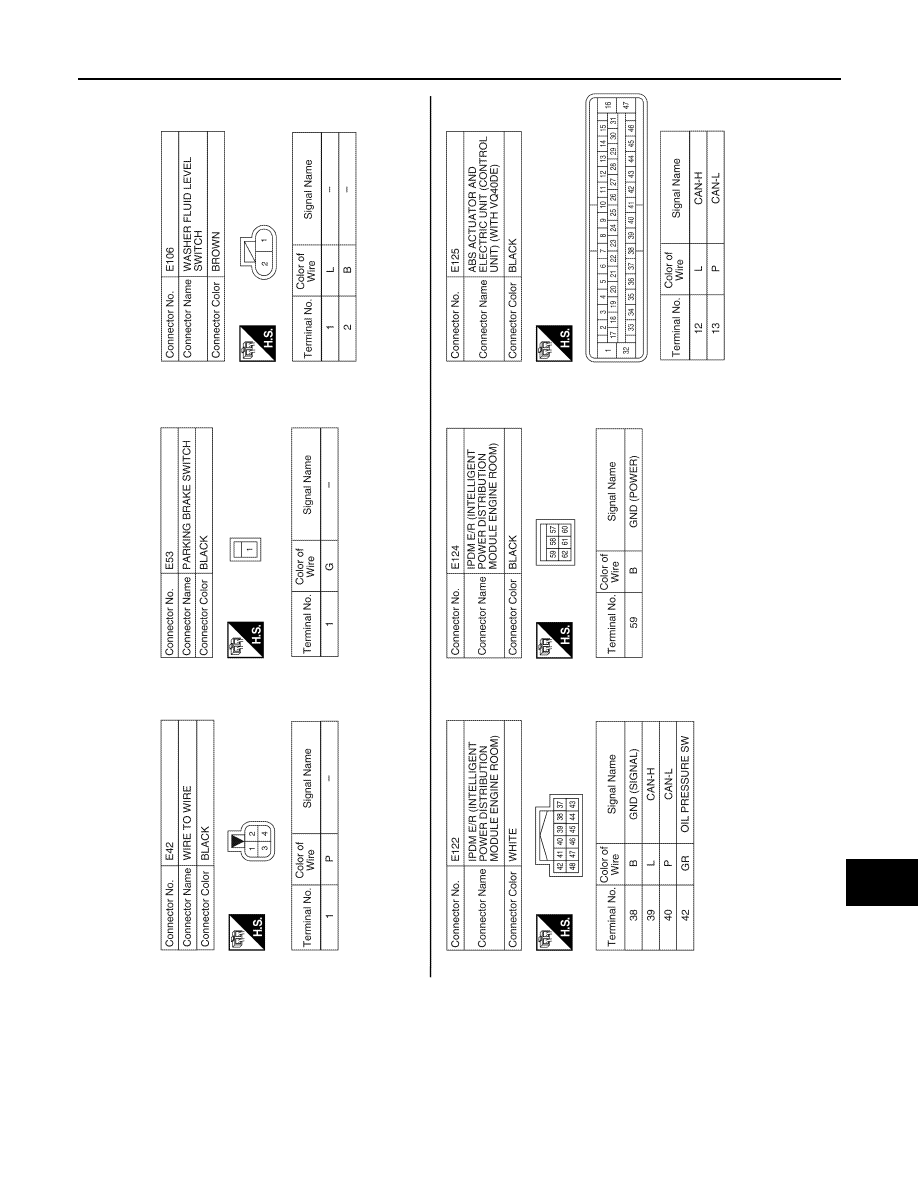

ABNIA1619GB

2010 Pathfinder

WCS-44

< ECU DIAGNOSIS >

COMBINATION METER

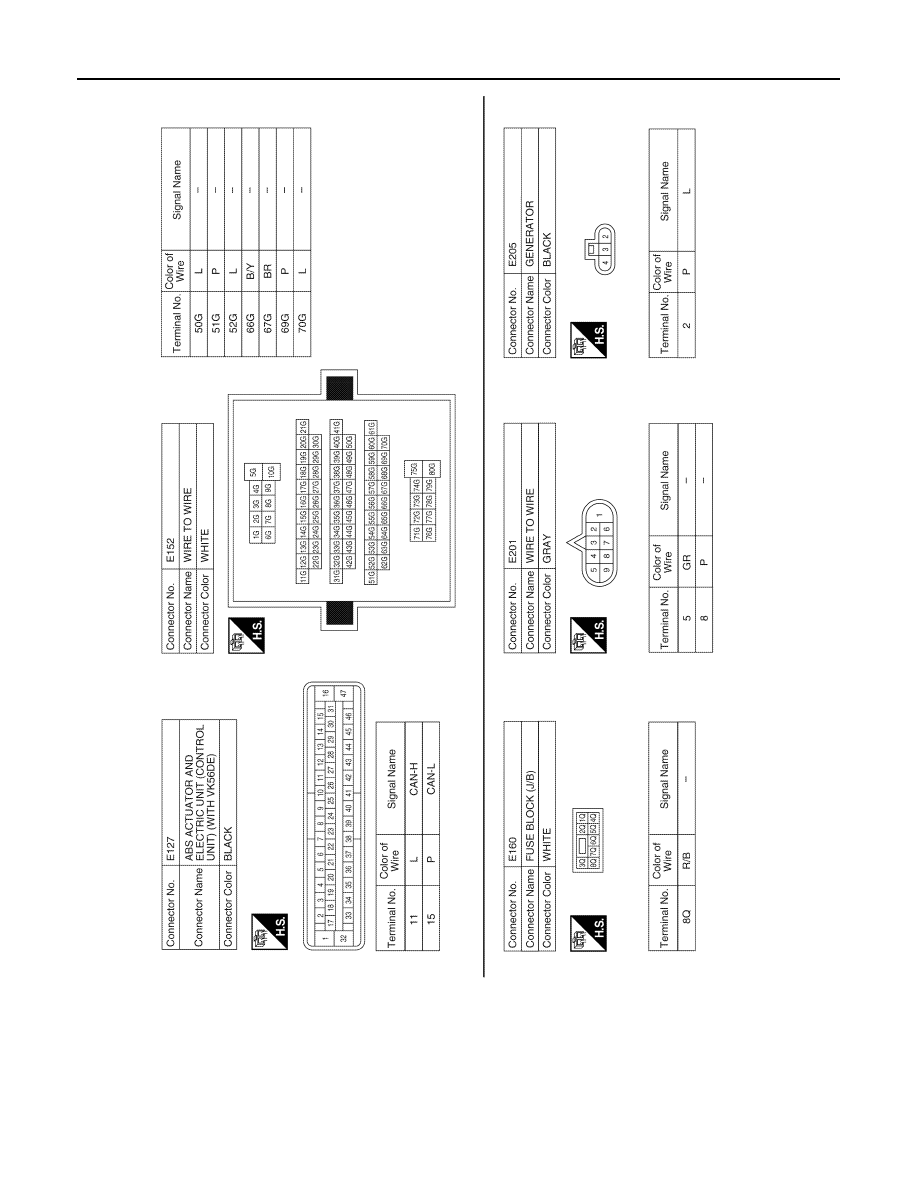

ABNIA1556GB

2010 Pathfinder

WCS

COMBINATION METER

WCS-45

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

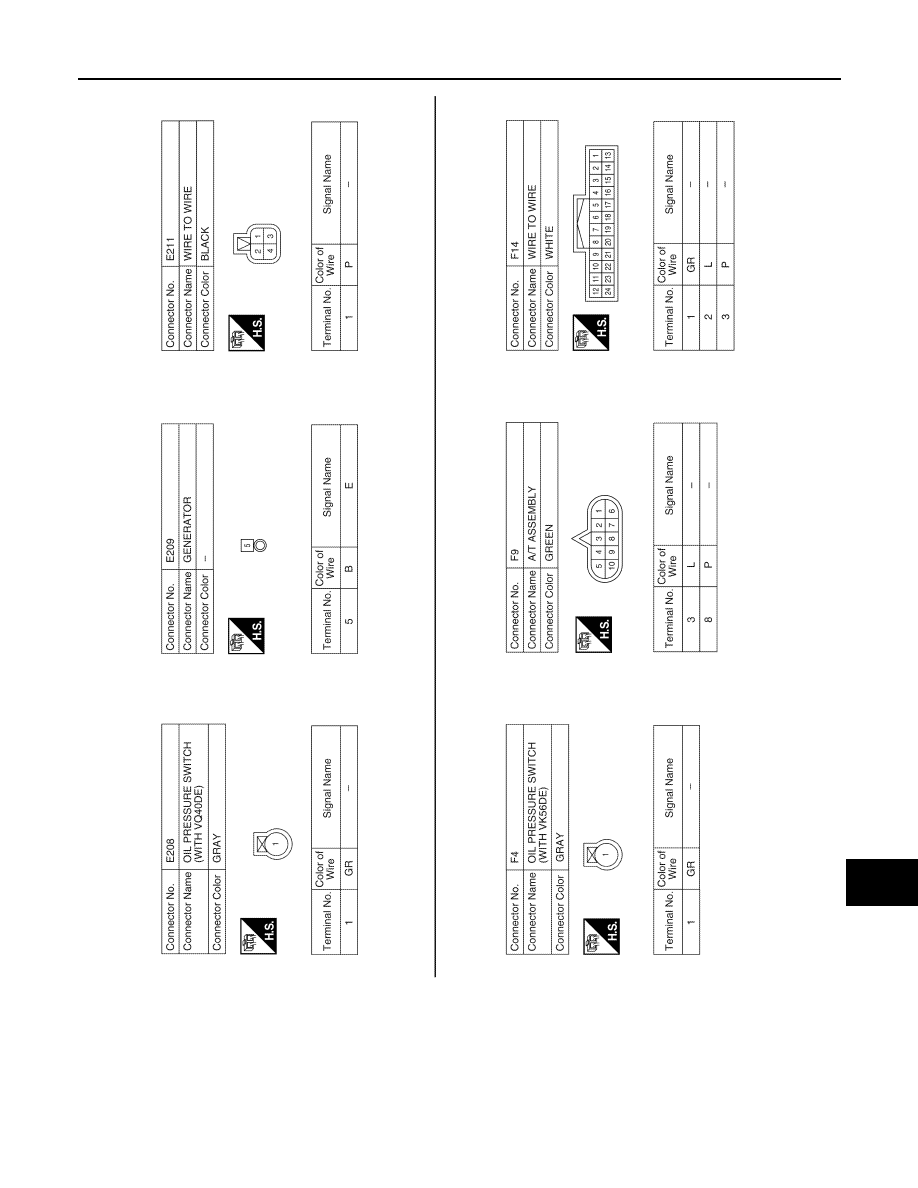

ABNIA1620GB

2010 Pathfinder

WCS-46

< ECU DIAGNOSIS >

COMBINATION METER

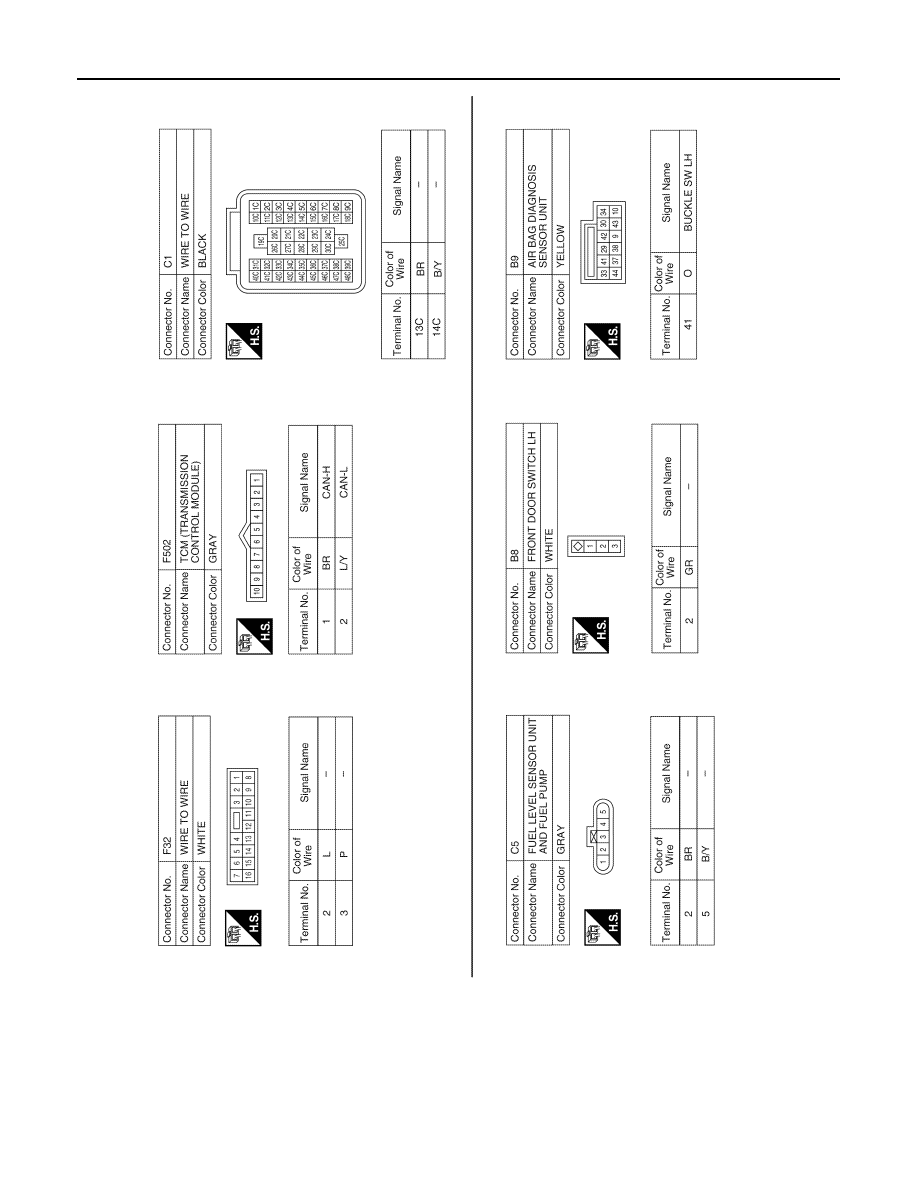

ABNIA1621GB

2010 Pathfinder

WCS

COMBINATION METER

WCS-47

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

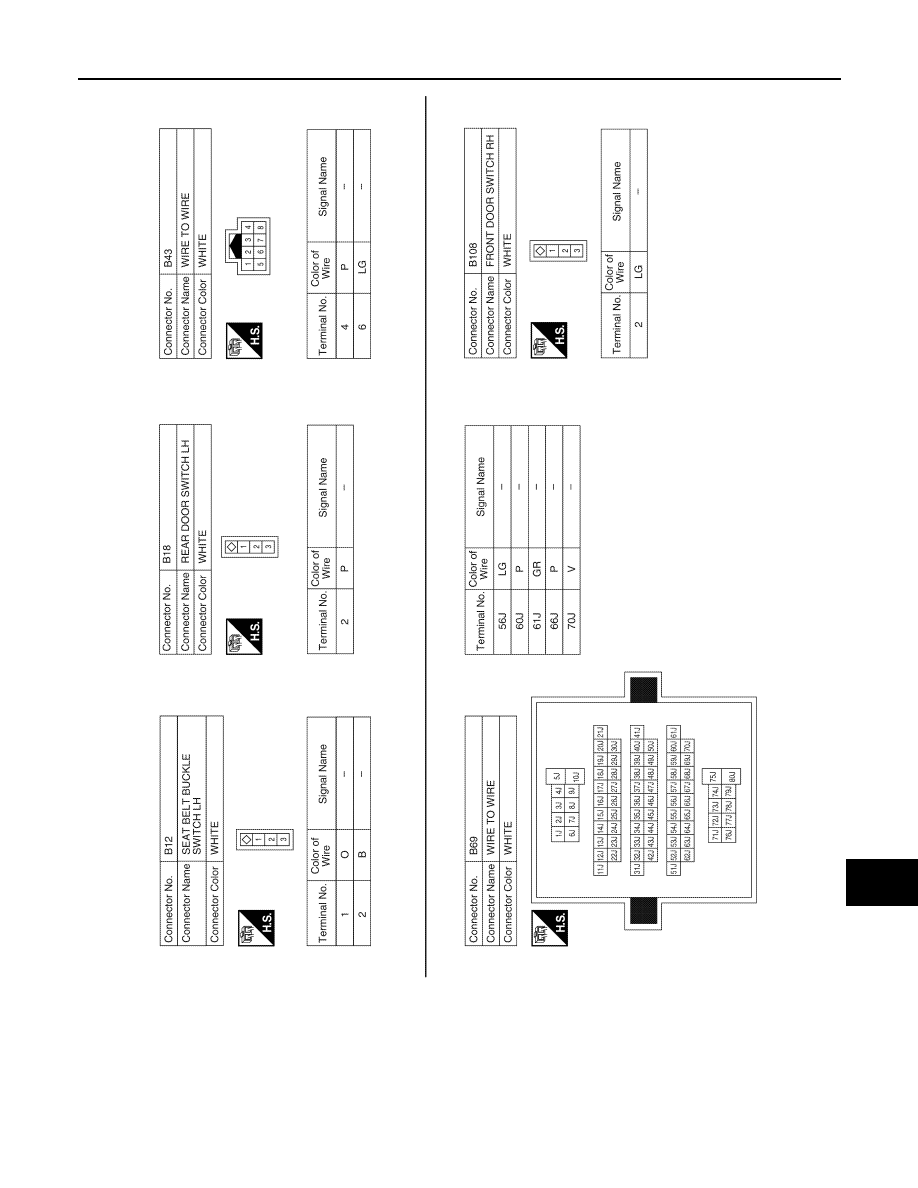

ABNIA1622GB

2010 Pathfinder

WCS-48

< ECU DIAGNOSIS >

COMBINATION METER

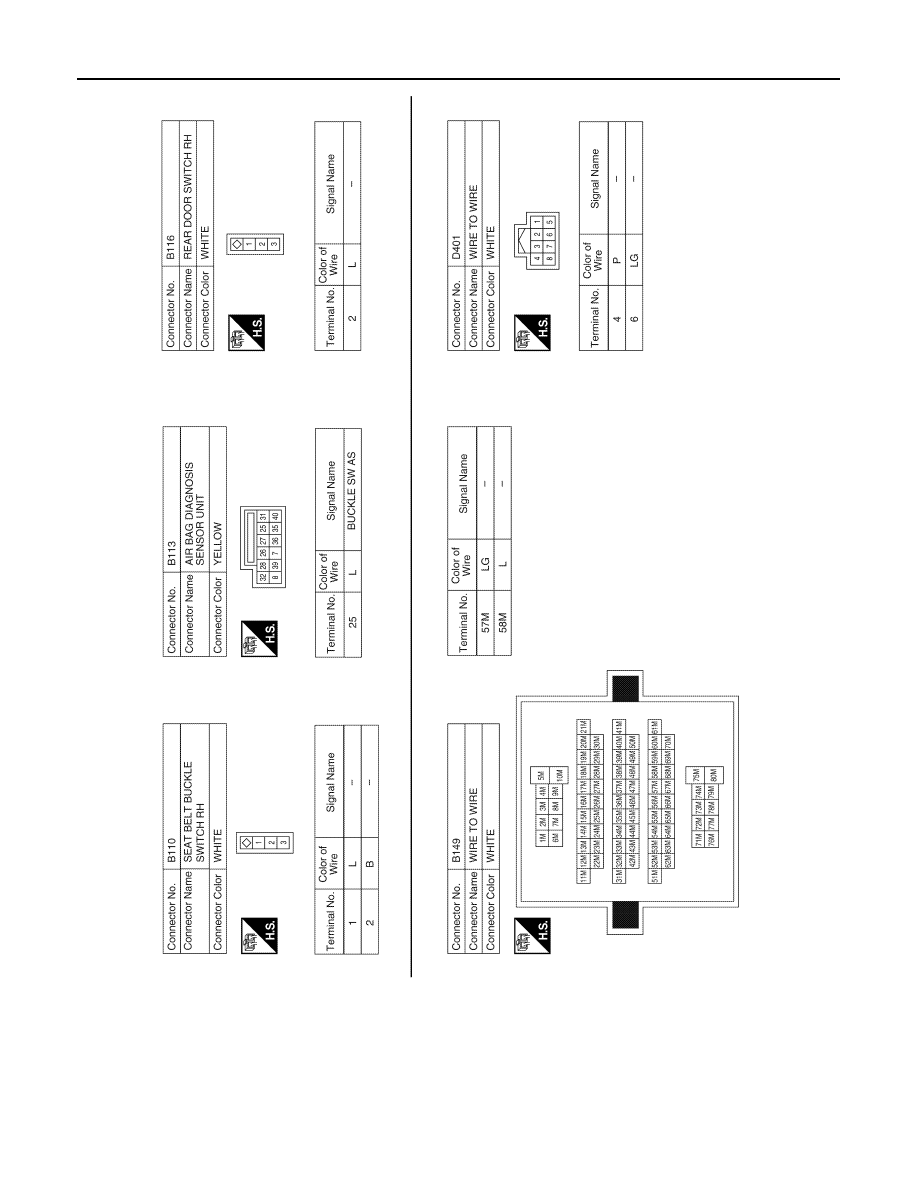

ABNIA1623GB

2010 Pathfinder

WCS

COMBINATION METER

WCS-49

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail Safe

INFOID:0000000005484871

The combination meter performs a fail-safe operation for the functions listed below when communication is

lost.

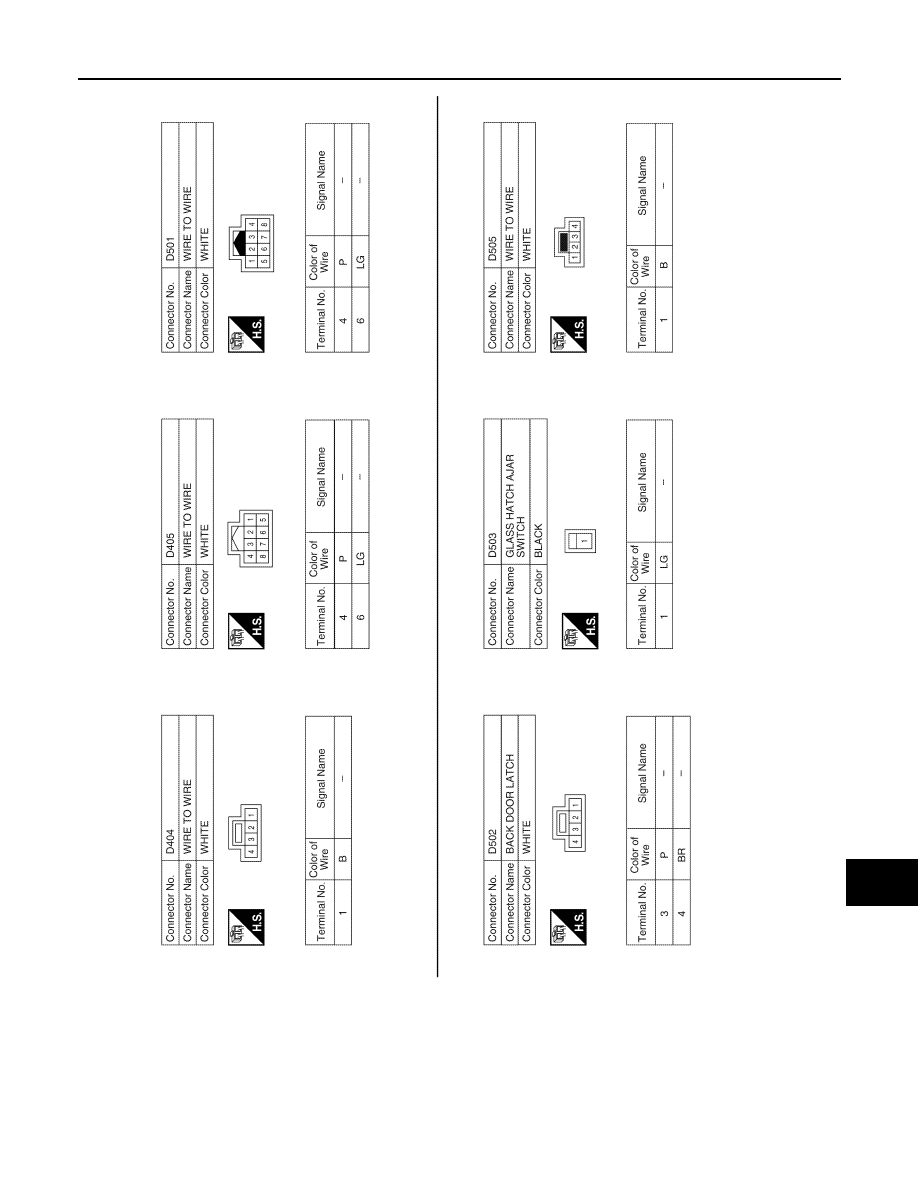

ABNIA1557GB

2010 Pathfinder

WCS-50

< ECU DIAGNOSIS >

COMBINATION METER

Function

Specifications

Speedometer

Zero indication.

Tachometer

Fuel gauge

Engine coolant temperature gauge

Engine oil pressure gauge

Voltage gauge

Illumination control

Meter illumination

Change to nighttime mode when communication is lost.

Segment LCD

Odometer

Freeze current indication.

A/T position

Display turns off.

Buzzer

Buzzer turns off.

Warning lamp/indicator lamp

ABS warning lamp

Lamp turns on when communication is lost.

Brake warning lamp

VDC OFF indicator lamp

Malfunction indicator lamp

SLIP indicator lamp

Shift P warning lamp

Lamp turns off when communication is lost.

AT oil temp warning lamp

Low washer fluid warning lamp

Door ajar warning lamp

CRUISE indicator lamp

SET indicator lamp

A/T CHECK warning lamp (with man-
ual mode)

O/D OFF indicator lamp (without man-
ual mode)

Oil pressure warning lamp

Air bag warning lamp

High beam indicator

Turn signal indicator lamp

Intelligent Key system warning lamp

Driver and passenger seat belt warn-
ing lamp

Lamp turns off when disconnected.

Charge warning lamp

Security indicator lamp

4WD indicator lamp

ATP indicator lamp

Low tire pressure warning lamp

Lamp will flash every second for 1 minute and then stay on con-
tinuously thereafter.

2010 Pathfinder
