SEC-126

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

• Possible symptom of NATS malfunction is “Engine cannot start”. Identify the possible causes according to

“Work Flow”, Refer to

SEC-120, "Work Flow"

.

• If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce-

dure, refer to

SEC-124, "ECM RE-COMMUNICATING FUNCTION : Description"

.

PRECAUTIONS FOR KEY REGISTRATION

• The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.

Therefore the registered key is necessary for this procedure. Before starting the registration operation collect

all registered Keys from the customer.

• The NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in

mechanical key) to BCM.

The key ID registration is the procedure that registers the ID to the BCM.

• When performing the key system registration only, the engine cannot be started by inserting the key into the

key cylinder. When performing the NATS registration only, the engine cannot be started by using the ignition

key.

SECURITY INDICATOR

• Always flashes with ignition key in the OFF position.

MAINTENANCE INFORMATION

CAUTION:

It is necessary to perform NATS ID registration when replacing any of the following part.

If it's not (or fail to do so), the electrical system may not operate properly.

• BCM

• ECM

• IPDM E/R

• Ignition key

• NATS antenna amp.

• Combination meter

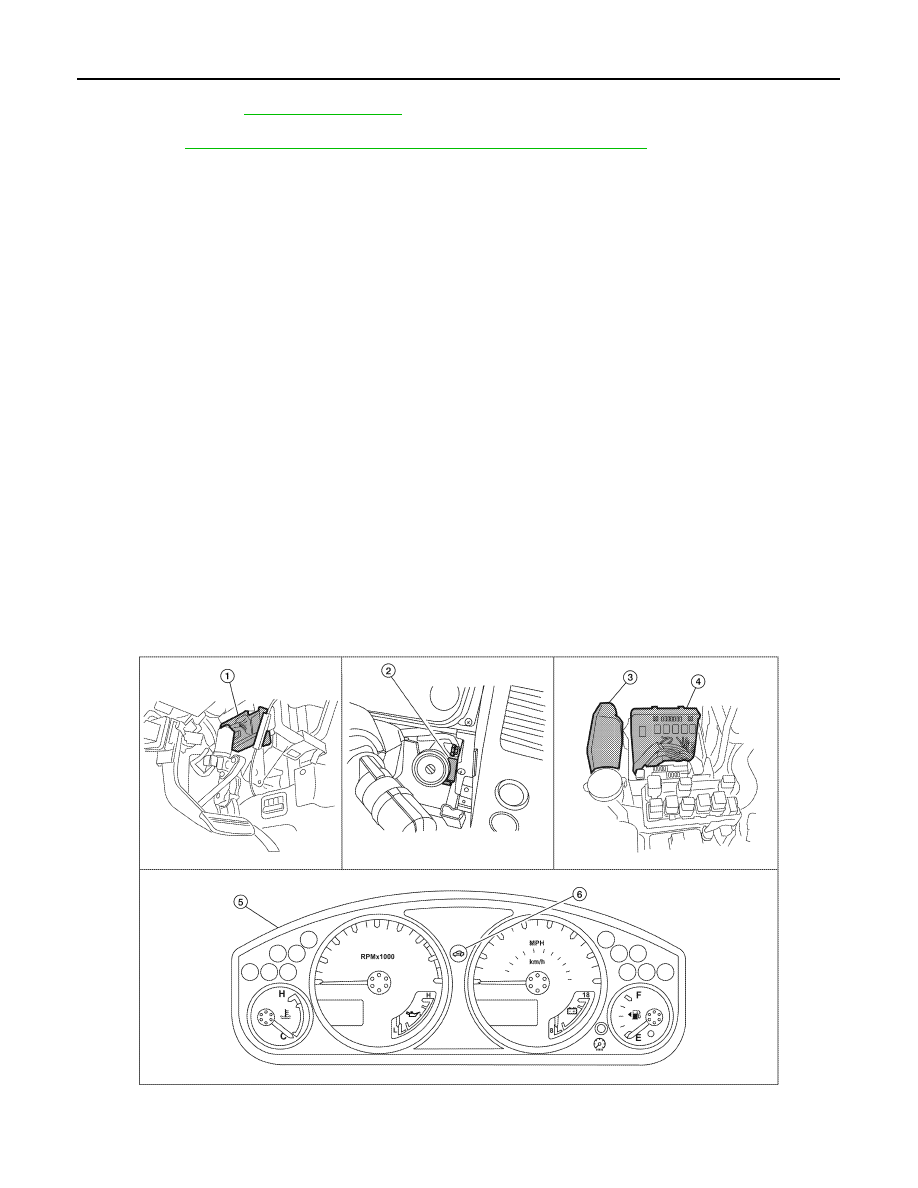

Component Parts Location

INFOID:0000000005259039

ALKIA1271ZZ

2010 Pathfinder

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-127

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000005259040

1.

BCM M18, M20
(view with instrument panel LH re-
moved)

2.

NATS antenna amp. M21

3.

ECM E16

4.

IPDM E/R E121
(view with cover removed)

5.

Combination meter M24

6.

Security indicator lamp

Item

Function

BCM

Verifies the received signal from the ignition key ID, then informs ECM whether to allow engine start.

Remote keyless entry receiver

Receives lock/unlock signal from the keyfob, and then transmits to the BCM.

A/T shift selector (park position
switch)

Detects whether the shift lever is in park.

NATS antenna amp.

Detects the ignition key presence in the ignition key cylinder.

Security indicator

Indicates the status of the security system.

IPDM E/R

Powers-up the horn and the headlamps in case of a security breach.

2010 Pathfinder

SEC-128

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

VEHICLE SECURITY SYSTEM

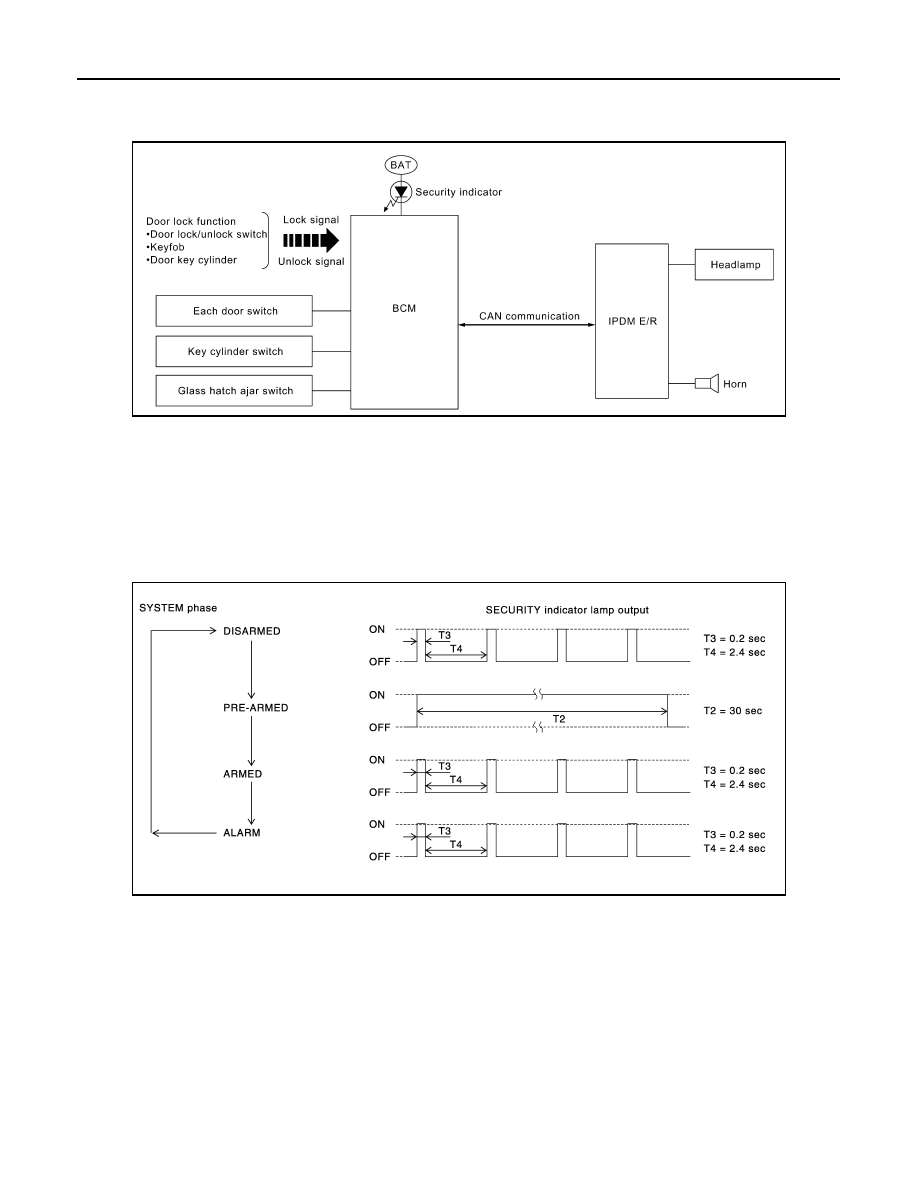

System Diagram

INFOID:0000000005259041

System Description

INFOID:0000000005259042

DESCRIPTION

The security system provides an audible and visual alarm when an unauthorized access to the vehicle is

detected while the system is in armed phase.

The security system consist of the BCM managing the audible alarm (horn) and the visual alarm (headlamps).

OPERATION FLOW

Disarmed Phase

When the vehicle is being driven or when doors are open, the theft warning system is set in the disarmed

phase on the assumption that the owner is inside or near the vehicle.

Pre-Armed Phase And Armed Phase

The vehicle security system turns into the pre-armed phase when ignition switch is in OFF position, all doors

including glass hatch are closed and locked (using keyfob, doorlock/unlock switch, driver key cylinder or auto

relock function). The system automatically shifts into the armed phase.

Condition of Activating The System

When the following condition is performed in armed phase, the system sounds the horns and flashes the

headlamps for about 50 seconds.

• Any door is opened.

ALKIA0706GB

PIIA1367E

2010 Pathfinder

VEHICLE SECURITY SYSTEM

SEC-129

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Condition of Deactivating The System

When one of the following operations is performed, the armed phase is canceled.

• Unlock the doors with keyfob.

• Use the mechanical key to unlock the driver door using the door key cylinder.

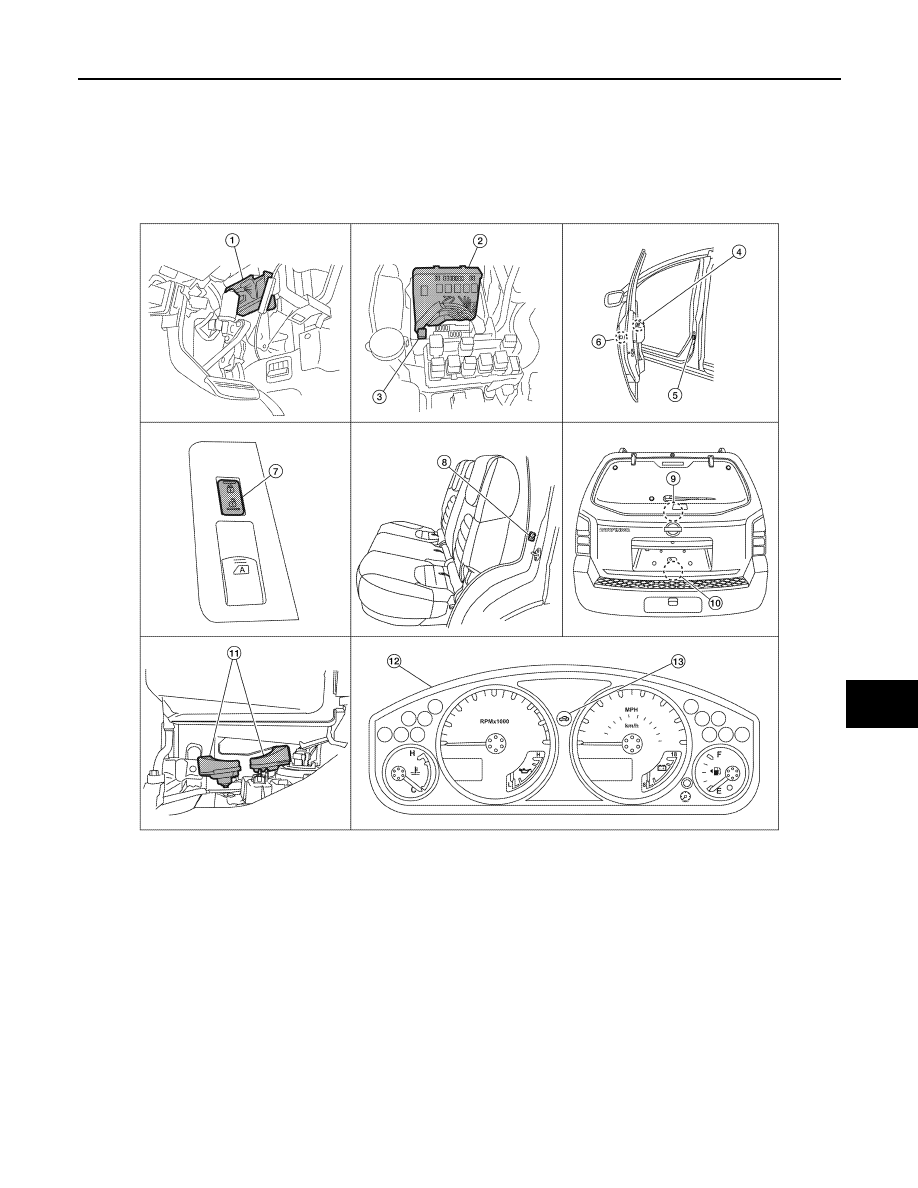

Component Parts Location

INFOID:0000000005259043

1.

BCM M18, M19, M20
(view with instrument panel LH re-
moved)

2.

IPDM E/R E122, E123, E124
(view with cover removed)

3.

Horn relay H-1

4.

Main power window and door lock/
unlock switch D7, D8

5.

Front door switch LH B8
RH B108

6.

Front door lock assembly LH (key cylin-
der switch) D14

7.

Power window and door lock/unlock
switch RH D105

8.

Rear door switch LH B18
RH B116

9.

Glass hatch ajar switch D503

10. Back door latch (door ajar switch)

D502
Glass hatch ajar switch D503

11. Horn E3

(behind front combination lamp LH)

12. Combination meter M24

13. Security indicator lamp

ALKIA1718ZZ

2010 Pathfinder

SEC-130

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

Component Description

INFOID:0000000005259044

Item

Function

BCM

Verifies the received signal from ignition key, then informs ECM whether to allow engine start.

Door switch

Provides the BCM with the status of each monitored door.

Security indicator

Indicates the status of the security system.

IPDM E/R

Controls the horn and headlamps operation.

Horn

Sounds when the vehicle security system is triggered.

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

SEC-131

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005484820

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

IMMU

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

SEC-176, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder

SEC-132

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000005484821

DATA MONITOR

ACTIVE TEST

THEFT ALM
THEFT ALM : CONSULT-III Function (BCM - THEFT ALM)

INFOID:0000000005484822

WORK SUPPORT

DATA MONITOR

1: With Intelligent Key
2: With remote keyless entry system

ACTIVE TEST

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position.

Test Item

Description

THEFT IND

This test is able to check security indicator operation [ON/OFF].

Test Item

Description

SECURITY ALARM SET

This mode is able to confirm and change security alarm ON-OFF setting.

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR” on
CONSULT-III screen.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC ON SW [ON/OFF]

Indicates ignition switch (ACC) status judged from ACC signal (accessory power supply)

I-KEY LOCK

1

 [ON/OFF]

Indicates lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK

1

 [ON/OFF]

Indicates unlock signal status received from Intelligent Key unit by CAN communication

I-KEY TRUNK

1

 [ON/OFF]

Indicates condition of back door opener switch

KEYLESS LOCK

2

 [ON/OFF]

Indicates lock signal status received from remote keyless entry receiver (integrated in the BCM)

KEYLESS UNLOCK

2

 [ON/OFF]

Indicates unlock signal status received from remote keyless entry receiver (integrated in the BCM)

TRNK OPNER SW [ON/OFF]

Indicates switch status of back door opener switch

TRNK OPN MNTR [ON/OFF]

Indicates switch status of back door latch

DOOR SW-DR [ON/OFF]

Indicates switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

Indicates switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

Indicates switch status input from rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates switch status input from rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates switch status input from back door switch

KEY CYL LK-SW [ON/OFF]

Indicates lock switch status from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates unlock switch status from door key cylinder switch

CDL LOCK SW [ON/OFF]

Indicates lock switch status from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates unlock switch status from door lock and unlock switch

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

SEC-133

< FUNCTION DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

HEAD LAMP(HI)

This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.

2010 Pathfinder
