Nissan Pathfinder (2010 year). Manual - part 550

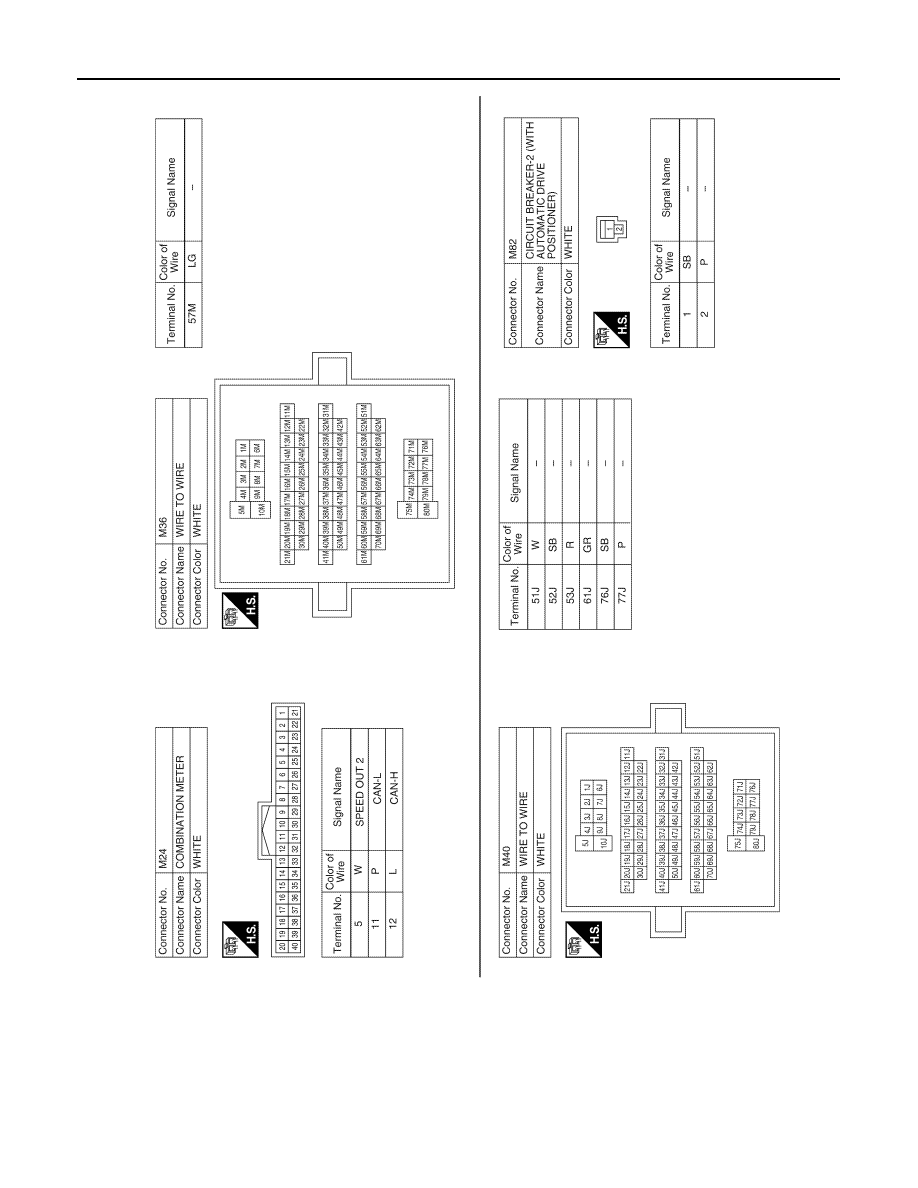

RF-34

< ECU DIAGNOSIS >

SUNROOF SYSTEM

ABKIA1773GB

2010 Pathfinder

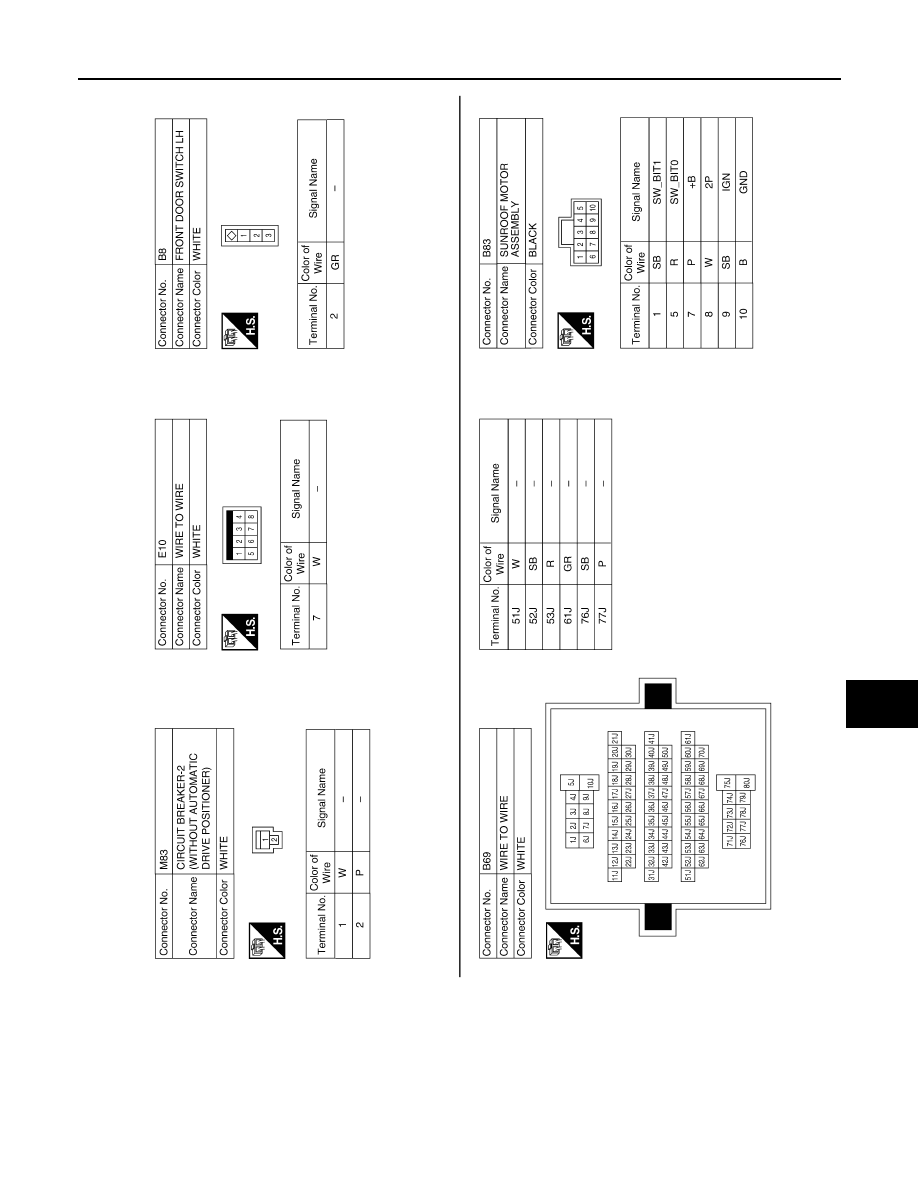

SUNROOF SYSTEM

RF-35

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ABKIA0004GB

2010 Pathfinder

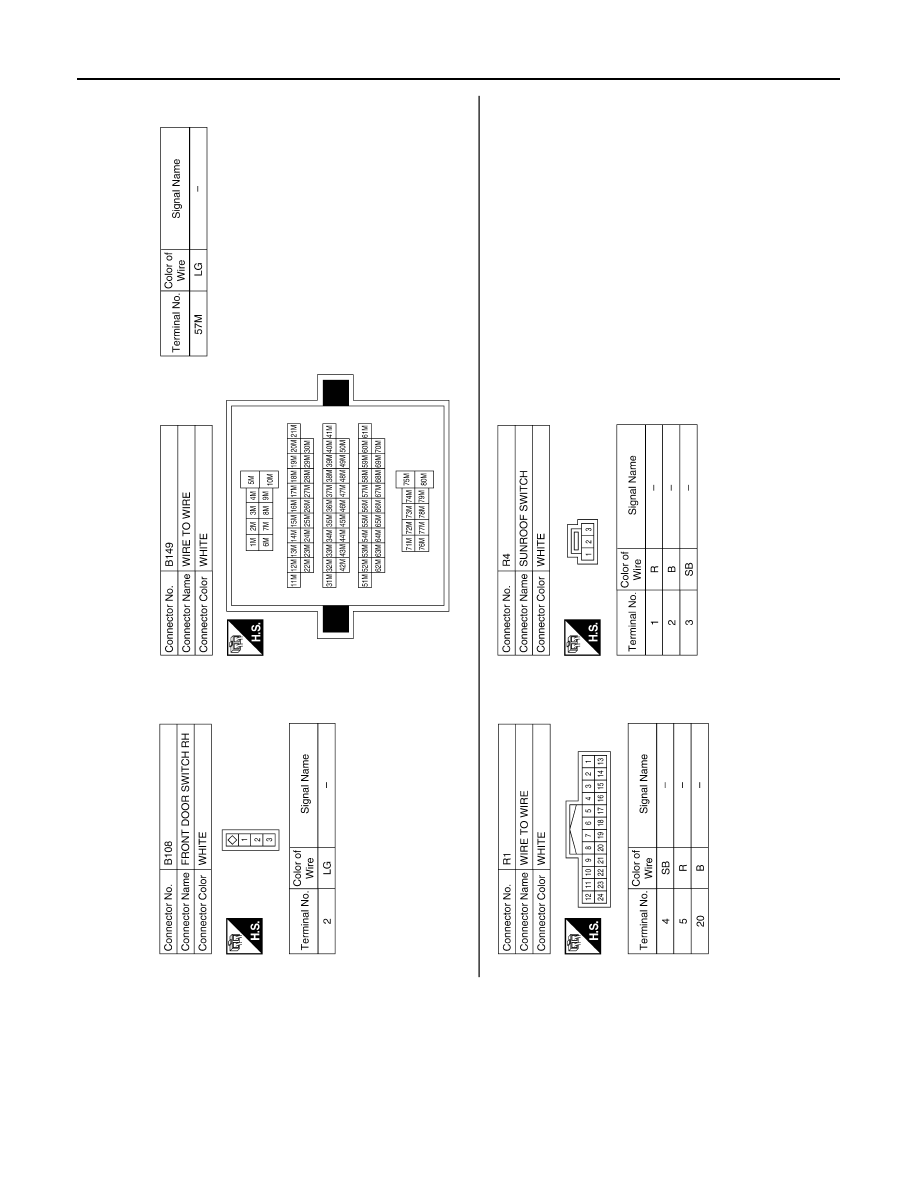

RF-36

< ECU DIAGNOSIS >

SUNROOF SYSTEM

ABKIA0005GB

2010 Pathfinder

SUNROOF DOES NOT OPERATE PROPERLY

RF-37

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYMPTOM DIAGNOSIS

SUNROOF DOES NOT OPERATE PROPERLY

Diagnosis Procedure

INFOID:0000000005255249

1.

 CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.

Refer to

BCS-34, "Diagnosis Procedure"

.

>> GO TO 2

2.

 CHECK SUNROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check sunroof motor assembly power supply and ground circuit.

Refer to

RF-10, "SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure"

.

>> GO TO 3

3.

 CHECK SUNROOF SWITCH CIRCUIT

Check sunroof switch circuit.

Refer to

RF-12, "Description"

.

Is the inspection result normal?

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

RF-38

< SYMPTOM DIAGNOSIS >

AUTO OPERATION DOES NOT OPERATE

AUTO OPERATION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000005255250

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

Refer to

RF-5, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

Is the inspection result normal?

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

DOES NOT STOP FULLY-OPEN OR FULLY-CLOSED POSITION

RF-39

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

DOES NOT STOP FULLY-OPEN OR FULLY-CLOSED POSITION

Diagnosis Procedure

INFOID:0000000005255251

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

Refer to

RF-5, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

Is the inspection result normal?

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

RF-40

< SYMPTOM DIAGNOSIS >

RETAINED POWER OPERATION DOES NOT OPERATE PROPERLY

RETAINED POWER OPERATION DOES NOT OPERATE PROPERLY

Diagnosis Procedure

INFOID:0000000005255252

1.

 CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

RF-14, "Component Function Check"

.

Is the inspection result normal?

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

SUNROOF DOES NOT OPERATE ANTI-PINCH FUNCTION

RF-41

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF DOES NOT OPERATE ANTI-PINCH FUNCTION

Diagnosis Procedure

INFOID:0000000005255253

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

Refer to

RF-5, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

Is the inspection result normal?

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

2010 Pathfinder
