RF-2

SUNROOF DOES NOT OPERATE ANTI-
PINCH FUNCTION .............................................

41

Diagnosis Procedure  ..............................................

41

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

42

Work Flow ...............................................................

42

Inspection Procedure ..............................................

44

Diagnostic Worksheet .............................................

46

PRECAUTION .............................................

48

PRECAUTIONS  .................................................

48

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................
.

48

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ..................................

48

Precaution ...............................................................

49

PREPARATION ..........................................

50

PREPARATION .................................................

50

Special Service Tool  ...............................................

50

Commercial Service Tool ........................................

50

ON-VEHICLE REPAIR  ...............................

51

SUNROOF SYSTEM  .........................................

51

Adjustment ..............................................................

51

Removal and Installation .........................................

52

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

RF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

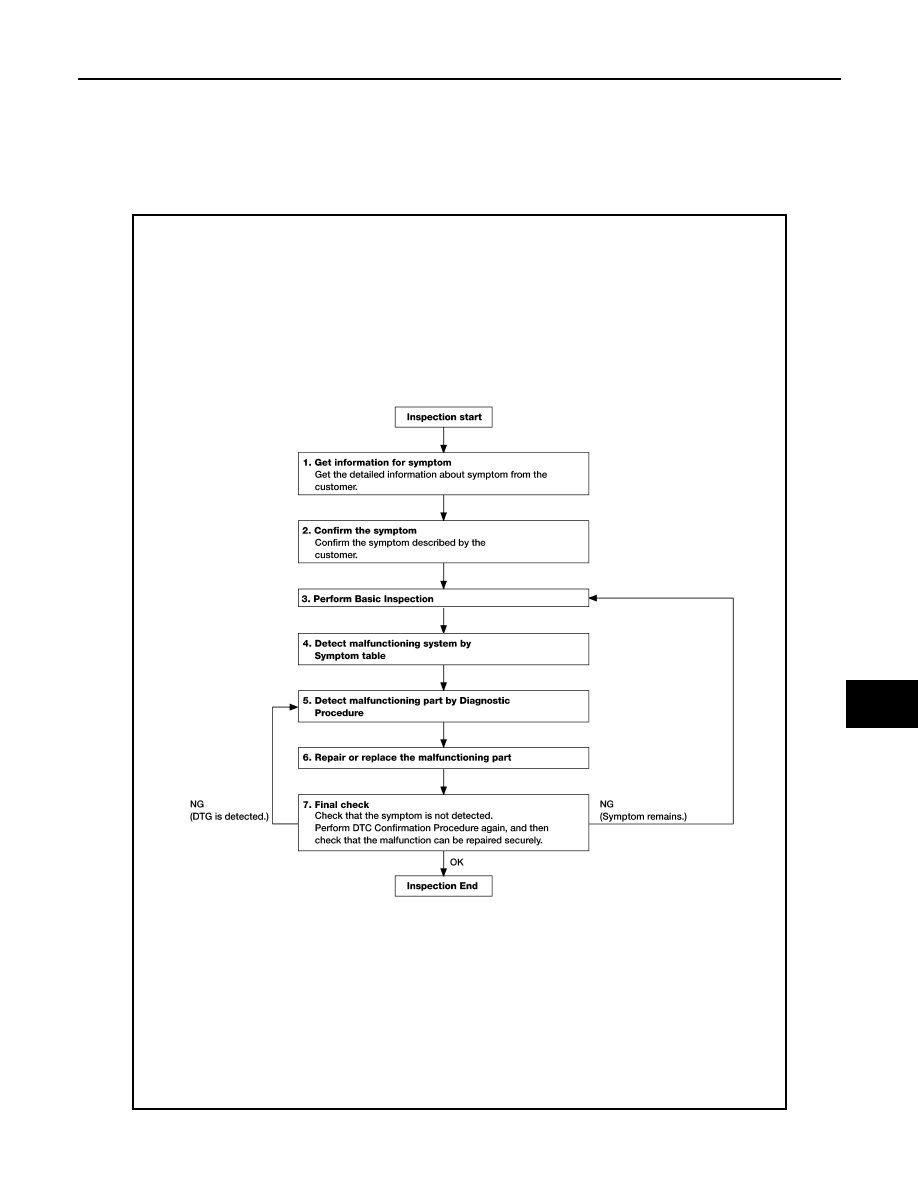

Work Flow

INFOID:0000000005255223

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0859GB

2010 Pathfinder

RF-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2

2.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 3

3.

 PERFORM BASIC INSPECTION

Perform

RF-11, "SUNROOF MOTOR ASSEMBLY : Special Repair Requirement"

.

Inspection End>>GO TO 4

4.

 DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to symptom diagnosis based on the confirmed symptom in step 4,

and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 5

5.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

NOTE:

The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also

required for the circuit check in the Diagnostic Procedure.
Is malfunctioning part detected?

YES

>> GO TO 6

NO

>> Check voltage of related BCM terminals using CONSULT-III.

6.

 REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 7

7.

 FINAL CHECK

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that

the symptom is not detected.
Does the symptom reappear?

YES

>> GO TO 5

NO

>> Inspection End.

2010 Pathfinder

INSPECTION AND ADJUSTMENT

RF-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000005255224

MEMORY RESET PROCEDURE

1. Please observe the following instructions at confirming the sunroof operation.

NOTE:

Do not disconnect the electronic power while the sunroof is operating or within 5 seconds after the sunroof

stops (to wipe-out the memory of lid position and operating friction).

2. Initialization of system should be conducted after the following conditions.

• When the battery has been disconnected or discharged.

• When the sunroof motor has been disconnected from power.

• When the sunroof motor is changed.

• When the sunroof does not operate normally (Incomplete initialization conditions).

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000005255225

INITIALIZATION PROCEDURE

If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to

normal.

1. Turn ignition switch ON.

2. Push and hold the sunroof tilt switch in the forward (DOWN) position until the sunroof is fully closed.

3. After the sunroof has closed all the way, push and hold the tilt switch forward (DOWN) again for more than

2 seconds to re-learn motor position.

4. Initialization is complete if the sunroof operates normally.

2010 Pathfinder

RF-6

< FUNCTION DIAGNOSIS >

SUNROOF SYSTEM

FUNCTION DIAGNOSIS

SUNROOF SYSTEM

System Diagram

INFOID:0000000005255226

SUNROOF

System Description

INFOID:0000000005255227

SUNROOF SYSTEM

INPUT/OUTPUT SIGNAL CHART

SUNROOF OPERATION

• The sunroof motor assembly operates with a power supply that is output from the BCM while the ignition

switch is ON or retained power is operating.

• The tilt up/down & slide open/close signals from the sunroof switch enable the sunroof motor to move arbi-

trarily.

AUTO OPERATION

The sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the sunroof

without holding the sunroof switch in the slide open/tilt down or slide close/tilt up position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables the sunroof system to operate

up to 45 seconds after the ignition switch is turned OFF.

Retained power function cancel conditions

• When a front door is opened (door switch ON)

• When ignition switch is turned ON again.

• When 45 seconds elapse on the timer.

ALKIA0861GB

Item

Input signal to sunroof motor assembly

Sunroof motor function

Actuator

Sunroof switch

Sunroof switch signal (tilt down or slide
open)

Sunroof control

Sunroof motor

Sunroof switch signal (tilt up or slide
close)

BCM

RAP signal

2010 Pathfinder

SUNROOF SYSTEM

RF-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

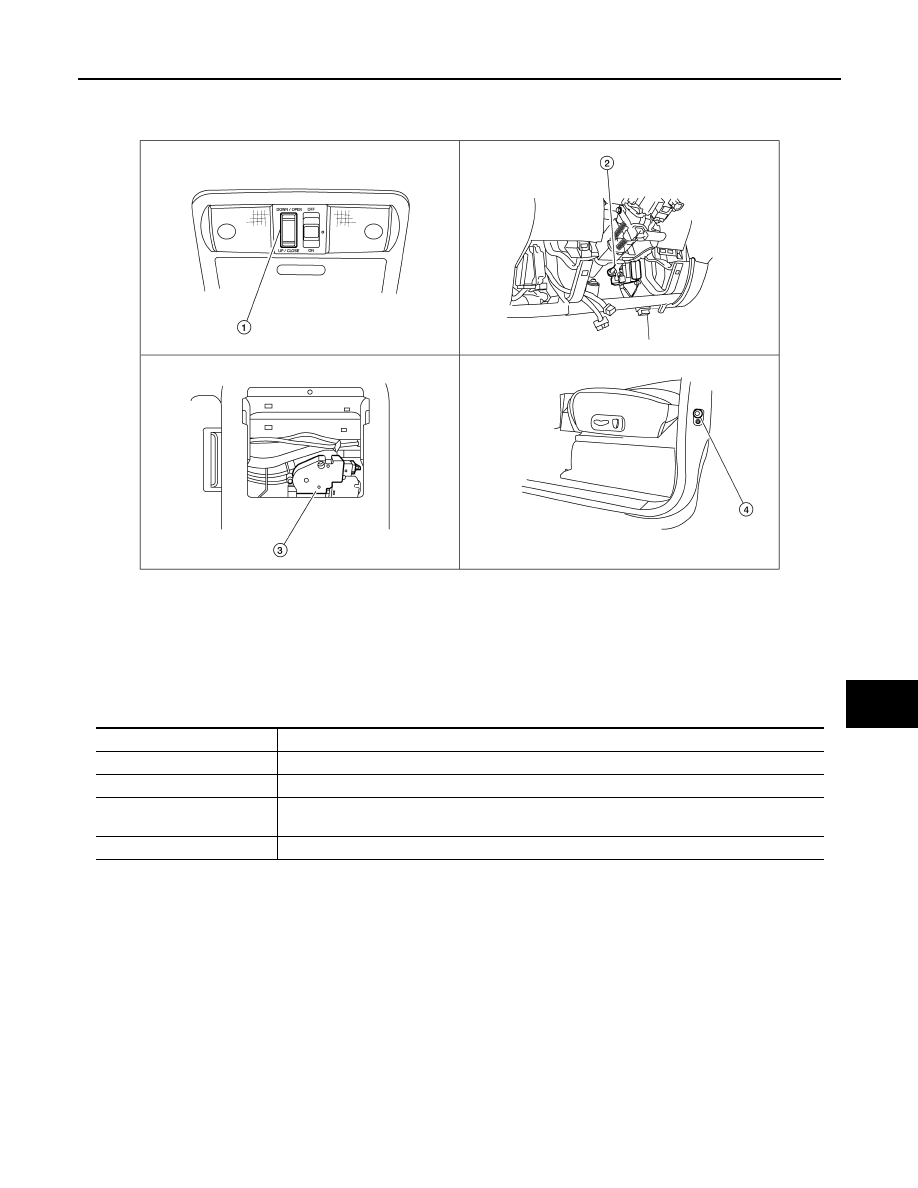

Component Parts Location

INFOID:0000000005255228

Component Description

INFOID:0000000005255229

ALKIA1175ZZ

1.

Sunroof switch R4

2.

BCM  M18, M19, M20
(View with lower instrument panel LH
removed)

3.

Sunroof motor assembly B83

4.

Front door switch LH B8, RH B108

Component

Function

BCM

Supplies power to the sunroof motor assembly.

Sunroof switch

Transmits tilt up/down & slide open/close operation signal to sunroof motor assembly.

Sunroof motor assembly

The sunroof motor and integrated CPU enables tilt up/down & slide open/close as requested by
the sunroof switch.

Front door switch

Detects door open/close condition and transmits to BCM.

2010 Pathfinder

RF-8

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005484540

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

RETAINED PWR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

RF-29, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

RF-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000005484541

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch.

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH.

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH.

Test Item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-III screen even if the ignition switch is turned OFF.

NOTE:

During this test, CONSULT-III can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-III screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-III might be stuck if “RE-
TAINED PWR” is turned “ON” or “OFF” on CONSULT-III screen when ignition switch is OFF.

Work item

Description

RETAINED PWR SET

RAP signal’s power supply period can be changed by mode setting. Selects RAP signal’s power
supply period between three steps
• MODE1 (45 sec.)/MODE2 (OFF)/MODE 3 (2 min.).

2010 Pathfinder
