Nissan Pathfinder (2010 year). Manual - part 543





REAR POWER WINDOW SWITCH

PWC-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000005256076

REMOVAL

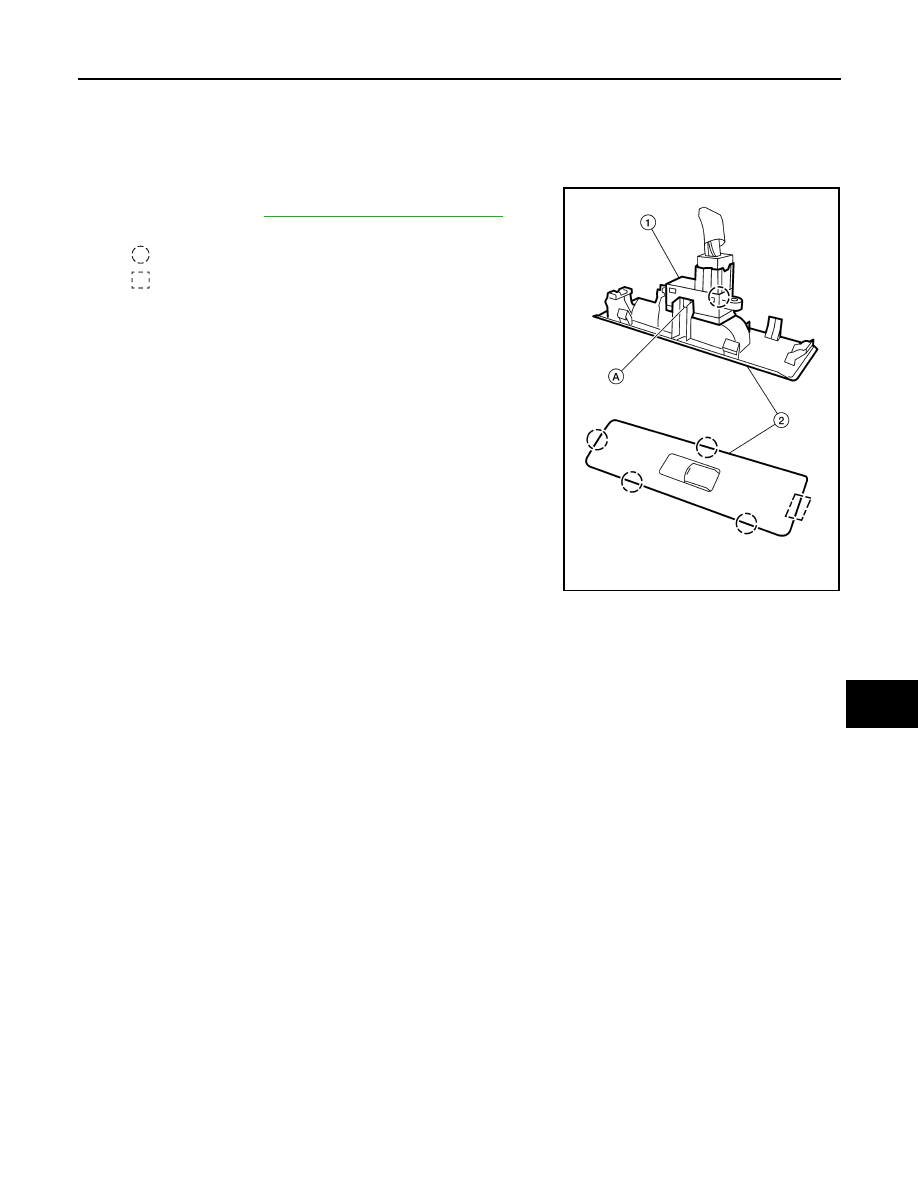

1. Remove the rear power window switch finisher (2) from the rear

door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Release the two tabs (A), one on either side, then separate the

rear power window switch (1) from the finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

Pawl
Metal clip

ALKIA1099ZZ

2010 Pathfinder

PWO-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005519257

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005256593

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

PWO

PRECAUTIONS

PWO-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

PWO-4

< COMPONENT DIAGNOSIS >

POWER SOCKET

COMPONENT DIAGNOSIS

POWER SOCKET

Wiring Diagram-Power Socket/Cigarette Lighter

INFOID:0000000005256594

ABMWA0505GB

2010 Pathfinder

PWO

POWER SOCKET

PWO-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1343GB

2010 Pathfinder

PWO-6

< COMPONENT DIAGNOSIS >

POWER SOCKET

ABMIA0059GB

2010 Pathfinder

PWO

POWER SOCKET

PWO-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

POWER SOCKET

Removal and Installation

INFOID:0000000005256595

UPPER AND LOWER FRONT POWER SOCKET, CONSOLE POWER SOCKET, AND REAR CAR-
GO POWER SOCKET

Removal

1. Access both front and back of power socket assembly. Refer to

IP-11, "Exploded View"

 (Instrument

panel),

IP-18, "Exploded View"

 (Center console),

INT-22, "Removal and Installation"

 (Luggage floor trim).

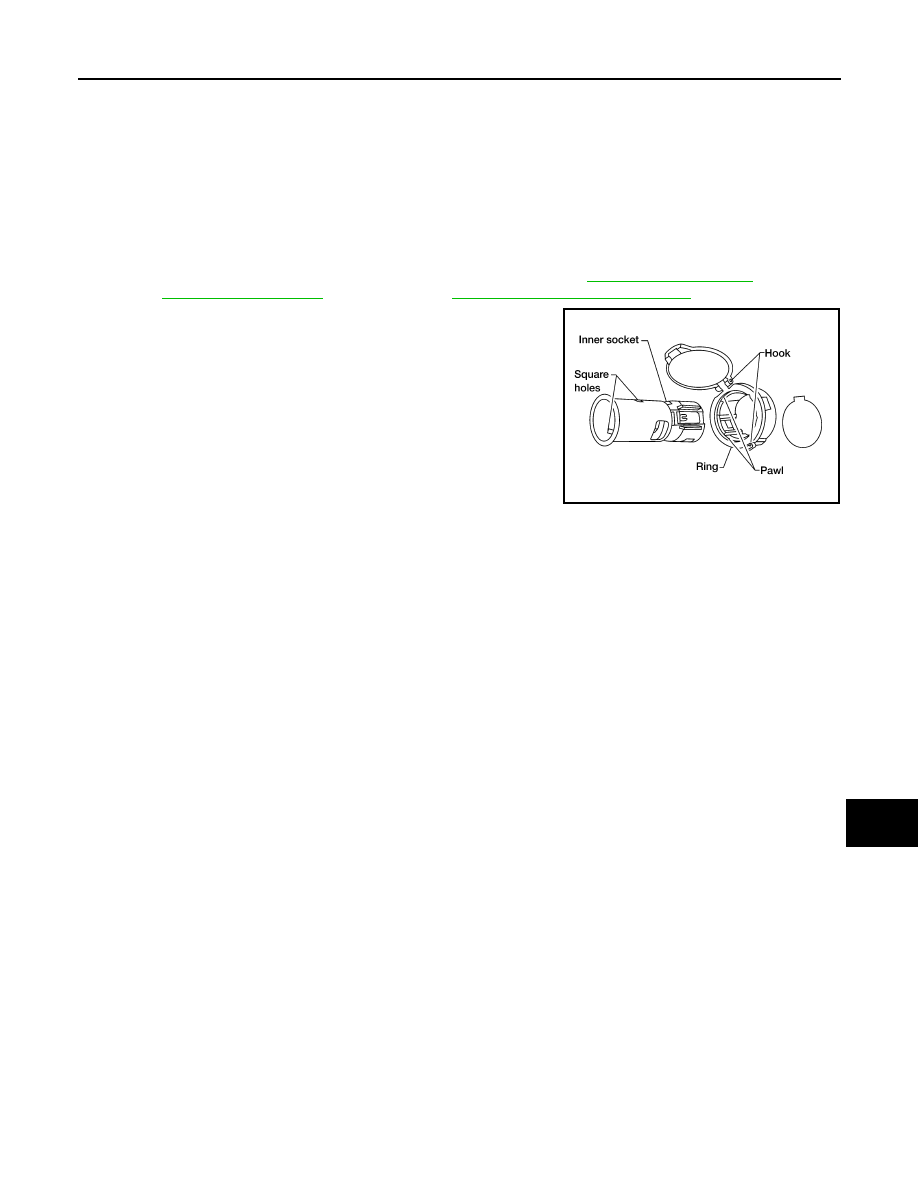

2. Remove inner socket from the ring, while pressing the hook on

the ring out from square hole.

3. Disconnect power socket connector.
4. Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

WKIA1035E

2010 Pathfinder
