Nissan Pathfinder (2010 year). Manual - part 522





PG-8

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000005474194

Required Procedure After Battery Disconnection

System

Item

Reference

Engine Control

Idle Air Volume Learning

Refer to

EC-25, "Idle Air Volume

Learning"

 (VQ40DE).

Refer to

EC-511, "Idle Air Volume

Learning"

 (VK56DE).

Brake Control

Steering Angle Sensor Neutral Position

Refer to

BRC-8, "ADDITIONAL

SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair
Requirement"

.

Roof

Sunroof Memory Reset/Initialization

Refer to

RF-5

.

Seats

Automatic Drive Positioner System Initialization

Refer to Owner's Manual.

Audio-Visual System

Audio (Radio Preset)

Refer to Owner's Manual.

Navigation System

Refer to Owner's Manual.

Rear View Monitor Guiding Line Adjustment

Refer to

AV-310, "Work Flow"

.

2010 Pathfinder

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

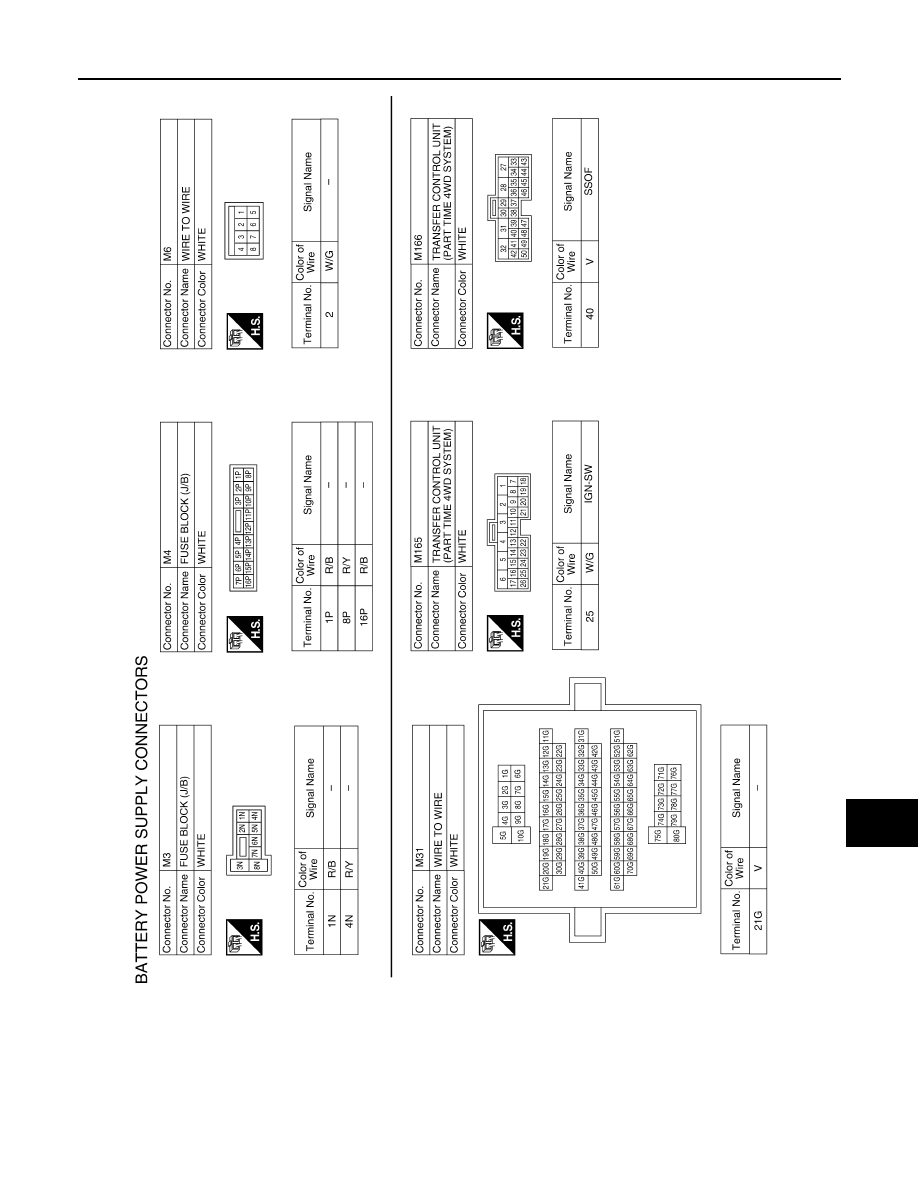

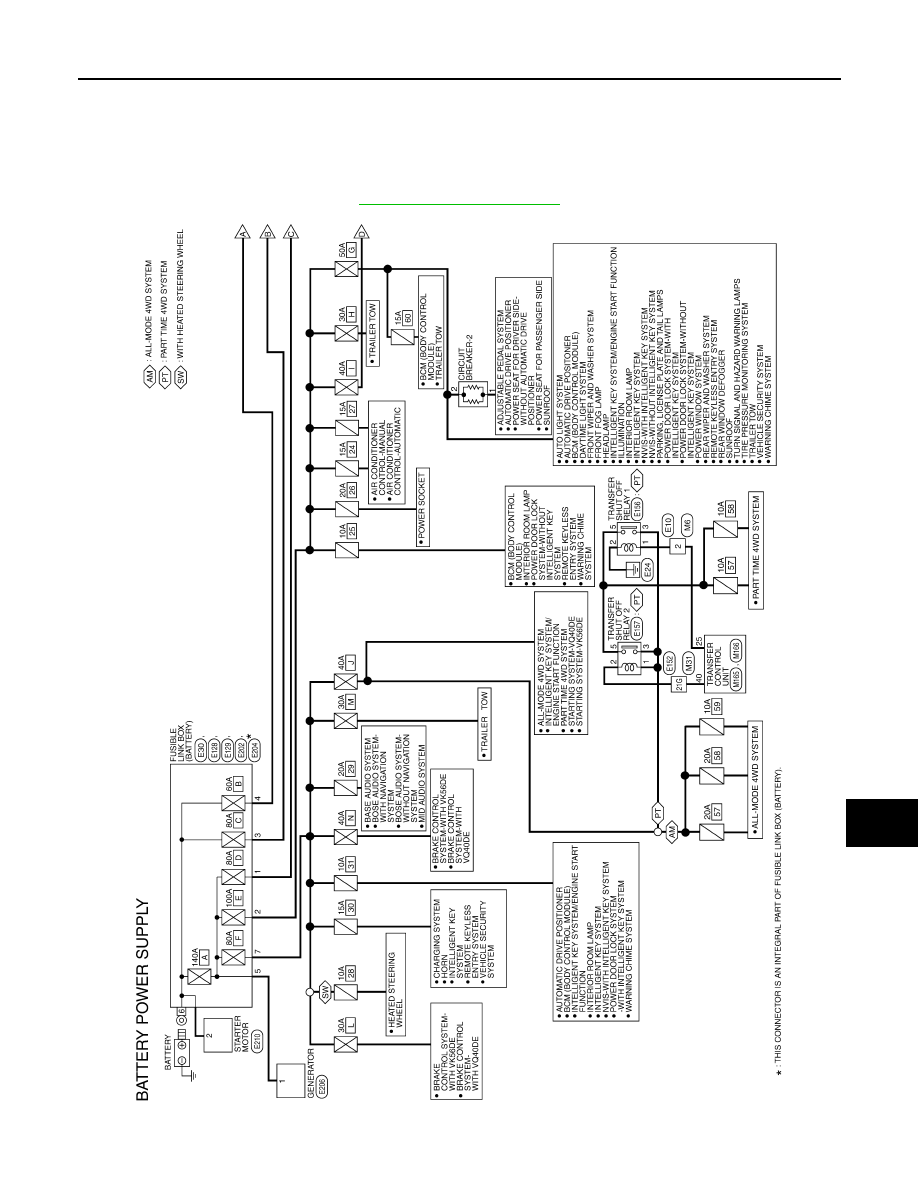

Wiring Diagram—Battery Power Supply—

INFOID:0000000005260653

For detailed ground distribution, refer to

PG-28, "Ground Distribution"

.

ABMWA0511GB

2010 Pathfinder

PG-10

< COMPONENT DIAGNOSIS >

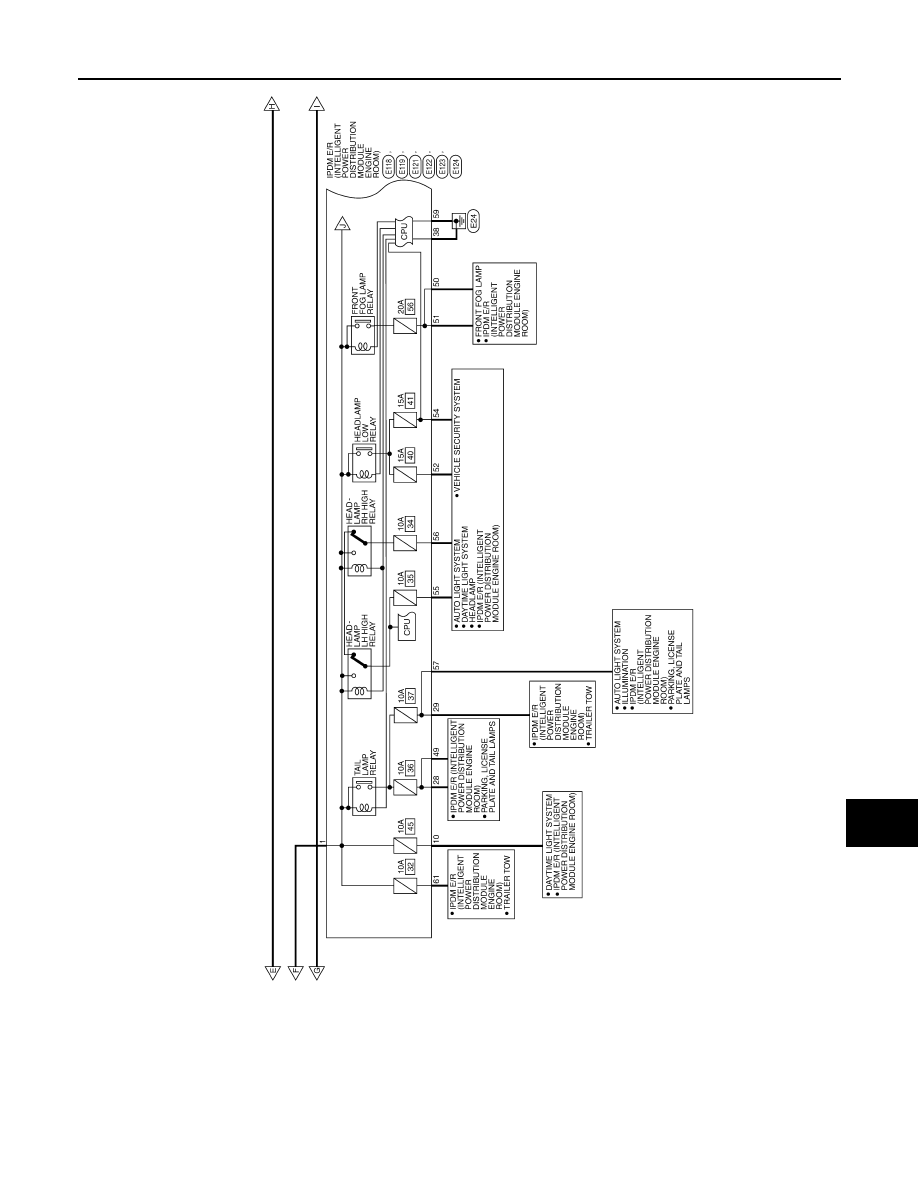

POWER SUPPLY ROUTING CIRCUIT

ABMWA0512GB

2010 Pathfinder

PG

POWER SUPPLY ROUTING CIRCUIT

PG-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

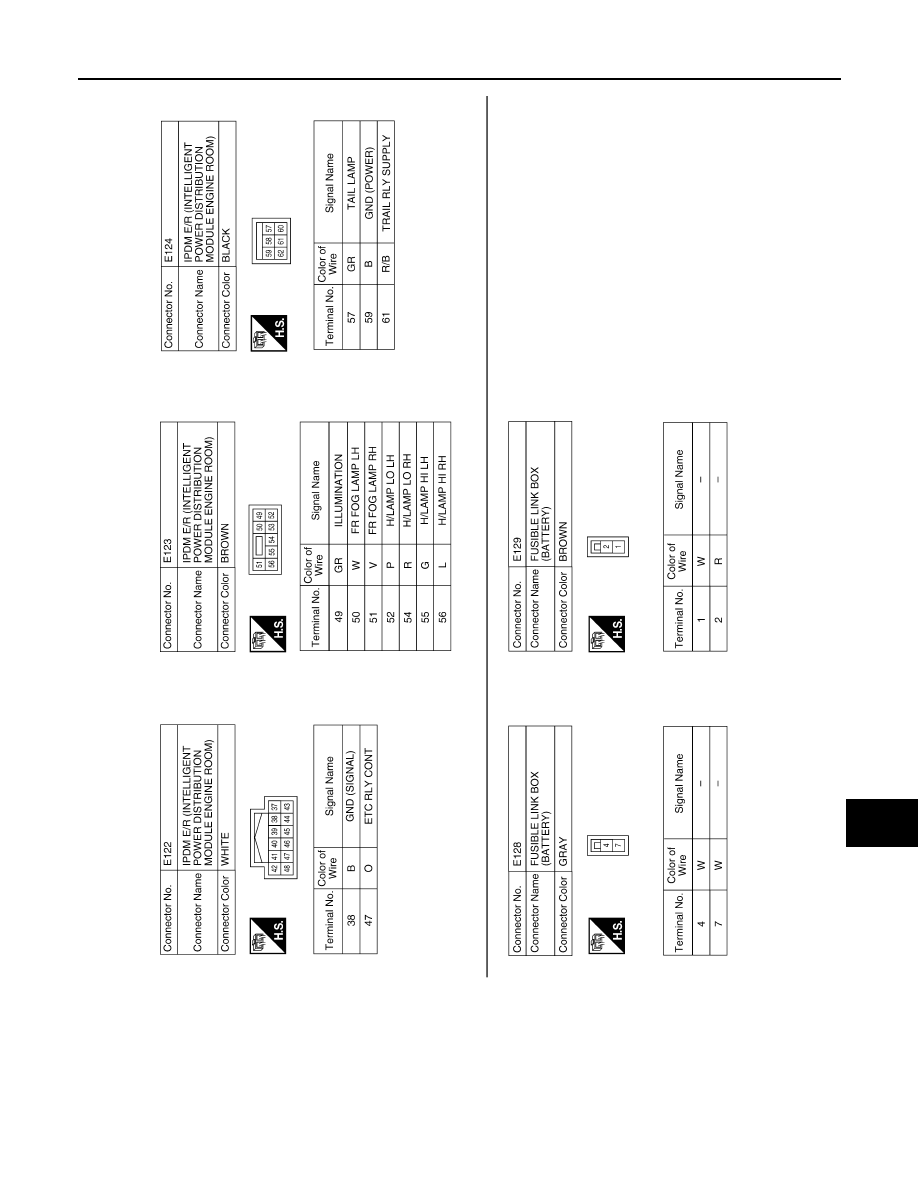

ABMWA0513GB

2010 Pathfinder

PG-12

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

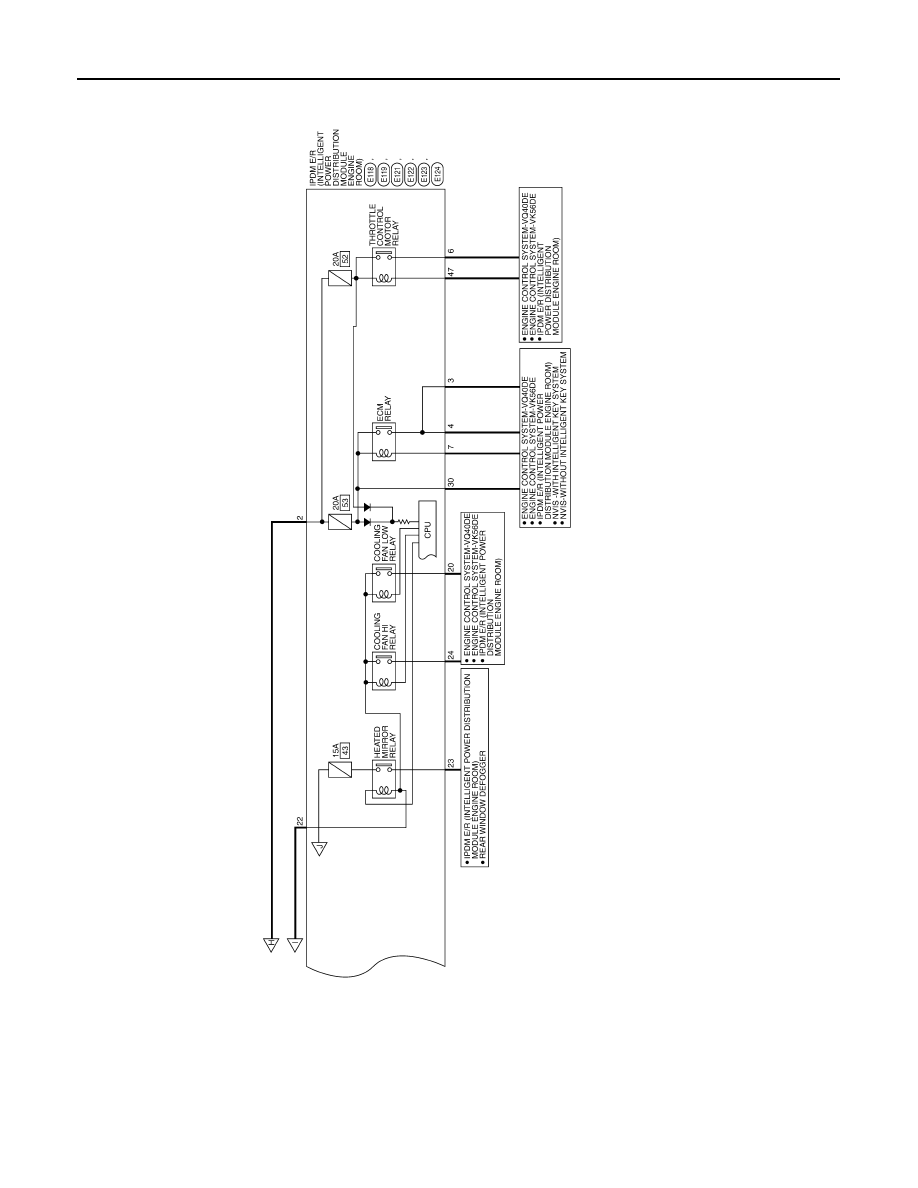

ABMWA0514GB

2010 Pathfinder

PG

POWER SUPPLY ROUTING CIRCUIT

PG-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

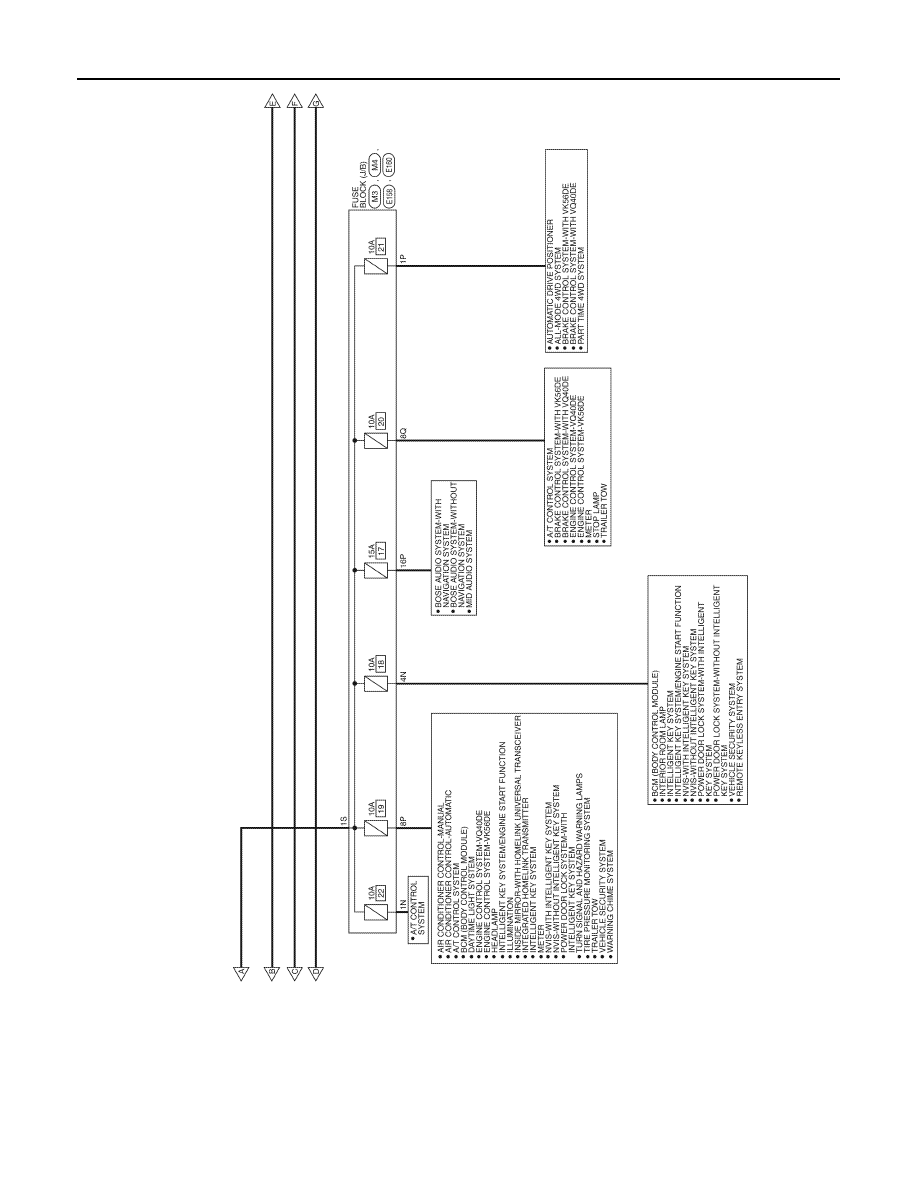

ABMIA1354GB

2010 Pathfinder

PG-14

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

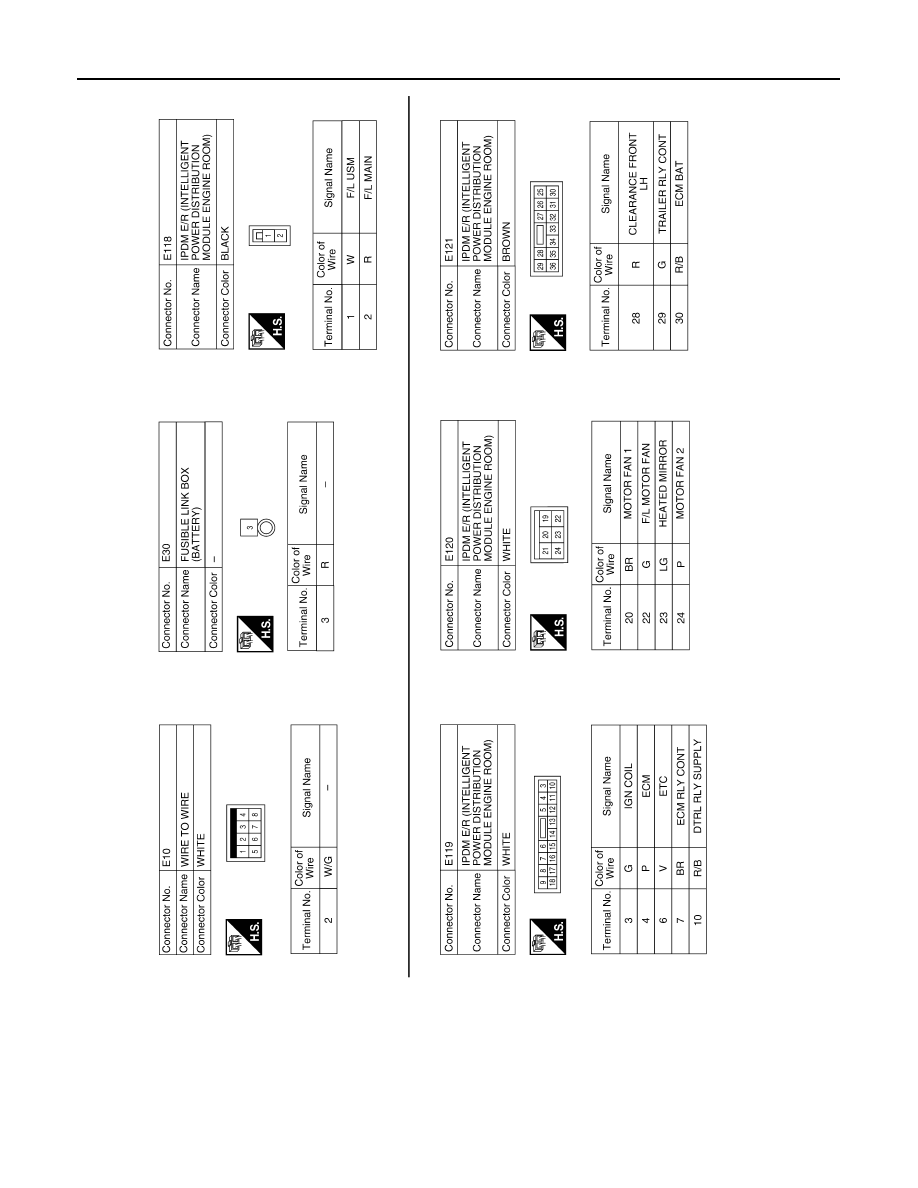

ABMIA1355GB
