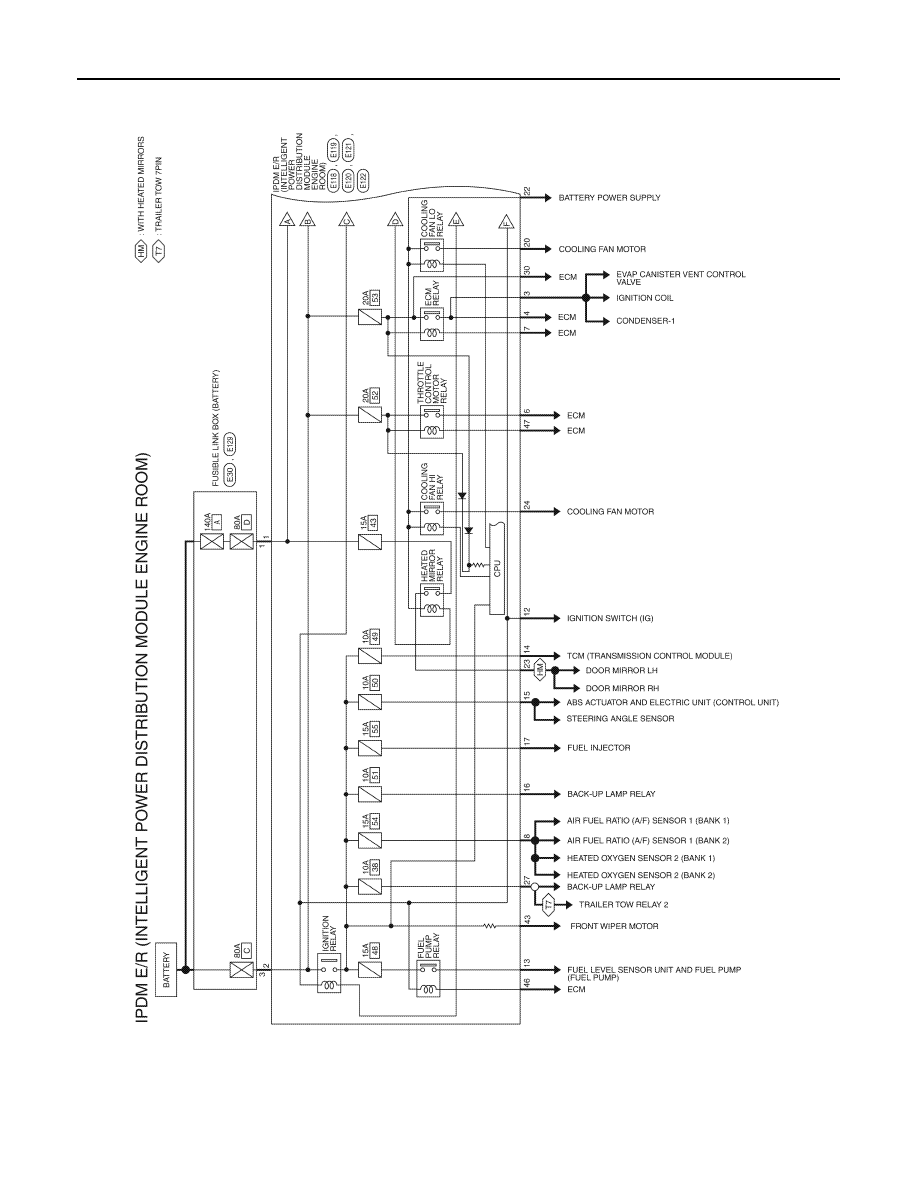

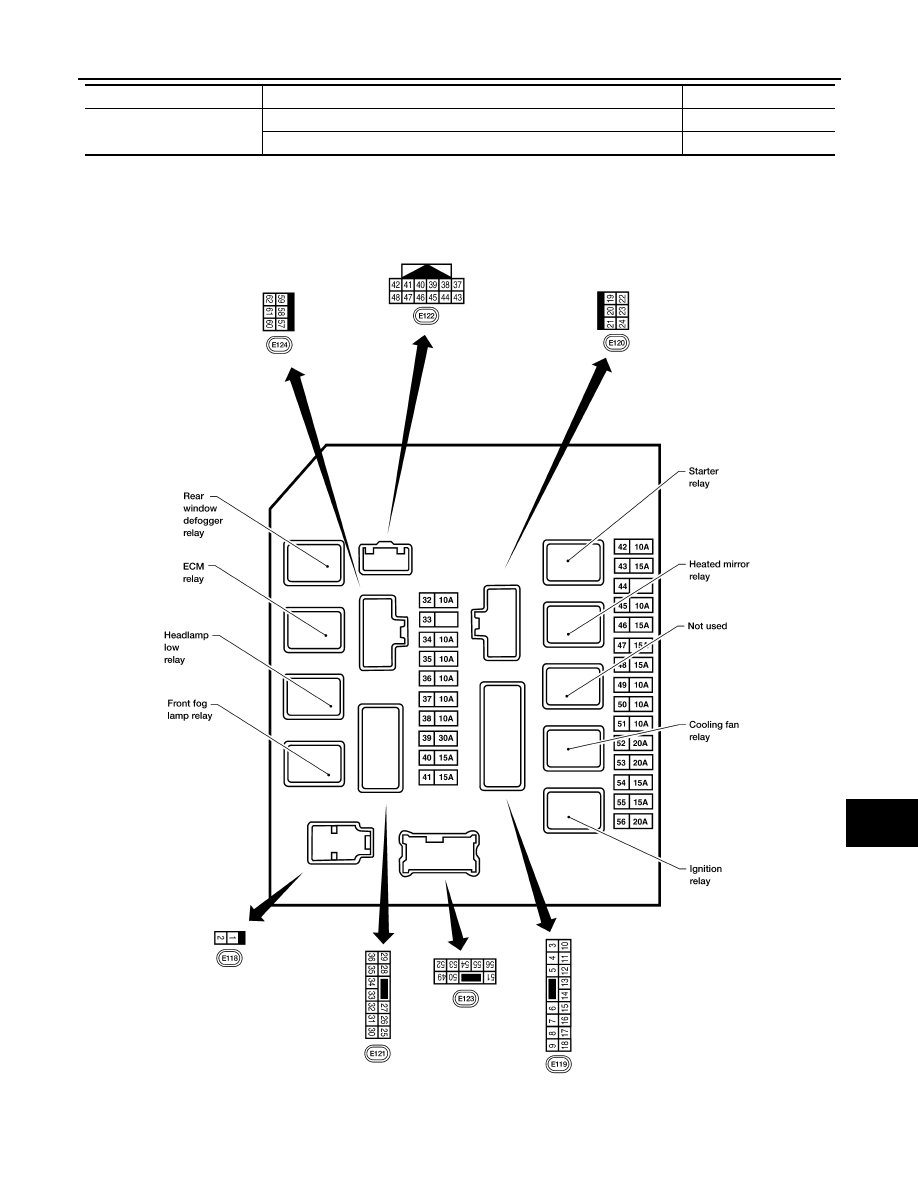

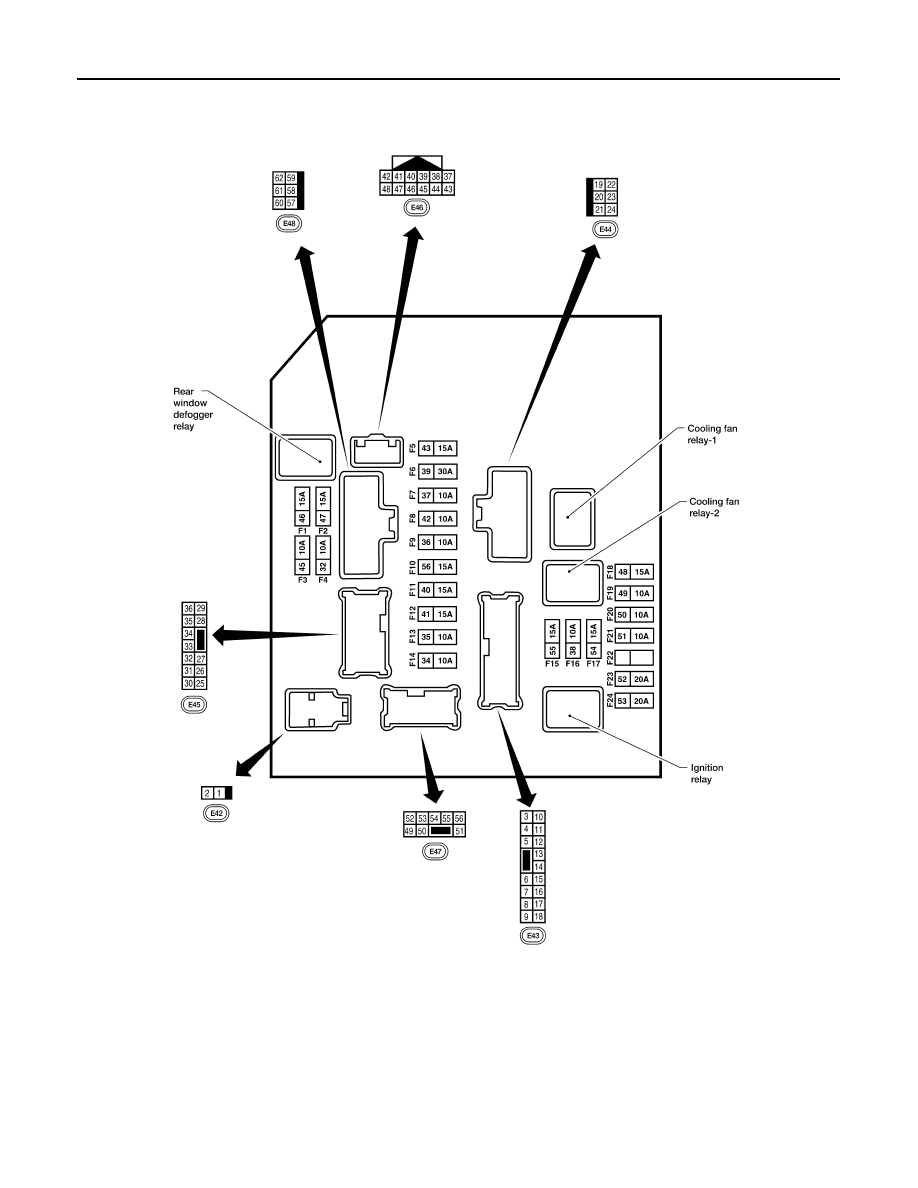

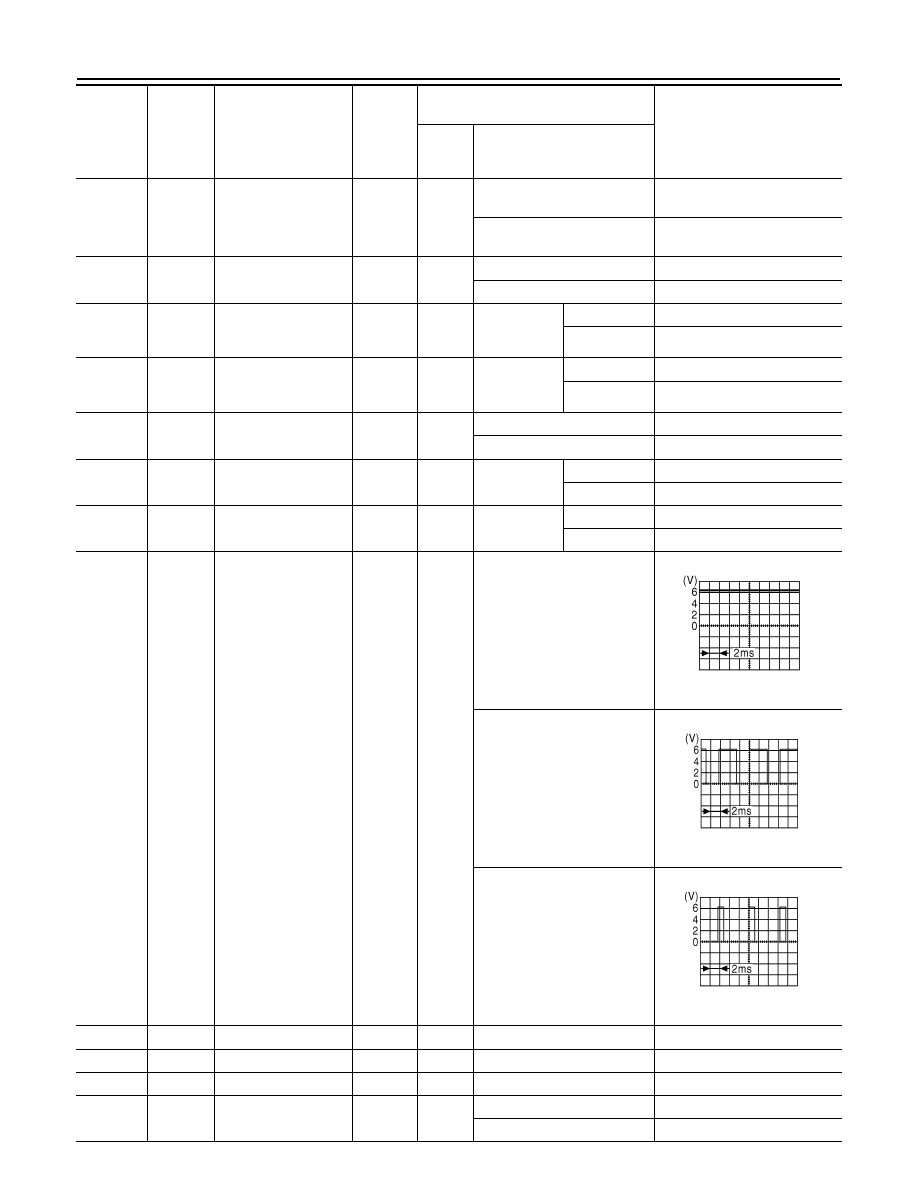

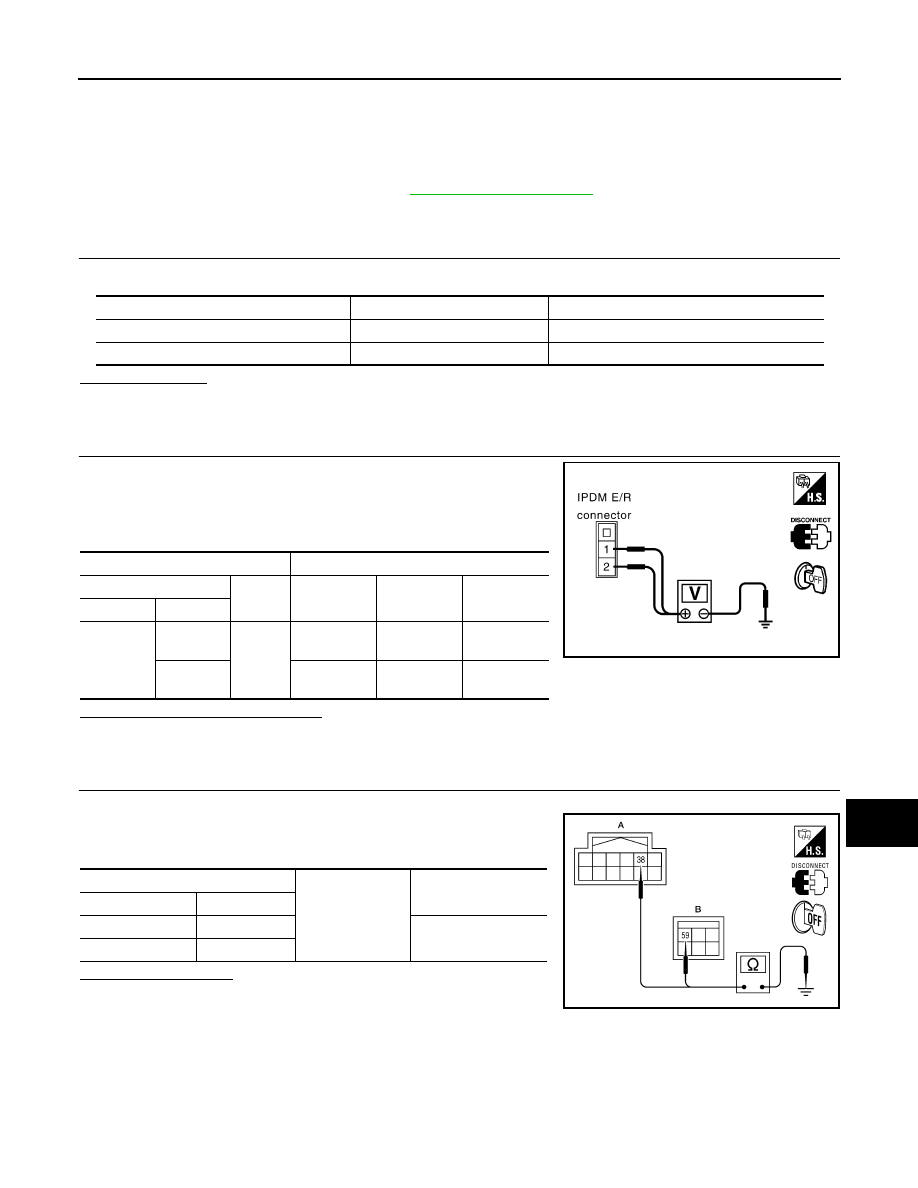

PCS POWER SUPPLY AND GROUND CIRCUIT PCS-17 < COMPONENT DIAGNOSIS > [IPDM E/R] C D E F G H I J K L B A O P N POWER SUPPLY AND GROUND CIRCUIT Diagnosis Procedure INFOID:0000000005260289 Regarding Wiring Diagram information, refer to . 1. CHECK FUSES AND FUSIBLE LINK Check that the following IPDM E/R fuses or fusible link are not blown. Is the fuse blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit. NO >> GO TO 2 2. CHECK BATTERY POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R. 3. Check voltage between IPDM E/R harness connectors and ground. Is the measurement value normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Check continuity between IPDM E/R harness connectors and ground. Does continuity exist? YES >> Inspection End. NO >> Repair or replace harness. Terminal No. Signal name Fuses and fusible link No. 1 Battery A, D 2 Battery C Terminals Ignition switch position (+) ( − ) OFF ON START Connector Terminal E118 1 Ground Battery Battery Battery 2 Battery Battery Battery SKIA1987E IPDM E/R Ground Continuity Connector Terminal E122 (A) 38 Yes E124 (B) 59 AWMIA0024ZZ 2010 Pathfinder |
