PREPARATION

MIR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

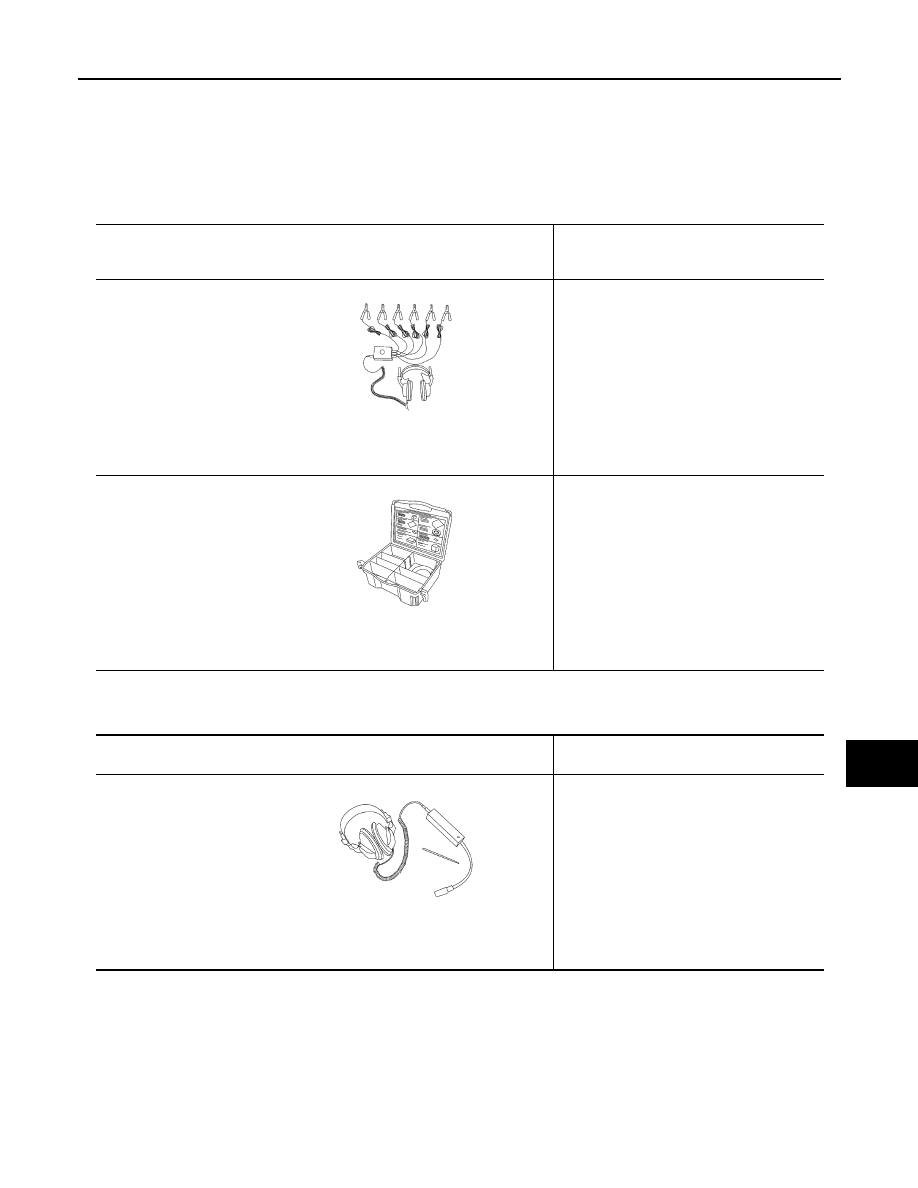

PREPARATION

Special Service Tool

INFOID:0000000005256478

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005256479

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2010 Pathfinder

MIR-14

< REMOVAL AND INSTALLATION >

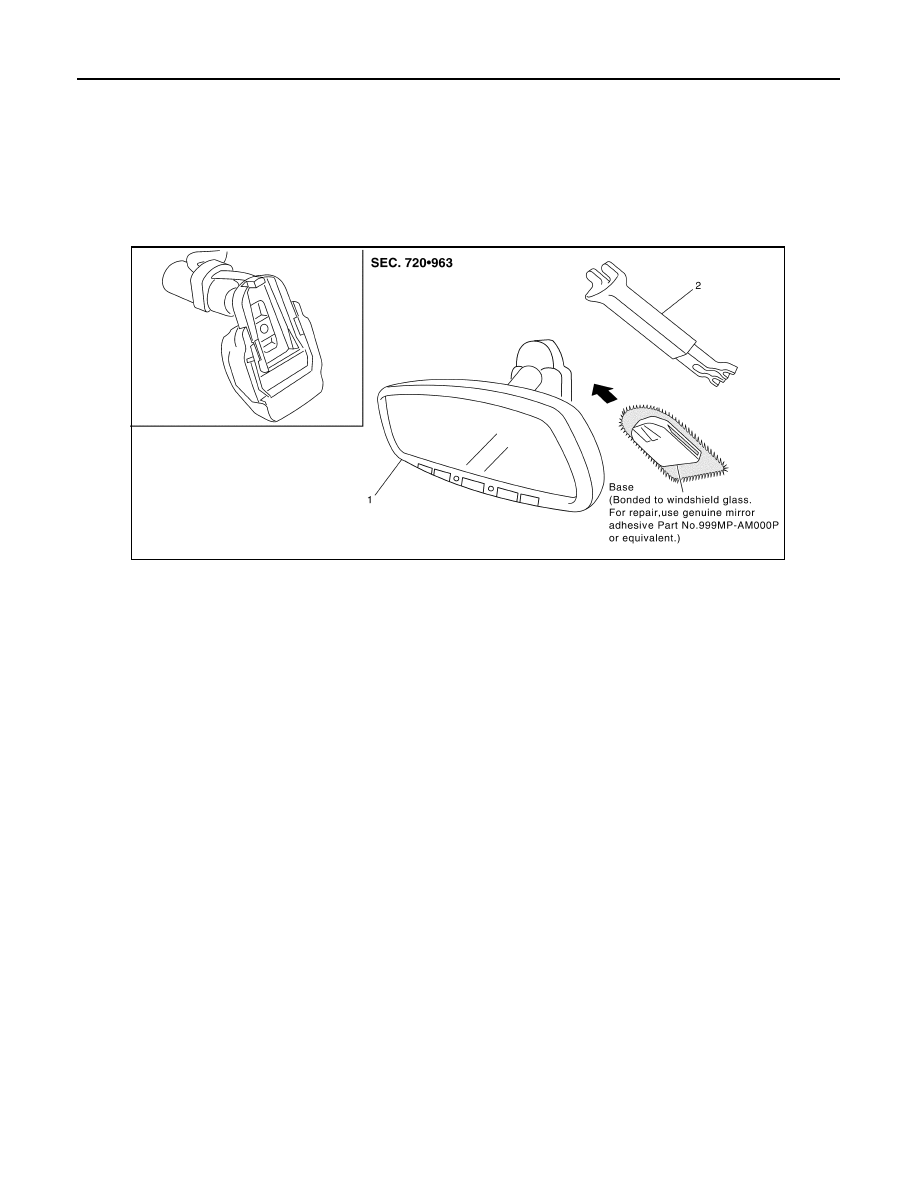

INSIDE MIRROR

INSIDE MIRROR

Removal and Installation

INFOID:0000000005256480

INSIDE MIRROR

1. Remove inside mirror finisher.
2. Remove inside mirror screw and slide the mirror upward to remove.
3. Disconnect the connector.

Installation is in the reverse order of removal.

1.

Inside mirror

2.

Inside mirror finisher

LIIA0277E

2010 Pathfinder

DOOR MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

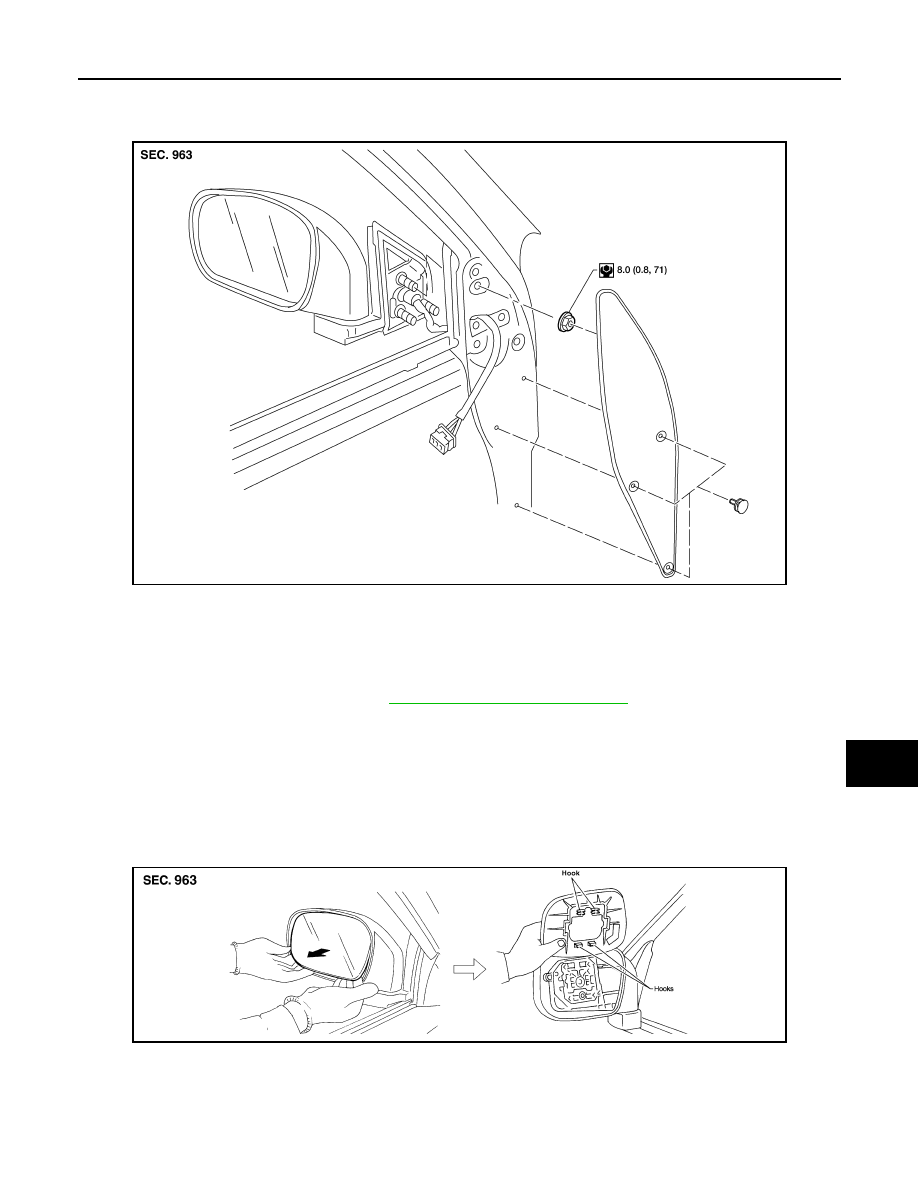

DOOR MIRROR

Door Mirror Assembly

INFOID:0000000005256481

REMOVAL

NOTE:

Be careful not to damage the mirror bodies.
1. Remove the front door sash cover.
2. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

3. Disconnect the door mirror harness connector.
4. Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

Door Mirror Glass

INFOID:0000000005256482

REMOVAL AND INSTALLATION

1. Angle the mirror fully up.
2. Remove the mirror.

• Pull from the bottom to disengage the clips.

• Continue to pivot the mirror upward from the bottom to separate the hooks.

3. If equipped, disconnect the electrical connectors and remove the mirror glass.

AWIIA1222GB

ALLIA0647ZZ

2010 Pathfinder

MIR-16

< REMOVAL AND INSTALLATION >

DOOR MIRROR

Installation is in the reverse order of removal.

2010 Pathfinder

DOOR MIRROR

MIR-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

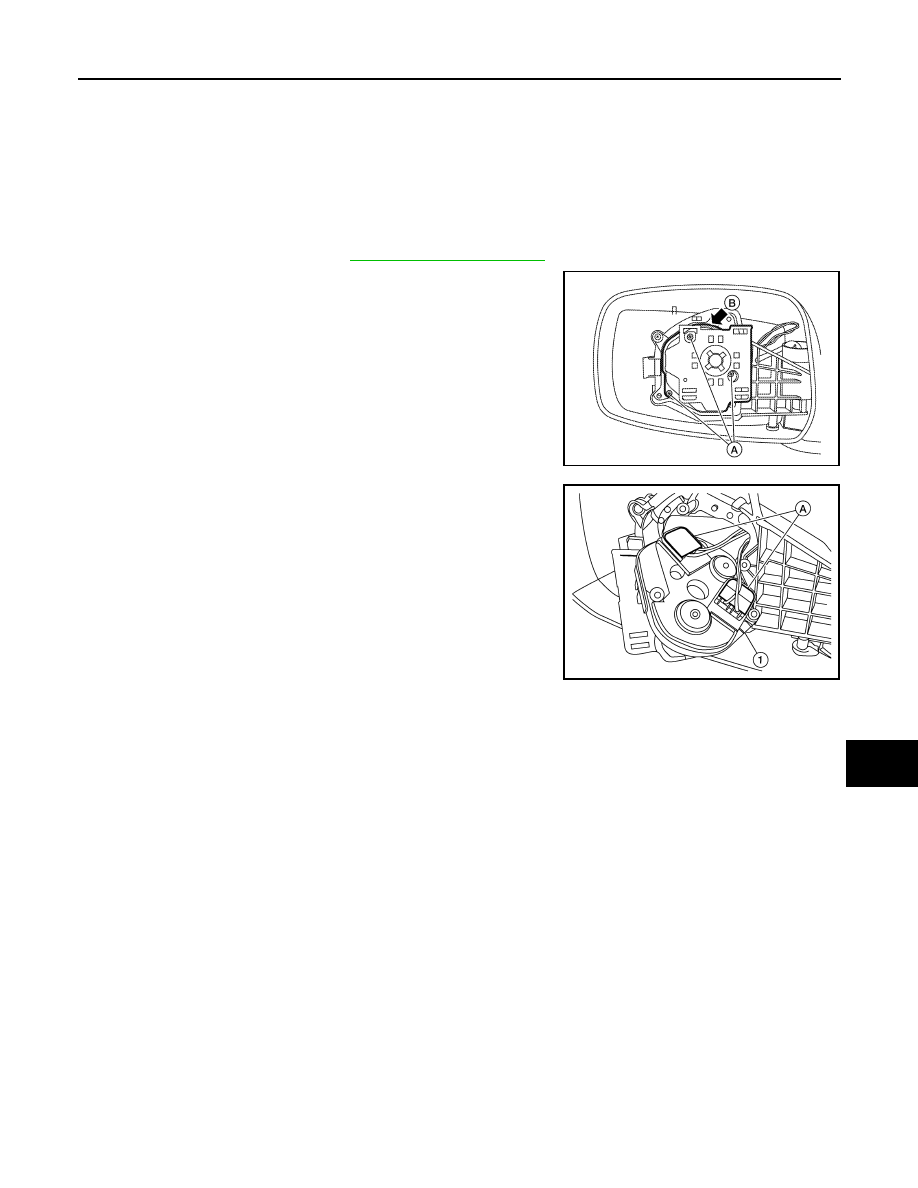

Mirror Actuator

INFOID:0000000005256483

DISASSEMBLY AND ASSEMBLY

Disassembly

1. Remove the mirror glass. Refer to

MIR-15, "Door Mirror Glass"

.

2. Remove the screws (A) and release the actuator from housing

(B).

3. Disconnect the connectors (A) and remove the actuator (1).

Assembly

Assembly is the reverse order of disassembly.

ALIIA0357GB

ALIIA0358GB

2010 Pathfinder

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

METER SYSTEM .................................................

4

METER SYSTEM .........................................................

4

METER SYSTEM : System Diagram ........................

4

METER SYSTEM : System Description ....................

4

METER SYSTEM : Arrangement of Combination
Meter .........................................................................

5

METER SYSTEM : Component Parts Location  ........

6

METER SYSTEM : Component Description  .............

6

SPEEDOMETER ..........................................................

7

SPEEDOMETER : System Diagram  .........................

7

SPEEDOMETER : System Description .....................

7

SPEEDOMETER : Component Parts Location  .........

7

SPEEDOMETER : Component Description  ..............

8

TACHOMETER ............................................................

8

TACHOMETER : System Diagram ...........................

8

TACHOMETER : System Description .......................

8

TACHOMETER : Component Parts Location  ...........

9

TACHOMETER : Component Description  ................

9

ENGINE COOLANT TEMPERATURE GAUGE  ..........

9

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

10

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

10

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

10

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

11

FUEL GAUGE ............................................................

11

FUEL GAUGE : System Diagram  ...........................

11

FUEL GAUGE : System Description  .......................

11

FUEL GAUGE : Component Parts Location  ...........

11

FUEL GAUGE : Component Description .................

12

ENGINE OIL PRESSURE GAUGE ............................

12

ENGINE OIL PRESSURE GAUGE : System Dia-
gram ........................................................................

12

ENGINE OIL PRESSURE GAUGE : System De-
scription ...................................................................

12

ENGINE OIL PRESSURE GAUGE : Component
Parts Location ..........................................................

13

ENGINE OIL PRESSURE GAUGE : Component
Description ...............................................................

13

VOLTAGE GAUGE  ....................................................

13

VOLTAGE GAUGE : System Diagram  ....................

14

VOLTAGE GAUGE : System Description ................

14

VOLTAGE GAUGE : Component Parts Location ....

14

VOLTAGE GAUGE : Component Description  .........

15

ODO/TRIP METER .....................................................

15

ODO/TRIP METER : System Diagram  ....................

15

ODO/TRIP METER : System Description ................

15

ODO/TRIP METER : Component Parts Location ....

15

ODO/TRIP METER : Component Description  .........

16

SHIFT POSITION INDICATOR  ..................................

16

SHIFT POSITION INDICATOR : System Diagram ....

16

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

16

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

17

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

17

WARNING LAMPS/INDICATOR LAMPS ..................

17

WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................

17

WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................

18

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................

18

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................

18

2010 Pathfinder

MWI-2

TRIP COMPUTER  .....................................................

19

TRIP COMPUTER : System Diagram  ....................

19

TRIP COMPUTER : System Description ................

19

TRIP COMPUTER : Component Parts Location  ....

20

TRIP COMPUTER : Component Description  .........

20

COMPASS .........................................................

21

Description ..............................................................

21

DIAGNOSIS SYSTEM (METER)  .......................

23

Diagnosis Description .............................................

23

CONSULT-III Function (METER/M&A) ...................

24

COMPONENT DIAGNOSIS  ........................

27

DTC U1000 CAN COMMUNICATION  ...............

27

DTC Logic ...............................................................

27

Diagnosis Procedure .............................................

27

DTC B2205 VEHICLE SPEED CIRCUIT  ...........

28

Description ..............................................................

28

DTC Logic ...............................................................

28

Diagnosis Procedure .............................................

28

POWER SUPPLY AND GROUND CIRCUIT  .....

29

COMBINATION METER  ...........................................

29

COMBINATION METER : Diagnosis Procedure  ....

29

BCM (BODY CONTROL MODULE)  .........................

29

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

30

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  .............................

30

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

31

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure .............................................

32

Component Inspection ............................................

33

OIL PRESSURE SWITCH SIGNAL CIRCUIT ...

35

Description ..............................................................

35

Component Function Check  ...................................

35

Diagnosis Procedure  ..............................................

35

Component Inspection ............................................

35

COMPASS .........................................................

36

Wiring Diagram — With HomeLink® Universal
Transceiver .............................................................

36

Wiring Diagram — Without HomeLink® Universal
Transceiver .............................................................

38

ECU DIAGNOSIS  ........................................

40

COMBINATION METER  ....................................

40

Reference Value .....................................................

40

Wiring Diagram  .......................................................

42

Fail Safe ..................................................................

58

DTC Index ...............................................................

60

BCM (BODY CONTROL MODULE) ..................

61

Reference Value  .....................................................

61

Terminal Layout  ......................................................

64

Physical Values .......................................................

64

Wiring Diagram  .......................................................

70

Fail Safe .................................................................

73

DTC Inspection Priority Chart ...............................

74

DTC Index ..............................................................

74

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

76

Reference Value  .....................................................

76

Terminal Layout  ......................................................

77

Physical Values .......................................................

78

Wiring Diagram  .......................................................

82

Fail Safe .................................................................

86

DTC Index ..............................................................

88

SYMPTOM DIAGNOSIS  ............................

89

THE FUEL GAUGE POINTER DOES NOT
MOVE .................................................................

89

Description ..............................................................

89

Diagnosis Procedure ...............................................

89

THE FUEL GAUGE POINTER DOES NOT
MOVE TO "F" WHEN REFUELING  ..................

90

Description ..............................................................

90

Diagnosis Procedure ...............................................

90

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON .......................................

91

Description ..............................................................

91

Diagnosis Procedure ...............................................

91

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF .....................................

92

Description ..............................................................

92

Diagnosis Procedure ...............................................

92

NORMAL OPERATING CONDITION ................

93

COMPASS .................................................................

93

COMPASS : Description  .........................................

93

PRECAUTION ............................................

94

PRECAUTIONS  .................................................

94

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

94

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ..................................

94

ON-VEHICLE REPAIR  ...............................

96

COMBINATION METER ....................................

96

Removal and Installation .........................................

96

2010 Pathfinder

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005260322

DETAILED FLOW

1.

CONFIRM SYMPTOM

Confirm symptom or customer complaint.

>> GO TO 2

2.

CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER

Perform self-diagnosis of combination meter. Refer to

MWI-23, "Diagnosis Description"

.

Does self-diagnosis mode operate?

YES

>> GO TO 3

NO

>> Check power supply and ground circuit of combination meter. Refer to

MWI-29, "COMBINATION

METER : Diagnosis Procedure"

. Then, GO TO 4

3.

CHECK COMBINATION METER (CONSULT-III)

Select “METER/M&A” on CONSULT-III and perform “SELF-DIAGNOSIS” of combination meter. Refer to

MWI-

24, "CONSULT-III Function (METER/M&A)"

.

Self-diagnostic results content

No malfunction detected>>Repair or replace the cause of symptom. Then, GO TO 4

Malfunction detected>>Refer to

MWI-60, "DTC Index"

. Then, GO TO 4

4.

CONFIRM OPERATION

Does the combination meter operate normally?
YES or NO

YES

>> Inspection End.

NO

>> GO TO 1

2010 Pathfinder
