Nissan Pathfinder (2010 year). Manual - part 495





PRECAUTIONS

MA-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005548014

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

2010 Pathfinder

MA-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

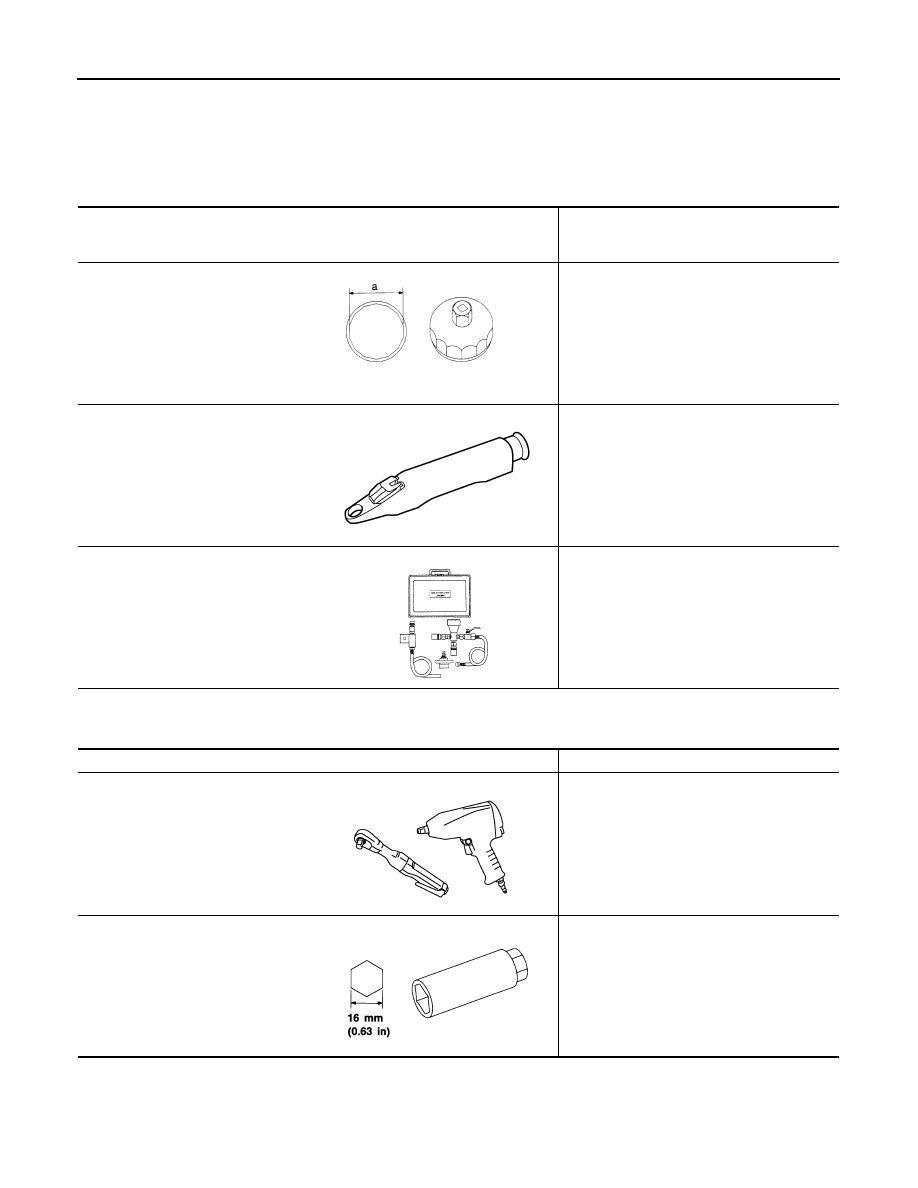

Special Service Tool

INFOID:0000000005255660

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005255661

Tool number
(Kent-Moore No.)
Tool name

Description

KV10115801
(J-38956)
Oil filter cap wrench

Removing and installing oil filter

a: 64.3 mm (2.531 in)

KV991J0010
(J-23688)
Engine coolant refractometer

Checking concentration of ethylene glycol in
engine coolant

KV991J0070
(J-45695)
Coolant refill tool

Filling cooling system

NT375

WBIA0539E

LMA053

Tool name

Description

Power tool

Loosening bolts and nuts

Spark plug wrench

Removing and installing spark plug

PBIC0190E

S-NT047

2010 Pathfinder

GENERAL MAINTENANCE

MA-5

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

ON-VEHICLE MAINTENANCE

GENERAL MAINTENANCE

General Maintenance

INFOID:0000000005255662

FOR NORTH AMERICA

FOR NORTH AMERICA: Explanation of General Maintenance

General maintenance includes those items which should be checked during the normal day-to-day operation

of the vehicle. They are essential if the vehicle is to continue operating properly. The owner can perform these

checks and inspections or have their NISSAN dealers perform them.

OUTSIDE THE VEHICLE

The maintenance items listed here should be performed from time to time, unless otherwise specified.

INSIDE THE VEHICLE

The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle,

etc.

Item

Reference page

Tires

Check the pressure with a gauge often and always prior to a long distance trips.
Adjust the pressure in all tires, including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive wear.

Wheel lug nuts

When checking the tires, make sure no nuts are missing, and check for any loose
nuts. Tighten if necessary.

WT-49, "Rotation"

Windshield

Clean the windshield on a regular basis. Check the windshield at least every six
months for cracks or other damage. Repair as necessary.

Tire rotation

Tires should be rotated every 12,000 km (7,500 miles).

WT-49, "Rotation"

Tire pressure monitor-
ing system (TPMS)
transmitter compo-
nents

Replace the TPMS transmitter grommet seal, valve core and cap when the tires
are replaced due to wear or age.

WT-8, "System Diagram"

Wheel alignment and
balance

If the vehicle pulls to either side while driving on a straight and level road, or if
you detect uneven or abnormal tire wear, there may be a need for wheel align-
ment. If the steering wheel or seat vibrates at normal highway speeds, wheel bal-
ancing may be needed.

WT-48, "Balancing

Wheels"

FSU-6, "Front

Wheel Alignment"

Windshield wiper
blades

Check for cracks or wear if they do not wipe properly.

Doors and engine
hood

Check that all doors and the engine hood operate smoothly as well as the back
hatch. Also make sure that all latches lock securely. Lubricate if necessary. Make
sure that the secondary latch keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently.

MA-53, "LOCKS, HING-

ES AND HOOD LATCH :

Lubricating Locks, Hing-

es and Hood Latches"

Lamps

Make sure that the head lamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head
lamp aim. Clean the head lamps on a regular basis.

EXL-145, "HEADLAMP :

Aiming Adjustment"

Item

Reference page

Warning lamps and
buzzers/chimes

Make sure that all warning lamps and buzzers/chimes are operating properly.

WCS-19, "Component

Function Check"

Windshield wiper and
washer

Check that the wipers and washer operate properly and that the wipers do not
streak.

Windshield defroster

Check that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner.

Steering wheel

Check that it has the specified play. Be sure to check for changes in the steering
condition, such as excessive play, hard steering or strange noises. Free play:
Less than 35 mm (1.38 in.)

ST-15, "On-Vehicle In-

spection and Service"

2010 Pathfinder

MA-6

< ON-VEHICLE MAINTENANCE >

GENERAL MAINTENANCE

UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel).

Seats

Check seat position controls such as seat adjusters, seat back recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every po-
sition. Check that the head restraints move up and down smoothly and that the
locks (if equipped) hold securely in all latched positions. Check that the latches
lock securely for folding-down rear seat backs.

Seat belts

Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.

SB-9, "Seat Belt Inspec-

tion"

MA-53, "SEAT

BELT, BUCKLES, RE-

TRACTORS, ANCHORS

AND ADJUSTERS :

Checking Seat Belts,

Buckles, Retractors, An-

chors and Adjusters"

Accelerator pedal

Check the pedal for smooth operation. Keep the floor mats away from the pedal.

Brakes

Check that the brake does not pull the vehicle to one side when applied.

Brake pedal and
booster

Check the pedal for smooth operation and make sure it has the proper distance
under it when depressed fully. Check the brake booster function. Keep the floor
mats away from the pedal.

BR-17, "Inspection and

Adjustment - Standard

Pedal"

BR-18, "Inspec-

tion and Adjustment - Ad-

justable Pedal"

BR-10,

"Inspection"

Parking brake

Check that the parking brake control has the proper travel and make sure that
the vehicle is held securely on a fairly steep hill when only the parking brake is
applied.

PB-5, "On-Vehicle Ser-

vice"

Automatic transmis-
sion “Park” mecha-
nism

On a fairly steep hill check that the vehicle is held securely with the selector lever
in the P position without applying the brakes.

Item

Reference page

Item

Reference page

Windshield washer
fluid

Check that there is adequate fluid in the tank.

Engine coolant level

Check the coolant level when the engine is cold.

CO-11

 (VQ40DE)

CO-39

 (VK56DE)

Radiator and hoses

Check the front of the radiator and clean off any dirt, insects, leaves, etc., that
may have accumulated. Make sure the hoses have no cracks, deformation, de-
terioration or loose connections.

Brake fluid level

Make sure that the brake fluid level is between the “MAX” and “MIN” lines on the
reservoirs

MA-49

Battery

Check the fluid level in each cell. It should be between the “MAX” and “MIN” lines.
Vehicles operated in high temperatures or under severe conditions require fre-
quent checks of the battery fluid level.

Engine drive belt

Make sure that no belt is frayed, worn, cracked or oily.

MA-21

 (VQ40DE)

EM-149

 (VK56DE)

Engine oil level

Check the level on the dipstick after parking the vehicle on a level spot and turn-
ing off the engine.

LU-8

 (VQ40DE)

LU-24

 (VK56DE)

Automatic transmis-
sion fluid level

Check the level on the dipstick after putting the selector lever in "P" with the en-
gine idling.

MA-39

Power steering fluid
level and lines

Check the level on the reservoir with the engine off. Check the lines for improper
attachment, leaks, cracks, etc.

MA-51

Exhaust system

Make sure there are no loose supports, cracks or holes. If the sound of the ex-
haust seems unusual or there is a smell of exhaust fumes, immediately locate
the trouble and correct it.

MA-39

2010 Pathfinder

GENERAL MAINTENANCE

MA-7

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

FOR MEXICO

FOR MEXICO: Explanation of General Maintenance

General maintenance includes those items which should be checked during the normal day-to-day operation

of the vehicle. They are essential if the vehicle is to continue operating properly. The owner can perform these

checks and inspections or have their NISSAN dealers perform them.

OUTSIDE THE VEHICLE

The maintenance items listed here should be performed from time to time, unless otherwise specified.

INSIDE THE VEHICLE

The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle,

etc.

UNDER THE HOOD AND VEHICLE

The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel).

Underbody

The underbody is frequently exposed to corrosive substances such as those
used on icy roads or to control dust. It is very important to remove these sub-
stances, otherwise rust will form on the floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean those areas where mud and dirt
can easily accumulate.

Fluid leaks

Check under the vehicle for fuel, oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping from the air conditioner after use is
normal. If you should notice any leaks or gasoline fumes are evident, check for
the cause and correct it immediately.

Item

Reference page

Item

Reference page

Tires

Check the pressure with a gauge at least once a month and always prior to a
long distance trip. Adjust to the specified pressure if necessary. Check carefully
for damage, cuts or excessive wear.

Windshield wiper
blades

Check for cracks or wear if they do not wipe properly.

Doors and engine
hood

Check that all doors and the engine hood operate smoothly as well as the back
hatch. Also make sure that all latches lock securely. Lubricate if necessary. Make
sure that the secondary latch keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently.

MA-53, "LOCKS, HING-

ES AND HOOD LATCH :

Lubricating Locks, Hing-

es and Hood Latches"

Tire rotation

Tires should be rotated every 10,000 km (6,000 miles) for 2WD models and ev-
ery 5,000 km (3,000 mi) for 4WD models.

WT-49, "Rotation"

Item

Reference page

Lamps

Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and oth-
er lamps are all operating properly and installed securely. Also check headlamp
aim.

EXL-145, "HEADLAMP :

Aiming Adjustment"

Warning lamps and
chimes

Make sure that all warning lamps and chimes are operating properly.

MWI-32, "Component
Function Check"

 Fuel

level sensor or

MWI-35,

"Component Function

Check"

 Oil pressure

switch.

Steering wheel

Check that it has the specified play. Be sure to check for changes in the steering
condition, such as excessive play, hard steering or strange noises.
Free play: Less than 35 mm (1.38 in)

ST-15, "On-Vehicle In-

spection and Service"

Seat belts

Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.

SB-9, "Seat Belt Inspec-

tion"

MA-53, "SEAT

BELT, BUCKLES, RE-

TRACTORS, ANCHORS

AND ADJUSTERS :

Checking Seat Belts,

Buckles, Retractors, An-

chors and Adjusters"

2010 Pathfinder

MA-8

< ON-VEHICLE MAINTENANCE >

GENERAL MAINTENANCE

Item

Reference page

Windshield washer
fluid

Check that there is adequate fluid in the tank.

Engine coolant level

Check the coolant level when the engine is cold.

CO-11, "System Inspec-

tion"

Engine oil level

Check the level after parking the vehicle (on level ground) and turning off the en-
gine.

LU-8, "Inspection"

.

Brake fluid level

Make sure that the brake fluid level is between the “MAX” and “MIN” lines on the
reservoirs.

BR-20, "On Board In-

spection"

.

Battery

Check the fluid level in each cell. It should be between the “MAX” and “MIN” lines.

2010 Pathfinder

PERIODIC MAINTENANCE

MA-9

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

PERIODIC MAINTENANCE

For North America

INFOID:0000000005255663

FOR NORTH AMERICA: Introduction of Periodic Maintenance

Two different maintenance schedules are provided, and should be used, depending upon the conditions in

which the vehicle is mainly operated.

After 60,000 miles (96,000 km) or 48 months, continue the periodic

maintenance at the same mileage or time intervals, whichever comes first.

Maintenance for off-road driving (4WD only)

After driving the vehicle off-road through sand, mud, or water; more frequent maintenance may be required for

the following items:

 Brake pads and rotors
 Brake lines and hoses
 Rear final drive oil, transmission fluid, and transfer fluid
 Steering linkage
 Drive shafts
 Engine air cleaner filter
 In-cabin microfilters

For North America: Schedule 1

INFOID:0000000005255664

EMISSION CONTROL SYSTEM MAINTENANCE

Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only

Schedule 1

Follow Periodic Maintenance Schedule 1 if your driving habits frequently includes
one or more of the following driving conditions:
• Repeated short trips of less than 5 miles (8 km).
• Repeated short trips of less than 10 miles (16 km) with outside temperatures re-

maining below freezing.

• Operating in hot weather in stop-and-go “rush hour” traffic.
• Extensive idling and/or low speed driving for long distances, such as police, taxi

or door-to-door delivery use.

• Driving in dusty conditions.
• Driving on rough, muddy, or salt spread roads.
• Towing a trailer or using a car-top carrier.

Emission Control Sys-
tem Maintenance

MA-9

Chassis and Body
Maintenance

MA-9

Schedule 2

Follow Periodic Maintenance Schedule 2 if none of the driving conditions shown
in Schedule 1 apply to the driving habits.

Emission Control Sys-
tem Maintenance

MA-9

Chassis and Body
Maintenance

MA-9

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference Section

- Page or - Content

Title

Perform at number of miles,
kilometers or months, which-
ever comes first.

Miles x 1,000

(km x 1,000)

Months

3.75

(6)

3

7.50

(12)

6

11.25

(18)

9

15

(24)

12

18.7

5

(30)

15

22.5

(36)

18

26.2

5

(42)

21

30

(48)

24

Drive belts

NOTE (1)

MA-21

 (VQ40DE)

MA-30

 (VK56DE)

Air cleaner filter

NOTE (2)

[R]

MA-25

 (VQ40DE)

MA-33

 (VK56DE)

EVAP vapor lines

I*

MA-37

 (VQ40DE)

MA-37

 (VK56DE)

Fuel lines

I*

MA-24

 (VQ40DE)

MA-33

 (VK56DE)

Fuel filter

NOTE (3)

Engine coolant

NOTE (4)

MA-21

 (VQ40DE)

MA-30

 (VK56DE)

Engine oil

R

R

R

R

R

R

R

R

MA-25

 (VQ40DE)

MA-34

 (VK56DE)

2010 Pathfinder

MA-10

< ON-VEHICLE MAINTENANCE >

PERIODIC MAINTENANCE

NOTE:

(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace the drive belts if found
      damaged, or if the auto tensioner reading reaches the maximum limit.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, go to the FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) Periodic maintenance is not required. However, if valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required.

CHASSIS AND BODY MAINTENANCE

Engine oil filter

R

R

R

R

R

R

R

R

MA-26

 (VQ40DE)

MA-34

 (VK56DE)

Spark plugs (IRIDIUM-
TIPPED type)

Replace every 105,000 miles (169,000 km).

MA-27

 (VQ40DE)

MA-36

 (VK56DE)

Intake and exhaust valve
clearance*

NOTE (5)

EM-128

 (VQ40DE)

EM-244

 (VK56DE)

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference Section

- Page or - Content

Title

Perform at number of miles,
kilometers or months, which-
ever comes first.

Miles x 1,000

(km x 1,000)

Months

3.75

(6)

3

7.50

(12)

6

11.25

(18)

9

15

(24)

12

18.7

5

(30)

15

22.5

(36)

18

26.2

5

(42)

21

30

(48)

24

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference Section

- Page or - Content

Title

Perform at number of miles,
kilometers or months, which-
ever comes first.

Miles x 1,000

(km x 1,000)

Months

33.75

(54)

27

37.5

(60)

30

41.2

5

(66)

33

45

(72)

36

48.7

5

(78)

39

52.5

(84)

42

56.2

5

(90)

45

60

(96)

48

Drive belts

NOTE (1)

I*

MA-21

 (VQ40DE)

MA-30

 (VK56DE)

Air cleaner filter

NOTE (2)

[R]

MA-25

 (VQ40DE)

MA-33

 (VK56DE)

EVAP vapor lines

I*

MA-37

 (VQ40DE)

MA-37

 (VK56DE)

Fuel lines

I*

MA-24

 (VQ40DE)

MA-33

 (VK56DE)

Fuel filter

NOTE (3)

Engine coolant

NOTE (4)

R*

MA-21

 (VQ40DE)

MA-30

 (VK56DE)

Engine oil

R

R

R

R

R

R

R

R

MA-25

 (VQ40DE)

MA-34

 (VK56DE)

Engine oil filter

R

R

R

R

R

R

R

R

MA-26

 (VQ40DE)

MA-34

 (VK56DE)

Spark plugs (IRIDIUM-
TIPPED type)

Replace every 105,000 miles (169,000 km).

MA-27

 (VQ40DE)

MA-36

 (VK56DE)

Intake and exhaust valve
clearance*

NOTE (5)

EM-128

 (VQ40DE)

EM-244

 (VK56DE)

2010 Pathfinder















Content      ..     493      494      495      496     ..
