LAN-56

< FUNCTION DIAGNOSIS >

[CAN]

TROUBLE DIAGNOSIS

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor

INFOID:0000000005259169

Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.

MONITOR ITEM LIST (CONSULT-III)

ECM

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

TCM

NOTE:

Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

AV Control Unit

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

ECM

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

VDC/TCS/ABS

Signal receiving status from the ABS actua-
tor and electric unit (control unit)

METER/M&A

Signal receiving status from the combina-
tion meter

BCM/SEC

Signal receiving status from the BCM

ICC

Not used even though indicated

HVAC

TCM

Signal receiving status from the TCM

OK

OK

or

1 – 39

*

UNKWN

0

MULTI AV

Not used even though indicated

EPS

IPDM E/R

Signal receiving status from the IPDM E/R

OK

OK

or

1 – 39

*

UNKWN

0

e4WD

Not used even though indicated

AWD/4WD

Signal receiving status from the transfer
control unit

OK

OK

or

1 – 39

*

UNKWN

0

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

TCM

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit (con-
trol unit)

METER/M&A

Signal receiving status from the combination meter

ICC/e4WD

Not used even though indicated

AWD/4WD

Signal receiving status from the transfer control unit

OK

UNKWN

2010 Pathfinder

LAN

TROUBLE DIAGNOSIS

LAN-57

< FUNCTION DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

Intelligent Key Unit

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

Transfer Control Unit (All-mode 4WD)

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

Transfer Control Unit (Part Time 4WD)

NOTE:

Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

AV

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

METER/M&A

Signal receiving status from the combina-
tion meter

BCM/SEC

Signal receiving status from the BCM

HVAC

Signal receiving status from the A/C auto
amp.

STRG

Not used even though indicated

IPDM E/R

Signal receiving status from the IPDM E/R

OK

OK

or

1 – 39

*

UNKWN

0

TIRE-P

Not used even though indicated

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

I-KEY

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

METER/M&A

Signal receiving status from the combina-
tion meter

BCM/SEC

Signal receiving status from the BCM

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

4WD

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actua-
tor and electric unit (control unit)

TCM

Signal receiving status from the TCM

STRG

Signal receiving status from the steering an-
gle sensor

2010 Pathfinder

LAN-58

< FUNCTION DIAGNOSIS >

[CAN]

TROUBLE DIAGNOSIS

Driver Seat Control Unit

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

BCM

NOTE:

Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

A/C Auto Amp.

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

4WD

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit (con-
trol unit)

TCM

Signal receiving status from the TCM

METER/M&A

Signal receiving status from the combination meter

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

ADP

TRANSMIT DIAG

Not used even though indicated

METER/M&A

Signal receiving status from the combina-
tion meter

OK

OK

or

1 – 39

*

UNKWN

0

BCM/SEC

Signal receiving status from the BCM

TCM

Signal receiving status from the TCM

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

BCM

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

IPDM E/R

Signal receiving status from the IPDM E/R

METER/M&A

Signal receiving status from the combination meter

I-KEY

Not used even though indicated

2010 Pathfinder

LAN

TROUBLE DIAGNOSIS

LAN-59

< FUNCTION DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

Combination Meter

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

ABS Actuator and Electric Unit (Control Unit)

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

HVAC

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

TCM

Not used even though indicated

BCM/SEC

Signal receiving status from the BCM

OK

OK

or

1 – 39

*

UNKWN

0

VDC/TCS/ABS

Signal receiving status from the ABS actua-
tor and electric unit (control unit)

IPDM E/R

Not used even though indicated

DISPLAY

Signal receiving status from the AV control
unit

OK

OK

or

1 – 39

*

UNKWN

0

I-KEY

Not used even though indicated

EPS

AWD/4WD

e4WD

ICC

LANE CAMERA

TIRE-P

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

M&A

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

TCM

Signal receiving status from the TCM

BCM/SEC

Signal receiving status from the BCM

VDC/TCS/ABS

Signal receiving status from the ABS actua-
tor and electric unit (control unit)

IPDM E/R

Signal receiving status from the IPDM E/R

DISPLAY

Not used even though indicated

I-KEY

Signal receiving status from the Intelligent
Key unit

OK

OK

or

1 – 39

*

UNKWN

0

EPS

Not used even though indicated

AWD/4WD

e4WD

ICC

LANE CAMERA

TIRE-P

2010 Pathfinder

LAN-60

< FUNCTION DIAGNOSIS >

[CAN]

TROUBLE DIAGNOSIS

CAUTION:

Never replace the unit even when “NG” is indicated on the “INITIAL DIAG” at this stage. Follow the trouble diagnosis proce-
dures.

IPDM E/R

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

DTC Index

INFOID:0000000005259170

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

ABS

INITIAL DIAG

Status of CAN controller

OK

NG

Caution

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

TCM

Signal receiving status from the TCM

METER/M&A

Not used even though indicated

STRG

Signal receiving status from the steering angle sensor

OK

UNKWN

ICC

Not used even though indicated

AWD/4WD

Signal receiving status from the transfer control unit

OK

UNKWN

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

IPDM-E

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

BCM/SEC

Signal receiving status from the BCM

DTC

Self-diagnosis item

 (CONSULT-III indication)

DTC detection condition

Inspection/Action

U0101

LOST COMM (TCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
TCM for 2 seconds or more.

Refer to

LAN-36

.

U0140

LOST COMM (BCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
BCM for 2 seconds or more.

U0164

LOST COMM (HVAC)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
A/C auto amp. or unified meter and A/C amp. for 2 sec-
onds or more.

U1000

CAN COMM CIRCUIT

ECM

When ECM is not transmitting or receiving
CAN communication signal of OBD (emission-
related diagnosis) for 2 seconds or more.

Except
for ECM

When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.

U1001

CAN COMM CIRCUIT

When ECM is not transmitting or receiving CAN commu-
nication signal other than OBD (emission-related diagno-
sis) for 2 seconds or more.

U1002

SYSTEM COMM

When a control unit is not transmitting or receiving CAN
communication signal for 2 seconds or less.

Start the inspection. Refer
to the applicable section
of the indicated control
unit.

U1010

CONTROL UNIT(CAN)

When an error is detected during the initial diagnosis for
CAN controller of each control unit.

Replace the control unit
indicating “U1010” or
“P0607”.

P0607

ECM

2010 Pathfinder

LAN

CAN COMMUNICATION SYSTEM

LAN-61

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

CAN COMMUNICATION SYSTEM

Component Parts Location

INFOID:0000000005259171

1.

ECM
E7: VK engine models
E16: VQ engine models

2.

AV control unit
M48: With BOSE audio system with
navigation system
M70: Without BOSE audio system
without navigation system
M135: With mid audio system

3.

Combination meter M24

4.

BCM M18

5.

ABS actuator and electric unit (con-
trol unit)
E125: VQ engine models
E127: VK engine models

6.

Transfer control unit
M152: All-mode 4WD models
M165: Part time 4WD models

7.

Data link connector M22

8.

Steering angle sensor M47

9.

Driver seat control unit B202

10. Air bag diagnosis sensor unit M35

11. A/T assembly F9

12. A/C auto amp. M50

13. Intelligent Key unit M164

14. IPDM E/R E122

AWMIA0018ZZ

2010 Pathfinder

LAN-62

< COMPONENT DIAGNOSIS >

[CAN]

CAN COMMUNICATION SYSTEM

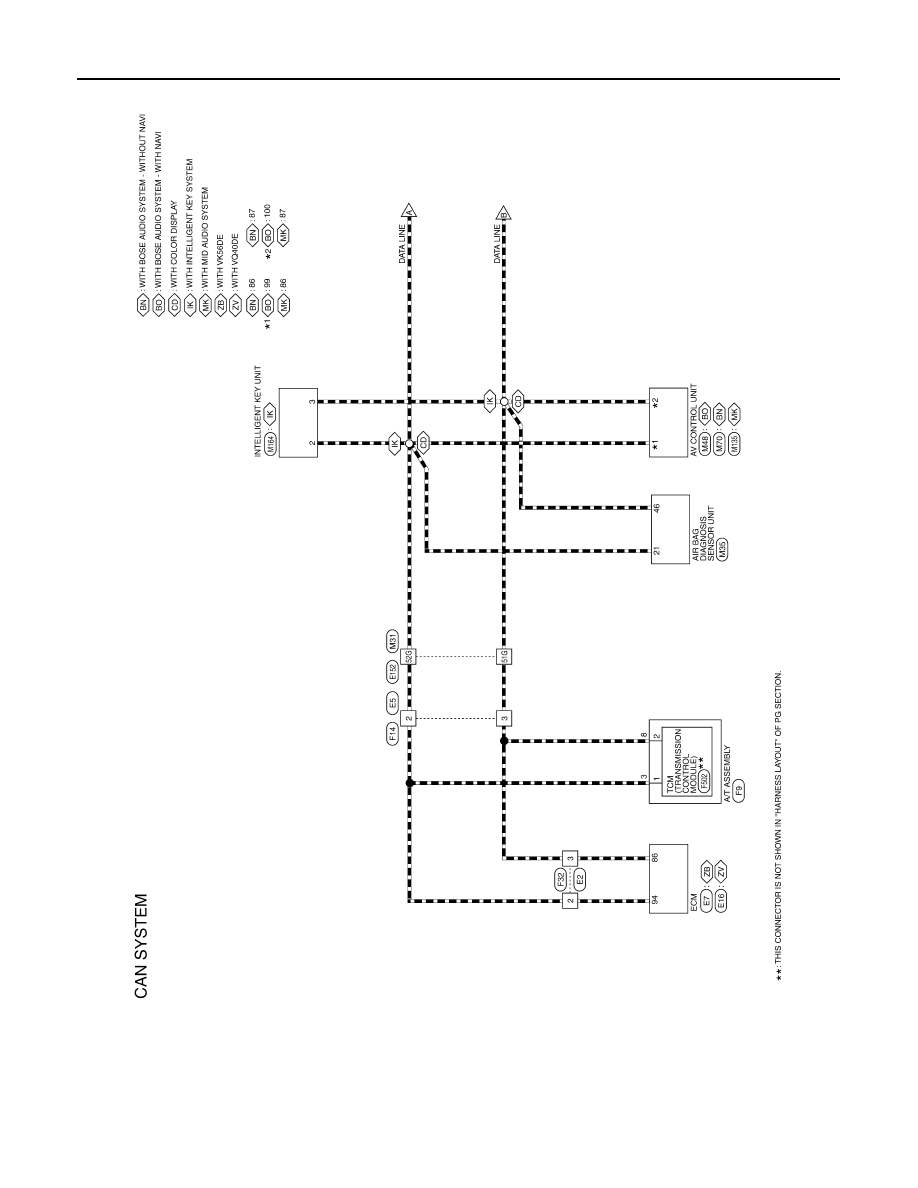

Wiring Diagram - CAN SYSTEM -

INFOID:0000000005259172

ABMWA0495GB

2010 Pathfinder

LAN

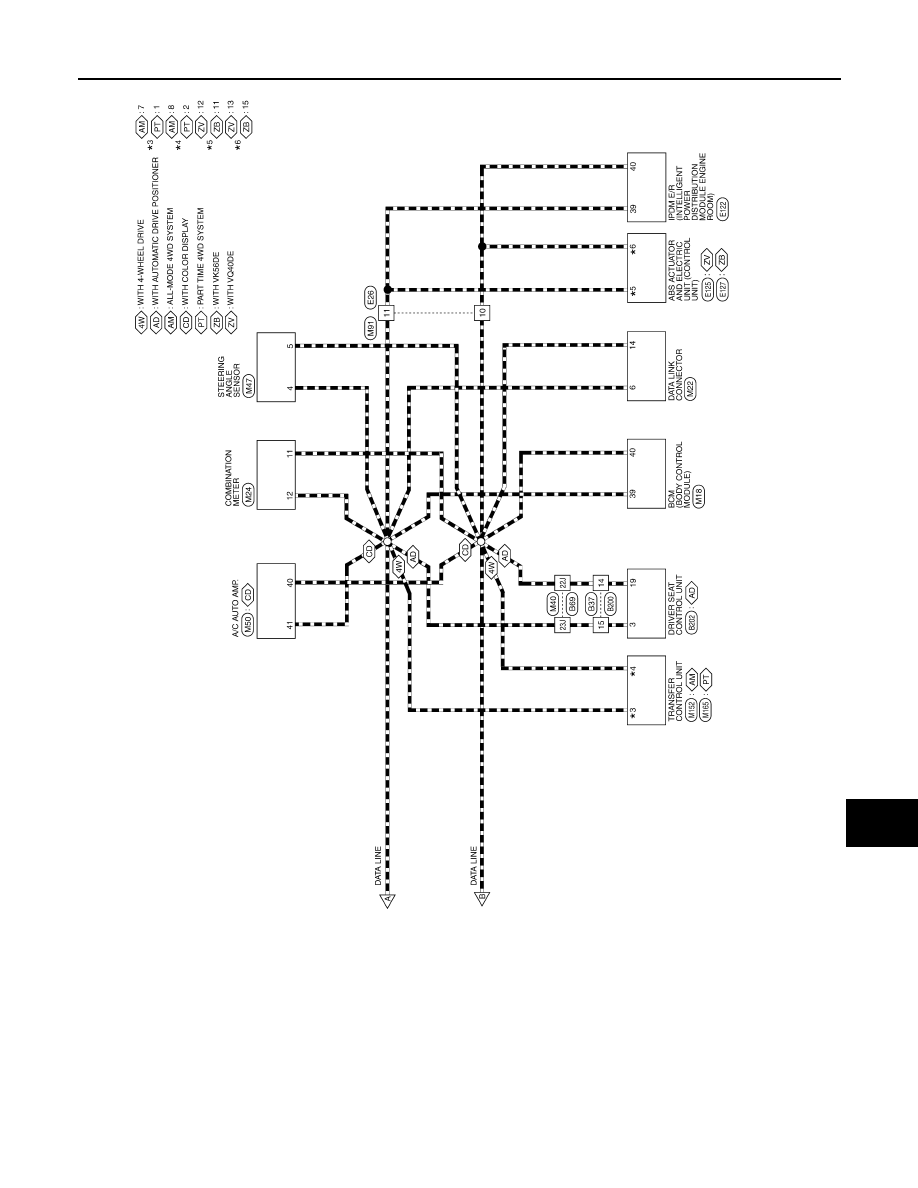

CAN COMMUNICATION SYSTEM

LAN-63

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA0496GB

2010 Pathfinder
