HAC-68

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

MAGNET CLUTCH

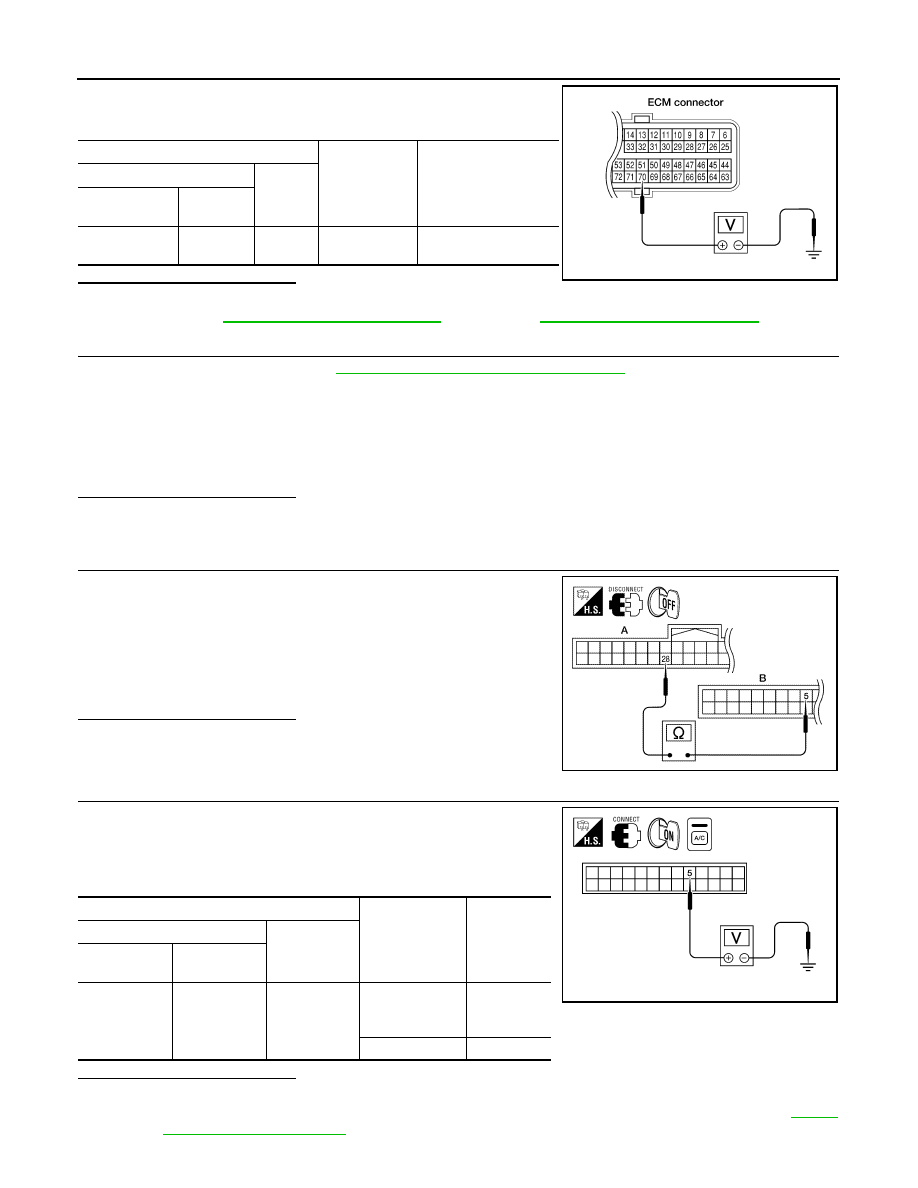

2. Check voltage between ECM harness connector F54 (VQ40DE)

or F79 (VK56DE) terminal 70 and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Refer to

EC-419, "Diagnosis Procedure"

 (VQ40DE) or

EC-893, "Diagnosis Procedure"

 (VK56DE).

9.

CHECK BCM INPUT (FAN ON) SIGNAL

Check FAN ON/OFF signal. Refer to

HAC-21, "CONSULT-III Function (HVAC)"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 10.

10.

CHECK CIRCUIT CONTINUITY BETWEEN BCM AND A/C AUTO AMP.

1. Turn ignition switch OFF.

2. Disconnect BCM connector and A/C auto amp. connector.

3. Check continuity between BCM harness connector M18 (A) ter-

minal 28 and A/C auto amp. harness connector M49 (B) terminal

5.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair harness or connector.

11.

CHECK VOLTAGE FOR A/C AUTO AMP. (FAN ON SIGNAL)

1. Reconnect BCM connector and A/C auto amp. connector.

2. Turn ignition switch ON.

3. Check voltage between A/C auto amp. harness connector M49

terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 12.

NO-1 >> If the voltage is approx. 5V when blower motor is ON, replace A/C auto amp. Refer to

VTL-7,

"Removal and Installation"

.

Terminals

Condition

Voltage

(+)

(-)

ECM connector

Terminal

No.

F54 (VQ40DE)

F79 (VK56DE)

70

Ground

A/C switch: ON

Approx. 0.36 - 3.88V

LJIA0124E

FRONT BLOWER CONTROL
DIAL ON

: FAN ON SIG ON

FRONT BLOWER CONTROL
DIAL OFF

: FAN ON SIG OFF

28 - 5

Continuity should exist.

AWIIA0201ZZ

Terminals

Condition

Voltage

(+)

(-)

A/C auto amp.

connector

Terminal No.

M49

5

Ground

A/C switch: ON
Blower motor
operates

Approx. 0V

A/C switch: OFF

Approx. 5V

AWIIA0202ZZ

2010 Pathfinder

MAGNET CLUTCH

HAC-69

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NO-2 >> If the voltage is approx. 0V when blower motor is OFF, replace BCM. Refer to

BCS-59, "Removal

and Installation"

.

12.

CHECK CAN COMMUNICATION

Check CAN communication. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

• BCM  –  ECM

• ECM – IPDM E/R

• ECM – A/C auto amp.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace malfunctioning part(s).

2010 Pathfinder

HAC-70

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

WATER VALVE CIRCUIT

WATER VALVE CIRCUIT

Water Valve Description (VK56DE)

INFOID:0000000005256945

COMPONENT DESCRIPTION

Water Valve

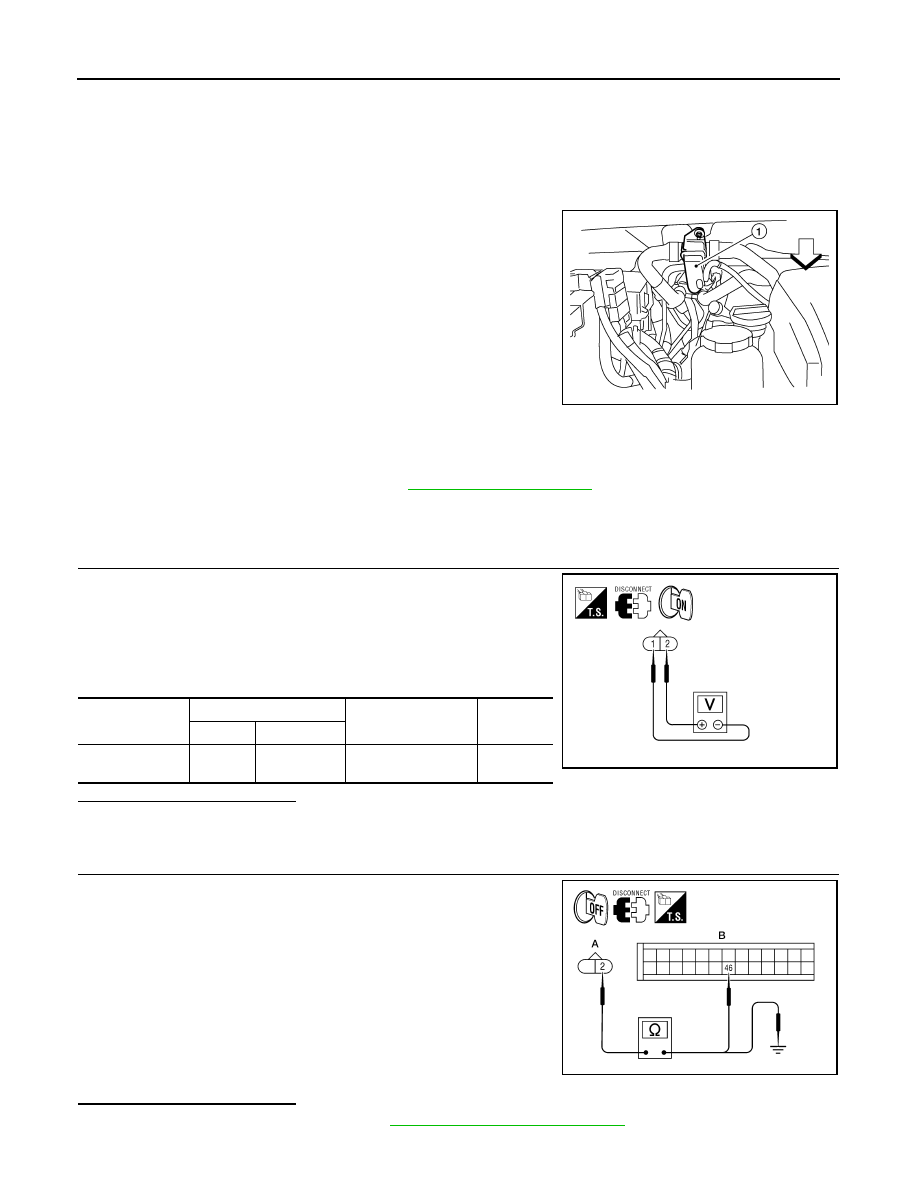

The water valve (1) cuts the flow of engine coolant to the front and

rear heater cores to allow for maximum cooling during A/C opera-

tion. It is controlled by the A/C auto amp.

Water Valve Diagnosis Procedure (VK56DE)

INFOID:0000000005256946

Regarding Wiring Diagram information, refer to

HAC-90, "Wiring Diagram"

.

DIAGNOSTIC PROCEDURE FOR WATER VALVE

1.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Disconnect water valve connector F68.

2. Turn ignition switch ON.

3. Rotate temperature control dial (driver) to 32

°

C (90

°

F).

4. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial

(driver) to 18

°

C (60

°

F).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector M50.

3. Check continuity between water valve harness connector F68

(A) terminal 2 and A/C auto amp. harness connector M50 (B)

terminal 46.

4. Check continuity between water valve harness connector F68

(A) terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

WJIA1791E

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

1

Rotate temperature

control dial

Battery
voltage

WJIA1794E

2 - 46

: Continuity should exist.

2 - Ground

: Continuity should not exist.

AWIIA0203ZZ

2010 Pathfinder

WATER VALVE CIRCUIT

HAC-71

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

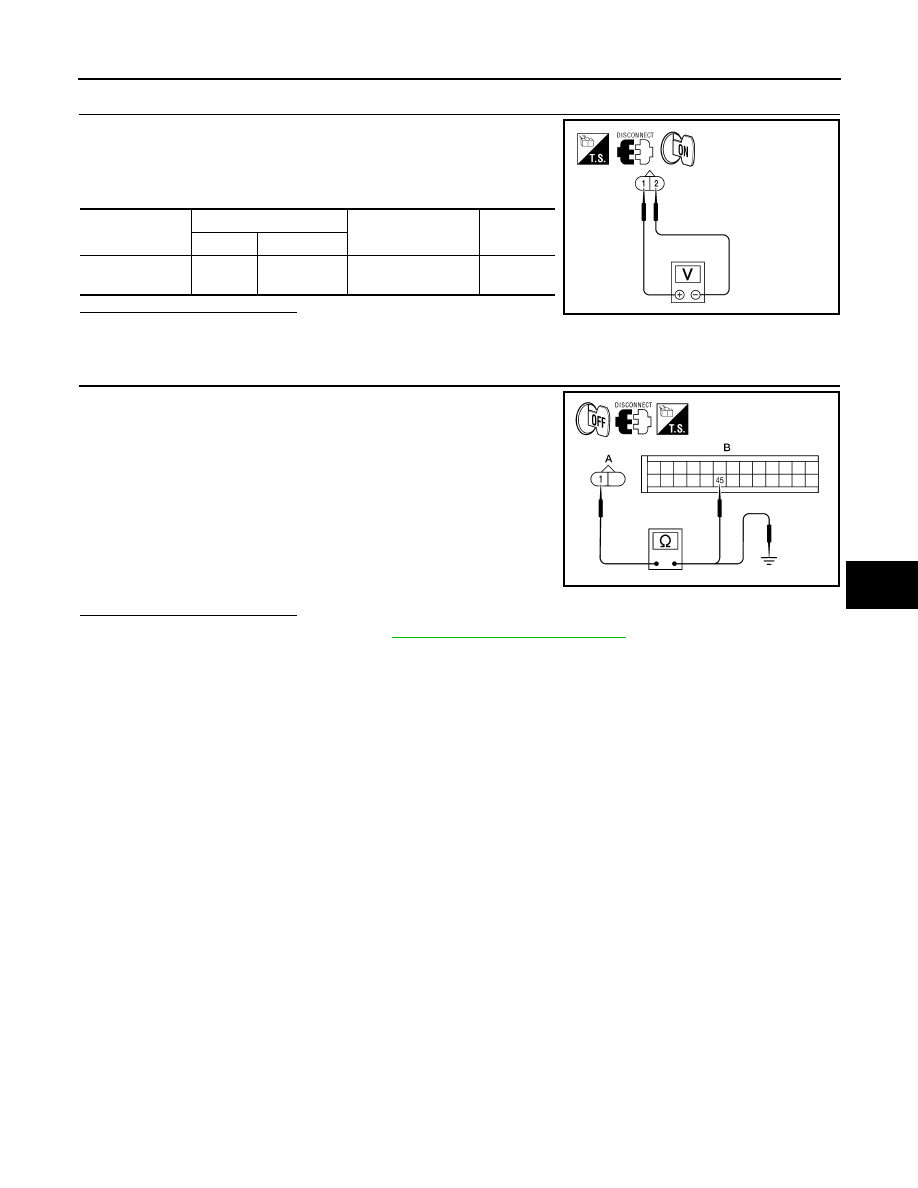

3.

CHECK WATER VALVE POWER AND GROUND CIRCUITS

1. Rotate temperature control dial (driver) to 18

°

C (60

°

F).

2. Check voltage between water valve harness connector F68 ter-

minal 1 and terminal 2 while rotating temperature control dial

(driver) to 32

°

C (90

°

F).

Is the inspection result normal?

YES

>>  Replace the water valve.

NO

>> GO TO 4.

4.

CHECK WATER VALVE CONTROL OUTPUT CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector M50.

3. Check continuity between water valve harness connector F68

(A) terminal 1 and A/C auto amp. harness connector M50 (B)

terminal 45.

4. Check continuity between water valve harness connector F68

(A) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

Connector

Terminals

Condition

Voltage

(Approx.)

(+) (-)

Water valve: F68

2

Rotate temperature

control dial

Battery
voltage

WJIA1792E

1 - 45

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0204ZZ

2010 Pathfinder

HAC-72

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

HEATER PUMP

HEATER PUMP

System Description (VQ40DE)

INFOID:0000000005256947

SYSTEM DESCRIPTION

Component Parts

Heater pump control system components are:

• A/C auto amp.

• Heater pump relay

• Heater pump

• Intake sensor

System Operation

The heater pump improves heater performance specifically at idle conditions. It is designed to operate in

either of the following 2 situations:

1. Front blower motor set to maximum speed and temperature control dial (driver or passenger) set to full hot

32

°

C (90

°

F) or

2. Engine coolant temperature (signal via CAN communication) minus heater core outlet temperature (intake

sensor input to A/C auto amp.) is greater than 20

°

C (68

°

F). If the difference is less than 16

°

C (61

°

F), the

heater pump will not operate unless the conditions in item No. 1 above are met.

Diagnosis Procedure (VQ40DE)

INFOID:0000000005256948

Regarding Wiring Diagram information, refer to

HAC-90, "Wiring Diagram"

.

DIAGNOSTIC PROCEDURE FOR HEATER PUMP CIRCUIT

1.

CHECK POWER SUPPLY TO HEATER PUMP

1. Disconnect heater pump connector.

2. Turn ignition switch ON.

3. Set front blower motor to maximum speed.

4. Turn temperature control dial (passenger or driver) to full hot 32

°

C (90

°

F).

WJIA1780E

2010 Pathfinder

HEATER PUMP

HAC-73

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

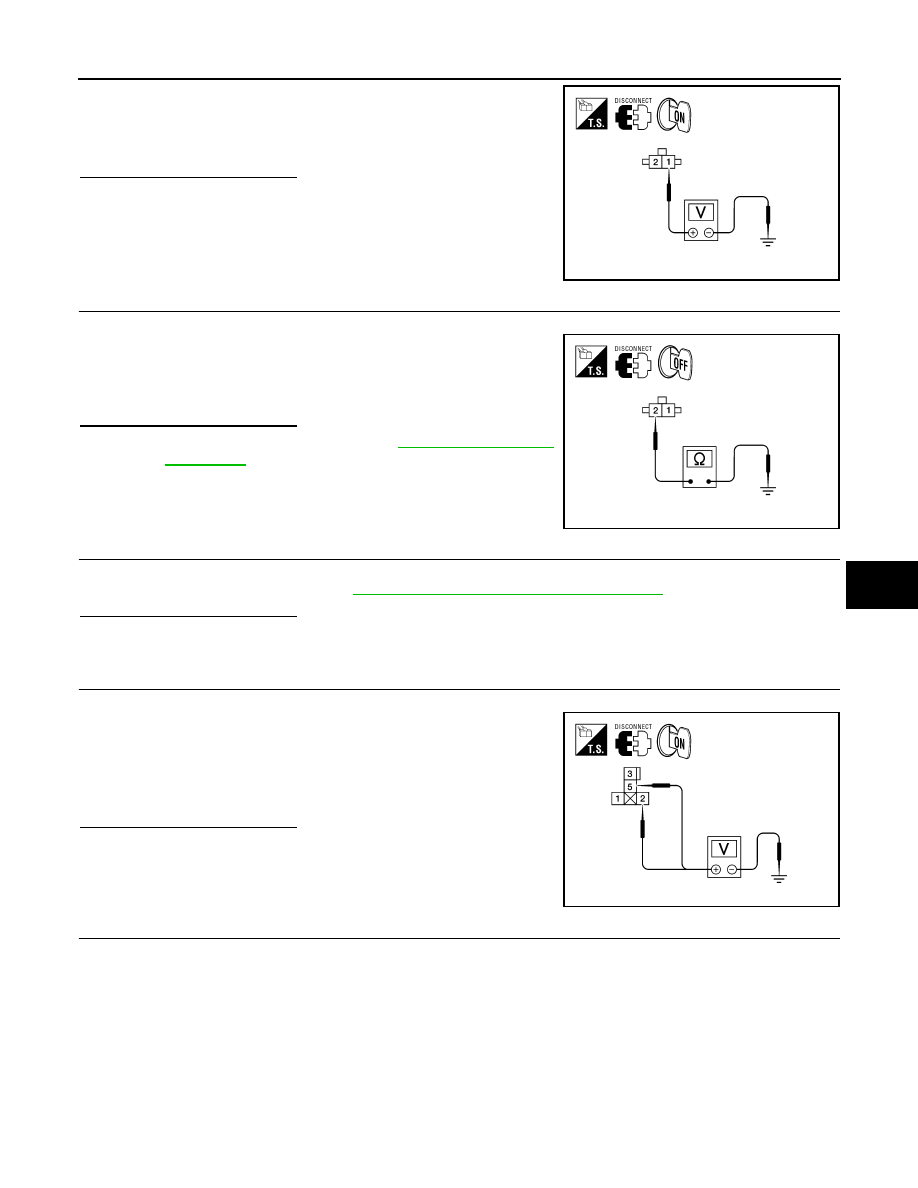

5. Check voltage between heater pump harness connector E141

terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEATER PUMP GROUND

1. Turn ignition switch OFF.

2. Check continuity between heater pump harness connector E141

terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace heater pump. Refer to

HA-57, "Removal and

Installation"

.

NO

>> Repair harness or connector.

3.

CHECK HEATER PUMP RELAY

1. Turn ignition switch OFF.

2. Check heater pump relay. Refer to

HAC-74, "Component Inspection (VQ40DE)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace heater pump relay.

4.

CHECK RELAY POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between heater pump relay harness connector

E144 terminals 2, 5 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK HEATER PUMP MOTOR POWER CIRCUIT

1. Turn ignition switch OFF.

1 - Ground

: Battery voltage

WJIA1984E

2 - Ground

: Continuity should exist.

WJIA1985E

2 - Ground

: Battery voltage

5 - Ground

: Battery voltage

WJIA1986E

2010 Pathfinder

HAC-74

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

HEATER PUMP

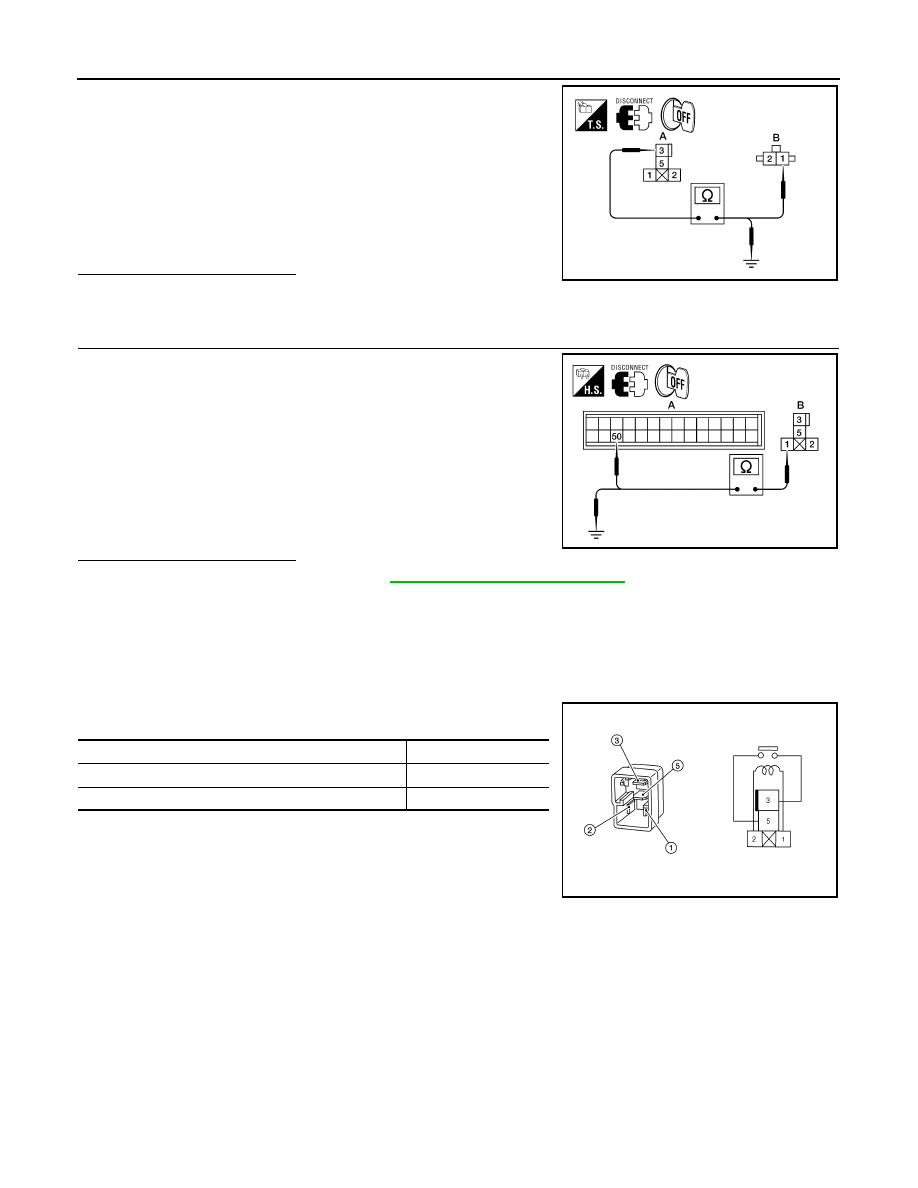

2. Check continuity between heater pump relay harness connector

(A) E144 terminal 3 and heater pump harness connector (B)

E141 terminal 1.

3. Check continuity between heater pump relay harness connector

(A) E144 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair harness or connector.

6.

CHECK CIRCUIT BETWEEN HEATER PUMP RELAY AND A/C AUTO AMP.

1. Disconnect A/C auto amp. connector.

2. Check continuity between A/C auto amp. harness connector

M50 (A) terminal 50 and heater pump relay harness connector

E144 (B) terminal 1.

3. Check continuity between heater pump relay harness connector

E144 (B) terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

VTL-7, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection (VQ40DE)

INFOID:0000000005256949

COMPONENT INSPECTION

Heater Pump Relay

Check continuity between terminals 3 and 5.

If NG, replace relay.

3 - 1

: Continuity should exist.

3 - Ground

: Continuity should not exist.

WJIA1987E

1 - 50

: Continuity should exist.

1 - Ground

: Continuity should not exist.

AWIIA0263ZZ

Conditions

Continuity

12V direct current supply between terminals 1 and 2

Yes

No current supply

No

LHA160

2010 Pathfinder

AMBIENT SENSOR

HAC-75

< COMPONENT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

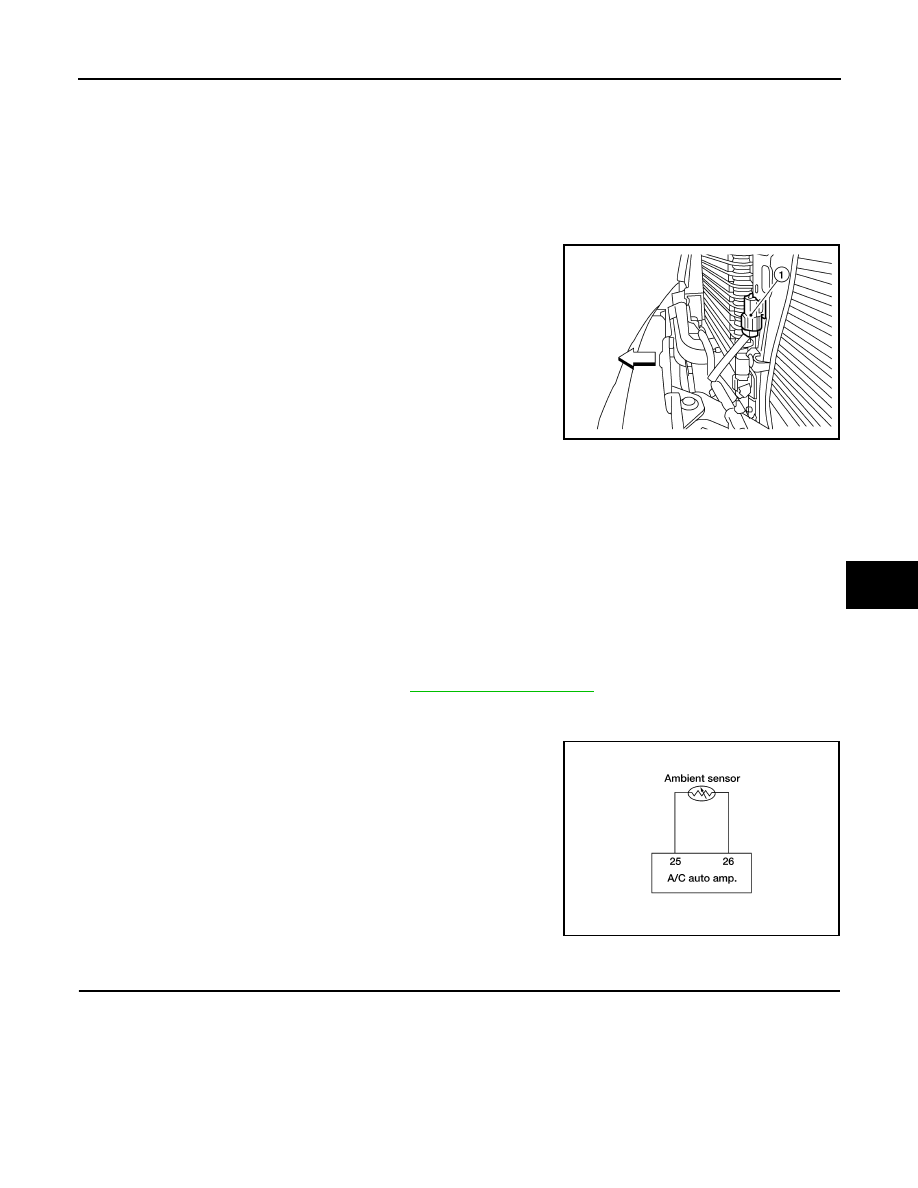

AMBIENT SENSOR

Component Description

INFOID:0000000005256950

COMPONENT DESCRIPTION

Ambient Sensor

Ambient sensor (1) is attached to the radiator core support (left side). It detects ambient temperature and con-

verts it into a value which is then input into the A/C auto amp.

: Front

AMBIENT TEMPERATURE INPUT PROCESS

The A/C auto amp. includes a processing circuit for the ambient sensor input. However, when the temperature

detected by the ambient sensor increases quickly, the processing circuit retards the A/C auto amp. function. It

only allows the A/C auto amp. to recognize an ambient temperature increase of 0.33

°

C (0.6

°

F) per 100 sec-

onds.

This prevents constant adjustments due to momentary conditions, such as stopping after high speed driving.

Although the actual ambient temperature has not changed, the temperature detected by the ambient sensor

will increase. This is because the heat from the engine compartment can radiate to the front grille area, loca-

tion of the ambient sensor.

Ambient Sensor Diagnosis Procedure

INFOID:0000000005256951

Regarding Wiring Diagram information, refer to

HAC-90, "Wiring Diagram"

.

DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR

SYMPTOM: Ambient sensor circuit is open or shorted. (40 or 41 is

indicated on A/C auto amp. as a result of conducting the A/C auto

amp. self-diagnosis)

1.

CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND

AWIIA0262ZZ

AWIIA0160GB

2010 Pathfinder















Content      ..     447      448      449      450     ..
