< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005256827

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000005256828

Never mix HFC-134a (R-134a) refrigerant and/or its specified oil with CFC-12 (R-12) refrigerant and/or its oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed

use of the refrigerants/oil.

Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur

and compressor failure will result.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-41425-NIS)

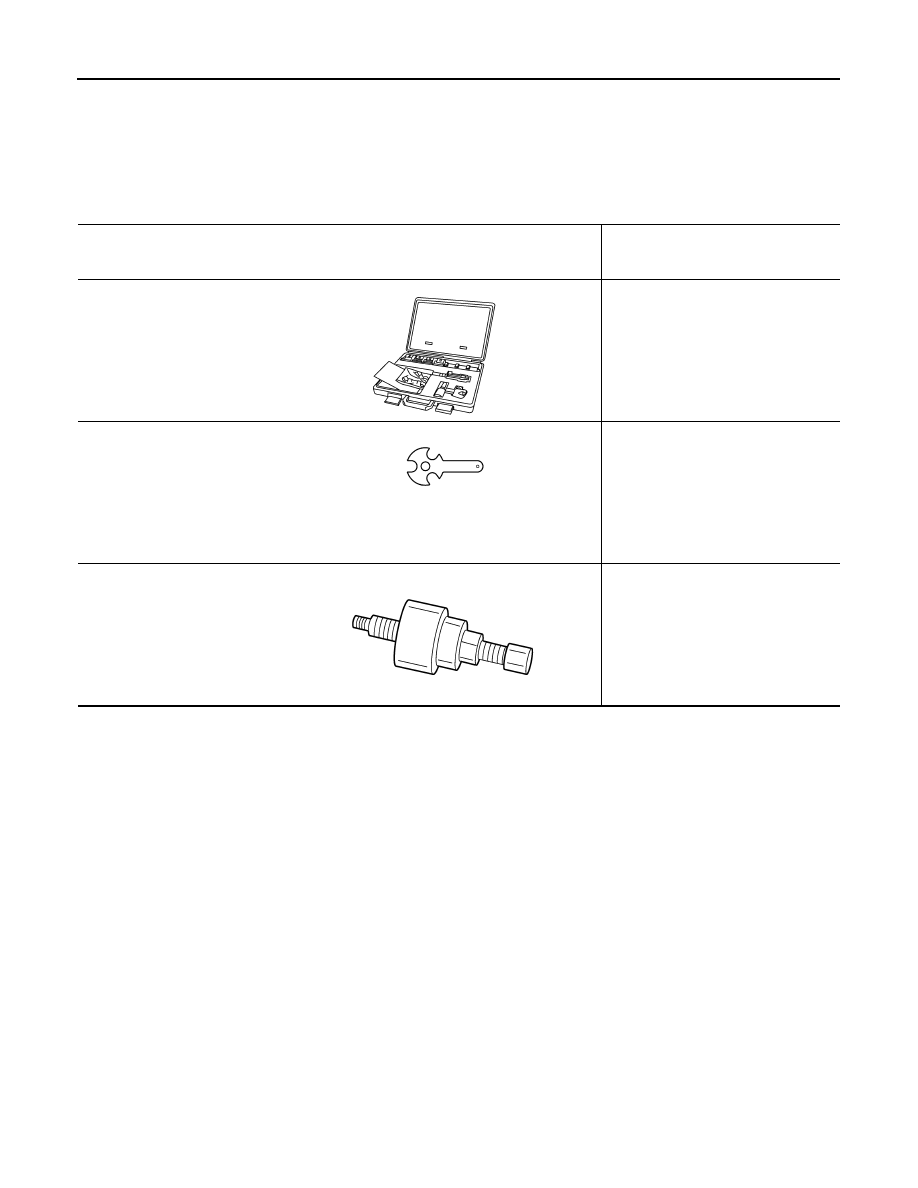

Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-44614)
Clutch disc holding tool

Clutch disc holding tool

—

(J-38873-A)
Drive plate installer

Installing pulley and drive plate

ALIIA0390ZZ

WHA230

WJIA0367E

2010 Pathfinder

PREPARATION

HA-15

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Tool number
(Kent-Moore No.)
Tool name

Description

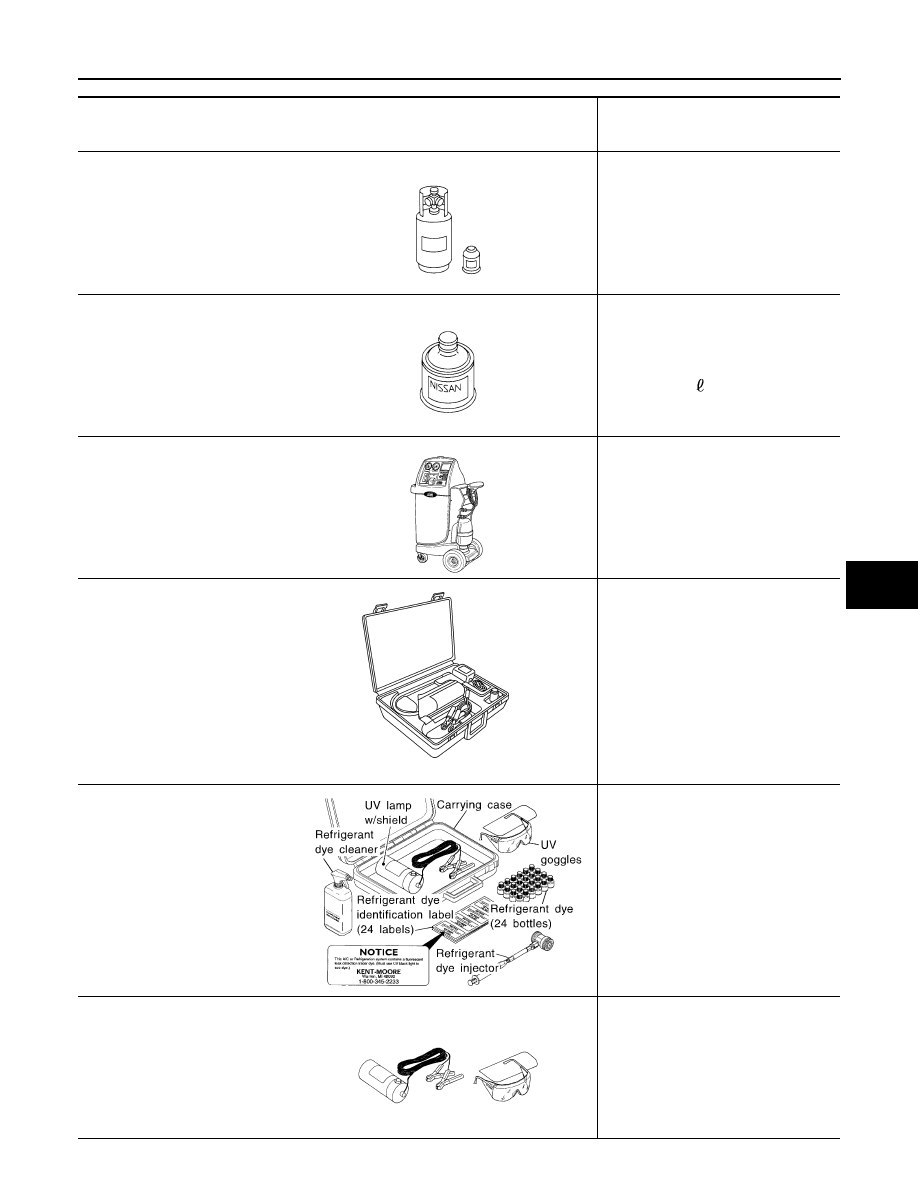

HFC-134a (R-134a)
( — )
Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type S

Type: Poly alkylene glycol oil (PAG),
type S
Application: HFC-134a (R-134a)
swash plate compressors (NISSAN
only)
Lubricity: 40 m  (1.4 US fl oz, 1.4 Imp
fl oz)

KV991J0130
(ACR2005-NI)
ACR A/C Service Center

Refrigerant Recovery and Recycling
and Recharging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)

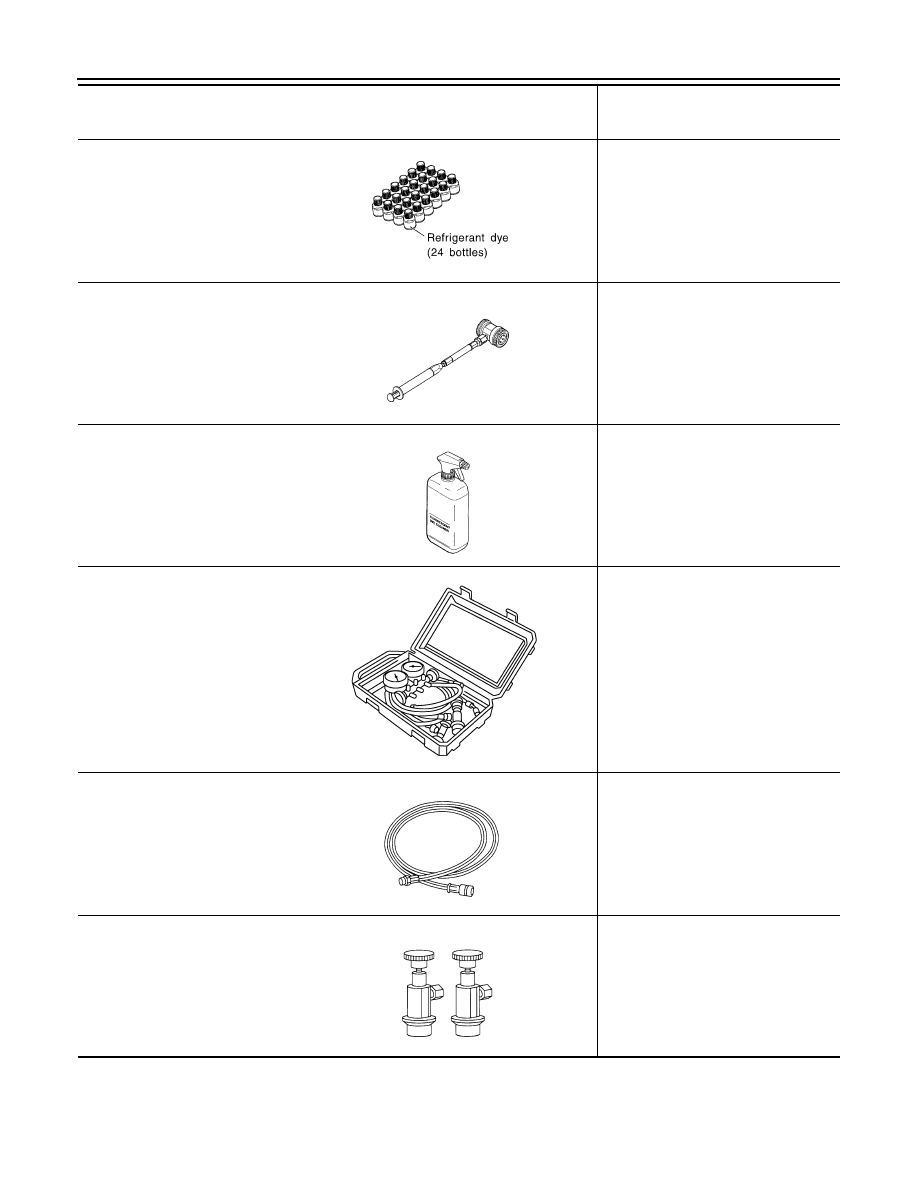

Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
Fluorescent leak detection dye
(box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

—

(J-42220)
Fluorescent dye leak detector

Power supply:
• DC 12V (battery terminal)
For checking refrigerant leak when flu-
orescent dye is installed in A/C system.
Includes: UV lamp and UV safety gog-
gles

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

SHA438F

2010 Pathfinder

HA-16

< PREPARATION >

PREPARATION

—

(J-41447)
HFC-134a (R-134a) Fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application: For HFC-134a (R-134a)
PAG oil
Container: 1/4 ounce (7.4cc) bottle
(Includes self-adhesive dye identifica-
tion labels for affixing to vehicle after
charging system with dye.)

—

(J-41459)
HFC-134a (R-134a) Refrigerant
dye injector
Use with J-41447, 1/4 ounce bottle

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system.

—

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills.

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

Tool number
(Kent-Moore No.)
Tool name

Description

SHA439F

SHA440F

SHA441F

RJIA0196E

S-NT201

S-NT202

2010 Pathfinder

PREPARATION

HA-17

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Commercial Service Tool

INFOID:0000000005256829

—

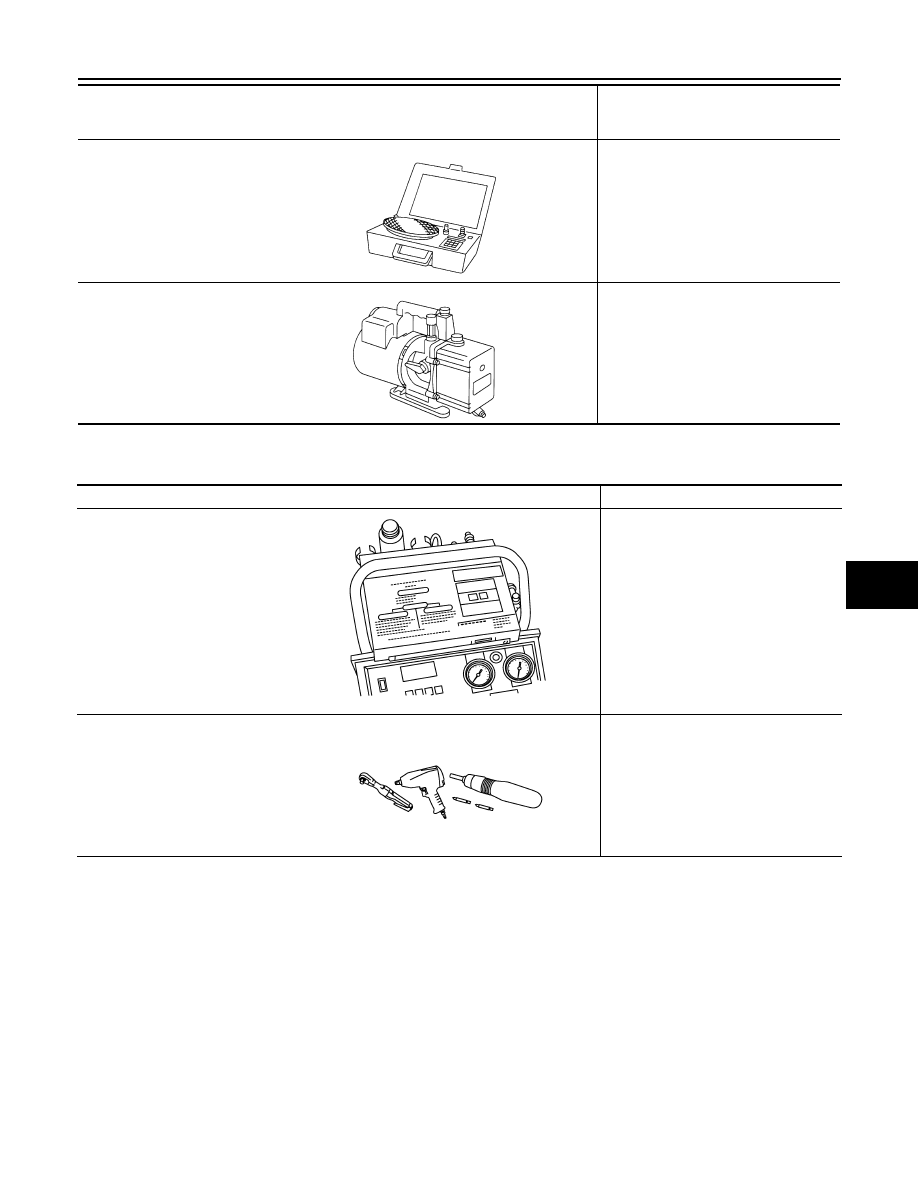

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT200

S-NT203

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening bolts and nuts

RJIA0197E

PIIB1407E

2010 Pathfinder

HA-18

< FUNCTION DIAGNOSIS >

REFRIGERATION SYSTEM

FUNCTION DIAGNOSIS

REFRIGERATION SYSTEM

Component

INFOID:0000000005256830

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Do not confuse O-

rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or

around the connection.

FRONT REFRIGERATION SYSTEM

2010 Pathfinder

REFRIGERATION SYSTEM

HA-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

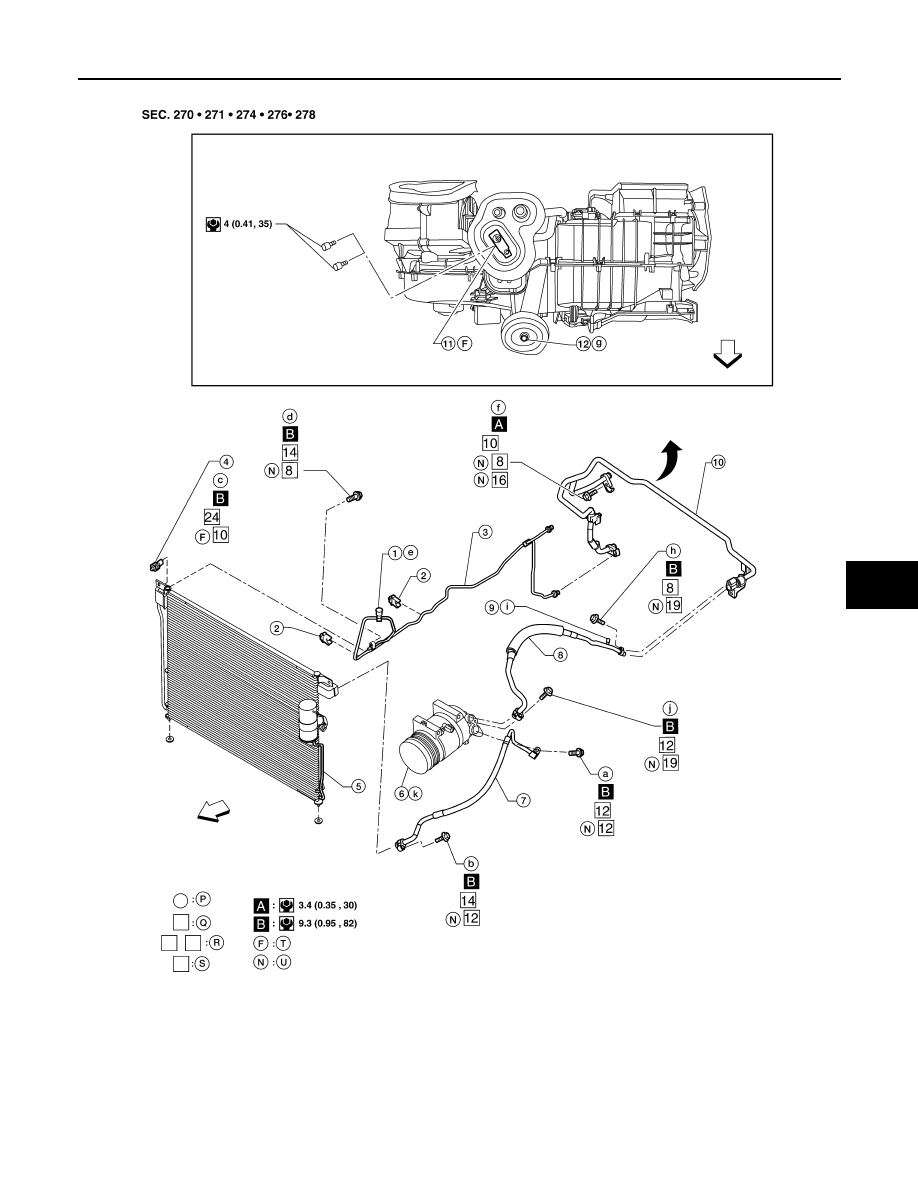

Front A/C Compressor and Condenser - VK56DE

AWIIA0570GB

1.

High-pressure service valve

2.

Clip

3.

Front high-pressure A/C pipe

4.

Refrigerant pressure sensor

5.

Condenser

6.

Compressor shaft seal

7.

Front high-pressure flexible A/C hose

8.

Front low-pressure flexible A/C hose 9.

Low-pressure service valve

10. Front low-pressure A/C pipe

11. Front expansion valve

12. Front A/C drain hose

P.

Refrigerant leak checking order (a - k)

Q.

Tightening torque

R.

Wrench size

2010 Pathfinder

HA-20

< FUNCTION DIAGNOSIS >

REFRIGERATION SYSTEM

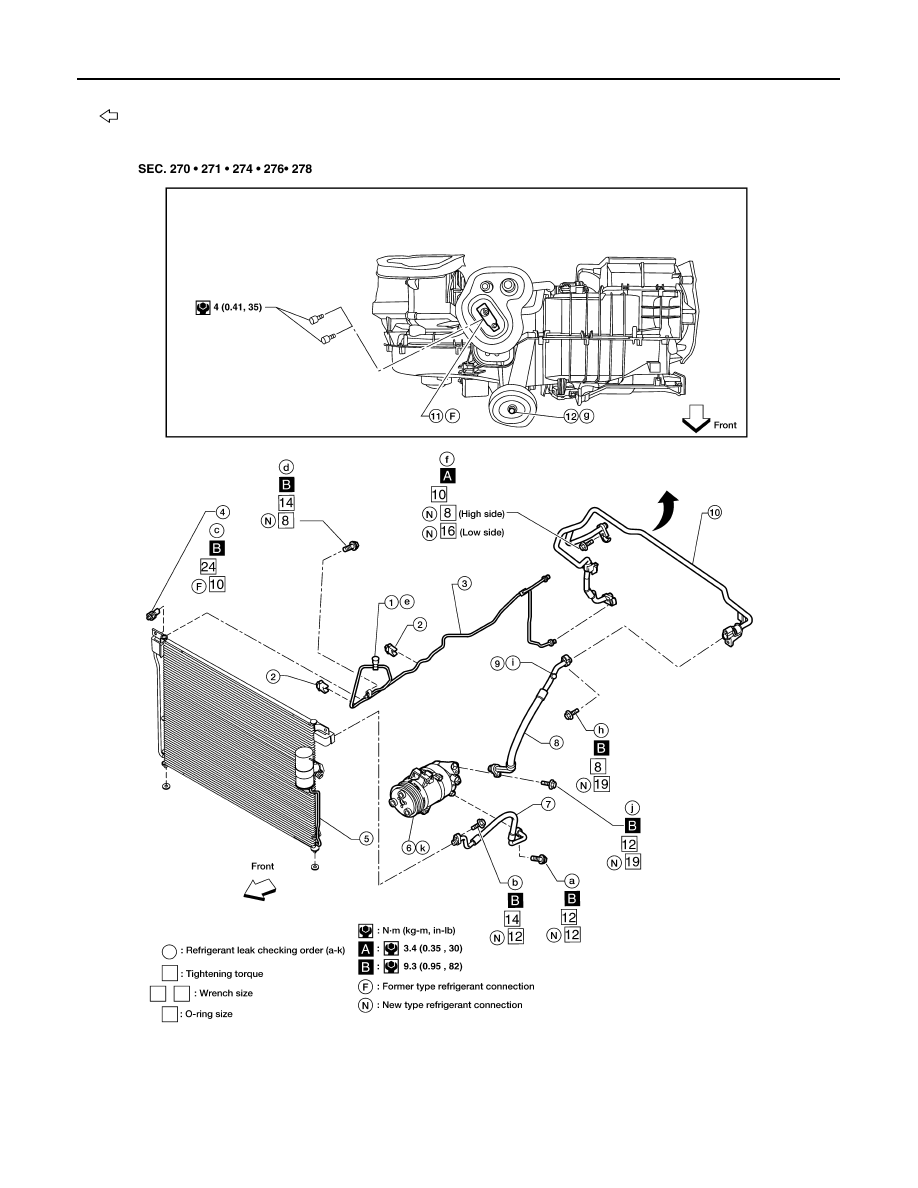

Front A/C Compressor and Condenser - VQ40DE

S.

O-ring size

T.

Former type refrigerant connection

U.

New type refrigerant connection

Front

WJIA1399E

1.

High-pressure service valve

2.

Clip

3.

Front high-pressure A/C pipe

4.

Refrigerant pressure sensor

5.

Condenser

6.

Compressor shaft seal

7.

Front high-pressure flexible A/C hose

8.

Front low-pressure flexible A/C hose 9.

Low-pressure service valve

10. Front low-pressure A/C pipe

11. Front expansion valve

12. Front A/C drain hose

2010 Pathfinder

REFRIGERATION SYSTEM

HA-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

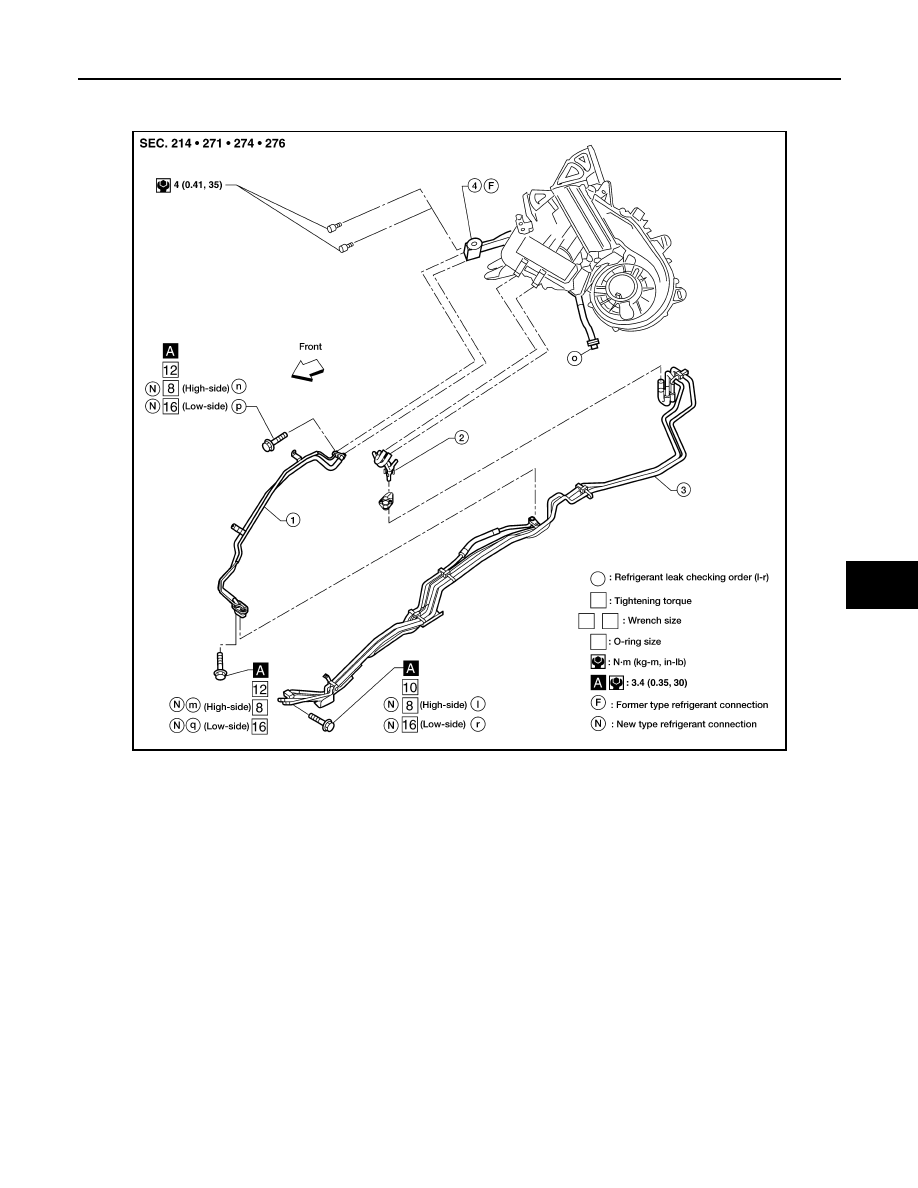

REAR REFRIGERATION SYSTEM

Rear A/C

WJIA1400E

1.

Rear high- and low-pressure A/C pipes

2.

Rear heater core hoses

3.

Underfloor rear high- and low-pres-
sure A/C and heater core pipes

4.

Rear expansion valve
