Nissan Pathfinder (2010 year). Manual - part 406





EXL-114

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

32

O

Combination switch
output 5

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

33

GR

Combination switch
output 4

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

34

G

Combination switch
output 3

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

35

BR

Combination switch
output 2

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

36

LG

Combination switch
output 1

37

1

B

Key switch and key
lock solenoid

Input

OFF

Key inserted

Battery voltage

Key inserted

0V

37

2

B

Key switch and igni-
tion knob switch

Input

OFF

Intelligent Key inserted

Battery voltage

Intelligent Key inserted

0V

38

W/R

Ignition switch (ON)

Input

ON

Battery voltage

39

L

CAN-H

40

P

CAN-L

42

LG

Glass hatch ajar
switch

Input

ON

Glass hatch open

0V

Glass hatch closed

Battery voltage

43

P

Back door latch switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

2010 Pathfinder

BCM (BODY CONTROL MODULE)

EXL-115

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

44

O

Rear wiper auto stop
switch

Input

ON

Rise up position (rear wiper
arm on stopper)

0V

A Position (full clockwise stop
position)

Battery voltage

Forward sweep (counterclock-
wise direction)

Fluctuating

B Position (full counterclock-
wise stop position)

0V

Reverse sweep (clockwise di-
rection)

Fluctuating

47

GR

Front door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

48

P

Rear door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

49

L

Cargo lamp

Output

OFF

Any door open (ON)

0V

All doors closed (OFF)

Battery voltage

51

O

Trailer turn signal
(right)

Output

ON

Turn right ON

52

LG

Trailer turn signal (left)

Output

ON

Turn left ON

53

L

Back door latch actua-
tor

Output

OFF

OFF

0

ON

Battery voltage

55

W

Rear wiper output cir-
cuit 1

Output

ON

OFF

0

ON

Battery voltage

56

R/Y

Battery saver output

Output

OFF

30 minutes after ignition
switch is turned OFF

0V

ON

Battery voltage

57

R/Y

Battery power supply

Input

OFF

Battery voltage

58

W

Optical sensor

Input

ON

When optical sensor is illumi-
nated

3.1V or more

When optical sensor is not illu-
minated

0.6V or less

59

GR

Front door lock as-
sembly LH actuator
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

2010 Pathfinder

EXL-116

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

1: With remote keyless entry system
2: With Intelligent Key system

60

LG

Turn signal (left)

Output

ON

Turn left ON

61

G

Turn signal (right)

Output

ON

Turn right ON

63

BR

Interior room/map
lamp

Output

OFF

Any door
switch

ON (open)

0V

OFF (closed)

Battery voltage

65

V

All door lock actuators
(lock)

Output

OFF

OFF (neutral)

0V

ON (lock)

Battery voltage

66

L

Front door lock actua-
tor RH, rear door lock
actuators LH/RH and
glass hatch lock actu-
ator (unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

67

B

Ground

Input

ON

0V

68

O

Power window power
supply (RAP)

Output

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

L

Power window power
supply

Output

Battery voltage

70

W

Battery power supply

Input

OFF

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

2010 Pathfinder

BCM (BODY CONTROL MODULE)

EXL-117

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Wiring Diagram

INFOID:0000000005501521

ABMWA0471GB

2010 Pathfinder

EXL-118

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ABMWA0472GB

2010 Pathfinder

BCM (BODY CONTROL MODULE)

EXL-119

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

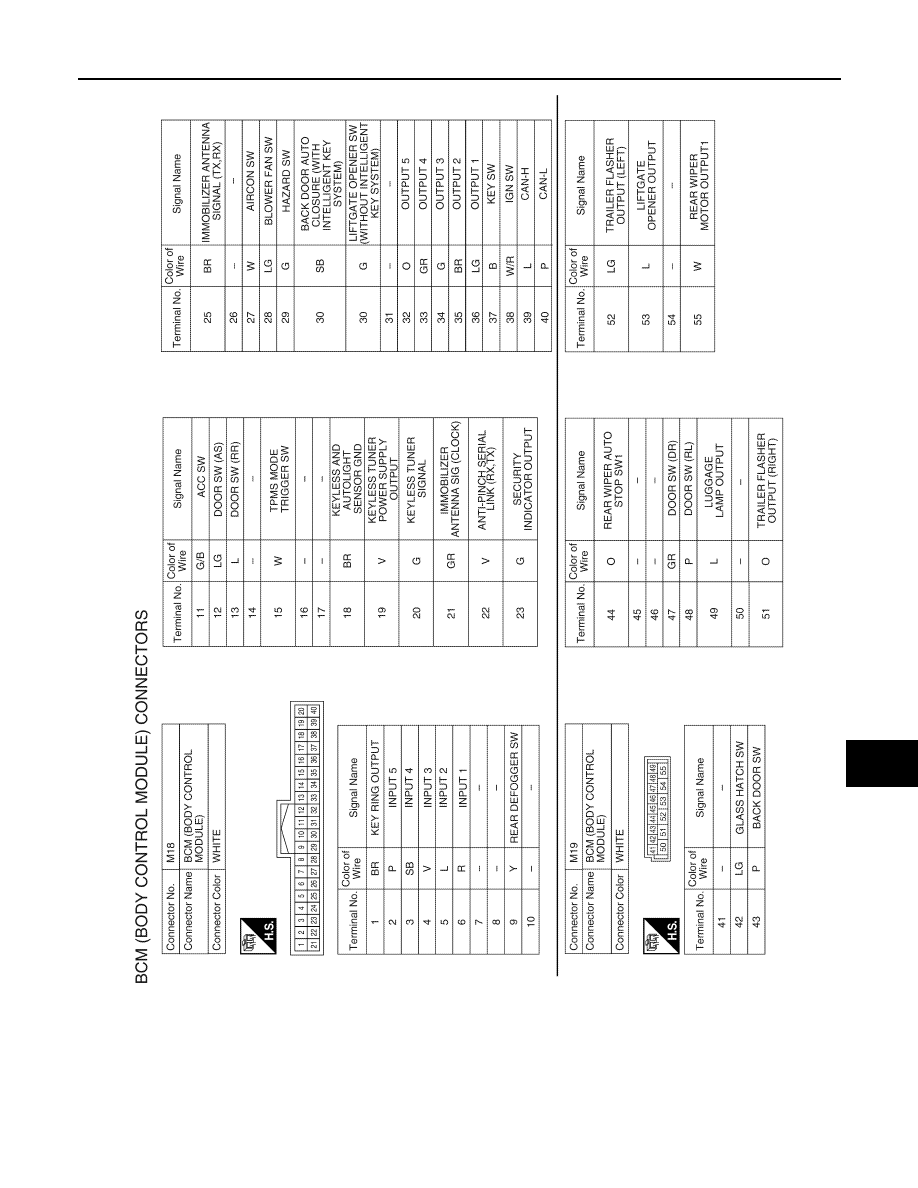

ABMIA1287GB

2010 Pathfinder

EXL-120

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000005501522

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

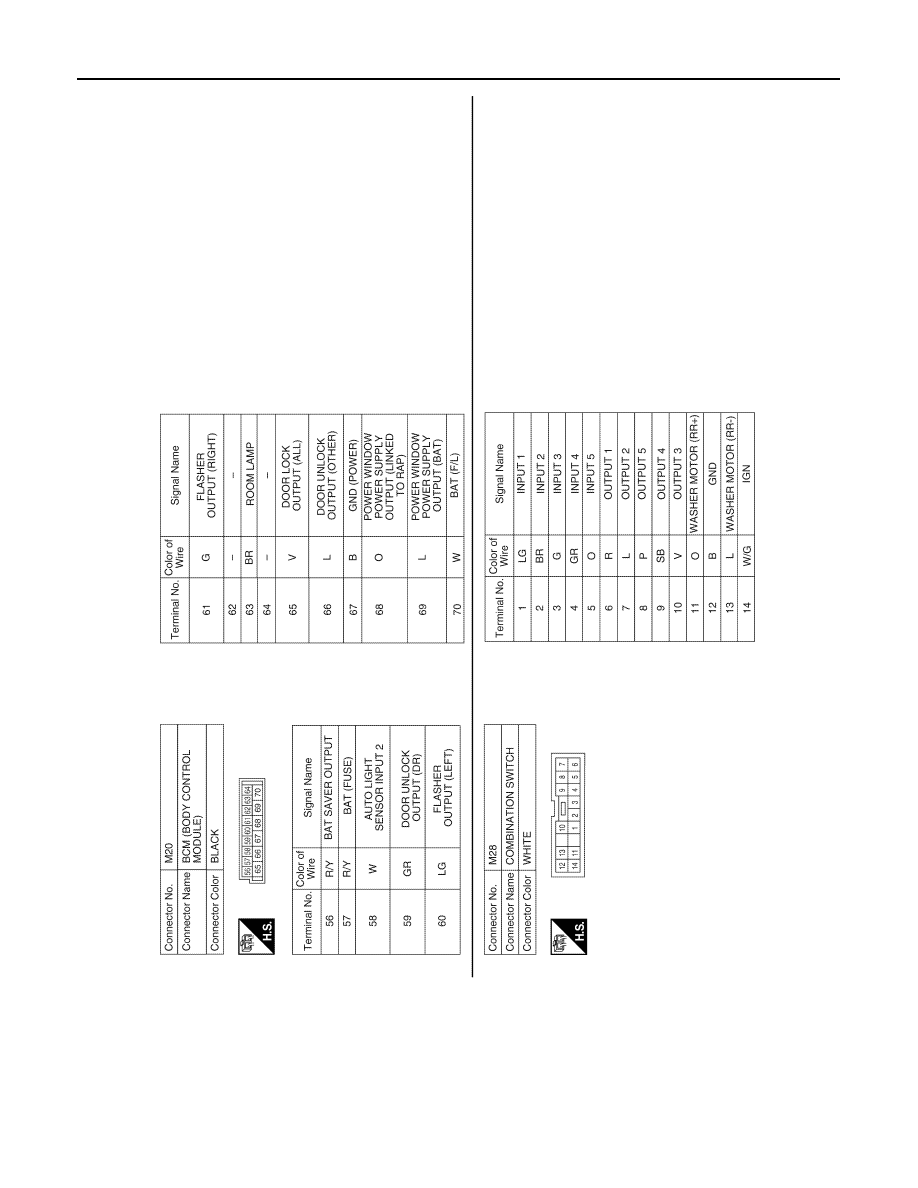

ABMIA1288GB

2010 Pathfinder

BCM (BODY CONTROL MODULE)

EXL-121

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC Inspection Priority Chart

INFOID:0000000005501523

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

DTC Index

INFOID:0000000005501524

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

2010 Pathfinder
