Nissan Pathfinder (2010 year). Manual - part 365

EM-48

< ON-VEHICLE REPAIR >

[VQ40DE]

FUEL INJECTOR AND FUEL TUBE

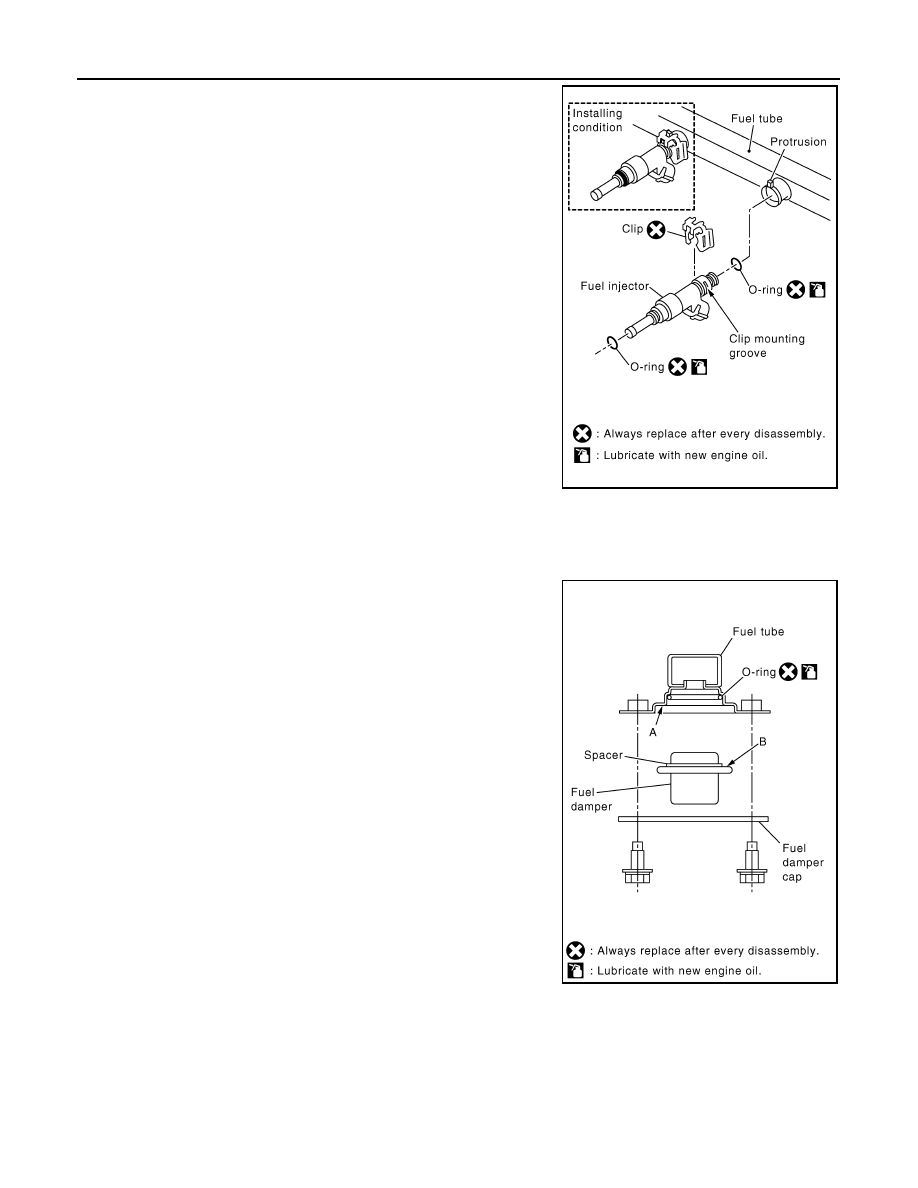

9. Remove fuel injector from fuel tube as follows:
a. Carefully open and remove clip.
b. Remove fuel injector from fuel tube by pulling straight.

CAUTION:

• Be careful with remaining fuel that may leak out from fuel

tube.

• Do not damage injector nozzles during removal.

• Do not bump or drop fuel injectors.

• Do not disassemble fuel injectors.

10. Disconnect fuel tube (RH) from fuel tube (LH).
11. Loosen bolts, to remove fuel damper cap and fuel damper, if necessary.

INSTALLATION

1. Install fuel damper as follows:
a. Install new O-ring to fuel tube as shown.

• When handling new O-rings, be careful of the following cau-

tion:

CAUTION:

• Handle O-ring with bare hands. Never wear gloves.

• Lubricate new O-ring with new engine oil.

• Do not clean O-ring with solvent.

• Make sure that O-ring and its mating part are free of for-

eign material.

• When installing O-ring, do not scratch it with tool or fin-

gernails.

• Do not twist or stretch O-ring. If O-ring was stretched

while it was being attached, allow it to retract before

inserting it into fuel tube.

• Insert new O-ring straight into fuel tube. Do not angle or

twist it.

b. Install spacer to fuel damper.
c.

Insert fuel damper straight into fuel tube.

CAUTION:

• Insert straight, making sure that the axis is lined up.

• Do not pressure-fit with excessive force.

• Insert fuel damper until (B) is touching (A) of fuel tube.

d. Tighten bolts evenly in turn.

• After tightening bolts, make sure that there is no gap between fuel damper cap and fuel tube.

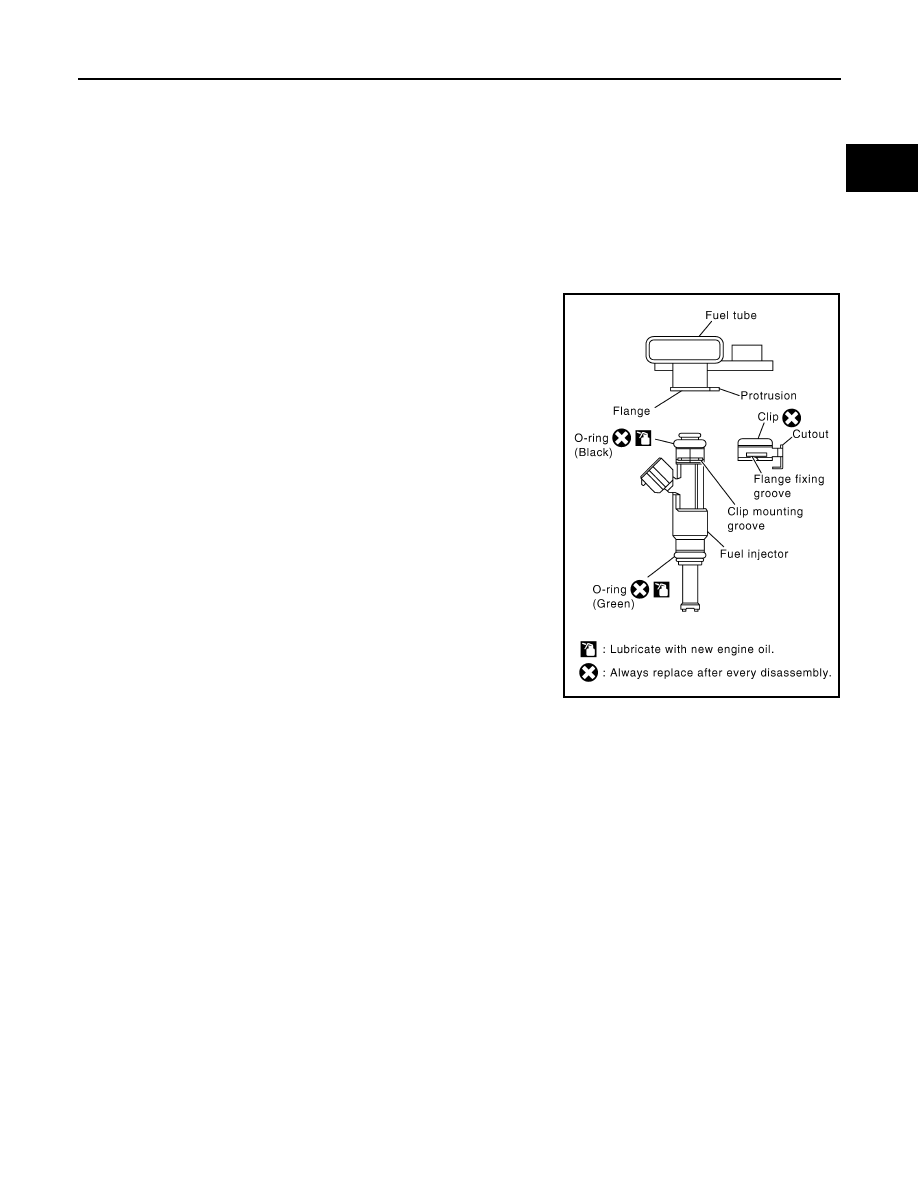

2. Install new O-rings to fuel injector, paying attention to the following.

CAUTION:

• Do not reuse O-rings.

• Upper and lower O-ring are different colors.

PBIC2999E

Reference value

: 130 N (13.3 kg, 29.2 lb)

PBIC2903E

2010 Pathfinder

FUEL INJECTOR AND FUEL TUBE

EM-49

< ON-VEHICLE REPAIR >

[VQ40DE]

• Handle O-ring with bare hands. Never wear gloves.

• Lubricate new O-ring with new engine oil.

• Do not clean O-ring with solvent.

• Make sure that O-ring and its mating part are free of foreign material.

• When installing O-ring, be careful not to scratch it with tool or fingernails.

• Do not twist or stretch O-ring. If O-ring was stretched while it was being attached, allow it to

retract before inserting it into fuel tube.

• Insert O-ring straight into fuel injector. Do not angle or twist it.

3. Install fuel injector to fuel tube.
a. Insert clip into clip mounting groove on the fuel injector.

• Insert new clip so that protrusion of fuel injector matches cut-

out of clip.

CAUTION:

• Do not reuse clip. Replace it with a new one.

• Do not allow the clip to interfere with the O-ring. If inter-

ference occurs, replace O-ring.

b. Insert the fuel injector into the fuel tube with the clip attached.

• Insert it while matching it to the axial center.

• Insert fuel injector so that protrusion of fuel tube matches cut-

out of clip.

• Make sure that fuel tube flange is securely fixed in flange fixing

groove on clip.

c. Make sure that the installation is complete by checking that the

fuel injector does not rotate or come off.

• Make sure that protrusions of the fuel injectors are aligned

with cutouts of clips after installation.

4. Connect the fuel tube (RH) to the fuel tube (LH), and tighten bolts temporarily.

• Tighten bolts to the specified torque after installing fuel tube and fuel injector assembly.

CAUTION:

• Handle O-ring with bare hands. Do not wear gloves.

• Lubricate O-ring with new engine oil.

• Do not clean O-ring with solvent.

• Make sure that O-ring and its mating part are free of foreign material.

• When installing O-ring, be careful not to scratch it with tool or fingernails.

• Do not twist or stretch O-ring. If O-ring was stretched while it was being attached, allow it to

retract before inserting it into fuel tube.

• Insert new O-ring straight into fuel tube. Do not angle or twist it.

5. Install fuel tube and fuel injector assembly to intake manifold.

CAUTION:

Do not let the tip of the injector nozzle come in contact with other parts.

Fuel tube side

: Blue

Nozzle side

: Brown

PBIC3000E

2010 Pathfinder

EM-50

< ON-VEHICLE REPAIR >

[VQ40DE]

FUEL INJECTOR AND FUEL TUBE

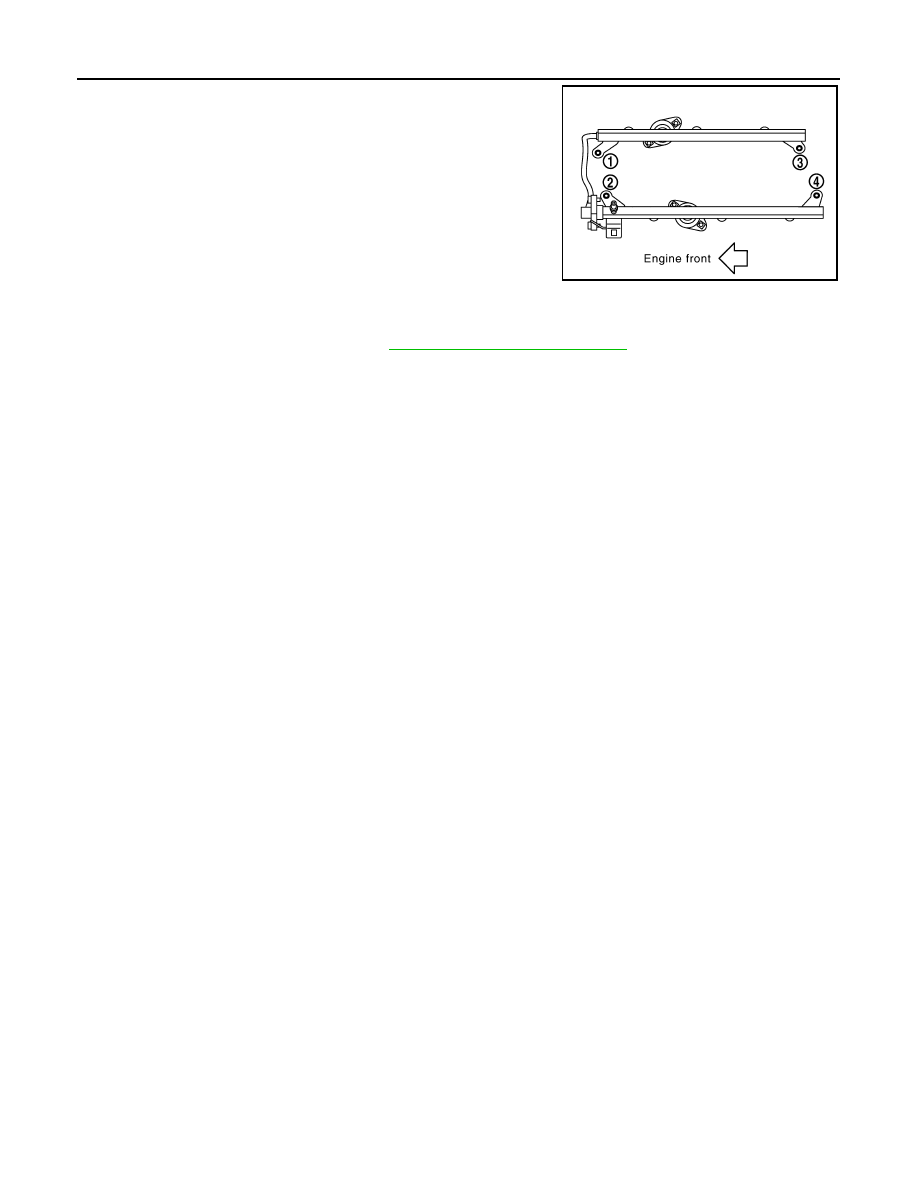

• Tighten bolts in two steps in numerical order as shown.

6. Tighten bolts which connects fuel tube (RH) and fuel tube (LH) to the specified torque.
7. Connect fuel injector harness connector.
8. Install intake manifold collector. Refer to

EM-27, "Removal and Installation"

9. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

After installing the fuel tubes, make sure there are no fuel leaks at the connections using the following steps.

1. Apply fuel pressure to the fuel lines by turning ignition switch ON (with engine stopped). Then check for

fuel leaks at the connections.

2. Start the engine and rev it up and check for fuel leaks at the connections.

WARNING:

Do not touch engine immediately after stopping, as engine becomes extremely hot.

NOTE:

Use mirrors for checking on hidden points.

Fuel injector tube assembly bolts
1st step

: 10.1 N·m (1.0 kg-m, 7 ft-lb)

2nd step

: 22.0 N·m (2.2 kg-m, 16 ft-lb)

PBIC2902E

2010 Pathfinder

FRONT TIMING CHAIN CASE

EM-51

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

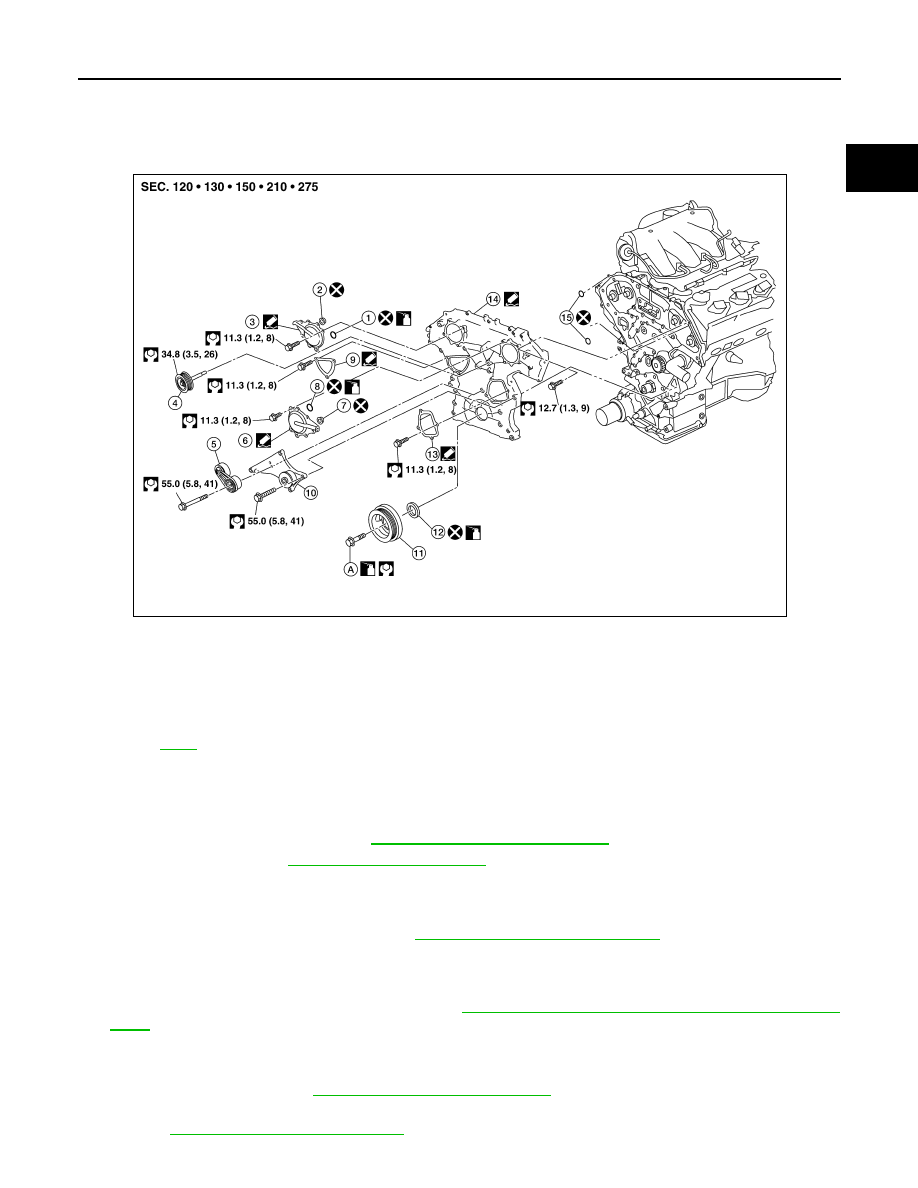

Exploded View

INFOID:0000000005260459

Removal and Installation

INFOID:0000000005260460

REMOVAL

1. Remove engine room cover. Refer to

EM-25, "Removal and Installation"

2. Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

CAUTION:

• Perform this step when engine is cold.

• Do not spill engine oil on drive belts.

3. Drain engine coolant from radiator. Refer to

CO-12, "Changing Engine Coolant"

CAUTION:

• Perform this step when engine is cold.

• Do not spill engine coolant on drive belts.

4. Remove radiator cooling fan assembly. Refer to

CO-19, "Removal and Installation (Crankshaft driven

type)"

5. Disconnect engine harnesses removing their brackets from front timing chain case.
6. Remove EVAP canister purge volume control solenoid valve, if necessary.
7. Remove drive belts. Refer to

EM-14, "Removal and Installation"

8. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.

Refer to

ST-24, "Removal and Installation"

AWBIA0858GB

O-ring

Collared O-ring

Intake valve timing control cover (RH)

Idler pulley

Drive belt auto tensioner

Intake valve timing control cover (LH)

Collared O-ring

O-ring

Chain tensioner cover

10. Cooling fan bracket

11. Crankshaft pulley

12.

Front oil seal

13. Water pump cover

14. Front timing chain case

15.

O-ring

Refer to

EM-51

2010 Pathfinder

EM-52

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

9. Remove power steering oil pump bracket. Refer to

ST-24, "Removal and Installation"

10. Remove generator. Refer to

CHG-21, "Removal and Installation"

11. Remove water bypass hoses and water hose clamp.
12. Remove cooling fan (crankshaft driven type) and fan bracket. Refer to

CO-19, "Removal and Installation

(Crankshaft driven type)"

13. Remove water hose at oil cooler.
14. Remove oil cooler water bypass pipe from front timing chain case. Refer to

LU-12, "Exploded View"

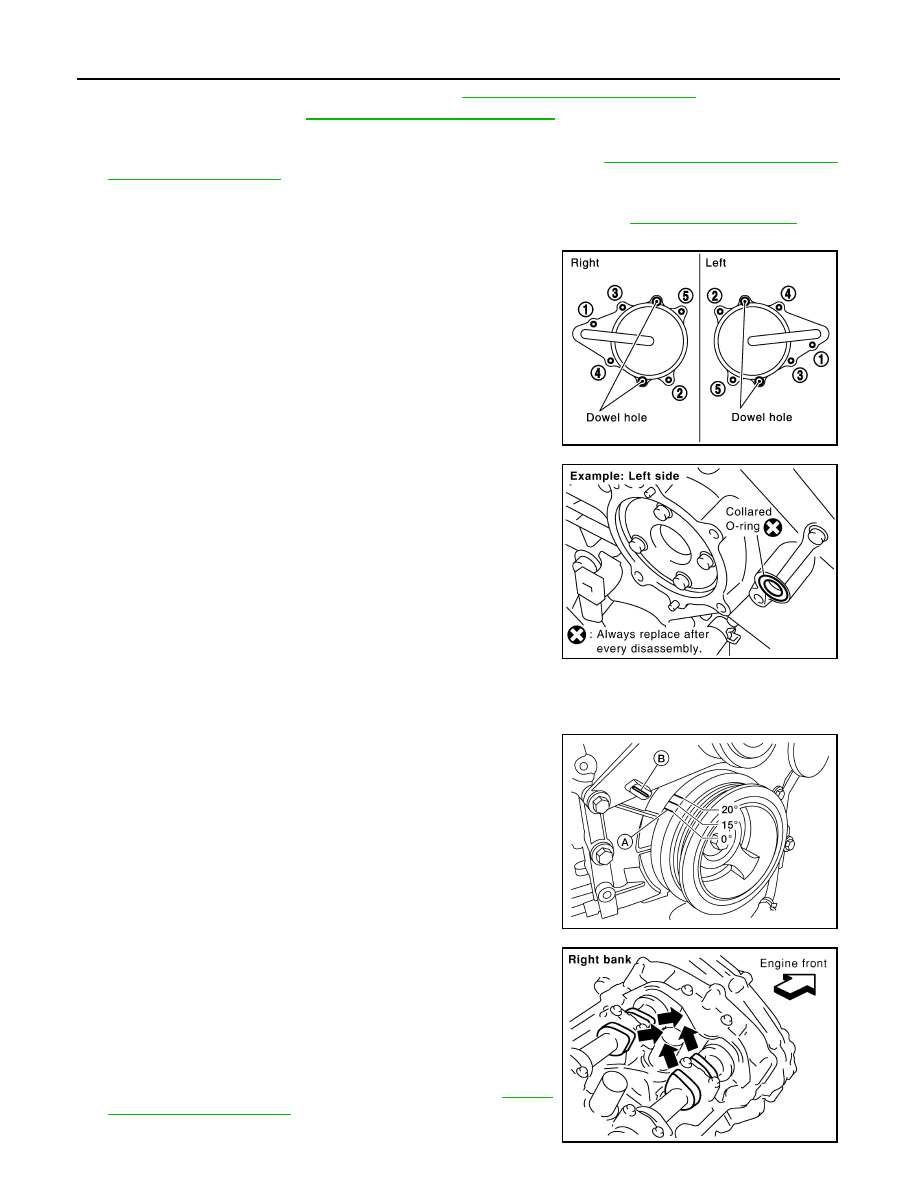

15. Remove right and left intake valve timing control covers.

• Loosen bolts in reverse order as shown.

• Cut liquid gasket for removal using Tool.

CAUTION:

Shaft is internally jointed with camshaft sprocket (INT) cen-

ter hole. When removing, keep it horizontal until it is com-

pletely disconnected.

16. Remove collared O-rings from front timing chain case (left and

right side).

17. Obtain No. 1 cylinder at TDC of its compression stroke as follows:

NOTE:

When timing chain is not removed/installed, this step is not required.

a. Rotate crankshaft pulley clockwise to align timing mark (A)

(grooved line without color) with timing indicator (B).

b. Make sure that intake and exhaust cam noses on No. 1 cylinder

(engine front side of right bank) are located as shown.

• If not, turn crankshaft one revolution (360

) and align as

shown.

NOTE:

When only timing chain (primary) is removed, rocker cover does

not need to be removed. To make sure that No. 1 cylinder is at

its compression TDC, remove front timing chain case first. Then

check mating marks on camshaft sprockets. Refer to

EM-60,

"Removal and Installation"

Tool number

: KV10111100 (J-37228)

SEM728G

PBIC2631E

AWBIA0719ZZ

SEM418G

2010 Pathfinder

FRONT TIMING CHAIN CASE

EM-53

< ON-VEHICLE REPAIR >

[VQ40DE]

18. Remove A/C compressor bolts and temporarily secure A/C compressor aside. Refer to

HA-39, "Removal

and Installation for Compressor"

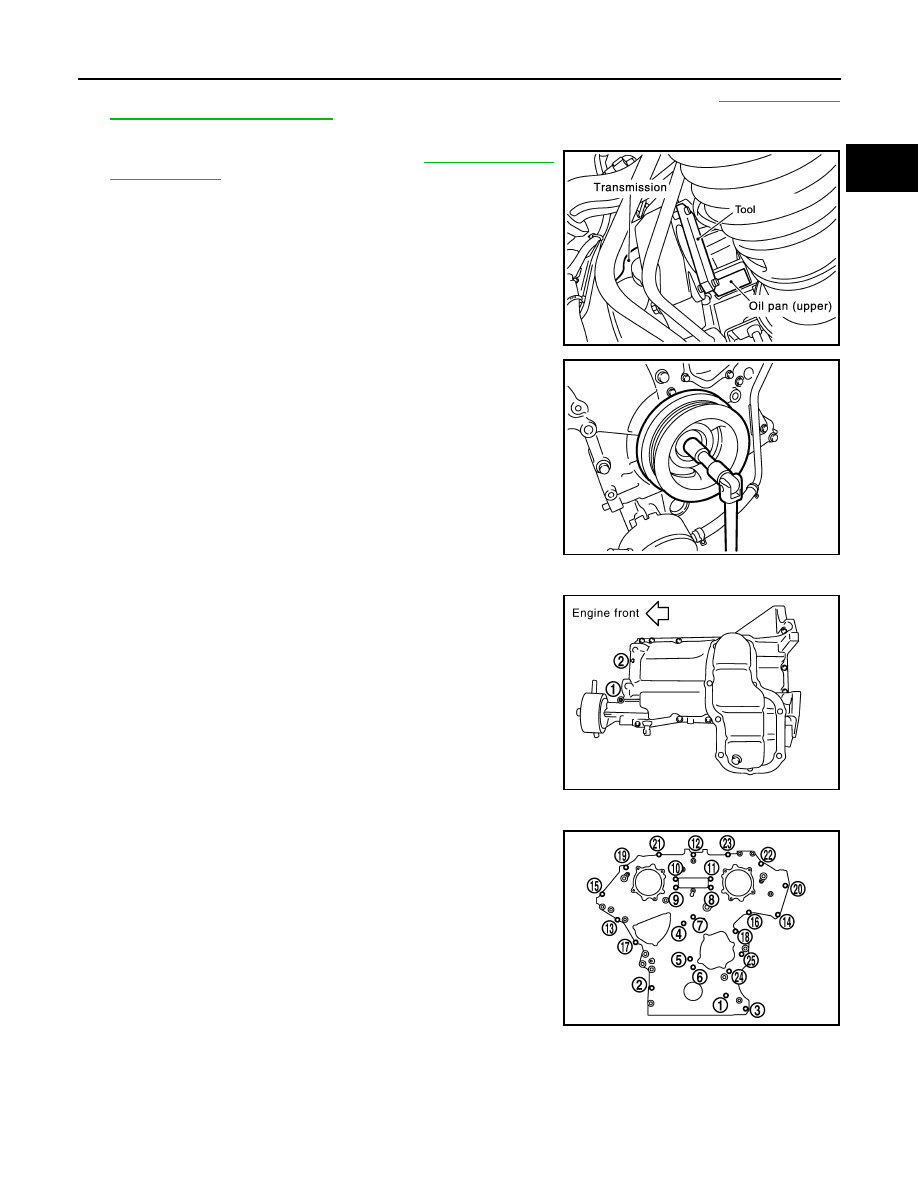

19. Remove crankshaft pulley as follows:
a. Remove starter motor and set Tool. Refer to

STR-24, "Removal

and Installation"

b. Loosen crankshaft pulley bolt and locate bolt seating surface as

10 mm (0.39 in) from its original position.

CAUTION:

Do not remove crankshaft pulley bolt. Keep loosened

crankshaft pulley bolt in place to protect the crankshaft pul-

ley from dropping.

c. Pull crankshaft pulley with both hands to remove it.
20. Loosen two bolts in front of oil pan (upper) in reverse order as

shown.

21. Remove front timing chain case as follows:
a. Loosen bolts with power tool in reverse order as shown.

Tool number

: — (J-48761)

WBIA0580E

PBIC2918E

PBIC2907E

PBIC2908E

2010 Pathfinder

EM-54

< ON-VEHICLE REPAIR >

[VQ40DE]

FRONT TIMING CHAIN CASE

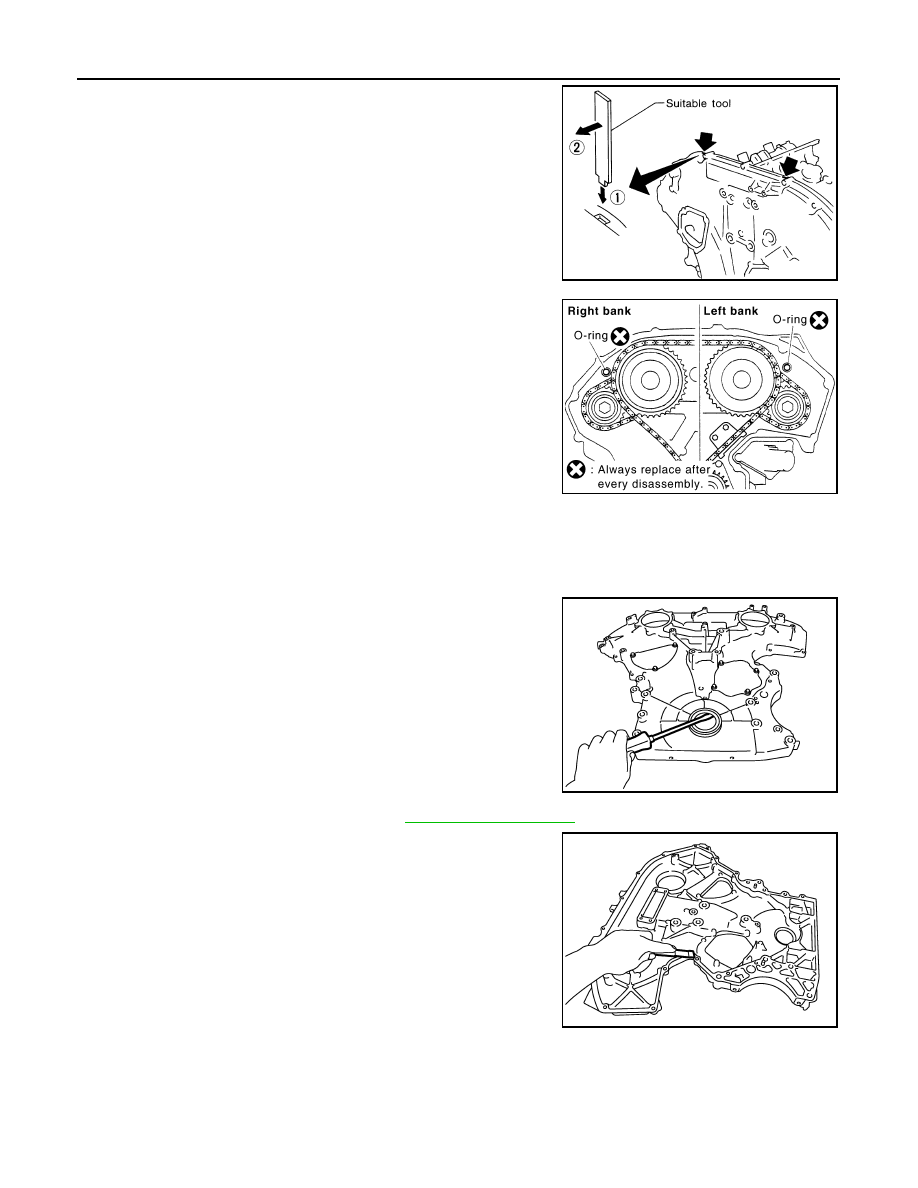

b. Insert suitable tool into the notch at the top of the front timing

chain case as shown (1).

Pry off case by moving tool as shown (2).

• Cut liquid gasket for removal using Tool.

CAUTION:

• Do not use screwdriver or something similar.

• After removal, handle front timing chain case carefully so

it does not twist, bend, or warp under a load.

22. Remove O-rings from rear timing chain case.

23. Remove water pump cover and chain tensioner cover from front timing chain case, if necessary.

• Cut liquid gasket for removal using Tool.

24. Remove front oil seal from front timing chain case using suitable

tool.

CAUTION:

Be careful not to damage front timing chain case.

25. Remove idler pulley, if necessary. Refer to

EM-51, "Exploded View"

26. Use a scraper to remove all traces of old liquid gasket from front

and rear timing chain cases and oil pan (upper), and liquid gas-

ket mating surfaces.

CAUTION:

Be careful not to allow gasket fragments to enter oil pan.

Tool number

: KV10111100 (J-37228)

SEM156F

PBIC2548E

Tool number

: KV10111100 (J-37228)

PBIC2909E

PBIC2910E

2010 Pathfinder

FRONT TIMING CHAIN CASE

EM-55

< ON-VEHICLE REPAIR >

[VQ40DE]

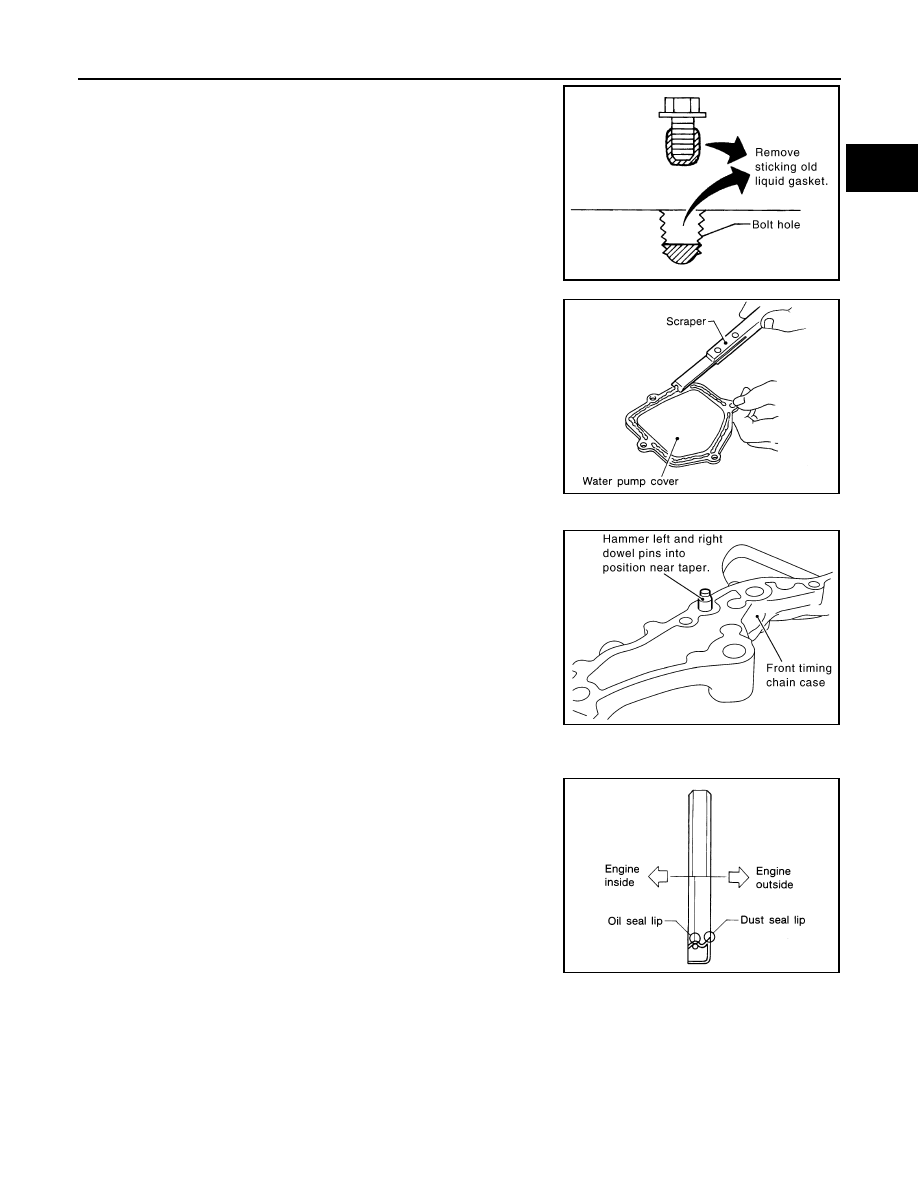

• Remove old liquid gasket from bolt hole and thread.

27. Use a scraper to remove all traces of old liquid gasket from

water pump cover, chain tensioner cover, if necessary and

intake valve timing control covers.

INSTALLATION

1. Hammer dowel pins (right and left) into front timing chain case

up to a point close to taper in order to shorten protrusion length.

2. Install new front oil seal on the front timing chain case.

• Apply new engine oil to both oil seal lip and dust seal lip.

• Install it so that each seal lip is oriented as shown.

PBIC2084E

SEM926E

PBIC2615E

SEM715A

2010 Pathfinder
