EM-8

< PREPARATION >

[VQ40DE]

PREPARATION

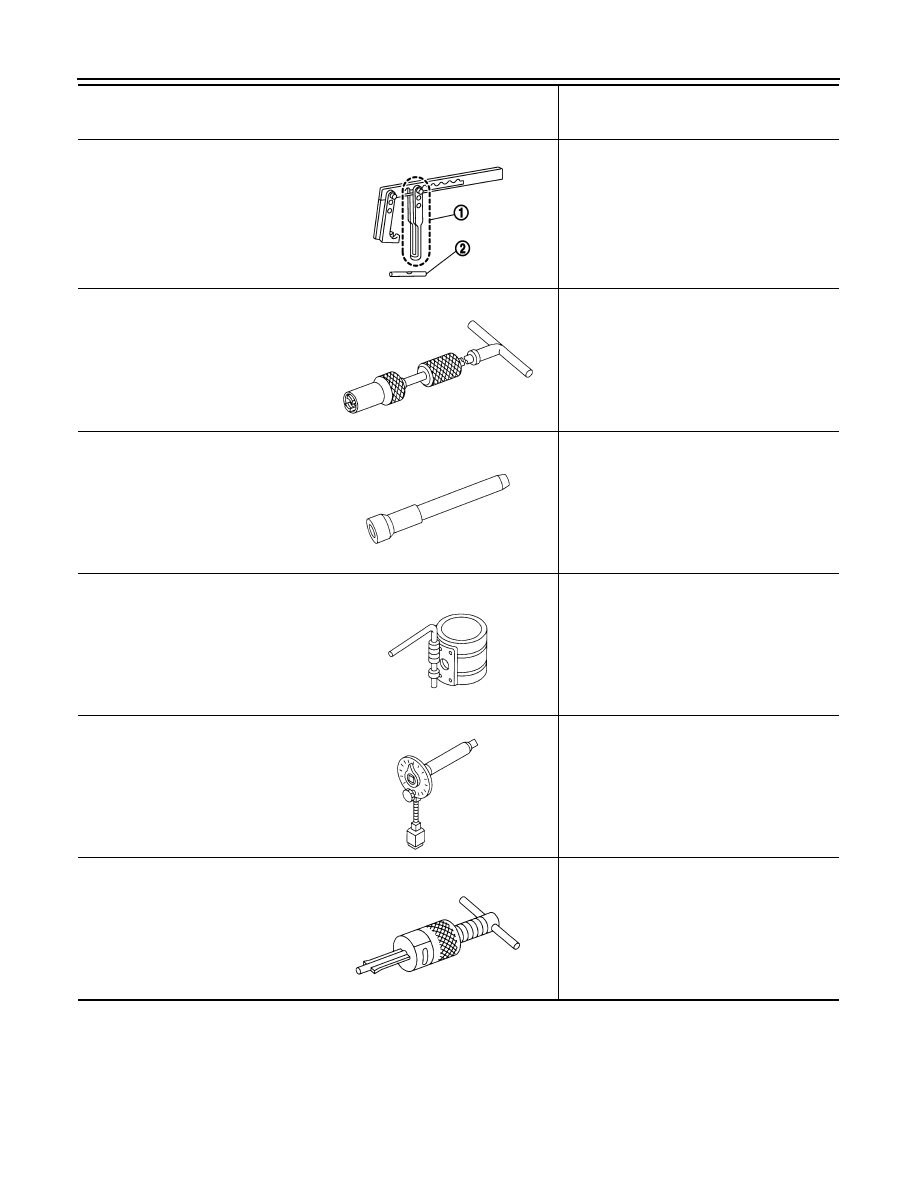

KV10116200
(J-26336-B)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2.KV10109220
( — )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-B), but Part (2) is not so.

KV10107902
(J-38959)
Valve oil seal puller

Replacing valve oil seal

(J-39386)
Valve oil seal drift

Installing valve oil seal

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter

Tool number
(Kent-Moore No.)
Tool name

Description

PBIC1650E

NT011

NT024

NT044

NT014

NT045

2010 Pathfinder

PREPARATION

EM-9

< PREPARATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Commercial Service Tool

INFOID:0000000005260428

   —

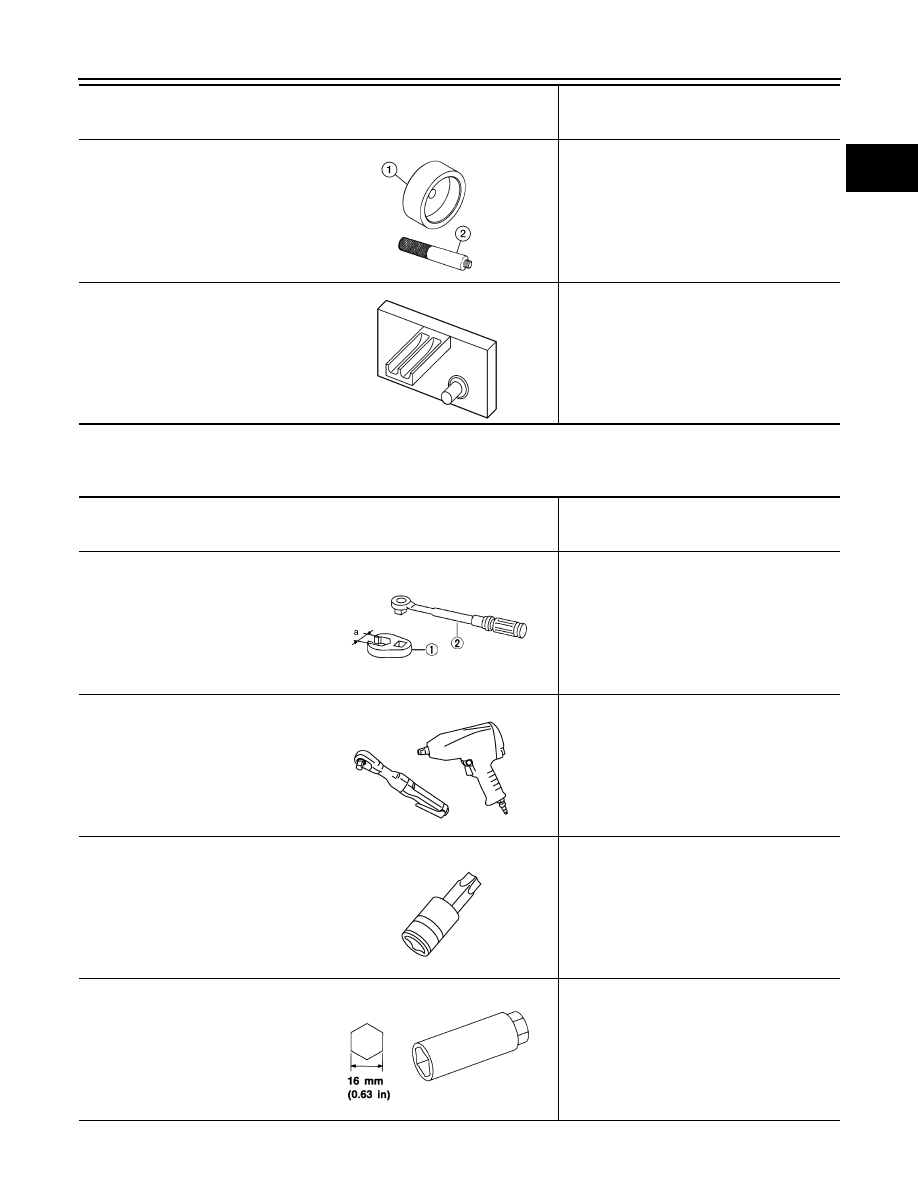

1. (J-49815)
2. (J-8092)
Seal installer and driver handle

Installing rear main seal

(J-48761)
Ring gear stopper

Removing and installing crankshaft pulley

Tool number
(Kent-Moore No.)
Tool name

Description

AWBIA0862ZZ

ALBIA0523ZZ

Tool number
(Kent-Moore No.)
Tool name

Description

1. Crowfoot
2. Torque wrench

Installing exhaust manifold nuts

a: 14 mm (0.55 in)

( — )
Power tool

Loosening nuts and bolts

KV991J0100
(J-46531)
TORX socket

Removing and installing flywheel

Size: T55

( — )
Spark plug wrench

Removing and installing spark plug

S-NT360

PBIC0190E

PBIC1113E

NT047

2010 Pathfinder

EM-10

< PREPARATION >

[VQ40DE]

PREPARATION

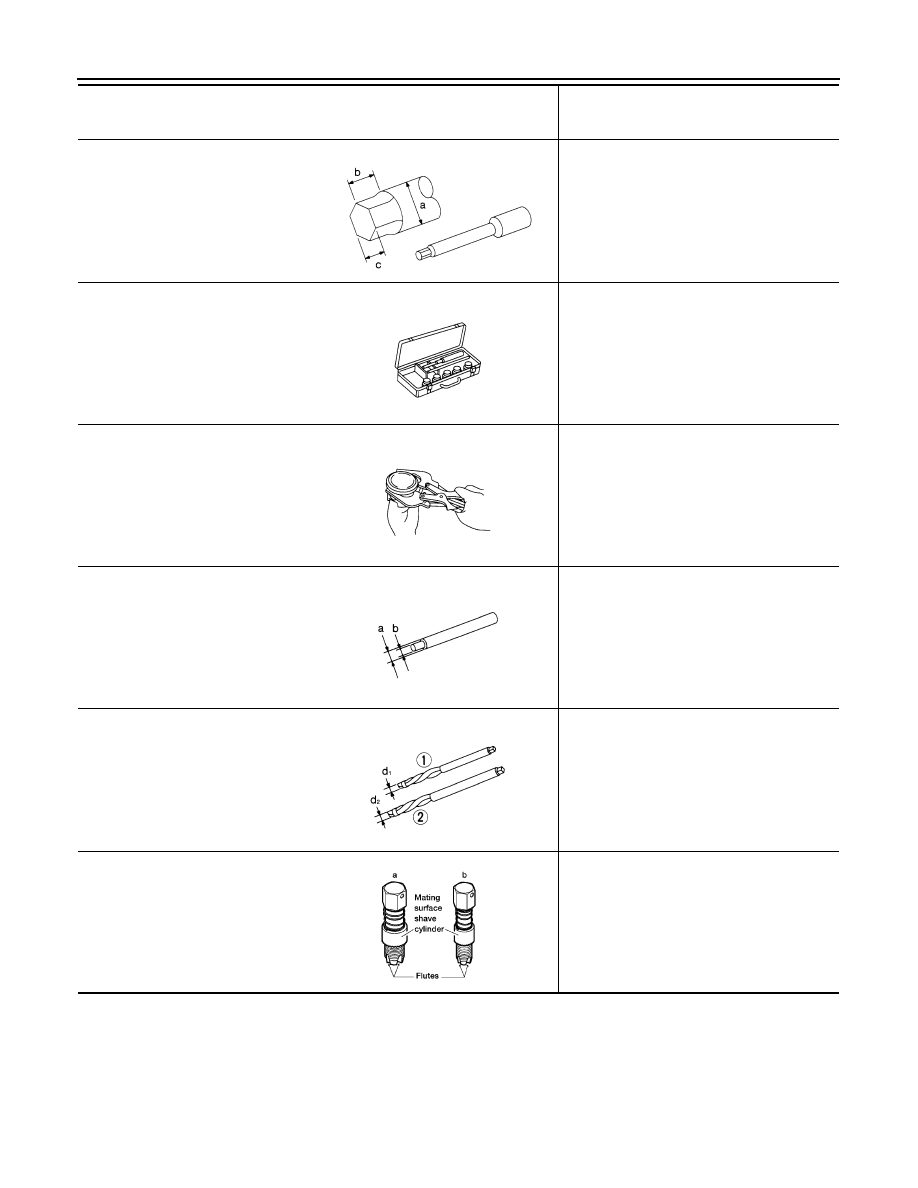

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100 (BT8653-A)]

a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)

Unit: mm (in)

( — )
Valve seat cutter set

Finishing valve seat dimensions

( — )
Piston ring expander

Removing and installing piston ring

( — )
Valve guide drift

Removing and installing valve guide

Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

( — )
Valve guide reamer

(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide

Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.175 - 10.196 mm (0.4006 - 0.4014 in)

dia.

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)

a: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor

Tool number
(Kent-Moore No.)
Tool name

Description

NT583

NT048

NT030

NT015

NT016

AEM488

2010 Pathfinder

PREPARATION

EM-11

< PREPARATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

( — )

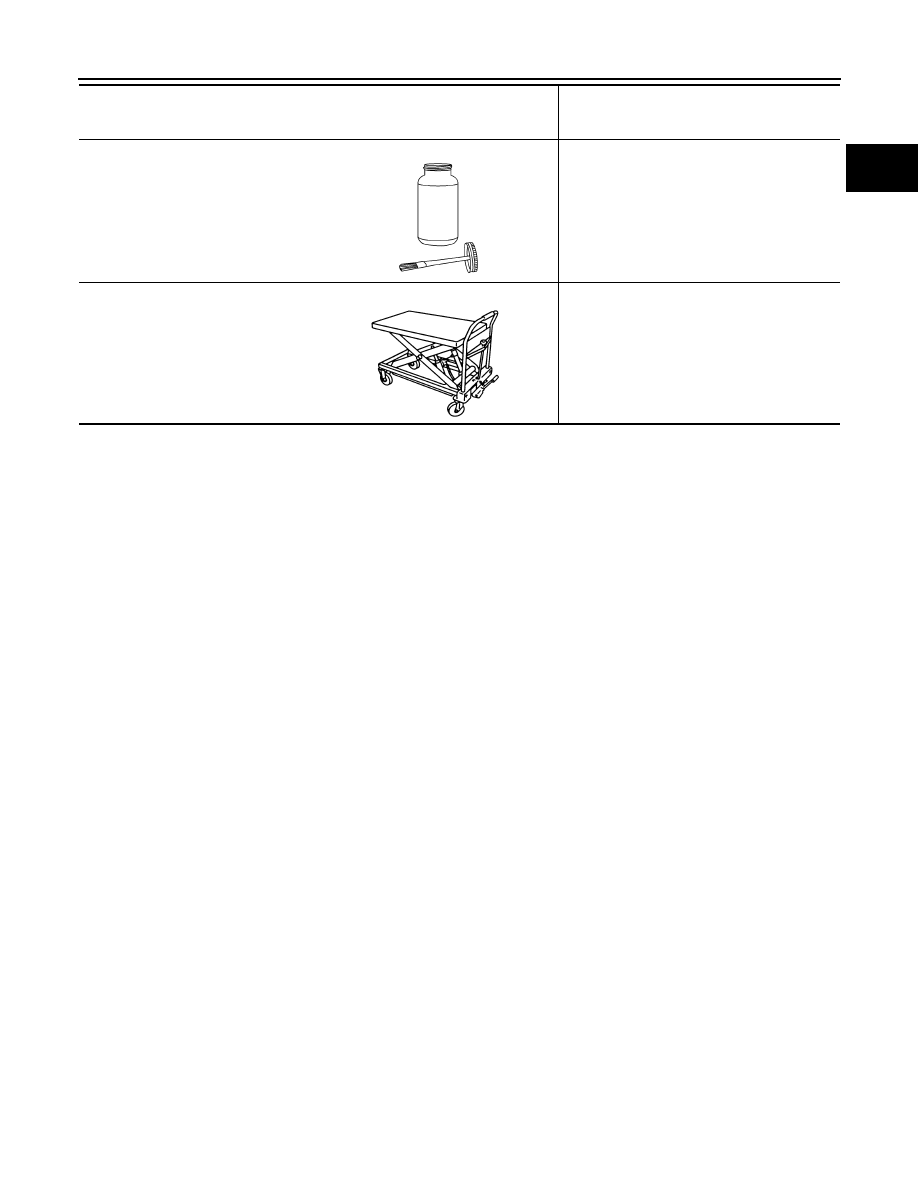

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

( — )
Manual lift table caddy

Removing and installing engine

Tool number
(Kent-Moore No.)
Tool name

Description

AEM489

ZZA1210D

2010 Pathfinder

EM-12

< FUNCTION DIAGNOSIS >

[VQ40DE]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FUNCTION DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting - Engine Noise

INFOID:0000000005260429

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000005260430

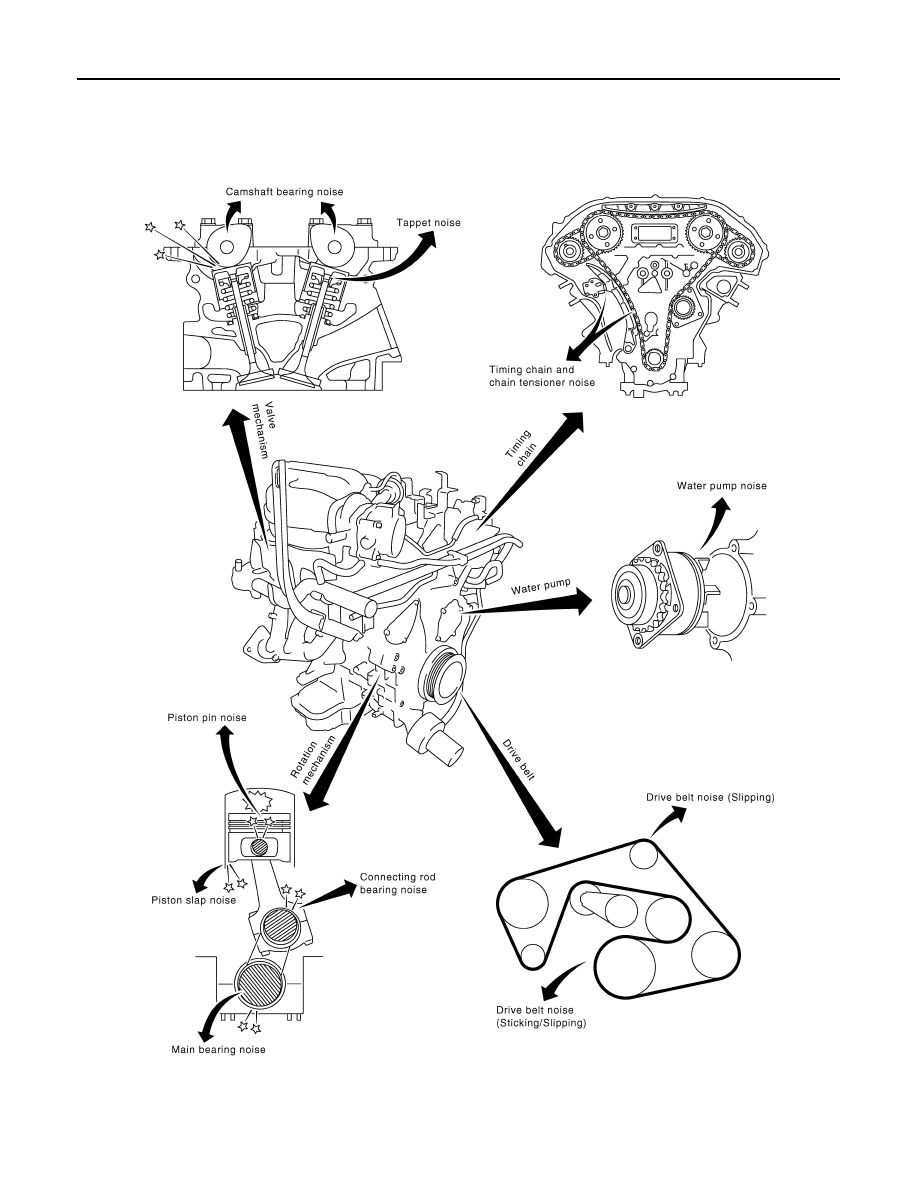

1. Locate the area where noise occurs.

PBIC2873E

2010 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-13

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.

A: Closely related B: Related C: Sometimes related —: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-19

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft runout
Camshaft journal oil
clearance

EM-74
EM-74

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod bushing
oil clearance

EM-112



EM-112

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-112
EM-112
EM-112
EM-112

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod bushing
oil clearance
Connecting rod bearing
oil clearance

EM-112
EM-112

Knock

A

B

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-112
EM-112

Front of
engine
Timing
chain case

Tapping or
ticking

A

A

B

B

B

Timing
chain and
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-60
EM-60

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belts
(Sticking
or slip-
ping)

Drive belts deflection

EM-14

Creaking

A

B

A

B

A

B

Drive belts
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-22

Rattle

A

VTC

VTC lock pin clearance

EM-60

2010 Pathfinder

EM-14

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

DRIVE BELTS

ON-VEHICLE MAINTENANCE

DRIVE BELTS

Exploded View

INFOID:0000000005260431

Checking Drive Belts

INFOID:0000000005260432

WARNING:

Be sure to perform when the engine is stopped.

1. Remove air duct and resonator assembly when inspecting drive belt. Refer to

EM-26, "Removal and

Installation"

.

2. Make sure that the auto tensioner indicator is within the allow-

able working range (A) as shown.

3. Visually check entire belt for wear, damage or cracks.
4. If the indicator is out of the allowable range or drive belt is dam-

aged, replace the drive belt. Refer to

EM-14, "Removal and

Installation"

.

Adjustment

INFOID:0000000005260433

There is no manual drive belt tension adjustment. The drive belt tension is automatically adjusted by the drive

belt auto tensioner.

Removal and Installation

INFOID:0000000005260434

REMOVAL

1. Remove the engine room cover. Refer to

EM-25, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

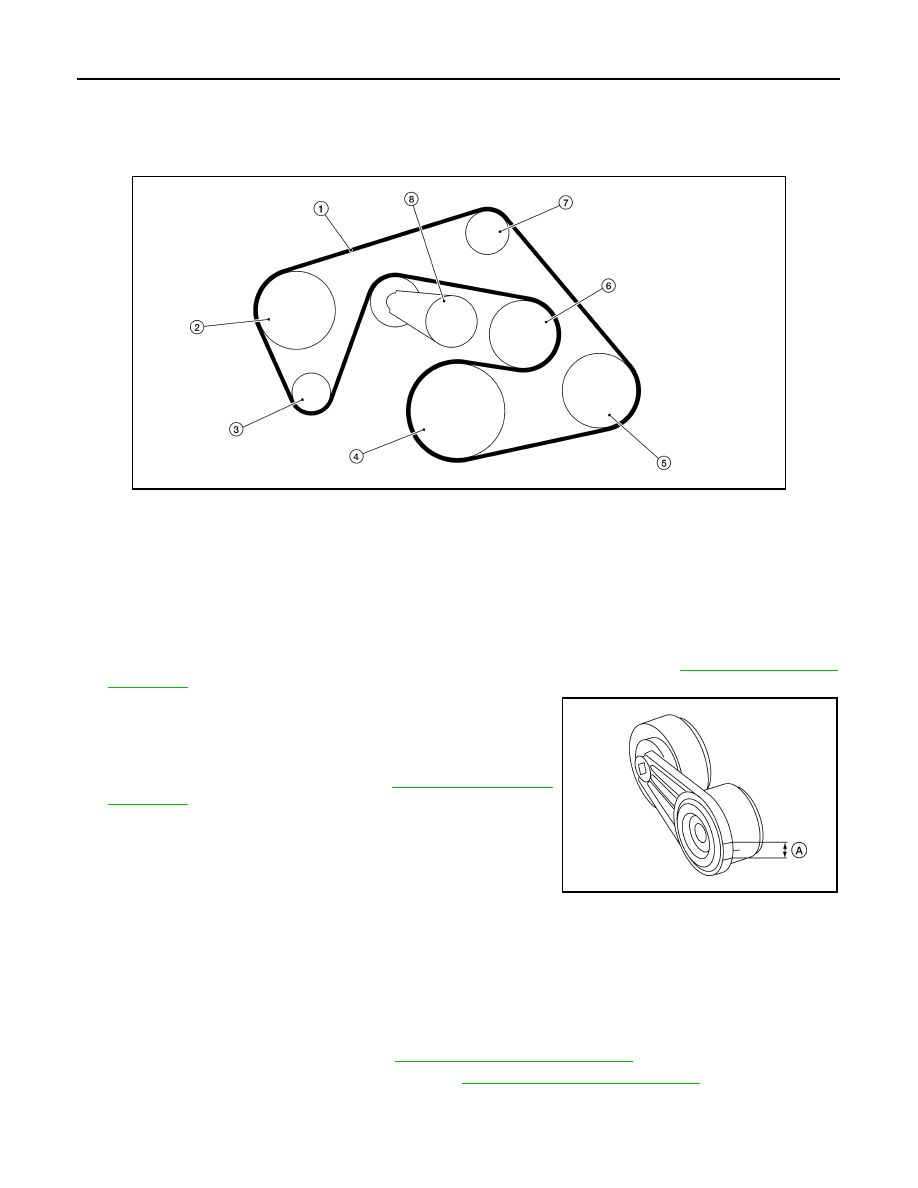

LBIA0427E

1.

Drive belt

2.

Power steering oil pump pulley

3.

Generator pulley

4.

Crankshaft pulley

5.

A/C compressor

6.

Cooling fan pulley

7.

Idler pulley

8.

Drive belt tensioner

AWBIA0723ZZ

2010 Pathfinder

DRIVE BELTS

EM-15

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3. Rotate the drive belt auto tensioner in the direction of arrow

(loosening direction of tensioner) as shown, using suitable tool.

WARNING:

Avoid placing hand in a location where pinching may occur

if the tool accidentally comes off.

4. Remove the drive belt.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure belt is securely installed around all pulleys.

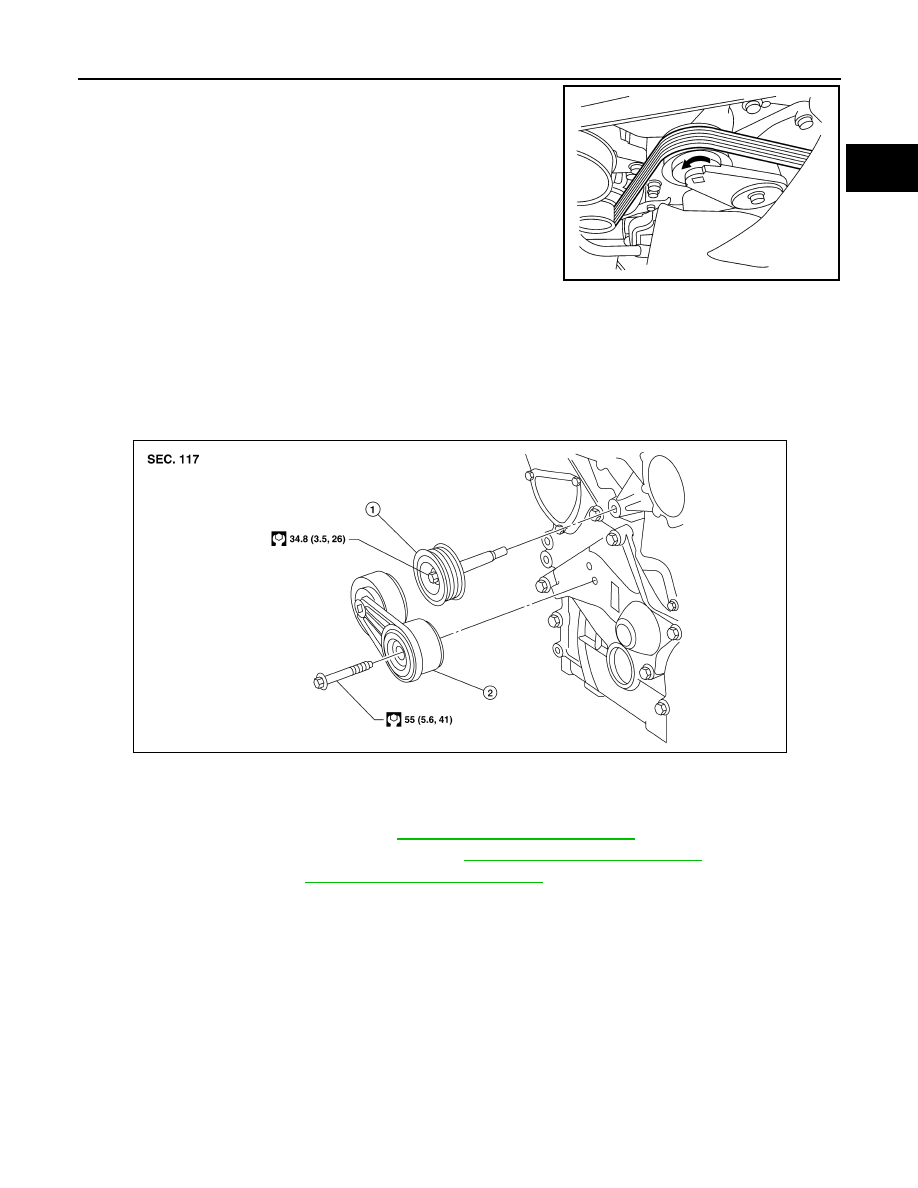

Drive Belt Auto Tensioner and Idler Pulley

INFOID:0000000005260435

REMOVAL

1. Remove the engine room cover. Refer to

EM-25, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

3. Remove drive belt. Refer to

EM-14, "Removal and Installation"

.

4. Remove drive belt auto tensioner and idler pulley.

INSTALLATION

Installation is in the reverse order of removal.

LBIA0428E

1.

Idler pulley

2.

Drive belt auto tensioner

AWBIA0861GB

2010 Pathfinder
