EC-748

< COMPONENT DIAGNOSIS >

[VK56DE]

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

• EVAP hose between EVAP canister and drain filter for clogging or poor connection

>> Repair hose or replace EVAP canister.

16.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

Component Inspection

INFOID:0000000005257716

EVAP CONTROL SYSTEM PRESSURE SENSOR

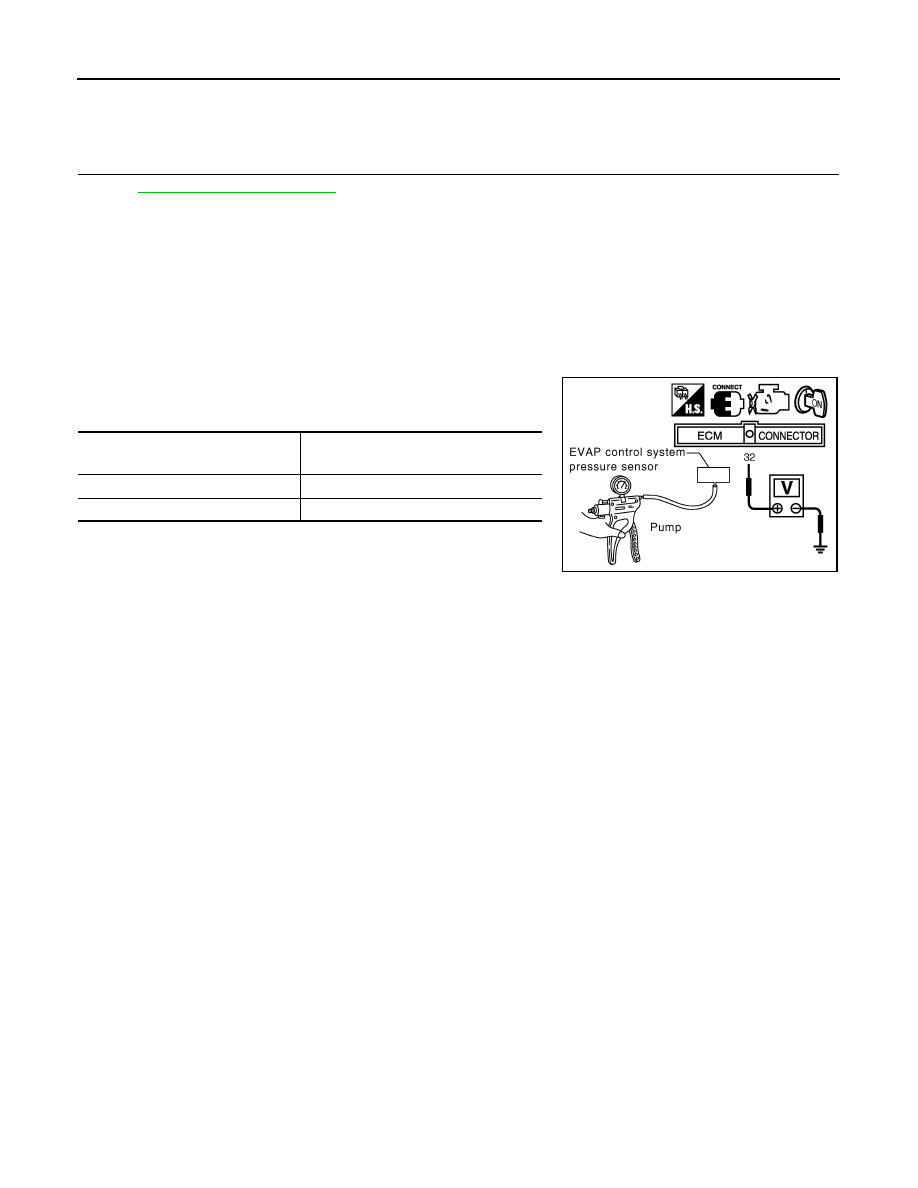

1. Remove EVAP control system pressure sensor with its harness connector.

Always replace O-ring with a new one.

2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM

terminal 32 and ground under the following conditions.

CAUTION:

• Always calibrate the vacuum pump gauge when using it.
• Never apply below -93.3 kPa (-0.952 kg/cm

2

, -13.53 psi) or

pressure over 101.3 kPa (1.033 kg/cm

2

, 14.69 psi).

4. If NG, replace EVAP control system pressure sensor.

Applied vacuum

[kPa (kg/cm

2

, psi)]

Voltage

Not applied

1.8 - 4.8 V

-26.7 (-0.272, -3.87)

2.1 to 2.5 V lower than above value

PBIB1173E

2010 Pathfinder

P0455 EVAP CONTROL SYSTEM

EC-749

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0455 EVAP CONTROL SYSTEM

On Board Diagnosis Logic

INFOID:0000000005257717

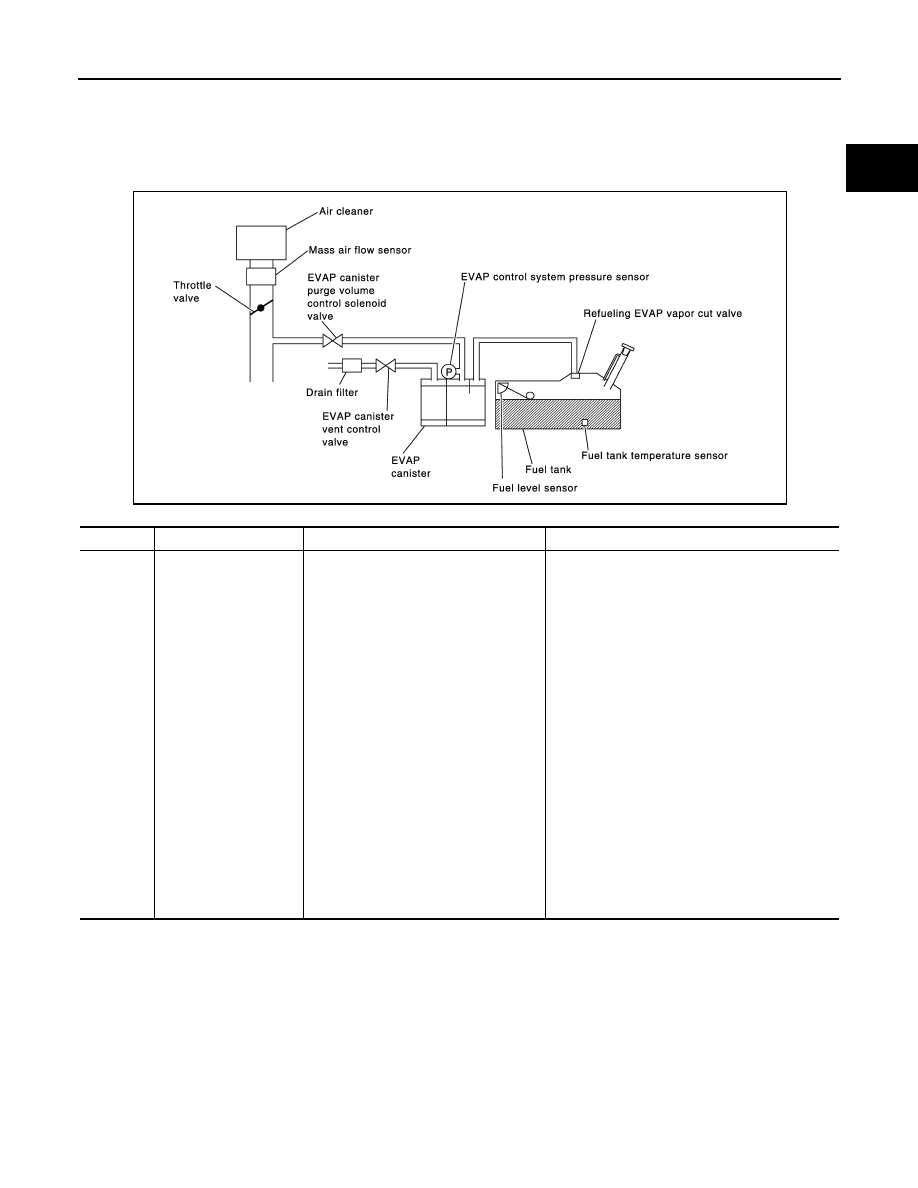

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and

EVAP canister purge volume control solenoid valve.

CAUTION:

• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

MIL may illuminate.

• If the fuel filler cap is not tightened properly, the MIL may illuminate.

• Use only a genuine NISSAN rubber tube as a replacement.

DTC Confirmation Procedure

INFOID:0000000005257718

CAUTION:

Never remove fuel filler cap during the DTC Confirmation Procedure.

NOTE:

•

Check that EVAP hoses are connected to EVAP canister purge volume control solenoid valve prop-

erly.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0455
0455

EVAP control system
gross leak detected

EVAP control system has a very large
leak such as fuel filler cap fell off, EVAP
control system does not operate properly.

• Fuel filler cap remains open or does not close
• Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Foreign matter caught in fuel filler cap
• Leak is in line between intake manifold and

EVAP canister purge volume control solenoid
valve

• Foreign matter caught in EVAP canister vent

control valve

• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent.
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• Drain filter
• EVAP canister purge volume control solenoid

valve and the circuit

• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is

missing or damaged.

• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks

PBIB3640E

2010 Pathfinder

EC-750

< COMPONENT DIAGNOSIS >

[VK56DE]

P0455 EVAP CONTROL SYSTEM

• If DTC Confirmation Procedure has been previously conducted, always perform the following before con-

ducting the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

•

Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed

on flat level surface.

•

Open engine hood before conducting the following procedures.

 WITH CONSULT-III

1. Tighten fuel filler cap securely until ratcheting sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Check that the following conditions are met.

COOLAN TEMP/S: 0 - 70

°

C (32 - 158

°

F)

INT/A TEMP SE: 0 - 60

°

C (32 - 140

°

F)

6. Select “EVP SML LEAK P0442/P1442” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode

with CONSULT-III.

Follow the instructions displayed.

NOTE:

If the engine speed cannot be maintained within the range displayed on the CONSULT-III screen, go to

EC-506, "Basic Inspection"

.

7. Check that “OK” is displayed.

If “NG” is displayed, select “SELF-DIAG RESULTS” mode and check that P0455 is displayed. If it is dis-

played, go to

EC-750, "Diagnosis Procedure"

.

If P0442 is displayed, perform Diagnostic Procedure for DTC P0442,

EC-714, "Diagnosis Procedure"

.

 WITH GST

NOTE:

Be sure to read the explanation on “Driving Pattern” in

EC-536, "Emission-related Diagnostic Information"

before driving vehicle.
1. Start engine.
2. Drive vehicle according to “Driving Pattern” in

EC-536, "Emission-related Diagnostic Information"

.

3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Select Service $07 with GST.

• If P0441 is displayed, go to

EC-709, "Diagnosis Procedure"

.

• If P0442 is displayed, go to

EC-714, "Diagnosis Procedure"

.

• If P0455 is displayed, go to

EC-750, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005257719

1.

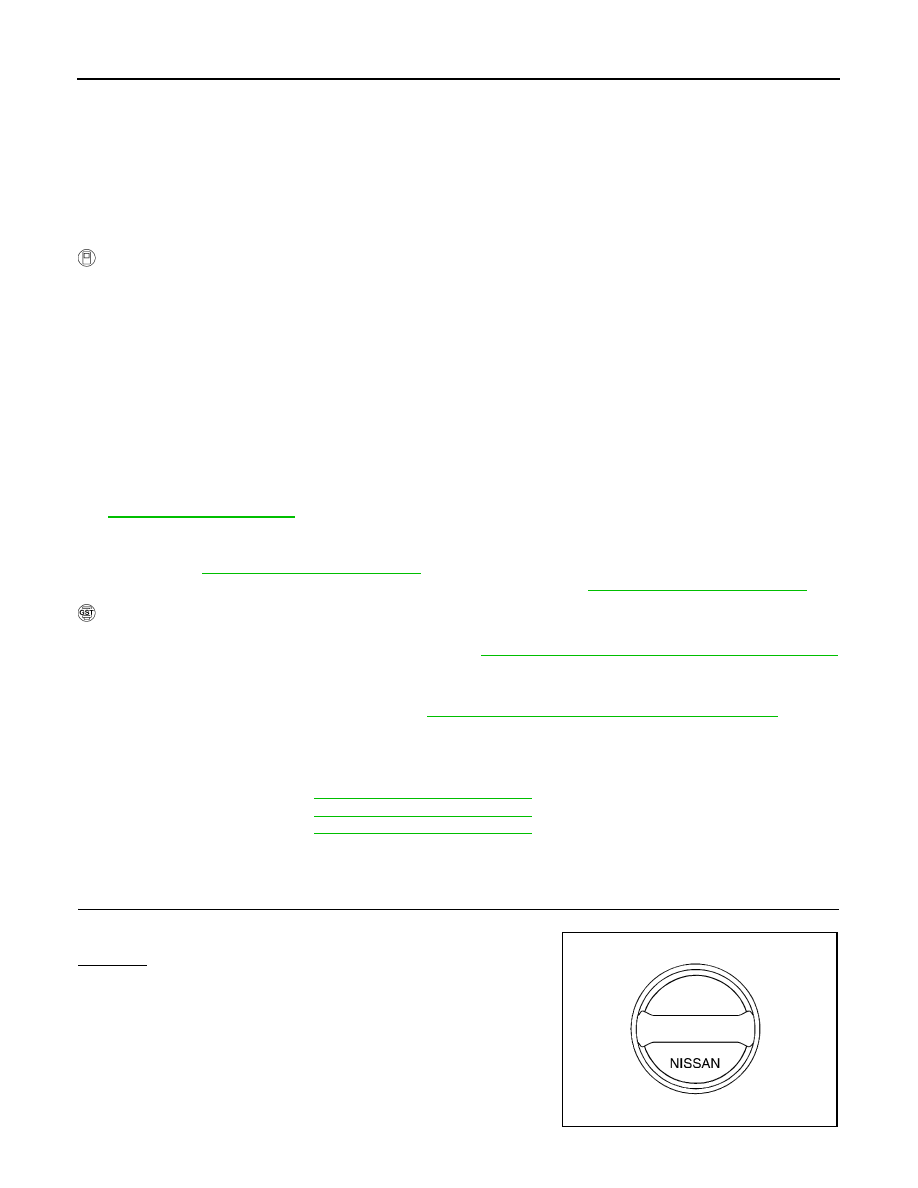

CHECK FUEL FILLER CAP DESIGN

1. Turn ignition switch OFF.

2. Check for genuine NISSAN fuel filler cap design.
OK or NG

OK

>> GO TO 2.

NG

>> Replace with genuine NISSAN fuel filler cap.

SEF915U

2010 Pathfinder

P0455 EVAP CONTROL SYSTEM

EC-751

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK FUEL FILLER CAP INSTALLATION

Check that the fuel filler cap is tightened properly by rotating the cap clockwise.
OK or NG

OK

>> GO TO 3.

NG

>> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.

2. Retighten until ratcheting sound is heard.

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK FUEL TANK VACUUM RELIEF VALVE

Refer to

EC-755, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel filler cap with a genuine one.

5.

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks, improper connection or

disconnection.

Refer to

EC-531, "Description"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or reconnect the hose.

6.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 7.

7.

CHECK DRAIN FILTER

Refer to

EC-755, "Component Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Replace drain filter.

8.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the following.

• EVAP canister vent control valve is installed properly.

Refer to

EC-962, "Removal and Installation"

.

• EVAP canister vent control valve.

Refer to

EC-734, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace EVAP canister vent control valve and O-ring.

9.

INSTALL THE PRESSURE PUMP

2010 Pathfinder

EC-752

< COMPONENT DIAGNOSIS >

[VK56DE]

P0455 EVAP CONTROL SYSTEM

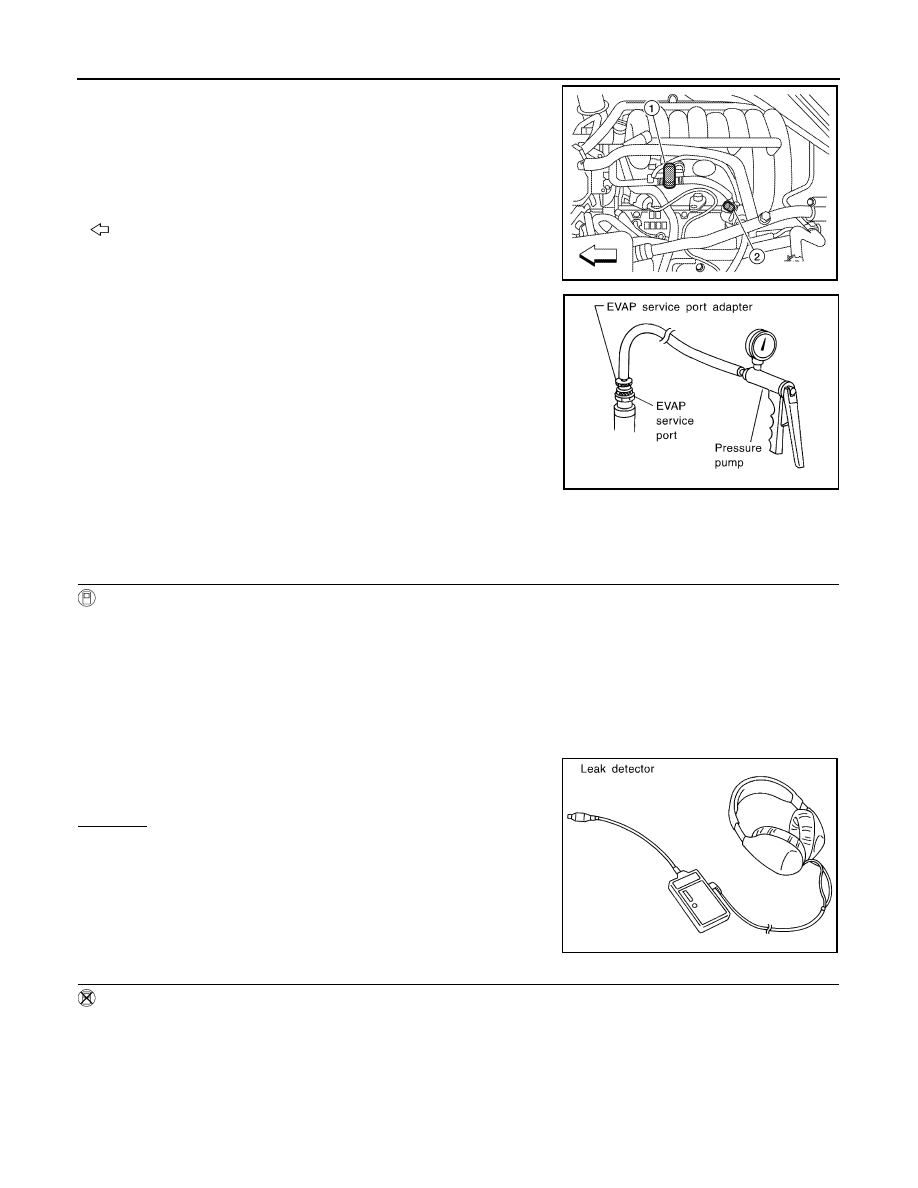

To locate the EVAP leak, install EVAP service port adapter (commer-

cial service tool) and pressure pump to EVAP service port securely.

NOTE:

Improper installation of the EVAP service port adapter (com-

mercial service tool) to the EVAP service port may cause leak-

ing.

• EVAP canister purge volume control solenoid valve (1)

• EVAP service port (2)
•

: Vehicle front

With CONSULT-III>>GO TO 10.

Without CONSULT-III>>GO TO 11.

10.

CHECK FOR EVAP LEAK



With CONSULT-III

1. Turn ignition switch ON.

2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT-III.

3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of

the bar graph.

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

4. Using EVAP leak detector (commercial service tool), locate the

EVAP leak. For the leak detector (commercial service tool), refer

to the instruction manual for more details.

OK or NG

OK

>> GO TO 12.

NG

>> Repair or replace.

11.

CHECK FOR EVAP LEAK



Without CONSULT-III

1. Turn ignition switch OFF.

ALBIA0349ZZ

SEF916U

SEF200U

2010 Pathfinder

P0455 EVAP CONTROL SYSTEM

EC-753

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

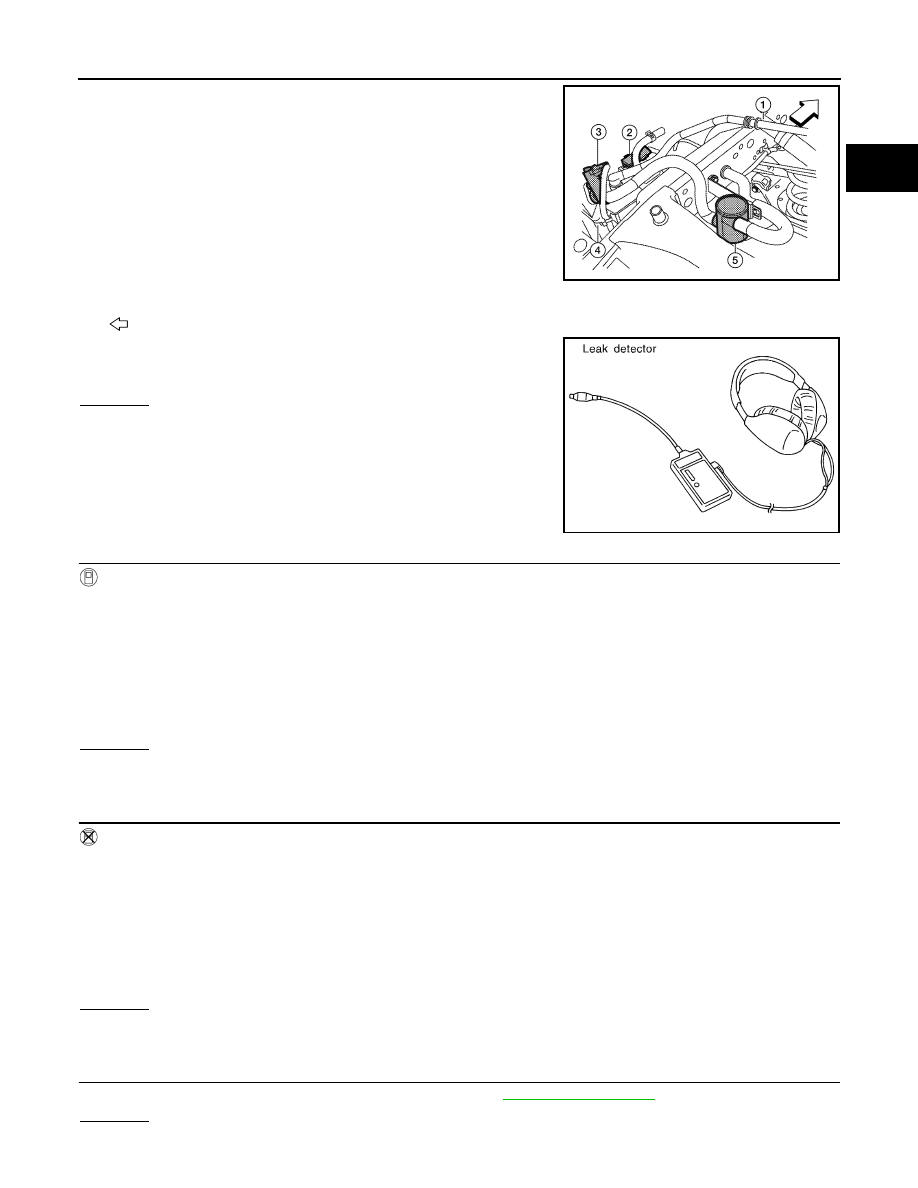

2. Apply 12 volts DC to EVAP canister vent control valve (3). The

valve will close. (Continue to apply 12 volts until the end of test.)

3. Pressurize the EVAP line using pressure pump with 1.38 to 2.76

kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi), then remove pump

and EVAP service port adapter (commercial service tool).

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure

in the system.

-

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP canister (4)

-

Drain filter (5)

-

: Vehicle front

4. Using EVAP leak detector (commercial service tool), locate the

EVAP leak. For the leak detector (commercial service tool), refer

to the instruction manual for more details.

OK or NG

OK

>> GO TO 13.

NG

>> Repair or replace malfunctioning part.

12.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION



With CONSULT-III

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve and EVAP

service port from EVAP service port.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode.

4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL C/V” opening to 100%.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

13.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION



Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

3. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve and EVAP

service port from EVAP service port.

4. Start engine and let it idle for at least 80 seconds.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 14.

14.

CHECK VACUUM HOSE

Check vacuum hoses for clogging or disconnection. Refer to

EC-531, "Description"

.

OK or NG

OK (With CONSULT-III)>>GO TO 15.

AWBIA0134ZZ

SEF200U

Vacuum should exist.

Vacuum should exist.

2010 Pathfinder

EC-754

< COMPONENT DIAGNOSIS >

[VK56DE]

P0455 EVAP CONTROL SYSTEM

OK (Without CONSULT-III)>>GO TO 16.

NG

>> Repair or reconnect the hose.

15.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE



With CONSULT-III

1. Start engine.

2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-III. Check that engine speed var-

ies according to the valve opening.

OK or NG

OK

>> GO TO 17.

NG

>> GO TO 16.

16.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-727, "Component Inspection"

.

OK or NG

OK

>> GO TO 17.

NG

>> Replace EVAP canister purge volume control solenoid valve.

17.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-681, "Component Inspection"

.

OK or NG

OK

>> GO TO 18.

NG

>> Replace “fuel level sensor unit and fuel pump”.

18.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-739, "Component Inspection"

.

OK or NG

OK

>> GO TO 19.

NG

>> Replace EVAP control system pressure sensor.

19.

CHECK EVAP/ORVR LINE

Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kinks, looseness and improper

connection. For location, refer to

EC-886, "System Description"

.

OK or NG

OK

>> GO TO 20.

NG

>> Repair or replace hoses and tubes.

20.

CHECK RECIRCULATION LINE

Check recirculation line between filler neck tube and fuel tank for clogging, kinks, cracks, looseness and

improper connection.
OK or NG

OK

>> GO TO 21.

NG

>> Repair or replace hose, tube or filler neck tube.

21.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-889, "Component Inspection"

.

OK or NG

OK

>> GO TO 22.

NG

>> Replace refueling EVAP vapor cut valve with fuel tank.

22.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

2010 Pathfinder

P0455 EVAP CONTROL SYSTEM

EC-755

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection

INFOID:0000000005257720

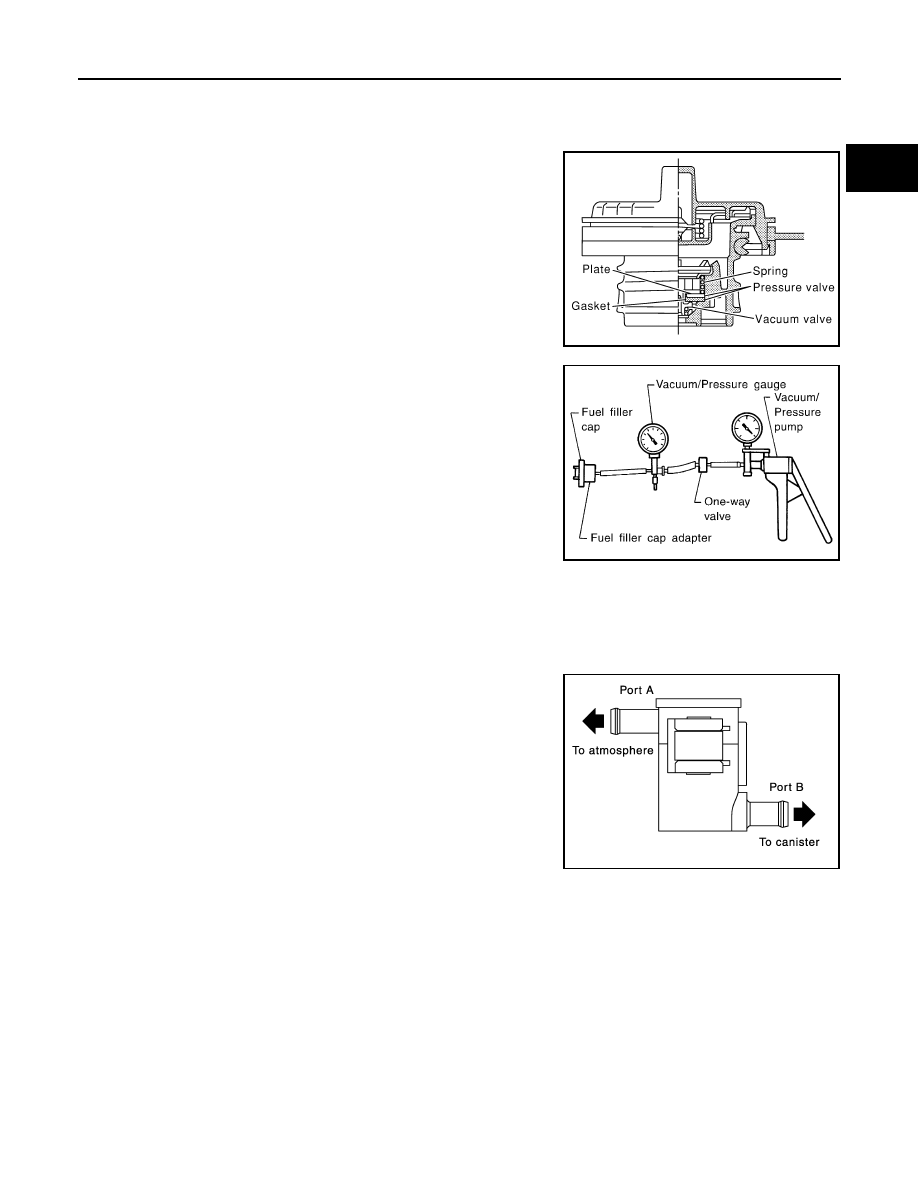

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)

1. Wipe clean valve housing.

2. Check valve opening pressure and vacuum.

3. If out of specification, replace fuel filler cap as an assembly.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incor-

rect fuel filler cap is used, the MIL may illuminate.

DRAIN FILTER

1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
7. If NG, replace drain filter.

SEF445Y

Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

−

6.0 to

−

3.3 kPa (

−

0.061 to

−

0.034 kg/cm

2

,

−

0.87 to

−

0.48 psi)

SEF943S

PBIB3641E

2010 Pathfinder
