Nissan Pathfinder (2010 year). Manual - part 270





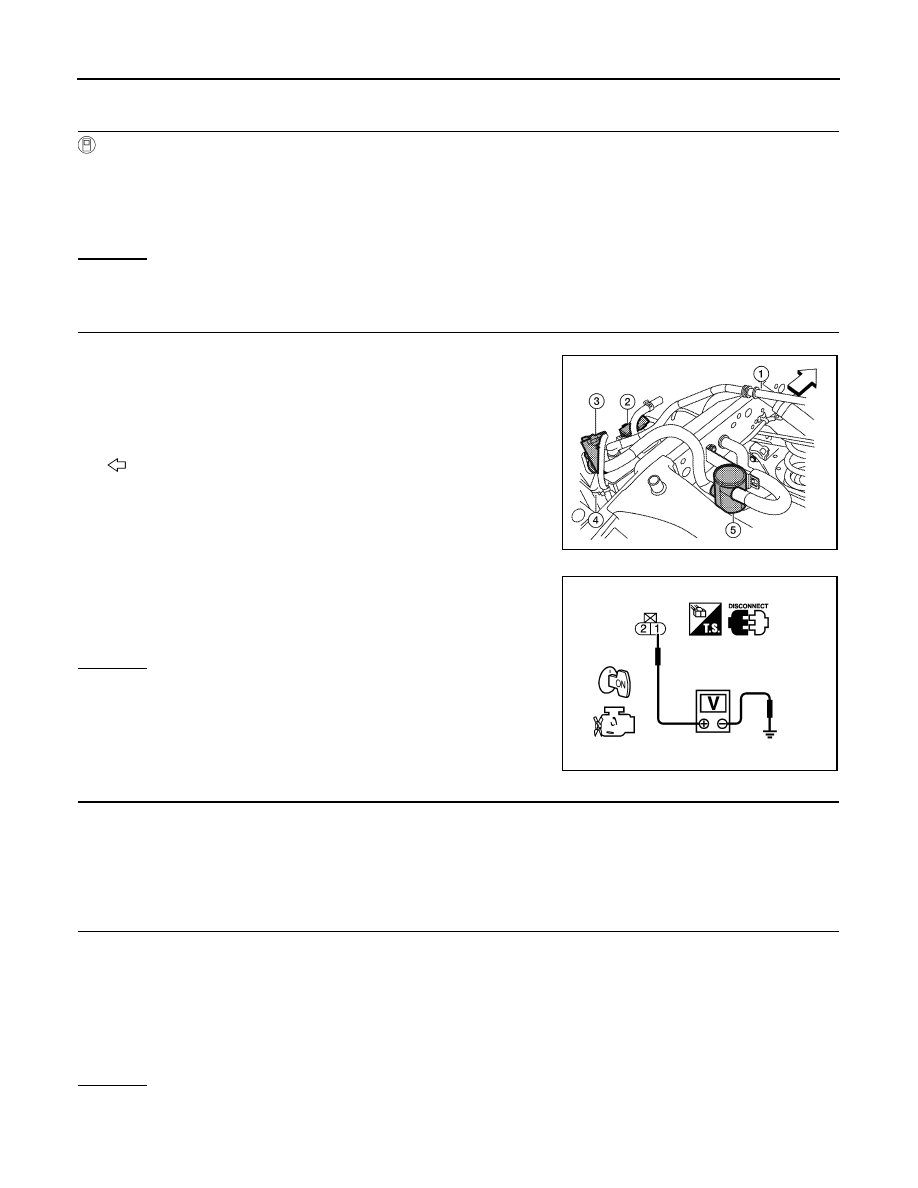

EC-252

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0447 EVAP CANISTER VENT CONTROL VALVE

No

>> GO TO 3.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT



With CONSULT-III

1. Turn ignition switch OFF and then ON.

2. Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT-III.

3. Touch “ON/OFF” on CONSULT-III screen.

4. Check for operating sound of the valve.

Clicking noise should be heard.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect EVAP canister vent control valve (3) harness con-

nector.

-

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP canister (4)

-

Drain filter (5)

-

: Vehicle front

3. Turn ignition switch ON.

4. Check voltage between EVAP canister vent control valve termi-

nal 1 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E41, C1

• Harness for open or short between EVAP canister vent control valve and IPDM E/R

>> Repair harness or connectors.

5.

CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECM terminal 117 and EVAP canister vent control valve terminal 2.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

AWBIA0134ZZ

Voltage: Battery voltage

PBIB0152E

Continuity should exist.

2010 Pathfinder

P0447 EVAP CANISTER VENT CONTROL VALVE

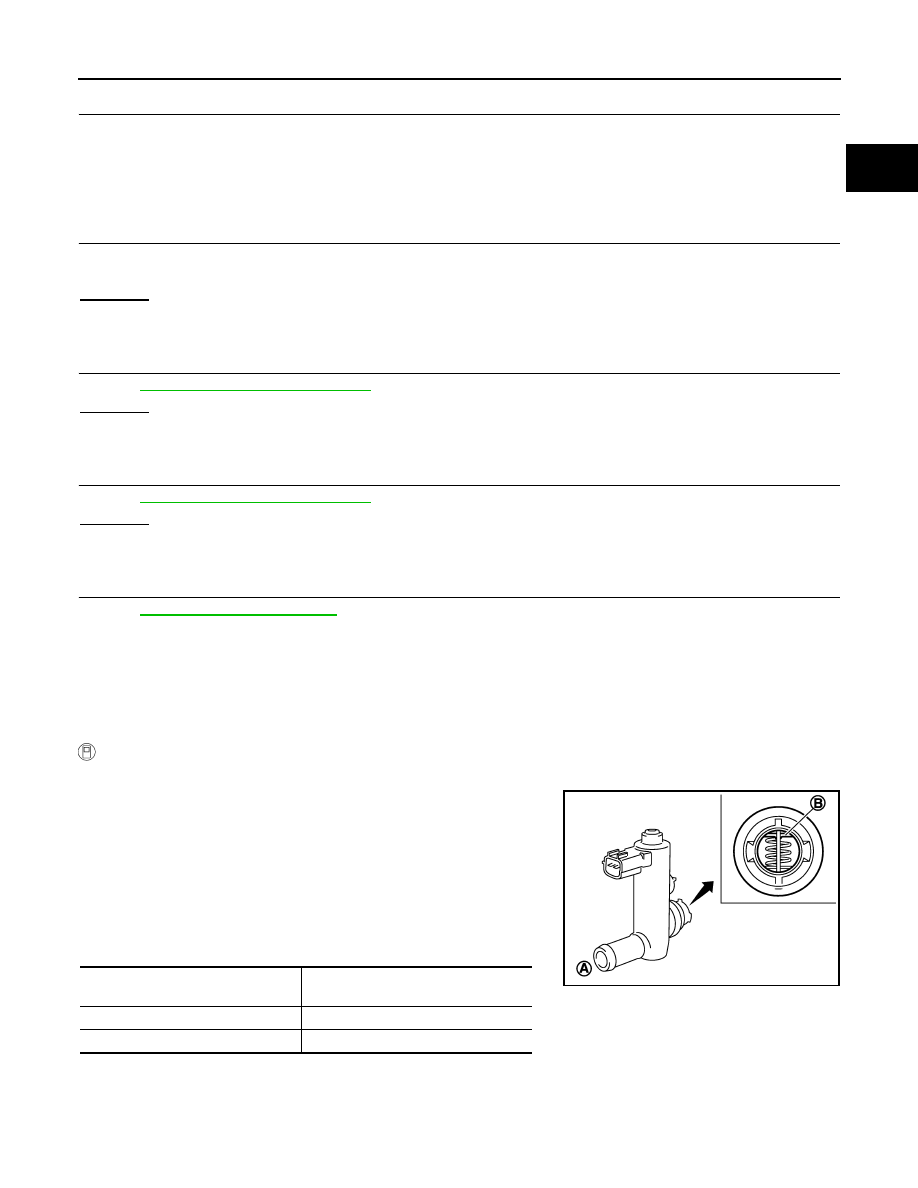

EC-253

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

6.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors C1, E41

• Harness for open or short between EVAP canister vent control valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
OK or NG

OK

>> GO TO 8.

NG

>> Clean the rubber tube using an air blower.

8.

CHECK DRAIN FILTER

Refer to

EC-253, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Replace drain filter.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-253, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Replace EVAP canister vent control valve.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

Component Inspection

INFOID:0000000005257234

EVAP CANISTER VENT CONTROL VALVE

 With CONSULT-III

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion

B

 of EVAP canister vent control valve for rust.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

7. Clean the air passage (portion

A

 to

B

) of EVAP canister vent control valve using an air blower.

8. Perform step 6 again.

Condition VENT CONTROL/V

Air passage continuity

 between (A) and (B)

ON

No

OFF

Yes

PBIB1033E

2010 Pathfinder

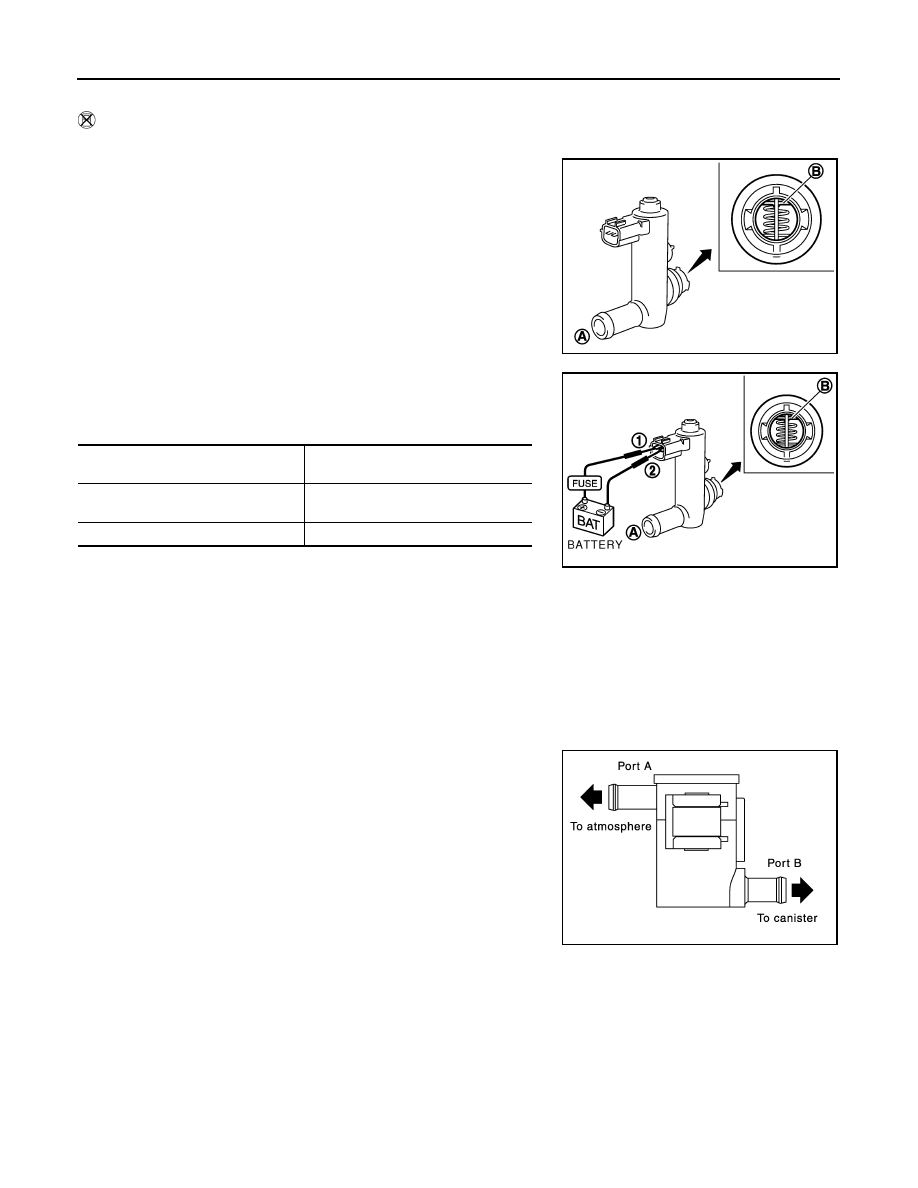

EC-254

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0447 EVAP CANISTER VENT CONTROL VALVE

9. If NG, replace EVAP canister vent control valve.

 Without CONSULT-III

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion

B

 of EVAP canister vent control valve for being

rusted.

3. Check air passage continuity and operation delay time under the

following conditions.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

4. Clean the air passage (portion

A

 to

B

) of EVAP canister vent control valve using an air blower.

5. Perform step 3 again.
6. If NG, replace EVAP canister vent control valve.

DRAIN FILTER

1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
7. If NG, replace drain filter.

PBIB1033E

Condition

Air passage continuity

 between (A) and (B)

12V direct current supply between
 terminals 1 and 2

No

OFF

Yes

PBIB1034E

PBIB3641E

2010 Pathfinder

P0448 EVAP CANISTER VENT CONTROL VALVE

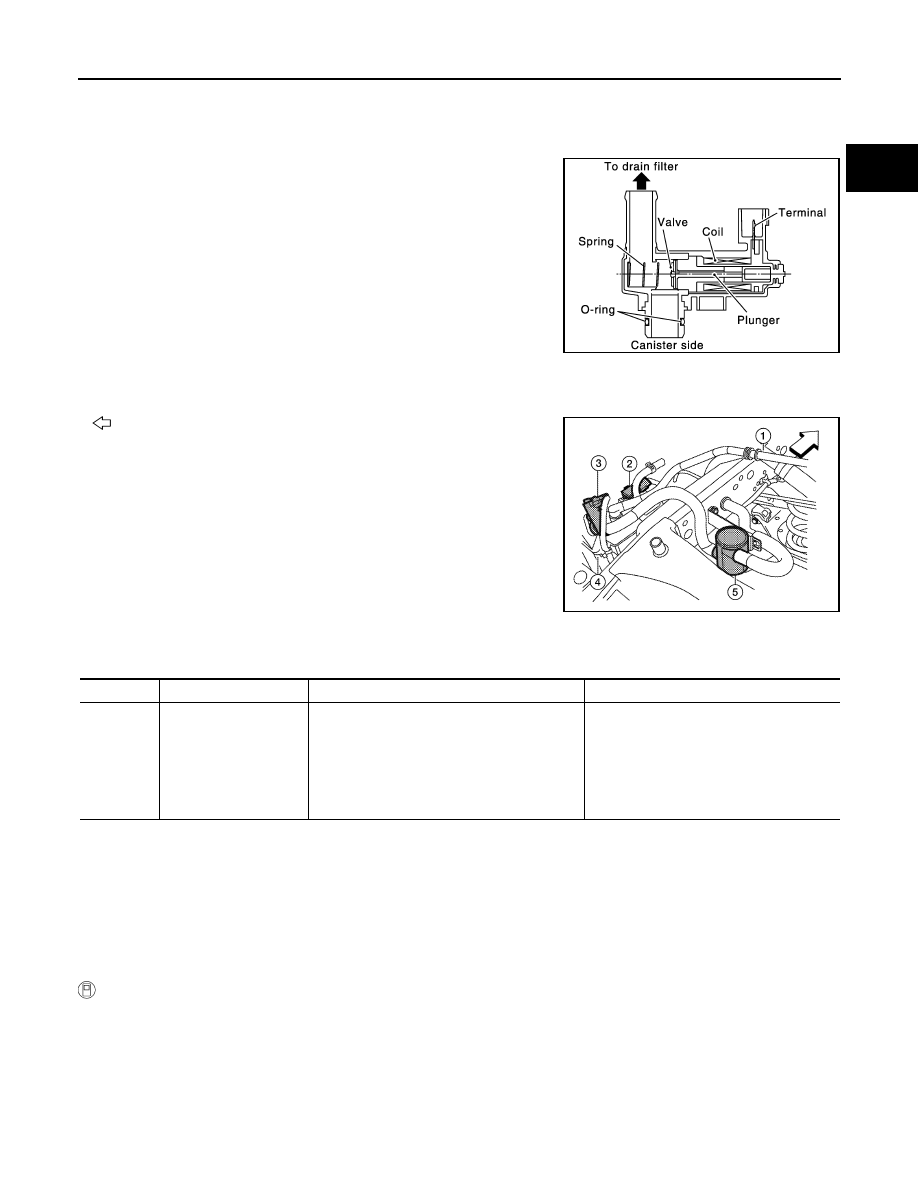

EC-255

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0448 EVAP CANISTER VENT CONTROL VALVE

Component Description

INFOID:0000000005257235

The EVAP canister vent control valve (3) is located on the EVAP

canister (4) and is used to seal the canister vent.

This solenoid valve responds to signals from the ECM. When the

ECM sends an ON signal, the coil in the solenoid valve is energized.

A plunger will then move to seal the canister vent. The ability to seal

the vent is necessary for the on board diagnosis of other evaporative

emission control system components.

This solenoid valve is used only for diagnosis, and usually remains

opened.

When the vent is closed, under normal purge conditions, the evapo-

rative emission control system is depressurized and allows EVAP

Control System diagnosis.

• Fuel filler pipe (top of frame view) (1)

• EVAP control system pressure sensor (2)

• Drain filter (5)

: Vehicle front

On Board Diagnosis Logic

INFOID:0000000005257236

DTC Confirmation Procedure

INFOID:0000000005257237

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

 WITH CONSULT-III

1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
4. Start engine and let it idle for at least 1 minute.
5. Repeat next procedures 3 times.

PBIB3642E

AWBIA0134ZZ

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0448
0448

EVAP canister vent con-
trol valve close

EVAP canister vent control valve remains
closed under specified driving conditions.

• EVAP canister vent control valve
• EVAP control system pressure sensor

and the circuit

• Blocked rubber tube to EVAP canister

vent control valve

• Drain filter
• EVAP canister is saturated with water

2010 Pathfinder

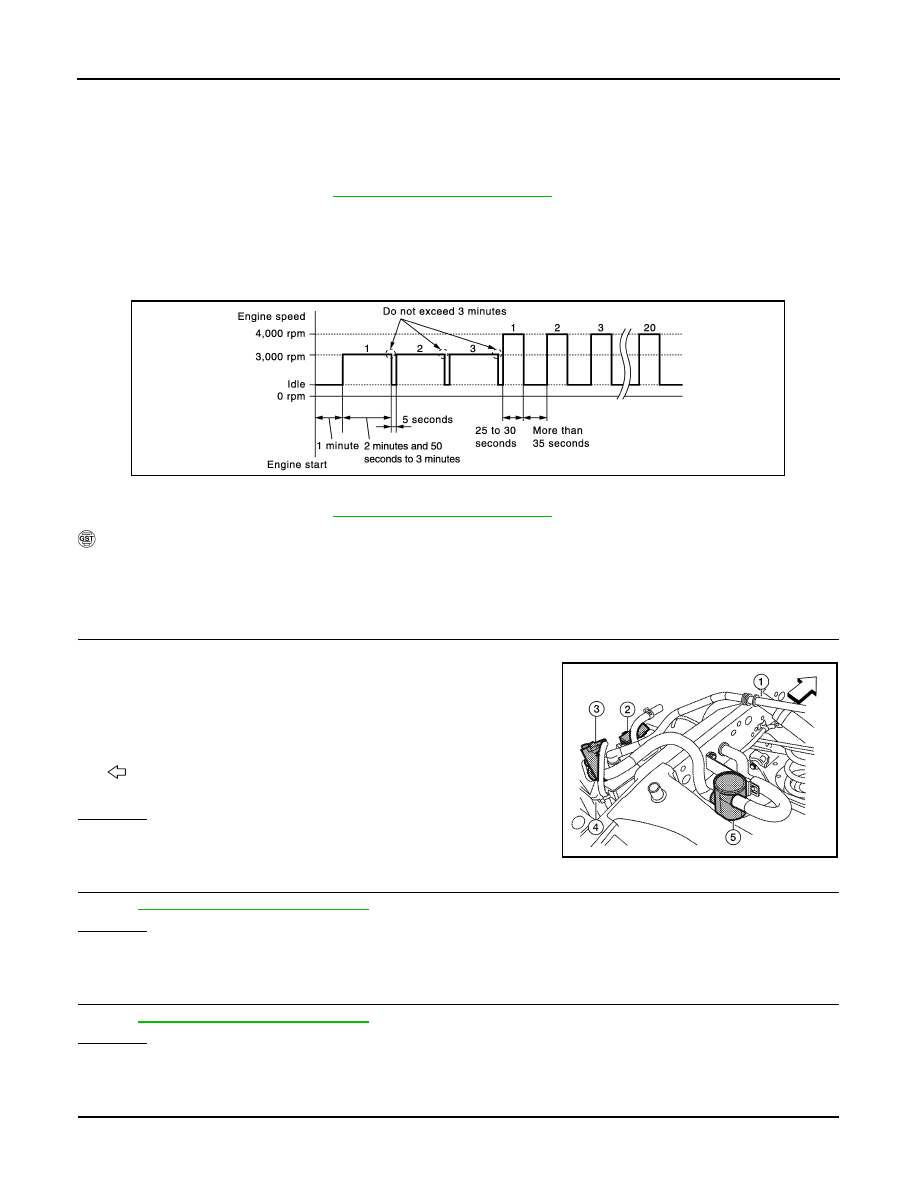

EC-256

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0448 EVAP CANISTER VENT CONTROL VALVE

a. Increase the engine speed between 3,000 and 3,500 rpm and maintain that speed for 2 minutes and 50

seconds to 3 minutes.

Never exceed 3 minutes.

b. Fully released accelerator pedal and keep engine idle for about 5 seconds.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to

EC-256, "Diagnosis Procedure"

.

If 1st trip DTC is not detected, go to the next step.

8. Repeat next procedure 20 times.
a. Quickly increase the engine speed between 4,000 and 4,500 rpm or more and maintain that speed for 25

to 30 seconds.

b. Fully released accelerator pedal and keep engine idle for at least 35 seconds.

9. Check 1st trip DTC.
10. If 1st trip DTC is detected, go to

EC-256, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III” above.

Diagnosis Procedure

INFOID:0000000005257238

1.

CHECK RUBBER TUBE

1. Turn ignition switch OFF.

2. Disconnect rubber tube connected to EVAP canister vent control

valve (3).

-

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP canister (4)

-

Drain filter (5)

-

: Vehicle front

3. Check the rubber tube for clogging.
OK or NG

OK

>> GO TO 2.

NG

>> Clean rubber tube using an air blower.

2.

CHECK DRAIN FILTER

Refer to

EC-253, "Component Inspection"

.

OK or NG

OK

>> GO TO 3.

NG

>> Replace drain filter.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-257, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace EVAP canister vent control valve.

4.

CHECK IF EVAP CANISTER SATURATED IS WITH WATER

JMBIA1516GB

AWBIA0134ZZ

2010 Pathfinder

P0448 EVAP CANISTER VENT CONTROL VALVE

EC-257

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

2. Check if water will drain from the EVAP canister.
Yes or No

Yes

>> GO TO 5.

No

>> GO TO 7.

5.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.0 kg (4.4 lb).

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and drain filter for clogging or poor connection

>> Repair hose or replace EVAP canister.

7.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

2. Check connectors for water.

OK or NG

OK

>> GO TO 8.

NG

>> Replace EVAP control system pressure sensor.

8.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-266, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Replace EVAP control system pressure sensor.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

Component Inspection

INFOID:0000000005257239

EVAP CANISTER VENT CONTROL VALVE

 With CONSULT-III

1. Remove EVAP canister vent control valve from EVAP canister.

BBIA0558E

Water should not exist.

2010 Pathfinder

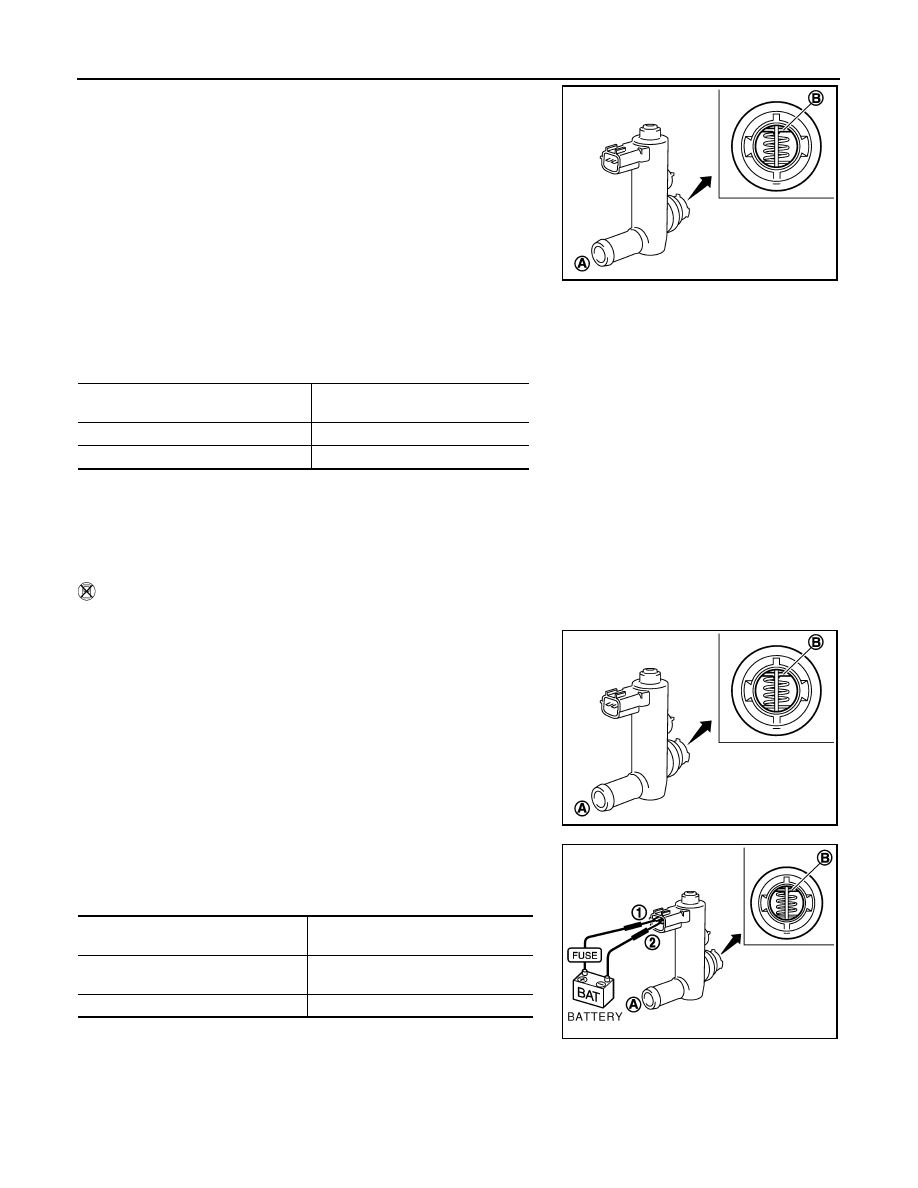

EC-258

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0448 EVAP CANISTER VENT CONTROL VALVE

2. Check portionof

B

 EVAP canister vent control valve for being

rusted.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.

5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

7. Clean the air passage (portion

A

 to

B

) of EVAP canister vent control valve using an air blower.

8. Perform step 6 again.
9. If NG, replace EVAP canister vent control valve.

 Without CONSULT-III

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion

B

 of EVAP canister vent control valve for being

rusted.

3. Check air passage continuity and operation delay time under the

following conditions.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

4. Clean the air passage (portion

A

 to

B

) of EVAP canister vent control valve using an air blower.

5. Perform step 3 again.
6. If NG, replace EVAP canister vent control valve.

PBIB1033E

Condition VENT CONTROL/V

Air passage continuity

 between (A) and (B)

ON

No

OFF

Yes

PBIB1033E

Condition

Air passage continuity

 between (A) and (B)

12V direct current supply between
 terminals 1 and 2

No

OFF

Yes

PBIB1034E

2010 Pathfinder

P0448 EVAP CANISTER VENT CONTROL VALVE

EC-259

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DRAIN FILTER

1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
7. If NG, replace drain filter.

PBIB3641E

2010 Pathfinder















Content      ..     268      269      270      271     ..
