P1818 ACTUATOR POSITION SWITCH

DLN-229

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

2. Depress brake pedal and stop vehicle.

3. Set A/T selector lever to "N" position.

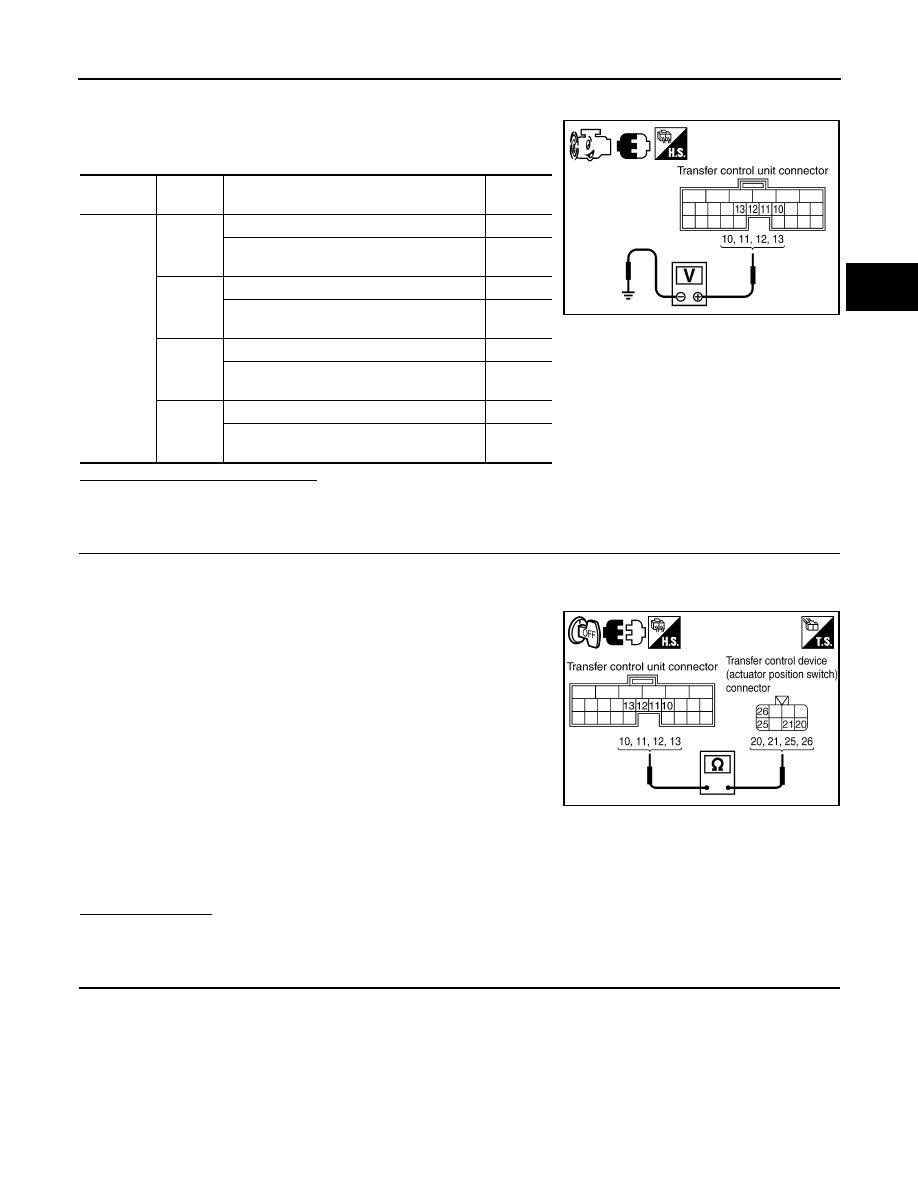

4. Check voltage between transfer control unit harness connector

terminal and ground.

Are the inspection results normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND ACTUATOR POSITION SWITCH

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector and the transfer control device (actuator position

switch) harness connector.

3. Check continuity between the following terminals.

-

Transfer control unit harness connector M165 terminal 10 and

transfer control device (actuator position switch) harness con-

nector F72 terminal 26.

-

Transfer control unit harness connector M165 terminal 11 and

transfer control device (actuator position switch) harness con-

nector F72 terminal 20.

-

Transfer control unit harness connector M165 terminal 12 and

transfer control device (actuator position switch) harness con-

nector F72 terminal 21.

-

Transfer control unit harness connector M165 terminal 13 and

transfer control device (actuator position switch) harness con-

nector F72 terminal 25.

Also check harness for short to ground and short to power.

Is there continuity?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

Connector

Terminal

Condition

Voltage

(Approx.)

M165

10 -

Ground

4WD shift switch: 2WD and 4LO

0V

4WD shift switch: 4H

Battery
voltage

11 -

Ground

4WD shift switch: 4LO

0V

4WD shift switch: 2WD and 4H

Battery
voltage

12 -

Ground

4WD shift switch: 2WD and 4H

0V

4WD shift switch: 4LO

Battery
voltage

13 -

Ground

4WD shift switch: 4H and 4LO

0V

4WD shift switch: 2WD

Battery
voltage

SDIA3369E

Continuity should exist.

SDIA3370E

2010 Pathfinder

DLN-230

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1818 ACTUATOR POSITION SWITCH

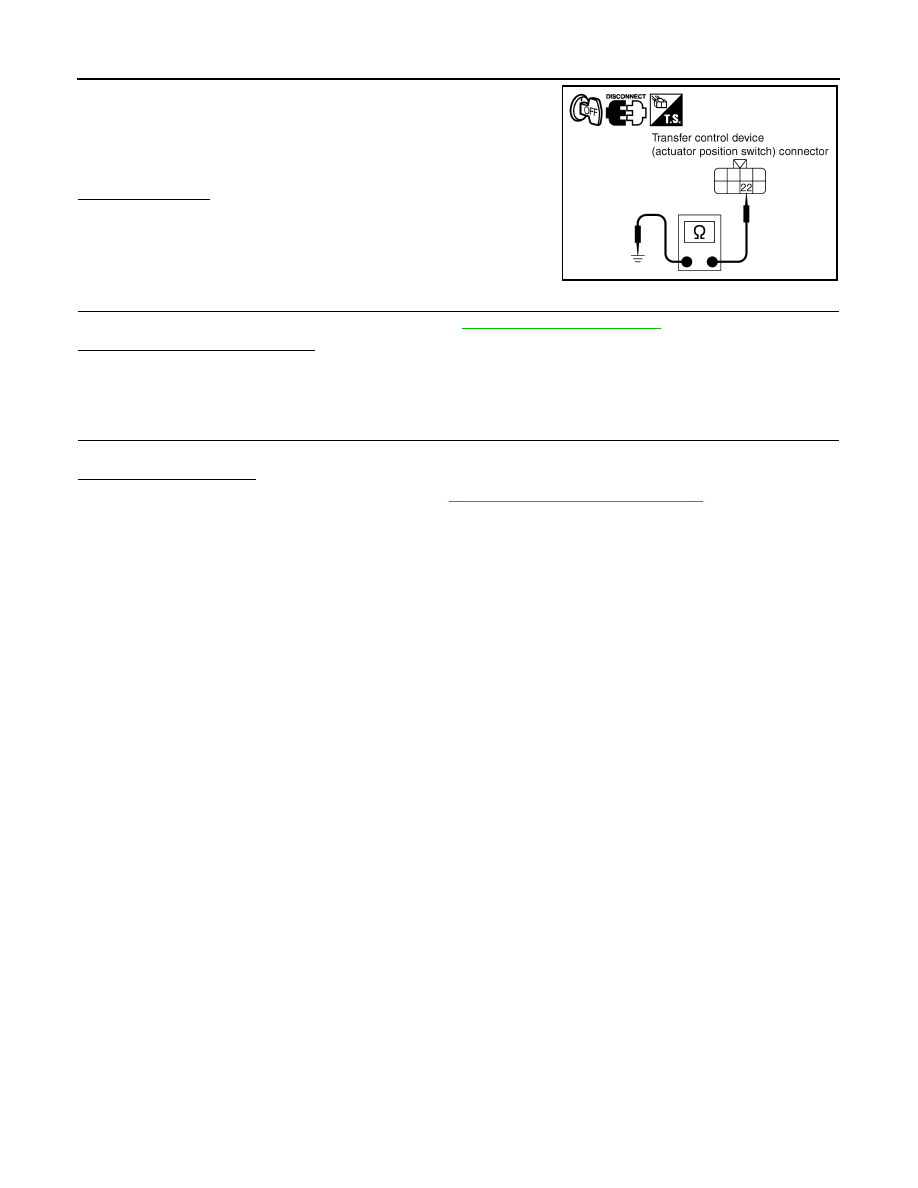

2. Check continuity between transfer control device (actuator posi-

tion switch) harness connector F72 terminal 22 and ground.

Also check harness for short to power.

Is there continuity?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to power in harness or con-

nectors.

4.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-235, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 5.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

5.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.
Is DTC P1818 displayed?

YES

>> Replace transfer control device. Refer to

DLN-272, "Removal and Installation"

.

NO

>> Inspection End.

Continuity should exist.

SDIA2815E

2010 Pathfinder

P1819 TRANSFER CONTROL DEVICE

DLN-231

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

P1819 TRANSFER CONTROL DEVICE

Description

INFOID:0000000005258403

The transfer control device integrates the actuator motor and actuator position switch.  DTC P1819 will set if

either of the following conditions exist:

• Malfunction occurs in transfer control device drive circuit.

• Malfunction is detected in transfer shut off relay 1 and transfer shut off relay 2.

DTC Logic

INFOID:0000000005258404

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Perform self-diagnosis.
Is DTC P1819 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-231, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258405

Regarding Wiring Diagram information, refer to

DLN-240, "Wiring Diagram - PART TIME 4WD SYSTEM -"

.

1.

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

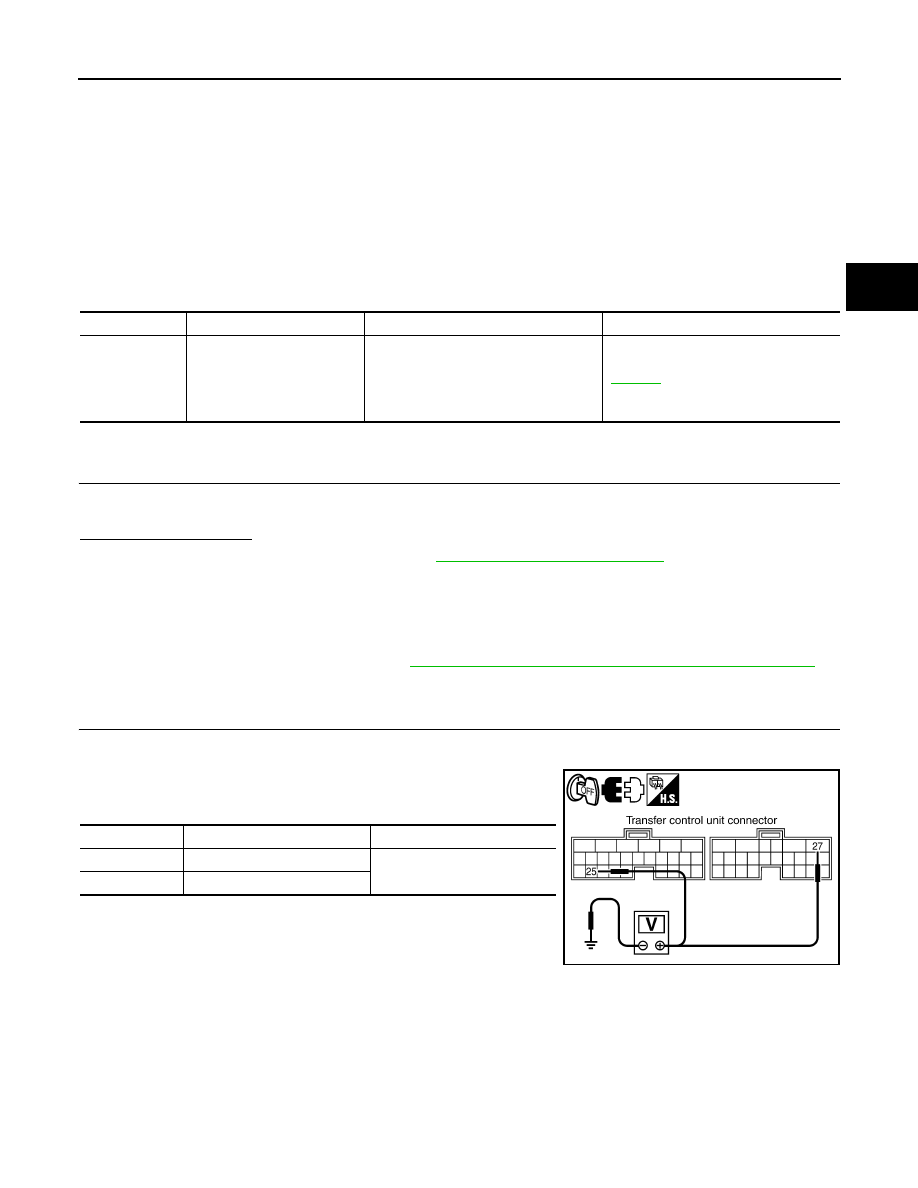

3. Check voltage between transfer control unit harness connector

terminal and ground.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1819]

SHIFT ACT CIR

• Malfunction is detected in transfer

shut off relay 1 and transfer shut off re-
lay 2.

• Malfunction occurs in transfer control

device drive circuit.

DLN-231

Connector

Terminal

Voltage (Approx.)

M165

25 - Ground

0V

M166

27 - Ground

SDIA3371E

2010 Pathfinder

DLN-232

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1819 TRANSFER CONTROL DEVICE

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between transfer control unit harness connector

terminals and ground.

Are the inspection results normal?

YES

>> GO TO 2.

NO

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• 10A fuse (No. 57, located in the fuse and relay box).

• 40A fuse (No.

J

, located in the fuse and fusible link box).

• Harness for short or open between battery and transfer shut off relay 1 harness connector E156

terminal 3.

• Harness for short or open between transfer control unit harness connector M166 terminal 27

and transfer shut off relay 1 harness connector E156 terminal 5.

• Harness for short or open between ignition switch and transfer shut off relay 1 harness connec-

tor E156 terminal 1.

• Harness for short or open between transfer shut off relay 1 harness connector E156 terminal 2

and ground.

• Harness for short or open between ignition switch and transfer control unit harness connector

M165 terminal 25.

• Battery and ignition switch.

• Transfer shut off relay 1. Refer to

DLN-206, "Component Inspection"

.

2.

CHECK GROUND CIRCUIT

1. Turn ignition switch "OFF".

2. Disconnect transfer control unit harness connector.

3. Check continuity between transfer control unit harness connec-

tor M166 terminal 32 and ground.

Also check harness for short to power.

Is there continuity?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to power in harness or con-

nectors.

3.

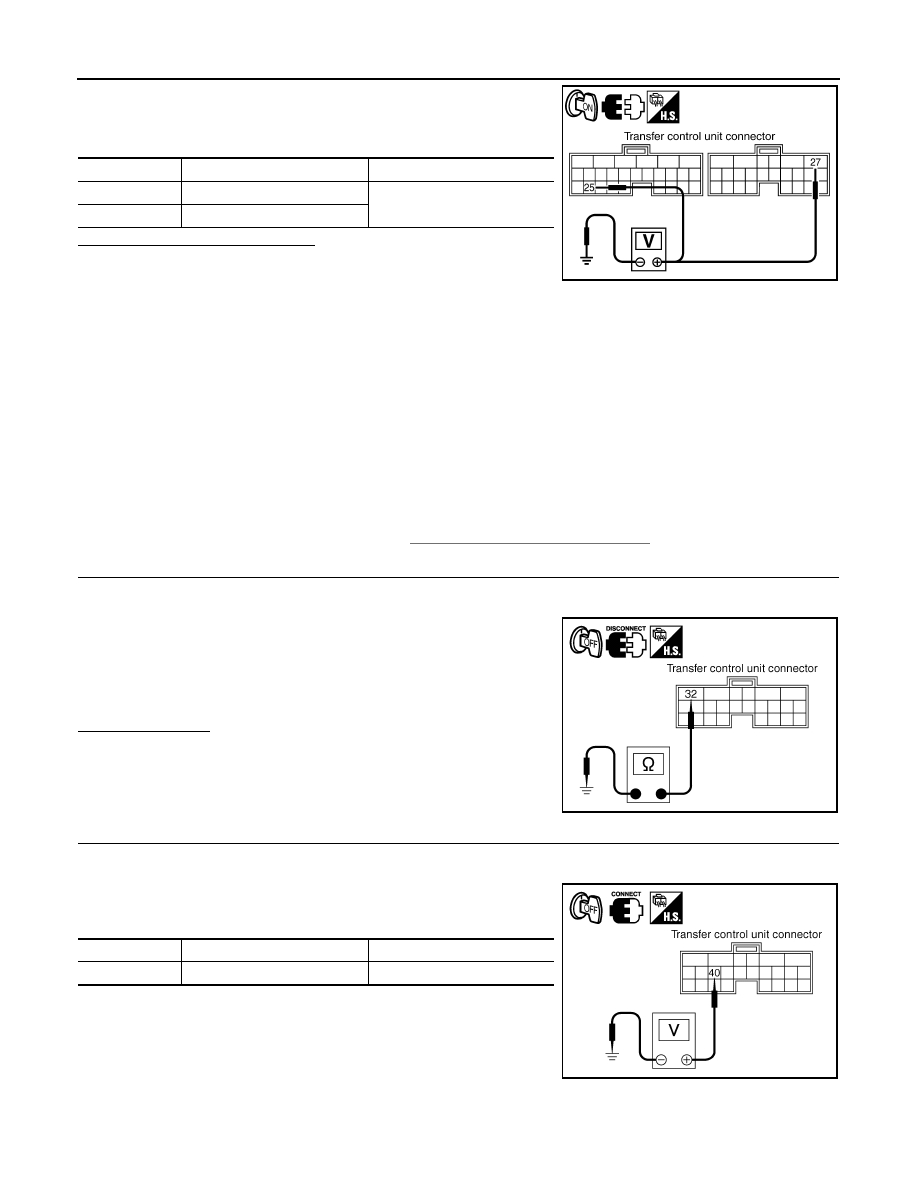

CHECK POWER SUPPLY SIGNAL

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Connect transfer control unit harness connector.

3. Check voltage between transfer control unit harness connector

terminal and ground.

Connector

Terminal

Voltage (Approx.)

M165

25 - Ground

Battery voltage

M166

27 - Ground

SDIA3372E

Continuity should exist.

SDIA2818E

Connector

Terminal

Voltage (Approx.)

M166

40 - Ground

Battery voltage

SDIA2819E

2010 Pathfinder

P1819 TRANSFER CONTROL DEVICE

DLN-233

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

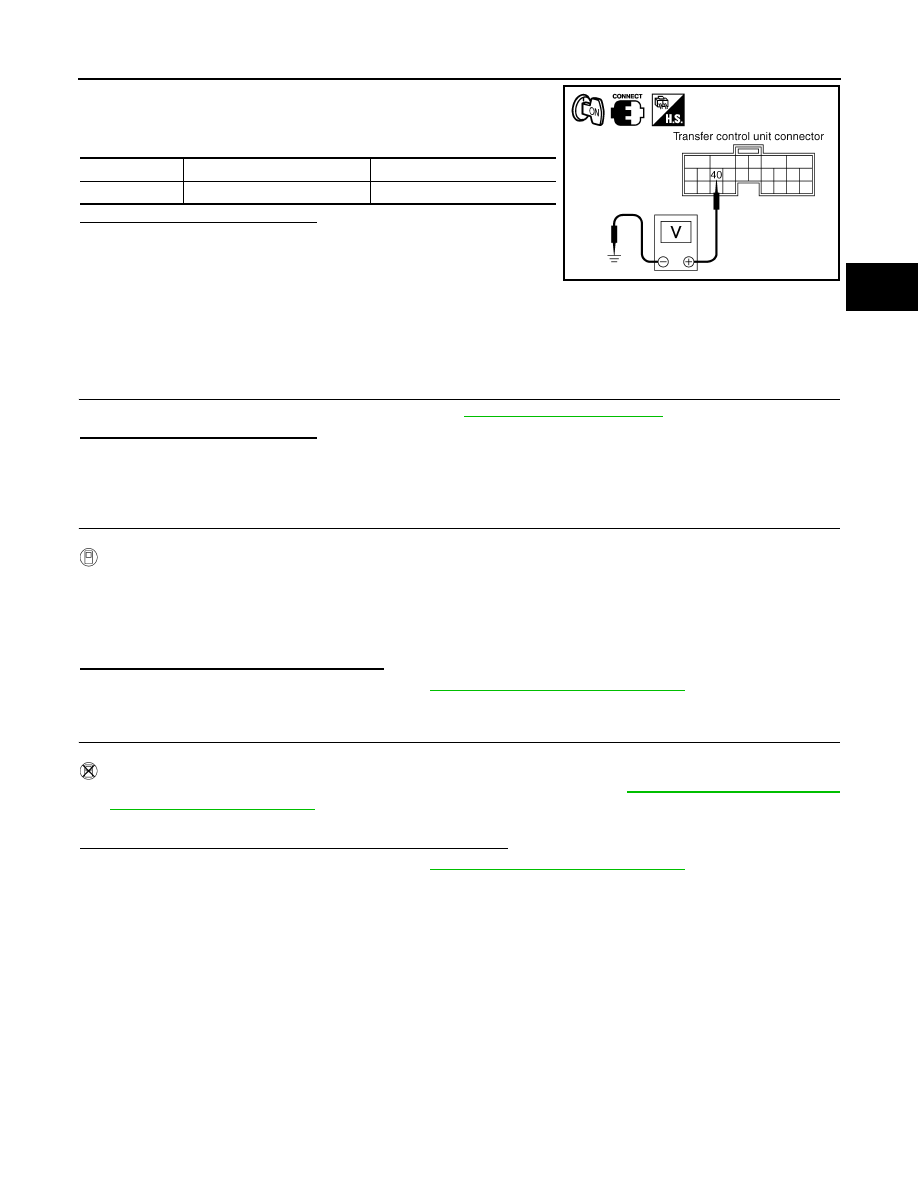

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between transfer control unit harness connector

terminal and ground.

Are the inspection results normal?

YES

>> GO TO 4.

NO

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• Harness for short or open between battery and trans-

fer shut off relay 2 harness connector E157 terminal 1.

• Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 2

and transfer control unit harness connector M166 terminal 40.

• Transfer shut off relay 2.

4.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-235, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 5 (With CONSULT-III) or GO TO 6 (Without CONSULT-III).

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

5.

PERFORM SELF-DIAGNOSIS (WITH CONSULT-III)

With CONSULT-III

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with CONSULT-III.

3. Touch “ERASE”.

4. Turn ignition switch “OFF” and wait at least 10 seconds.

5. Perform the self-diagnosis again.
Is the “SHIFT ACT CIR [P1819]” displayed?

YES

>> Replace transfer control unit. Refer to

DLN-272, "Removal and Installation"

.

NO

>> Inspection End.

6.

PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-III)

Without CONSULT-III

1. Perform the self-diagnosis and then erase self-diagnostic results. Refer to

DLN-200, "CONSULT-III Func-

tion (ALL MODE AWD/4WD)"

.

2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate transfer control device?

YES

>> Replace transfer control unit. Refer to

DLN-272, "Removal and Installation"

.

NO

>> Inspection End.

Connector

Terminal

Voltage (Approx.)

M166

40 - Ground

0V

SDIA2820E

2010 Pathfinder

DLN-234

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1820 ENGINE SPEED SIGNAL

P1820 ENGINE SPEED SIGNAL

Description

INFOID:0000000005258406

The ECM transmits the engine speed signal via CAN communication to the transfer control unit.  DTC P1820

will set when either of the following occur:

• Malfunction is detected in engine speed signal that is output from the ECM.

• Improper signal is input while driving.

DTC Logic

INFOID:0000000005258407

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Perform self-diagnosis.
Is DTC P1820 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-234, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258408

1.

CHECK DTC WITH ECM

Perform self-diagnosis with ECM. Refer to

EC-79, "CONSULT-III Function (ENGINE)"

.

Is any malfunction detected by self-diagnosis?

YES

>> Check the malfunctioning system.

NO

>> GO TO 2.

2.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-235, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 3.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

3.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.
Is DTC P1820 displayed?

YES

>> Perform self-diagnosis with ECM again.

NO

>> Inspection End.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1820]

ENGINE SPEED SIG

• Malfunction is detected in engine

speed signal that is output from ECM
through CAN communication.

• Improper signal is input while driving.

DLN-234

2010 Pathfinder

TRANSFER CONTROL UNIT

DLN-235

< ECU DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ECU DIAGNOSIS

TRANSFER CONTROL UNIT

Reference Value

INFOID:0000000005258409

VALUE ON THE DIAGNOSIS TOOL

CONSULT-III data monitor item

Monitored item [Unit]

Content

Condition

Display value

VHCL/S SEN·FR [km/h]
or [mph]

Wheel speed (Front wheel)

Vehicle stopped

0 km/h (0 mph)

Vehicle running

CAUTION:

Check air pressure of tire under standard condi-
tion.

Approximately
equal to the indica-
tion on speedome-
ter (Inside of

±

10%)

VHCL/S SEN·RR [km/h]
or [mph]

Wheel speed (Rear wheel)

Vehicle stopped

0 km/h (0 mph)

Vehicle running

CAUTION:

Check air pressure of tire under standard condi-
tion.

Approximately
equal to the indica-
tion on speedome-
ter (Inside of

±

10%)

ENGINE SPEED [rpm]

Engine speed

Engine stopped
(Engine speed: Less than 400 rpm)

0 rpm

Engine running
(Engine speed: 400 rpm or more)

Approximately
equal to the indica-
tion on tachometer

BATTERY VOLT [V]

Power supply voltage for
transfer control unit

Ignition switch: On

Battery voltage

2WD SWITCH [On/Off]

Input condition from 4WD
shift switch

4WD shift switch: 2WD

On

4WD shift switch: 4H and 4LO

Off

4H SWITCH [On/Off]

Input condition from 4WD
shift switch

4WD shift switch: 4H

On

4WD shift switch: 2WD and 4LO

Off

4L SWITCH [On/Off]

Input condition from 4WD
shift switch

4WD shift switch: 4LO

On

4WD shift switch: 2WD and 4H

Off

4L POSI SW [On/Off]

Condition of 4LO switch

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch: 4LO

On

Except the above

Off

ATP SWITCH [On/Off]

Condition of ATP switch

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 4H to 4LO or 4LO to 4H
(While actuator motor is
operating.)

On

Except the above

Off

WAIT DETCT SW [On/
Off]

Condition of wait detection
switch

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 4H and 4LO

On

4WD shift switch: 2WD

Off

4WD MODE [2H/4H/4L]

Control status of 4WD
(Output condition of 4WD
shift indicator lamp and
4LO indicator lamp)

4WD shift switch
(Engine running)

2WD

2H

4H

4H

4LO

4L

2010 Pathfinder

DLN-236

< ECU DIAGNOSIS >

[TRANSFER: TX15B]

TRANSFER CONTROL UNIT

PHYSICAL VALUES

VHCL/S COMP [km/h] or
[mph]

Vehicle speed

Vehicle stopped

0 km/h (0 mph)

Vehicle running

CAUTION:

Check air pressure of tire under standard condi-
tion.

Approximately
equal to the indica-
tion on speedome-
ter (Inside of

±

10%)

SHIFT ACT 1 [On/Off]

Output condition to actua-
tor motor (clockwise)

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 2WD to 4H or 4H to 4LO
or 2WD to 4LO

On

Except the above

Off

SHIFT AC MON1 [On/
Off]

Check signal for transfer
control unit signal output

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 2WD to 4H or 4H to 4LO
or 2WD to 4LO

On

Except the above

Off

SHIFT ACT 2 [On/Off]

Output condition to actua-
tor motor (counterclock-
wise)

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 4LO to 4H or 4H to 2WD
or 4LO to 2WD

On

Except the above

Off

SHIFT AC MON2 [On/
Off]

Check signal for transfer
control unit signal output

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch
: 4LO to 4H or 4H to 2WD
or 4LO to 2WD

On

Except the above

Off

SHIFT ACT/R MON [On/
Off]

Operating condition of ac-
tuator motor relay (integrat-
ed in transfer control unit)

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

When 4WD shift switch is
operated

On

When 4WD shift switch is
not operated

Off

SHIFT POS SW1 [On/
Off]

Condition of actuator posi-
tion switch 1

• Vehicle stopped
• Engine running
• A/T selector lever “N”

position

• Brake pedal depressed

4WD shift switch: 2WD
and 4LO

On

4WD shift switch: 4H

Off

SHIFT POS SW2 [On/
Off]

Condition of actuator posi-
tion switch 2

4WD shift switch: 4LO

On

4WD shift switch: 2WD
and 4H

Off

SHIFT POS SW3 [On/
Off]

Condition of actuator posi-
tion switch 3

4WD shift switch: 2WD
and 4H

On

4WD shift switch: 4LO

Off

SHIFT POS SW4 [On/
Off]

Condition of actuator posi-
tion switch 4

4WD shift switch: 4H and
4LO

On

4WD shift switch: 2WD

Off

4WD FAIL LAMP [On/
Off]

4WD warning lamp condi-
tion

4WD warning lamp: On

On

4WD warning lamp: Off

Off

2WD IND [On/Off]

Rear indicator of 4WD shift
indicator lamp condition

Rear indicator of 4WD shift indicator lamp: On

On

Rear indicator of 4WD shift indicator lamp: Off

Off

4H IND [On/Off]

Front and center indicator
of 4WD shift indicator lamp
condition

Front and center indicator of 4WD shift indicator lamp
: On

On

Front and center indicator of 4WD shift indicator lamp
: Off

Off

4L IND [On/Off]

4LO indicator lamp condi-
tion

4LO indicator lamp: On

On

4LO indicator lamp: Off

Off

Monitored item [Unit]

Content

Condition

Display value

2010 Pathfinder















Content      ..     205      206      207      208     ..
