BCM (BODY CONTROL MODULE)

DLK-275

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

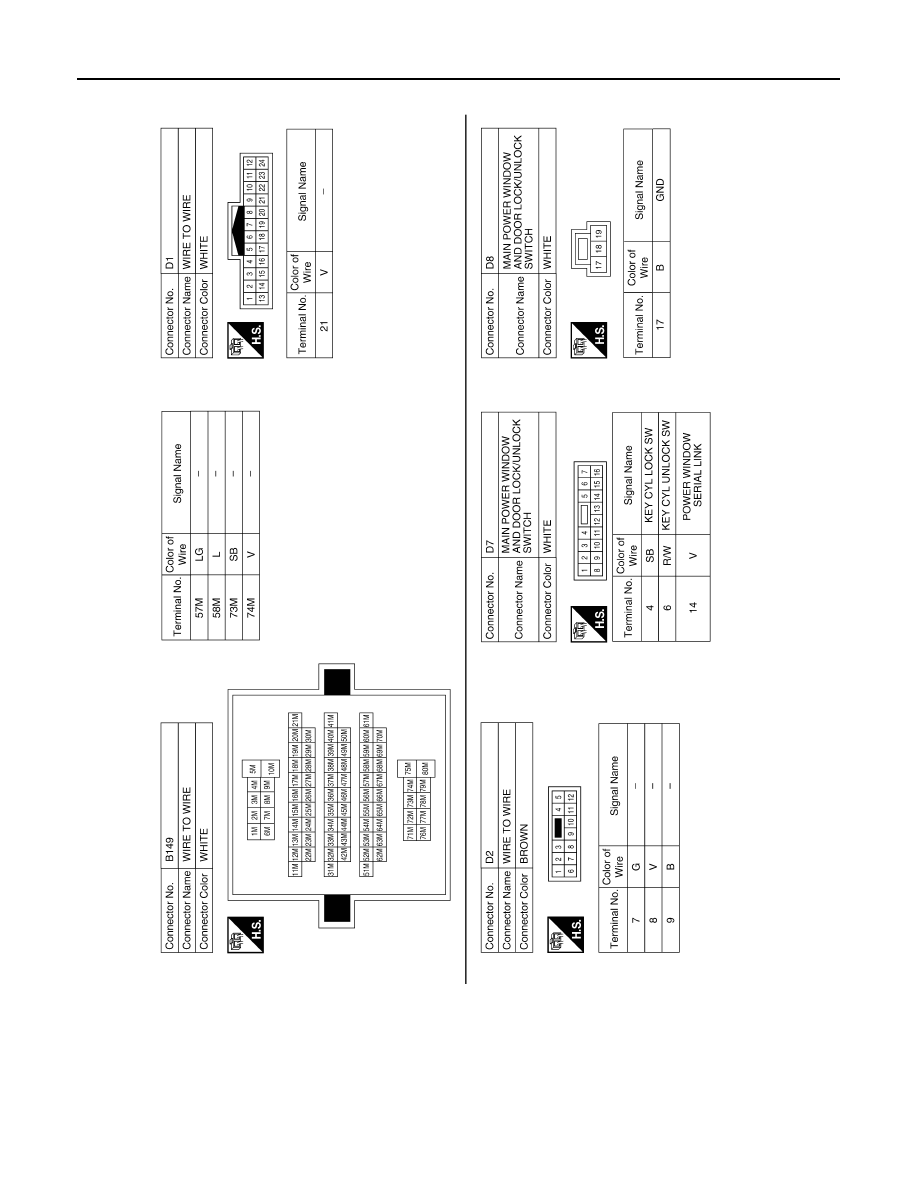

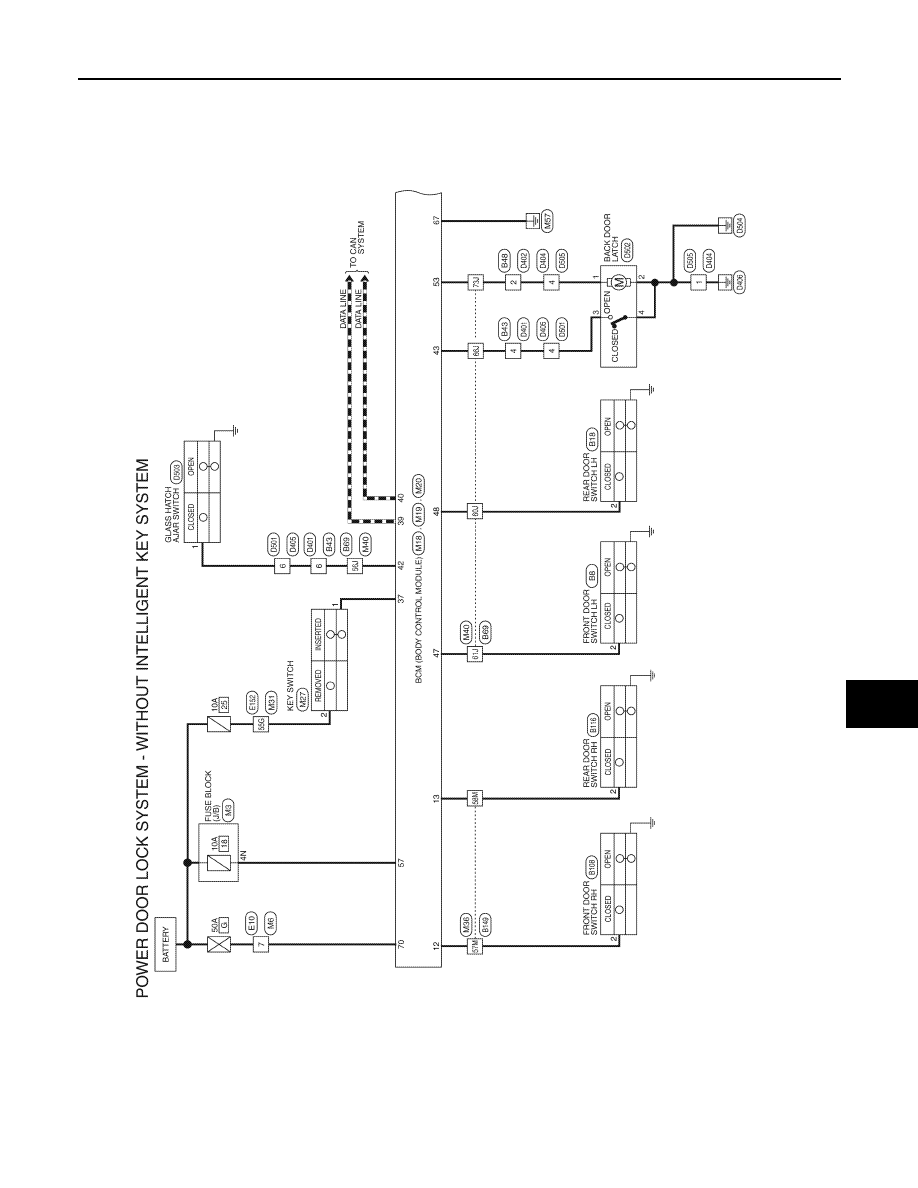

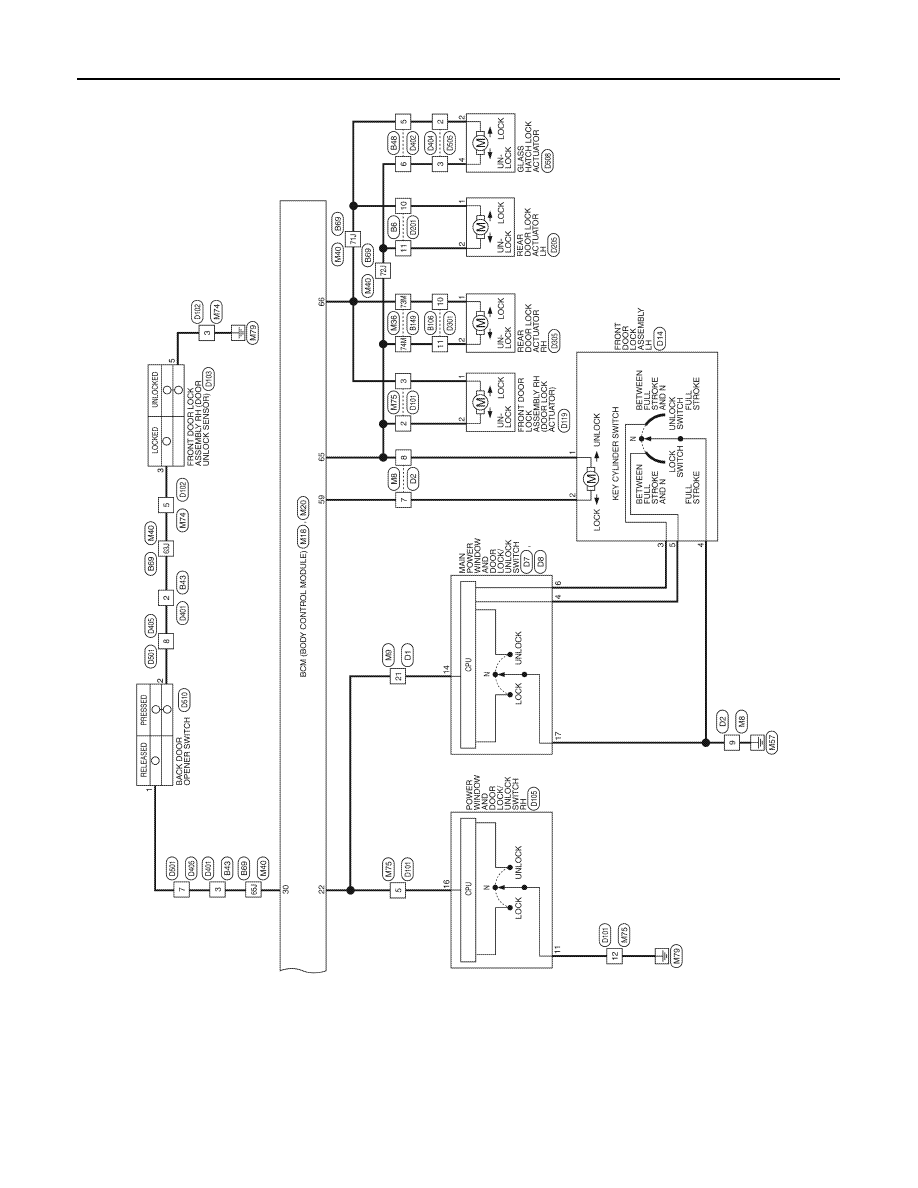

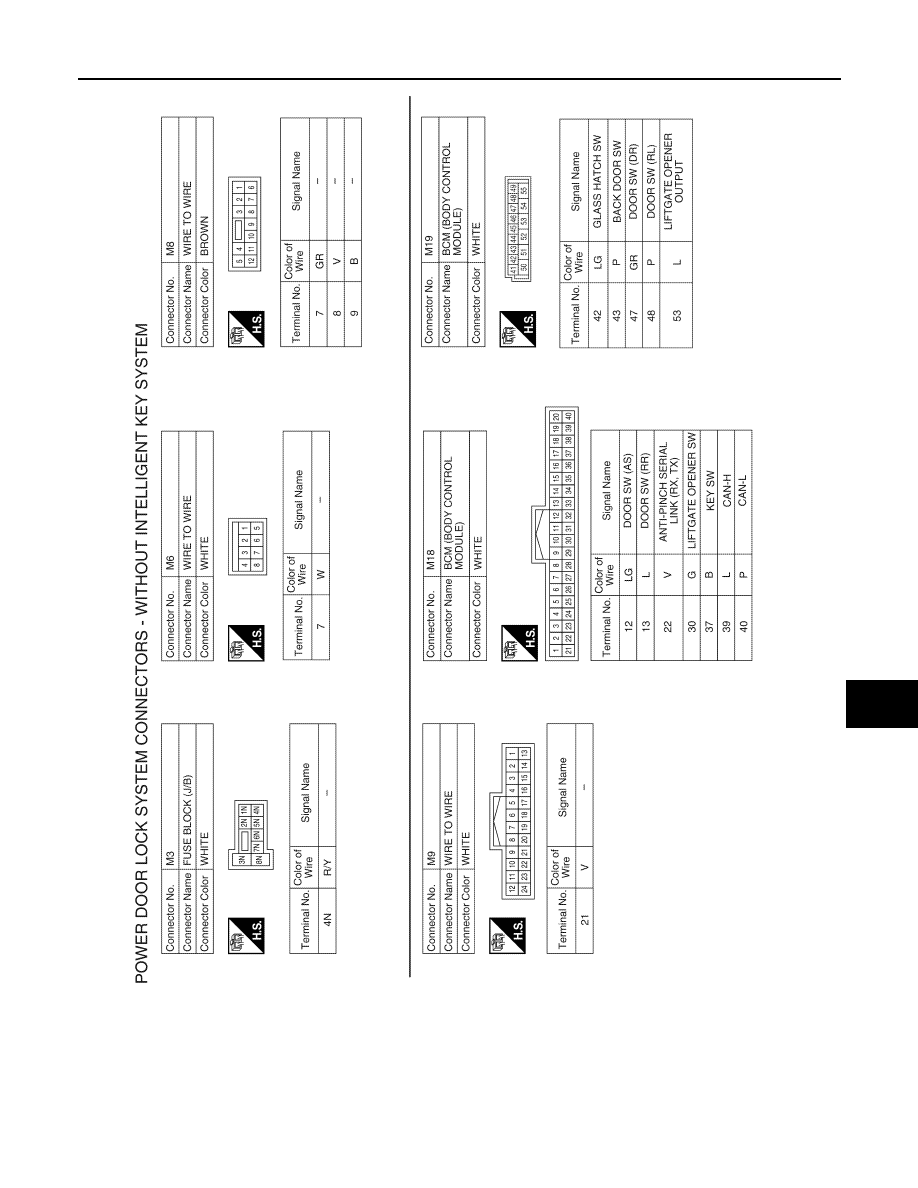

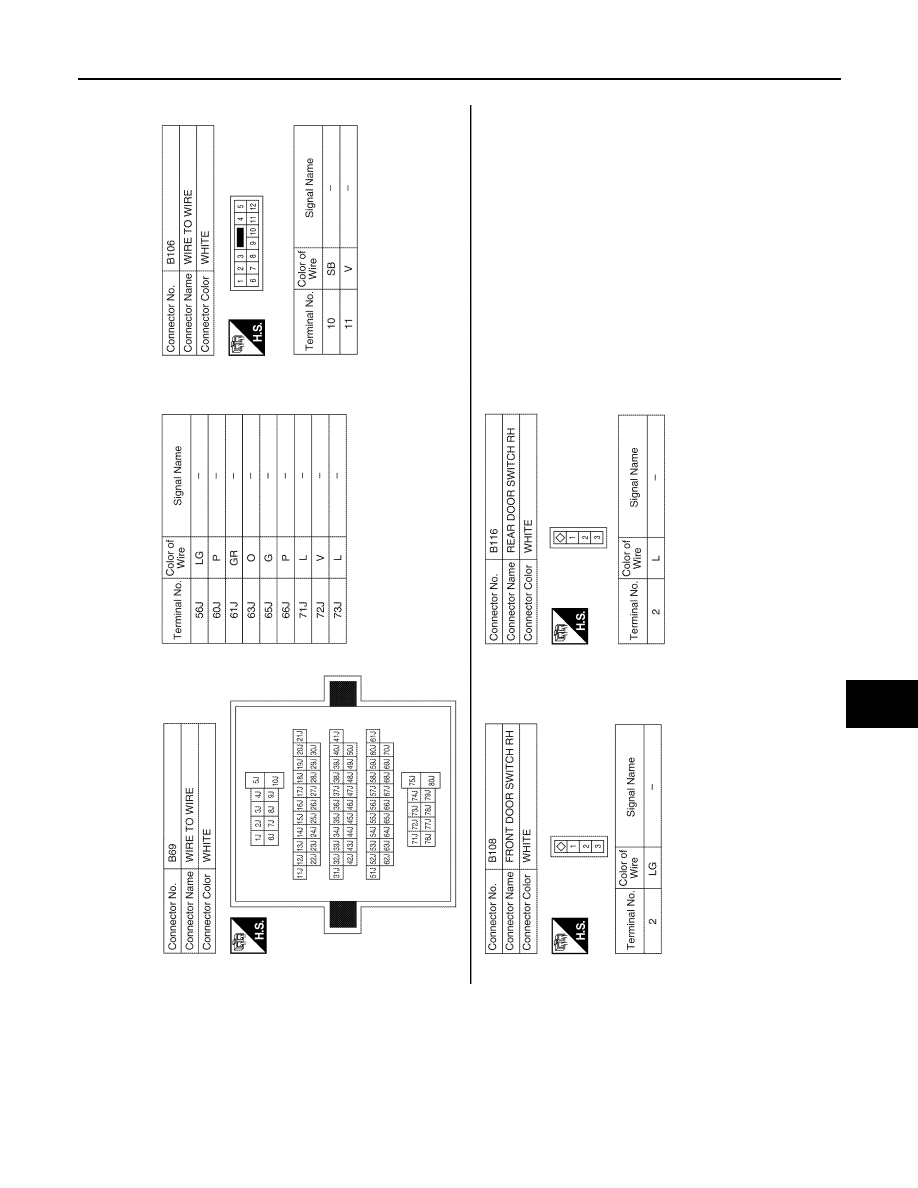

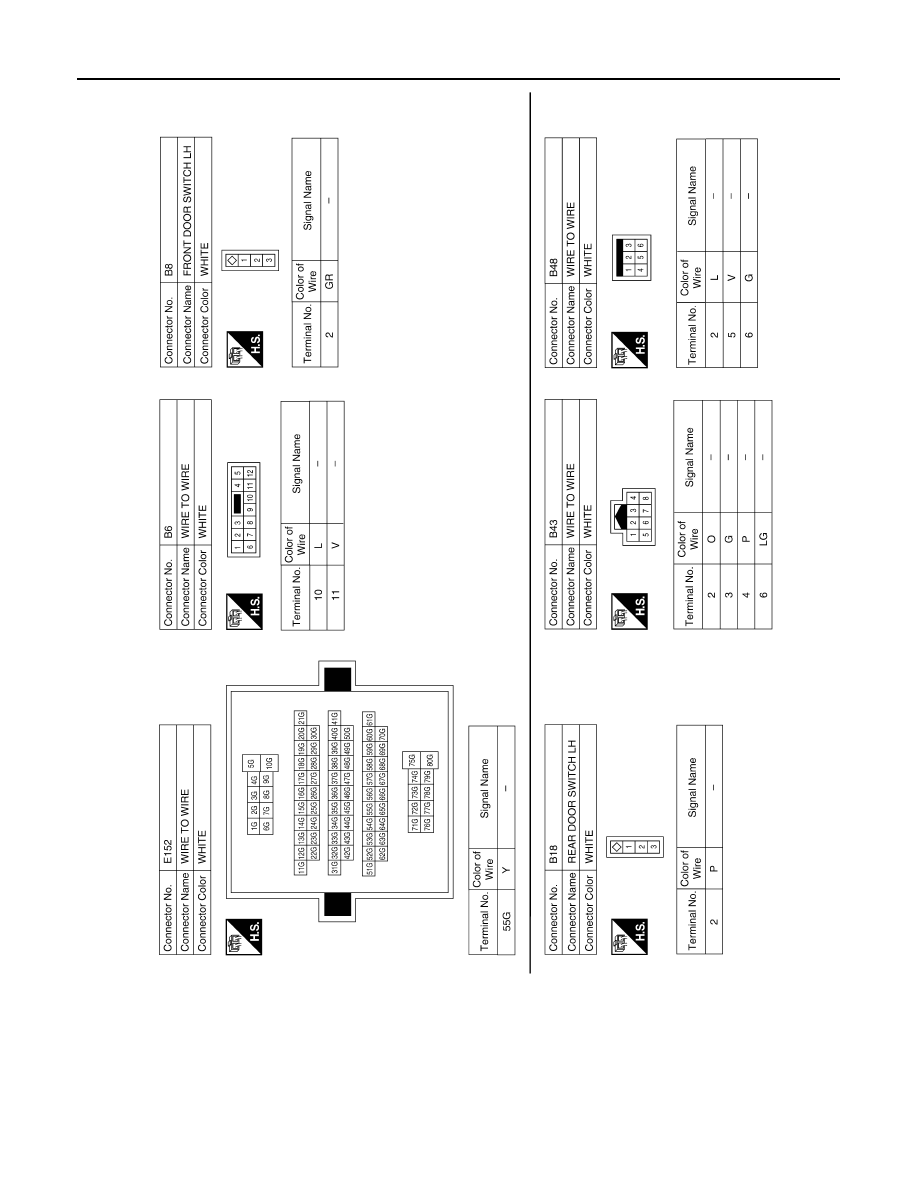

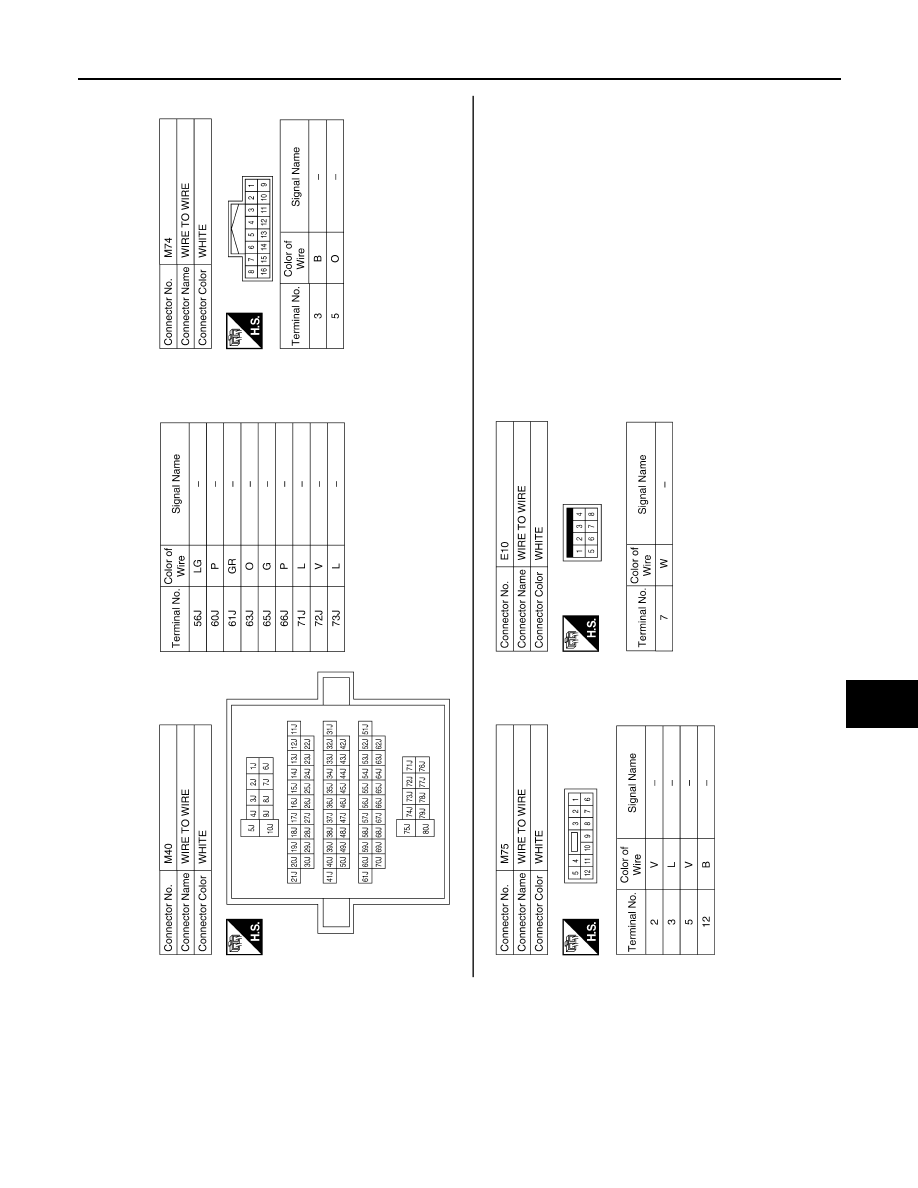

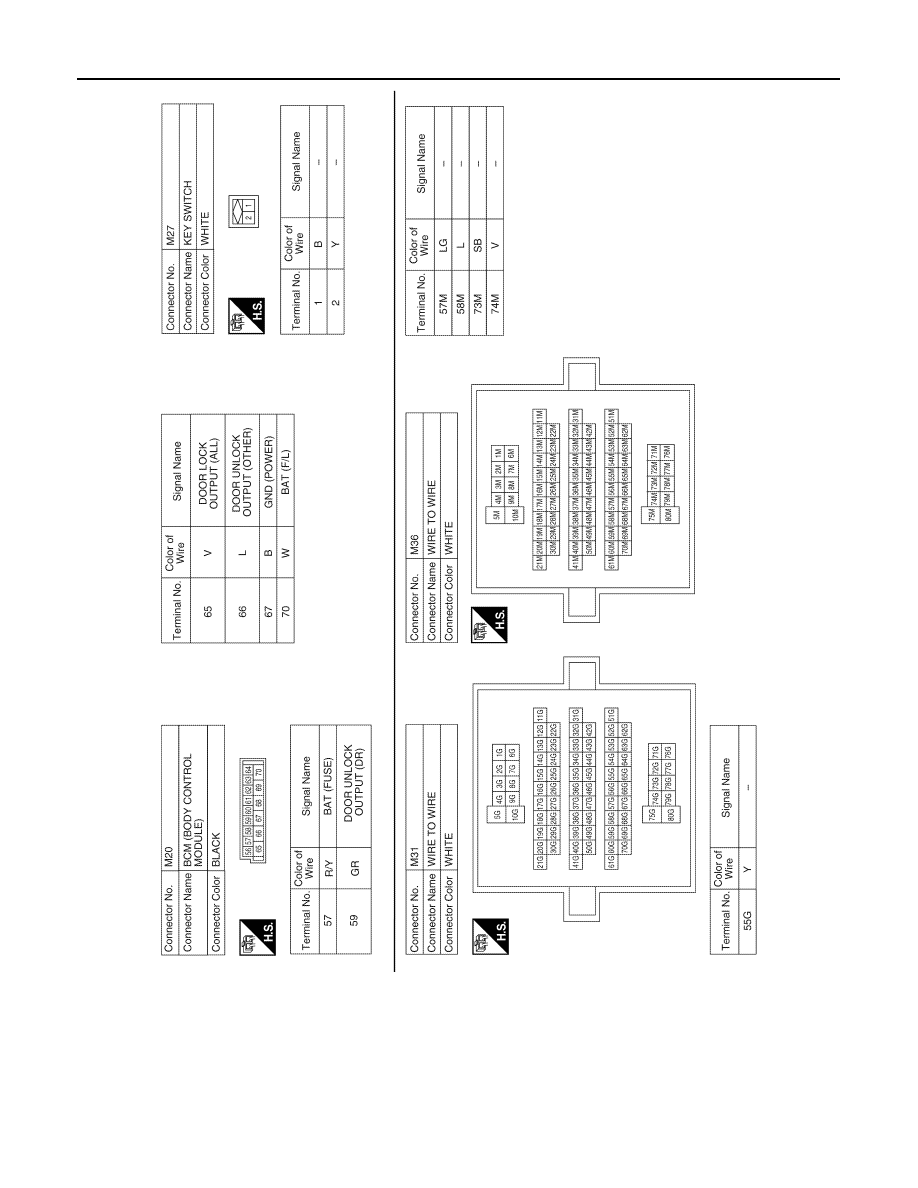

Wiring Diagram — POWER DOOR LOCK SYSTEM —

INFOID:0000000005260106

ABKWA0591GB

2010 Pathfinder

DLK-276

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ABKWA0592GB

2010 Pathfinder

BCM (BODY CONTROL MODULE)

DLK-277

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA1736GB

2010 Pathfinder

DLK-278

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ABKIA1737GB

2010 Pathfinder

BCM (BODY CONTROL MODULE)

DLK-279

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA0367GB

2010 Pathfinder

DLK-280

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ABKIA0368GB

2010 Pathfinder

BCM (BODY CONTROL MODULE)

DLK-281

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA1738GB

2010 Pathfinder

DLK-282

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ABKIA0370GB

2010 Pathfinder
