INTELLIGENT KEY UNIT

DLK-147

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Reference Value - Steering Lock Solenoid

INFOID:0000000005259985

TERMINAL LAYOUT

PHYSICAL VALUES

29

GR

Back door request
switch

—

Back door request switch ON.

0

Back door request switch OFF.

5

30

W

Remote keyless en-
try receiver power
supply

—

—

5

32

V

Steering lock sole-
noid communication
signal

LOCK

When Intelligent Key is inside vehicle,
press ignition knob switch.

Other than above

5

33

G

Center console area
antenna (+) signal

LOCK

Any door open

→

 all doors closed

34

R

Center console area
antenna (-) signal

37

P

Front outside anten-
na (+) signal RH

LOCK

Press front door request switch RH.

38

V

Front outside anten-
na (-) signal RH

39

SB

P range switch

—

Selector lever is in “P” position.

0

Other than above

Battery voltage

40

R

AS select unlock out-
put

—

UNLOCK with rear door locks disabled.

0

Other than above

Battery voltage

Terminal

Wire

Color

Item

Condition

Voltage (V)

Approx.

Ignition

Switch Po-

sition

Operation or Conditions

SIIA1911J

PIIB7441E

SIIA1910J

WIIA1169E

2010 Pathfinder

DLK-148

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

Terminal

Wire

Color

Signal Designation

Condition

Voltage (V)

Approx.

Ignition

Switch Posi-

tion

Operation or Conditions

1

R/B

Power source (fuse)

LOCK

—

Battery voltage

2

O

Steering lock solenoid
power supply

LOCK

—

5

3

V

Steering lock solenoid
communication signal

LOCK

When Intelligent Key is inside ve-
hicle, press ignition knob switch.

Other than the above

5

4

SB

Steering lock solenoid
ground

—

—

0

SIIA1911J

2010 Pathfinder

INTELLIGENT KEY UNIT

DLK-149

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

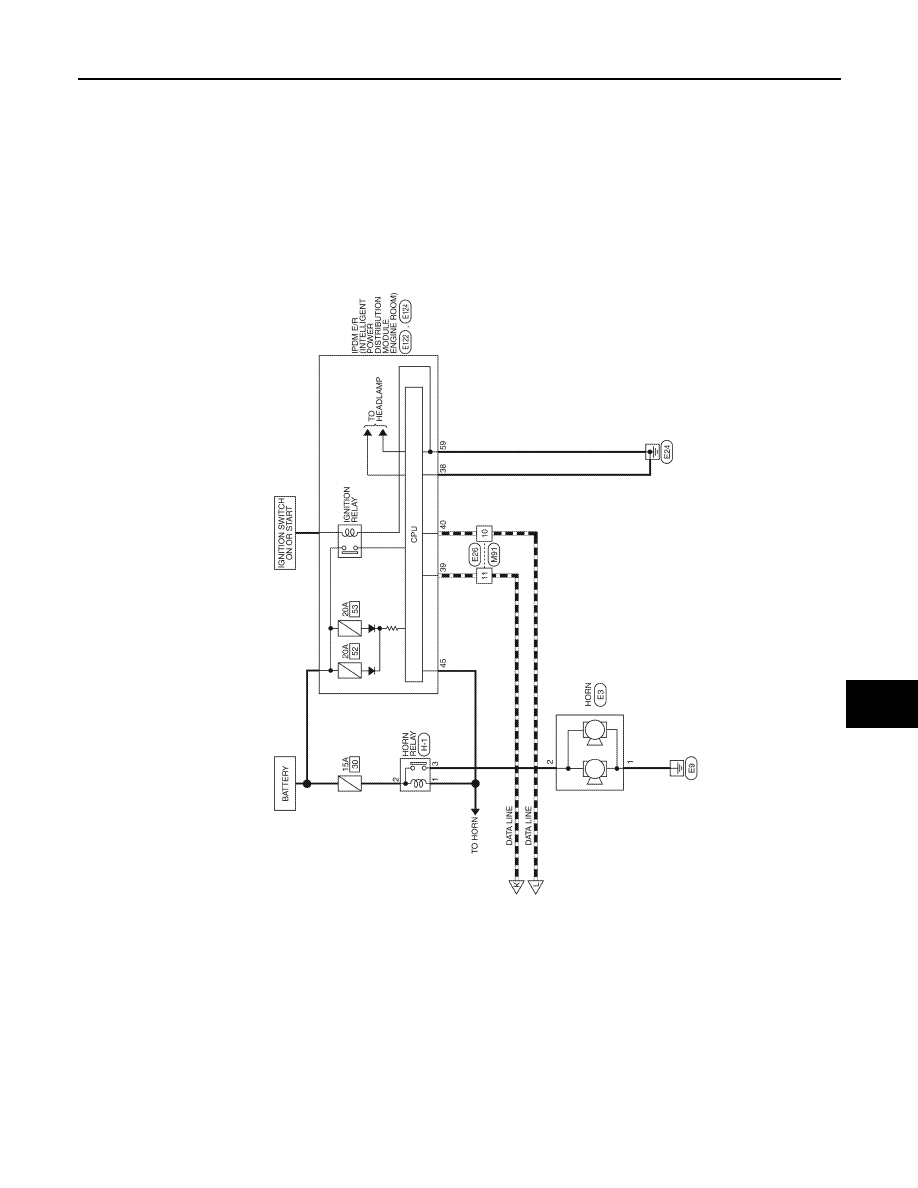

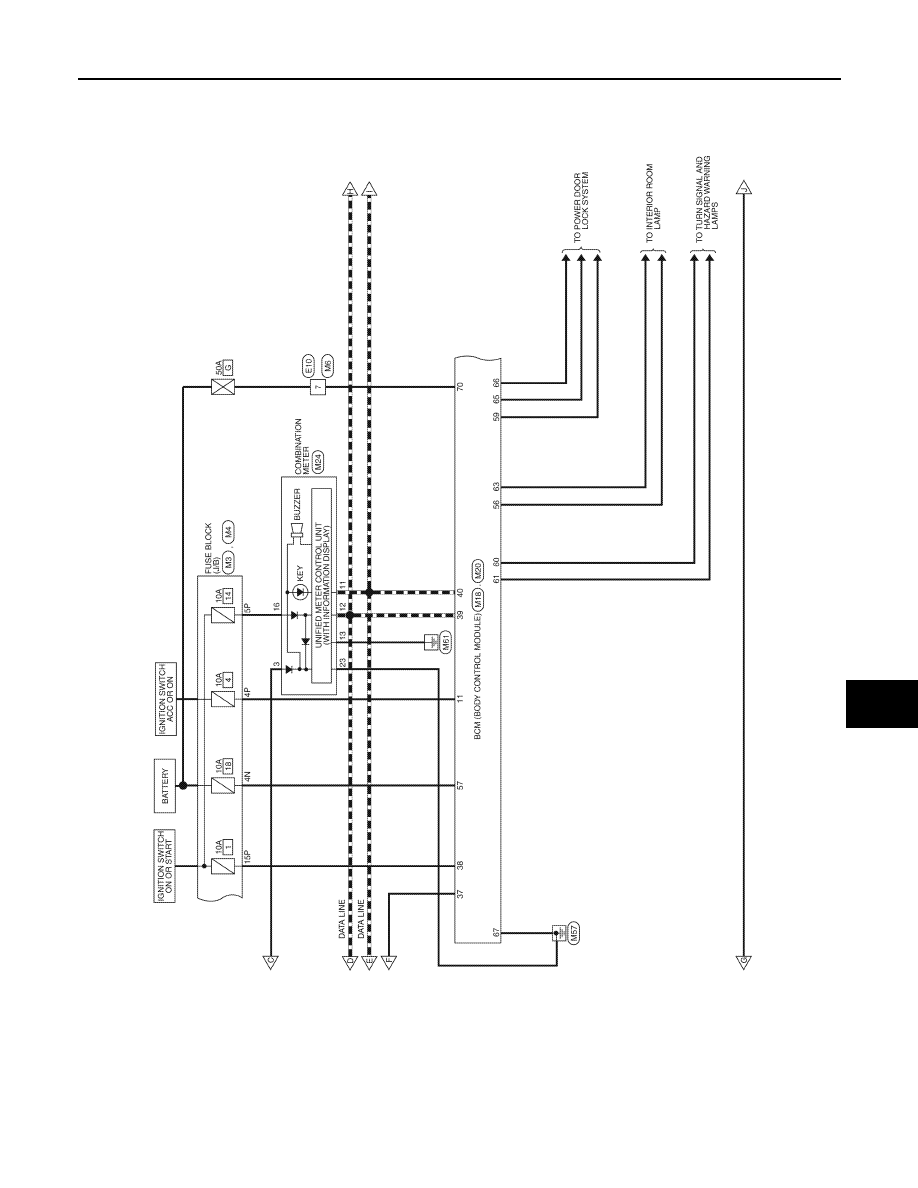

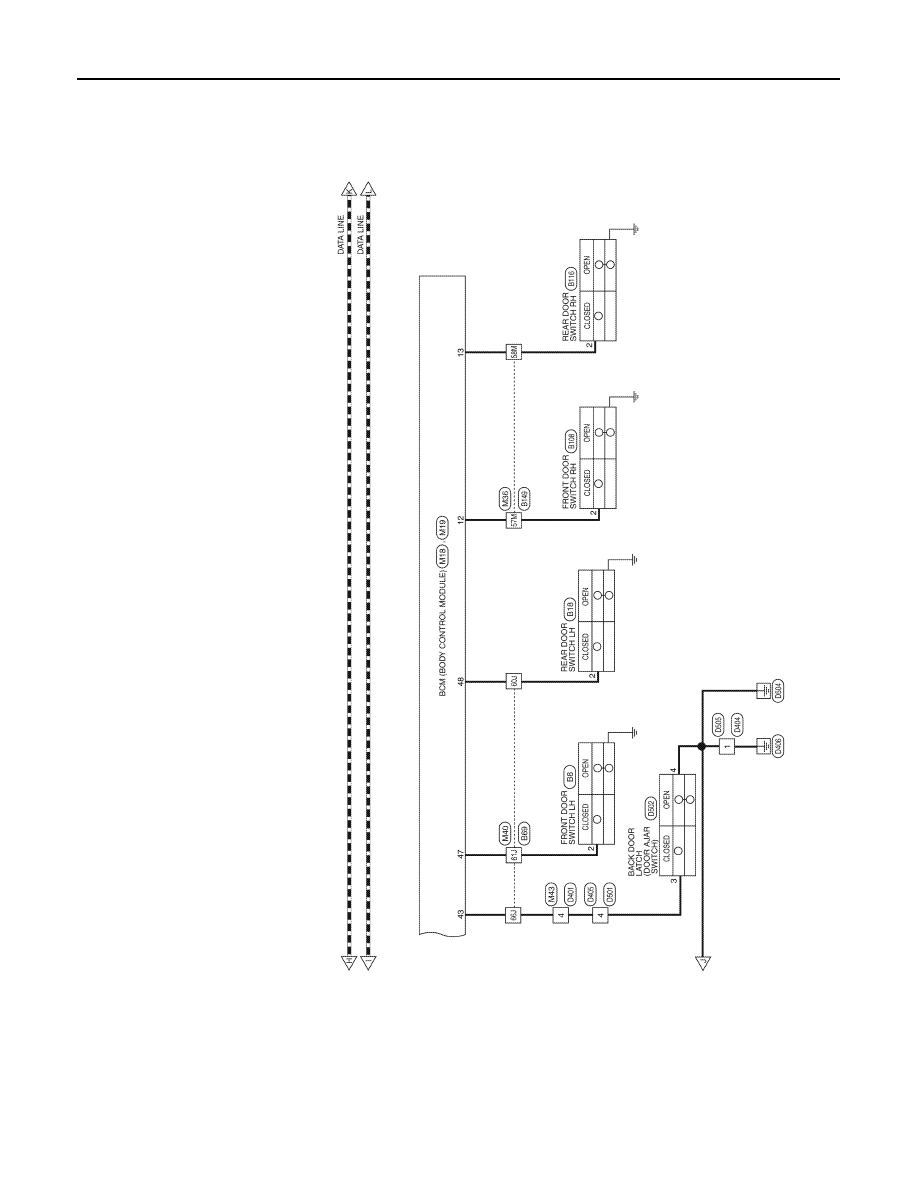

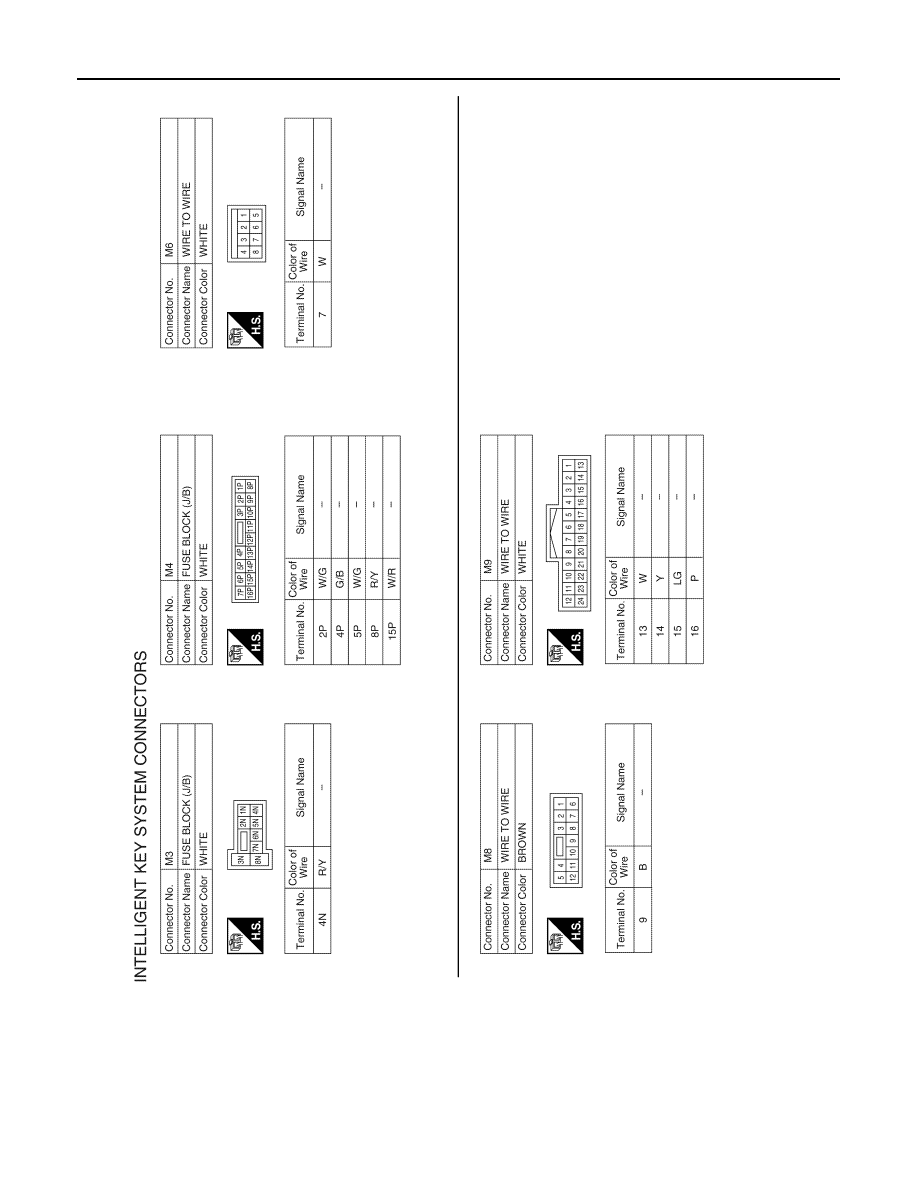

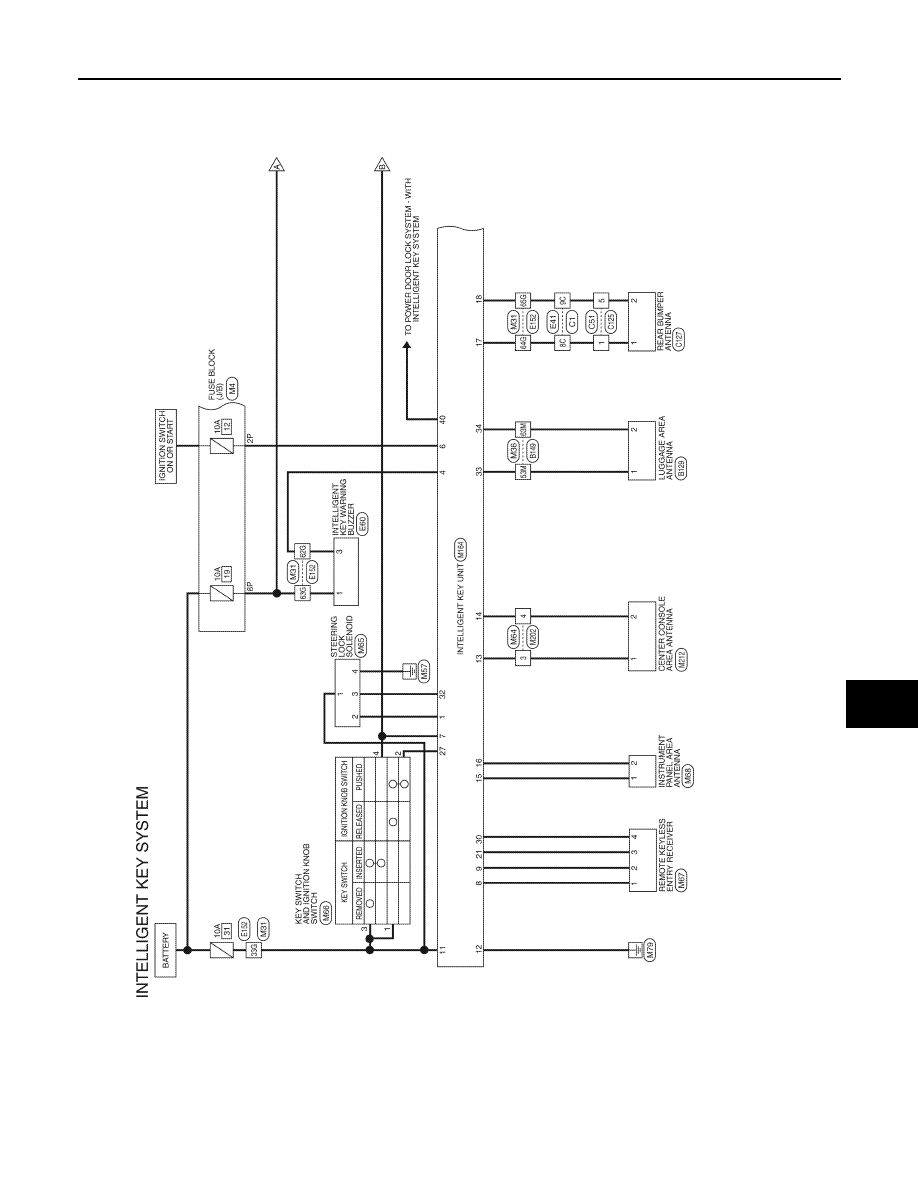

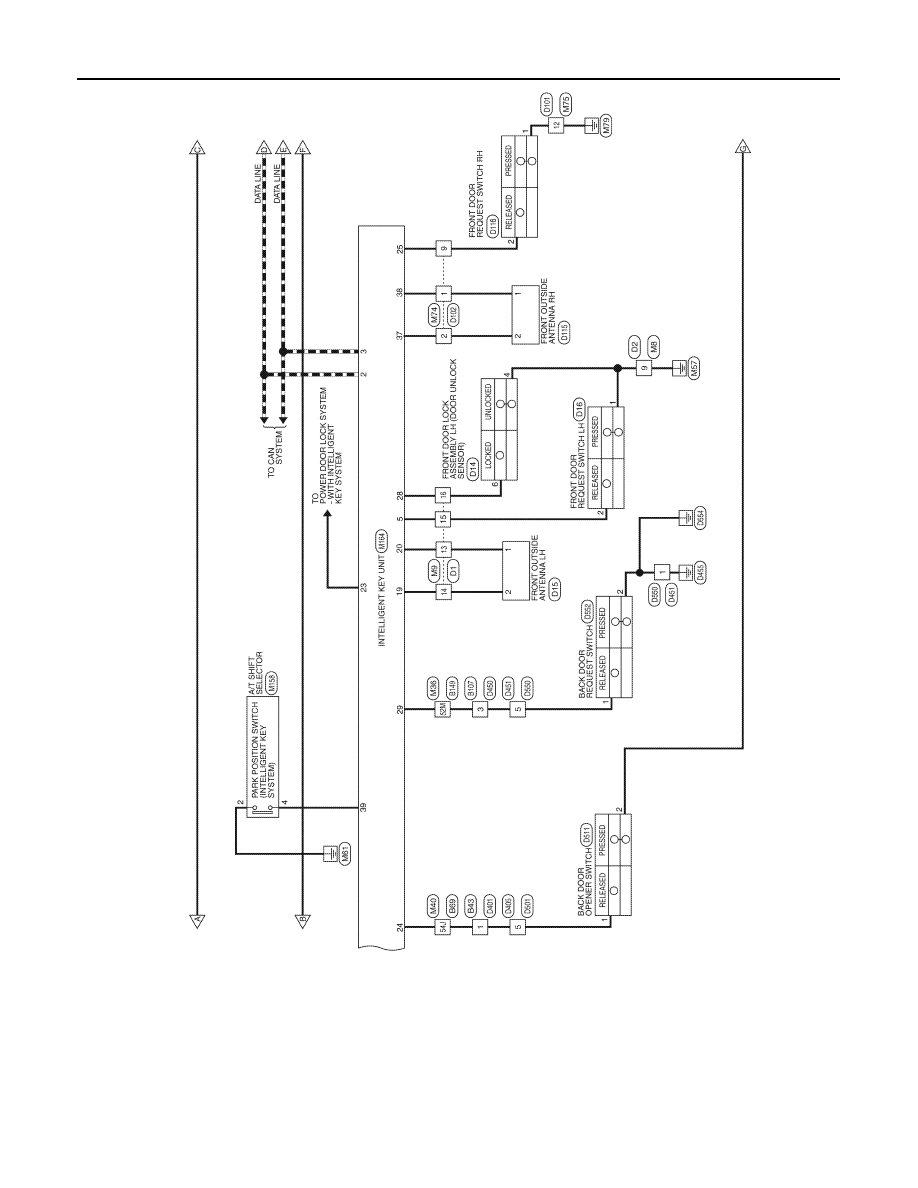

Wiring Diagram — INTELLIGENT KEY SYSTEM —

INFOID:0000000005259986

ABKWA0586GB

2010 Pathfinder

DLK-150

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

ABKWA0587GB

2010 Pathfinder

INTELLIGENT KEY UNIT

DLK-151

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKWA0588GB

2010 Pathfinder

DLK-152

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

ABKWA0589GB

2010 Pathfinder

INTELLIGENT KEY UNIT

DLK-153

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKWA0590GB

2010 Pathfinder

DLK-154

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

ABKIA1724GB

2010 Pathfinder
