Nissan Pathfinder (2010 year). Manual - part 142





HAZARD AND BUZZER REMINDER FUNCTION

DLK-35

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

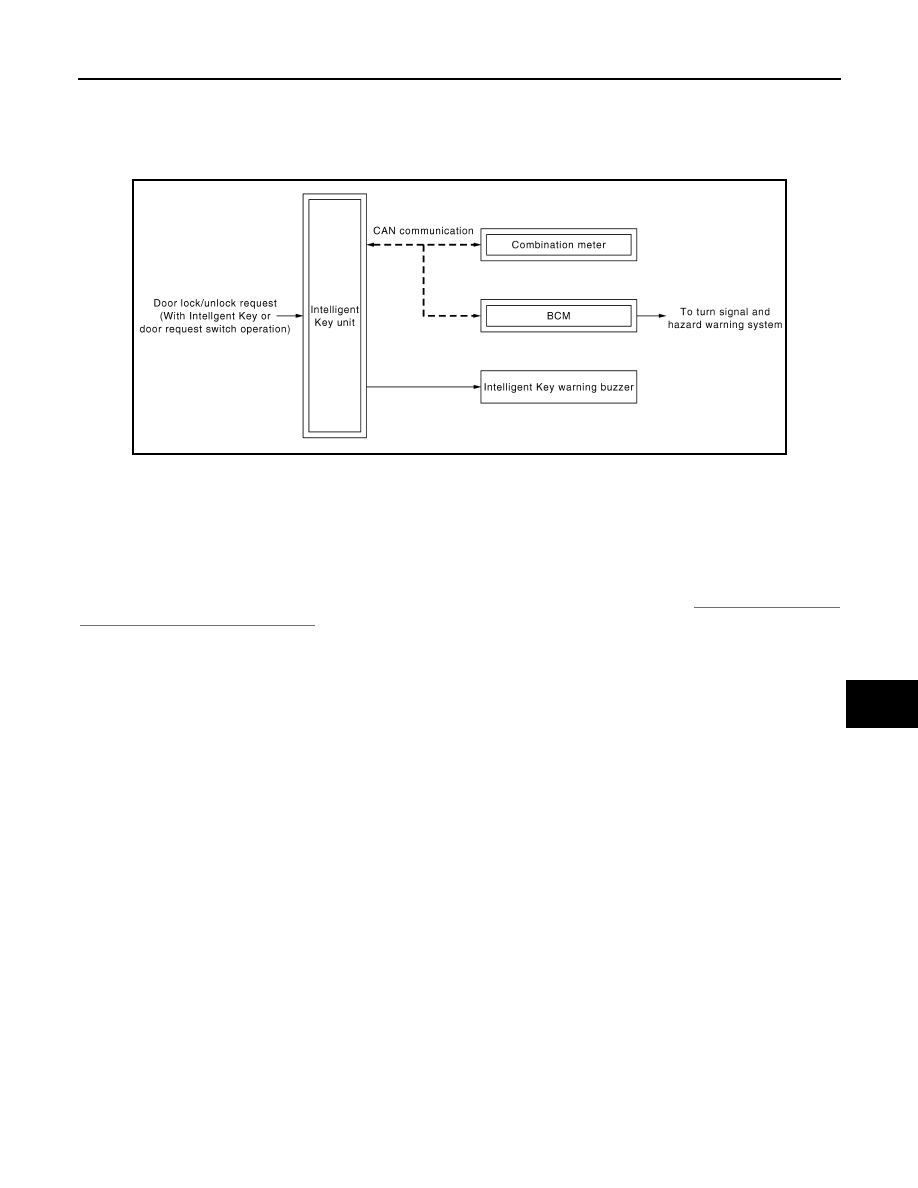

System Diagram

INFOID:0000000005259855

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000005259856

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer

and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps

as a reminder.

NOTE:

Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-43, "CONSULT-

III Function (INTELLIGENT KEY)"

.

JMKIA0506GB

2010 Pathfinder

DLK-36

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

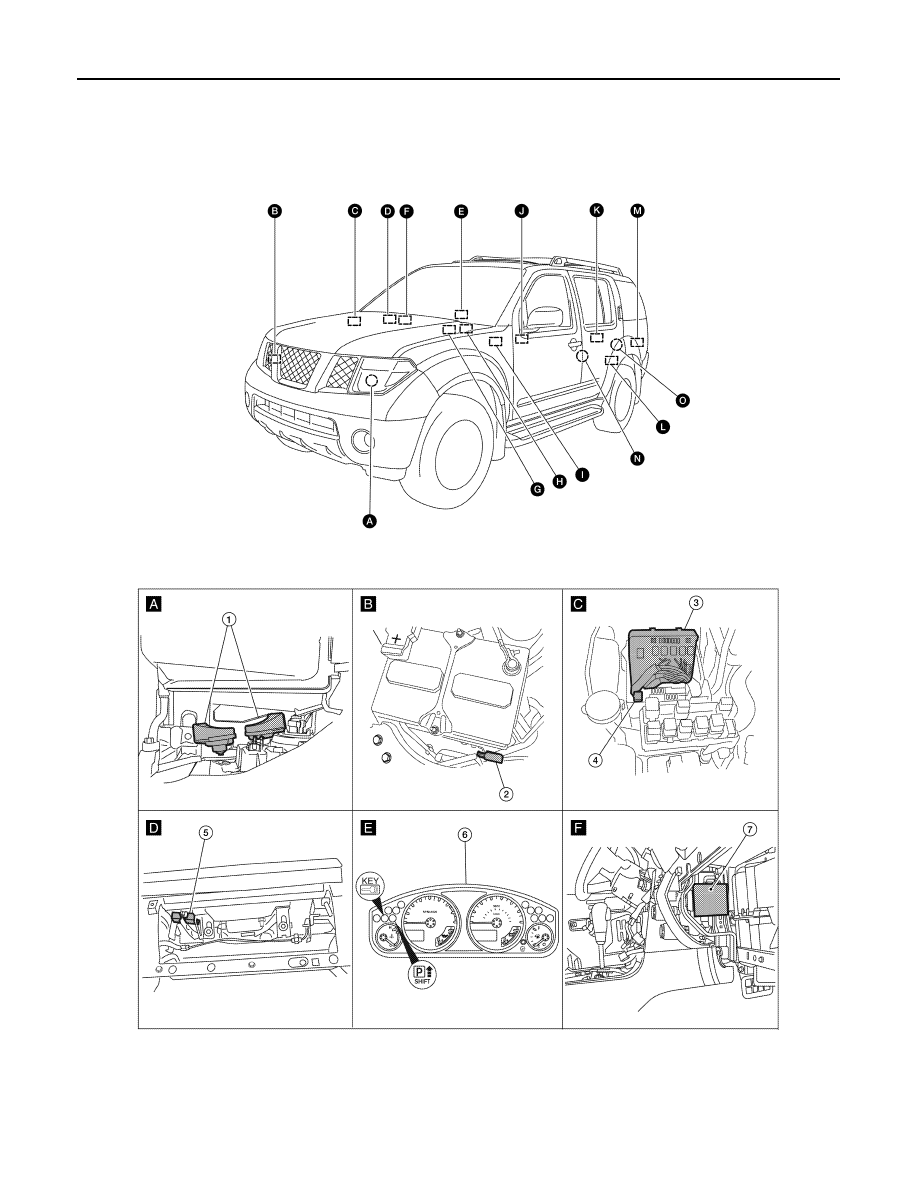

Component Parts Location

INFOID:0000000005484875

ALKIA1166ZZ

2010 Pathfinder

HAZARD AND BUZZER REMINDER FUNCTION

DLK-37

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

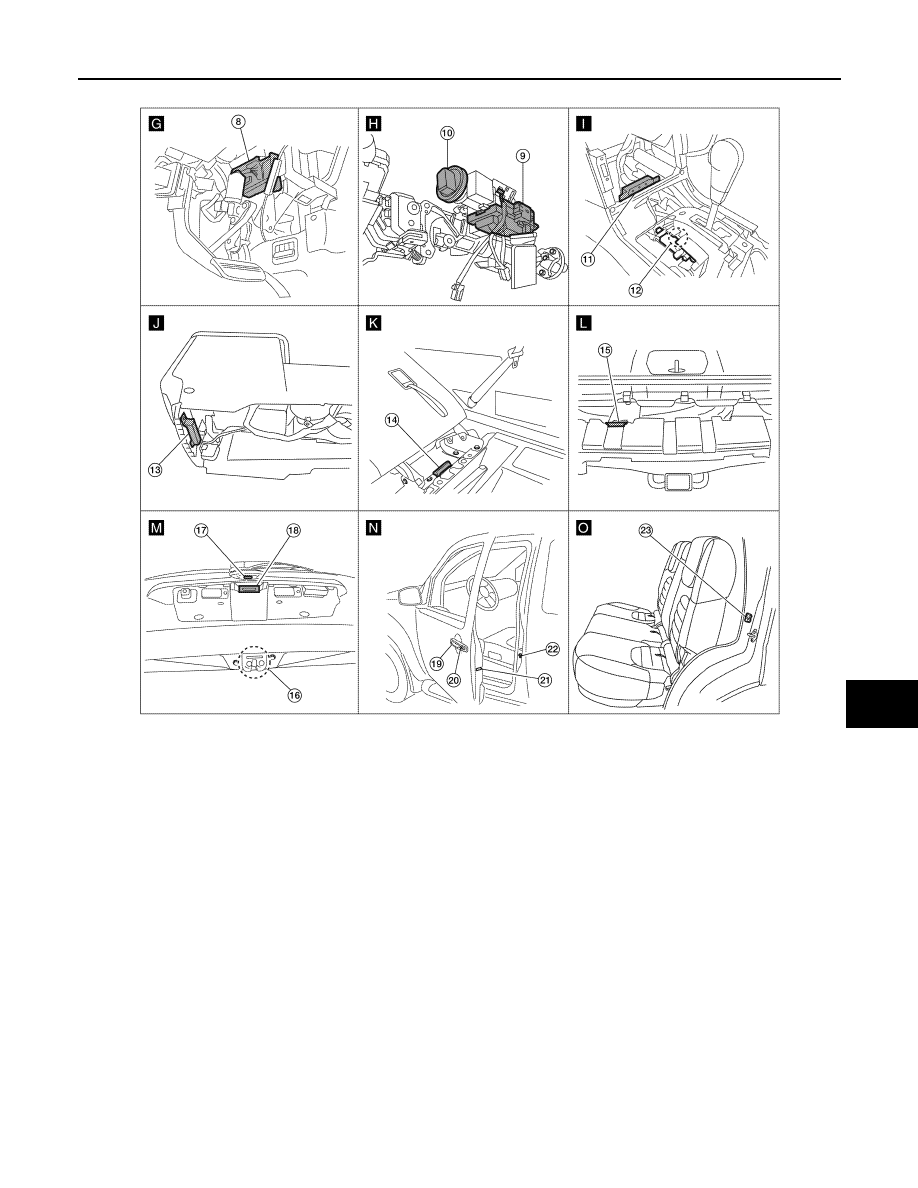

1.

Horn E3
(Behind front combination lamp LH)

2.

Intelligent key warning buzzer E60

3.

IPDM E/R E122, E124
(view with cover removed)

4.

Horn relay H-1

5.

Remote keyless entry receiver M67
(view with glove box removed)

6.

Combination meter M24

7.

Intelligent Key unit M164
(view with glove box removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Instrument panel area antenna M68

(view with center console cover removed)

12. A/T shift selector [park position switch

(Intelligent Key system)] M158

13. Center console area antenna M212

(view with center console removed)

14. Luggage area antenna B129

(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door latch (door ajar switch)

D502

17. Back door request switch D552

18. Back door opener switch D511

19. Front outside antenna LH D15

Front outside antenna RH D115

20. Front door request switch LH D16

Front door request switch RH D116

21. Front door lock assembly LH (door

unlock sensor) D14

22. Front door switch LH B8

RH B108

23. Rear door switch LH B18

RH B116

ALKIA1699ZZ

2010 Pathfinder

DLK-38

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

Component Description

INFOID:0000000005259858

Item

Function

BCM

Controls the hazard and buzzer reminder function (without Intelligent Key).

Intelligent Key unit

Controls the hazard and buzzer reminder function (with Intelligent Key).

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.

2010 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-39

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOMELINK UNIVERSAL TRANSCEIVER

Component Description

INFOID:0000000005259859

Item

Function

Reference page

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate
the garage door, etc.

Refer to Owner's

Manual

2010 Pathfinder

DLK-40

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005483714

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

DOOR LOCK

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

DLK-41

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000005483715

WORK SUPPORT

DATA MONITOR

1: With remote keyless entry system
2: With Intelligent Key

ACTIVE TEST

INTELLIGENT KEY
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

INFOID:0000000005483717

DATA MONITOR

Work Item

Description

DOOR LOCK-UNLOCK SET

• ON
• OFF

ANTI-LOCK OUT SET

• ON
• OFF

AUTOMATIC DOOR LOCK SELECT

• SHIFT OUT OF P
• VH SPD

AUTOMATIC DOOR UNLOCK SE-
LECT

• MODE1
• MODE2
• MODE3
• MODE4
• MODE5
• MODE6

AUTOMATIC LOCK/UNLOCK SE-
LECT

• ON
• OFF

Monitor Item

[Unit}

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

KEY ON SW [ON/OFF]

Indicates condition of key switch

CDL LOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH

DOOR SW-RR [ON/OFF]

Indicates condition of rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates condition of rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates condition of back door switch

KEY CYL LK-SW [ON/OFF]

Indicates condition of lock signal from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates condition of unlock signal from door key cylinder switch

KEYLESS LOCK

1

 [ON/OFF]

Indicates condition of lock signal from keyfob

KEYLESS UNLOCK

1

 [ON/OFF]

Indicates condition of unlock signal from keyfob

I-KEY LOCK

2

 [ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK

2

 [ON/OFF]

Indicates condition of unlock signal from Intelligent Key

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

2010 Pathfinder

DLK-42

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

TRUNK
TRUNK : CONSULT-III Function (BCM - TRUNK)

INFOID:0000000005483718

DATA MONITOR

ACTIVE TEST

Monitor Item

[Unit]

Condition

I-KEY LOCK [ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK [ON/OFF]

Indicates condition of unlock signal from Intelligent Key

I-KEY TRUNK [ON/OFF]

Indicates condition of trunk open signal from Intelligent Key

I-KEY PW DWN [ON/OFF]

Indicates condition of all power window signal from Intelligent Key

I-KEY PANIC [ON/OFF]

Indicates condition of panic signal from Intelligent Key

PUSH SW [ON/OFF]

Indicates condition of ignition knob switch

Monitor Item

[Unit]

Contents

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

I-KEY TRUNK [ON/OFF]

Indicates condition of Intelligent Key back door opening operation

TRNK OPNR SW [ON/OFF]

Indicates condition of back door opener switch.

VEHICLE SPEED [ON/OFF]

Indicates condition of vehicle speed signal from combination meter

Test Item

Description

TRUNK/BACK DOOR

This test is able to check back door open operation.
Back door open when “OPEN” on CONSULT-III screen is touched.

2010 Pathfinder
