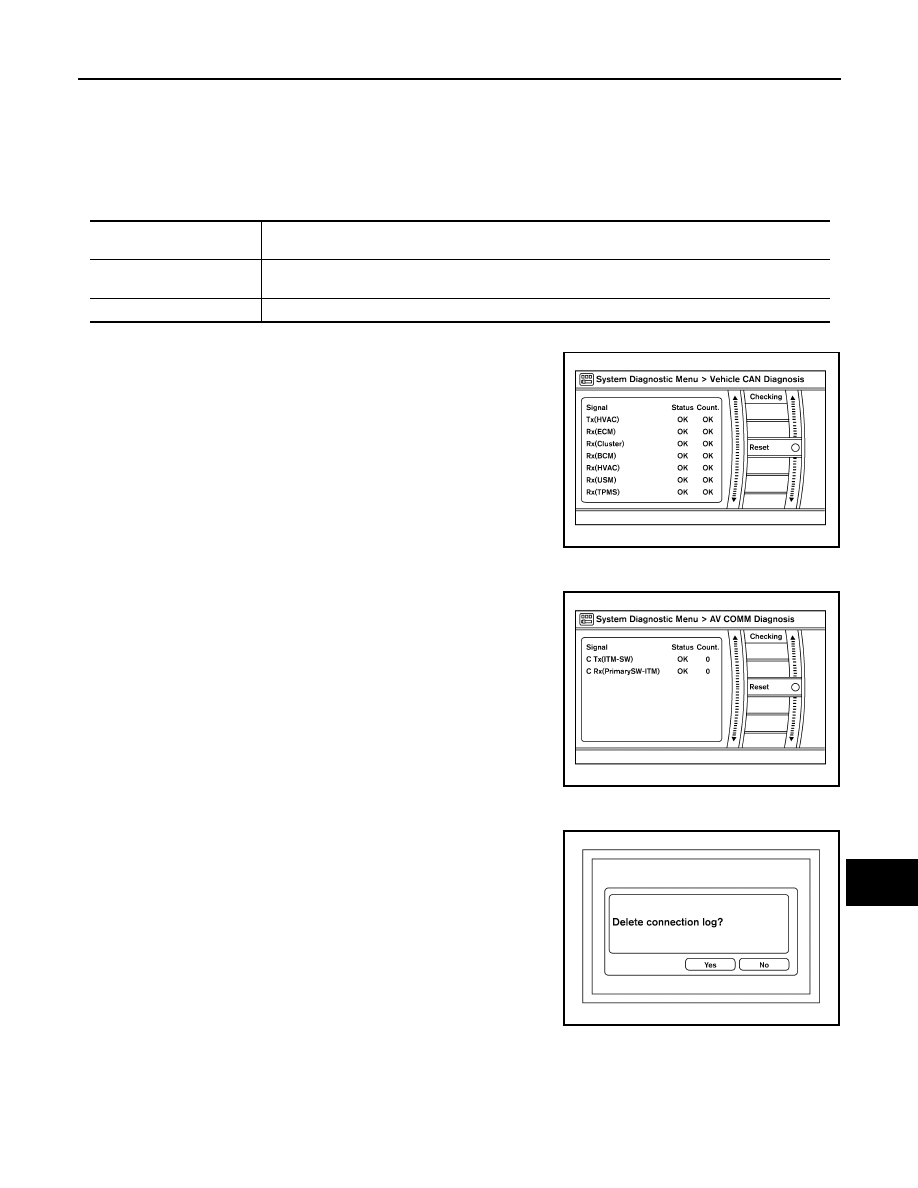

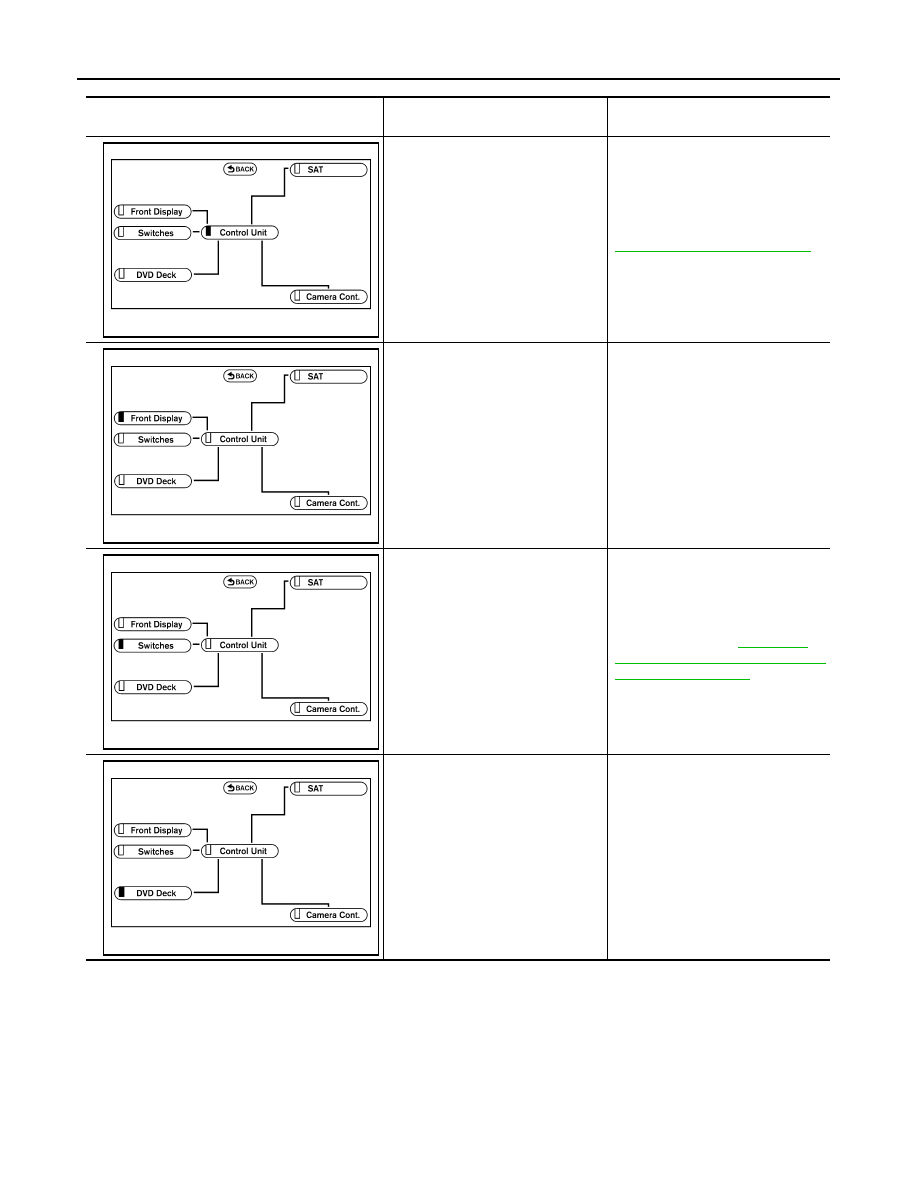

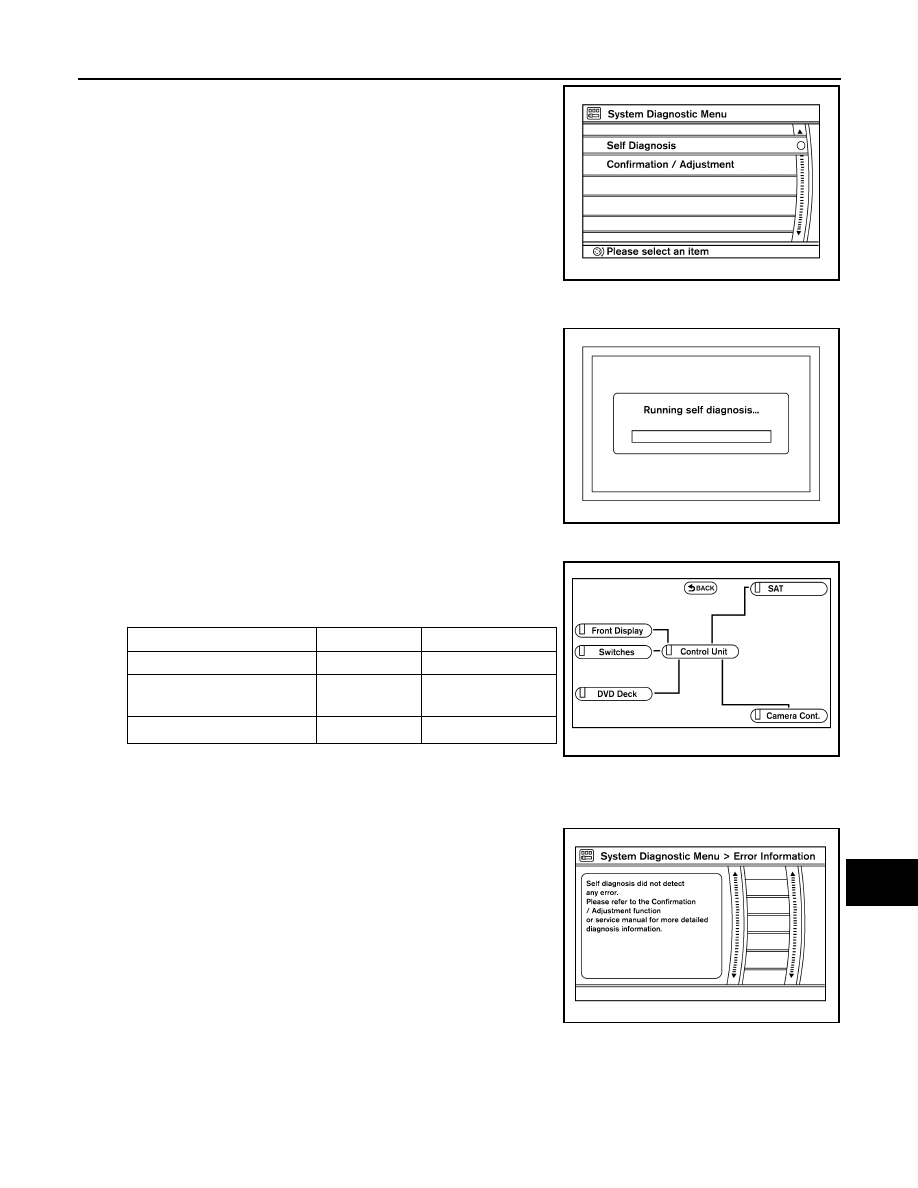

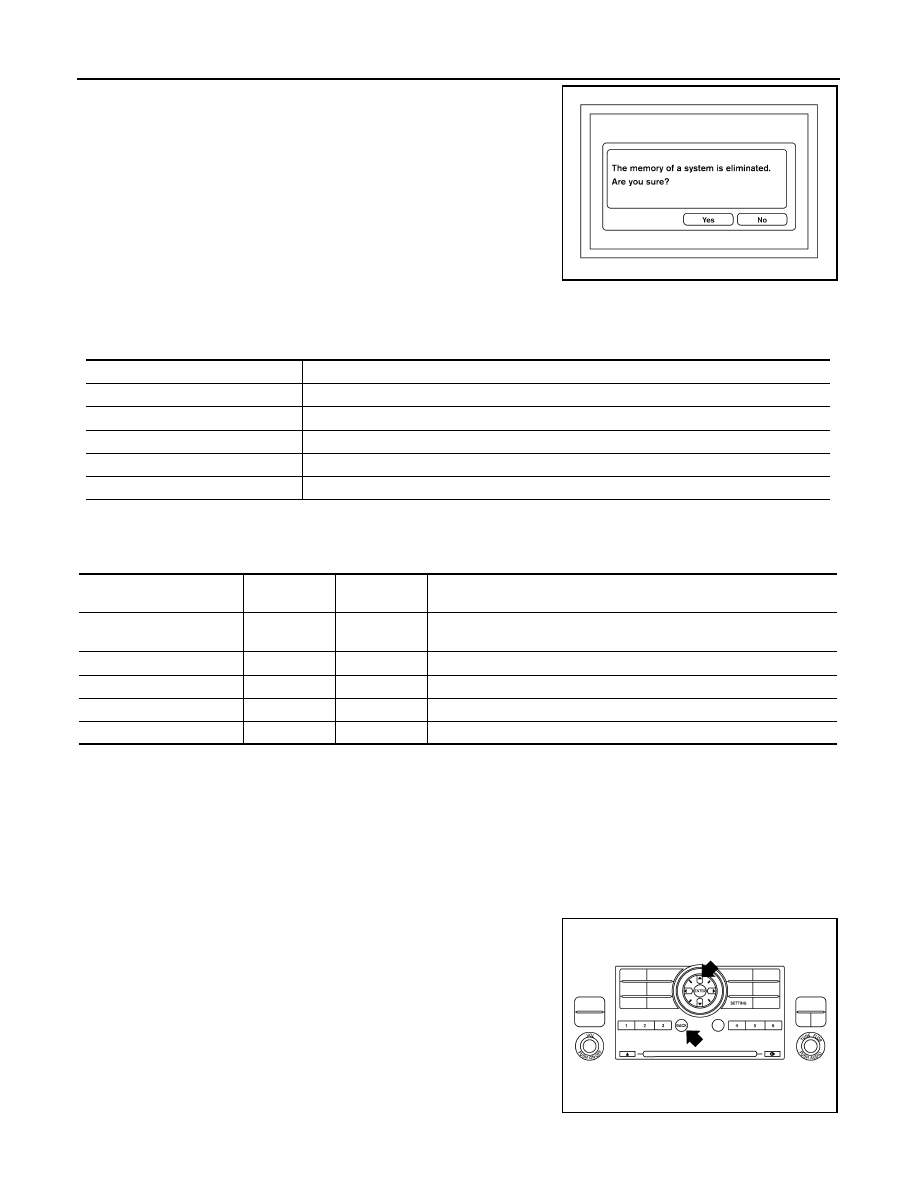

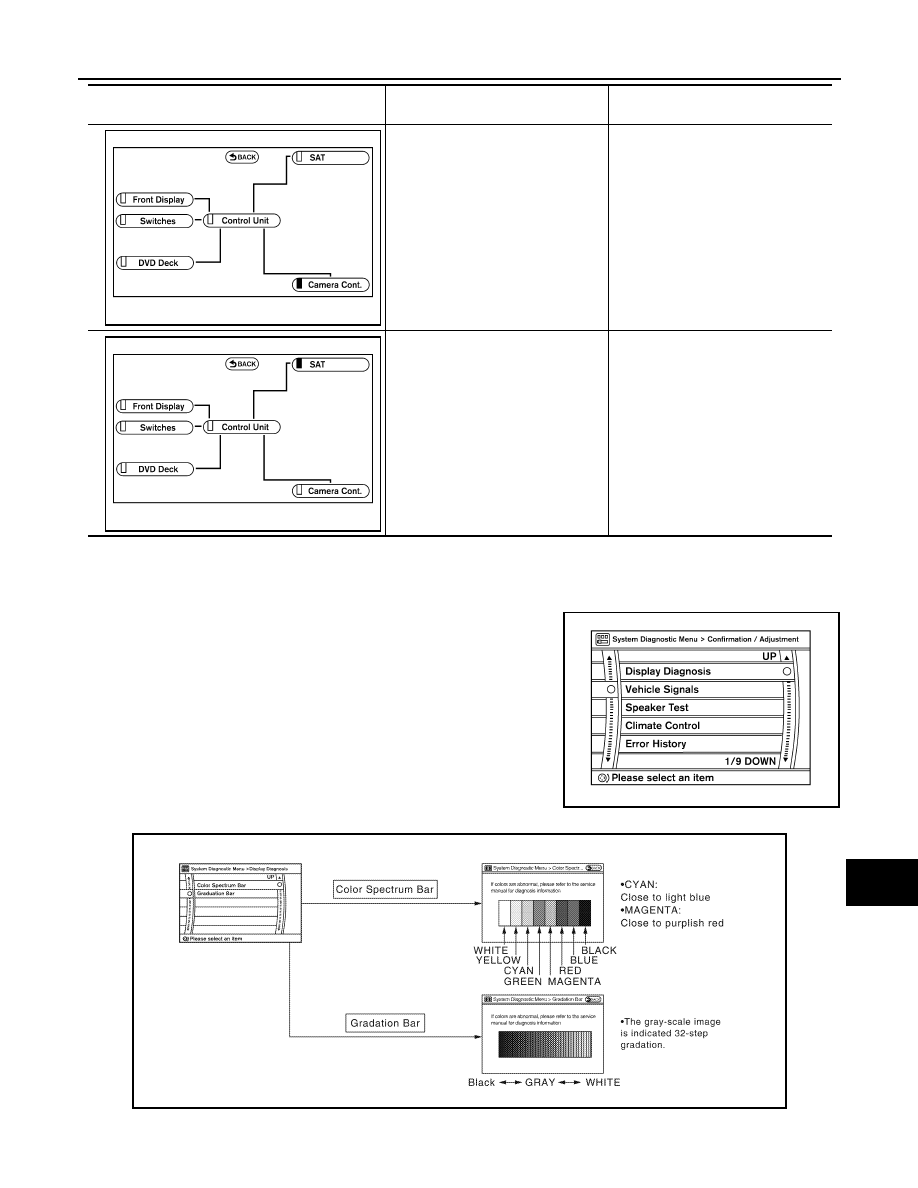

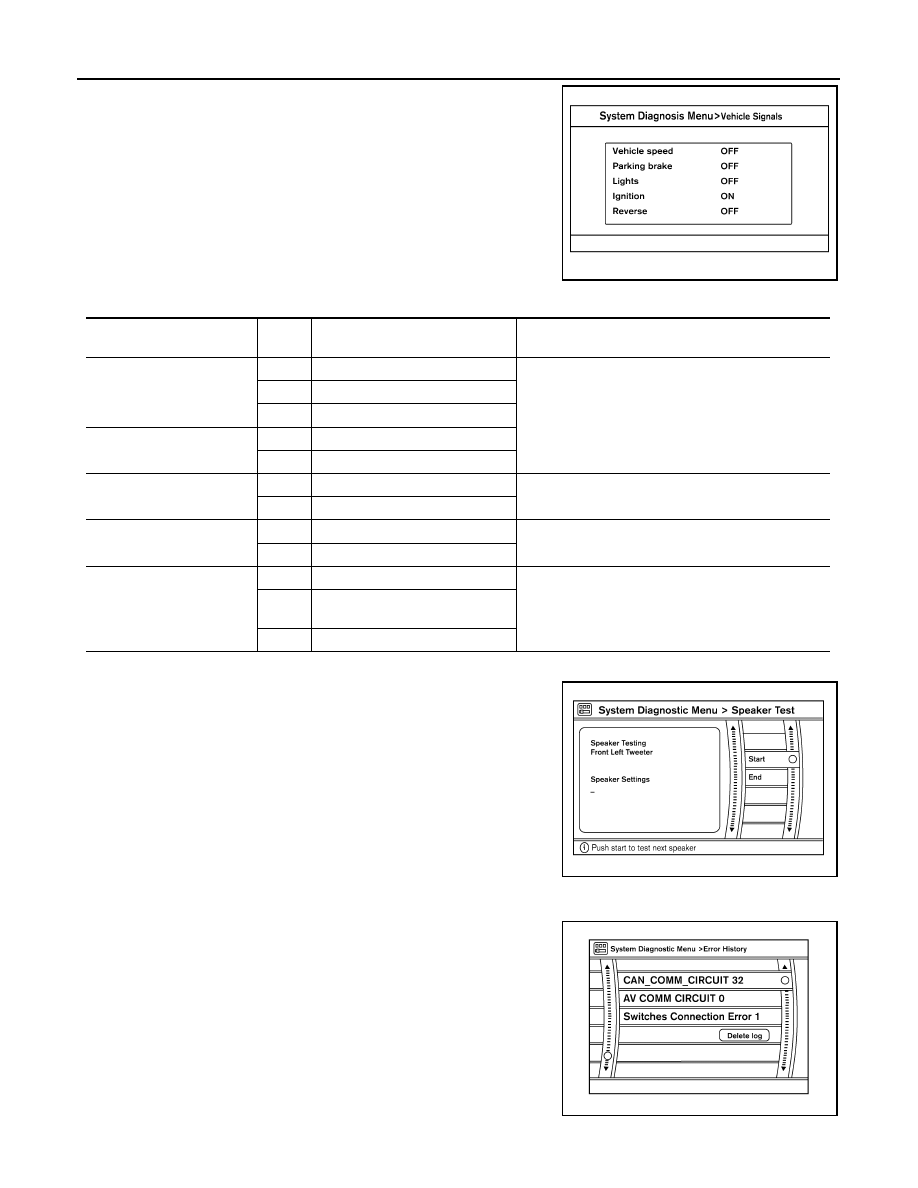

AV DIAGNOSIS SYSTEM (AV CONTROL UNIT) AV-55 < FUNCTION DIAGNOSIS > [MID AUDIO] C D E F G H I J K L M B A O P 4. The initial trouble diagnosis screen will be displayed, and items “Self-Diagnosis” and “Confirmation/Adjustment” can be selected. SELF-DIAGNOSIS 1. Perform self-diagnosis by selecting “Self-Diagnosis”. • Self-diagnosis subdivision screen is displayed, and the self- diagnosis mode starts. • A bar graph visible on the center of the self-diagnosis subdivi- sion screen indicates progress of the trouble diagnosis. NOTE: Self-diagnosis requires approximately 10 seconds to complete. 2. Diagnosis results are displayed after the self-diagnosis is com- pleted. The unit names and the connection lines are color-coded according to the diagnostic results. Note: ing order of priority: red > yellow > gray. 3. Select a component on the “Self Diagnosis” screen and com- ments for the diagnosis results will be shown. Self-Diagnosis Results ALNIA0259GB ALNIA0258GB Diagnosis results Unit Connection line Normal Green Green Connection malfunc- Gray Yellow Unit malfunction Note Red Green ALNIA0519GB ALNIA0256GB 2010 Pathfinder 2010 Pathfinder |
