2010 Pathfinder

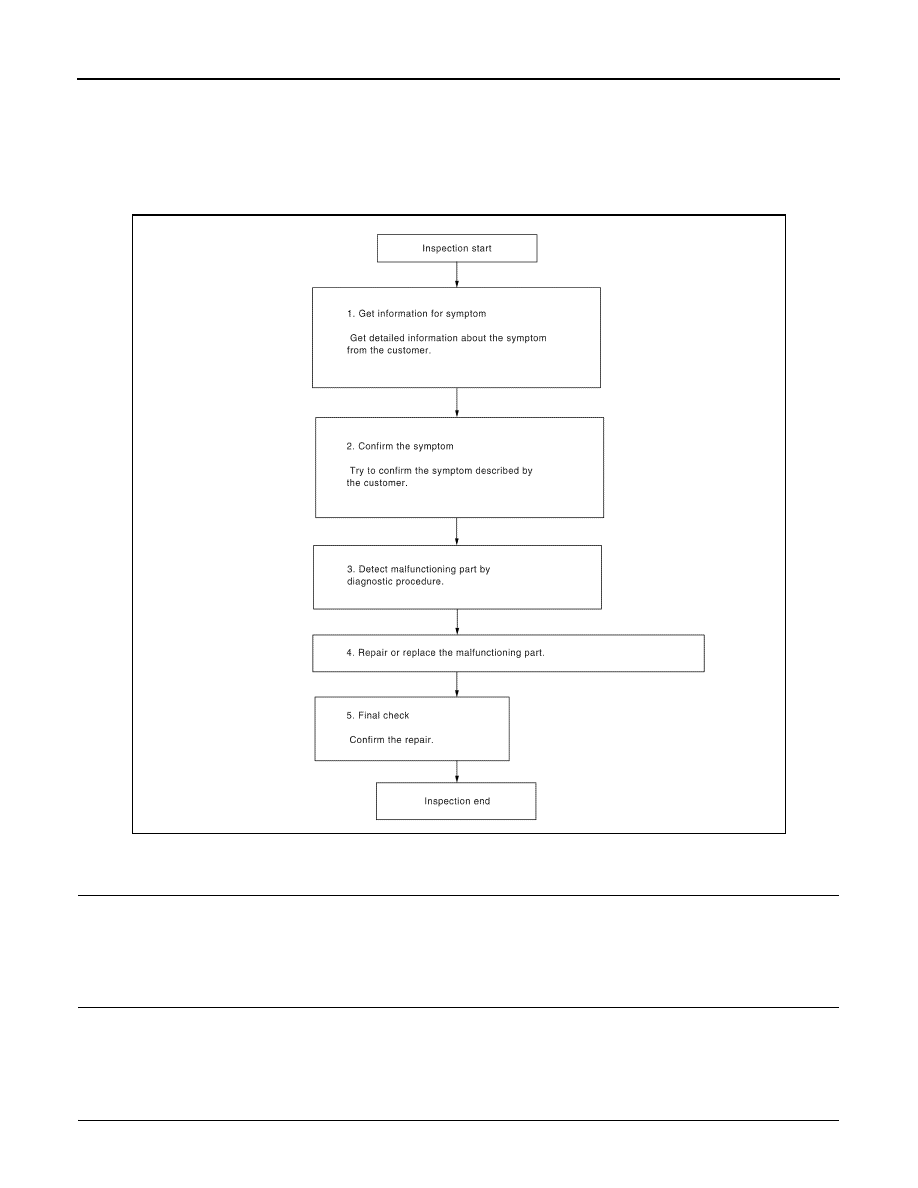

DIAGNOSIS AND REPAIR WORKFLOW

AV-11

< BASIC INSPECTION >

[BASE AUDIO]

Is malfunctioning part detected?

YES

>> GO TO 4

>> GO TO 2

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Has the symptom been repaired?

YES

>> Inspection End.

>> GO TO 2

2010 Pathfinder

AUDIO SYSTEM

AV-13

< FUNCTION DIAGNOSIS >

[BASE AUDIO]

Component Description

INFOID:0000000005259249

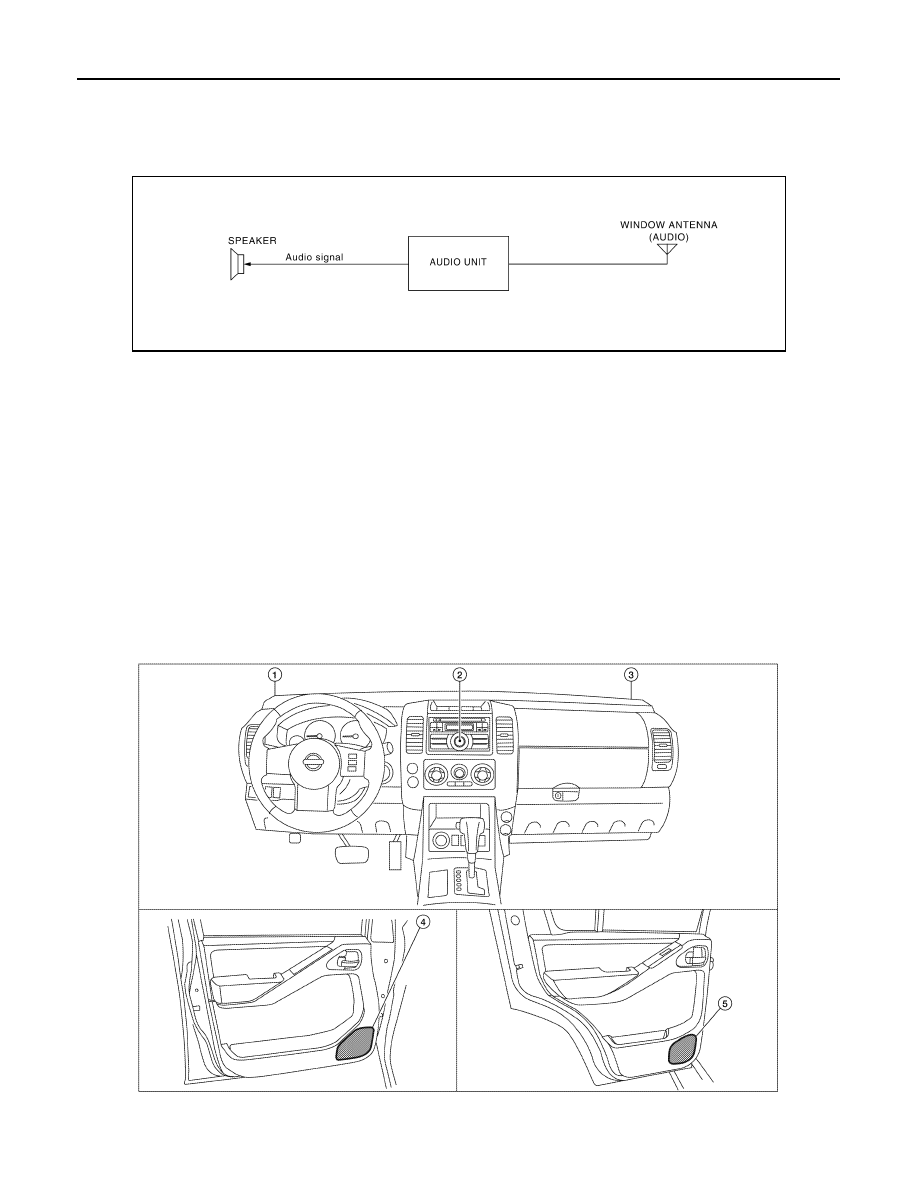

Front tweeter LH M109

Audio unit M38

Front tweeter RH M111

Front door speaker
LH D12
RH D112

Rear door speaker
LH D209
RH D309

Part name

Description

Audio unit

Controls audio system functions

Front door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio unit
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

2010 Pathfinder

AV-14

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

POWER SUPPLY AND GROUND CIRCUIT

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

AUDIO UNIT
AUDIO UNIT : Diagnosis Procedure

INFOID:0000000005259250

Regarding Wiring Diagram information, refer to

AV-23, "Wiring Diagram"

CHECK FUSES

Check that the following fuses are not blown.

Are the fuses OK?

YES

>> GO TO 2

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

POWER SUPPLY CIRCUIT CHECK

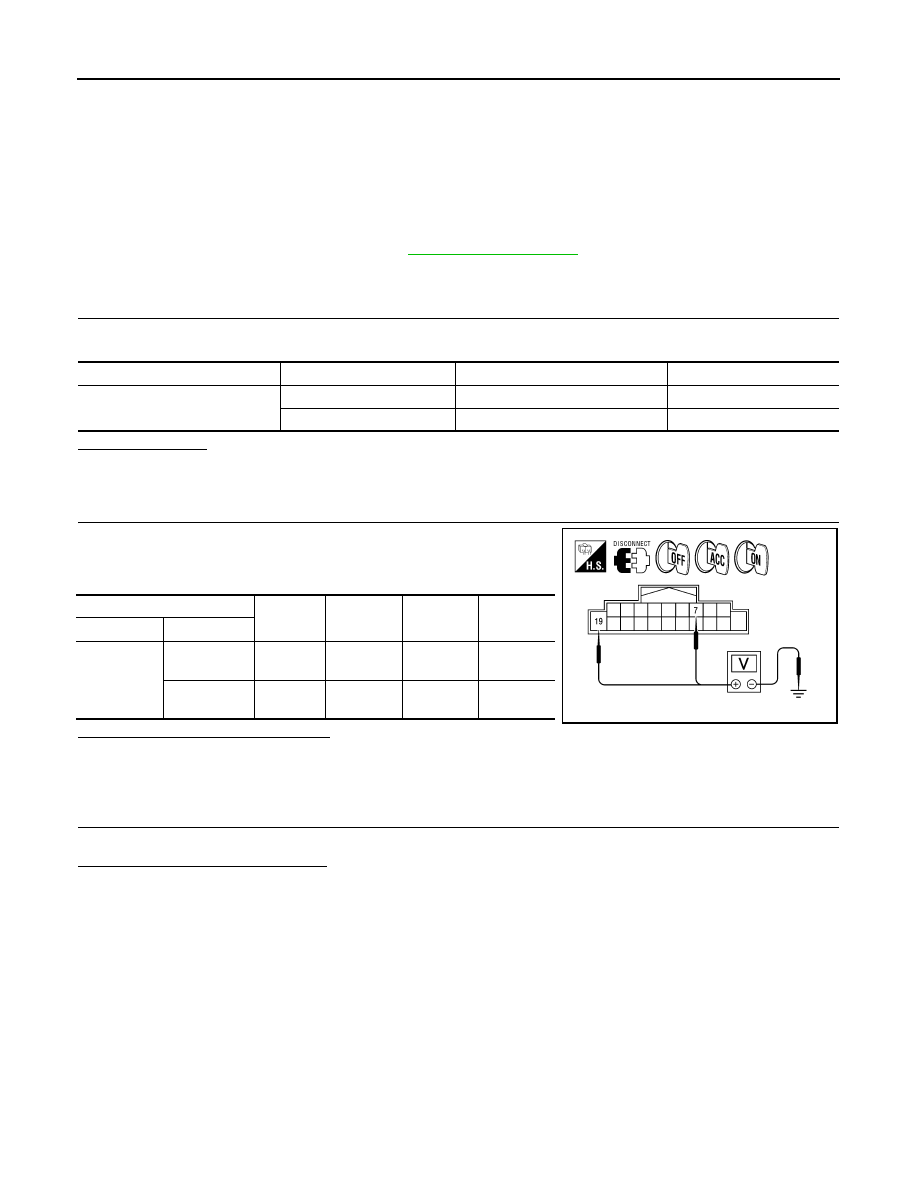

1. Disconnect audio unit connector M38.

2. Check voltage between the audio unit connector M38 and

ground.

Are the voltage results as specified?

YES

>> GO TO 3

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

GROUND CIRCUIT CHECK

Inspect audio unit case ground.
Does case ground pass inspection?

YES

>> Inspection End.

>> Repair audio unit case ground.

Unit

Terminals

Signal name

Fuse No.

Audio unit

Battery power

Ignition switch ACC or ON

(+)

(-)

OFF

ACC

Connector

Terminal

M38

Ground

Battery
voltage

Ground

Battery
voltage

WKIA5769E
