Nissan Pathfinder (2010 year). Manual - part 22

ADP-162

< ON-VEHICLE REPAIR >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation

INFOID:0000000005256760

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1. Remove the battery negative terminal.
2. Remove the instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

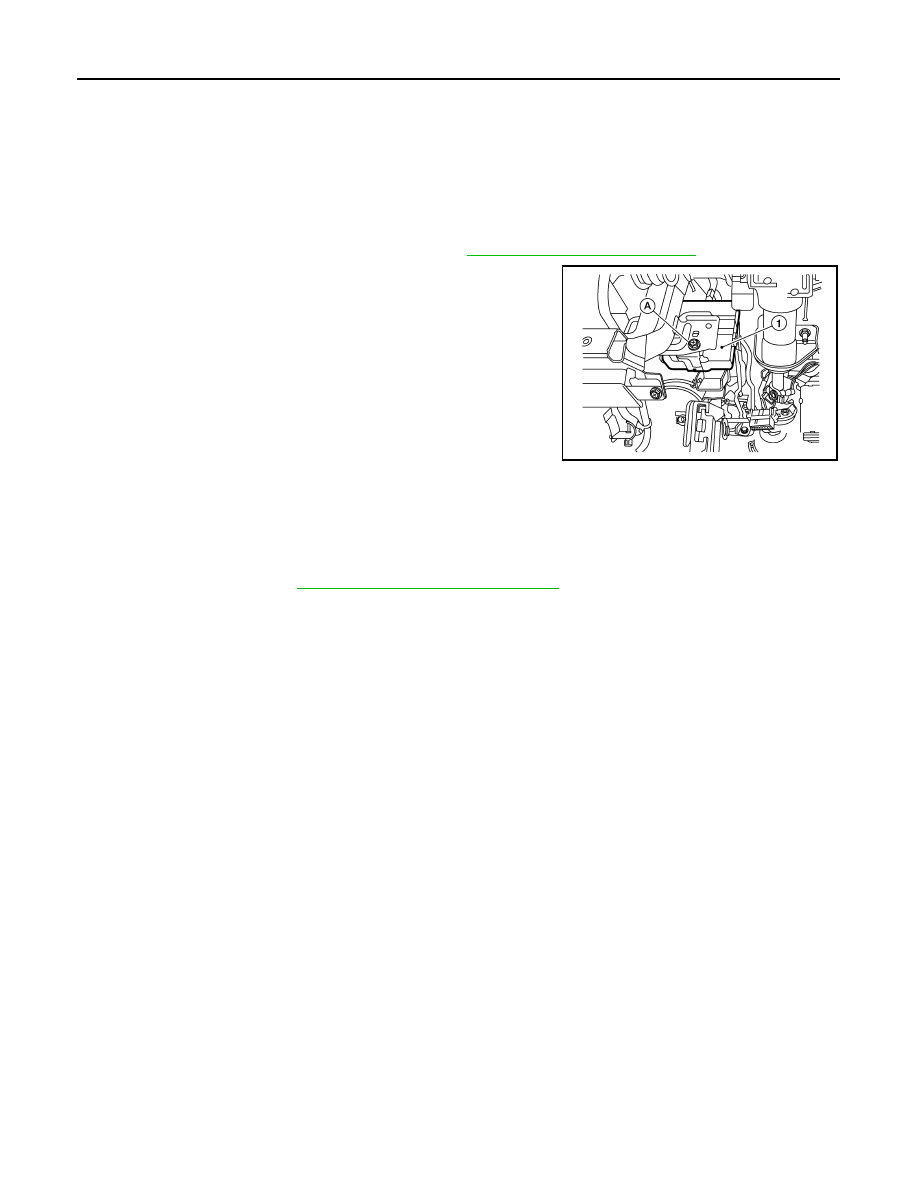

3. Remove the screw (A).
4. Remove automatic drive positioner control unit (1) from bracket

and disconnect electrical connectors.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Clamp the harness in position.

NOTE:

After installing the automatic drive positioner control unit, perform additional service when disconnecting bat-

tery negative terminal. Refer to

ADP-9, "Special Repair Requirement"

.

ALIIA0210GB

2010 Pathfinder

SEAT MEMORY SWITCH

ADP-163

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000005256761

Refer to

INT-14, "Removal and Installation"

 for removal and installation of seat memory switch.

2010 Pathfinder

ADP-164

< ON-VEHICLE REPAIR >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000005256762

Refer to

MIR-15, "Door Mirror Assembly"

 for removal and installation of door mirror remote control switch.

2010 Pathfinder

PEDAL ADJUSTING MOTOR

ADP-165

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PEDAL ADJUSTING MOTOR

Removal and Installation

INFOID:0000000005256763

Refer to

ADP-165, "Removal and Installation"

.

2010 Pathfinder

AP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

AP

A

B

AP

N

O

P

CONTENTS

ADJUSTABLE PEDAL

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Repair Work Flow ......................................................

2

INSPECTION AND ADJUSTMENT .....................

4

Preliminary Check  .....................................................

4

FUNCTION DIAGNOSIS ...............................

5

ADJUSTABLE PEDAL SYSTEM ........................

5

Automatic Drive Positioner Interlocking Adjustable
Pedal .........................................................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

COMPONENT DIAGNOSIS  ..........................

6

ADJUSTABLE PEDAL SYSTEM ........................

6

Pedal Adjusting Switch Power Supply and Ground
Circuit Inspection .......................................................

6

Pedal Adjusting Motor Circuit Inspection  ..................

6

Wiring Diagram .........................................................

8

SYMPTOM DIAGNOSIS  ..............................

11

ADJUSTABLE PEDAL SYSTEM ......................

11

Symptom Table  .......................................................

11

PRECAUTION ..............................................

12

PRECAUTIONS .................................................

12

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

12

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

12

Precaution for Work .................................................

13

ON-VEHICLE REPAIR .................................

14

ADJUSTABLE PEDAL SYSTEM ......................

14

Removal and Installation  .........................................

14

2010 Pathfinder

AP-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000005260238

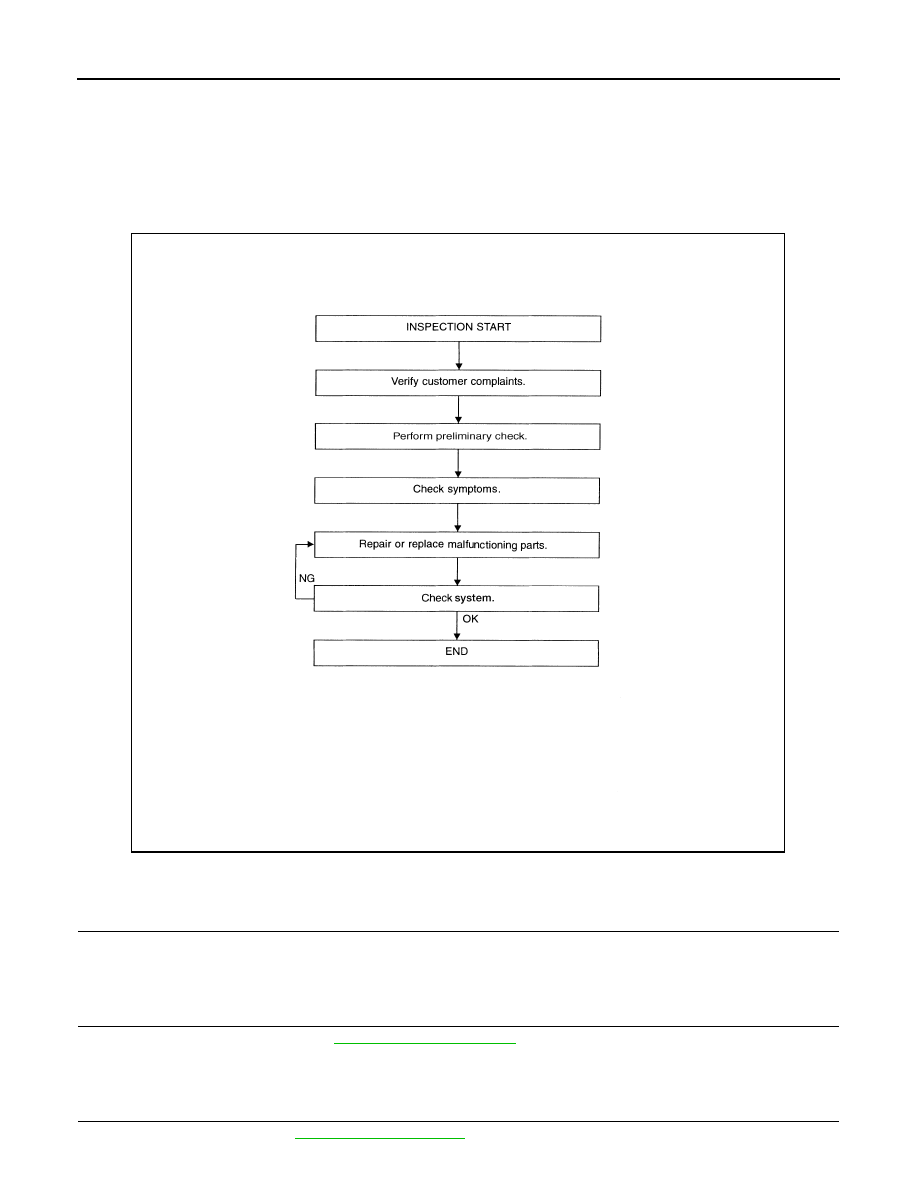

WORK FLOW

DETAILED FLOW

1.

 CUSTOMER INFORMATION

Talk to the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

 PRELIMINARY CHECK

Perform preliminary check.  Refer to

AP-4, "Preliminary Check"

.

>> GO TO 3

3.

 SYMPTOM

Check for symptoms.  Refer to

AP-11, "Symptom Table"

.

AWJIA0001GB

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

AP-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

>> GO TO 4

4.

 MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 5

5.

 SYSTEM CHECK

Operate the pedal adjusting switch to ensure that the pedals move completely forward and backward.
Does the system operate normally?

YES

>> Inspection End.

NO

>> Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

AP-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000005260239

1.

 FOREIGN OBJECTS

Check the following:

• objects on or behind the pedals that could cause binding
Are there any foreign objects that could be causing interference with the pedals?

YES

>> Remove objects.

NO

>> GO TO 2

2.

 WIRING CONNECTIONS

1. Disconnect pedal adjusting motor.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are any connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 3

3.

 POWER AND GROUND

Check power supply and ground circuits for pedal adjusting switch.  Refer to

AP-6, "Pedal Adjusting Switch

Power Supply and Ground Circuit Inspection"

.

Is the inspection result normal?

YES

>> Refer to

AP-11, "Symptom Table"

.

NO

>> Repair or replace as necessary.

2010 Pathfinder
