COLLISION DIAGNOSIS
SR-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
M
A
B
SR
N
O
P
For Side and Rollover Collision
INFOID:0000000003937550
Check the SRS components using the following table.
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
WHEN SRS IS ACTIVATED IN THE SIDE OR ROLLOVER COLLISION
1.
Replace the following components:
-
Front seat back assembly (on the side on which side air bag is activated)
-
Diagnosis sensor unit
-
(LH or RH) side air bag (satellite) sensor (on the side on which side air bag is activated)
2.
Check the SRS components and the related parts using the following table.
-
Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
3.

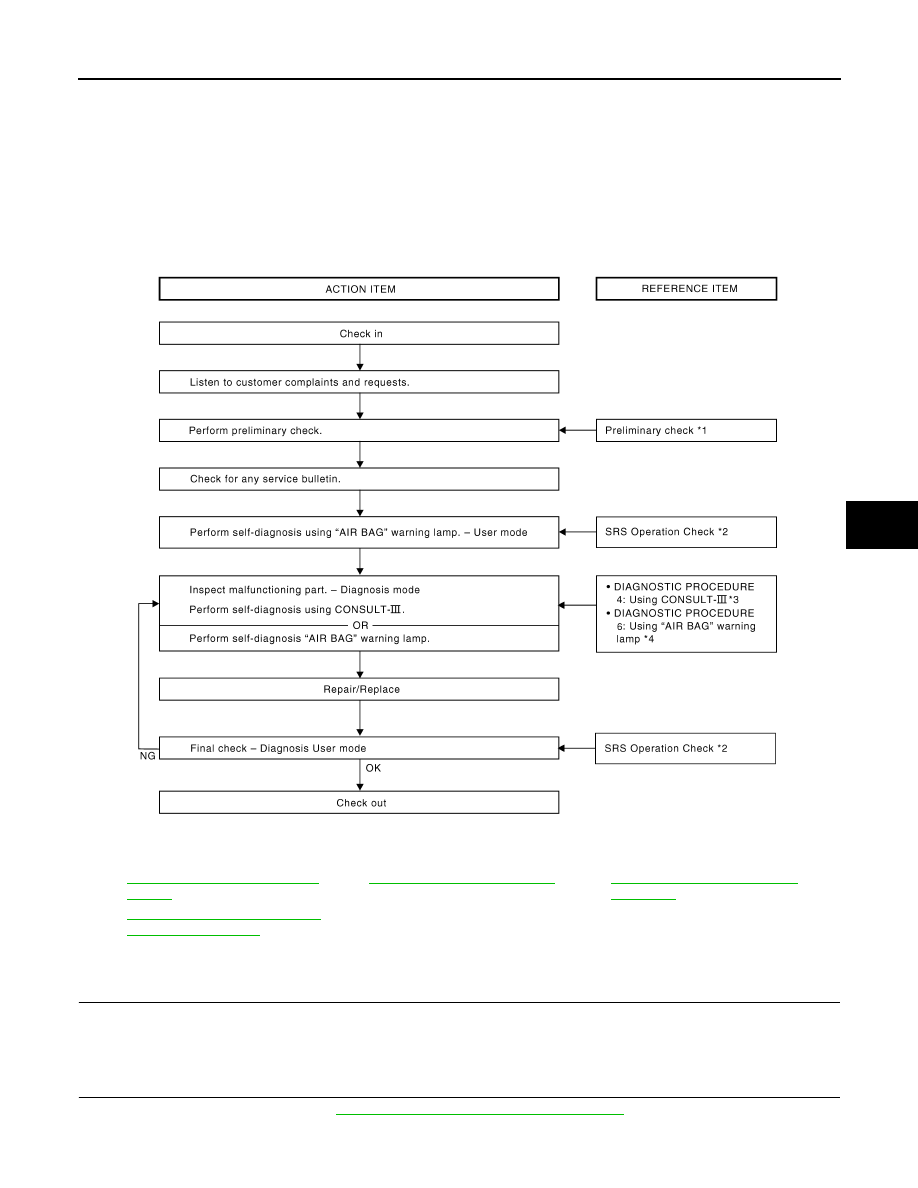

Conduct self-diagnosis using CONSULT-III and “AIR BAG” warning lamp. Refer to
for details. Ensure entire SRS operates properly.
WHEN SRS IS NOT ACTIVATED IN THE SIDE OR ROLLOVER COLLISION
1.
Check the SRS components and the related parts using the following table.
-
If the front seat back assembly is damaged, the front seat back assembly must be replaced.
2.
Conduct self-diagnosis using CONSULT-III and “AIR BAG” warning lamp. Refer to
for details. Ensure entire SRS operates properly.
SRS INSPECTION (FOR SIDE AND ROLLOVER COLLISION)
Steering wheel
1.
Visually check steering wheel for deformities.
2.
Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.
3.
Install driver air bag module into the steering wheel to check fit and alignment with the wheel.
4.
Check steering wheel for excessive free play.
5.
If no damage is found, reinstall.
6.
If damaged—REPLACE.
Spiral cable
If the driver front air
bag has deployed:
REPLACE the spiral
cable.
If the driver front air bag has not deployed:
1.
Visually check spiral cable and combination switch for damage.
2.
Check connectors and protective tape for damage.
3.
Check steering wheel for noise, binding or heavy operation.
4.
If no damage is found, reinstall.
5.
If damaged—REPLACE.
Occupant classifica-
tion system (Passen-
ger seat)
1.
Remove passenger seat.
2.
Check control unit case for dents, cracks of deformities.
3.
Check connectors and pressure sensor tube for damage, and terminals for deformities.
4.
Check seat frame and cushion pan for dents or deformities.
5.
If no damage is found, reinstall seat with new fasteners.
6.
If damaged — REPLACE seat cushion assembly with new fasteners.
Harness and connec-
tors
1.
Check connectors for poor connection, damage, and terminals for deformities.
2.
Check harness for binding, chafing, cuts, or deformities.
3.
If no damage is found, reinstall the harness and connectors.
4.
If damaged—REPLACE the damaged harness. Do not attempt to repair, splice or modify any SRS har-
ness.
Instrument panel
If the passenger front
air bag has deployed:
REPLACE the instru-
ment panel assembly.
If the passenger front air bag has NOT deployed:
1.
Visually check instrument panel for damage.
2.
If no damage is found, reinstall the instrument panel.
3.
If damaged—REPLACE the instrument panel.
Part
SRS is activated
SRS is NOT activated
