Nissan Pathfinder (2009 year). Manual - part 547





PWC-56

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

DTC Inspection Priority Chart

INFOID:0000000004422049

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

DTC Index

INFOID:0000000004422050

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

U1010: CONTROL UNIT (CAN)

Inhibit engine cranking

When the BCM re-start communicating with the other modules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

2009 Pathfinder

BCM (BODY CONTROL MODULE)

PWC-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

—

—

—

BCS-33

U1010: CONTROL UNIT (CAN)

—

—

—

BCS-34

B2013: STRG COMM 1

—

—

—

SEC-27

B2190: NATS ANTTENA AMP

—

—

—

SEC-30

 (with I-

Key),

SEC-136



(without I-Key)

B2191: DIFFERENCE OF KEY

—

—

—

SEC-33

 (with I-

Key),

SEC-139



(without I-Key)

B2192: ID DISCORD BCM-ECM

—

—

—

SEC-34

 (with I-

Key),

SEC-140



(without I-Key)

B2193: CHAIN OF BCM-ECM

—

—

—

SEC-36

 (with I-

Key),

SEC-142



(without I-Key)

B2552: INTELLIGENT KEY

—

—

—

SEC-38

B2590: NATS MALFUNCTION

—

—

—

SEC-39

C1708: [NO DATA] FL

—

—

—

WT-14

C1709: [NO DATA] FR

—

—

—

WT-14

C1710: [NO DATA] RR

—

—

—

WT-14

C1711: [NO DATA] RL

—

—

—

WT-14

C1712: [CHECKSUM ERR] FL

—

—

—

WT-16

C1713: [CHECKSUM ERR] FR

—

—

—

WT-16

C1714: [CHECKSUM ERR] RR

—

—

—

WT-16

C1715: [CHECKSUM ERR] RL

—

—

—

WT-16

C1716: [PRESSDATA ERR] FL

—

—

—

WT-18

C1717: [PRESSDATA ERR] FR

—

—

—

WT-18

C1718: [PRESSDATA ERR] RR

—

—

—

WT-18

C1719: [PRESSDATA ERR] RL

—

—

—

WT-18

C1720: [CODE ERR] FL

—

—

—

WT-16

C1721: [CODE ERR] FR

—

—

—

WT-16

C1722: [CODE ERR] RR

—

—

—

WT-16

C1723: [CODE ERR] RL

—

—

—

WT-16

C1724: [BATT VOLT LOW] FL

—

—

—

WT-16

C1725: [BATT VOLT LOW] FR

—

—

—

WT-16

C1726: [BATT VOLT LOW] RR

—

—

—

WT-16

C1727: [BATT VOLT LOW] RL

—

—

—

WT-16

C1729: VHCL SPEED SIG ERR

—

—

—

WT-19

C1735: IGNITION SWITCH

—

—

—

—

2009 Pathfinder

PWC-58

< ECU DIAGNOSIS >

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000003935788

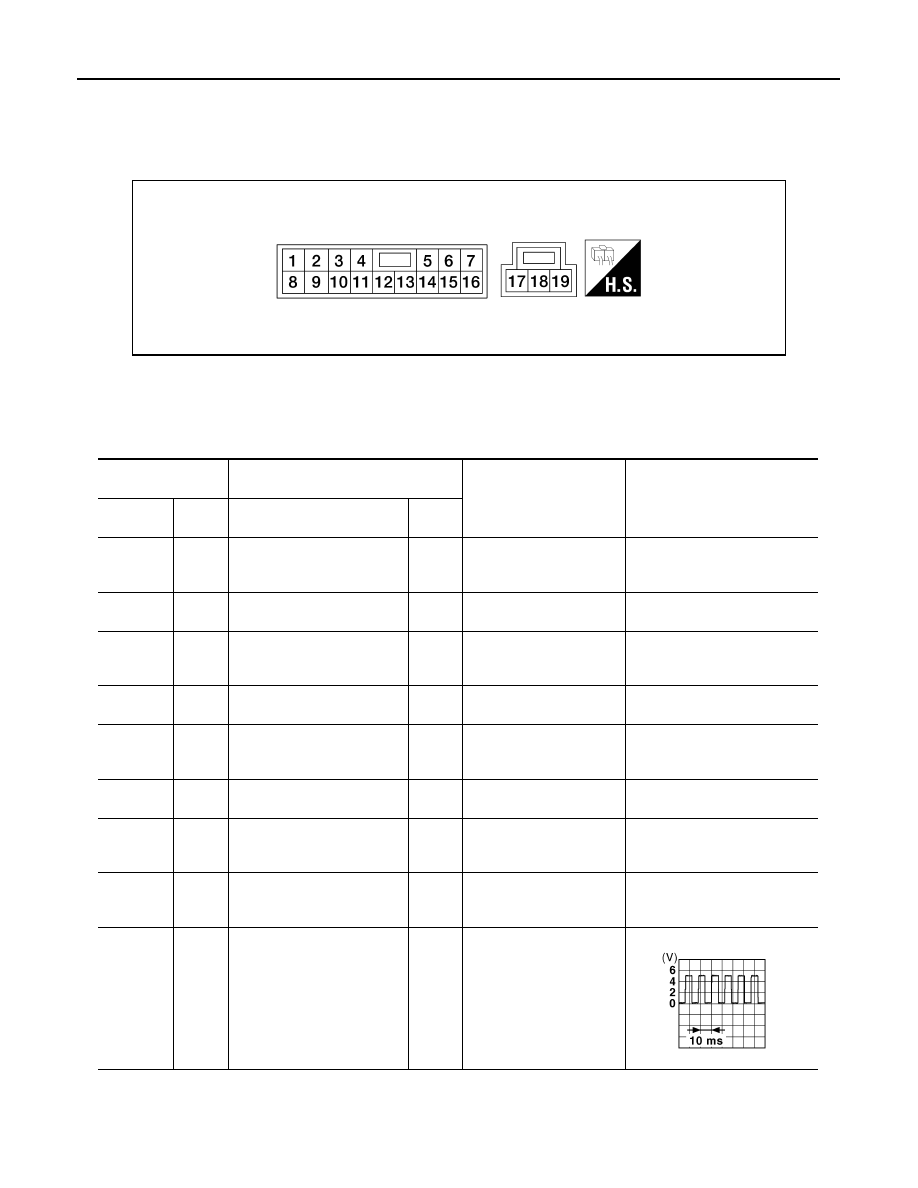

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

LIIA2455E

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is operated UP.

Battery voltage

2

(BR)

Ground

Encoder ground

—

—

0

3

(LG)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is operated DOWN.

Battery voltage

4

(SB)

Ground

Door key cylinder switch LH
LOCK signal

Input

Key position
(Neutral

→

 Locked)

5

→

 0

5

(P)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is operated DOWN.

Battery voltage

6

(R/W)

Ground

Door key cylinder switch LH
UNLOCK signal

Input

Key position
(Neutral

→

 Unlocked)

5

→

 0

7

(Y)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is operated UP.

Battery voltage

8

(O)

11

Front door power window mo-
tor LH UP signal

Output

When front LH switch in
power window main switch
is operated UP.

 Battery voltage

9

(Y)

2

Encoder pulse signal 2

Input

When power window mo-
tor operates.

JMKIA0070GB

2009 Pathfinder

POWER WINDOW MAIN SWITCH

PWC-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

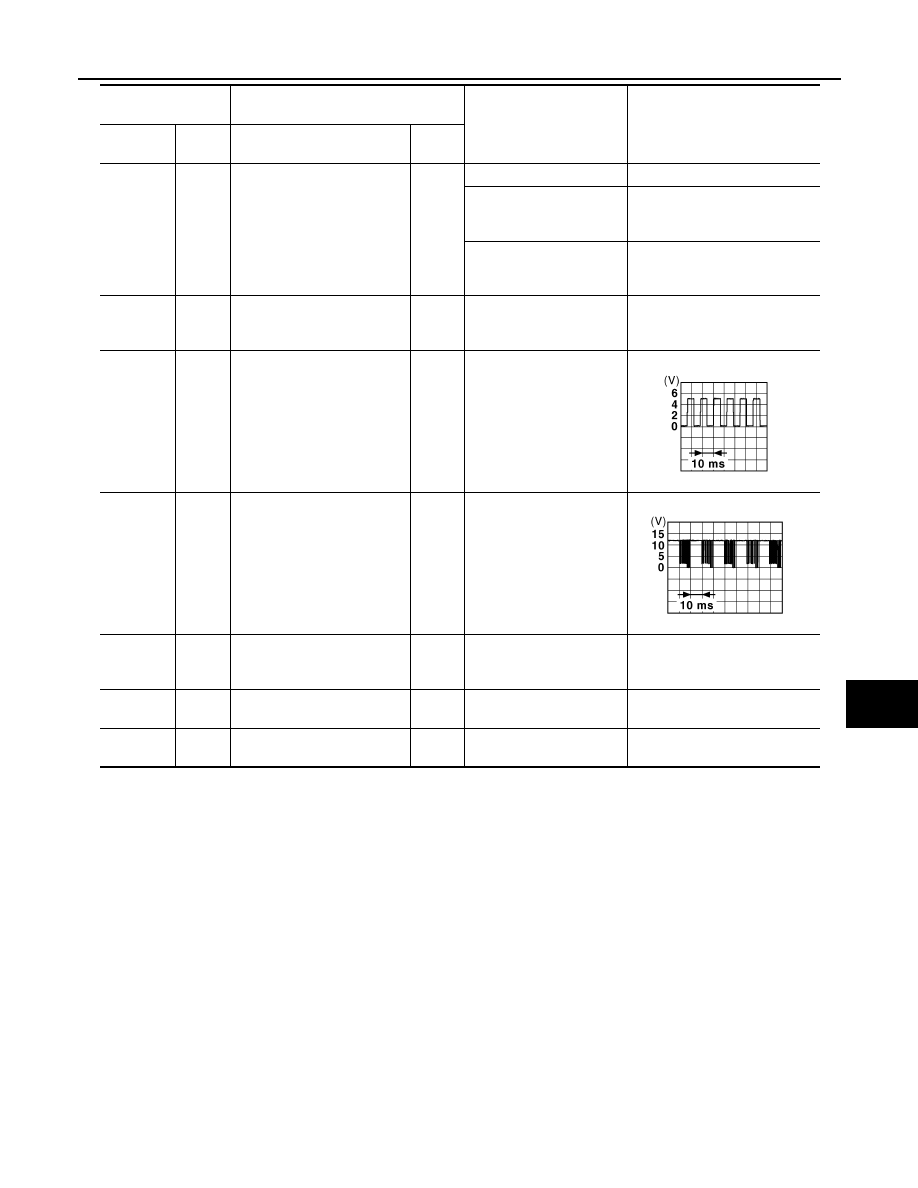

10

(W/R)

Ground

RAP signal

Input

IGN SW ON

Battery voltage

Within 45 second after ig-
nition switch is turned to
OFF.

Battery voltage

When front LH or RH door
is opened during retained
power operation.

0

11

(GR)

8

Front door power window mo-
tor LH DOWN signal

Output

When front LH switch in
power window main switch
is operated DOWN.

 Battery voltage

13

(LB)

2

Encoder pulse signal 1

Input

When power window mo-
tor operates.

14

(V)

Ground

Power window serial link

Input/

Output

IGN SW ON or power win-
dow timer operating.

15

(W/R)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer oper-
ates.

10

17

(B)

Ground

Ground

—

—

0

19

(L)

Ground

Battery power supply

Input

—

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

2009 Pathfinder

PWC-60

< ECU DIAGNOSIS >

POWER WINDOW MAIN SWITCH

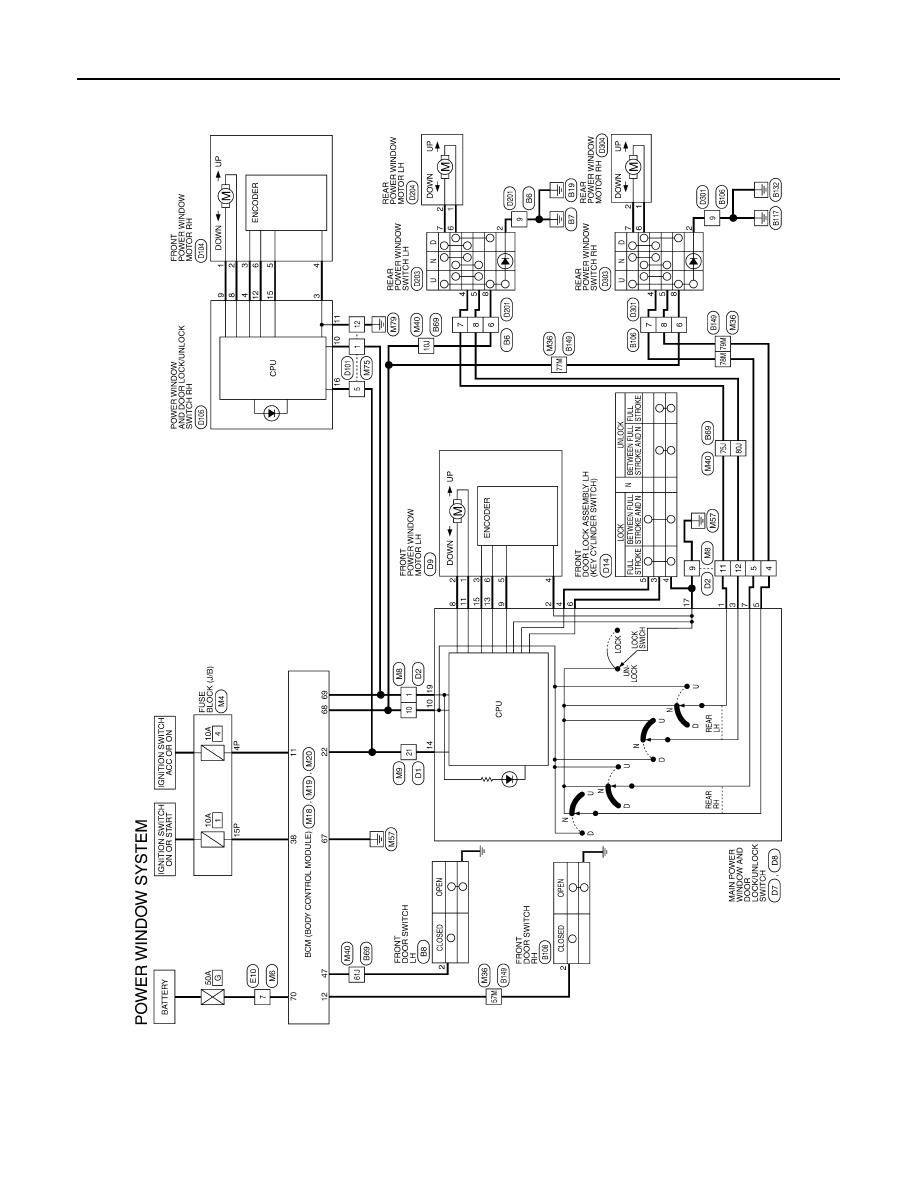

Wiring Diagram

INFOID:0000000003935789

ABKWA0103GB

2009 Pathfinder

POWER WINDOW MAIN SWITCH

PWC-61

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

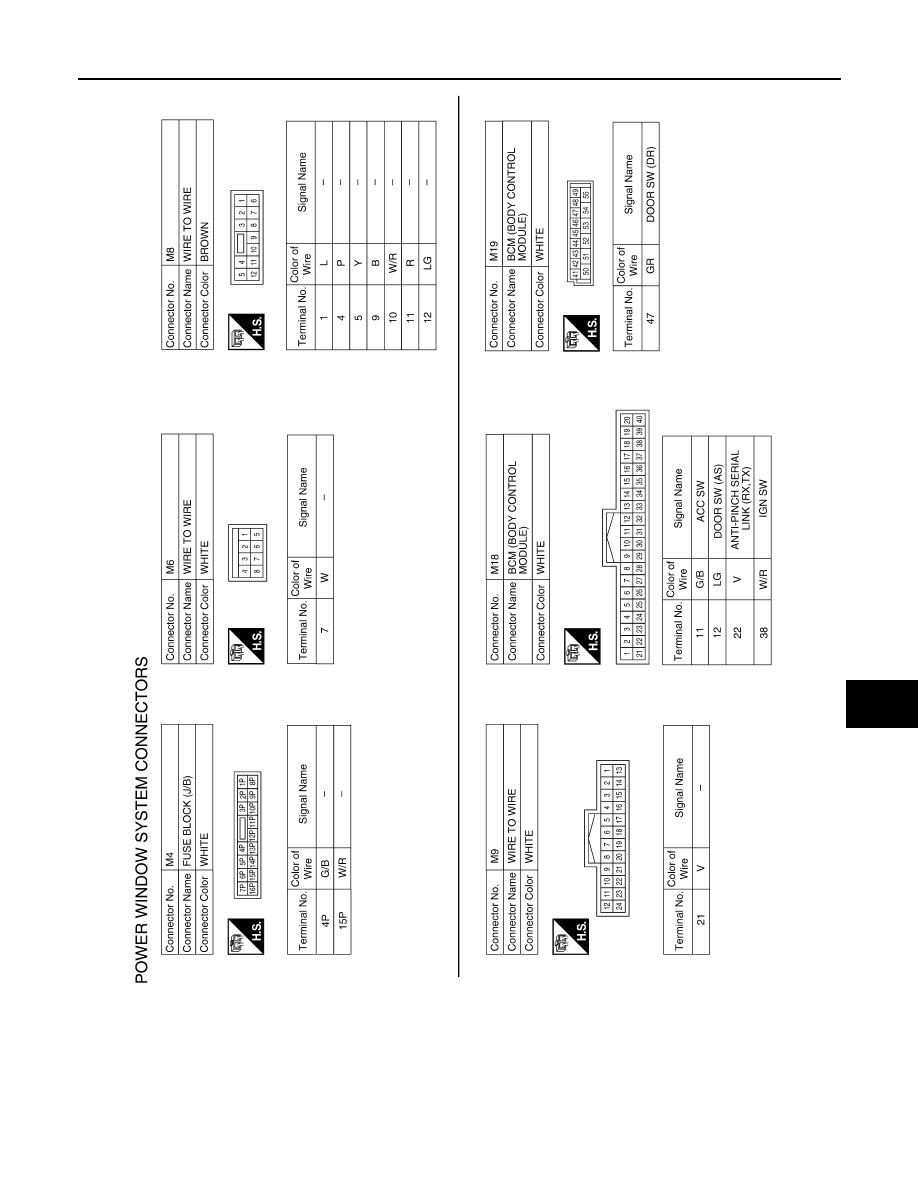

ABKIA0494GB

2009 Pathfinder

PWC-62

< ECU DIAGNOSIS >

POWER WINDOW MAIN SWITCH

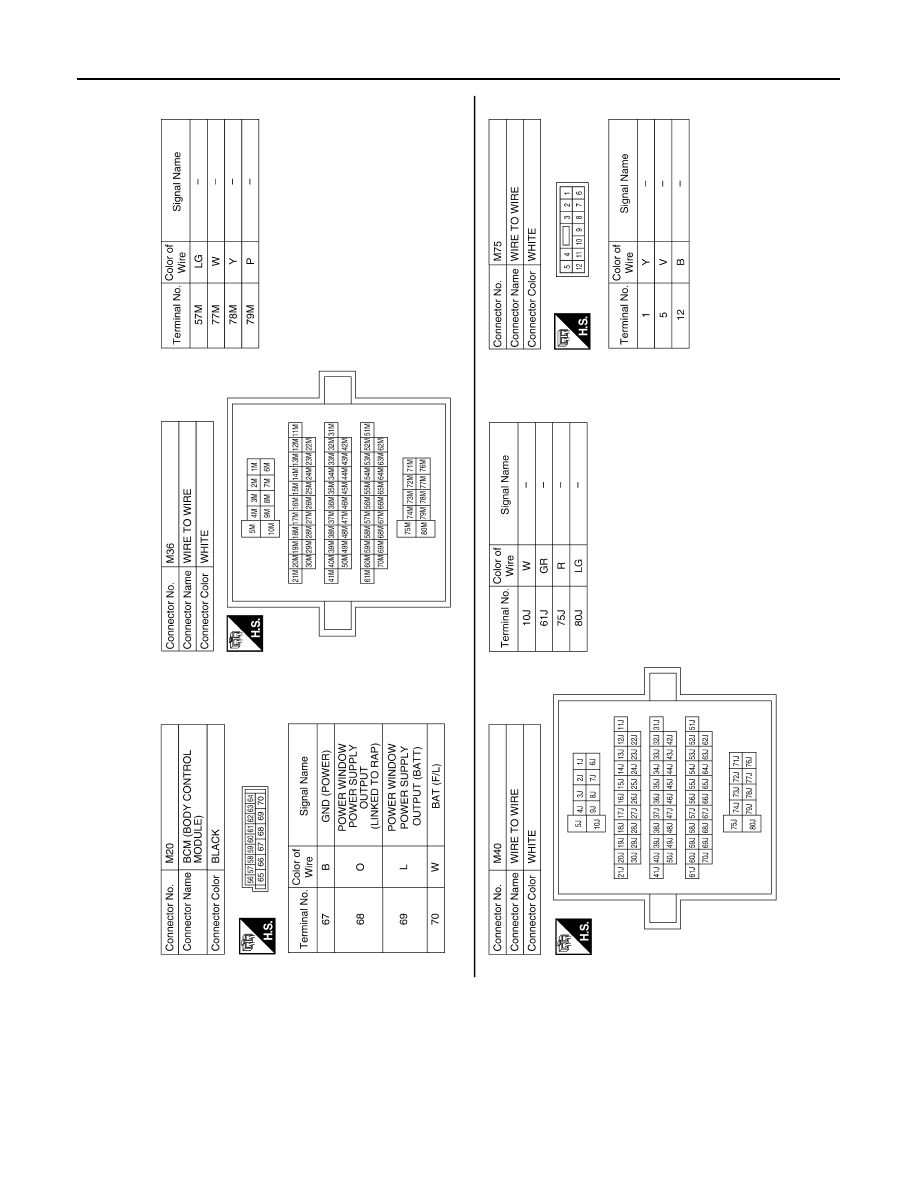

ABKIA0330GB

2009 Pathfinder

POWER WINDOW MAIN SWITCH

PWC-63

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

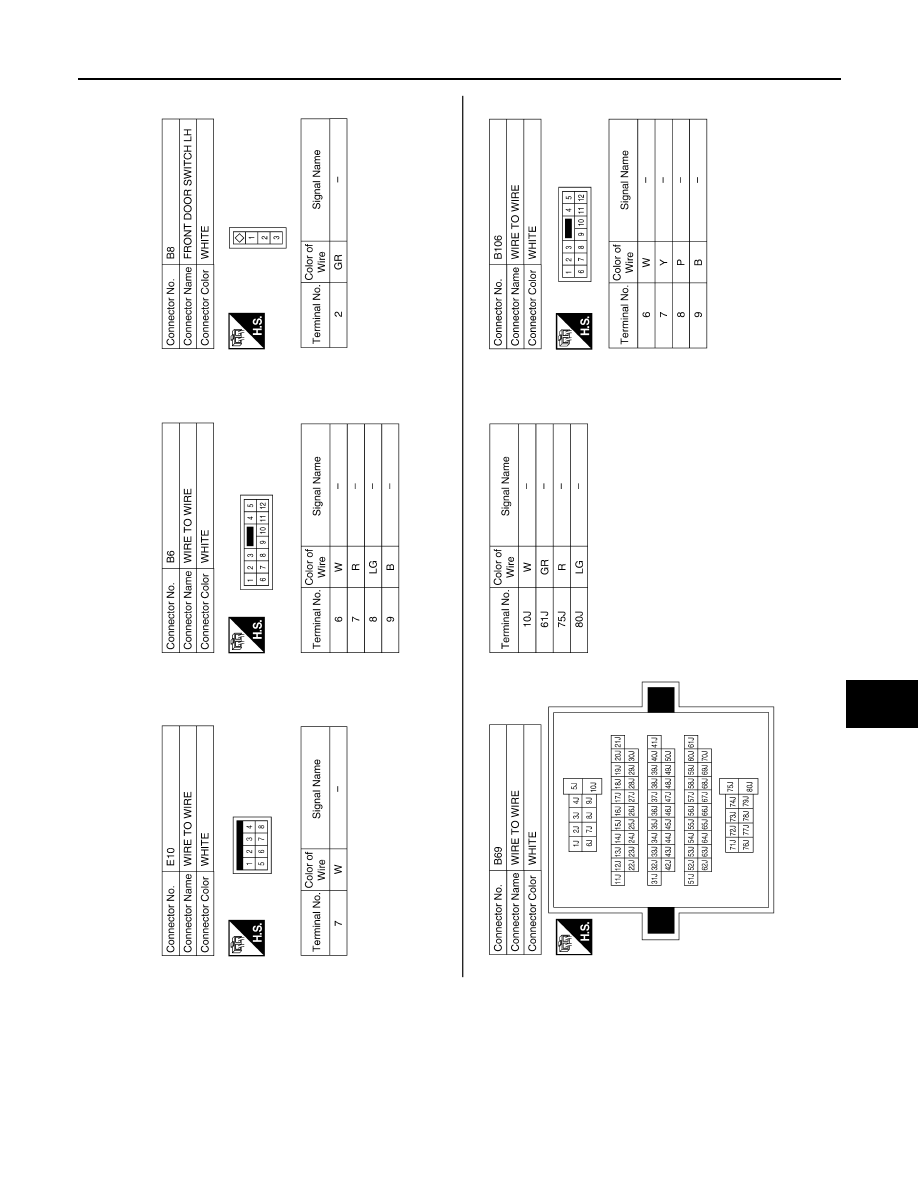

ABKIA0331GB

2009 Pathfinder
