PCS-14

< FUNCTION DIAGNOSIS >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT - III Function (IPDM E/R)

INFOID:0000000003935626

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

PCS-31, "DTC Index"

.

DATA MONITOR

Monitor item

Any of the following components do not operate

• Front wipers
• Tail  lamps
• License plate lamps
• Parking lamps
• Front fog lamps (if equipped)
• Headlamps (Hi, Lo)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input system

NO

• Lamp or front wiper motor

malfunction

• Lamp or front wiper motor

ground circuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM E/R (integrated relay

malfunction)

A/C compressor does not operate

Perform auto active test.
Does the A/C compressor op-
erate?

YES

• BCM signal input circuit
• CAN communication signal

between BCM and ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Magnetic clutch malfunction
• Harness or connector be-

tween IPDM E/R and mag-
netic clutch

• IPDM E/R (integrated relay

malfunction)

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal

between ECM and IPDM E/
R

NO

• Cooling fan motor malfunc-

tion

• Harness or connector be-

tween IPDM E/R and cool-
ing fan

• IPDM E/R (integrated relay

malfunction)

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

ECU Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

2009 Pathfinder

PCS

DIAGNOSIS SYSTEM (IPDM E/R)

PCS-15

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

Test item

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

MOTOR FAN REQ
[1/2/3/4]

×

Displays the status of the cooling fan speed request signal received from ECM via
CAN communication.

A/C COMP REQ
[OFF/ON]

×

Displays the status of the A/C request signal received from AV control unit via
CAN communication.

TAIL&CLR REQ
[OFF/ON]

×

Displays the status of the position light request signal received from BCM via CAN
communication.

HL LO REQ
[OFF/ON]

×

Displays the status of the low beam request signal received from BCM via CAN
communication.

HL HI REQ
[OFF/ON]

×

Displays the status of the high beam request signal received from BCM via CAN
communication.

FR FOG REQ
[OFF/ON]

×

Displays the status of the front fog lamp request signal received from BCM via
CAN communication.

HL WASHER REQ
[OFF/ON]

NOTE:
This item is displayed, but cannot be monitored.

FR WIP REQ
[STOP/1LOW/LOW/HI]

×

Displays the status of the front wiper request signal received from BCM via CAN
communication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[OFF/Block]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

ST RLY REQ
[OFF/ON]

Displays the status of the starter request signal received from ECM via CAN com-
munication.

IGN RLY
[OFF/ON]

×

Displays the status of the ignition relay judged by IPDM E/R.

RR DEF REQ
[OFF/ON]

×

Displays the status of the rear defogger request signal received from AV control
unit via CAN communication.

OIL P SW
[OPEN/CLOSE]

Displays the status of the oil pressure switch judged by IPDM E/R.

DTRL REQ
[OFF]

NOTE:
This item is displayed, but cannot be monitored.

HOOD SW
[OPEN/CLOSE]

NOTE:
This item is displayed, but cannot be monitored.

THFT HRN REQ
[OFF/ON]

Displays the status of the theft warning horn request signal received from BCM
via CAN communication.

HORN CHIRP
[OFF/ON]

Displays the status of the horn reminder signal received from BCM via CAN com-
munication.

Test item

Operation

Description

REAR DEFOGGER

OFF

OFF

ON

Operates rear window defogger relay.

FRONT WIPER

OFF

OFF

LO

Operates the front wiper relay.

HI

Operates the front wiper relay and front wiper high relay.

HEAD LAMP WASHER

ON

—

2009 Pathfinder

PCS-16

< FUNCTION DIAGNOSIS >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

MOTOR FAN

1

OFF

2

OFF

3

Operates the cooling fan relay.

4

Operates the cooling fan relay.

EXTERNAL LAMPS

OFF

OFF

TAIL

Operates the tail lamp relay.

LO

Operates the headlamp low relay.

HI

Operates the headlamp low relay and the headlamp (LH/RH) high relays alter-
nately at 1 second intervals.

FOG

Operates the front fog lamp relay

HORN

ON

Operates horn relay for 20 ms.

Test item

Operation

Description

2009 Pathfinder

PCS

U1000 CAN COMM CIRCUIT

PCS-17

< COMPONENT DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000003935627

Refer to

LAN-4, "System Description"

.

DTC Logic

INFOID:0000000003935628

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

Diagnosis Procedure

INFOID:0000000003935629

1.

 PERFORM SELF DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “SELF-DIAG RESULTS” of IPDM E/R.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-5, "CAN Communication Control Circuit"

.

NO

>> Refer to

GI-49, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When IPDM E/R cannot communicate CAN
communication signal continuously for 2
seconds or more

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Receiving (TCM)
• Receiving (ECM)
• Receiving (BCM)
• Receiving (Combination meter)

2009 Pathfinder

PCS-18

< COMPONENT DIAGNOSIS >

[IPDM E/R]

POWER SUPPLY AND GROUND CIRCUIT

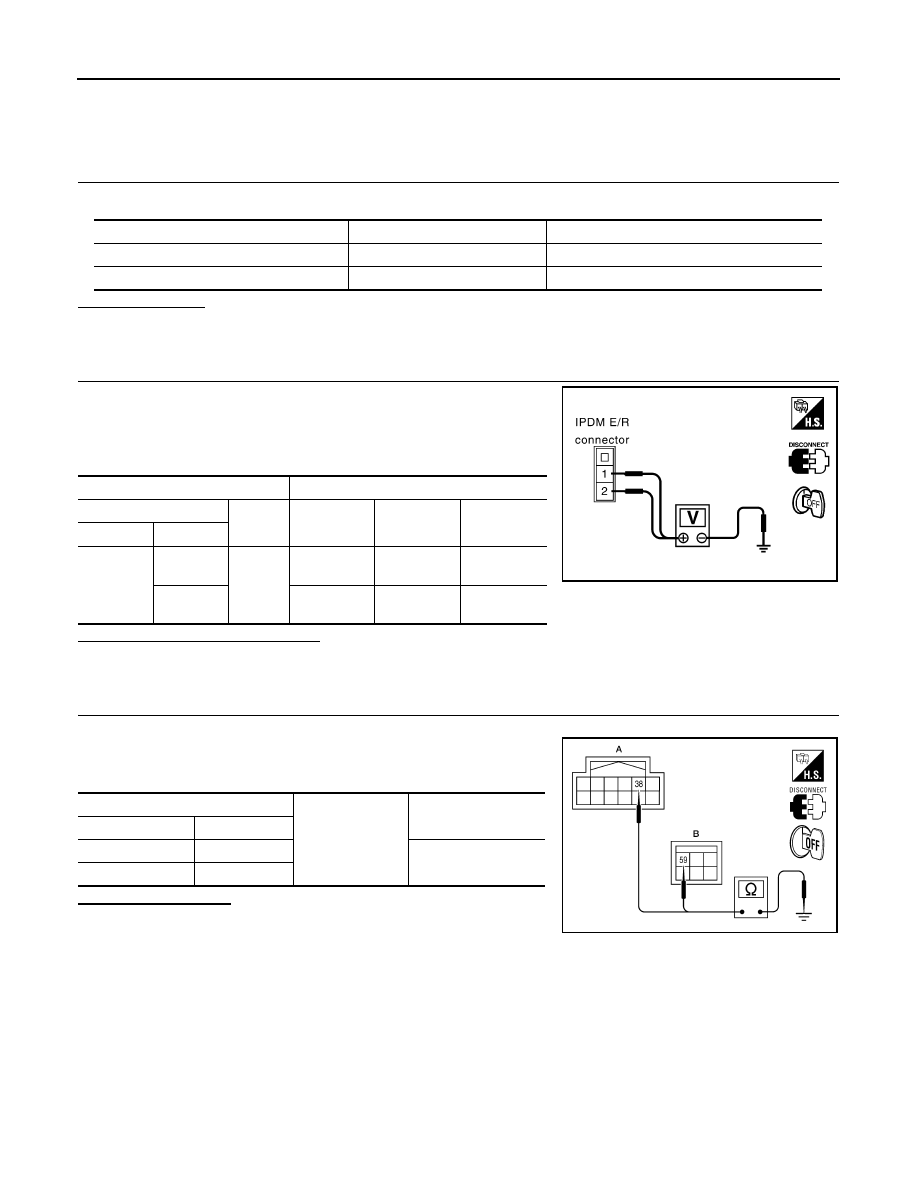

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000003935630

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK BATTERY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R.

3.

Check voltage between IPDM E/R harness connectors and
ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between IPDM E/R harness connectors and
ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

Terminal No.

Signal name

Fuses and fusible link No.

1

Battery

A, D

2

Battery

C

Terminals

Ignition switch position

(+)

(

−

)

OFF

ON

START

Connector

Terminal

E118

1

Ground

Battery
voltage

Battery
voltage

Battery
voltage

2

Battery
voltage

Battery
voltage

Battery
voltage

SKIA1987E

IPDM E/R

Ground

Continuity

Connector

Terminal

E122 (A)

38

Yes

E124 (B)

59

AWMIA0024ZZ

2009 Pathfinder

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-19

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000003935631

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

0 - 100 %

A/C COMP REQ

A/C switch OFF

OFF

A/C switch ON

ON

TAIL&CLR REQ

Lighting switch OFF

OFF

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

ON

HL LO REQ

Lighting switch OFF

OFF

Lighting switch 2ND HI or AUTO (Light is illuminated)

ON

HL HI REQ

Lighting switch OFF

OFF

Lighting switch HI

ON

FR FOG REQ

Lighting switch 2ND or AUTO (Light
is illuminated)

Front fog lamp switch OFF

OFF

• Front fog lamp switch ON
• Daytime light activated (Canada

only)

ON

H L WASHER REQ

NOTE:
This item is displayed, but cannot be monitored.

OFF

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

LOW

Front wiper switch HI

HI

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

OFF

Front wiper stops at fail-safe opera-
tion

BLOCK

ST RLY REQ

Ignition switch OFF or ACC

OFF

Ignition switch START

ON

IGN RLY

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

RR DEF REQ

Rear defogger switch OFF

OFF

Rear defogger switch ON

ON

OIL P SW

Ignition switch OFF, ACC or engine running

OPEN

Ignition switch ON

CLOSE

DTRL REQ

NOTE:
This item is displayed, but cannot be monitored.

OFF

HOOD SW

NOTE:
This item is displayed, but cannot be monitored.

OFF

2009 Pathfinder

PCS-20

< ECU DIAGNOSIS >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

THFT HRN REQ

Not operated

OFF

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

ON

HORN CHIRP

Not operated

OFF

Door locking with keyfob or Intelligent Key (if equipped) (horn chirp mode)

ON

Monitor Item

Condition

Value/Status

2009 Pathfinder

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-21

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

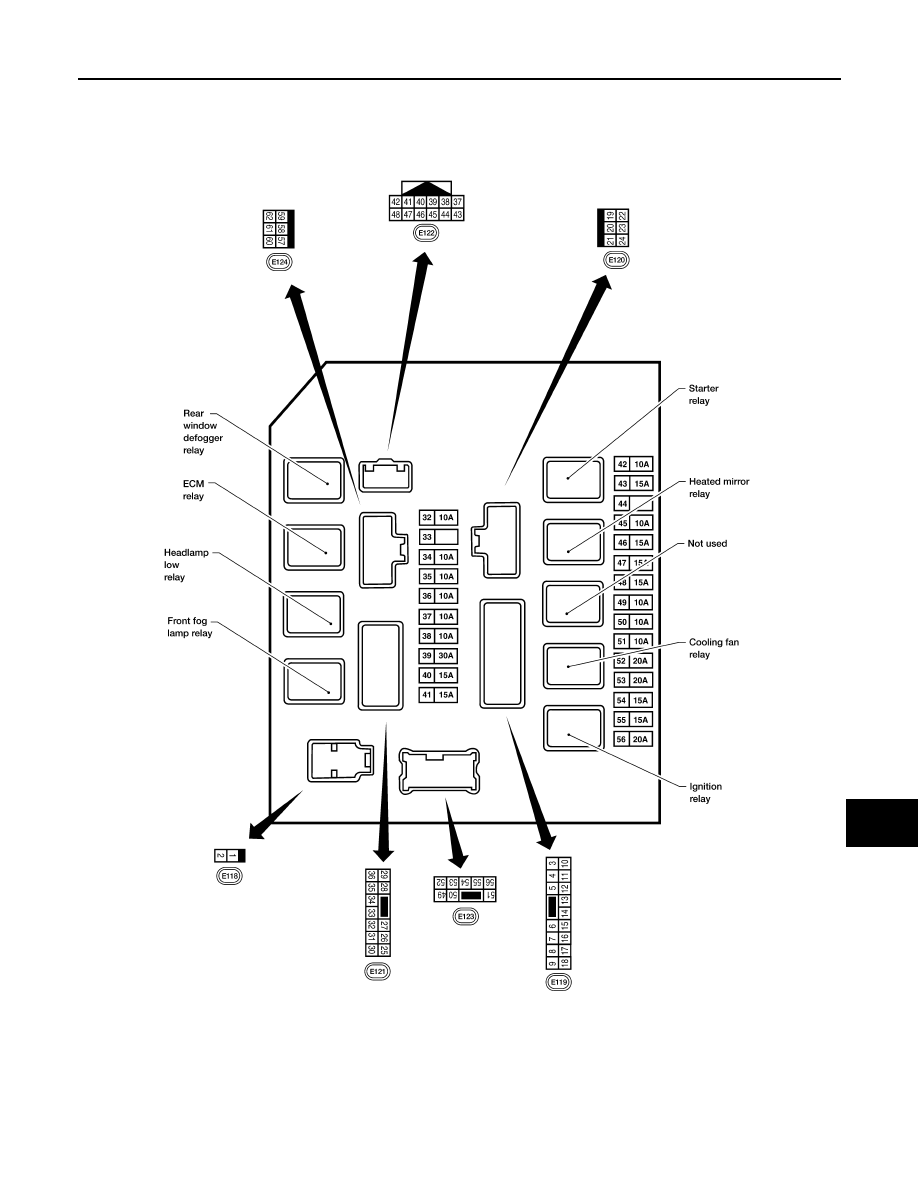

Terminal Layout

INFOID:0000000003935632

TERMINAL LAYOUT

Physical Values

INFOID:0000000003935633

PHYSICAL VALUES

WKIA5852E
