Nissan Pathfinder (2009 year). Manual - part 525

MWI

PRECAUTIONS

MWI-93

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000003935390

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004411061

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

MWI-94

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

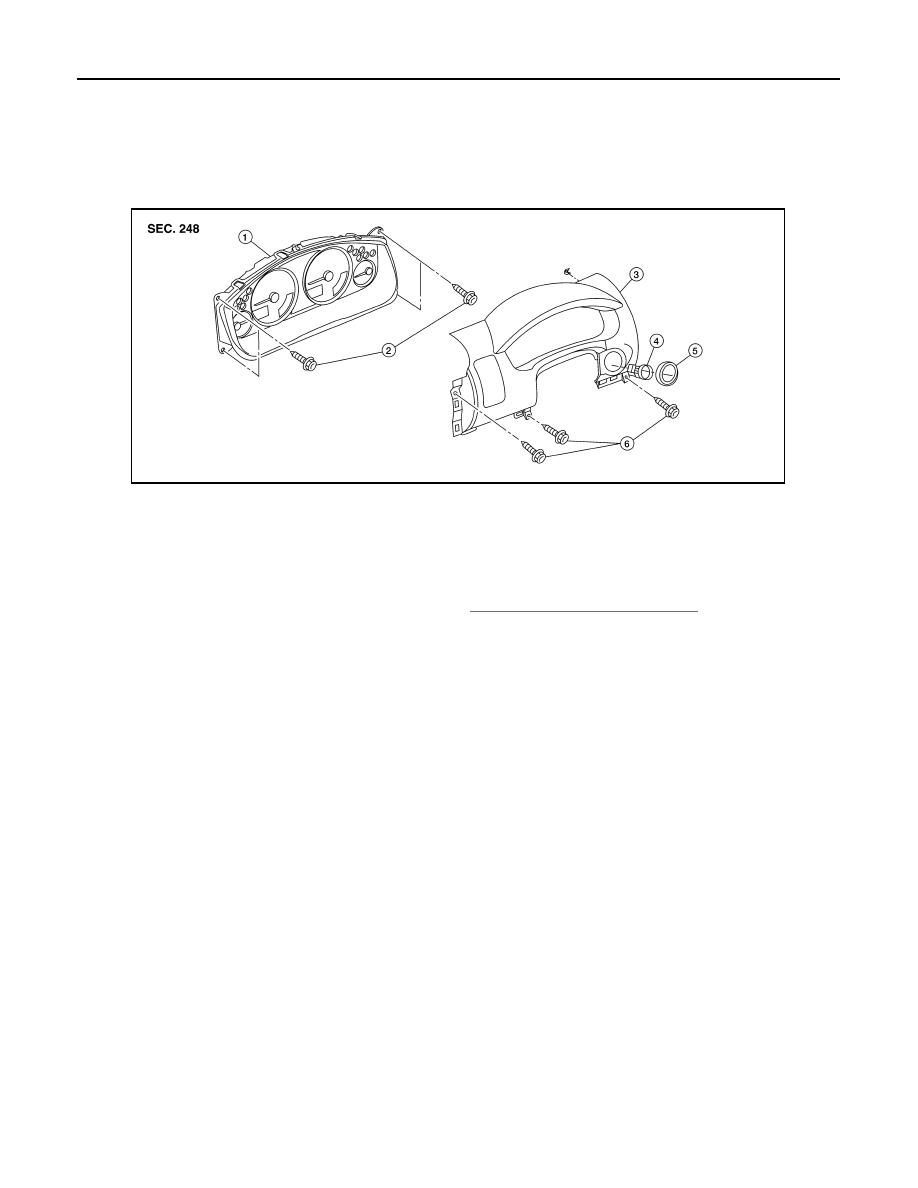

Removal and Installation

INFOID:0000000003935391

REMOVAL

1.

Disconnect the negative battery terminal.

2.

Remove the cluster lid A, using power tool. Refer to

IP-11, "Removal and Installation"

.

3.

Remove the combination meter screws, using power tool.

4.

Pull out the combination meter and disconnect the combination meter electrical connector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination meter

2.

Combination meter screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Cluster lid A screws

WIIA1053E

2009 Pathfinder

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PREPARATION ............................................

2

PREPARATION ...................................................

2

Commercial Service Tool  ..........................................

2

ON-VEHICLE MAINTENANCE .....................

3

PARKING BRAKE SYSTEM ...............................

3

On-Vehicle Service  ...................................................

3

ON-VEHICLE REPAIR ..................................

4

PARKING BRAKE CONTROL ............................

4

Exploded View  ..........................................................

4

Removal and Installation  ..........................................

4

PARKING BRAKE SHOE  ..................................

6

Exploded View ..........................................................

6

Removal and Installation  ..........................................

6

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

9

Parking Drum Brake  .................................................

9

Parking Brake Control  ..............................................

9

2009 Pathfinder

PB-2

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

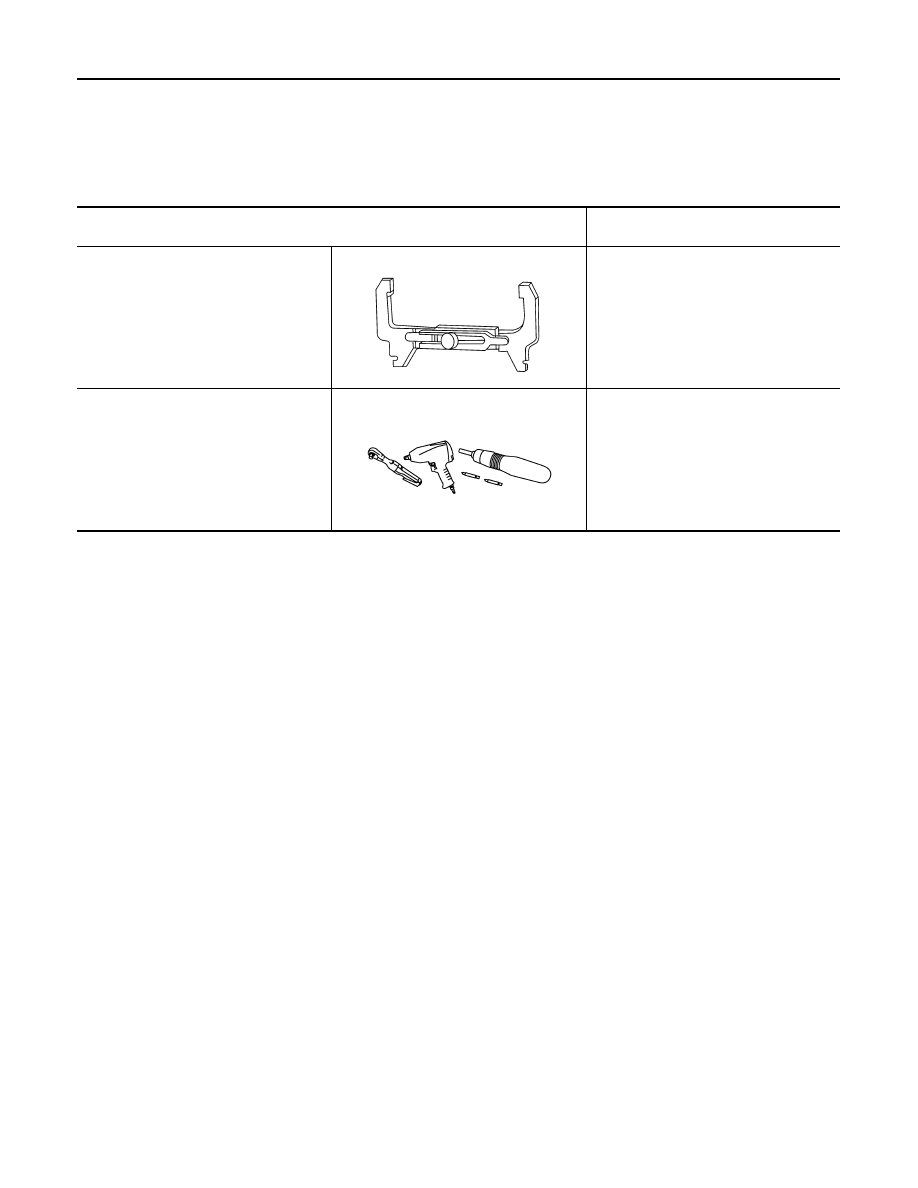

Commercial Service Tool

INFOID:0000000003937529

(Kent-Moore No.)
Tool name

Description

(J-21177-A)
Brake drum clearance gauge

Measuring rear rotor drum to parking
brake shoe clearance

Power tool

Removing bolts and nuts

WFIA0167E

PIIB1407E

2009 Pathfinder

PARKING BRAKE SYSTEM

PB-3

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ON-VEHICLE MAINTENANCE

PARKING BRAKE SYSTEM

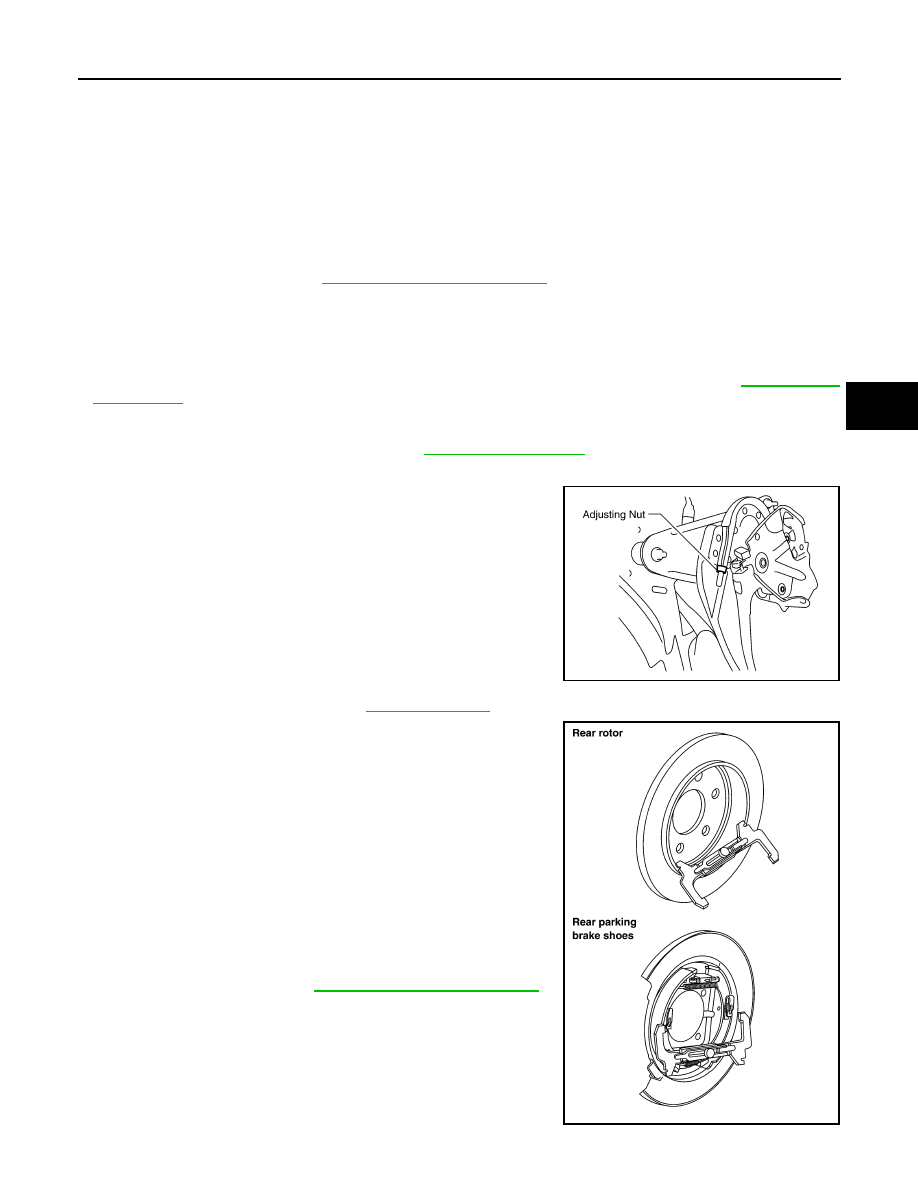

On-Vehicle Service

INFOID:0000000003937530

PEDAL STROKE

• When parking brake pedal is operated with the specified force, make sure the stroke is within the specified

number of notches. Check by listening and counting the ratchet clicks.

INSPECTION

• Make sure the components are attached properly, checking for looseness or backlash.
• Check parking brake pedal assembly for bends, damage and cracks, and replace if necessary.
• Check cable for wear and damage, and replace if necessary.
• Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to

MWI-41, "Wir-

ing Diagram"

.

ADJUSTMENT

1.

Remove lower instrument panel LH. Refer to

IP-10, "Exploded View"

.

2.

Partially engage parking brake pedal to access adjusting nut.

3.

Insert a deep socket wrench to rotate adjusting nut and loosen
cable until tension is sufficiently released. Then, disengage the
parking brake pedal.

4.

Remove the wheel and tire. Refer to

WT-48, "Rotation"

.

5.

Remove the rotor and measure inner diameter at widest point
using suitable tool as shown.

6.

Transfer the measurement less 0.6 mm (0.024 in) to the parking
brake shoes and adjust accordingly.

7.

Using wheel nuts, secure the disc to the hub to prevent it from
tilting.

8.

Rotate disc rotor to make sure there is no drag.

9.

Adjust cable as follows:

a.

Operate pedal 10 or more times with a force of 490 N (50 kg-f,
110 lb-f).

b.

Rotate adjusting nut with deep socket to adjust pedal stroke to
specification.

c.

With parking brake pedal completely disengaged, make sure
there is no drag on the parking brake.

Pedal stroke

: Refer to

PB-9, "Parking Brake Control"

.

WFIA0165E

Pedal stroke

: Refer to

PB-9, "Parking Brake Control"

.

WFIA0166E

2009 Pathfinder

PB-4

< ON-VEHICLE REPAIR >

PARKING BRAKE CONTROL

ON-VEHICLE REPAIR

PARKING BRAKE CONTROL

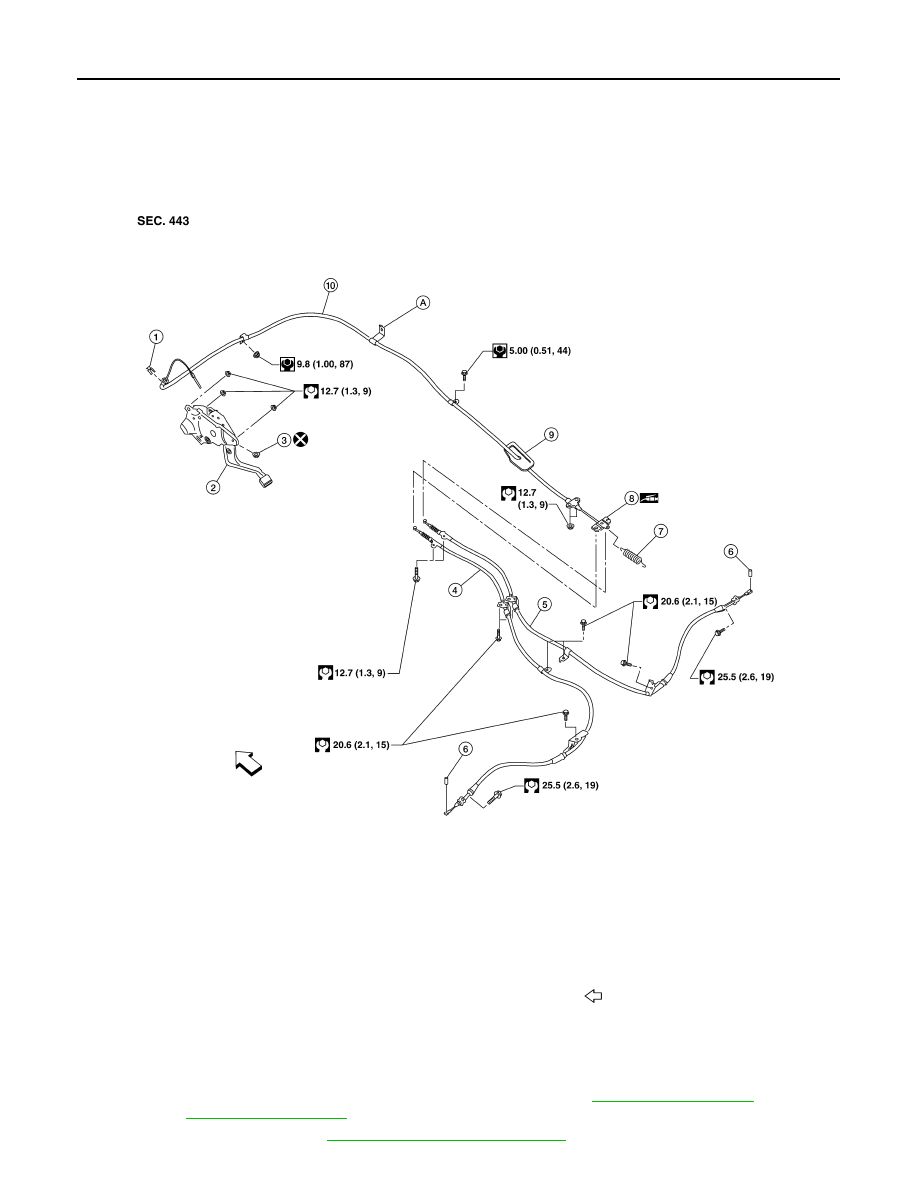

Exploded View

INFOID:0000000003937531

Removal and Installation

INFOID:0000000003937532

REMOVAL

1.

Remove the lower instrument panel LH and center console. Refer to

IP-10, "Exploded View"

 (instrument

panel) and

IP-16, "Exploded View"

 (center console).

2.

Remove the floor trim. Refer to

INT-19, "Removal and Installation"

.

1.

Lock plate

2.

Pedal assembly

3.

Adjusting nut

4.

Left rear cable

5.

Right rear cable

6.

Pin

7.

Return spring

8.

Equalizer

9.

Front cable grommet

10. Front cable

A.

Attached to steering member stay

Front

AWFIA0477GB

2009 Pathfinder

PARKING BRAKE CONTROL

PB-5

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

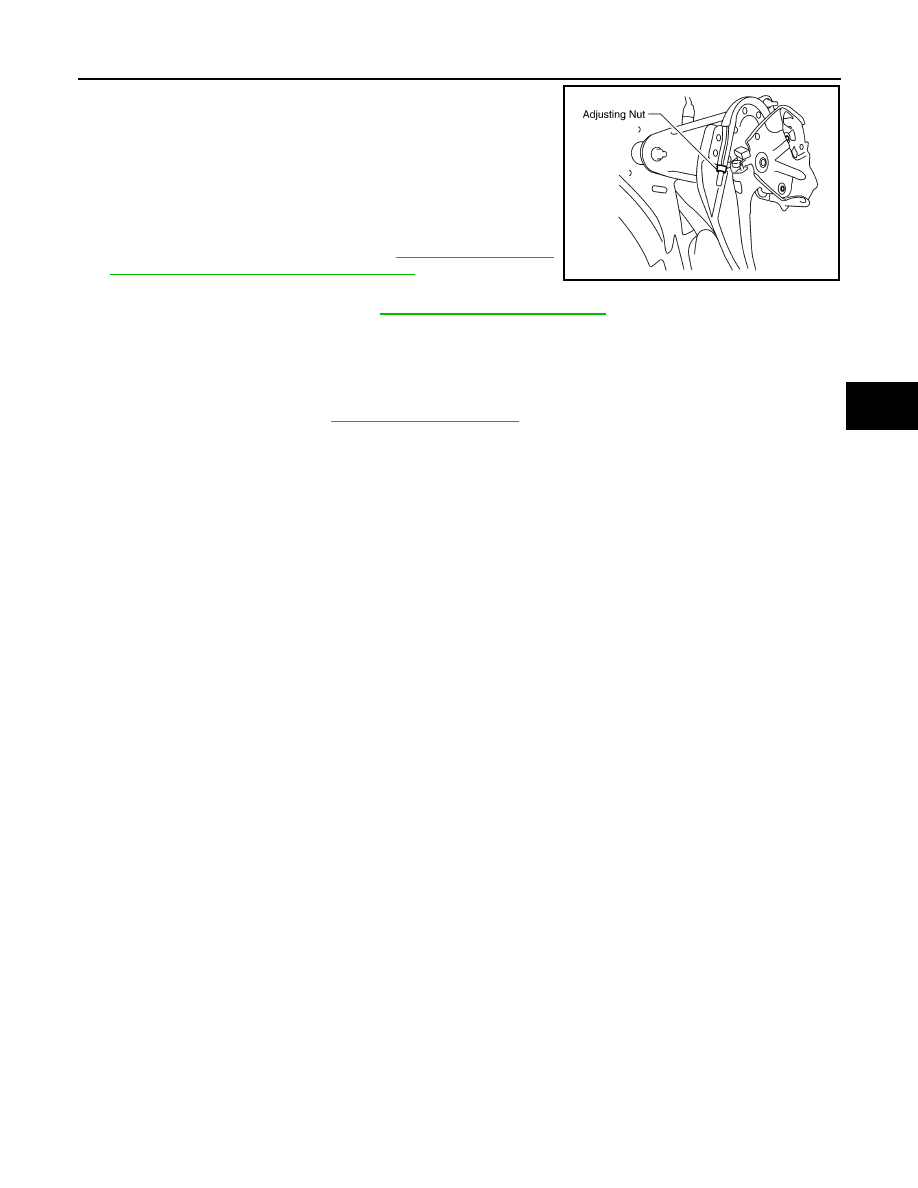

3.

Remove the parking brake control adjusting nut.

CAUTION:

Do not reuse adjusting nut after removing it.

4.

Remove the lock plate from the front cable.

5.

Remove the front parking brake cable bolt and nut.

6.

Disconnect the return spring from equalizer.

7.

Disconnect the front parking brake cable from the equalizer and
remove front cable.

8.

Remove the rear disc rotors. Refer to

BR-44, "Removal and

Installation of Brake Caliper and Disc Rotor"

.

9.

Remove the parking brake shoes, and disconnect the rear
cables from the toggle levers. Refer to

PB-6, "Removal and Installation"

.

10. Remove the equalizer from right and left rear cables.

11. Remove the right and left rear cable bolts and nuts, then remove the right and left rear cables.

INSTALLATION

Installation is in the reverse order of removal.
• Adjust the parking brake. Refer to

PB-3, "On-Vehicle Service"

.

CAUTION:

Do not reuse adjusting nut after removing it.

WFIA0165E

2009 Pathfinder

PB-6

< ON-VEHICLE REPAIR >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

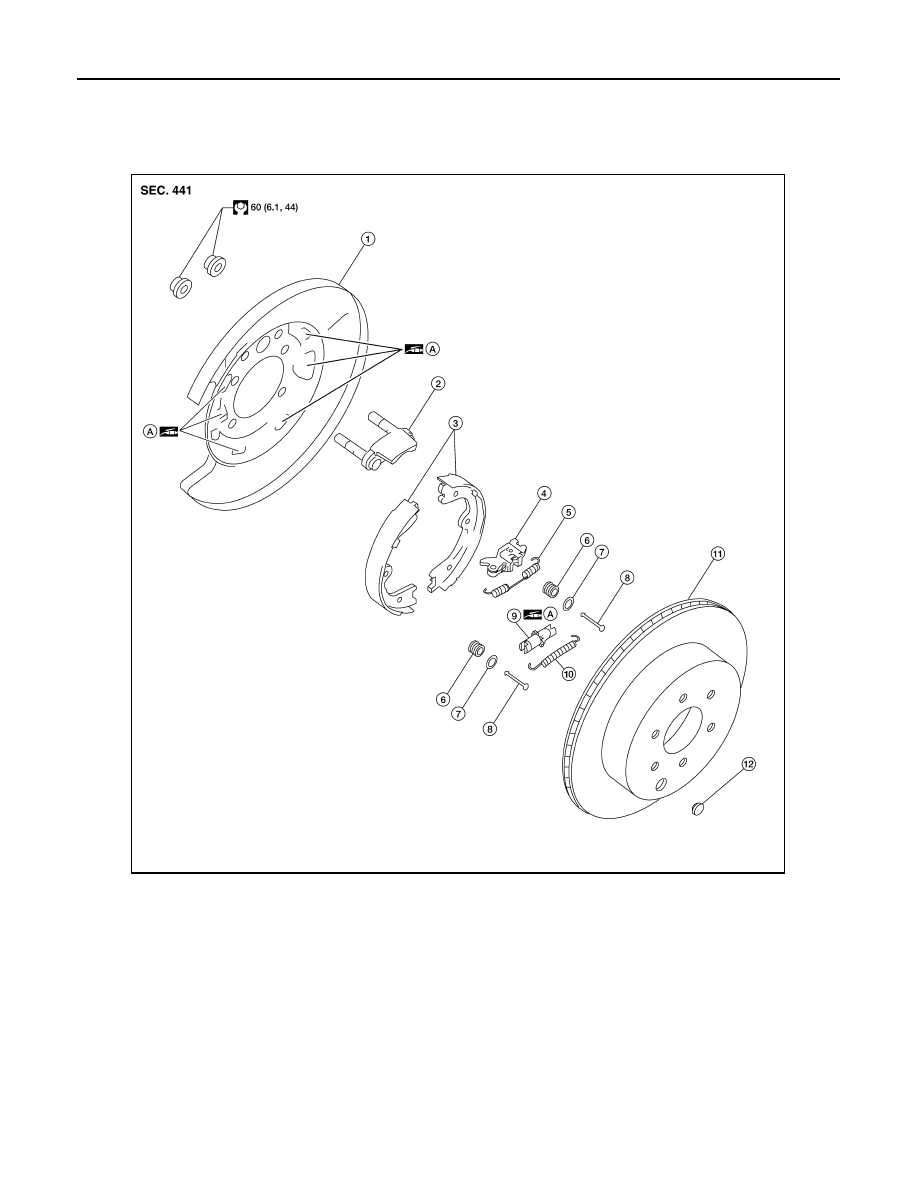

Exploded View

INFOID:0000000004427432

Removal and Installation

INFOID:0000000003937533

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other
hazardous materials.

1.

Back plate

2.

Anchor

3.

Shoes

4.

Toggle lever

5.

Upper return spring

6.

Shoe hold-down spring

7.

Retainer

8.

Shoe hold-down pin

9.

Adjuster

10. Lower return spring

11.

Disc rotor

12. Adjuster access plug

A.

PBC (Poly Butyl Cuprysil) grease
or equivalent

AWFIA0478GB

2009 Pathfinder
