Nissan Pathfinder (2009 year). Manual - part 520

MWI

COMBINATION METER

MWI-53

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

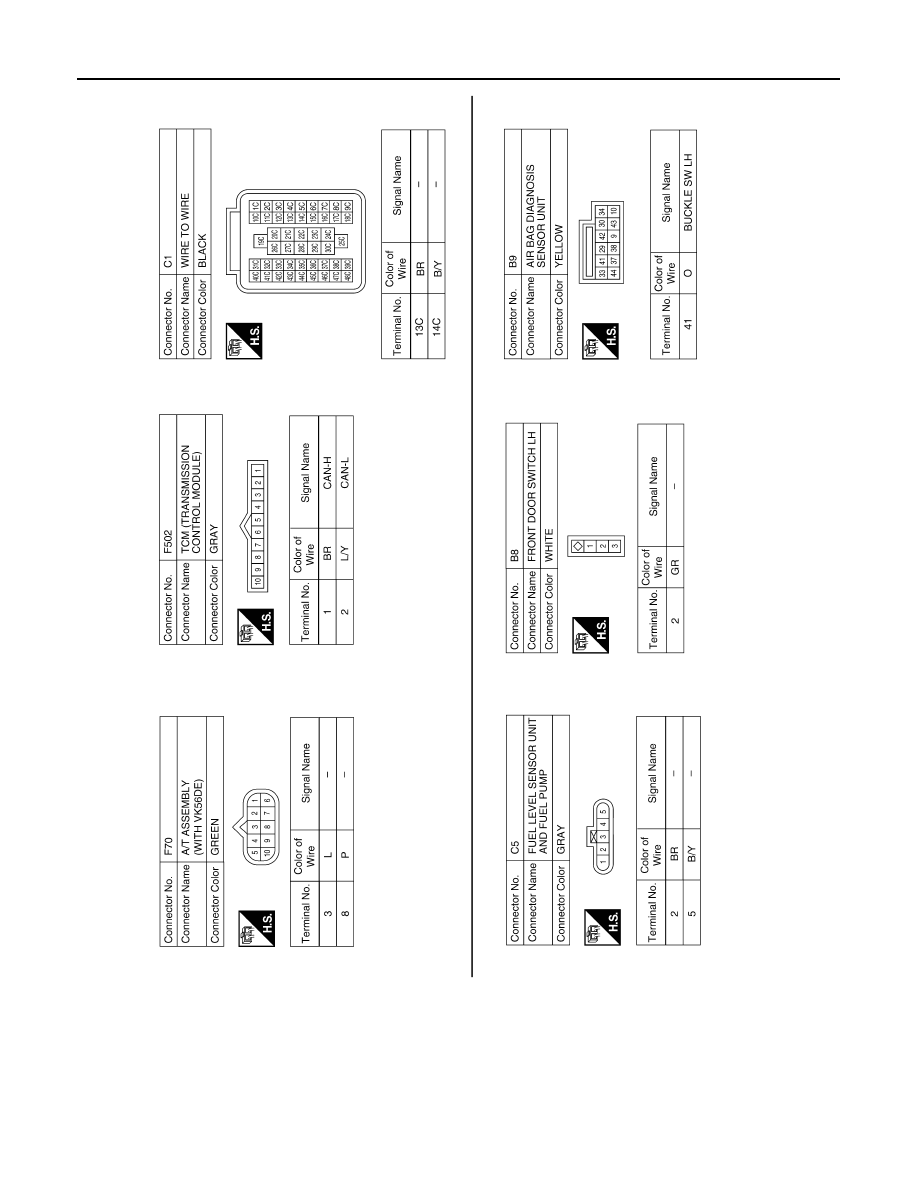

ABNIA0504GB

2009 Pathfinder

MWI-54

< ECU DIAGNOSIS >

COMBINATION METER

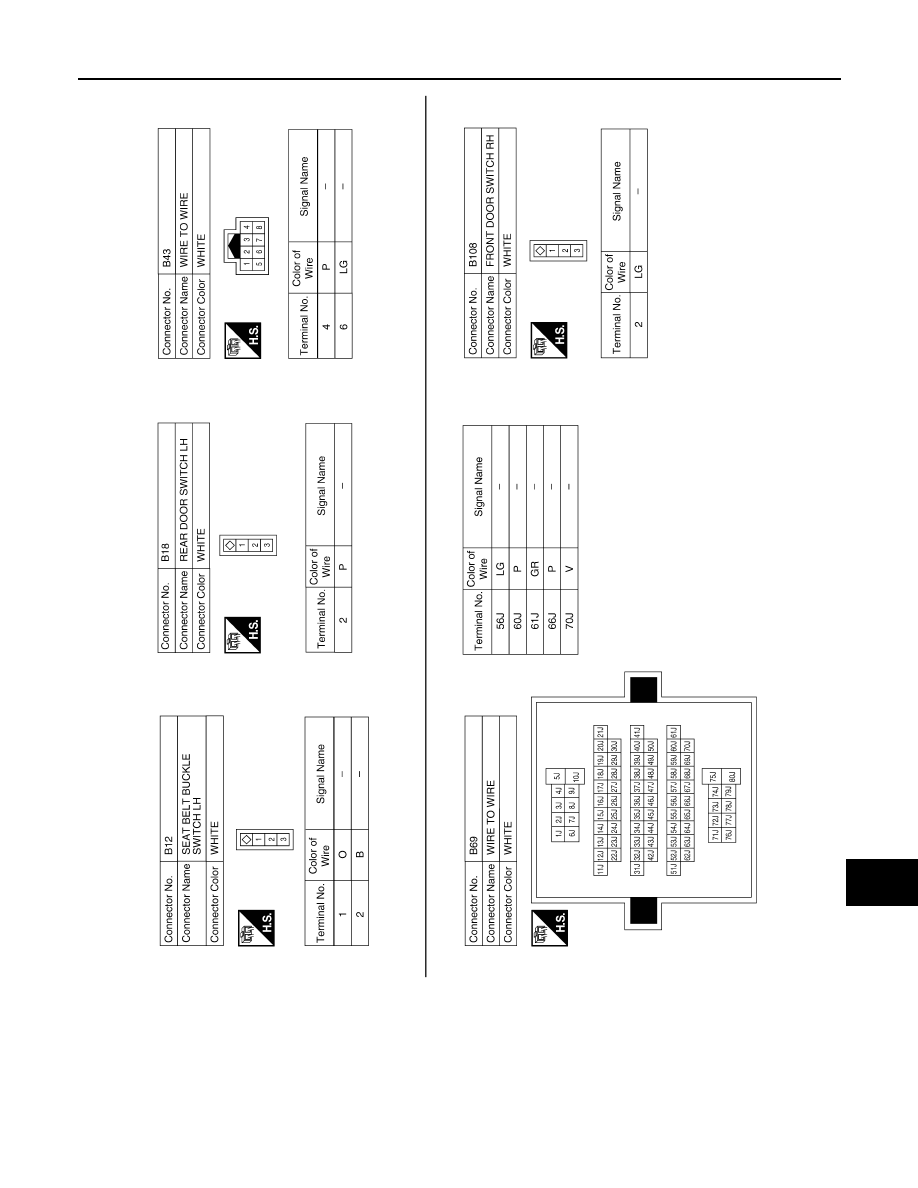

ABNIA0505GB

2009 Pathfinder

MWI

COMBINATION METER

MWI-55

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

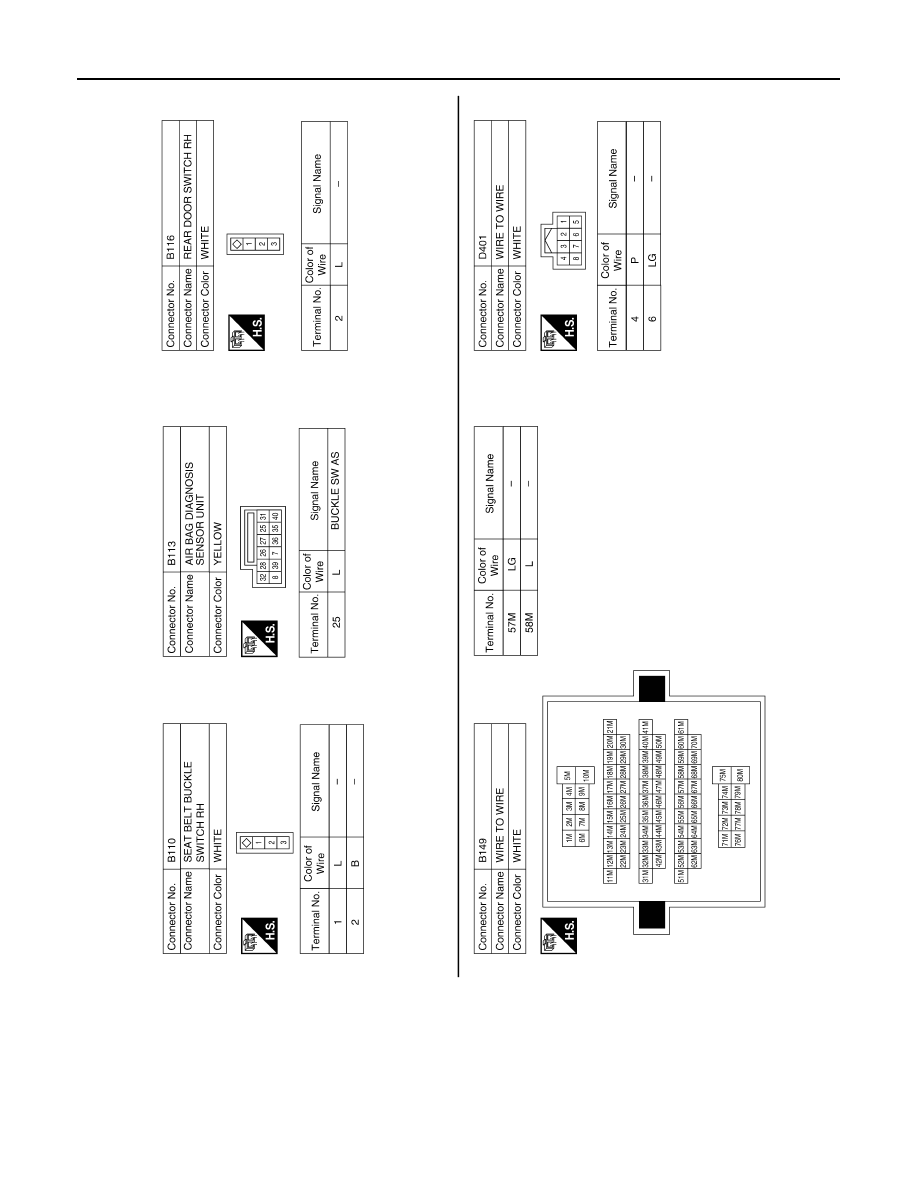

ABNIA0506GB

2009 Pathfinder

MWI-56

< ECU DIAGNOSIS >

COMBINATION METER

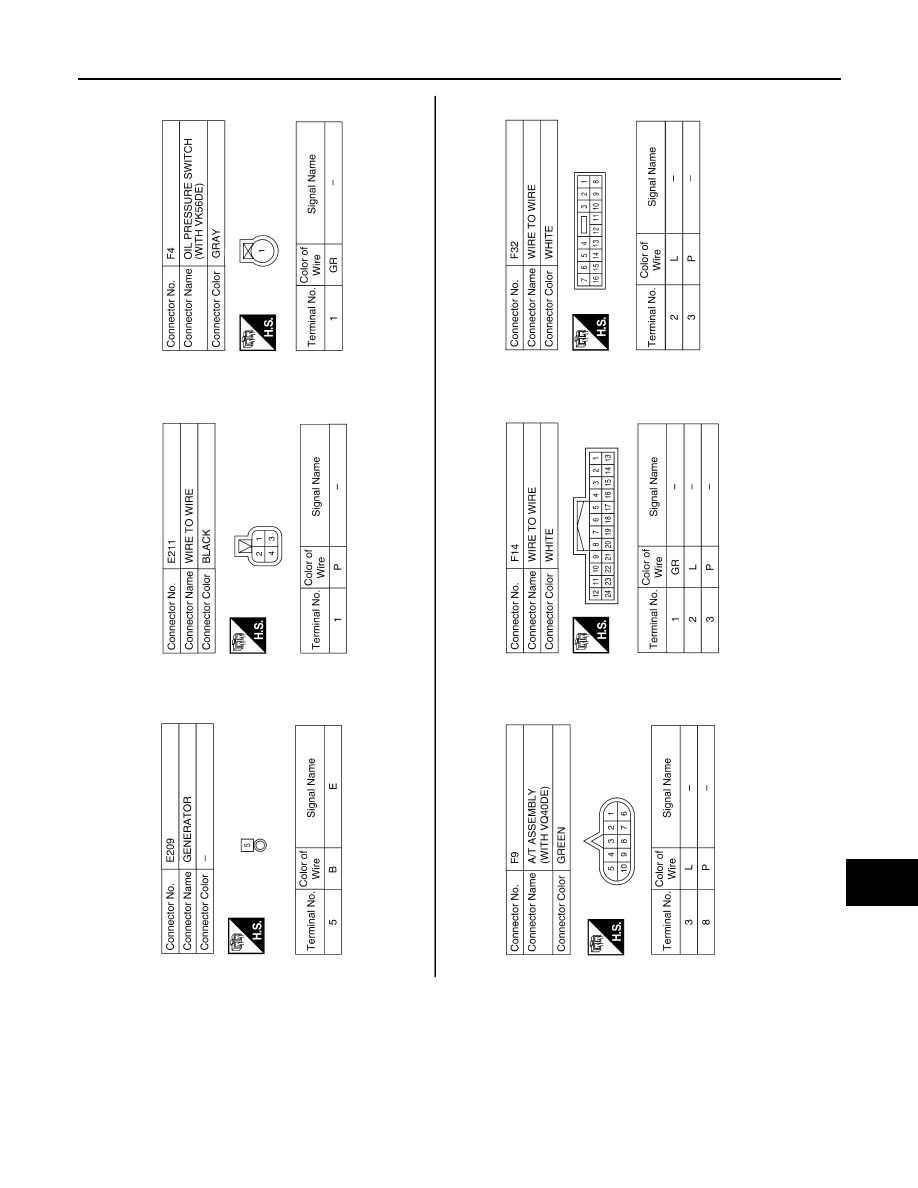

ABNIA0507GB

2009 Pathfinder

MWI

COMBINATION METER

MWI-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail Safe

INFOID:0000000003935367

The combination meter performs a fail-safe operation for the functions listed below when communication is
lost.

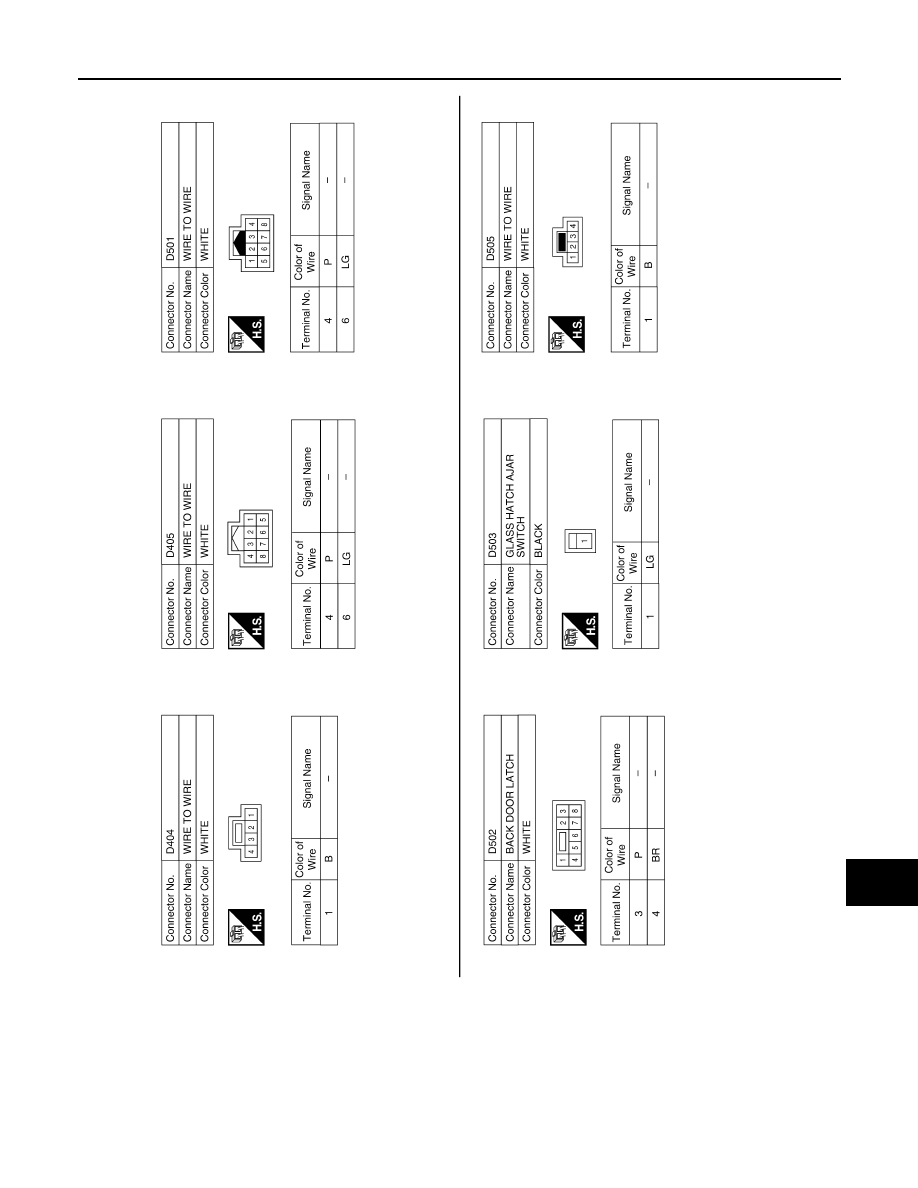

ABNIA0508GB

2009 Pathfinder

MWI-58

< ECU DIAGNOSIS >

COMBINATION METER

Function

Specifications

Speedometer

Zero indication.

Tachometer

Fuel gauge

Engine coolant temperature gauge

Engine oil pressure gauge

Voltage gauge

Illumination control

Meter illumination

Change to nighttime mode when communication is lost.

Segment LCD

Odometer

Freeze current indication.

A/T position

Display turns off.

Buzzer

Buzzer turns off.

Warning lamp/indicator lamp

ABS warning lamp

Lamp turns on when communication is lost.

Brake warning lamp

VDC OFF indicator lamp

SLIP indicator lamp

Shift P warning lamp

Lamp turns off when communication is lost.

AT oil temp warning lamp

Low washer fluid warning lamp

Hill descent control indicator lamp

Door ajar warning lamp

CRUISE indicator lamp

SET indicator lamp

A/T CHECK warning lamp (with man-
ual mode)

O/D OFF indicator lamp (without man-
ual mode)

Oil pressure warning lamp

Malfunction indicator lamp

Air bag warning lamp

High beam indicator

Turn signal indicator lamp

Intelligent Key system warning lamp

Driver and passenger seat belt warn-
ing lamp

Lamp turns off when disconnected.

Charge warning lamp

Security indicator lamp

4WD indicator lamp

ATP indicator lamp

Low tire pressure warning lamp

Lamp will flash every second for 1 minute and then stay on con-
tinuously thereafter.

2009 Pathfinder

MWI

COMBINATION METER

MWI-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000003935368

NOTE:
“TIME” indicates the following.
• 0: Indicates that a malfunction is detected at present.
• 1-63: Indicates that a malfunction was detected in the past. (Displays number of ignition switch OFF

→

 ON

cycles after malfunction is detected. Self-diagnosis result is erased when “63” is exceeded.)

CONSULT-III display

Malfunction

Reference

page

CAN COMM CIRC
[U1000]

Malfunction is detected in CAN communication.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.

MWI-27

VEHICLE SPEED
CIRC
[B2205]

Malfunction is detected when an erroneous speed signal is input.

CAUTION:

Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds).

MWI-28

2009 Pathfinder

MWI-60

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000004428622

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Front door RH closed

OFF

Front door RH opened

ON

DOOR SW-DR

Front door LH closed

OFF

Front door LH opened

ON

DOOR SW-RL

Rear door LH closed

OFF

Rear door LH opened

ON

DOOR SW-RR

Rear door RH closed

OFF

Rear door RH opened

ON

ENGINE RUN

Engine stopped

OFF

Engine running

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

HAZARD SW

When hazard switch is not pressed

OFF

When hazard switch is pressed

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1st

ON

2009 Pathfinder
