RECOMMENDED FLUIDS AND LUBRICANTS

MA-13

< ON-VEHICLE MAINTENANCE >

*8: See a NISSAN dealer for service for synthetic oil.

Engine Oil Recommendation

INFOID:0000000003938597

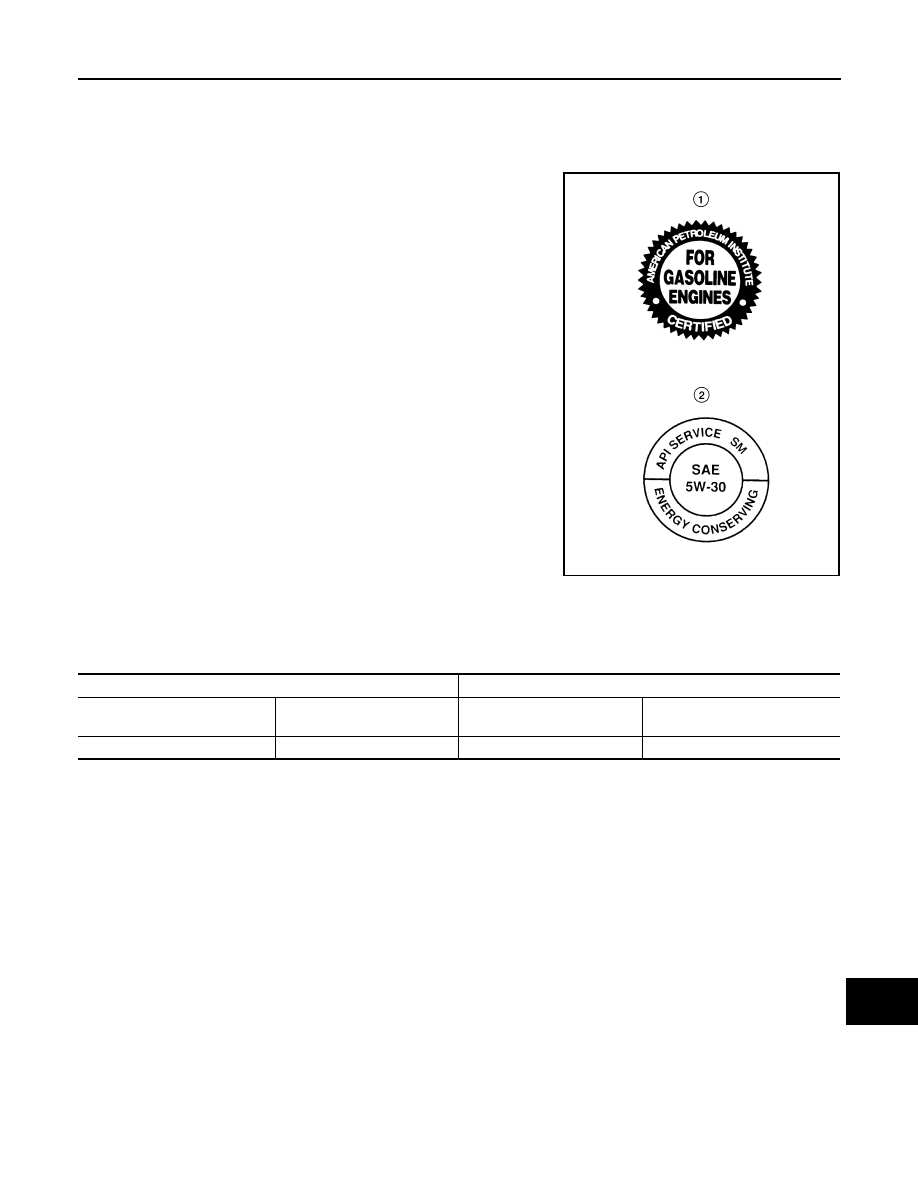

NISSAN recommends the use of an energy conserving oil in order to
improve fuel economy. Select only engine oils that meet the Ameri-
can Petroleum Institute (API) certification and International Lubricant
Standardization and Approval Commottee (ILSAC) certification and
SAE viscosity standard (2). These oils have the API certification
mark (1) on the front of the container. Oils which do not have the
specified quality label should not be used as they could cause
engine damage.

ANTI-FREEZE COOLANT MIXTURE RATIO

The engine cooling system is filled at the factory with a high-quality, long life, year-round, anti-freeze coolant
solution. The anti-freeze solution contains rust and corrosion inhibitors. Therefore, additional cooling system
additives are not necessary.

CAUTION:

• When adding or replacing coolant, be sure to use only Genuine NISSAN Long Life Anti-freeze cool-

ant or equivalent with the proper mixture ratio of 50% anti-freeze and 50% demineralized water or
distilled water.

• Other types of coolant solutions may damage your cooling system.

ALPIA0001ZZ

For outside temperatures down to:

Anti-freeze coolant mixture ratio

Genuine NISSAN Long Life

Antifreeze coolant

Demineralized water or distilled

water

– 35

– 30

50 %

2009 Pathfinder

MA-14

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

ENGINE MAINTENANCE (VQ40DE)

DRIVE BELTS

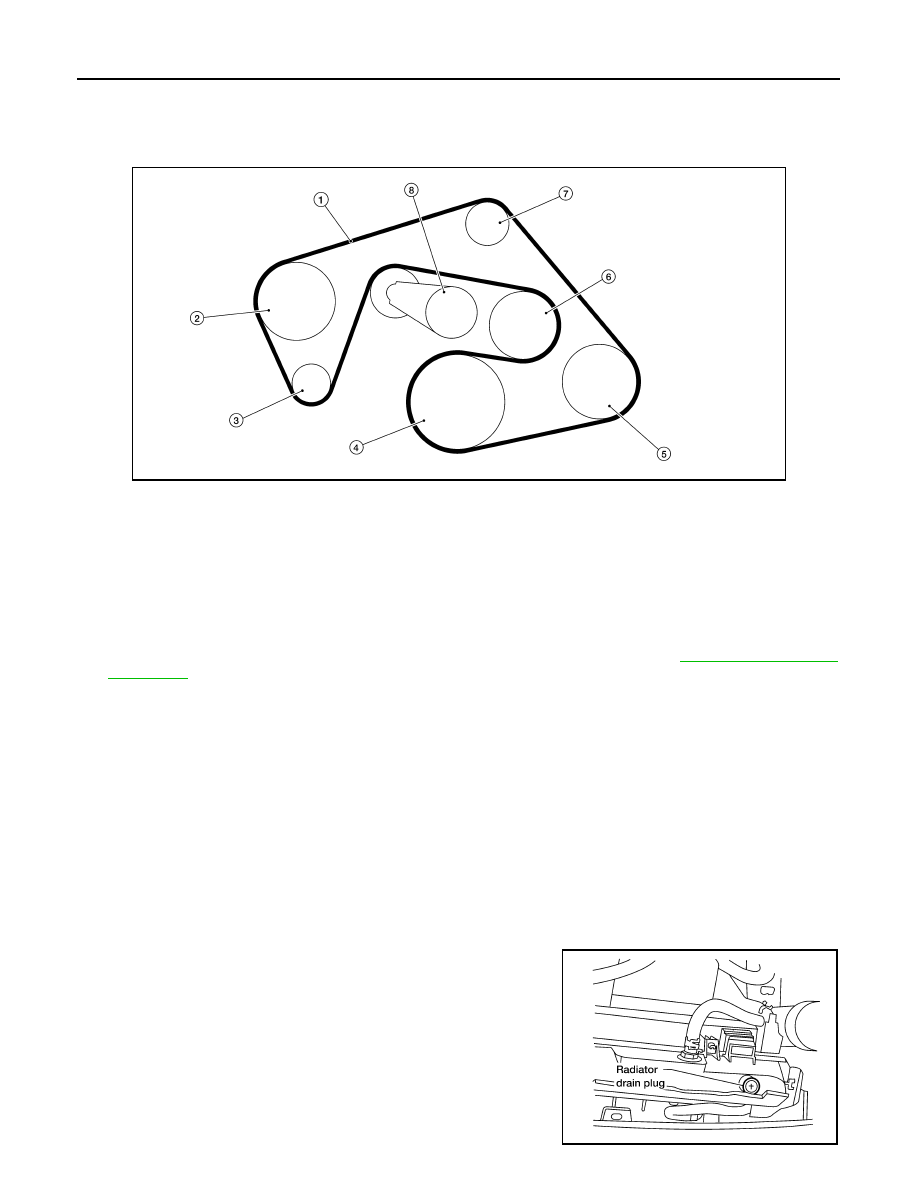

DRIVE BELTS : Exploded View

INFOID:0000000004353574

DRIVE BELTS : Checking Drive Belts

INFOID:0000000004353575

WARNING:

Be sure to perform when the engine is stopped.
1.

Remove air duct and resonator assembly when inspecting drive belt. Refer to

EM-25, "Removal and

Installation"

Visually check entire belt for wear, damage or cracks.

ENGINE COOLANT

ENGINE COOLANT : Changing Engine Coolant

INFOID:0000000003938599

WARNING:

• To avoid being scalded, never change the coolant when the engine is hot.
• Wrap a thick cloth around the cap to carefully remove the cap. First, turn the cap a quarter of a turn

to release any built-up pressure, then push down and turn the cap all the way to remove it.

DRAINING ENGINE COOLANT

Turn ignition switch ON and set temperature control lever all the way to HOT position or the highest tem-
perature position. Wait 10 seconds and turn ignition switch OFF.

Remove the engine front undercover using power tool.

Open the radiator drain plug at the bottom of the radiator, and
remove the reservoir cap. This is the only step required when
partially draining the cooling system (radiator only).

CAUTION:

Do not to allow the coolant to contaminate the drive belts.

LBIA0427E

Drive belt

Power steering oil pump pulley

Generator pulley

Crankshaft pulley

A/C compressor

Cooling fan pulley

Idler pulley

Drive belt tensioner

LLIA0070E

2009 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-15

< ON-VEHICLE MAINTENANCE >

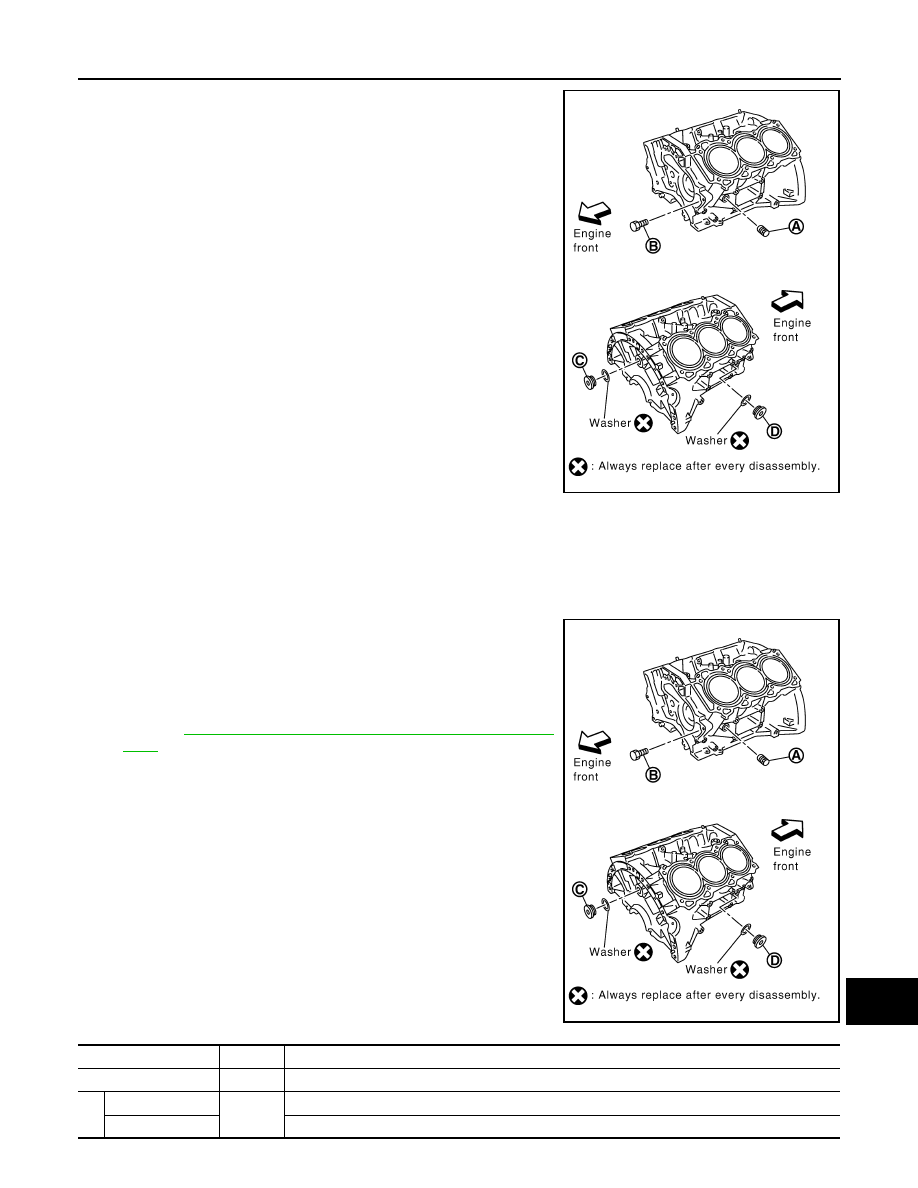

When draining all of the coolant in the system for engine
removal or repair, it is necessary to drain the cylinder block.
Remove the cylinder block drain plugs, and block heater if
equipped, to drain the cylinder block as shown.
NOTE:
For Canada, the “D” cylinder block drain plug as shown, is not a
cylinder block drain plug but a block heater.

Remove the reservoir tank to drain the engine coolant, then clean the reservoir tank before installing it.

Check the drained coolant for contaminants such as rust, corrosion or discoloration.
If the coolant is contaminated, flush the engine cooling system. Refer to "DRAINING ENGINE COOLANT"
.

REFILLING ENGINE COOLANT

Close the radiator drain plug. Install the reservoir tank, cylinder
block drain plugs, and block heater if equipped, if removed for a
total system drain or for engine removal or repair.
• The radiator must be completely empty of coolant and water.
• Apply sealant to the threads of the cylinder block drain plug.

Use Genuine High Performance Thread Sealant or equivalent.
Refer to

ants"

Block Plug and Block Heater Installation

WLIA0020E

Part

Washer

Tightening Torque

19.6 N·m (2.0 kg-m, 14 ft-lb)

Reuse

9.8 N·m (1.0 kg-m, 87 in-lb)

New

6.0 N·m (0.61 kg-m, 53 in-lb)

2009 Pathfinder

MA-16

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

Set the vehicle heater controls to the full HOT and heater ON position. Turn the vehicle ignition ON with
the engine OFF as necessary to activate the heater mode.

Remove the vented reservoir cap and replace it with a non-vented reservoir cap before filling the cooling
system.

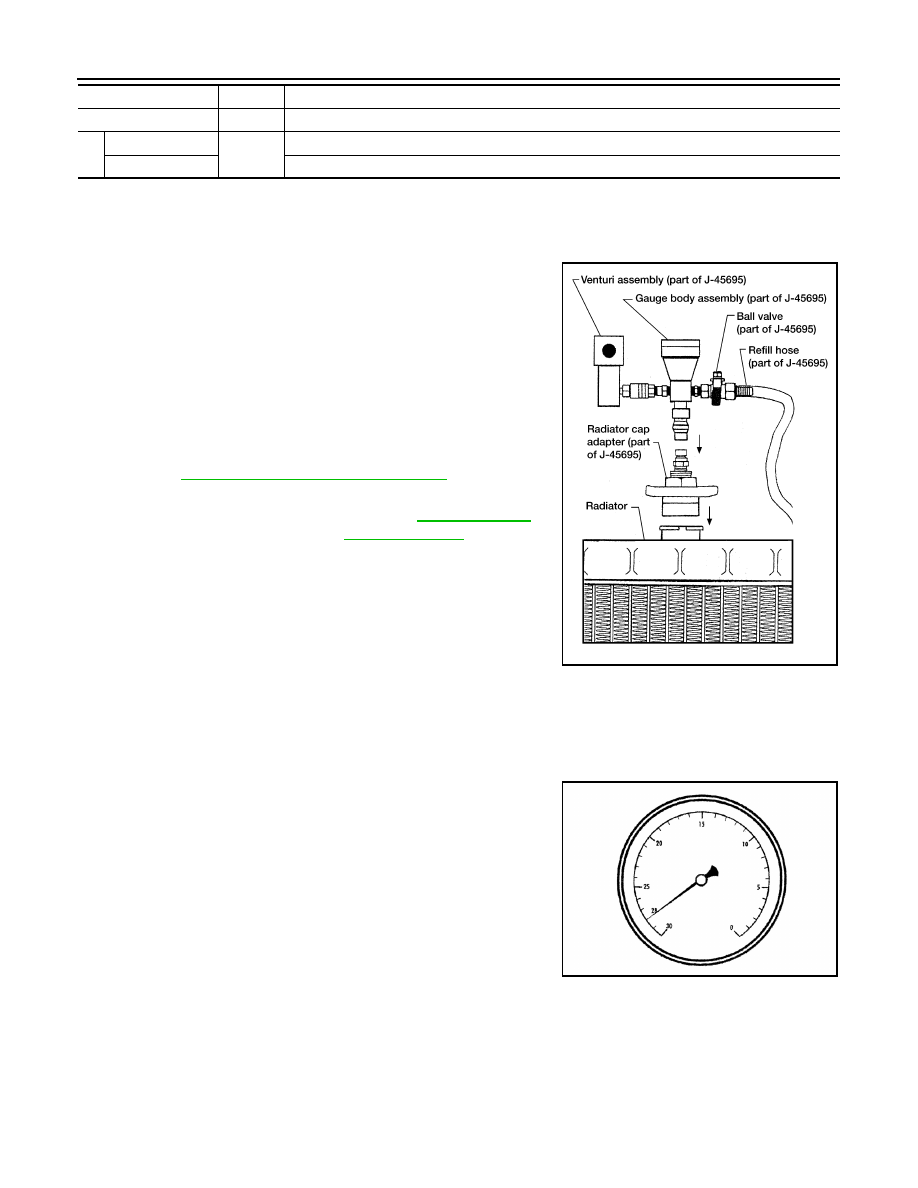

Install the Tool by installing the radiator cap adapter onto the
radiator neck opening. Then attach the gauge body assembly
with the refill tube and the venturi assembly to the radiator cap
adapter.

Insert the refill hose into the coolant mixture container that is
placed at floor level. Make sure the ball valve is in the closed
position.
• Use Genuine NISSAN Long Life Anti-freeze coolant or equiva-

lent, mixed 50/50 with distilled water or demineralized water.
Refer to

MA-13, "Engine Oil Recommendation"

Install an air hose to the venturi assembly, the air pressure must
be within specification.

CAUTION:

The compressed air supply must be equipped with an air
dryer.

The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open
the ball valve on the refill hose slightly. Coolant will be visible rising in the refill hose. Once the refill hose is
full of coolant, close the ball valve. This will purge any air trapped in the refill hose.

Continue to draw the vacuum until the gauge reaches 28 inches
of vacuum. The gauge may not reach 28 inches in high altitude
locations, refer to the vacuum specifications based on the alti-
tude above sea level.

When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds
to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the
system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.

10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then

open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling
system is full when the vacuum gauge reads zero.

CAUTION:

Yes

62 N·m (6.3 kg-m, 46 ft-lb)

Plug

Yes

62 N·m (6.3 kg-m, 46 ft-lb)

Block heater

73.5 N·m (7.5 kg-m, 54 ft-lb)

Part

Washer

Tightening Torque

Tool number

: KV991J0070 (J-45695)

Cooling system capacity
(with reservoir)

: Refer to

MA-12, "Fluids

and Lubricants"

Compressed air
supply pressure

: 5.7 - 8.5 kPa (5.6 - 8.4 kg/cm

80 - 120 psi)

LLIA0058E

Altitude above sea level

Vacuum gauge reading

0 - 100 m (328 ft)

: 28 inches of vacuum

300 m (984 ft)

: 27 inches of vacuum

500 m (1,641 ft)

: 26 inches of vacuum

1,000 m (3,281 ft)

: 24 - 25 inches of vacuum

LLIA0057E

2009 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-17

< ON-VEHICLE MAINTENANCE >

Do not allow the coolant container to get too low when filling, to avoid air from being drawn into
the cooling system.

11. Remove the Tool from the radiator neck opening and install the radiator cap.

12. Remove the reservoir cap.

13. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system

and top up the system as necessary before installing the reservoir cap.

FLUSHING COOLING SYSTEM

Drain the water from the engine cooling system. Refer to "DRAINING ENGINE COOLANT" .

Fill the radiator and the reservoir tank (to the “MAX” line), with water. Reinstall the radiator cap and leave
the vented reservoir cap off.

Run the engine until it reaches normal operating temperature.

Press the engine accelerator two or three times under no-load.

Stop the engine and wait until it cools down.

Drain the water from the engine cooling system. Refer to "DRAINING ENGINE COOLANT" .

Repeat steps 2 through 6 until clear water begins to drain from the radiator.

FUEL LINES

FUEL LINES : Checking Fuel Line

INFOID:0000000004353582

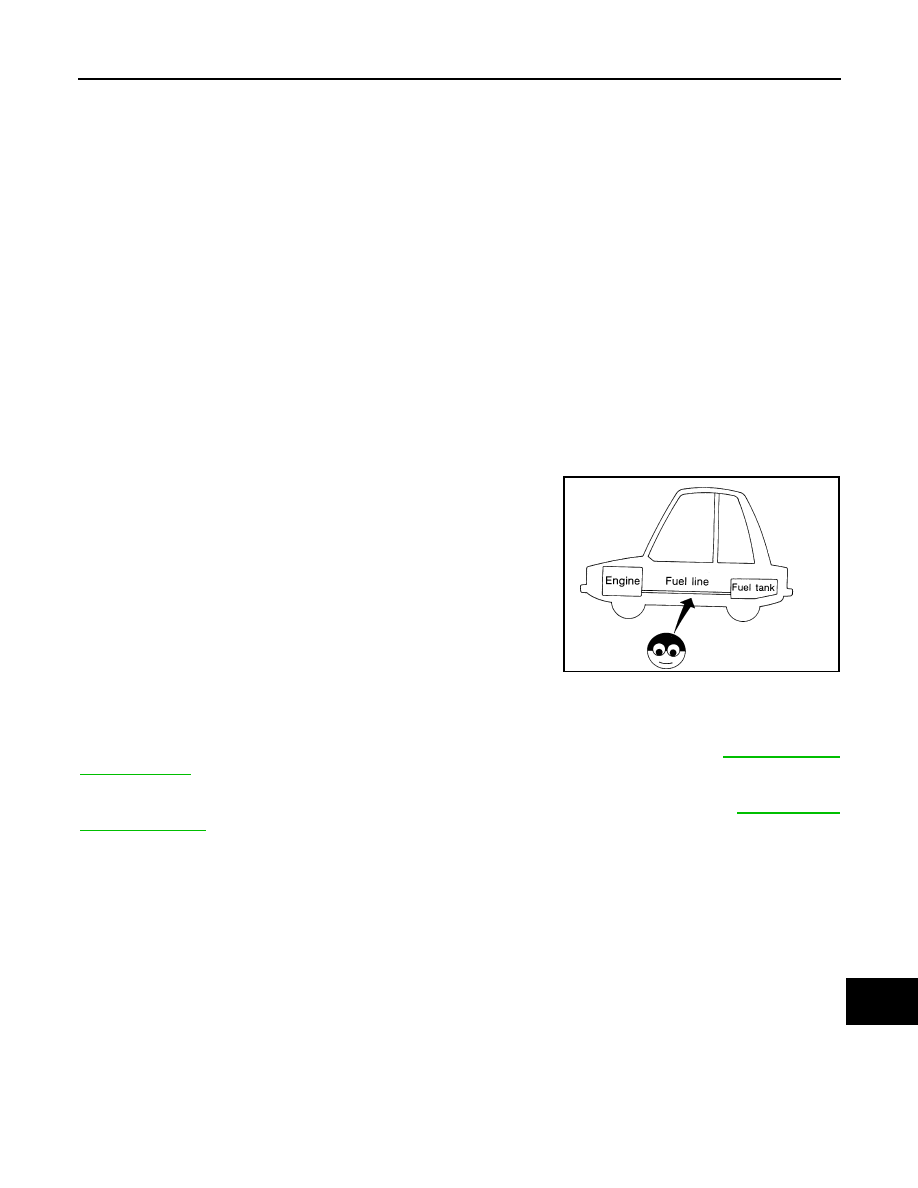

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.

FUEL FILTER

FUEL FILTER : Changing Fuel Filter

INFOID:0000000003938601

The fuel filter is part of the fuel level sensor unit, fuel filter and fuel pump assembly. Refer to

FL-11, "Removal

and Installation"

WARNING:

Before replacing the fuel filter, release the fuel pressure from the fuel system. Refer to

EC-484, "Fuel

Pressure Check"

AIR CLEANER FILTER

SMA803A

2009 Pathfinder

MA-18

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

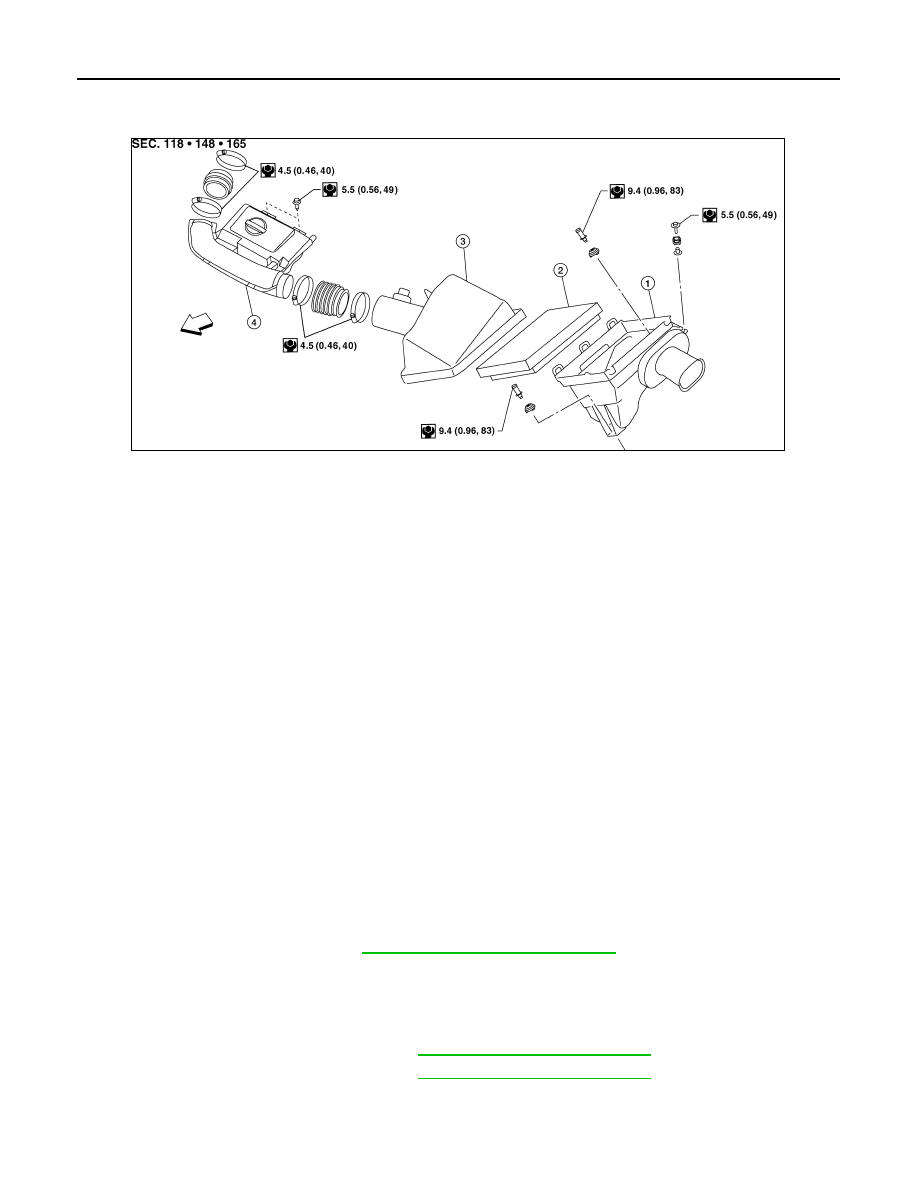

AIR CLEANER FILTER : Exploded View

INFOID:0000000004353576

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000004353577

REMOVAL

Unhook clips, and lift air cleaner case (upper).

Remove air cleaner filter.

INSTALLATION

Installation is in the reverse order of removal.

ENGINE OIL

ENGINE OIL : Changing Engine Oil

INFOID:0000000004353580

WARNING:

• Be careful not to burn yourself, as the engine and engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.

Warm up the engine, and check for any oil leaks.

Stop the engine and wait for at least 10 minutes.

Remove the oil drain plug and oil filler cap to drain the old oil.

Install a new washer on the oil drain plug, then install the oil drain plug in the oil pan.

CAUTION:

Clean the drain plug and install with a new washer.

Refill the engine with new specified engine oil.

CAUTION:

The refill capacity depends on the oil temperature and drain time. Use the “Refill oil capacity” val-
ues as a reference and check the oil level using the dipstick when filling the engine with oil.

Air cleaner case (lower)

Air cleaner filter

Air cleaner case (upper)

Air duct and resonator

⇐

Front

AWBIA0133GB

Oil drain plug

: Refer to

EM-35, "Removal and Installation"

Oil grade and viscosity

: Refer to

MA-12, "Fluids and Lubricants"

Oil capacity

: Refer to

MA-12, "Fluids and Lubricants"

2009 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-19

< ON-VEHICLE MAINTENANCE >

Warm up the engine and check the area around the drain plug and oil filter for any oil leaks.

Stop the engine and wait for more than 10 minutes.

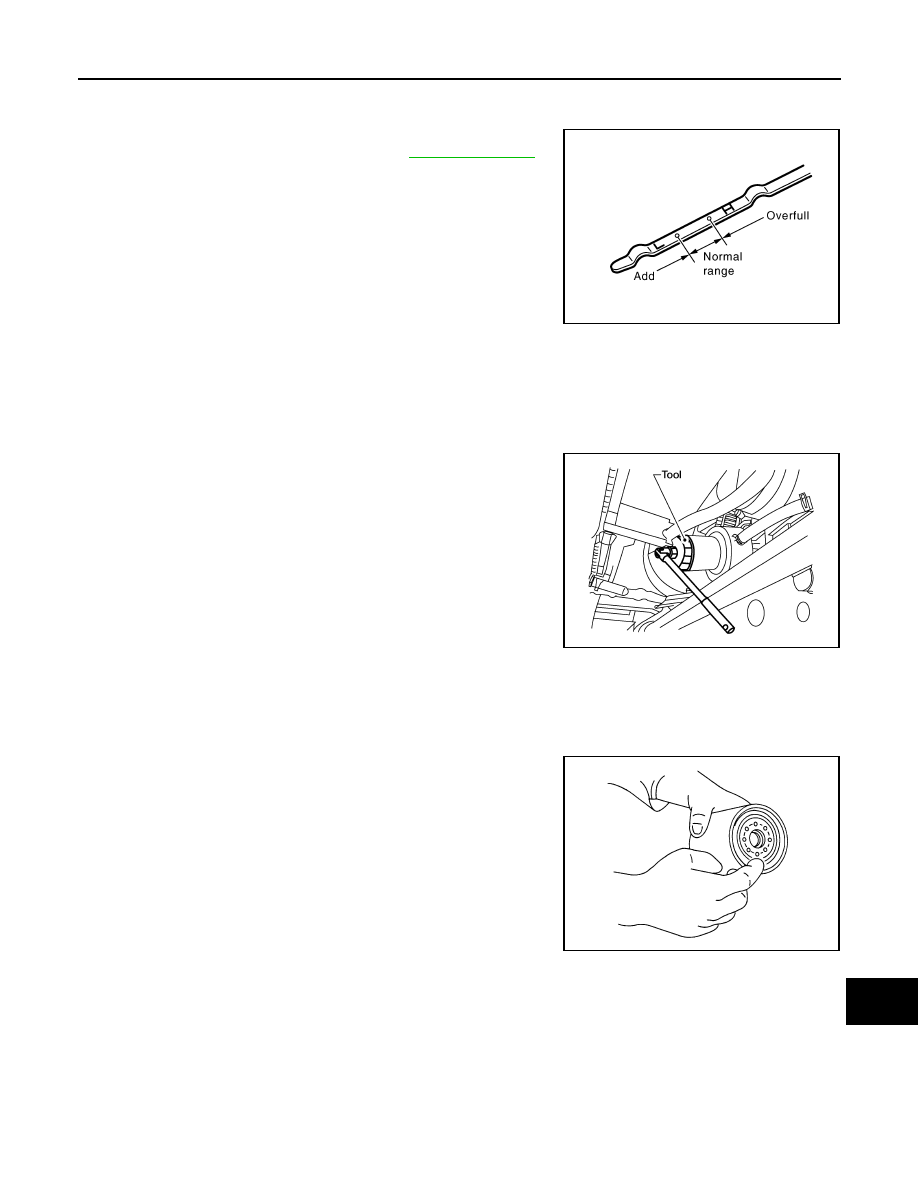

Check the oil level using the dipstick as shown. Add oil as nec-
essary and install the oil filler cap. Refer to

LU-8, "Inspection"

CAUTION:

Do not overfill the engine with oil.

OIL FILTER

OIL FILTER : Removal and Installation

INFOID:0000000004353581

REMOVAL

Remove the engine front undercover using power tool.

Remove the oil filter using Tool as shown.

WARNING:

Be careful not to burn yourself, as the engine and engine oil
may be hot.

CAUTION:

• Oil filter is equipped with a pressure relief valve.
• Use Genuine NISSAN Oil Filter or equivalent.
• When removing, prepare a shop cloth to absorb any

engine oil leaks or spills.

• Do not allow engine oil to adhere to drive belts.
• Completely wipe off any engine oil that adheres to the engine and the vehicle.

INSTALLATION

Remove foreign materials adhering to the oil filter seal mating surface.

Apply clean engine oil to the oil filter seal circumference of the
new oil filter as shown.

PBIC2823E

Tool number

: KV10115801 (J-38956)

LBIA0425E

SMA010

2009 Pathfinder

MA-20

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

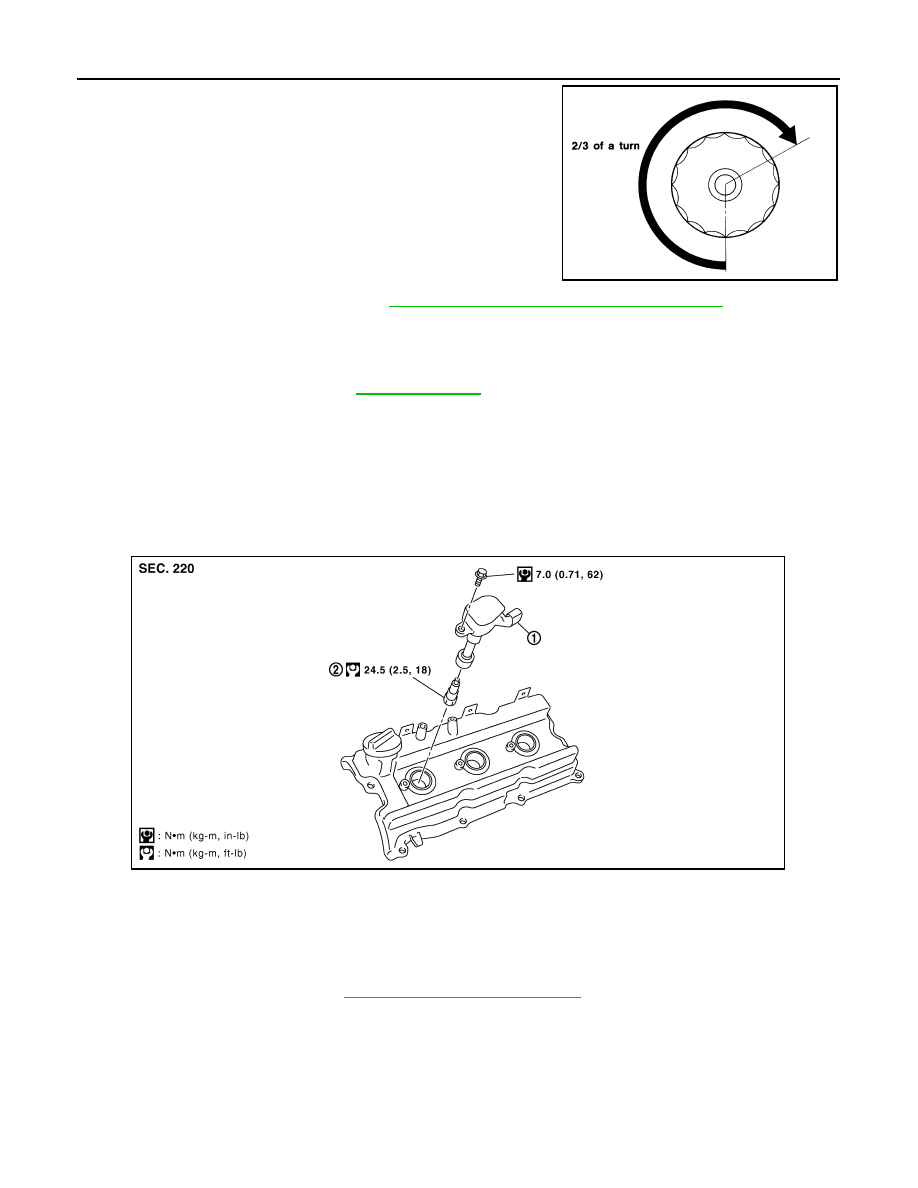

Screw on the oil filter manually until it touches the installation
surface, then tighten it by 2/3 turn as shown. Or tighten to speci-
fication.

Inspect the engine for oil leaks. Refer to

MA-19, "OIL FILTER : Removal and Installation"

Install the engine front undercover using power tool.

INSPECTION AFTER INSTALLATION

Check the engine oil level. Refer to

LU-8, "Inspection"

Start the engine and check for engine oil leaks.

Stop the engine and wait for 10 minutes.

Check the engine oil level and add engine oil as required.

SPARK PLUG

SPARK PLUG : Exploded View

INFOID:0000000004353578

SPARK PLUG : Removal and Installation

INFOID:0000000004353579

REMOVAL

Remove the ignition coil. Refer to

EM-40, "Removal and Installation"

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA702C

Ignition coil

Spark plug

PBIC2901E

2009 Pathfinder

Content .. 505 506 507 508 ..
