[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

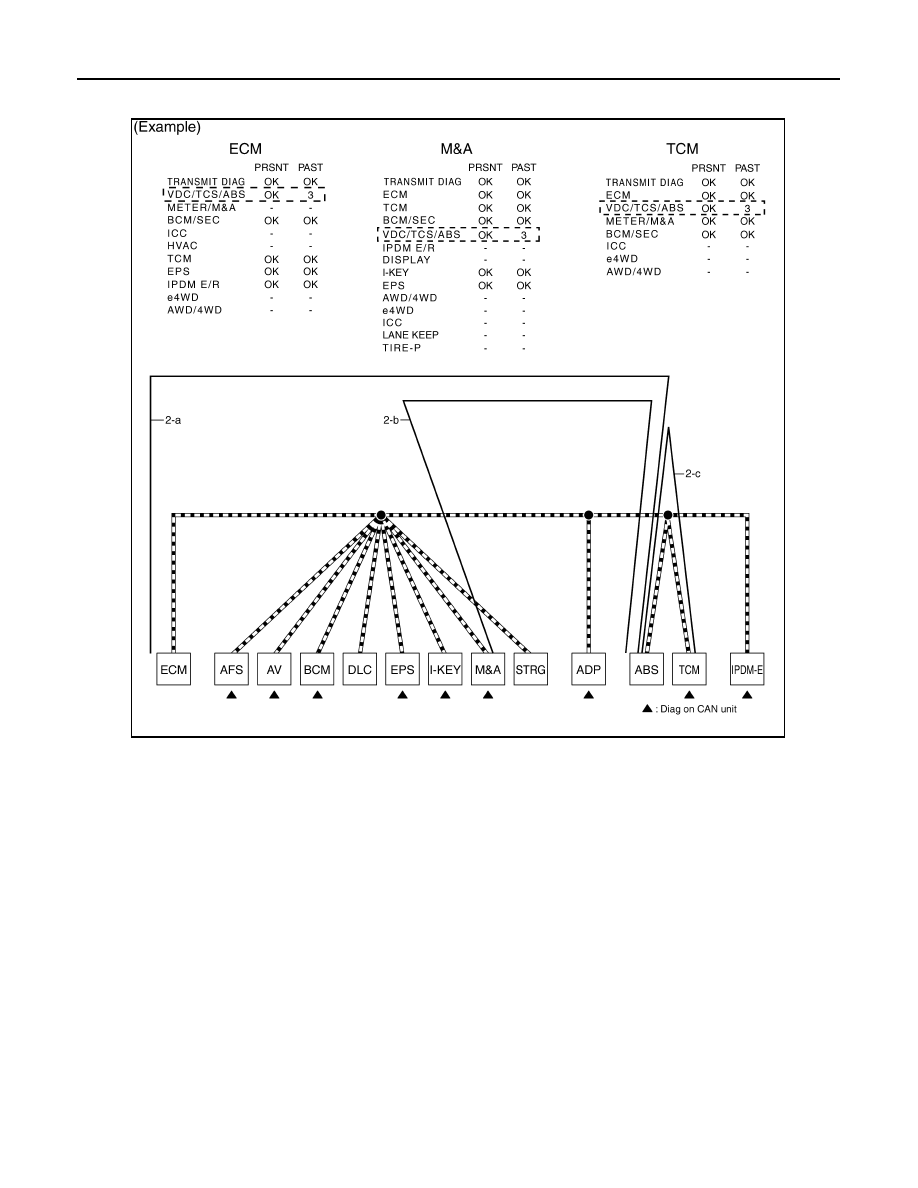

Reception item of “TCM”: “VDC/TCS/ABS”, “3” is indicated in the “PAST”. This means TCM could not
receive the signal from ABS in the past. Draw a line between TCM and ABS (line 2-c in the figure below).

CAN DIAG SUPPORT MNTR (without PAST): Check the CAN DIAG SUPPORT MNTR (without PAST) of
units indicating “U1000” or “U1001” on SELF-DIAG RESULTS. Draw a line on the diagnosis sheet to indi-
cate the possible error circuit.
NOTE:
• While an error occurred in the past according to SELF-DIAG RESULTS, it is unclear which signal is not

received. Assume that errors were detected from all reception items.

• Draw a single line among the unit and all reception items. (Work flow differs from CAN DIAG SUPPORT

MNTR (with PAST).)

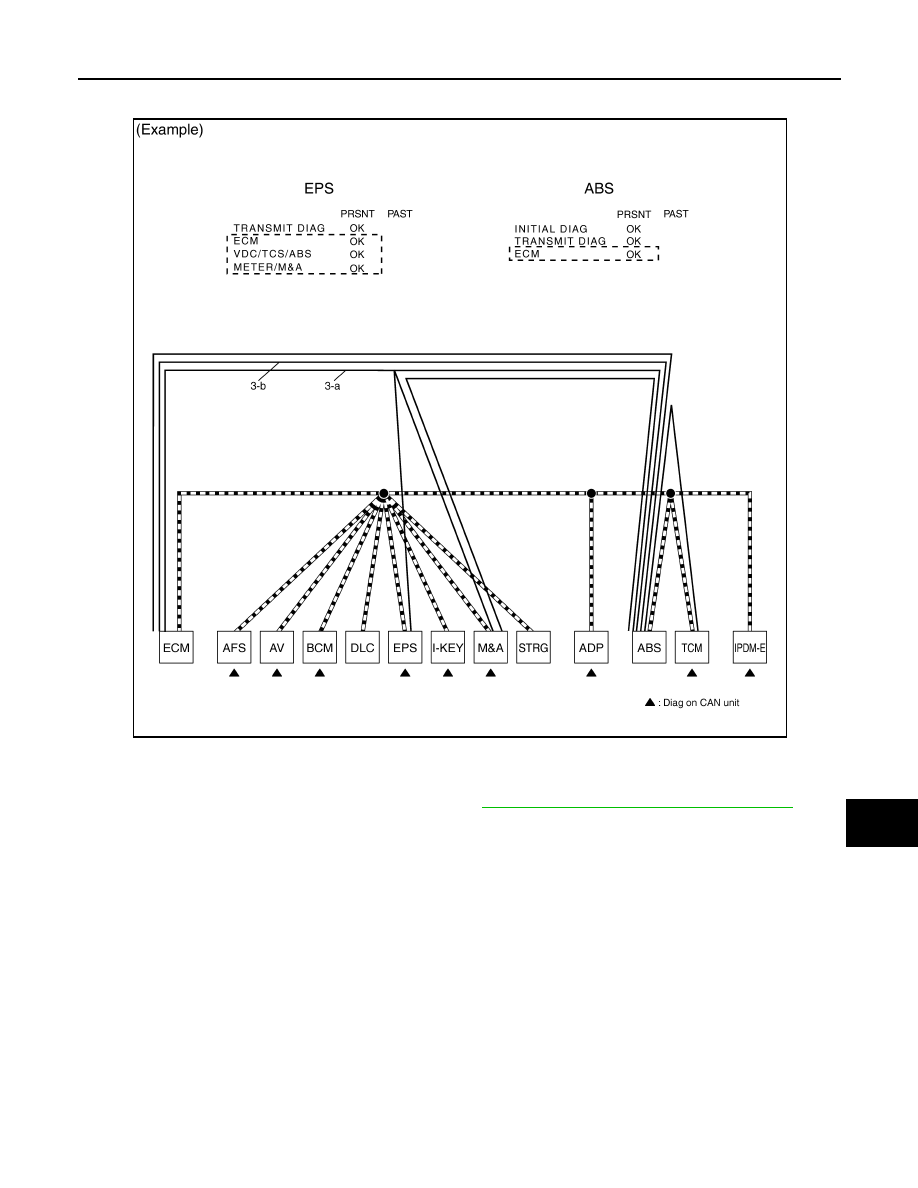

Reception item of “EPS”: Assume that the unit could not receive the signals from ECM, ABS, and M&A.
Draw a line among EPS, ECM, ABS, and M&A (line 3-a in the figure below).

PKID1222E

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-31

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

Reception item of “ABS”: Assume that the unit could not receive the signal from ECM. Draw a line
between ABS and ECM (line 3-b in the figure below).

Search for the possible cause using CAN communication signal chart using information from the interview
with the customer.
NOTE:
For the details of CAN communication signal, refer to

LAN-58, "CAN Communication Signal Chart"

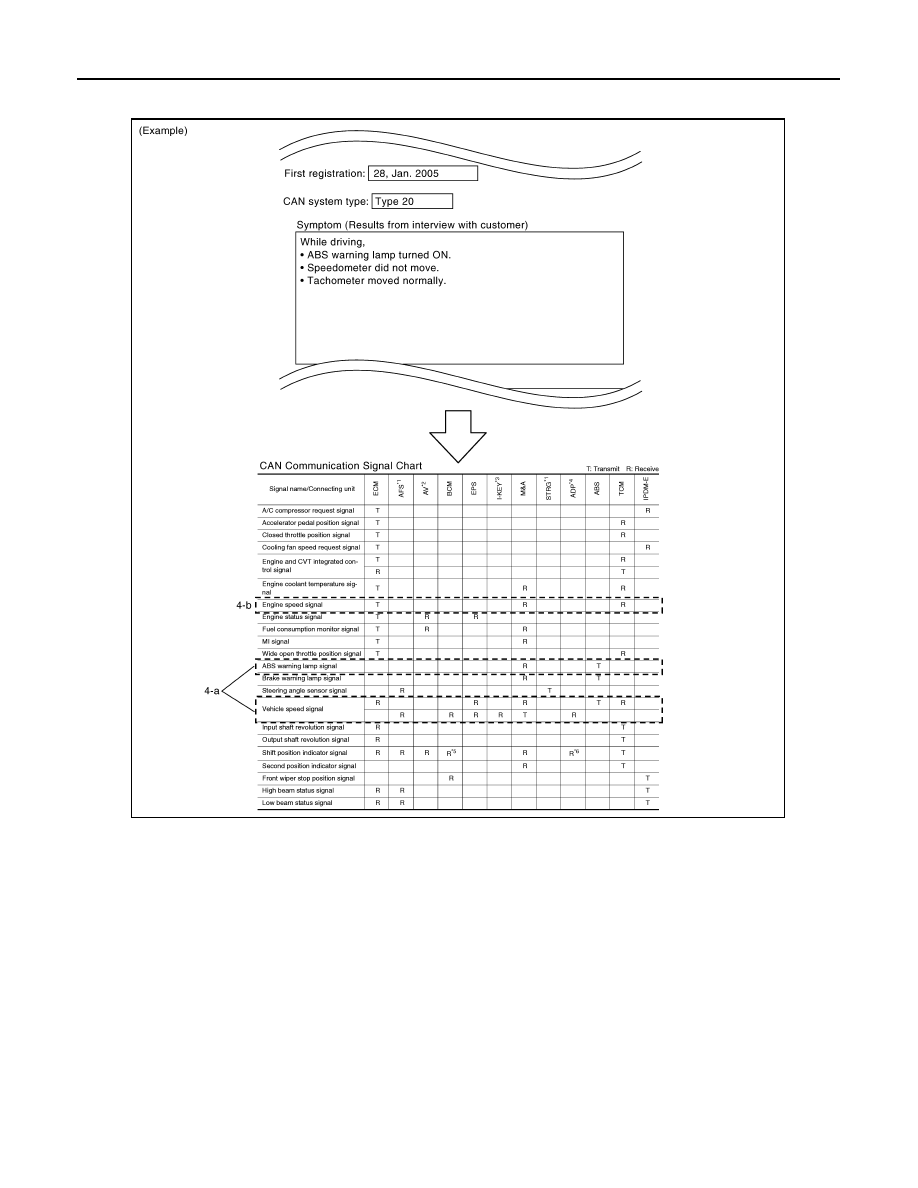

ABS warning lamp turned ON and speedometer did not move: This means that “ABS warning lamp signal”
and “Vehicle speed signal” could not communicate between M&A and ABS (4-a in the figure below).

PKID1223E

2009 Pathfinder

LAN-32

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

The tachometer moved normally: This means that “Engine speed signal” could communicate normally
between ECM and M&A (4-b in the figure below).

Fill out the diagnosis sheet based on information from step 4.

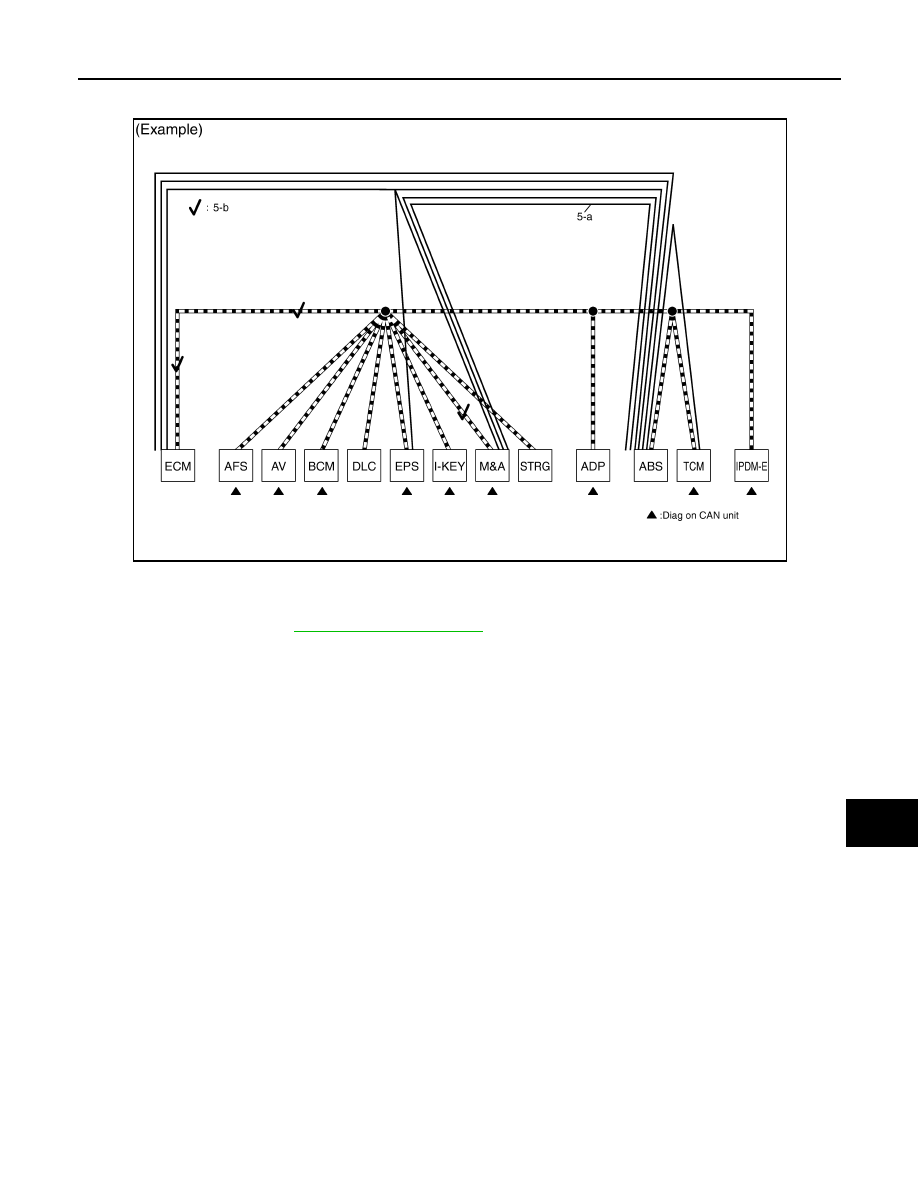

The ABS warning lamp turned ON and speedometer did not move: Assume that a possible cause is no
communication between M&A and ABS. Draw a line between M&A and ABS. (Line 5-a in the figure
below).

SKIB8895E

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-33

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

The tachometer moved normally: Put check marks between ECM and M&A. The circuit between ECM and
M&A is functioning properly (check marks 5-b in the figure below).

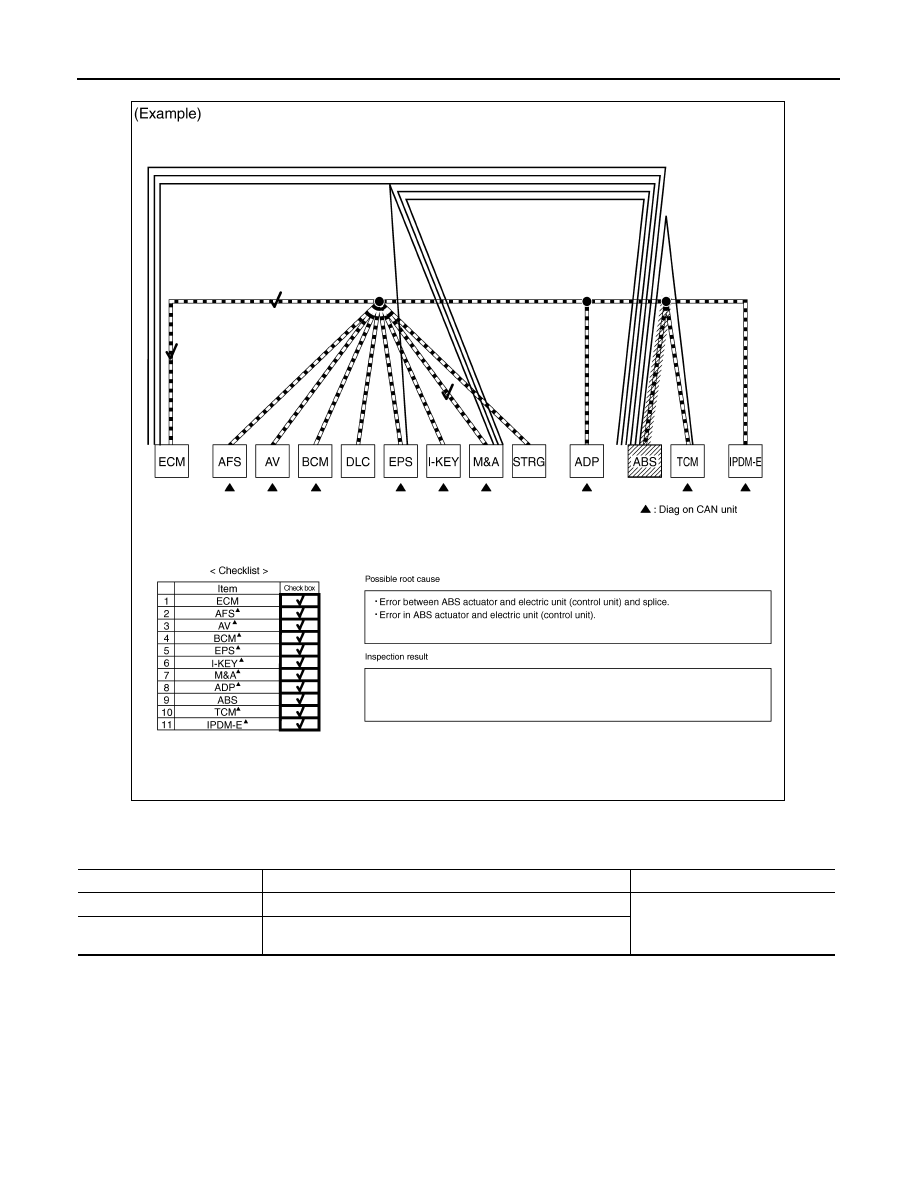

The circuit which has the most amount of lines are the possible cause. Error is detected from ABS actua-
tor and electric unit (control unit) branch line (shaded in the figure below).
NOTE:
For abbreviations, refer to

LAN-36, "Abbreviation List"

SKIB8735E

2009 Pathfinder

LAN-34

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

Perform the inspection procedure for the possible cause. Refer to “MALFUNCTION AREA CHART”.

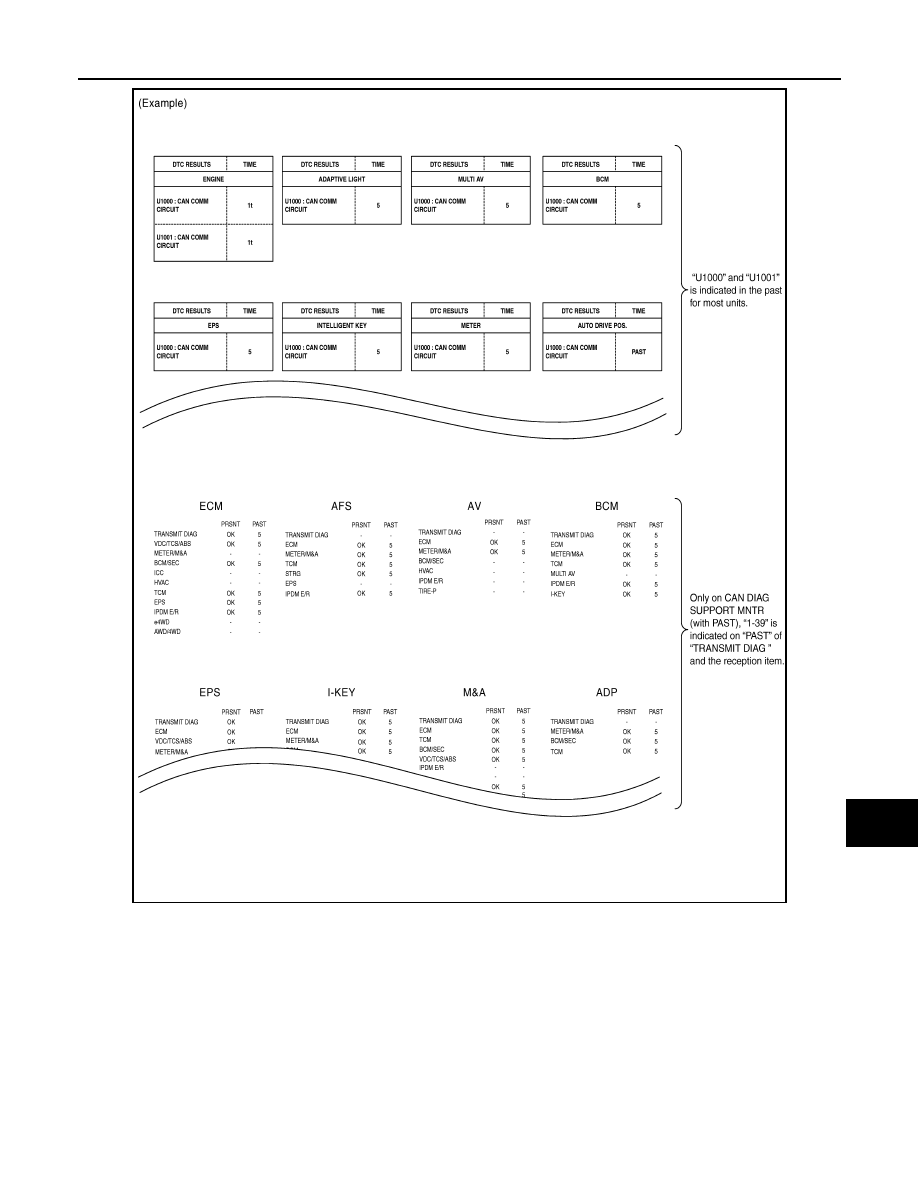

Past Error — Short Circuit —

When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.

PKID1224E

Item (CONSULT-III)

Indication

Inspection procedure

SELF-DIAG RESULTS

“U1000” and “U1001” is indicated in the past for most units.

Refer to “MALFUNCTION AREA
CHART”.

CAN DIAG SUPPORT MNTR

Only on CAN DIAG SUPPORT MNTR (with PAST), “1 - 39” is in-
dicated on “PAST” of “TRANSMIT DIAG” and the reception item.

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-35

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

PKID1225E

2009 Pathfinder

LAN-36
