AUTO LIGHT SYSTEM

The auto light system may not turn the headlamp ON/OFF immediately after passing a dark area or a bright
area (short tunnel, sky bridge, shadowed area etc.). This is normal.

2009 Pathfinder

BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM

EXL-135

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM

Description

INFOID:0000000003939645

The headlamps (both sides) do not switch to high beam when the lighting switch is in the HI or PASS setting.

Diagnosis Procedure

INFOID:0000000003939646

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK HEADLAMP (HI) REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "HL HI REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

 .

3.

HEADLAMP (HI) CIRCUIT INSPECTION

Check the headlamp (HI) circuit. Refer to

EXL-36, "Description"

.

Is the headlamp (HI) circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

 .

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL HI REQ

Lighting switch
(2ND)

HI or PASS

ON

Except for HI or
PASS

OFF

2009 Pathfinder

EXL-136

< SYMPTOM DIAGNOSIS >

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000003939647

The headlamps (both sides) do not turn ON in any lighting switch setting.

Diagnosis Procedure

INFOID:0000000003939648

1.

CHECK COMBINATION SWITCH

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "HL LO REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

 .

3.

HEADLAMP (LO) CIRCUIT INSPECTION

Check the headlamp (LO) circuit. Refer to

EXL-38, "Description"

.

Is the headlamp (LO) circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

 .

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL LO REQ

Lighting switch

2ND

ON

OFF

OFF

2009 Pathfinder

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

EXL-137

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000003939649

The parking, license plate and tail lamps do not turn ON in with any lighting switch setting.

Diagnosis Procedure

INFOID:0000000003939650

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "TAIL & CLR REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

3.

PARK LAMP CIRCUIT INSPECTION

Check the parking lamp circuit. Refer to

EXL-42, "Description"

.

Is the tail lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

TAIL & CLR
REQ

Lighting switch

1ST

ON

OFF

OFF

2009 Pathfinder

EXL-138

< SYMPTOM DIAGNOSIS >

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000003939651

The front fog lamps do not turn ON in any setting.

Diagnosis Procedure

INFOID:0000000003939652

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "FR FOG REQ" of IPDM E/R DATA MONITOR item.

2.

With operating the front fog lamp switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

3.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-40, "Description"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(Lighting switch 2ND)

ON

ON

OFF

OFF

2009 Pathfinder

PRECAUTIONS

EXL-139

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003939653

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

2009 Pathfinder

EXL-140

< ON-VEHICLE REPAIR >

ADJUSTMENT AND INSPECTION

ON-VEHICLE REPAIR

ADJUSTMENT AND INSPECTION

HEADLAMP

HEADLAMP : Aiming Adjustment

INFOID:0000000003939654

For details, refer to the regulations in your area.
NOTE:
If vehicle front body has been repaired and /or the headlamp assembly has been replaced, check headlamp
aiming.
• Before performing aiming adjustment, check the following:
- Confirm headlamp aiming switch is set to "0" (zero) position.
- Ensure all tires are inflated to correct pressure.
- Place vehicle and screen on level surface.
- Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

Coolant and engine oil filled to correct level, and fuel tank full.

- Confirm spare tire, jack and tools are properly stowed.
- Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

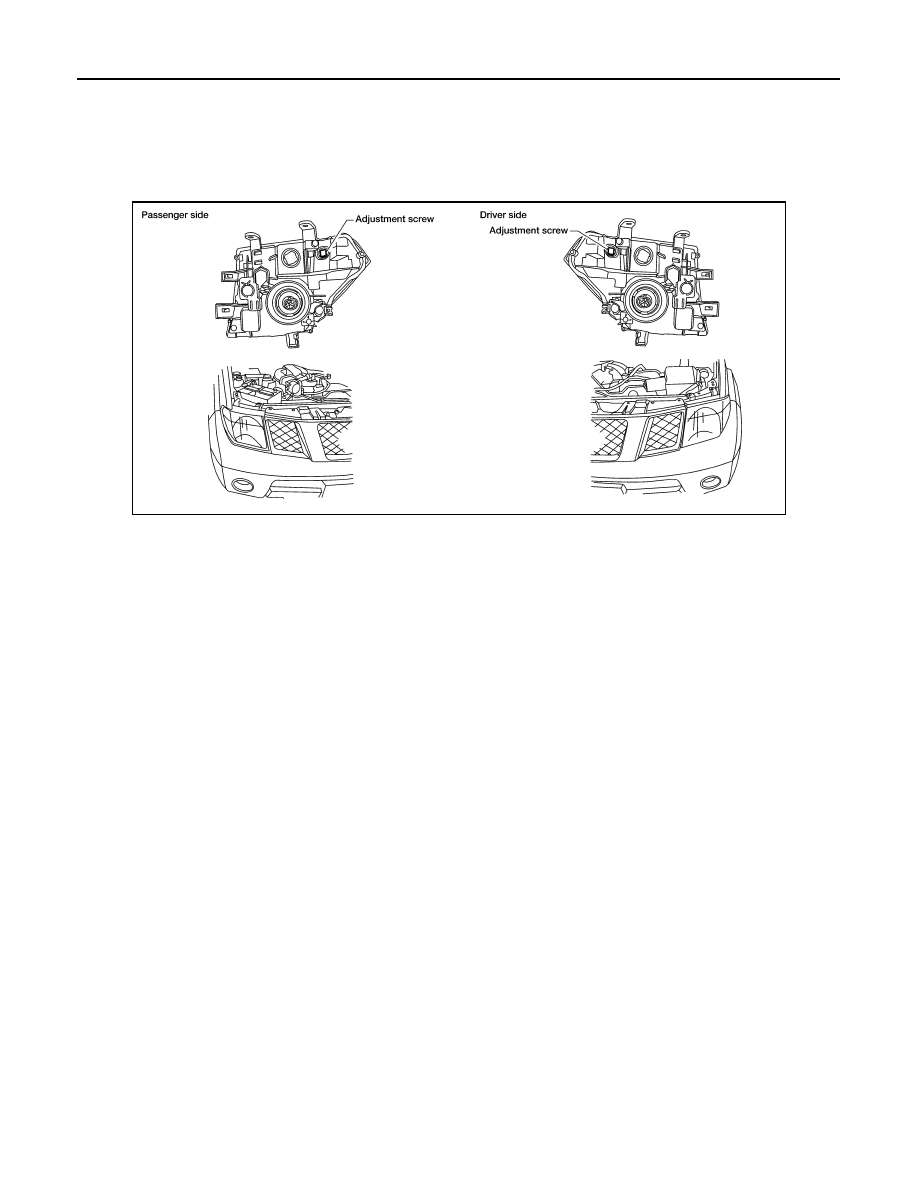

- Use adjusting screw to perform aiming adjustment

LOW BEAM AND HIGH BEAM

LKIA0568E

2009 Pathfinder

ADJUSTMENT AND INSPECTION

EXL-141

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Aiming Chart

NOTE:
• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.

1.

Use adjustment screw to perform aiming adjustment.
• Cover the opposite lamp and ensure fog lamps, if equipped, are turned off.

CAUTION:

Do not tighten adjustment screw beyond specified torque or damage may occur.

2.

Adjust beam pattern until cut-off line (top edge of illumination area) is positioned at the specified height off
ground. Measure cut-off line within distance J on H-line. See aiming chart.

FRONT FOG LAMP

FRONT FOG LAMP : Aiming Adjustment

INFOID:0000000003939655

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming
adjustment, make sure of the following.
• Keep all tires inflated to correct pressure.

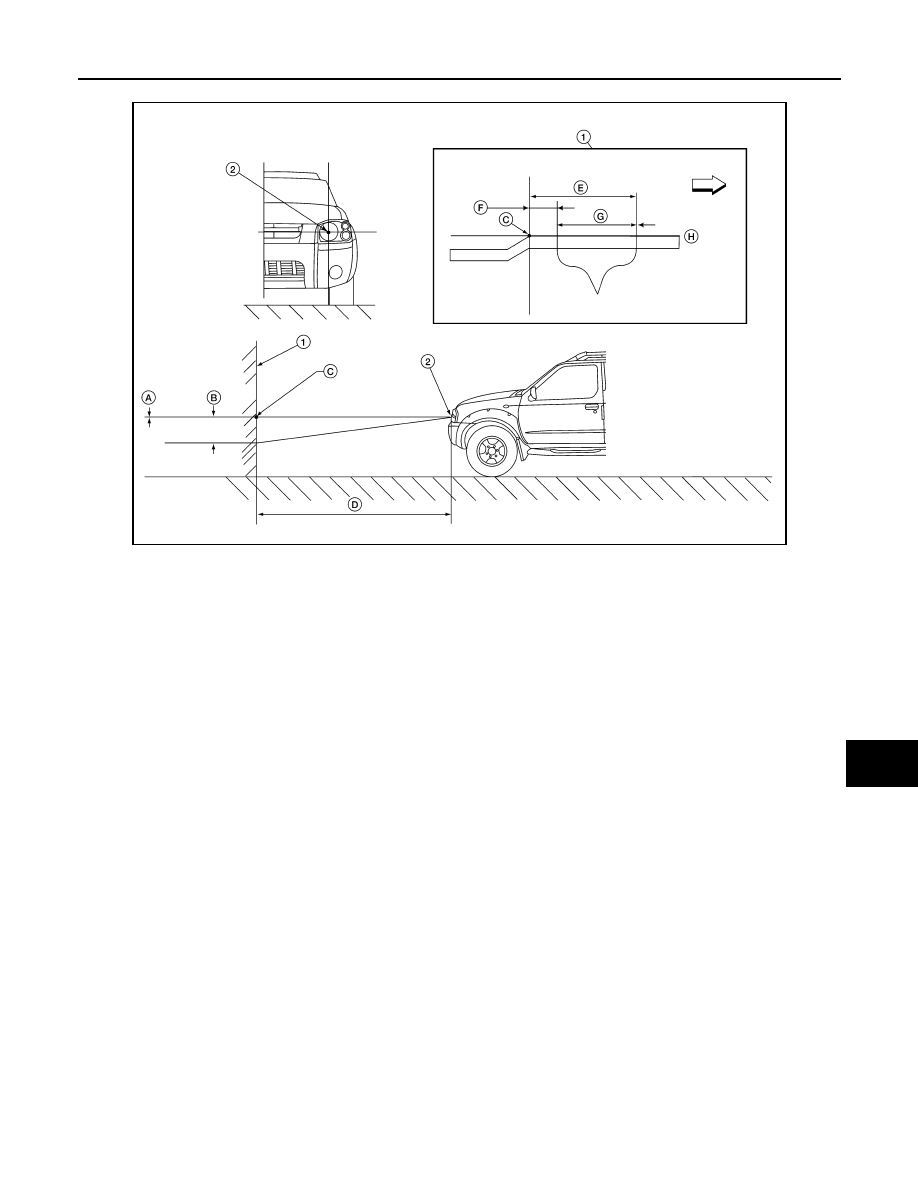

WKIA4885E

1

Adjustment screen

2

Headlamp bulb center (HV point)

A

Minimum acceptable vertical aim di-
mension (see aiming chart)

B

Maximum acceptable vertical aim
dimension (see aiming chart)

C

H-V point

D

Distance of headlamp aiming screen
from vehicle 7.62 m (25 ft.)

E

Maximum aim evaluation distance
from vertical center on aiming
screen 399mm (3

°

 R).

F

Minimum aim evaluation distance
from vertical center on aiming
screen 133 mm (1

°

R)

G

Aim evaluation area

H

Horizontal aiming evaluation line.

⇒

Right

A (Minimum acceptable vertical aim dimension)

-3.3 mm (0.13 in)

0.025

°

 up

B (Maximum acceptable vertical aim dimension)

36.6 mm (1.44 in)

0.275

°

 down

Adjustment torque

1.67 N.m (17 kg-cm, 14.8 in-lb)
