EC-862

< COMPONENT DIAGNOSIS >

[VK56DE]

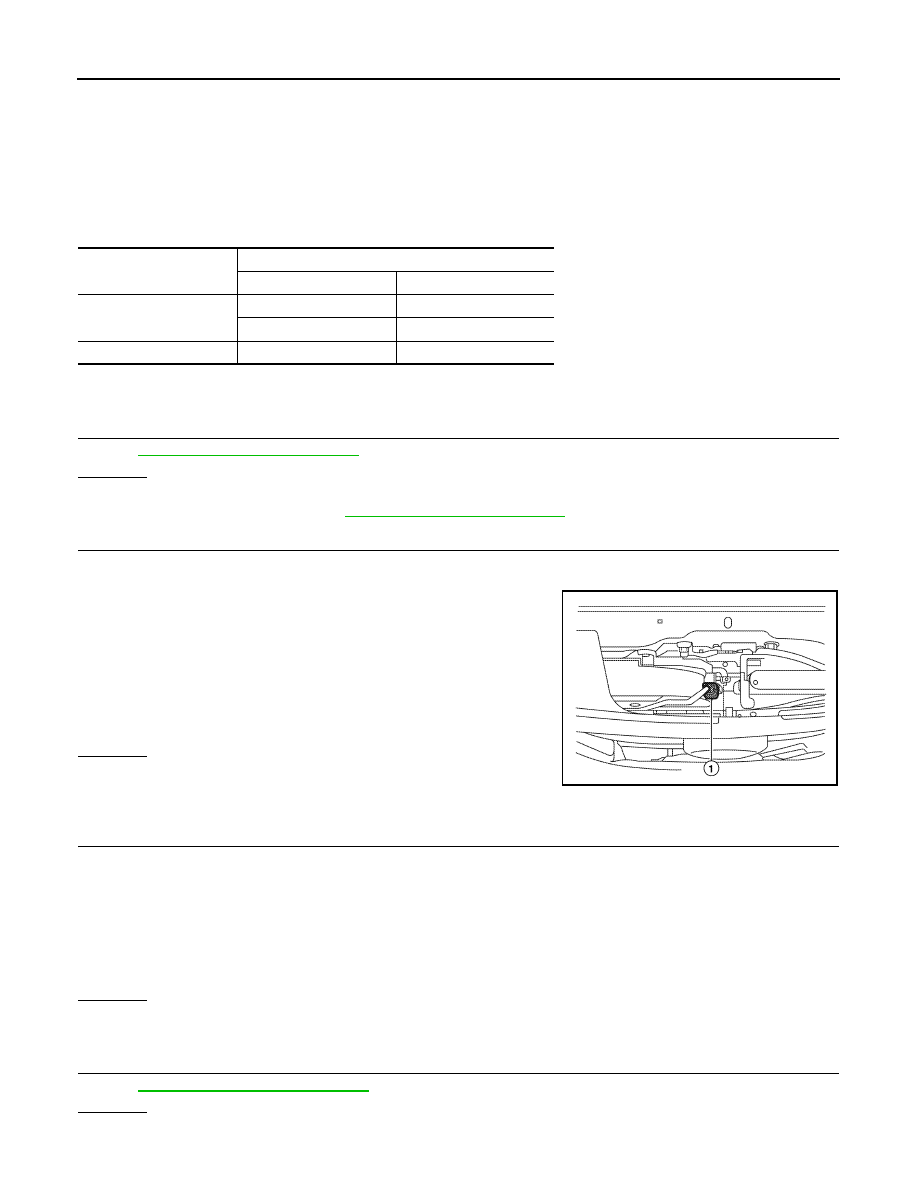

COOLING FAN

COOLING FAN

Description

INFOID:0000000003936846

COMPONENT DESCRIPTION

Cooling Fan Motor

The cooling fan operates at each speed when the current flows in the cooling fan motor as per the following.

Diagnosis Procedure

INFOID:0000000003936847

1.

CHECK IPDM E/R POWER SUPPLY AND GROUND CIRCUIT

Refer to

PCS-18, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 2.

NG

>> Follow the instructions on

PCS-18, "Diagnosis Procedure"

.

2.

CHECK COOLING FAN MOTOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector E120.

3.

Disconnect cooling fan motor (1) harness connector.

4.

Check harness continuity between the following terminals;
cooling fan motor terminal 1 and IPDM E/R terminal 20,
cooling fan motor terminal 2 and IPDM E/R terminal 24.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK COOLING FAN MOTER GROUND CIRCUIT FOR OPEN OR SHORT

1.

Check harness continuity between the following terminals;
cooling fan motor terminal 3 and ground,
cooling fan motor terminal 4 and ground.
Refer to Wiring Diagram.

2.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to power in harness or connectors.

4.

CHECK COOLING FAN MOTOR

Refer to

EC-863, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

Cooling fan speed

Cooling fan motor terminals

(+)

(

−

)

Low (LOW)

1

3 and 4

2

3 and 4

High (HI)

1 and 2

3 and 4

Continuity should exist.

ALBIA0355ZZ

Continuity should exist.

2009 Pathfinder

COOLING FAN

EC-863

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NG

>> Replace cooling fan motor.

5.

CHECK INTERMITTENT INCIDENT

Perform

GI-49, "Intermittent Incident"

.

OK or NG

OK

>> INSPETION END

NG

>> Repair or replace harness or connector.

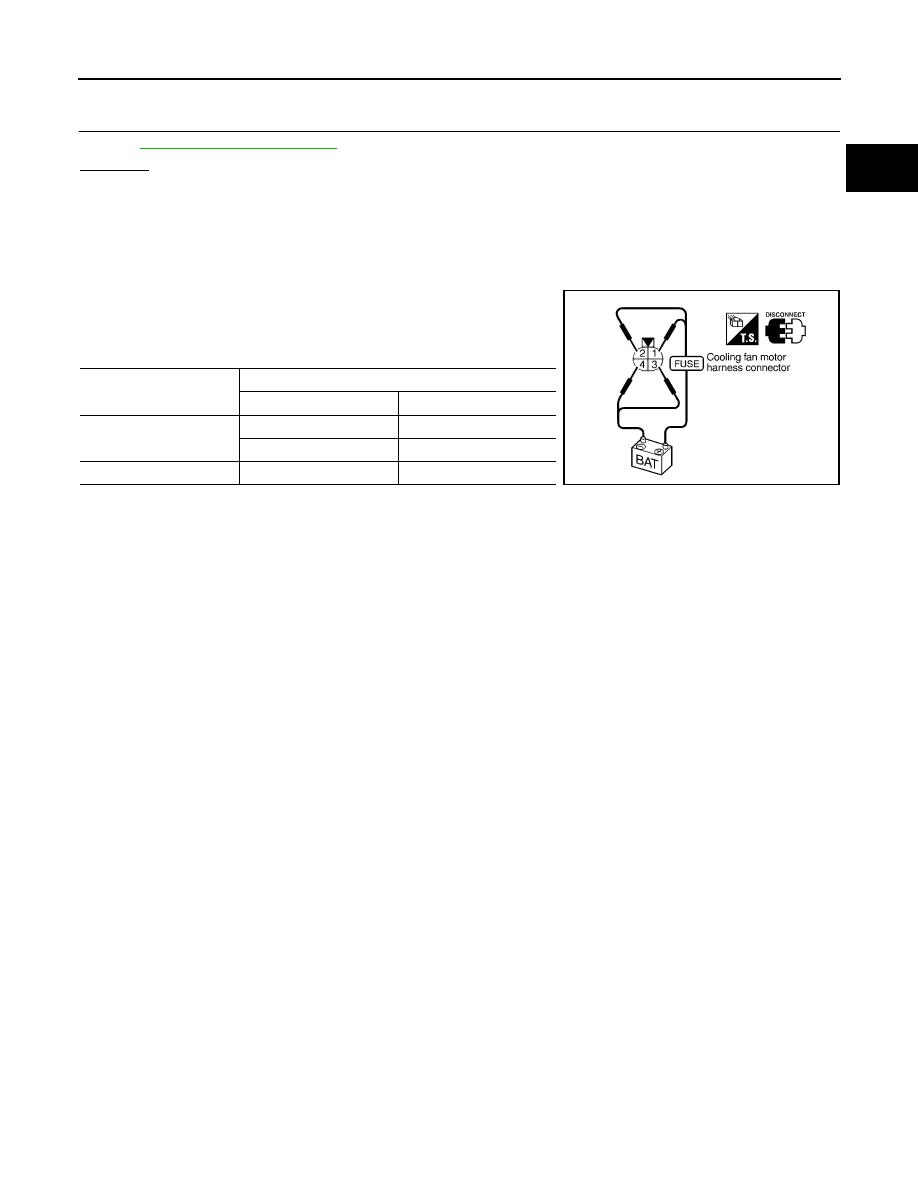

Component Inspection

INFOID:0000000003936848

COOLING FAN MOTOR

1.

Disconnect cooling fan motor harness connector.

2.

Supply cooling fan motor terminals with battery voltage and
check operation.

Cooling fan motor should operate.
If NG, replace cooling fan motor.

Cooling fan speed

Cooling fan motor terminals

(+)

(

−

)

Low

1

3 and 4

2

3 and 4

High

1 and 2

3 and 4

SEF734W

2009 Pathfinder

EC-864

< COMPONENT DIAGNOSIS >

[VK56DE]

ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNAL

Description

INFOID:0000000003936849

The electrical load signal (Headlamp switch signal, etc.) is transferred via the CAN communication line.

Diagnosis Procedure

INFOID:0000000003936850

1.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I

1.

Turn ignition switch ON.

2.

Connect CONSULT-III and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 4.

2.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

Check “LOAD SIGNAL” indication under the following conditions.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 5.

3.

CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION

Select “HEATER FAN SW” and check indication under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

4.

CHECK REAR WINDOW DEFOGGER SYSTEM

Refer to

DEF-3, "Repair Work Flow"

.

>> INSPECTION END

5.

CHECK HEADLAMP SYSTEM

Refer to

EXL-4, "Work Flow"

.

>> INSPECTION END

6.

CHECK HEATER FAN CONTROL SYSTEM

Refer to

HAC-4, "How to Perform Trouble Diagnosis For Quick And Accurate Repair"

 or

HAC-124, "How to

Perform Trouble Diagnosis For Quick And Accurate Repair"

.

Condition

Indication

Rear window defogger switch: ON

ON

Rear window defogger switch: OFF

OFF

Condition

Indication

Lighting switch: ON at 2nd position

ON

Lighting switch: OFF

OFF

Condition

Indication

Heater fan control switch: ON

ON

Heater fan control switch: OFF

OFF

2009 Pathfinder

ELECTRICAL LOAD SIGNAL

EC-865

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

2009 Pathfinder

EC-866

< COMPONENT DIAGNOSIS >

[VK56DE]

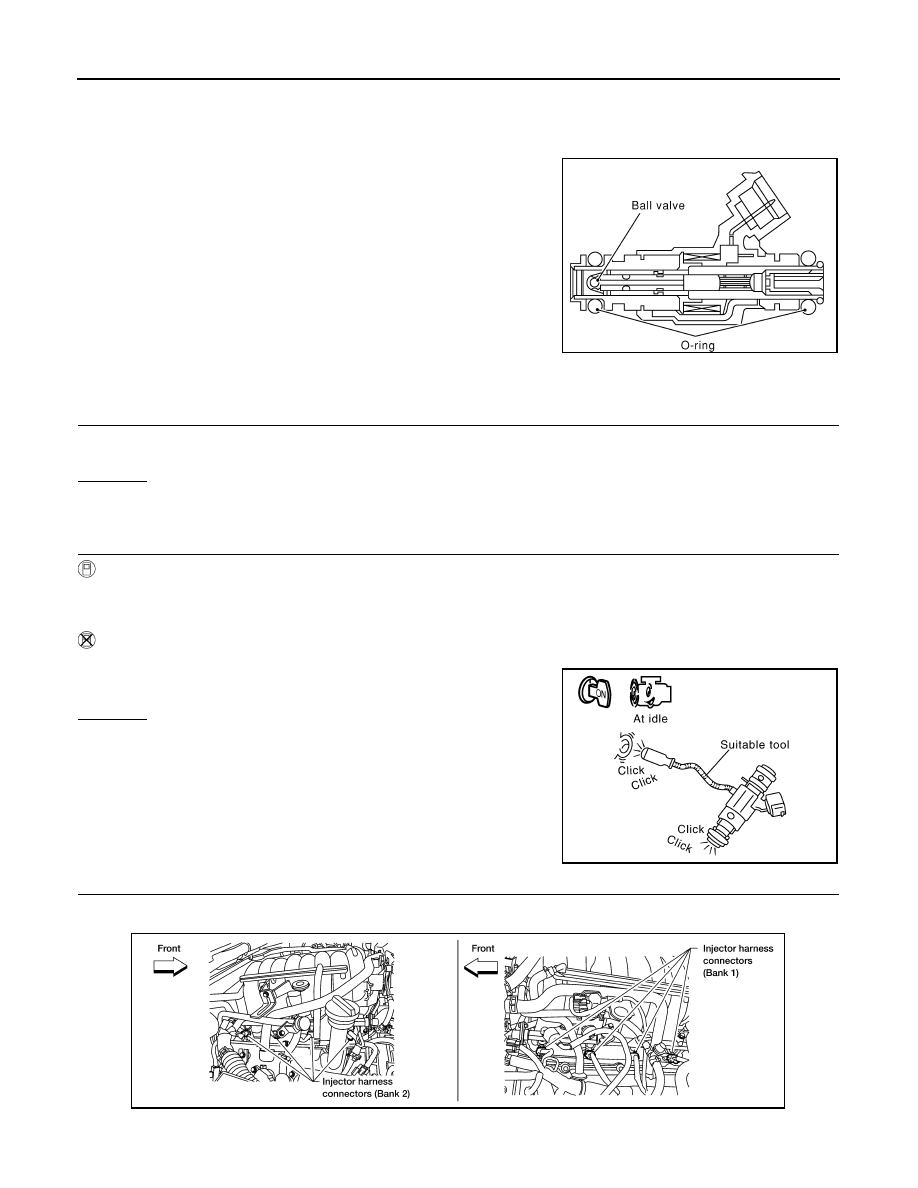

FUEL INJECTOR

FUEL INJECTOR

Component Description

INFOID:0000000003936851

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.

Diagnosis Procedure

INFOID:0000000003936852

1.

INSPECTION START

Turn ignition switch to START.
Are any cylinders ignited?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

2.

CHECK OVERALL FUNCTION

 With CONSULT-III

1.

 Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

3.

Check that each circuit produces a momentary engine speed drop.

 Without CONSULT-III

1.

Start engine.

2.

Listen to each fuel injector operating sound.
Clicking noise should be heard.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 3.

3.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Turn ignition switch ON.

SEF375Z

PBIB1986E

BBIA0374E

2009 Pathfinder

FUEL INJECTOR

EC-867

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

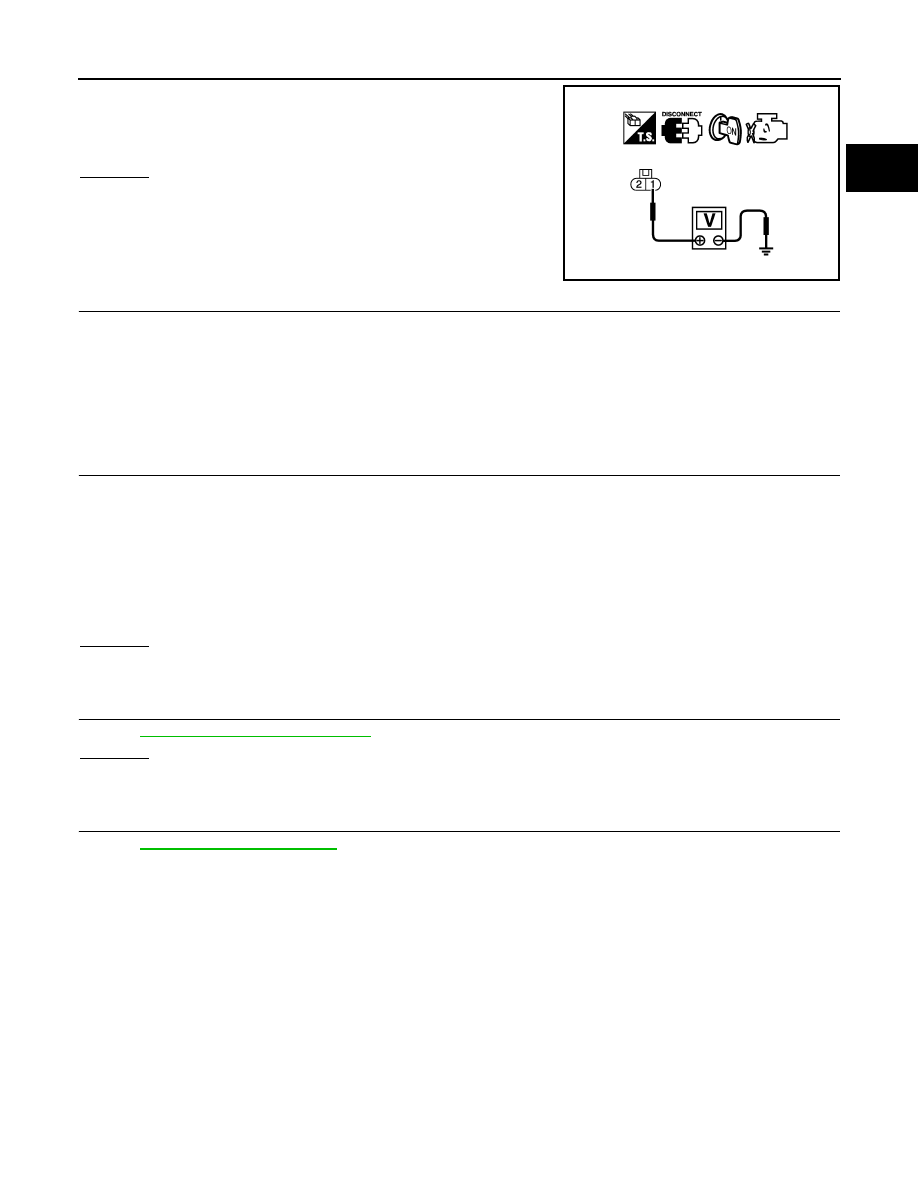

4.

Check voltage between fuel injector terminal 1 and ground with
CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

 Check the following.
• Harness connectors E2, F32
• IPDM E/R connector E119
• 15 A fuse (No. 55)
• Harness for open or short between fuel injector and fuse

>> Repair harness or connectors.

5.

CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between fuel injector terminal 2 and ECM terminals 21, 22, 23, 40, 41, 42, 44,
63.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK FUEL INJECTOR

Refer to

EC-867, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace malfunctioning fuel injector.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003936853

FUEL INJECTOR

1.

Disconnect fuel injector harness connector.

Voltage: Battery voltage

PBIB0582E

Continuity should exist.

2009 Pathfinder

EC-868

< COMPONENT DIAGNOSIS >

[VK56DE]

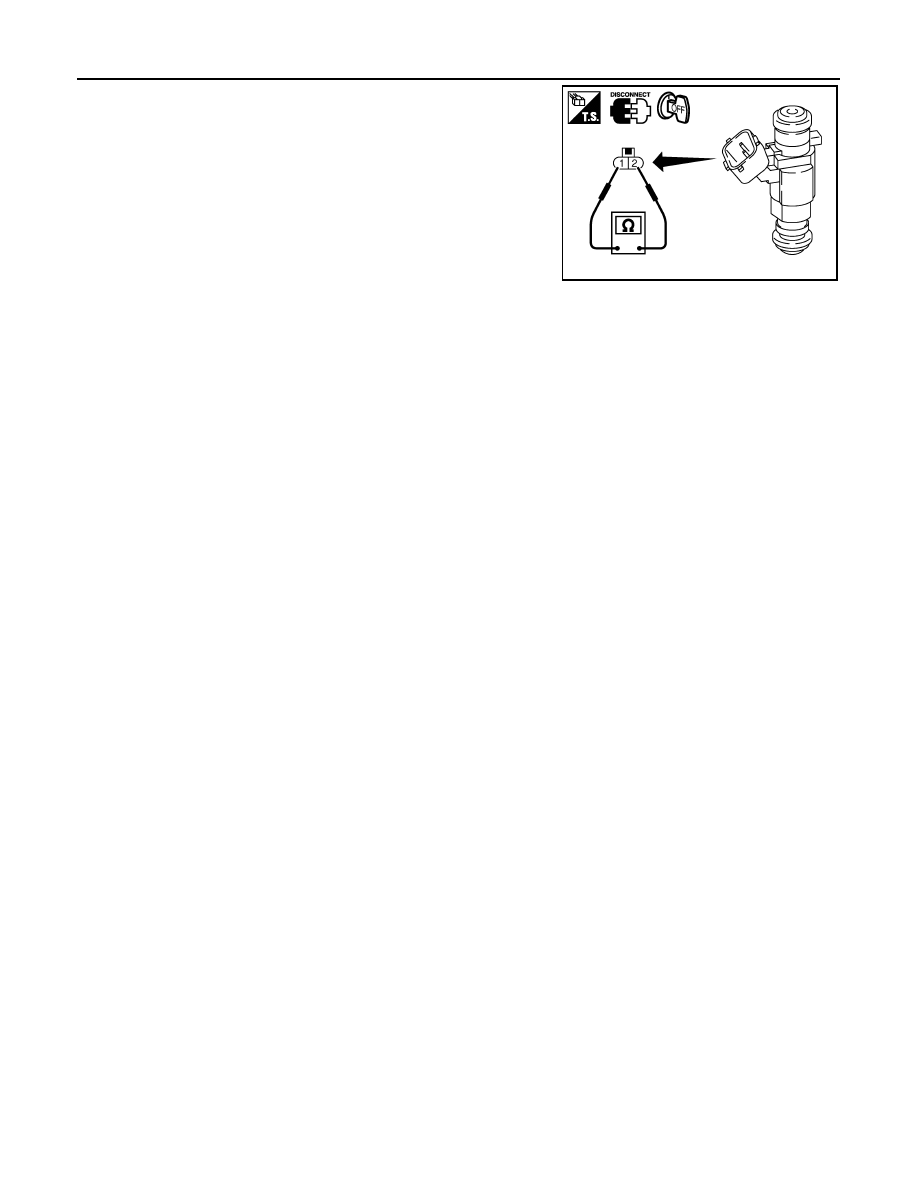

FUEL INJECTOR

2.

Check resistance between terminals as shown in the figure.

Resistance: 11.1 - 14.5

Ω

 [at 10 - 60

°

C (50 - 140

°

F)]

PBIB1727E

2009 Pathfinder

FUEL PUMP

EC-869

< COMPONENT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

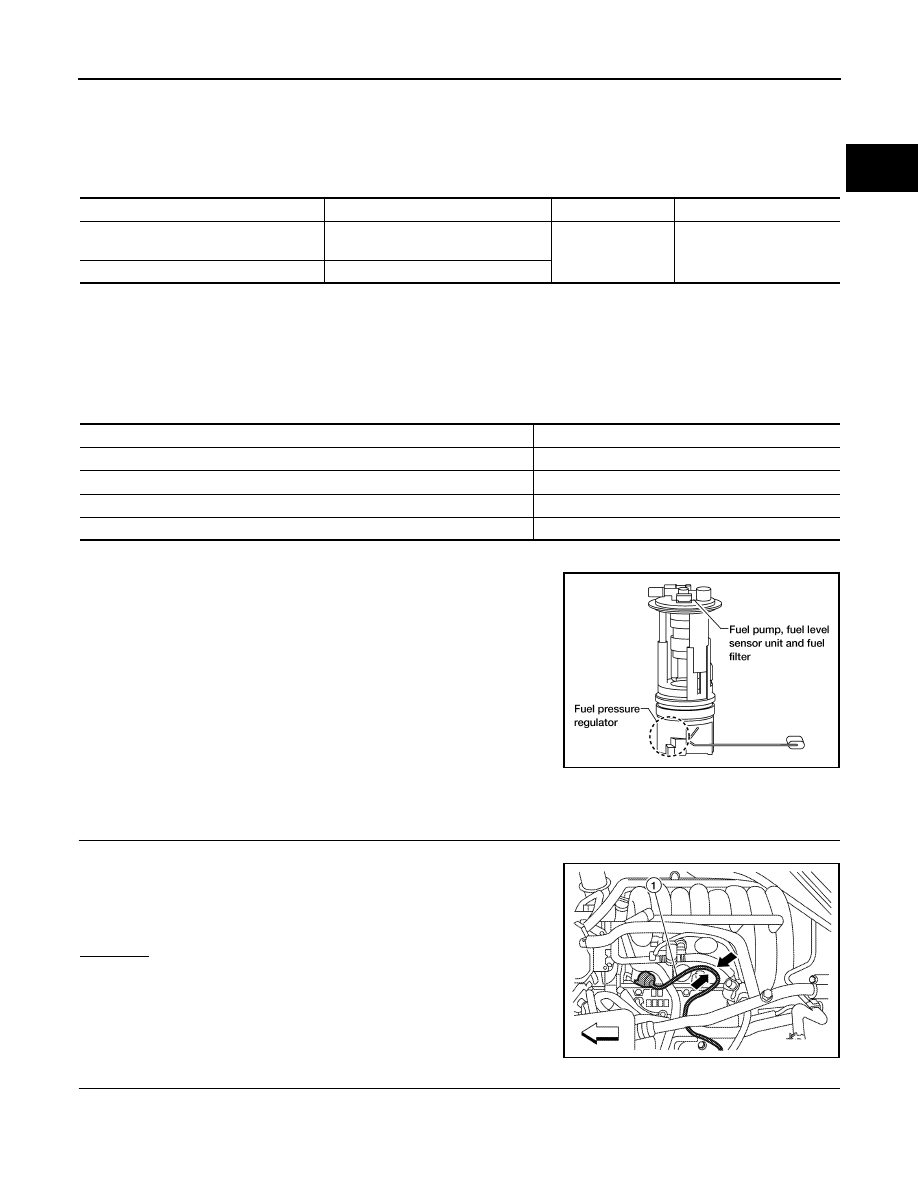

FUEL PUMP

Description

INFOID:0000000003936854

SYSTEM DESCRIPTION

*: ECM determines the start signal status by the signals of engine speed and battery voltage.

The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
start ability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.

COMPONENT DESCRIPTION

A turbine type design fuel pump is used in the fuel tank.

Diagnosis Procedure

INFOID:0000000003936855

1.

CHECK OVERALL FUNCTION

1.

Turn ignition switch ON.

2.

Pinch fuel feed hose with two fingers.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Turn ignition switch ON.

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

Fuel pump control

Fuel pump relay

Battery

Battery voltage*

Condition

Fuel pump operation

Ignition switch is turned to ON

Operates for 1 second.

Engine running and cranking

Operates.

When engine is stopped

Stops in 1.5 seconds.

Except as shown above

Stops.

BBIA0529E

Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.

ALBIA0356ZZ
