Nissan Pathfinder (2009 year). Manual - part 231

DLN-330

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1350]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000003937422

4WD models

Unit: mm (in)

Propeller Shaft Runout

Unit: mm (in)

Propeller Shaft Joint Flex Effort

Unit: N·m (kg-m, in-lb)

Journal Axial Play

Unit: mm (in)

Snap Ring

INFOID:0000000003937423

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Applied model

4WD

VK56DE

A/T

Propeller shaft model

2S1350 (aluminum tube)

Number of joints

Coupling method with rear final drive

Flange type

Coupling method with transfer

Sleeve type

Shaft length (Spider to spider)

850.7 (33.49)

Shaft outer diameter

102.5 (4.04)

Item

Limit

Propeller shaft runout

0.6 (0.024) or less

Item

Limit

Propeller shaft joint flex effort

2.26 (0.23, 20 ) or less

Item

Limit

Journal axial play

0.02 (0.0008) or less

Thickness

Color

Part Number*

1.99 (0.0783)

White

37146-C9400

2.02 (0.0795)

Yellow

37147-C9400

2.05 (0.0807)

Red

37148-C9400

2.08 (0.0819)

Green

37149-C9400

2.11 (0.0831)

Blue

37150-C9400

2.14 (0.0843)

Light brown

37151-C9400

2.17 (0.0854)

Black

37152-C9400

2.20 (0.0866)

No paint

37153-C9400

2009 Pathfinder

PRECAUTIONS

DLN-331

< PRECAUTION >

[FRONT FINAL DRIVE: R180A]

DLN

PRECAUTION

PRECAUTIONS

Precaution for Servicing Front Final Drive

INFOID:0000000003937424

• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic

operations.

• Check for the correct installation status prior to removal or disassembly. When matching marks are required,

be certain they do not interfere with the function of the parts they are applied to.

• Overhaul should be done in a clean work area, a dust proof area is recommended.
• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from

entering into the unit during disassembly or assembly.

• Always use shop paper for cleaning the inside of components.
• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.
• Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace them

with new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.
• Clean and flush the parts sufficiently and blow them dry.
• Be careful not to damage sliding surfaces and mating surfaces.
• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and

foreign materials from the application and mating surfaces.

• In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a

tightening sequence is specified, observe it.

• During assembly, observe the specified tightening torque.
• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

2009 Pathfinder

DLN-332

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

PREPARATION

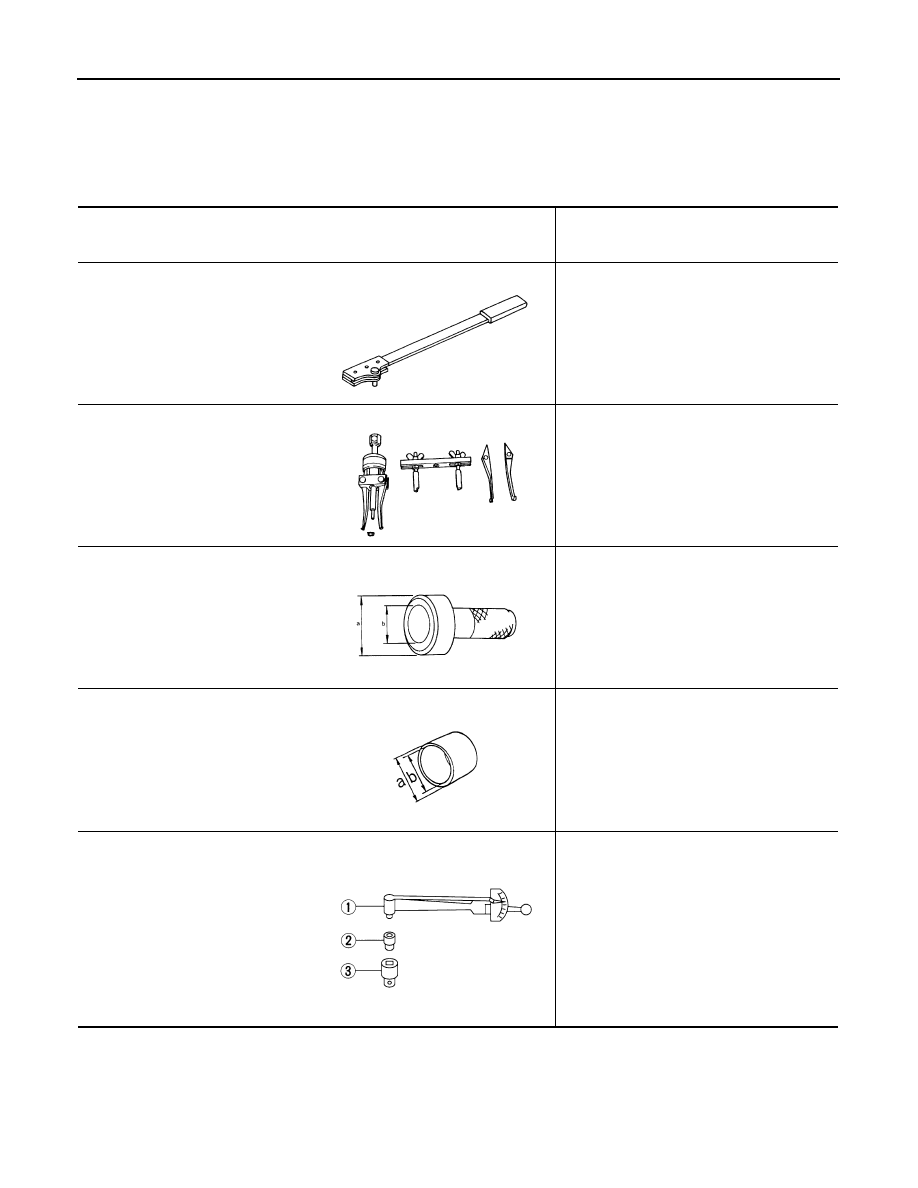

Special Service Tool

INFOID:0000000003937425

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)

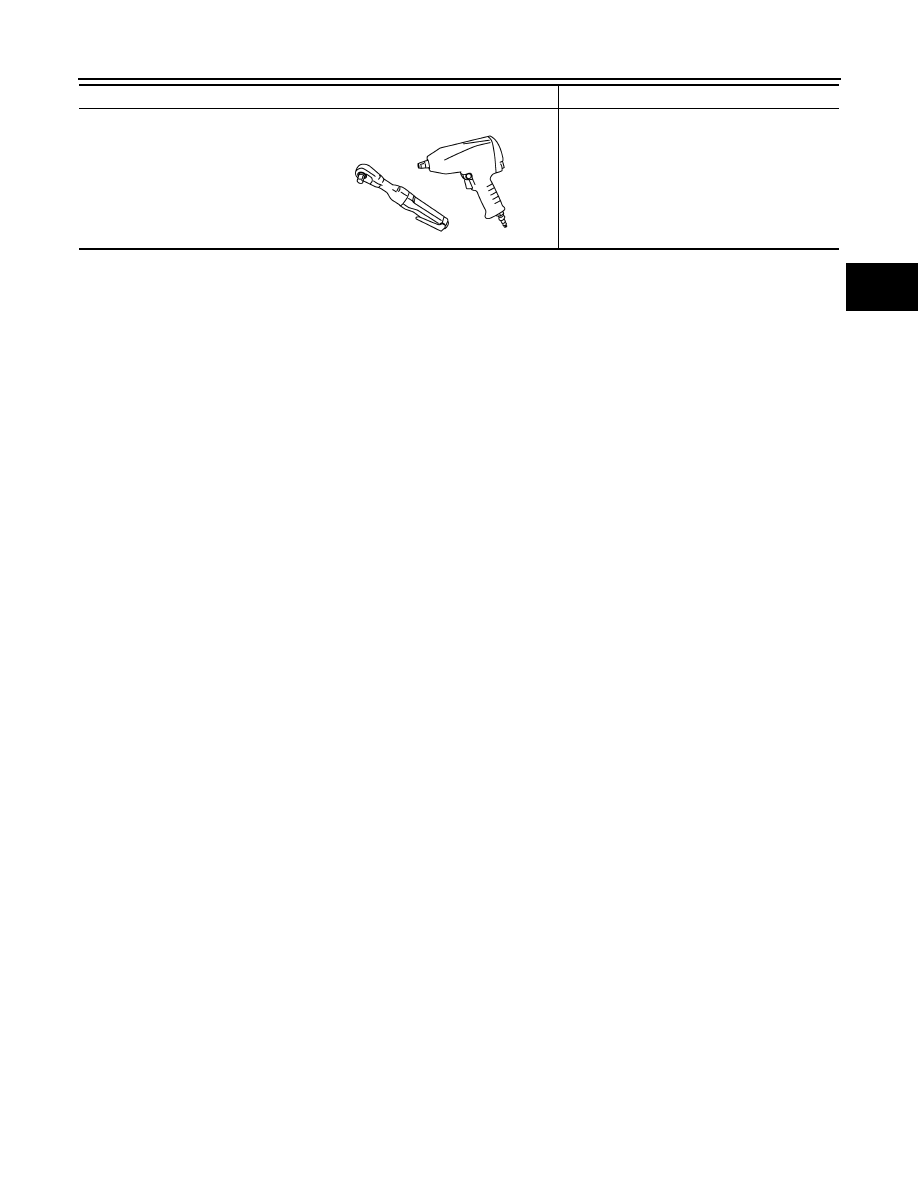

Tool name

Description

KV38108300
(J-44195)
Flange wrench

Removing and installing drive pinion lock nut

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

• Installing front oil seal
• Installing side oil seal
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST27863000
(

—

)

Drift

• Installing front oil seal
• Installing side oil seal
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

—

)

Socket adapter (1/2

″

)

3: HT62900000

(

—

)

Socket adapter (3/8

″

)

Measuring drive pinion bearing preload torque
and total preload torque

NT771

ZZA0601D

ZZA0811D

ZZA1003D

NT124

2009 Pathfinder

PREPARATION

DLN-333

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

DLN

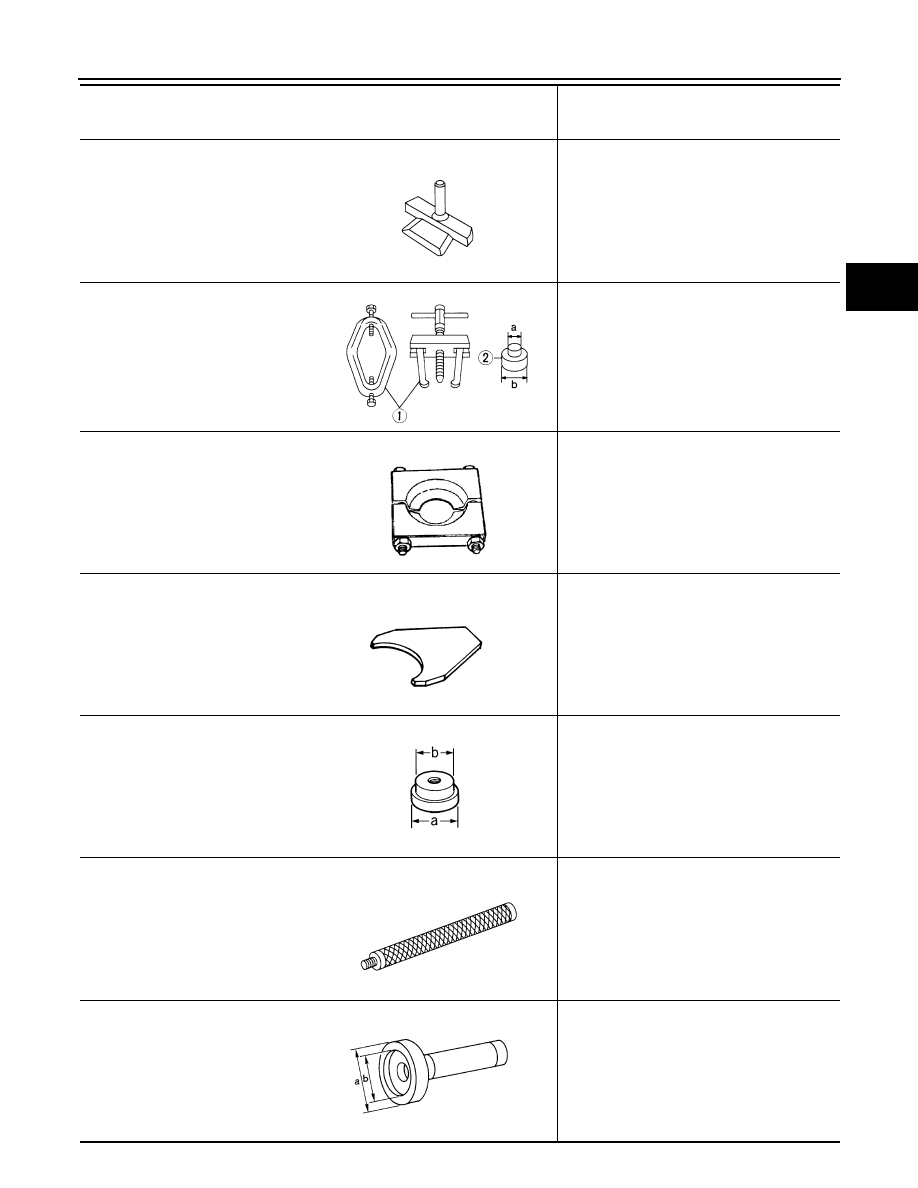

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ST3306S001
(

—

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Replacer

Removing drive pinion rear bearing inner race

KV38100600
(J-25267)
Drift

Installing side bearing adjusting washer

ST30613000
(J-25742-3)
Drift

Installing drive pinion rear bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion rear bearing outer race
(Use with ST30613000)

KV38100200
(J-26233)
Drift

Installing drive pinion front bearing outer race
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT046

NT072

ZZA0700D

SDIA0429J

ZZA1000D

S-NT090

ZZA1143D

2009 Pathfinder

DLN-334

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

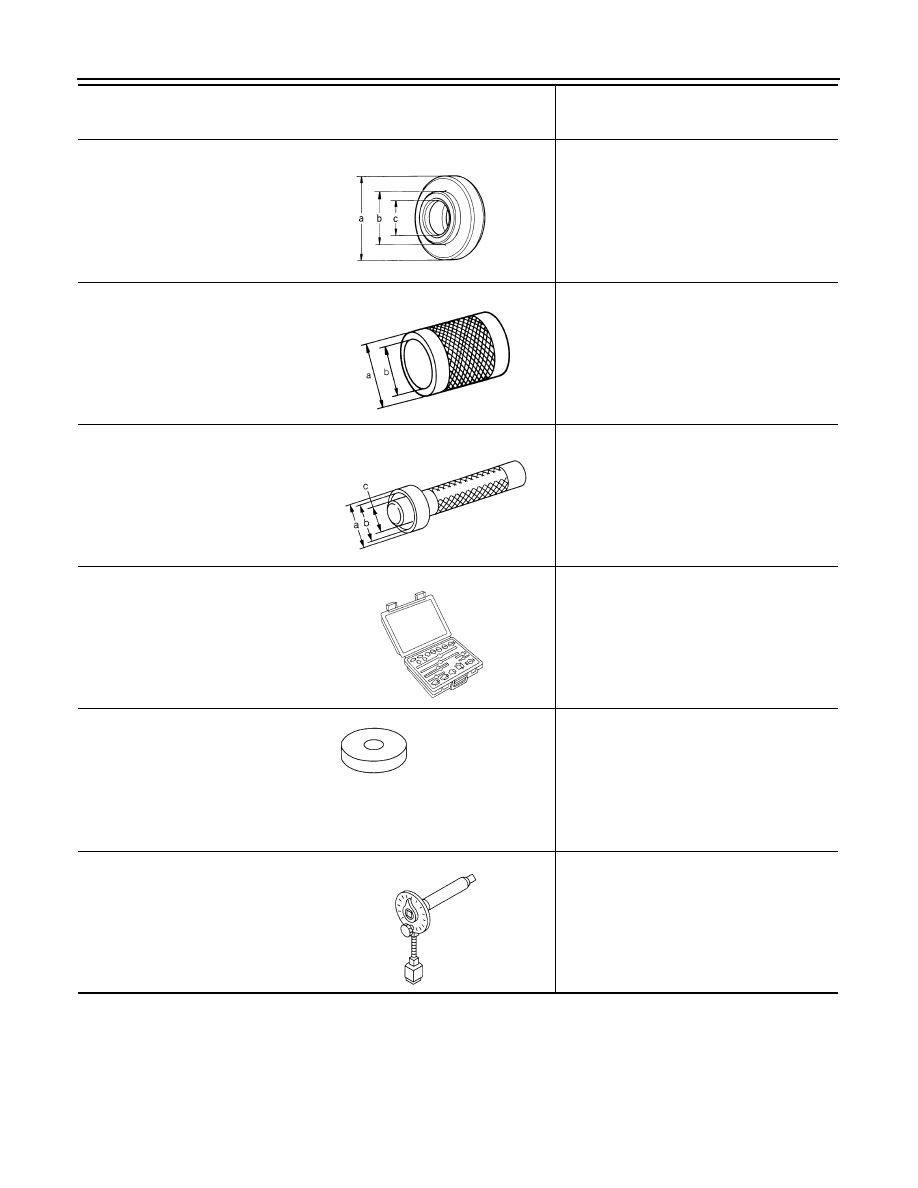

Commercial Service Tool

INFOID:0000000003937426

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

ST33200000
(J-26082)
Drift

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ST33230000
(J-35867)
Drift

Installing side bearing inner race
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.

(

—

)

(J-34309)
Differential shim selector tool

Adjusting bearing preload and drive pinion
height

(

—

)

(J-25269-18)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0978D

ZZA1002D

ZZA1046D

NT134

NT135

NT014

2009 Pathfinder

PREPARATION

DLN-335

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

DLN

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

2009 Pathfinder

DLN-336

< FUNCTION DIAGNOSIS >

[FRONT FINAL DRIVE: R180A]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FUNCTION DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000003937427

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

Possible cause and SUSPECTED PARTS

ar t

rou

Gea

r co

t i

rop

h s

rrec

n f

lan

run

Gea

r oi

l i

rop

FRO

T A

ONT

SUSPENSI

ROAD W

EEL

DRIV

SHAFT

EERING

Symptom

Noise

2009 Pathfinder

DESCRIPTION

DLN-337

< FUNCTION DIAGNOSIS >

[FRONT FINAL DRIVE: R180A]

DLN

DESCRIPTION

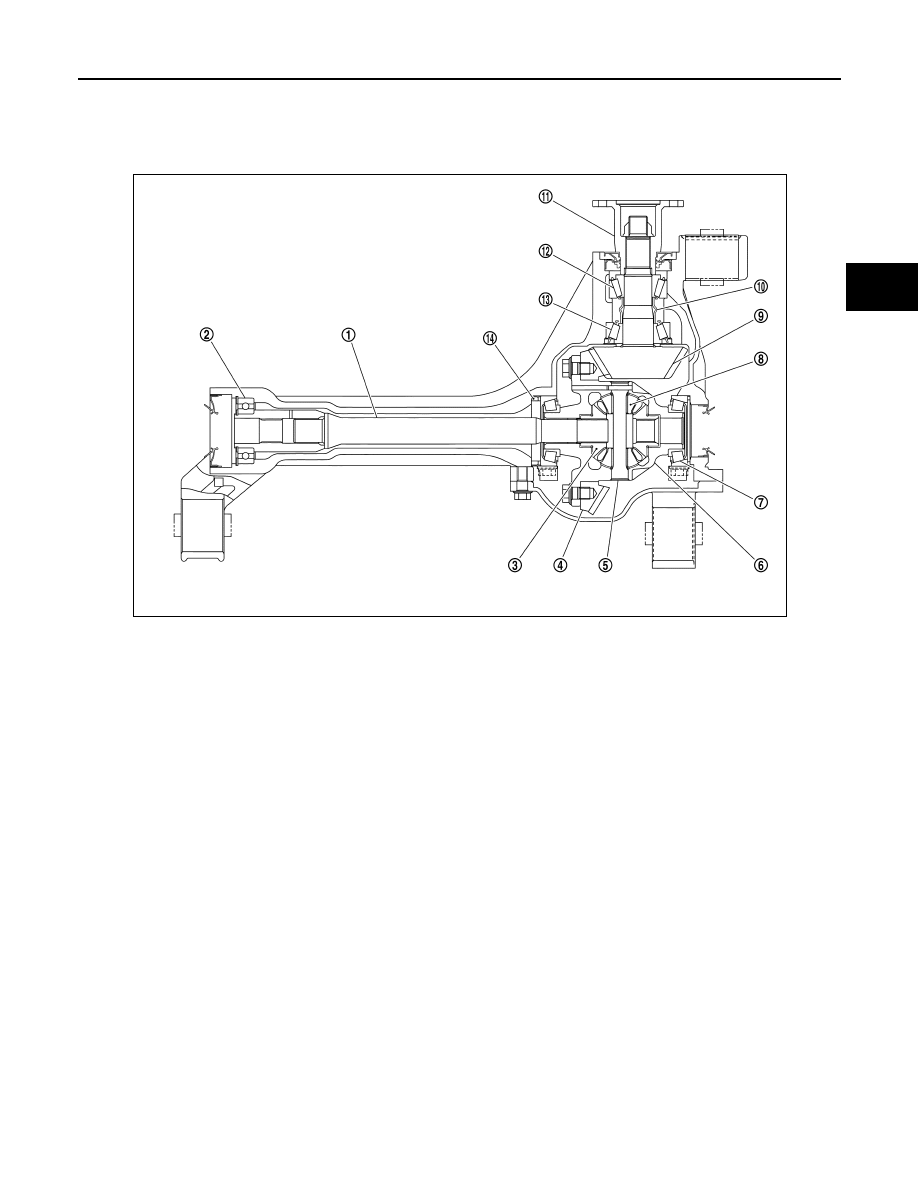

Cross-Sectional View

INFOID:0000000003937428

Differential side shaft

Differential side shaft bearing

Side gear

Drive gear

Pinion mate shaft

Differential case

Side bearing

Pinion mate gear

Drive pinion

10. Collapsible spacer

11.

Companion flange

12. Drive pinion front bearing

13. Drive pinion rear bearing

14. Housing spacer

PDIA0695E

2009 Pathfinder
