Nissan Pathfinder (2009 year). Manual - part 206

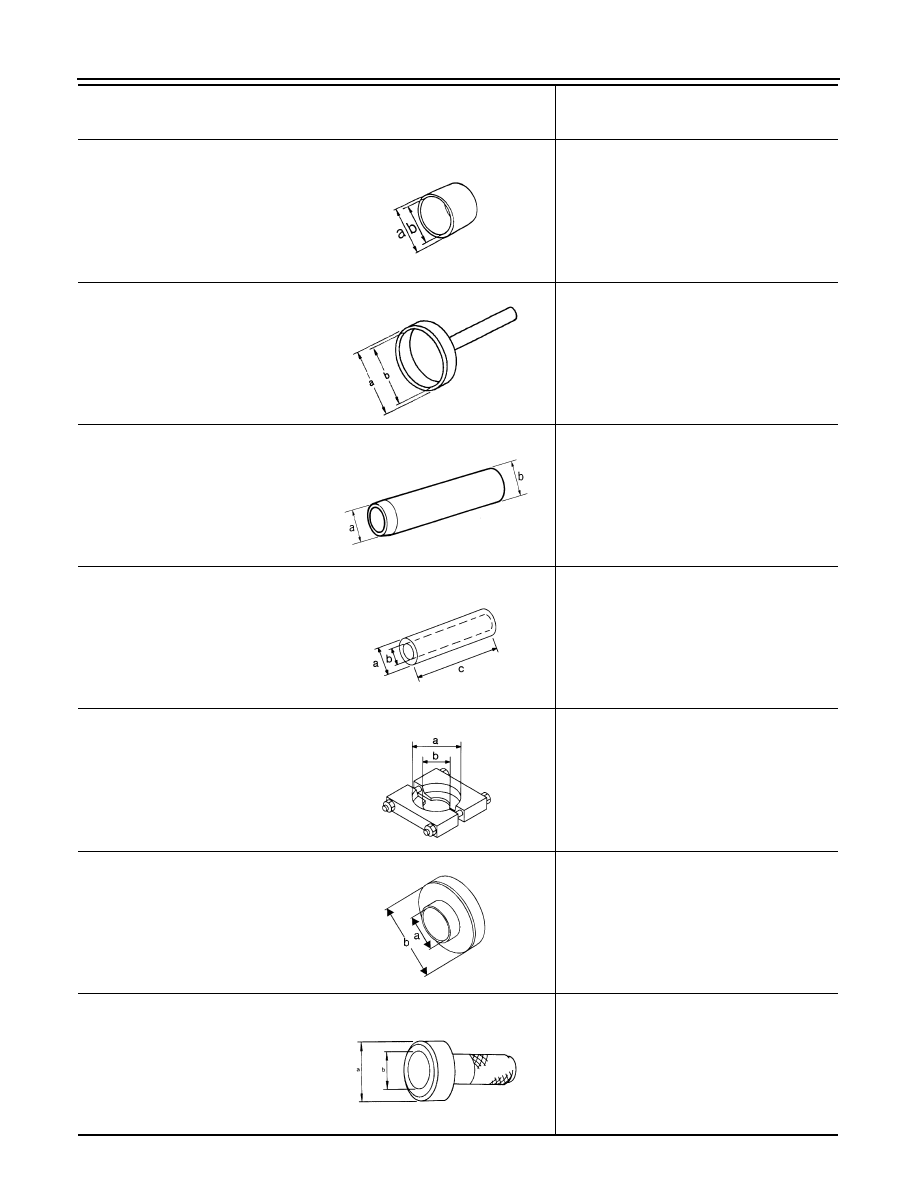

DLN-130

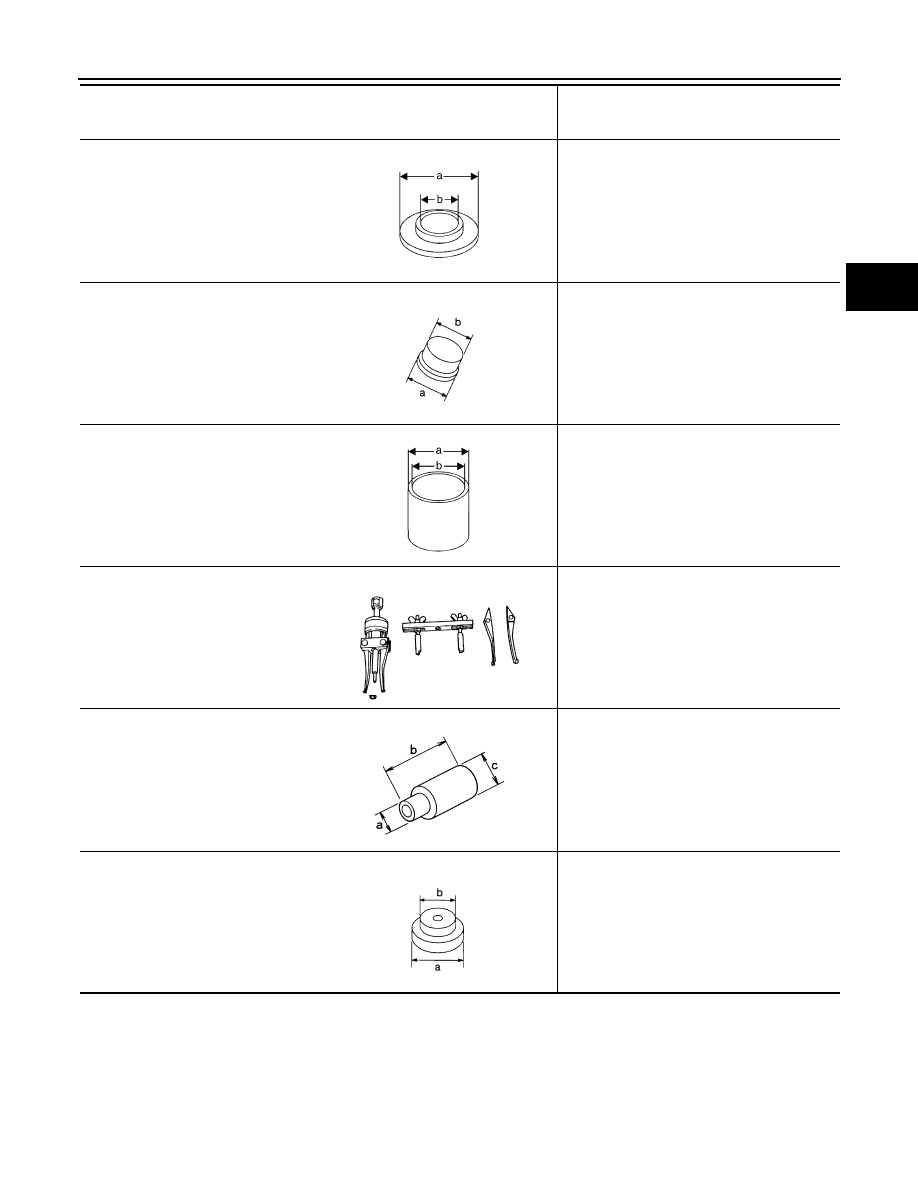

< PREPARATION >

[TRANSFER: ATX14B]

PREPARATION

KV40105310
(

—

)

Drift

• Installing dust cover
a: 89 mm (3.50 in) dia.
b: 80.7 mm (3.17 in) dia.

ST15310000
(J-25640-B)
Drift

• Installing mainshaft rear bearing
a: 96 mm (3.78 in) dia.
b: 84 mm (3.31 in) dia.

ST22360002
(J-25679-01)
Drift

• Installing side oil seal
a: 23 mm (0.91 in) dia.
b: 32 mm (1.26 in) dia.

ST22452000
(J-34335)
Drift

• Removing press flange snap ring
• Installing press flange snap ring
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
c: 400 mm (15.76 in) dia.

ST30031000
(

—

)

Puller

• Removing carrier bearing
• Removing front drive shaft front bearing
• Removing front drive shaft rear bearing
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.

ST30032000
(J-26010-01)
Base

• Installing front drive shaft front bearing
• Installing front drive shaft rear bearing
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.

ST30720000
(J-25405)
Drift

• Installing rear oil seal
• Installing input bearing
• Installing input oil seal
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

ZZA0908D

ZZA1091D

NT117

NT411

NT660

ZZA0811D

2009 Pathfinder

PREPARATION

DLN-131

< PREPARATION >

[TRANSFER: ATX14B]

DLN

ST30911000
(

—

)

Puller

• Removing press flange snap ring
• Installing press flange snap ring
• Installing mainshaft
• Installing carrier bearing
a: 98 mm (3.86 in) dia.
b: 40.5 mm (1.594 in) dia.

ST33052000
(

—

)

Adapter

• Removing front drive shaft front bearing
• Removing front drive shaft rear bearing
• Installing mainshaft
a: 28 mm (1.10 in) dia.
b: 22 mm (0.87 in) dia.

ST33200000
(J-26082)
Drift

• Removing input bearing
• Installing sun gear assembly and planetary

carrier assembly

• Installing input oil seal
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST33290001
(J-34286)
Puller

• Removing front oil seal
• Removing rear oil seal
• Removing metal bushing

ST33710000
(

—

)

Drift

• Removing needle bearing
• Removing metal bushing
a: 24 mm (0.94 in) dia.
b: 89 mm (3.5 in)
c: 30 mm (1.18 in) dia.

ST35300000
(

—

)

Drift

• Removing sun gear assembly and planetary

carrier assembly

• Removing carrier bearing
• Installing metal bushing
a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT664

NT431

NT661

ZZA0601D

ZZA1057D

NT073

2009 Pathfinder

DLN-132

< PREPARATION >

[TRANSFER: ATX14B]

PREPARATION

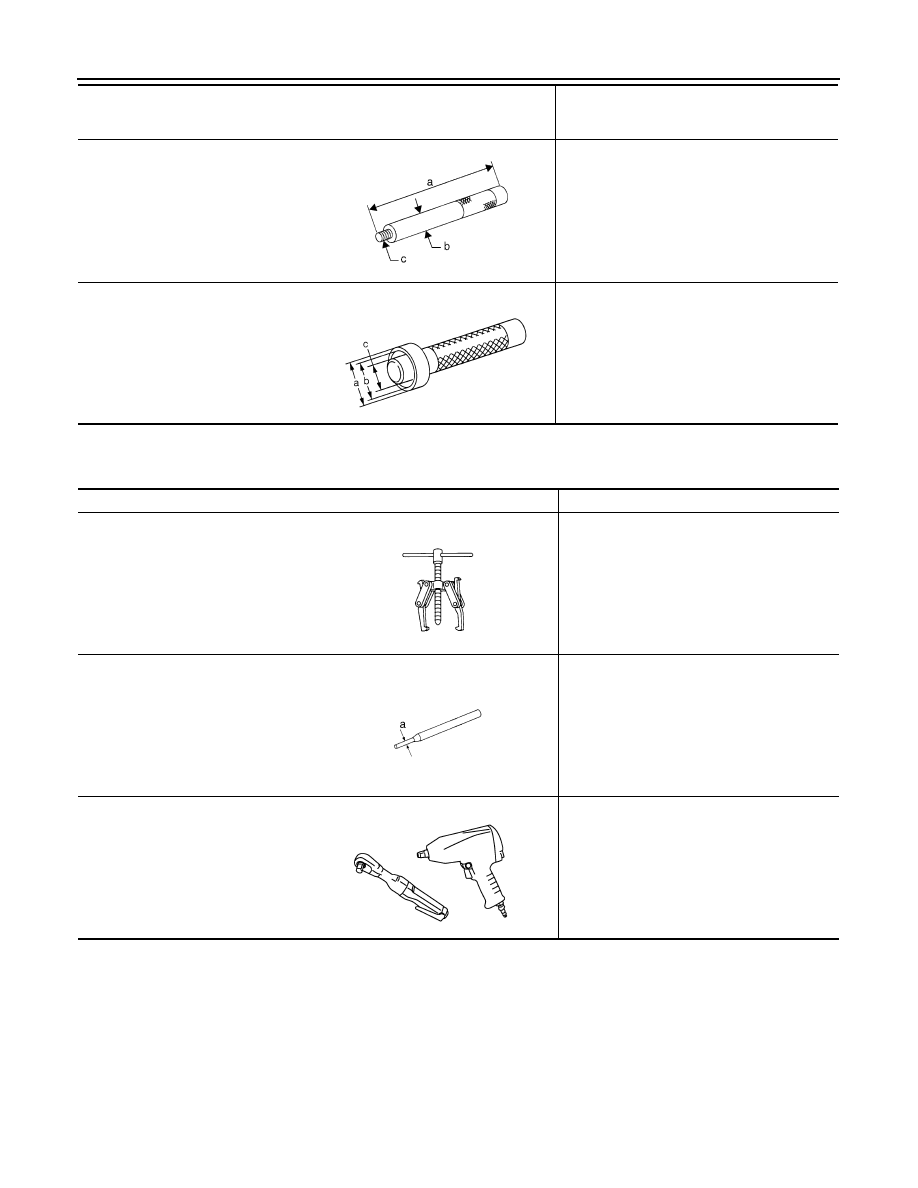

Commercial Service Tool

INFOID:0000000003937299

ST35325000
(

—

)

Drift bar

• Removing metal bushing
a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

1.5P

ST3322000
(

—

)

Drift

• Installing needle bearing
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT663

ZZA1046D

Tool name

Description

Puller

• Removing companion flange

Pin punch

• Removing retainer pin
• Installing retainer pin
a: 6 mm (0.24 in) dia.

Power tool

• Removing transfer case assembly

NT077

NT410

PBIC0190E

2009 Pathfinder

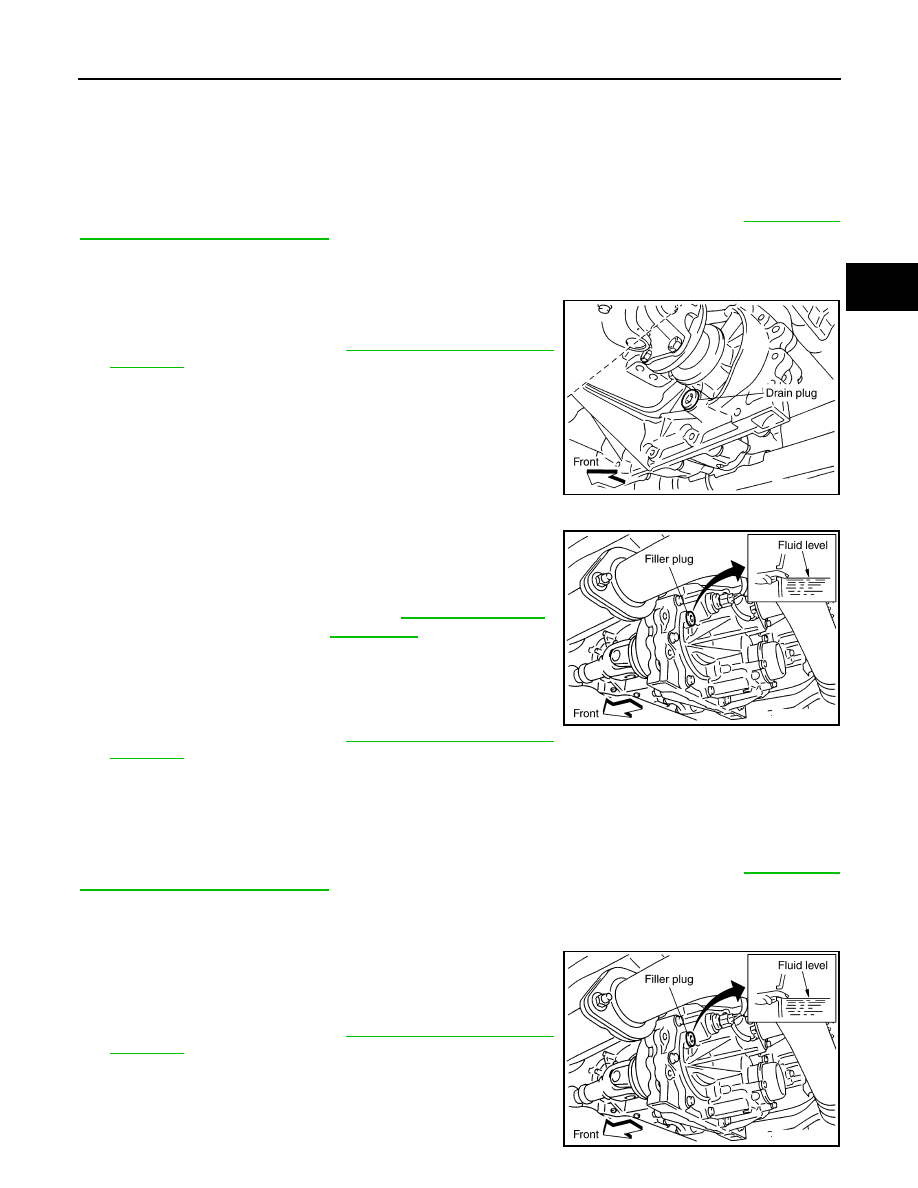

TRANSFER FLUID

DLN-133

< ON-VEHICLE MAINTENANCE >

[TRANSFER: ATX14B]

DLN

ON-VEHICLE MAINTENANCE

TRANSFER FLUID

Replacement

INFOID:0000000003937300

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-7, "Intro-

duction of Periodic Maintenance"

DRAINING

Stop engine.

Remove the drain plug and gasket and drain the fluid.

Install the drain plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to

DLN-150, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

FILLING

Remove the filler plug and gasket.

Fill the transfer with new fluid until the fluid level reaches the
specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

Leave the vehicle for 3 minutes, and check fluid level again.

Install the filler plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to

DLN-150, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000003937301

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-7, "Intro-

duction of Periodic Maintenance"

FLUID LEAKAGE AND FLUID LEVEL

Make sure that fluid is not leaking from the transfer assembly or around it.

Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

Install the filler plug with a new gasket to the transfer. Tighten to
the specified torque. Refer to

DLN-150, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

SDIA3208E

Fluid grade and capacity

: Refer to

MA-12, "Fluids and

Lubricants"

SDIA3209E

2009 Pathfinder

DLN-134

< ON-VEHICLE MAINTENANCE >

[TRANSFER: ATX14B]

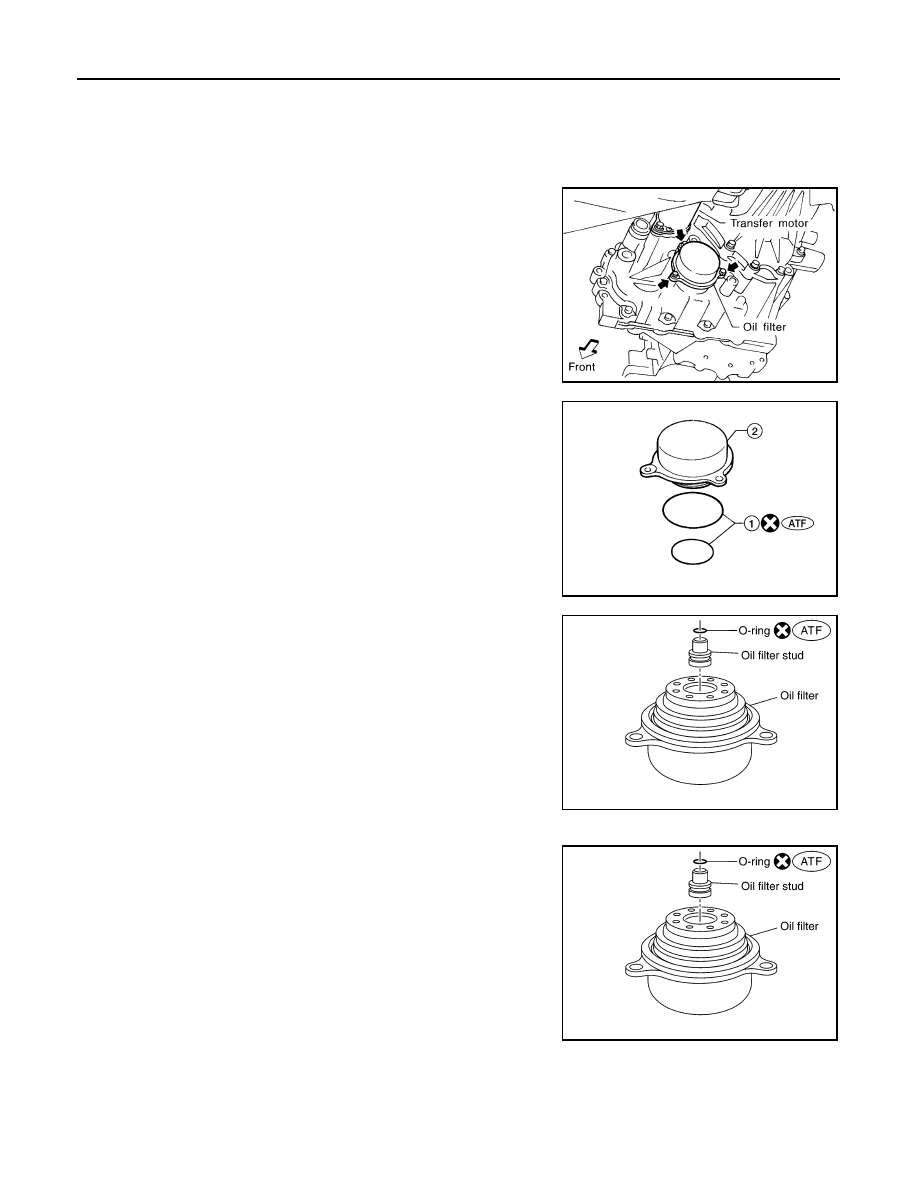

TRANSFER OIL FILTER

TRANSFER OIL FILTER

Removal and Installation

INFOID:0000000003937302

REMOVAL

Remove the oil filter bolts and oil filter.

CAUTION:

• Do not damage center case or oil filter.
• Loosen bolts and detach oil filter evenly.

Remove the O-rings (1) from the oil filter (2).

Remove the oil filter stud from the oil filter.

Remove the O-ring from the oil filter stud.

INSTALLATION

Apply ATF to the new O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-ring.

Install the oil filter stud to the oil filter.

SMT875C

WDIA0285E

SDIA3180E

2009 Pathfinder

TRANSFER OIL FILTER

DLN-135

< ON-VEHICLE MAINTENANCE >

[TRANSFER: ATX14B]

DLN

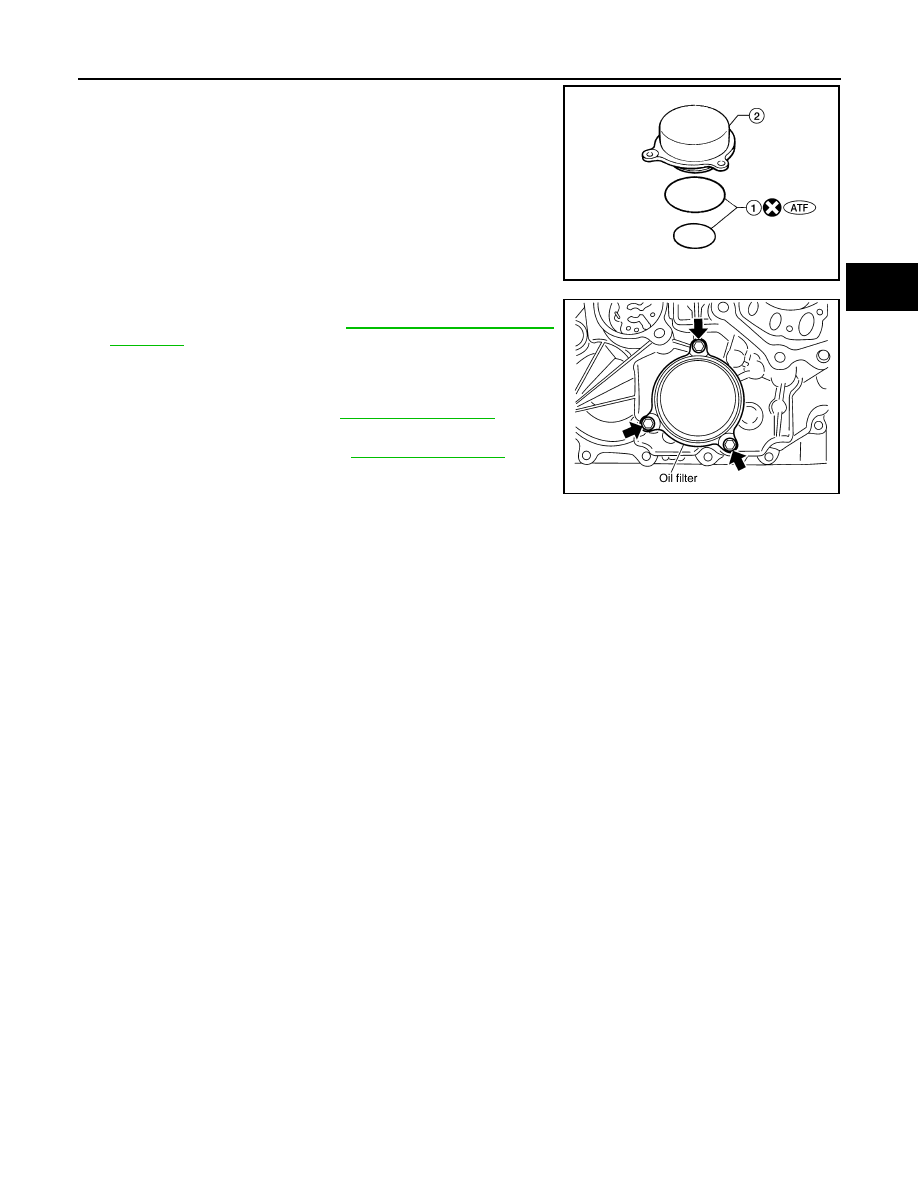

Apply ATF to the two new O-rings (1), and install them on the oil
filter (2).

CAUTION:

Do not reuse O-rings.

Install the oil filter to the transfer assembly. Tighten the bolts to
the specified torque. Refer to

DLN-150, "Disassembly and

Assembly"

CAUTION:

• Do not damage oil filter.
• Attach oil filter and tighten bolts evenly.

Check the transfer fluid. Refer to

DLN-133, "Inspection"

Start the engine for one minute. Then stop the engine and
recheck the transfer fluid. Refer to

DLN-133, "Inspection"

WDIA0285E

SDIA2136E

2009 Pathfinder

DLN-136

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

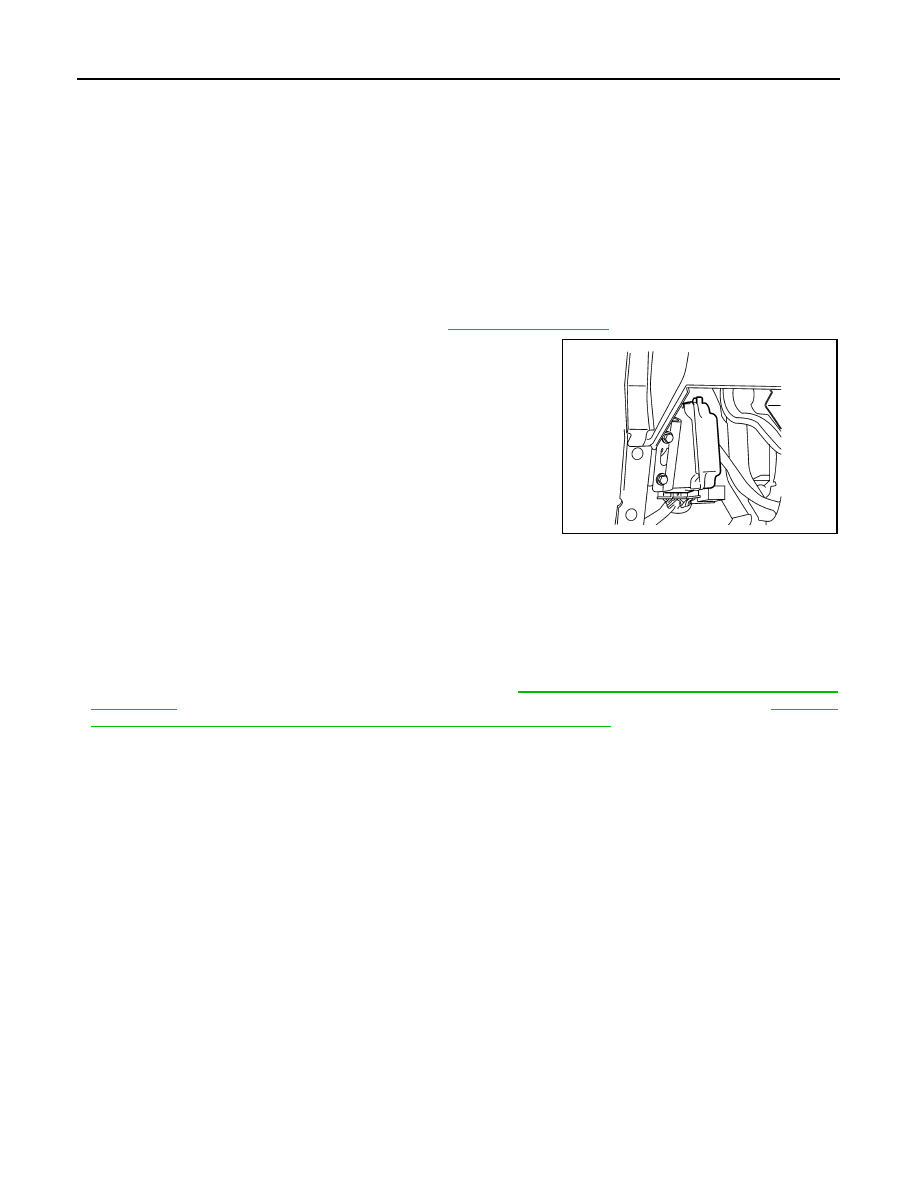

TRANSFER CONTROL UNIT

ON-VEHICLE REPAIR

TRANSFER CONTROL UNIT

Removal and Installation

INFOID:0000000003937303

REMOVAL

Set transfer state as 2WD when 4WD shift switch is at 2WD, or as AUTO when 4WD shift switch is at
AUTO.

CAUTION:

When removing transfer control unit, transfer state must be at 2WD or AUTO.

Turn the ignition switch OFF and disconnect negative battery terminal.

Remove the lower instrument panel LH. Refer to

IP-10, "Exploded View"

Disconnect the two transfer control unit connectors.

Remove the transfer control unit bolts.

Remove the transfer control unit.

INSTALLATION

Installation is in the reverse order of removal.
• When installing the transfer control unit, tighten bolts to the specified torque.

CAUTION:

Do not connect harness connector to transfer control unit when 4WD shift switch is at 4LO.

• After the installation, check perform self-diagnosis. Refer to

DLN-22, "CONSULT-III Function (ALL MODE

AWD/4WD)"

. If NG, adjust position between transfer assembly and transfer control unit. Refer to

DLN-126,

"Precaution for Transfer Assembly and Transfer Control Unit Replacement"

LDIA0168E

Transfer control unit bolts

: 3.4 N·m (0.35 kg-m, 30 in-lb)

2009 Pathfinder

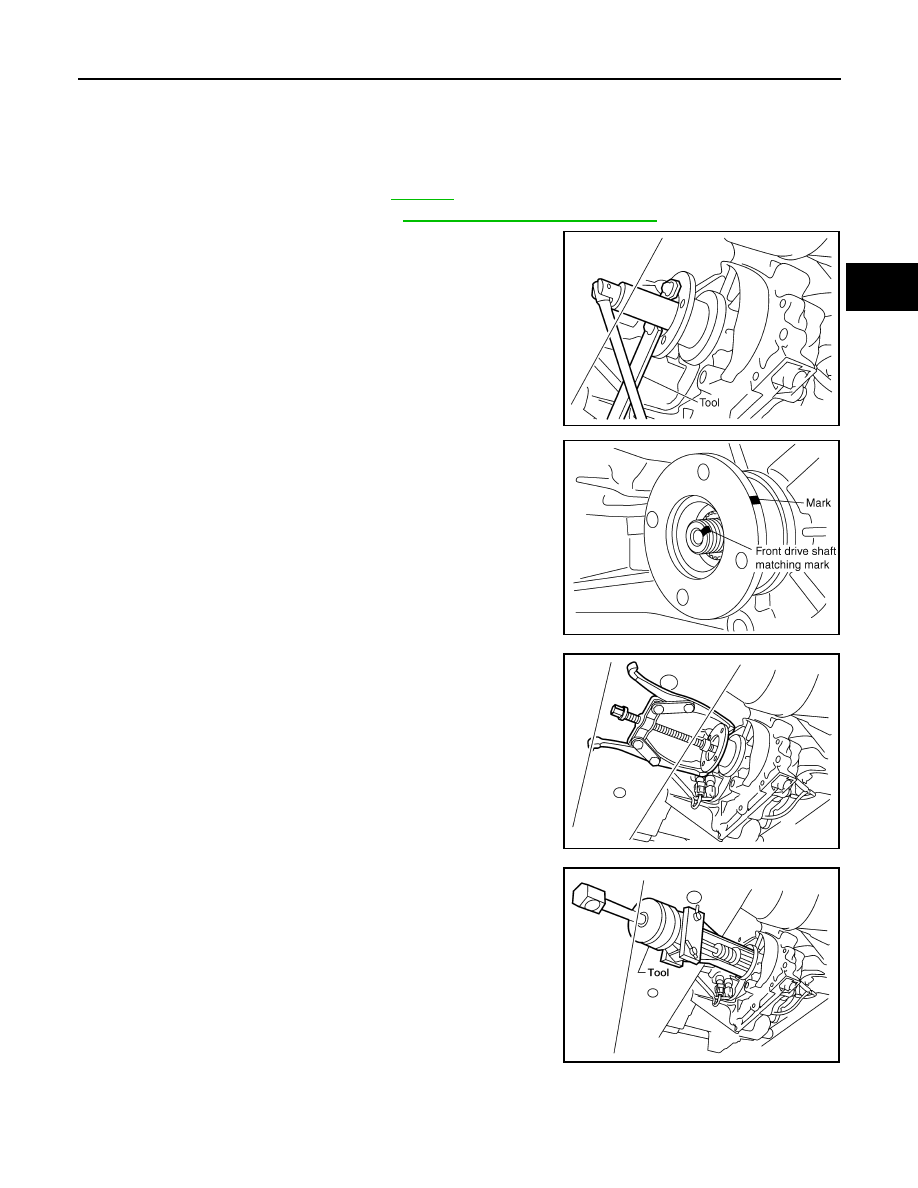

FRONT OIL SEAL

DLN-137

< ON-VEHICLE REPAIR >

[TRANSFER: ATX14B]

DLN

FRONT OIL SEAL

Removal and Installation

INFOID:0000000003937304

REMOVAL

Partially drain the transfer fluid. Refer to

DLN-133

Remove the front propeller shaft. Refer to

DLN-309, "Removal and Installation"

Remove the companion flange self-lock nut using Tool.

Put a matching mark on top of the front drive shaft in line with
the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive
shaft. Do not damage the front drive shaft.

Remove the companion flange using suitable tool.

Remove the front oil seal from the front case using Tool.

CAUTION:

Do not damage front case.

INSTALLATION

Tool number

: KV40104000 (

—

)

SDIA2657E

SDIA2658E

WDIA0193E

Tool number

: ST33290001 (J-34286)

LDIA0144E

2009 Pathfinder
