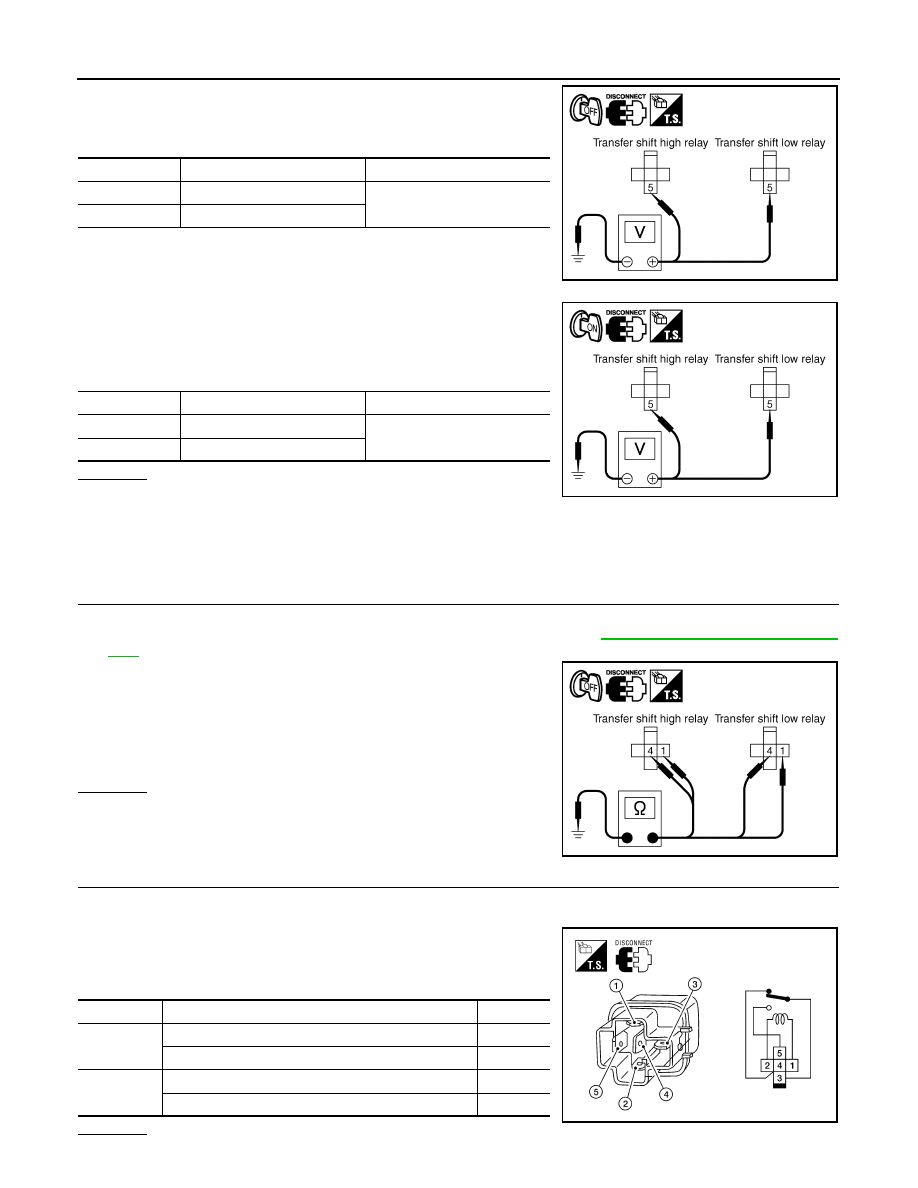

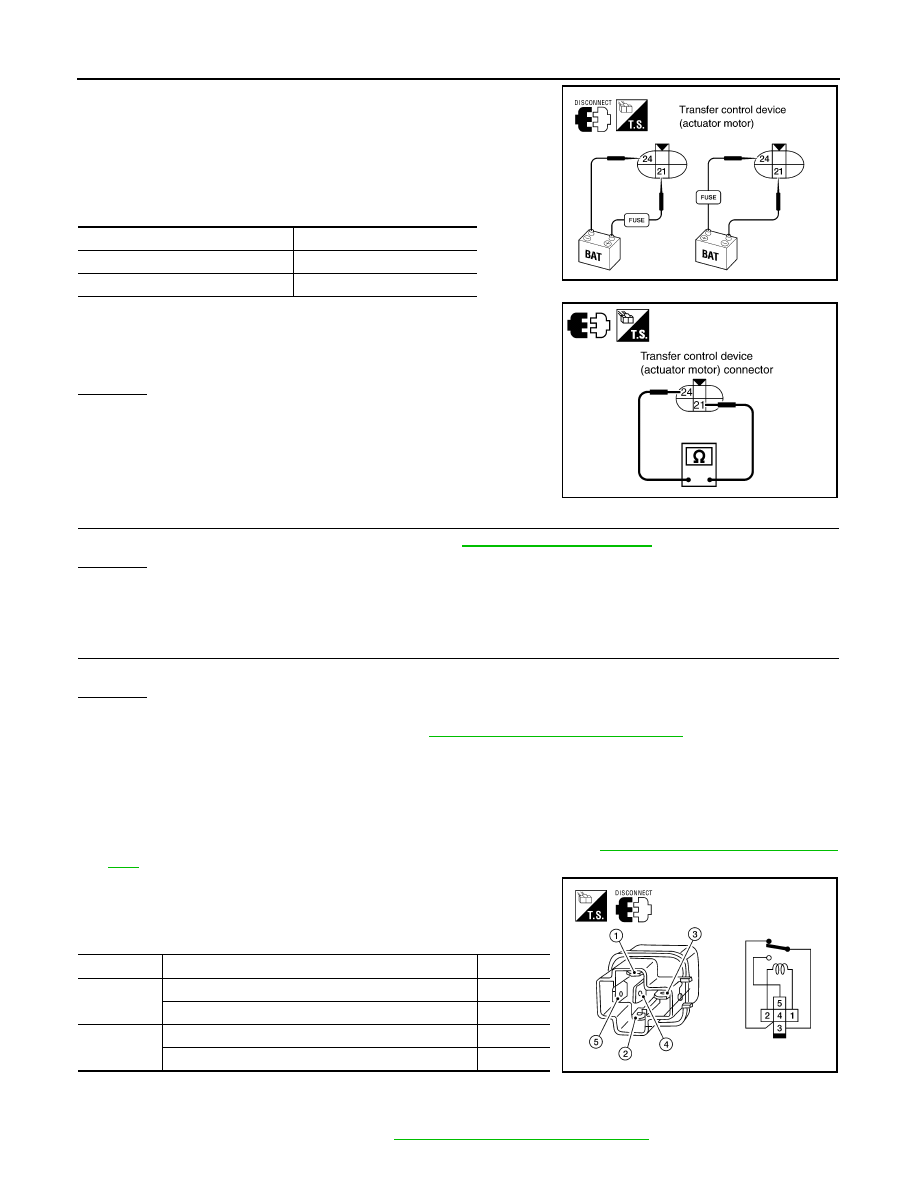

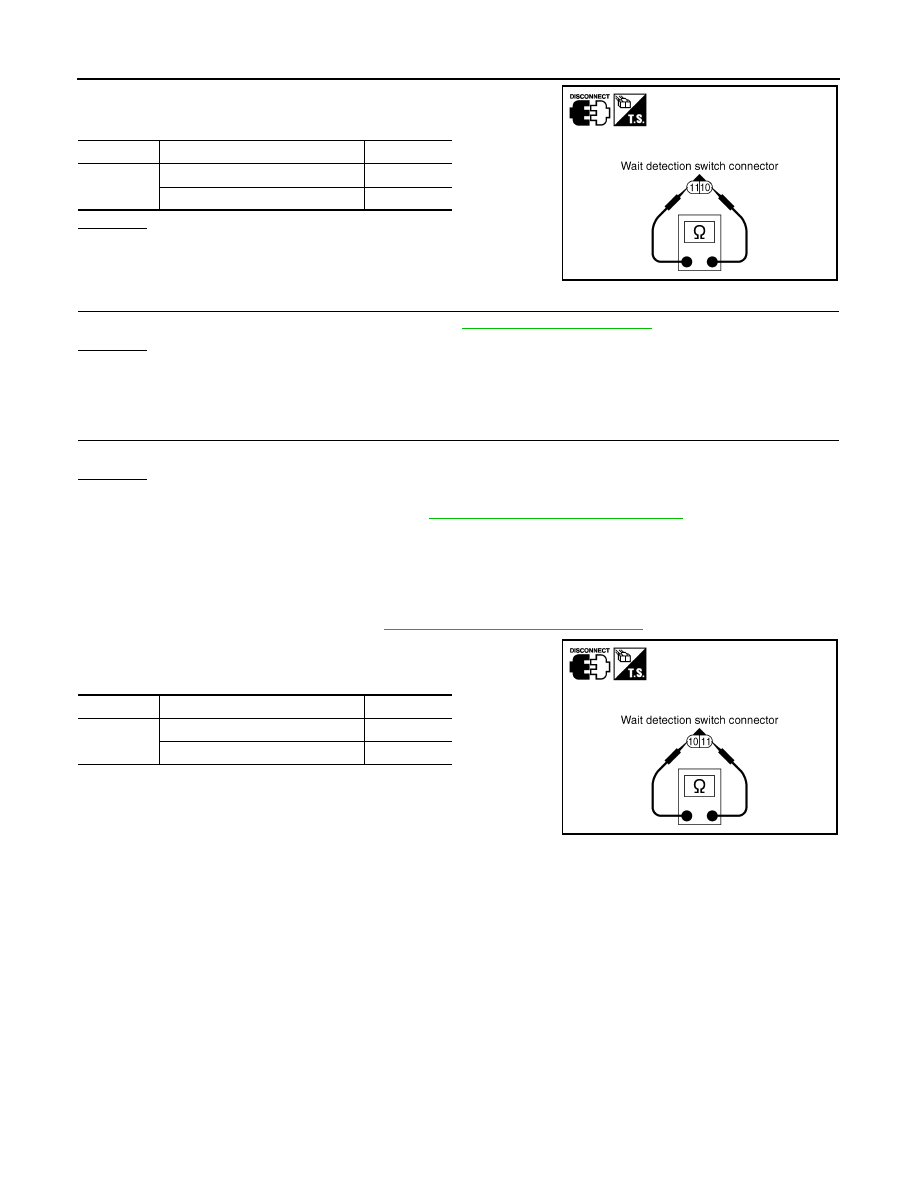

DLN-42 < COMPONENT DIAGNOSIS > [TRANSFER: ATX14B] P1814 WAIT DETECTION SWITCH 4. Push and release wait detection switch and check continuity OK or NG OK >> GO TO 5. NG >> Replace wait detection switch. 5. CHECK TRANSFER CONTROL UNIT Check transfer control unit input/output signal. Refer to OK or NG OK >> GO TO 6. NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts. 6. CHECK DTC Perform the self-diagnosis, after driving a vehicle for a while. OK or NG OK >> Inspection End. NG >> Replace transfer control unit. Refer to DLN-136, "Removal and Installation" . Component Inspection INFOID:0000000003937216 1. Turn ignition switch OFF. (Stay for at least 5 seconds.) 2. Disconnect wait detection switch harness connector. 3. Remove wait detection switch. Refer to DLN-18, "Component Parts Location" . 4. Push and release wait detection switch and check continuity 5. If the inspection results are abnormal replace the wait detection Terminal Condition Continuity 10 - 11 Push wait detection switch Yes Release wait detection switch No WDIA0186E Terminal Condition Continuity 10 - 11 Push wait detection switch Yes Release wait detection switch No SDIA2704E 2009 Pathfinder |
