• “LOCK/UNLOCK BY I-KEY” is ON when setting on CONSULT-III.
• “ANSWER BACK FUNCTION” is ON when setting on CONSULT-III.
• Ignition switch is in OFF position.
• All doors are closed.
• Ignition switch is not depressed.

Symptom

Diagnosis/service procedure

Reference page

Key reminder function does not operate.

Check “ANTI KEY LOCK IN FUNCTI”setting in “WORK SUP-
PORT”.

DLK-41

Check door switch.

DLK-57

Check inside key antennas (1, 2, 3)

Instrument panel

Center console

3rd row seat

Check unlock sensor.

Check Intelligent Key battery inspection.

DLK-102

Check Intermittent Incident.

GI-49

2009 Pathfinder

HAZARD FUNCTION

DLK-179

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

HAZARD FUNCTION

Symptom Table

INFOID:0000000003938268

HAZARD AND BUZZER REMINDER FUNCTION MALFUNCTION

NOTE:
• Before performing the diagnosis in the following table, check “Work flow”. Refer to

DLK-7, "Work Flow"

• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Conditions of Vehicle (Operating Conditions)

Symptom

Diagnosis/service procedure

Reference

page

Hazard reminder does not operate by request
switch.
(Buzzer reminder operate.)

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-41

Check hazard function.

DLK-108

Check Intermittent incident.

GI-49

Hazard reminder does not operate by Intelligent Key.
(Buzzer reminder operate.)

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-41

Check hazard function.

DLK-108

Check Intelligent Key battery inspection.

DLK-102

Buzzer reminder does not operate by request
switch.
(Hazard reminder operate.)

Check “ANS BACK I-KEY LOCK” or “ANS BACK I-KEY
UNLOCK” setting in “WORK SUPPORT”.

DLK-41

Check Intelligent Key warning buzzer.

DLK-88

Check Intermittent incident.

GI-49

2009 Pathfinder

DLK-180

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HORN FUNCTION

HORN FUNCTION

Symptom Table

INFOID:0000000003938269

HAZARD AND HORN REMINDER FUNCTION MALFUNCTION

NOTE:
• Before performing the diagnosis in the following table, check “Work flow”. Refer to

DLK-7, "Work Flow"

• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Conditions of Vehicle (Operating Conditions)

• “ANSWER BACK FUNCTION” is ON when setting on CONSULT-III.
• Ignition switch is in OFF position.
• All doors are closed.

Symptom

Diagnosis/service procedure

Reference

page

Hazard reminder does not operate by request switch.
(Horn reminder operate.)

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-41

Check hazard function.

DLK-108

Check Intermittent Incident.

GI-49

Hazard reminder does not operate by Intelligent Key.
(Horn reminder operate.)

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-41

Check hazard function.

DLK-108

Check Intelligent Key battery inspection.

DLK-102

Horn reminder does not operate by request switch.
(Hazard reminder operate.)

Check “ANSWER BACK WITH I-KEY LOCK” or “AN-
SWER BACK WITH I-KEY UNLOCK” setting in “WORK
SUPPORT”.

DLK-41

Check Intelligent Key warning buzzer.

DLK-88

Check Intermittent Incident.

GI-49

Horn reminder does not operate by Intelligent Key.
(Hazard reminder operate.)

Check “HORN WITH KEYLESS LOCK” setting in
“WORK SUPPORT”.

DLK-41

Check horn function.

DLK-104

Check Intermittent Incident.

GI-49

2009 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-181

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

HOMELINK UNIVERSAL TRANSCEIVER

Symptom Table

INFOID:0000000003938270

HOMELINK UNIVERSAL TRANSCEIVER MALFUNCTION

Symptom

Diagnosis/service procedure

Reference page

Homelink universal transceiver does not operate properly.

Check homelink universal transceiver function.

DLK-121

Check Intermittent Incident.

GI-49

2009 Pathfinder

DLK-182

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

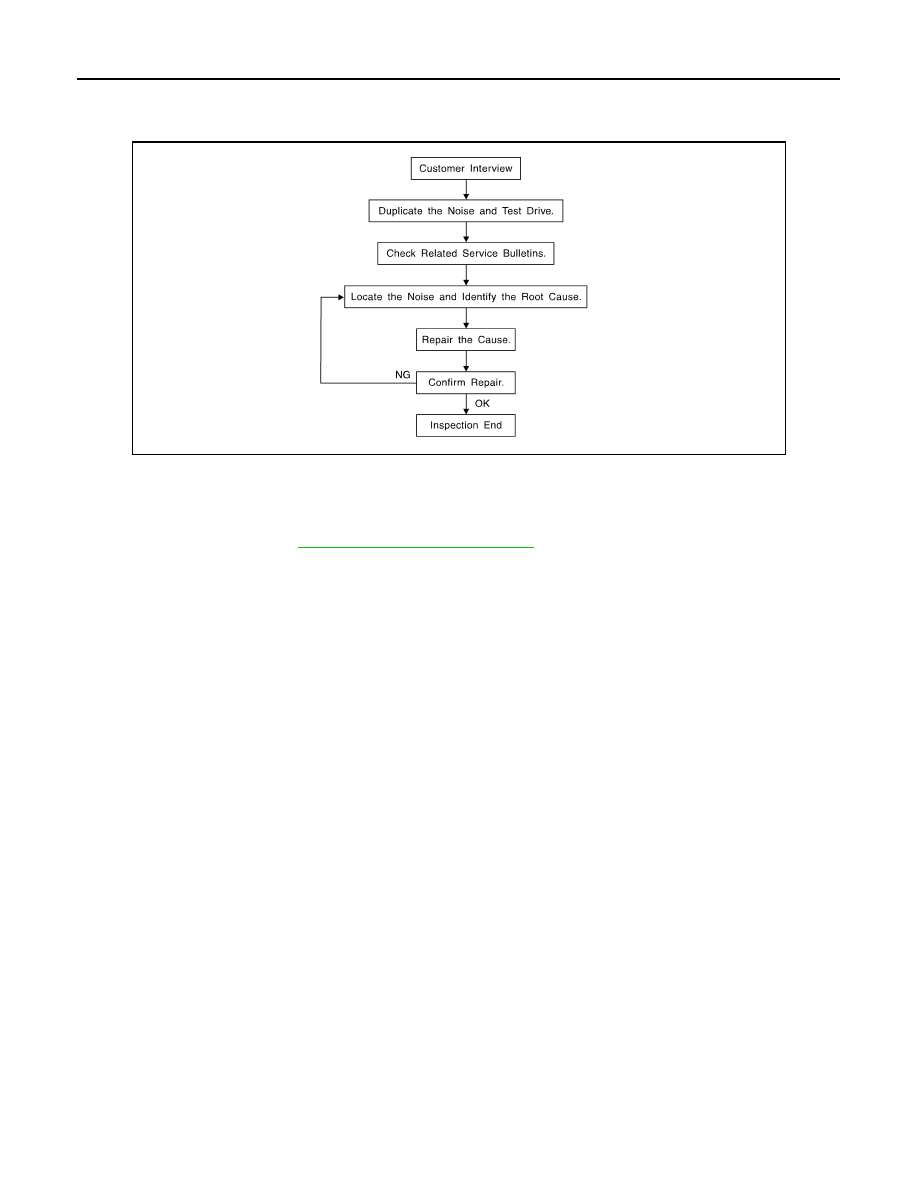

Work Flow

INFOID:0000000003938271

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs.Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to

DLK-186, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by test driving the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak —(Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak—(Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle—(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock —(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick—(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump—(Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz—(Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.

SBT842

2009 Pathfinder

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-183

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the

vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).

Narrow down the noise to a more specific area and identify the cause of the noise by:

• removing the components in the area that you suspect the noise is coming from.

Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

• tapping or pushing/pulling the component that you suspect is causing the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.

• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the

noise.

• placing a piece of paper between components that you suspect are causing the noise.
• looking for loose components and contact marks.

Refer to

DLK-184, "Inspection Procedure"

REPAIR THE CAUSE

• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loosening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane

tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts Depart-
ment.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100

135 mm (3.94

5.31 in)/76884-71L01: 60

85 mm (2.36

3.35 in)/76884-

71L02: 15

25 mm (0.59

0.98 in)

INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50

50 mm (1.97

1.97 in)/73982-

50Y00: 10 mm (0.39 in) thick, 50

50 mm (1.97

1.97 in)

INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30

50 mm (1.18

1.97 in)

FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15

25 mm (0.59

0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll

The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE

2009 Pathfinder

DLK-184

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit. Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Inspection Procedure

INFOID:0000000003938272

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:

The cluster lid A and instrument panel

Acrylic lens and combination meter housing

Instrument panel to front pillar garnish

Instrument panel to windshield

Instrument panel mounting pins

Wiring harnesses behind the combination meter

A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.

CAUTION:

Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.

CENTER CONSOLE

Components to pay attention to include:

Shifter assembly cover to finisher

A/C control unit and cluster lid C

Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the:

Finisher and inner panel making a slapping noise

Inside handle escutcheon to door finisher

Wiring harnesses tapping

Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1.

Trunk lid bumpers out of adjustment

Trunk lid striker out of adjustment

The trunk lid torsion bars knocking together

A loose license plate or bracket

2009 Pathfinder

Content .. 169 170 171 172 ..
