BRM-2

< SERVICE INFORMATION >

BODY REPAIR

SERVICE INFORMATION

BODY REPAIR

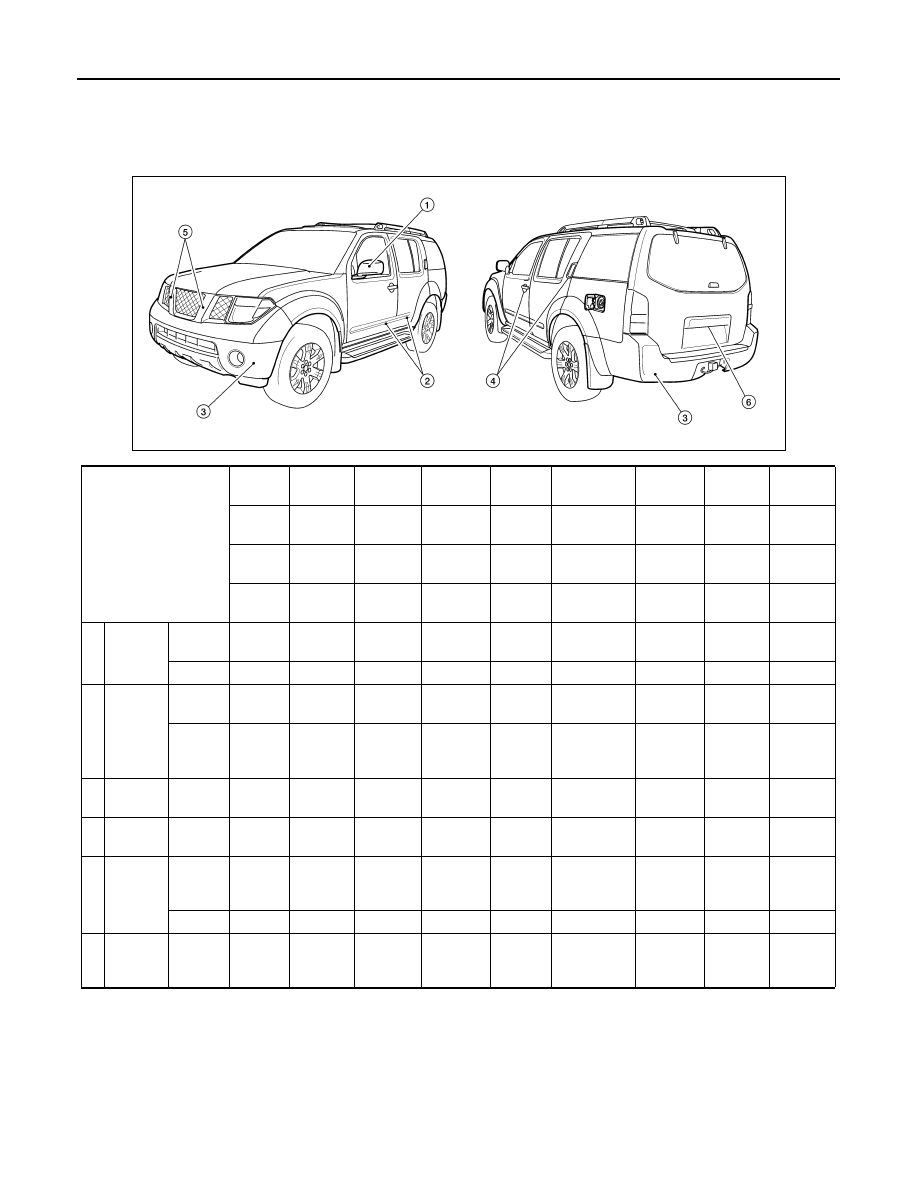

Body Exterior Paint Color

INFOID:0000000003938872

M: Metallic; S: 1-Coat Solid; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; PM: Pearl + Metallic; P:Pearl; t:Cross-linked clearcoat

LIIA1735E

Component

Color
code

NAC

RAB

C43

Q50

K12

K27

KH3

QM1

Descrip-
tion

Red

Brick

Navy

Blue

Desert

Stone

White

Frost

Silver Light-

ning

Storm

Gray

Super

Black

Ava-

lanche

Paint
type

M

M

M

P

M

M

M

S

Clear
coat

t

t

t

t

t

t

t

t

1

Outside
mirror

SE, SE-
OR, LE

Body
color

NAC

RAB

C43

Q50

K12

K27

KH3

QM1

S

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

2

Side
Guard
Molding

SE

Body
color

NAC

RAB

C43

Q50

K12

K27

KH3

QM1

LE

Chromi-
um
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

3

Bumpers

Fascias

Body
color

NAC

RAB

C43

Q50

K12

K27

KH3

QM1

4

Outside
handles

Body
color

NAC

RAB

C43

Q50

K12

K27

KH3

QM1

5

Radiator
grille

Frame
and em-
blem

Chromi-
um
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Center

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

6

License
Lamp
Finisher

Chromi-
um
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

2009 Pathfinder

BODY REPAIR

BRM-3

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Component Parts

INFOID:0000000003938873

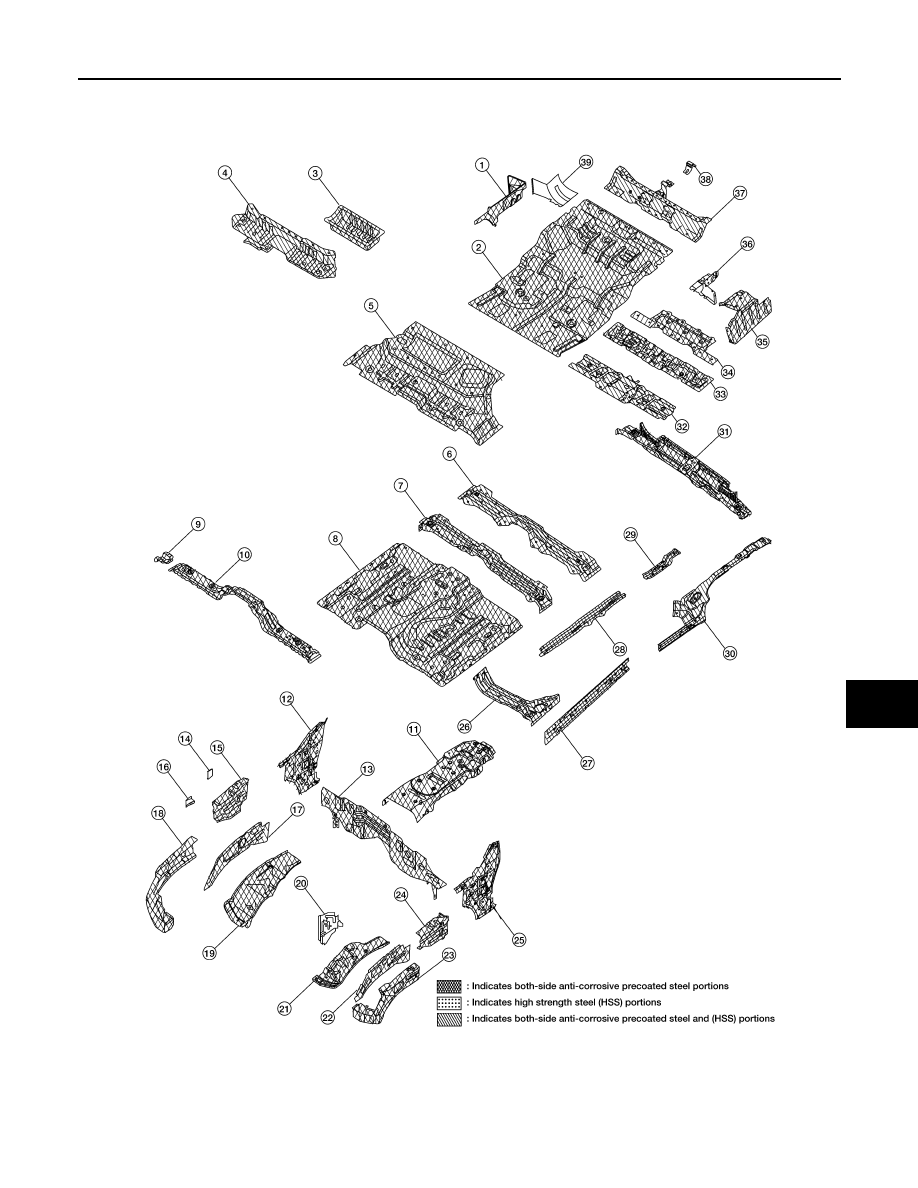

UNDERBODY COMPONENT PARTS

1.

Rear floor side RH

2.

Rear floor

3.

Storage bin

4.

Second seat mounting crossmember

LIIA1787E

2009 Pathfinder

BRM-4

< SERVICE INFORMATION >

BODY REPAIR

5.

Rear floor front

6.

Center pillar crossmember assembly

7.

Front seat mounting rear crossmember

8.

Front floor

9.

Front seat mounting crossmember

10. Second crossmember extension

11. Front floor reinforcement

12. Side dash RH

13. Lower dash
14. Wash tank bracket

15. Hoodledge reinforcement RH

16. Hoodledge plate
17. Hoodledge RH

18. Hoodledge reinforcement assembly RH

19. Rear lower hoodledge RH
20. Battery tray

21. Rear lower hoodledge LH

22. Hoodledge LH
23. Hoodledge reinforcement assembly LH

24. Hoodledge reinforcement LH

25. Side dash LH
26. Second crossmember assembly (RH/LH)

27. Inner sill (RH/LH)

28. Front side member assembly (RH/LH)
29. Center floor member assembly

30. Rear side member rear (RH/LH)

31. Rear crossmember
32. Second seat mounting crossmember

33. Third seat mounting bracket assembly

34. Rope hook bracket
35. Rear floor side LH

36. Rear floor side upper extension assembly LH

37. Third seat mounting rear crossmember assembly
38. Trim mounting bracket

39. Rear floor side upper extension assembly RH

2009 Pathfinder

BODY REPAIR

BRM-5

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

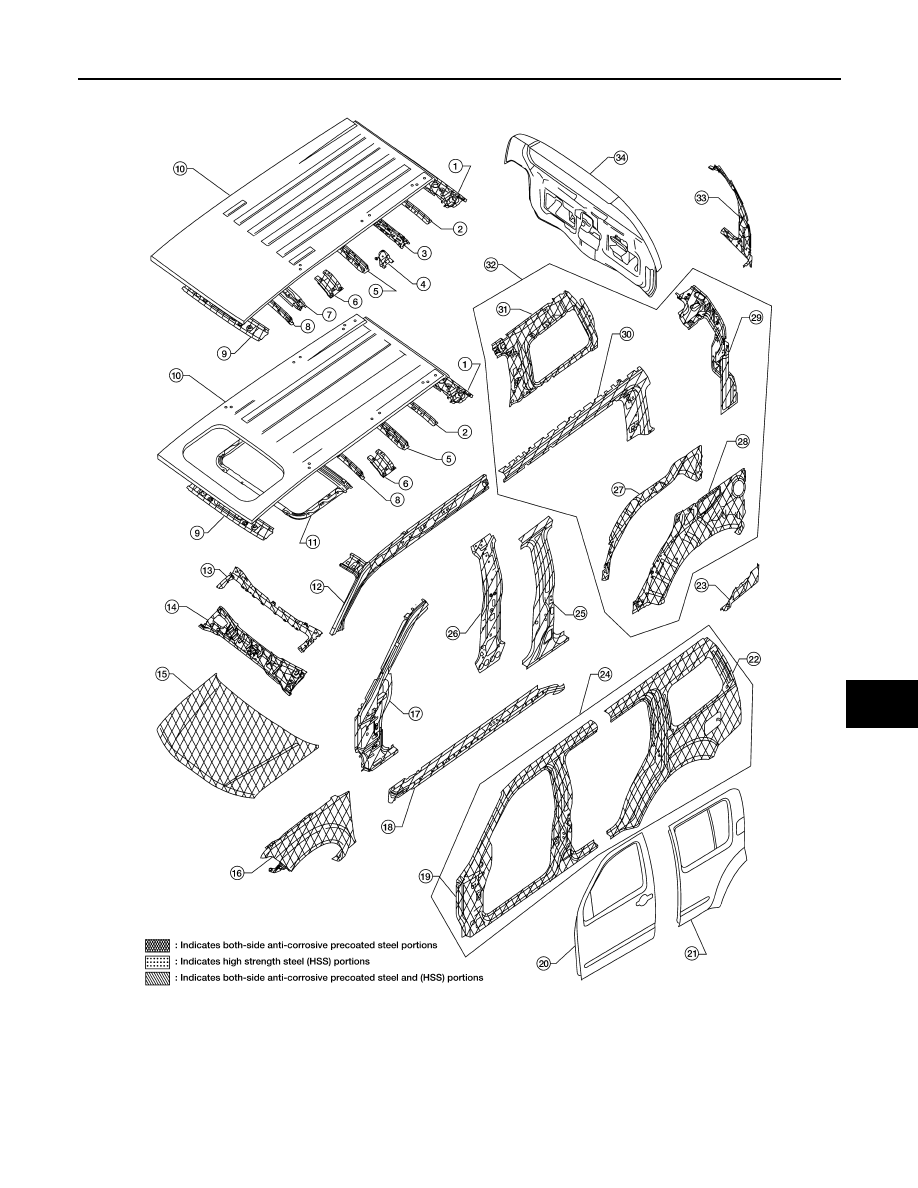

BODY COMPONENT PARTS

1.

Rear roof rail

2.

Roof bow No 5

3.

Roof 4th bow

4.

Roof rack plate

LIIA1788E

2009 Pathfinder

BRM-6

< SERVICE INFORMATION >

BODY REPAIR

5.

Roof 3rd bow

6.

Roof bow second bracket

7.

Roof 2nd bow

8.

Roof 1st bow

9.

Front roof rail

10. Roof

11. Sunroof reinforcement

12. Front inner pillar upper (RH, LH)

13. Dash upper crossmember assembly
14. Dash upper assembly

15. Hood assembly

16. Front fender (RH, LH)
17. Front pillar hinge brace (RH, LH)

18. Outer sill reinforcement (RH, LH)

19. Front body side outer (RH, LH)
20. Front door assembly (RH, LH)

21. Rear door assembly (RH, LH)

22. Rear body side outer (RH, LH)
23. Rear fender extension RH/LH

24. Body side outer assembly

25. Center pillar hinge brace
26. Center inner pillar (RH, LH)

27. Rear wheel housing inner (RH, LH)

28. Rear wheel housing outer (RH, LH)
29. Back pillar reinforcement (RH, LH)

30. Outer roof side rail reinforcement (RH/LH)

31. Rear inner side panel (RH, LH)
32. Body side inner reinforcement assembly (RH, LH)

33. Main back pillar (RH, LH)

34. Lift gate assembly

2009 Pathfinder

BODY REPAIR

BRM-7

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

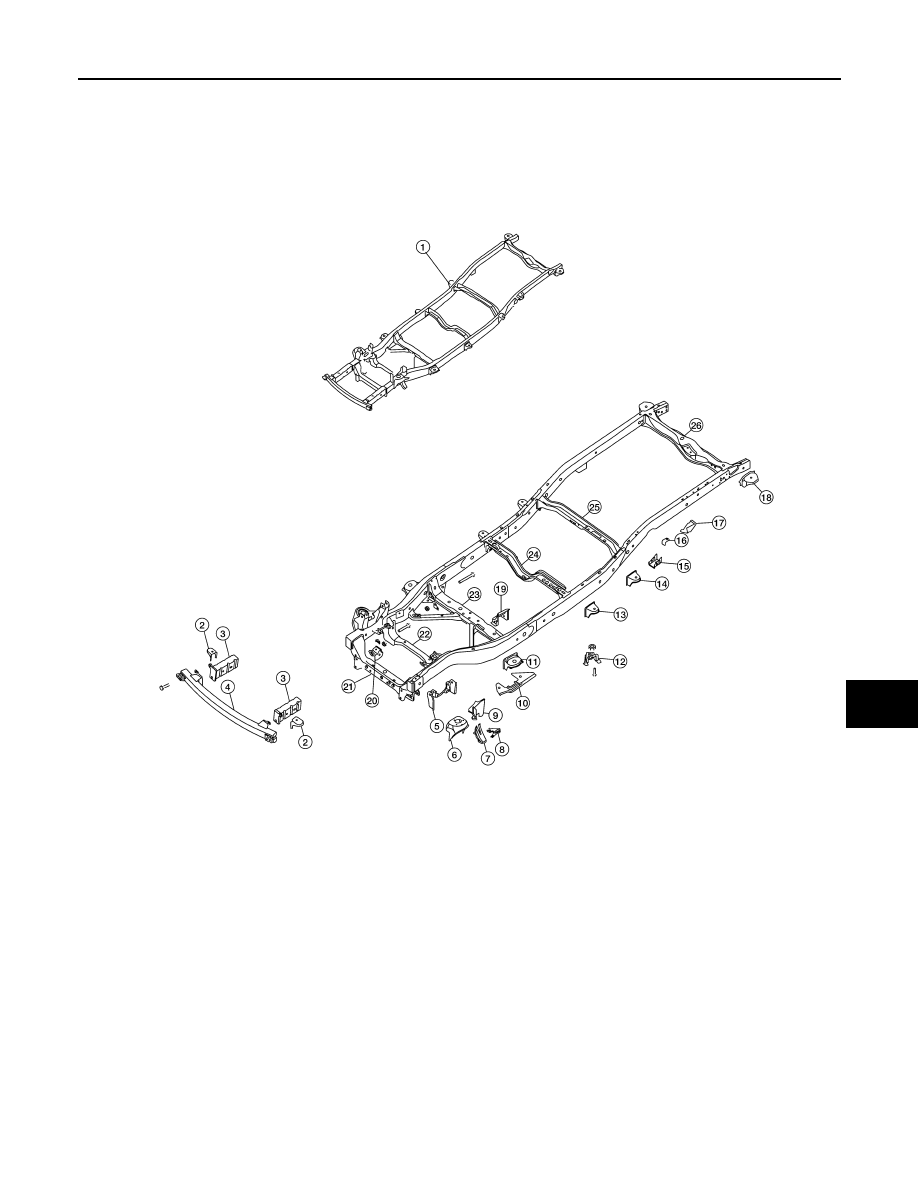

FRAME COMPONENT PARTS

1.

Frame assembly

2.

1st cab mounting bracket RH/LH

3.

Front side member extension assembly RH/LH

4.

1st crossmember assembly

5.

Front upper link mounting bracket RH/LH

LIIA1789E

2009 Pathfinder

BRM-8

< SERVICE INFORMATION >

BODY REPAIR

6.

Front shock absorber mounting bracket RH/LH

7.

Bound bumper bracket RH/LH

8.

Front brake hose bracket RH/LH

9.

Panhard rod bracket reinforcement

10. 4th crossmember gusset RH/LH
11. 2nd cab mounting bracket RH/LH

12. Crossmember support RH/LH

13. 3rd cab mounting bracket RH/LH

14. 4th cab mounting bracket RH/LH
15. Rear suspension mounting bracket RH/LH

16. Rear brake hose bracket

17. Rear bound bumper bracket RH/LH
18. Cab mounting bracket assembly RH/LH

19. 4th crossmember gusset RH/LH

20. Front differential mounting bracket RH/LH
21. 2nd crossmember assembly

22. 3rd crossmember assembly

23. 4th crossmember assembly
24. 5th crossmember assembly

25. 6th crossmember assembly

26. 9th crossmember assembly

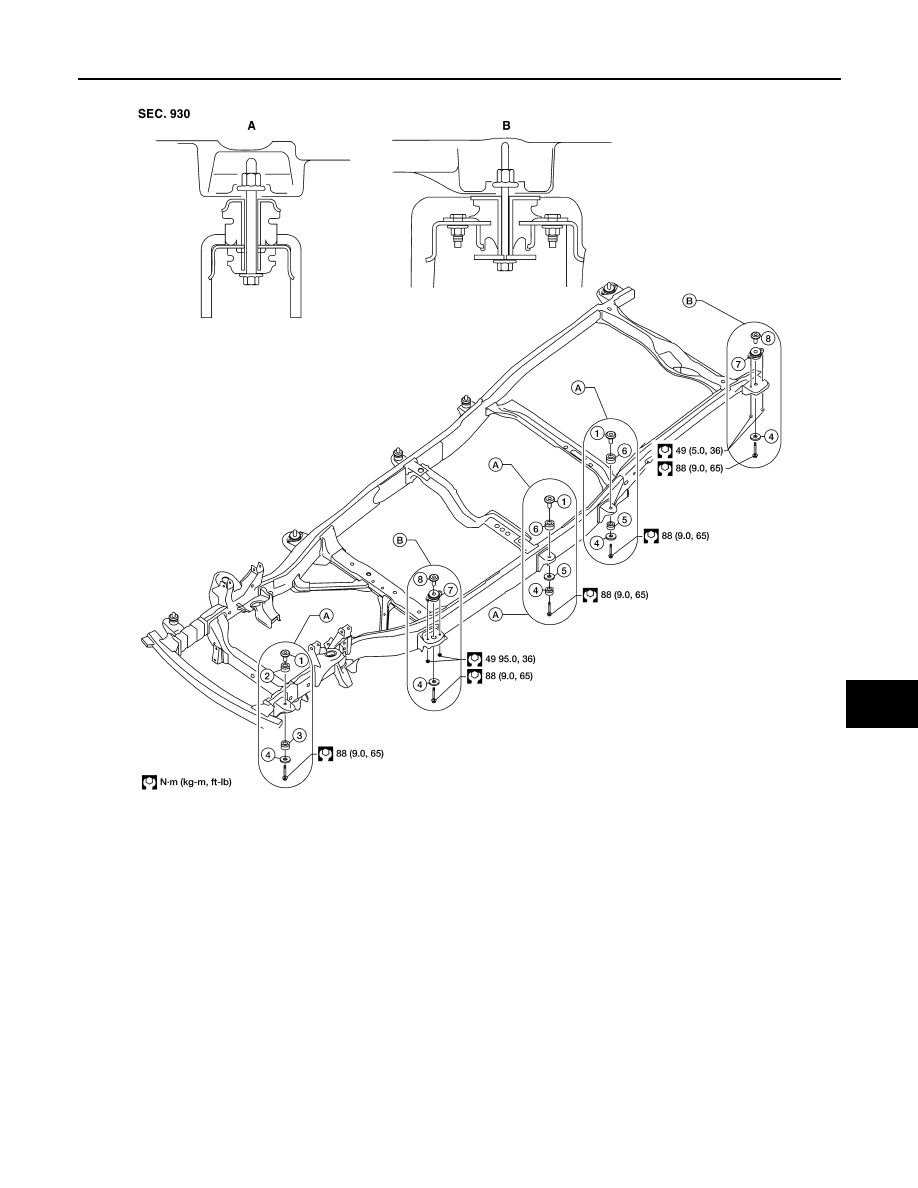

Body Mounting

INFOID:0000000003938874

• When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

• Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing out-

ward.

2009 Pathfinder

BODY REPAIR

BRM-9

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Corrosion Protection

INFOID:0000000003938875

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

1.

Gold washer

2.

Upper bushing

3.

Lower bushing

4.

Black washer

5.

Lower bushing without paint mark

6.

Upper bushing without paint mark

7.

Body mount insulator

8.

Body washer

LIIA1734E
