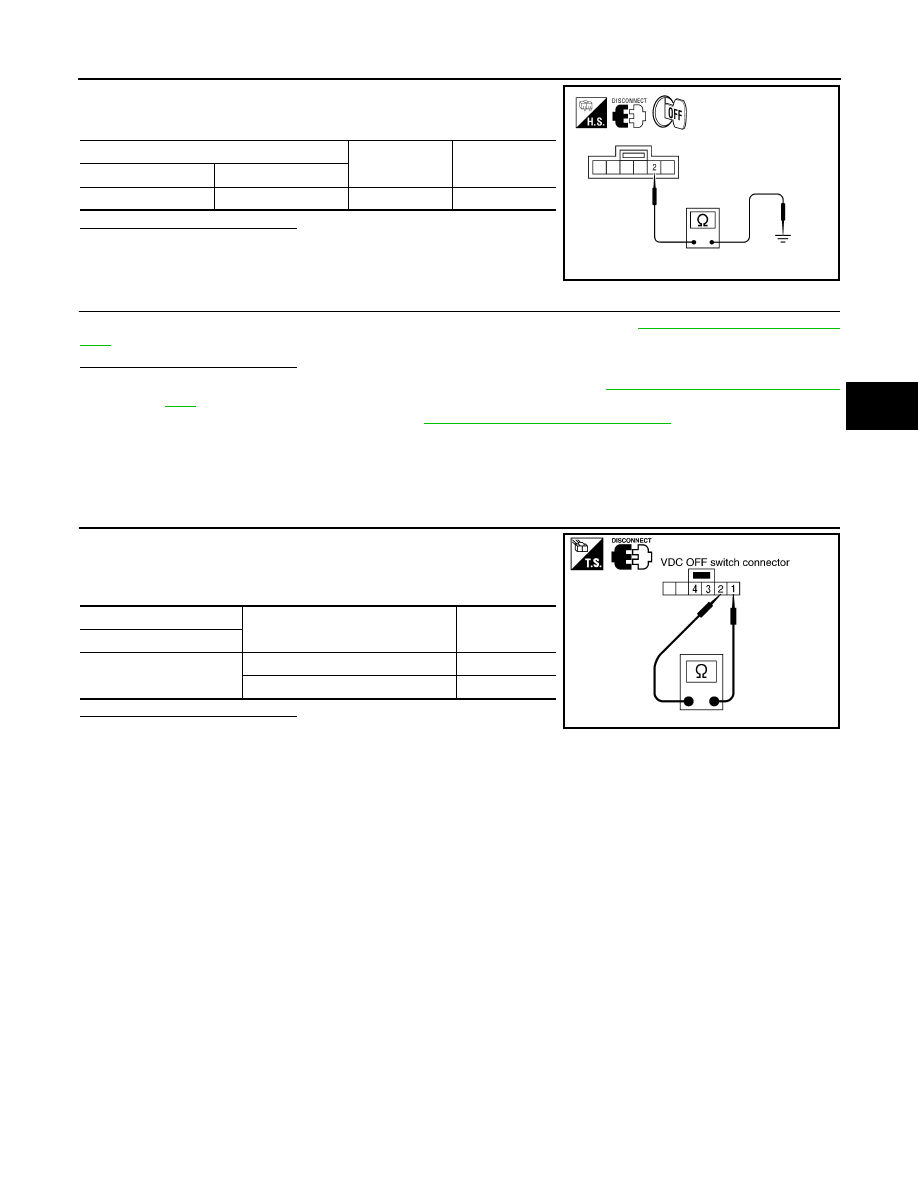

VDC OFF SWITCH BRC-201 < COMPONENT DIAGNOSIS > [TYPE 2] C D E G H I J K L M A B BRC N O P Check continuity between VDC OFF switch connector M154 terminal Is the inspection result normal? YES >> GO TO 4 NO >> Repair or replace harness. 4. CHECK COMBINATION METER Check if the indication and operation of combination meter are normal. Refer to . Is the inspection result normal? YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-236, "Removal and Installa- . NO >> Replace combination meter. Refer to MWI-94, "Removal and Installation" Component Inspection INFOID:0000000003937993 INSPECTION PROCEDURE 1. CHECK VDC OFF SWITCH 1. Turn ignition switch OFF. 2. Disconnect VDC OFF switch connector. 3. Check continuity between VDC OFF switch terminals. Is the inspection result normal? YES >> Inspection End NO >> Replace VDC OFF switch. VDC OFF switch — Continuity Connector Terminal M154 2 Ground Yes AWFIA0031ZZ VDC OFF switch Condition Continuity Terminal 1 − 2 When VDC OFF switch is pressed. Yes When VDC OFF switch is released. No PFIA0307E 2009 Pathfinder |
