VDC

BRC-145

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC

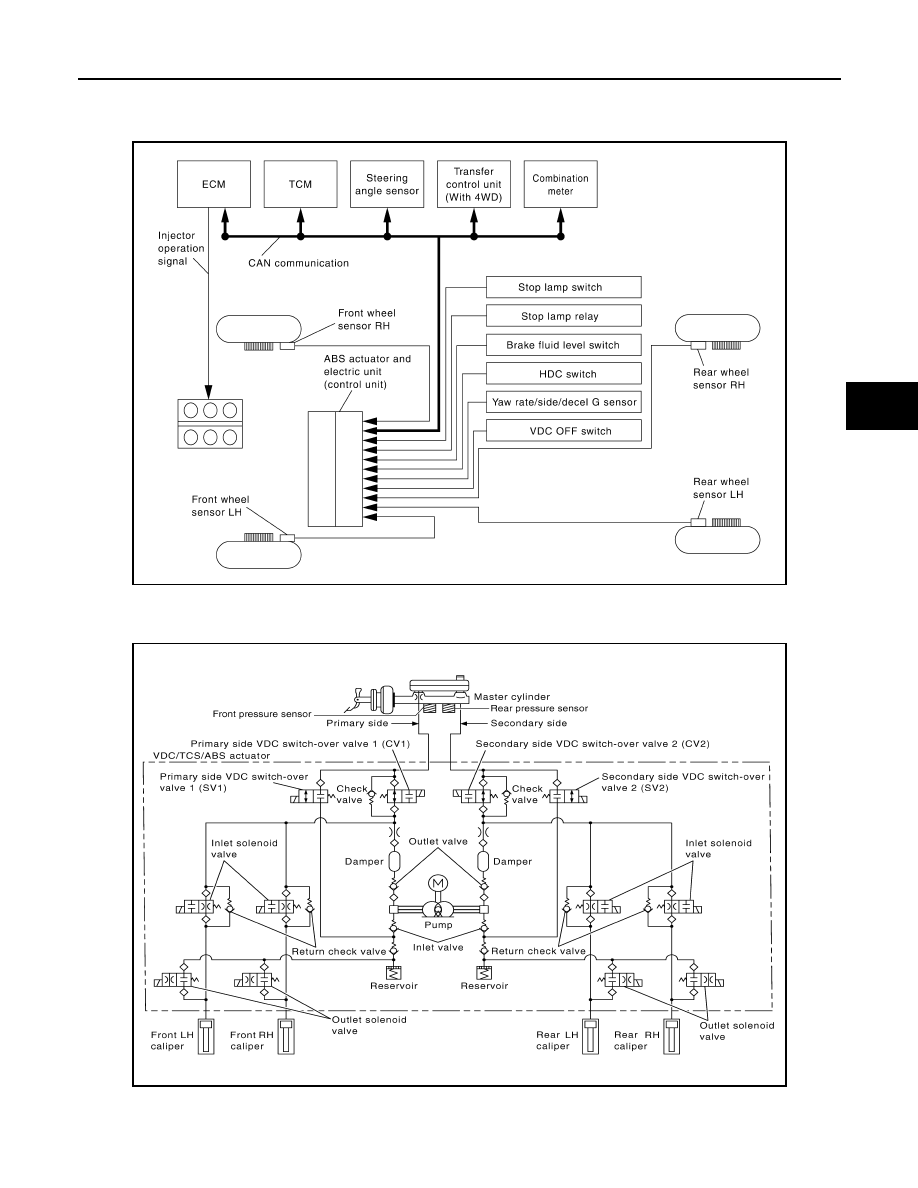

System Diagram

INFOID:0000000003937883

HYDRAULIC CIRCUIT DIAGRAM

AWFIA0460GB

WFIA0187E

2009 Pathfinder

BRC-146

< FUNCTION DIAGNOSIS >

[TYPE 2]

VDC

System Description

INFOID:0000000003937884

• Vehicle Dynamics Control system detects driver

′

s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensors. Using information from yaw rate/side/decel G sensor and
wheel sensor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle
driving stability by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

2009 Pathfinder

VDC

BRC-147

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

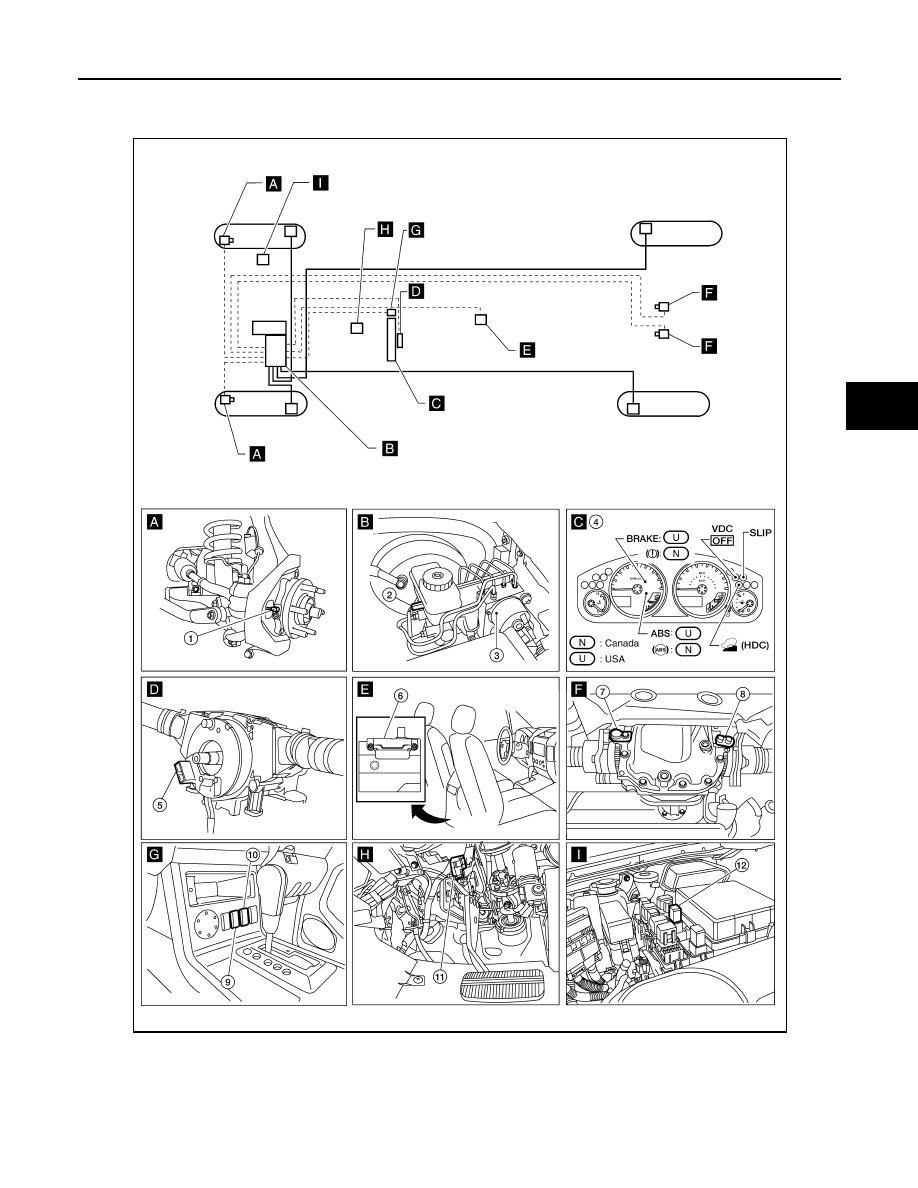

Component Parts Location

INFOID:0000000003937885

AWFIA0459GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control
unit) E125

4.

Combination meter M24

5.

Steering angle sensor (behind spiral
cable) M47

6.

Yaw rate/side/decel G sensor B73

2009 Pathfinder

BRC-148

< FUNCTION DIAGNOSIS >

[TYPE 2]

VDC

Component Description

INFOID:0000000003937886

7.

Rear wheel sensor LH C13

8.

Rear wheel sensor RH C13

9.

VDC OFF switch M154

10.

HDC switch M155

11.

Stop lamp switch E38

12.

Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-168, "Description"

Motor

Actuator relay

BRC-186, "Description"

Solenoid valve

BRC-178, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-196, "Description"

Wheel sensor

BRC-173, "Description"

Yaw rate/side/decel G sensor

BRC-170, "Description"

Steering angle sensor

BRC-188, "Description"

VDC OFF switch

BRC-200, "Description"

ABS warning lamp

BRC-202, "Description"

Brake warning lamp

BRC-203, "Description"

VDC OFF indicator lamp

BRC-204, "Description"

SLIP indicator lamp

BRC-205, "Description"

2009 Pathfinder

TCS

BRC-149

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

TCS

System Diagram

INFOID:0000000004422067

HYDRAULIC CIRCUIT DIAGRAM

AWFIA0460GB

WFIA0187E

2009 Pathfinder

BRC-150

< FUNCTION DIAGNOSIS >

[TYPE 2]

TCS

System Description

INFOID:0000000003937888

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4
wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

2009 Pathfinder

ABS

BRC-151

< FUNCTION DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

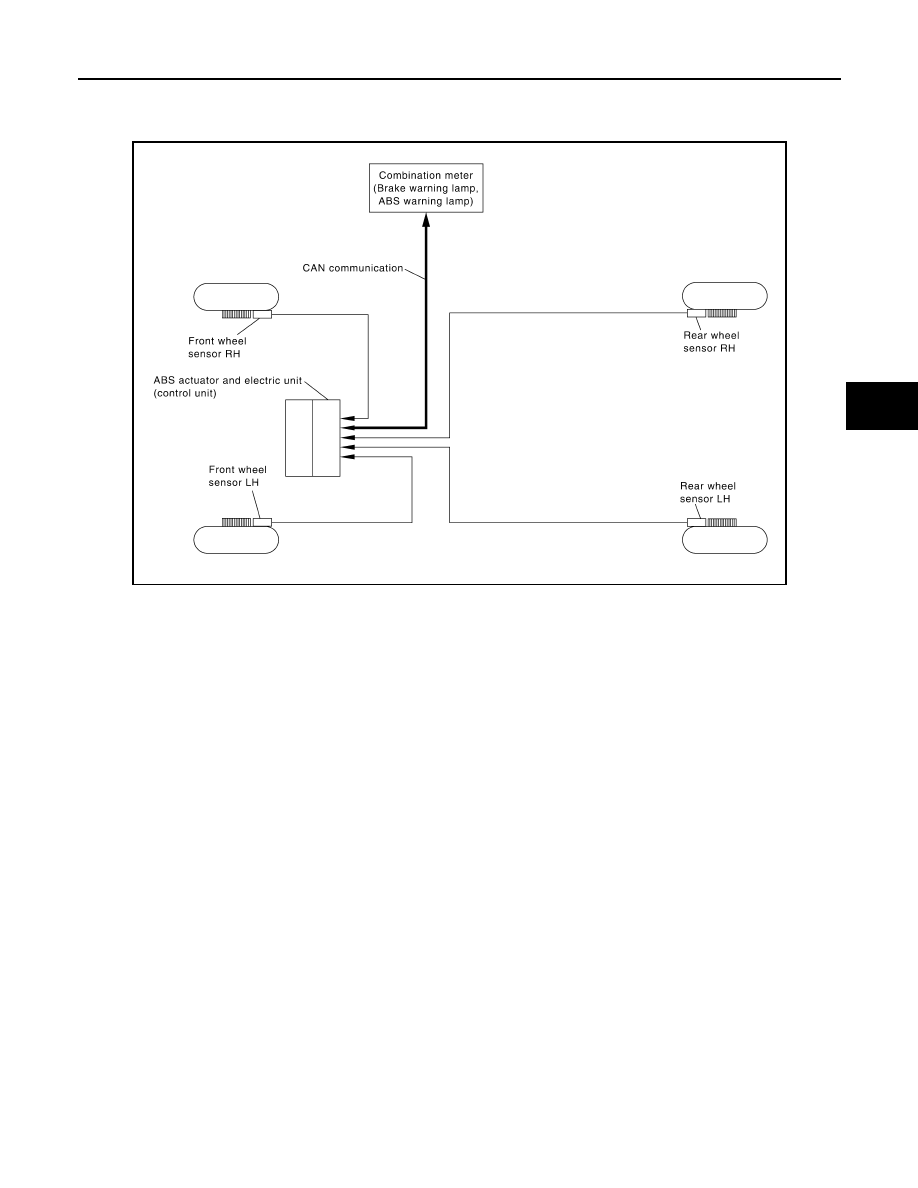

System Diagram

INFOID:0000000003937889

System Description

INFOID:0000000003937890

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0014GB

2009 Pathfinder

BRC-152

< FUNCTION DIAGNOSIS >

[TYPE 2]

EBD

EBD

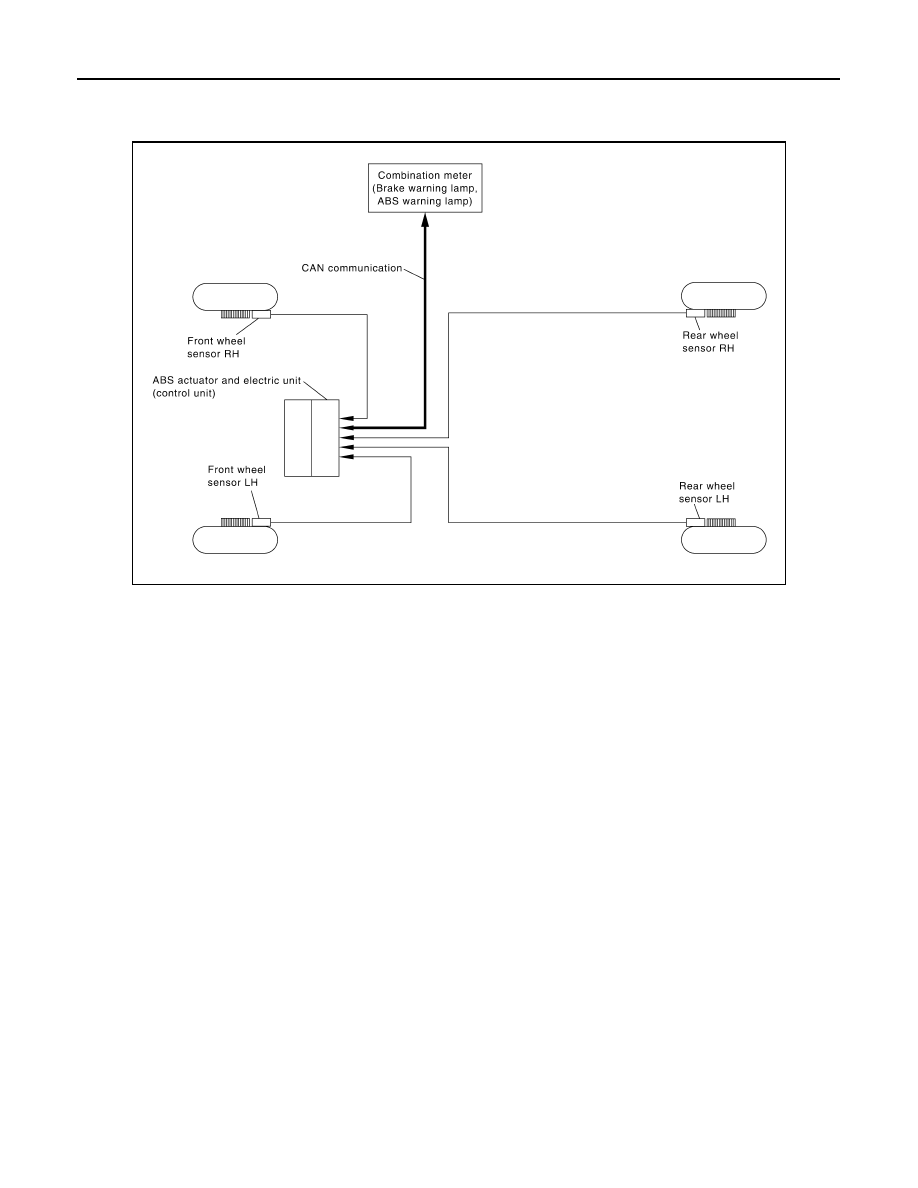

System Diagram

INFOID:0000000003937891

System Description

INFOID:0000000003937892

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear
braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0014GB
