Nissan Pathfinder (2009 year). Manual - part 92

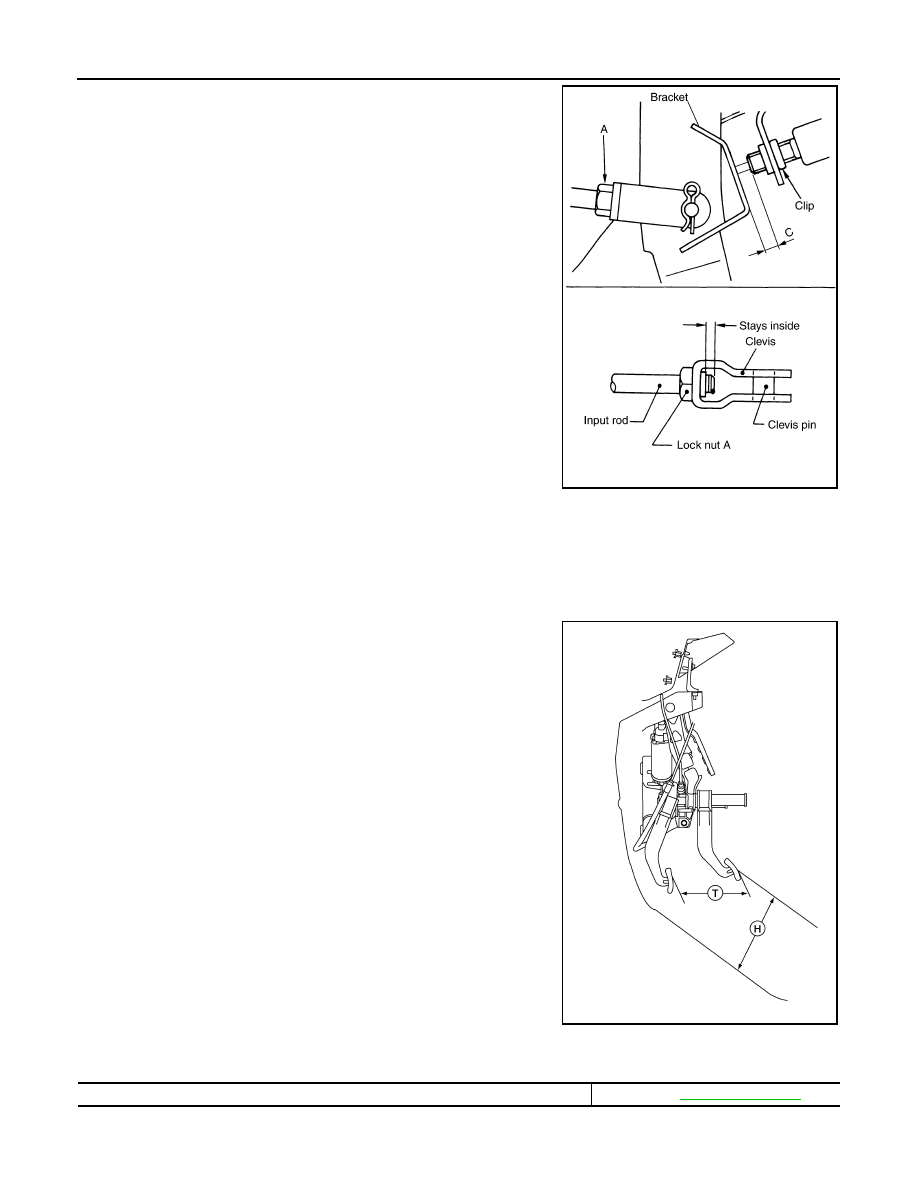

BR-18

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

2.

Loosen lock nut (A) on the input rod, then turn input rod to adjust
the brake pedal to specified height. When finished adjusting,
tighten lock nut (A) to specification.

CAUTION:

Make sure that the screw portion of the end of input rod is
located inside the clevis.

3.

With the brake pedal pulled up and held by hand, press the stop
lamp switch and the ASCD cancel switch in until threaded ends
contact the brake pedal bracket.

4.

With the threaded ends of the stop lamp switch and ASCD
switch contacting the pedal bracket, turn the switches 45

°

 clock-

wise to lock in place. Check that the stop lamp switch and ASCD
cancel switch threaded end to brake pedal bracket gap (C) is
within specifications.

CAUTION:

Make sure that the gap (C) between the brake pedal bracket
and stop lamp switch and ASCD cancel switch threaded
ends are within specification.

5.

Check the brake pedal for smooth operation.

CAUTION:

Make sure that the stop lamp goes off when the brake pedal
is released.

6.

Start the engine and check the height of the brake pedal when depressing it.

Inspection and Adjustment - Adjustable Pedal

INFOID:0000000004375895

INSPECTION

1.

Inspect the brake pedal free height (H) from the floor using Tool
at a 90

°

 angle to the floor as shown.

2.

Adjust the height referring to the following specifications.

CAUTION:

When equipped with adjustable pedal, the pedal must be in
the forward most (closest to the floor) position for pedal
height measurement.

Brake Pedal Specifications

Unit: mm (in)

Lock nut (A)

: 18.7 N·m (1.9 kg-m, 14 ft-lb)

PFIA0436E

Tool number

:

—

(J-46532)

ALFIA0149ZZ

Pedal free height (H) with pedal in forward most position

Refer to

BR-55, "Brake Pedal"

.

2009 Pathfinder

BRAKE PEDAL

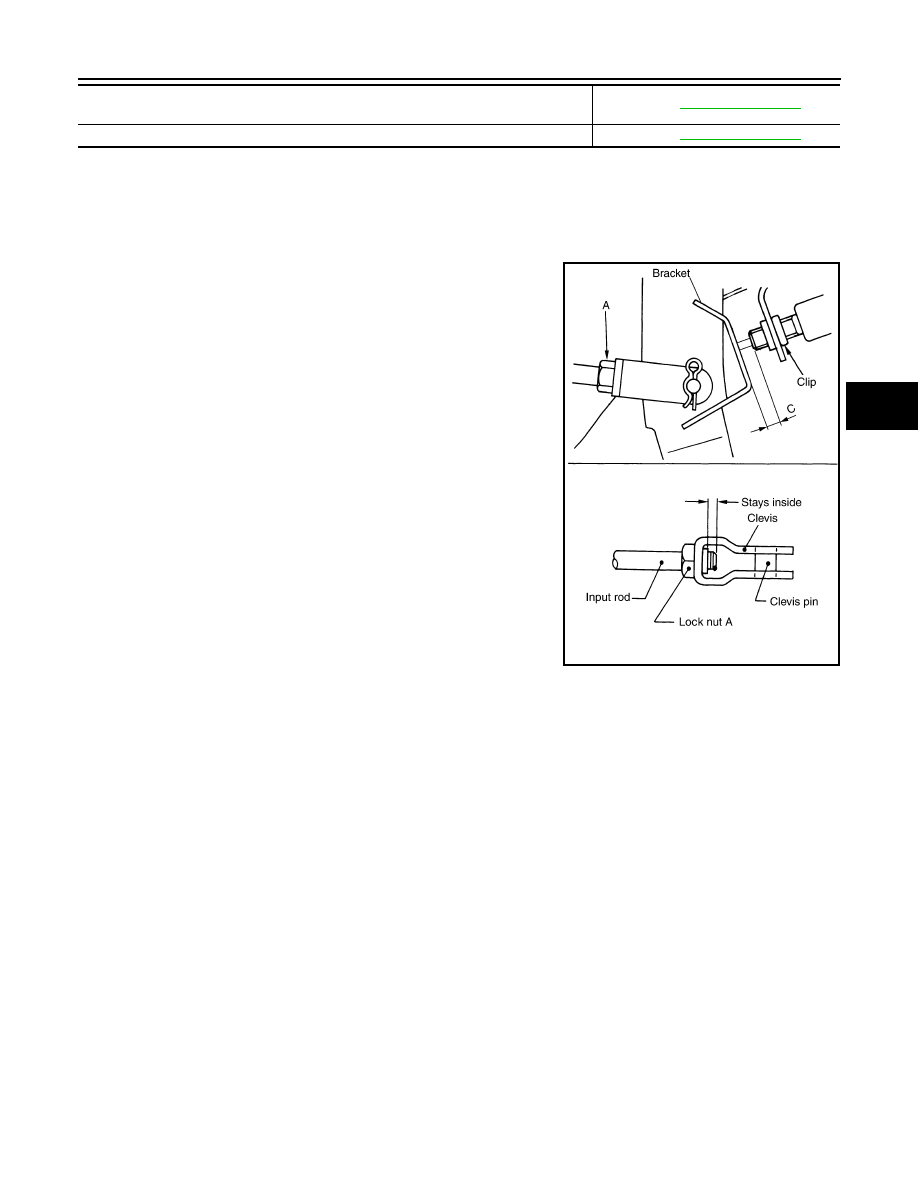

BR-19

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

When equipped with adjustable pedal, the pedal must be in the forward most position (closest to the floor) for pedal
height adjustment.

ADJUSTMENT

1.

Loosen the stop lamp switch and ASCD cancel switch by turning them 45

°

 counterclockwise.

2.

Loosen lock nut (A) on the input rod, then turn input rod to adjust
the brake pedal to the specified height. When finished adjusting,
tighten the lock nut (A) to specification.

CAUTION:

Make sure that the screw portion of the end of input rod is
located inside the clevis.

3.

With the brake pedal pulled up and held by hand, press the stop
lamp switch and the ASCD cancel switch in until the threaded
ends contact the brake pedal bracket.

4.

With the threaded ends of the stop lamp switch and ASCD
switch contacting the pedal bracket, turn the switches 45

°

 clock-

wise to lock in place. Check that the stop lamp switch and ASCD
cancel switch threaded end to brake pedal bracket gap (C) is
within specifications.

CAUTION:

Make sure that the gap (C) between the brake pedal bracket
and stop lamp switch and ASCD cancel switch threaded
ends are within specification.

5.

Check the brake pedal for smooth operation.

CAUTION:

Make sure that the stop lamp goes off when the brake pedal
is released.

6.

Start the engine and check the height of the brake pedal when depressing it.

Pedal travel (T)
[Depressed under a force of 490 N (50 kg, 110 lb) with engine running]

Refer to

BR-55, "Brake Pedal"

.

Clearance between pedal stopper and threaded end of stop lamp switch and ASCD switch

Refer to

BR-55, "Brake Pedal"

.

Lock nut (A)

: 18.7 N·m (1.9 kg-m, 14 ft-lb)

PFIA0436E

2009 Pathfinder

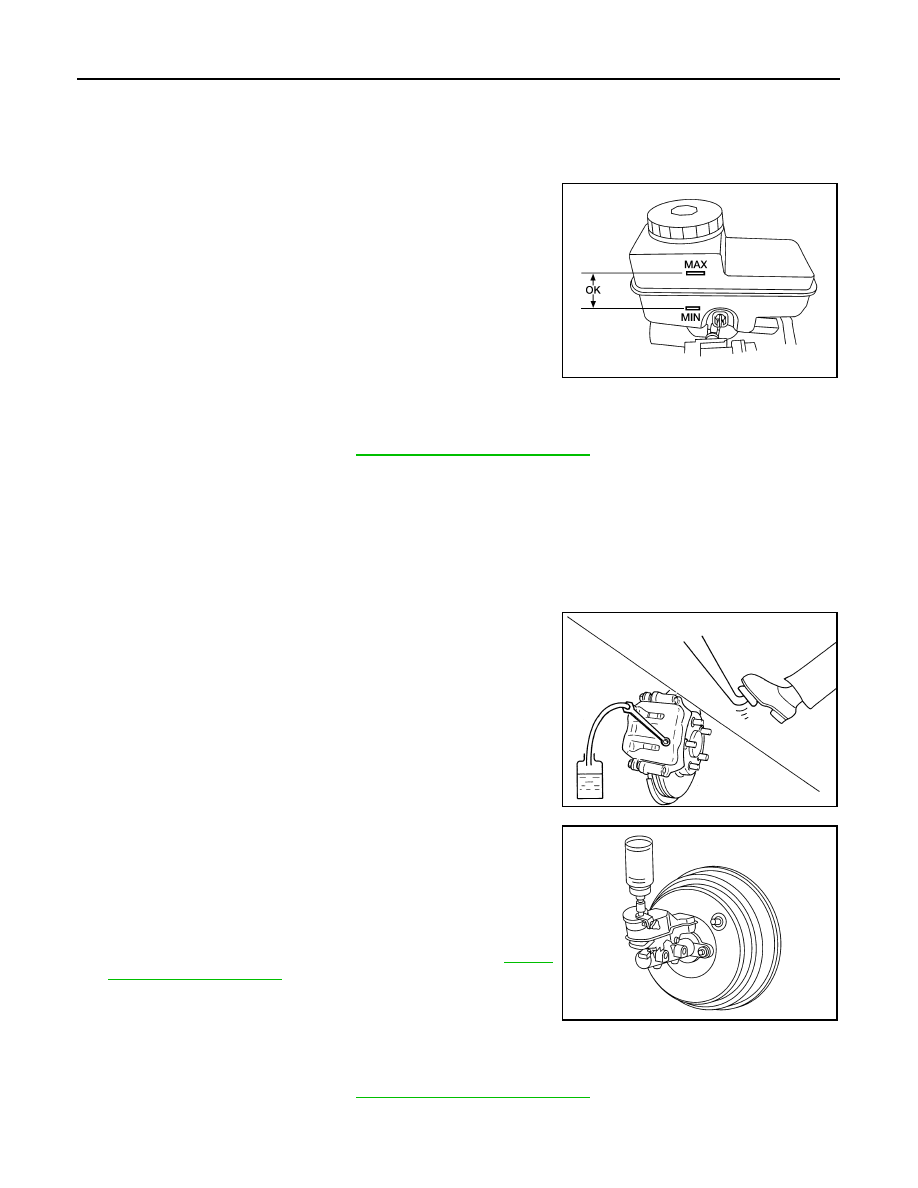

BR-20

< ON-VEHICLE MAINTENANCE >

BRAKE FLUID

BRAKE FLUID

On Board Inspection

INFOID:0000000003937493

LEVEL CHECK

• Check that the brake fluid level in the reservoir tank is within speci-

fication, between the MAX and MIN lines as shown.

• Visually check around reservoir tank for fluid leaks.
• If fluid level is excessively low, check brake system for leaks.
• If brake warning lamp remains illuminated after the parking brake

pedal is released, check the brake system for any brake fluid
leaks.

Drain and Refill

INFOID:0000000003937497

CAUTION:

• Refill with new brake fluid. Refer to

MA-12, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.
• Do not let brake fluid splash on the painted surfaces of the body. This might damage the paint, so

when splashing it, immediately wipe off the area and wash away with water.

• Before servicing, disconnect ABS actuator and electric unit (control unit) connector or battery nega-

tive terminal.

1.

Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or battery
negative terminal.

2.

Connect a vinyl tube to each bleed valve.

3.

Depress brake pedal, loosen each bleed valve, and gradually
remove brake fluid.

4.

Make sure there is no foreign material in reservoir tank, and refill
with new brake fluid.

5.

Rest foot on brake pedal. Loosen bleed valve. Slowly depress
brake pedal until it stops. Tighten bleed valve. Release brake
pedal. Repeat the process a few times, then pause to add new
brake fluid to master cylinder. Continue until the new brake fluid
flows out of the bleed valve.
Bleed the air out of the brake hydraulic system. Refer to

BR-20,

"Bleeding Brake System"

.

Bleeding Brake System

INFOID:0000000003937498

CAUTION:

• Refill with new brake fluid. Refer to

MA-12, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

LFIA0234E

BRA0007D

PFIA0403J

2009 Pathfinder

BRAKE FLUID

BR-21

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• Do not let brake fluid splash on the painted surfaces of the body. This might damage the paint, so

when splashing it, immediately wipe off the area and wash away with water.

• Before servicing, disconnect ABS actuator and electric unit (control unit) connector or battery nega-

tive terminal.

• While bleeding, monitor the master cylinder brake fluid level.
1.

Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or battery
negative terminal.

2.

Connect a vinyl tube to the rear right bleed valve.

3.

Fully depress brake pedal 4 to 5 times.

4.

With brake pedal depressed, loosen bleed valve to let the air out, and then tighten it immediately.

5.

Repeat steps 3 and 4 until no more air comes out.

6.

Tighten bleed valve to the specified torque. Refer to

BR-39, "Exploded View of Brake Caliper"

 (front disc

brake),

BR-44, "Exploded View of Brake Caliper"

 (rear disc brake).

7.

Perform steps 2 to 6 at each wheel, with master cylinder reservoir tank filled at least half way, bleed air
from the front left, rear left, and front right bleed valve, in that order.

2009 Pathfinder

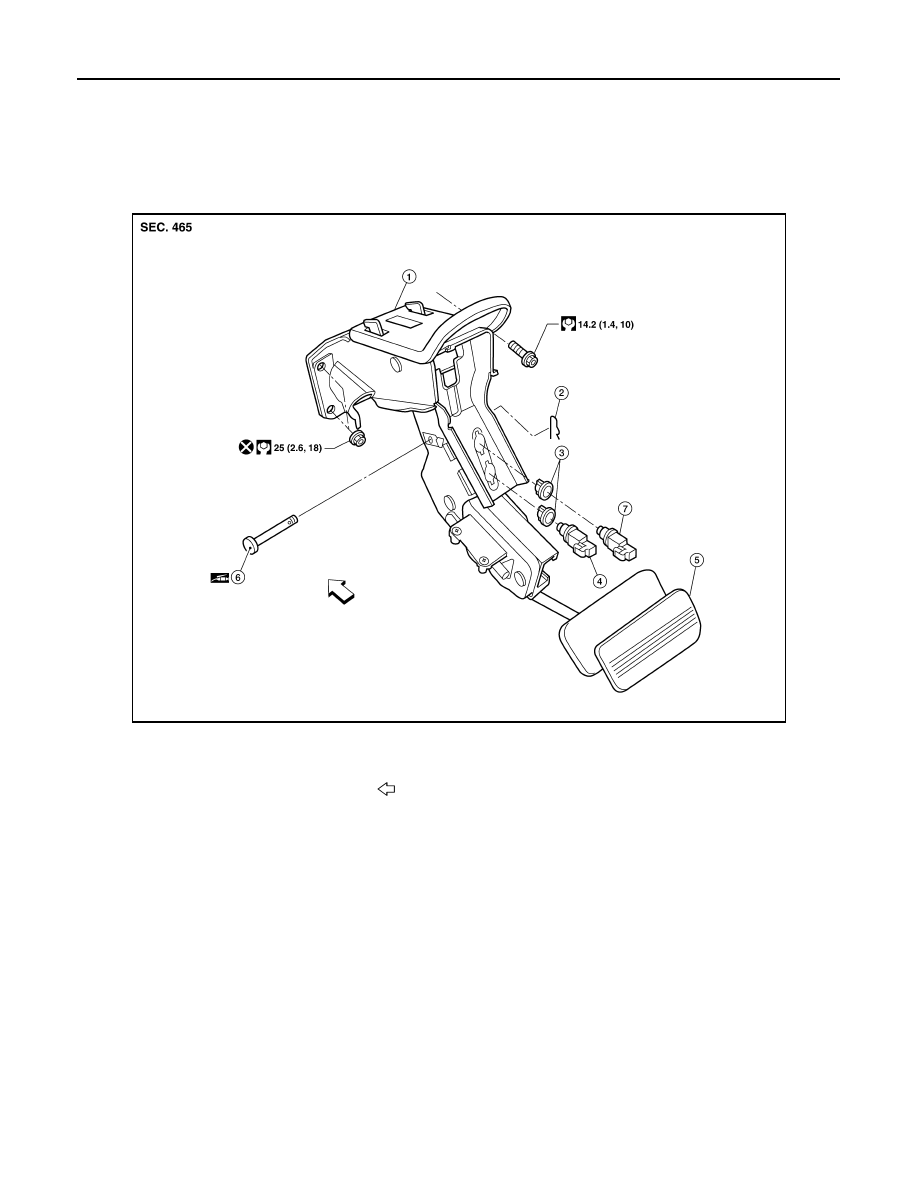

BR-22

< ON-VEHICLE REPAIR >

BRAKE PEDAL

ON-VEHICLE REPAIR

BRAKE PEDAL

Exploded View

INFOID:0000000004391473

Adjustable Brake Pedal

NOTE:
The clevis pin may be installed from either direction.

AWFIA0456GB

1.

Brake pedal assembly

2.

Snap pin

3.

Clip

4.

Stop lamp switch

5.

Pedal pad

6.

Clevis pin

7.

ASCD cancel switch

Front

2009 Pathfinder

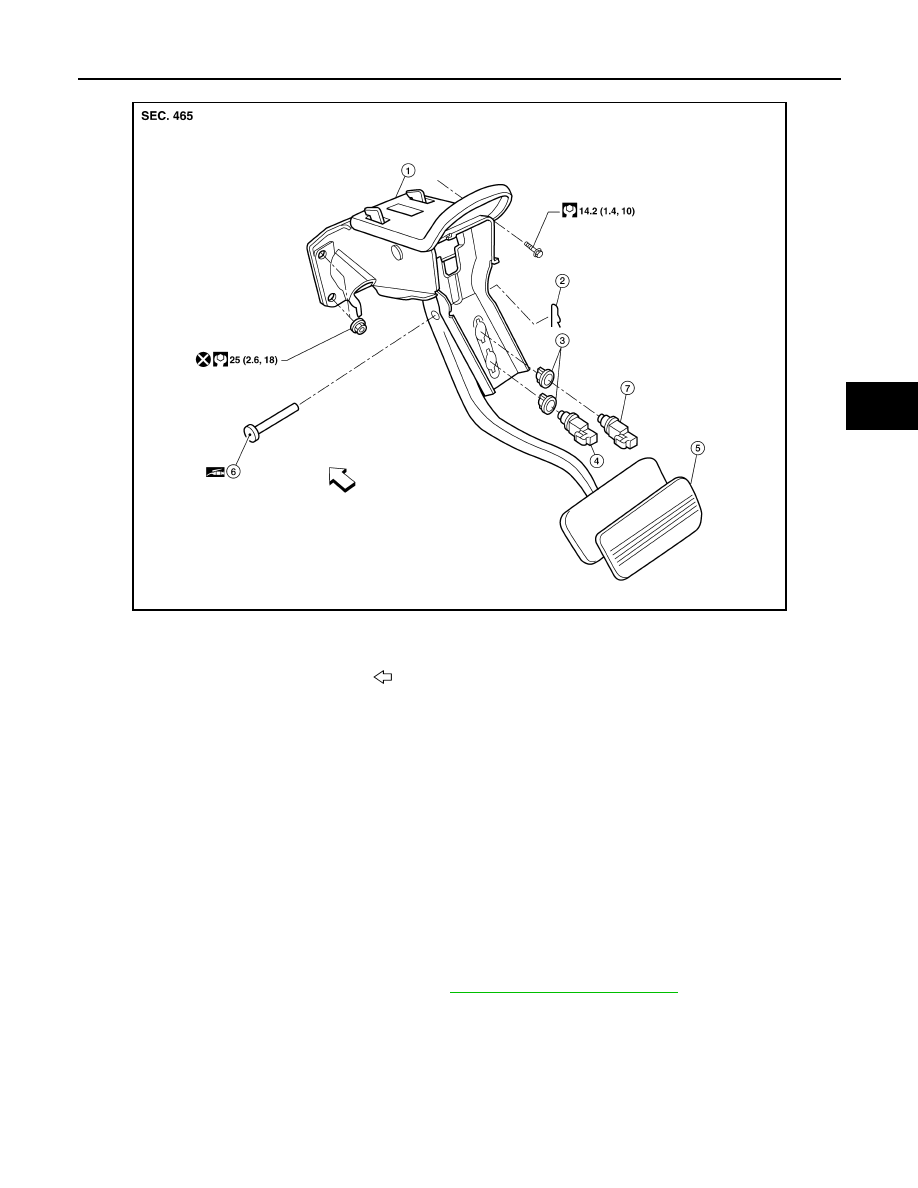

BRAKE PEDAL

BR-23

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Standard Brake Pedal

NOTE:
The clevis pin may be installed from either direction.

Removal and Installation

INFOID:0000000003937505

ADJUSTABLE BRAKE PEDAL

WARNING:

Do not deform the brake piping.

CAUTION:

• Before removal and installation the accelerator and brake pedals must be in the forward most posi-

tion (closest to the floor). This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the brake pedal adjusting mechanism.
• Avoid damage from dropping the brake pedal assembly during handling.
• Keep the brake pedal assembly away from water.

Removal

1.

Remove the lower instrument panel LH. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the stop lamp switch and ASCD cancel switch from the brake pedal assembly.

AWFIA0458GB

1.

Brake pedal assembly

2.

Snap pin

3.

Clip

4.

Stop lamp switch

5.

Pedal pad

6.

Clevis pin

7.

ASCD cancel switch

Front

2009 Pathfinder

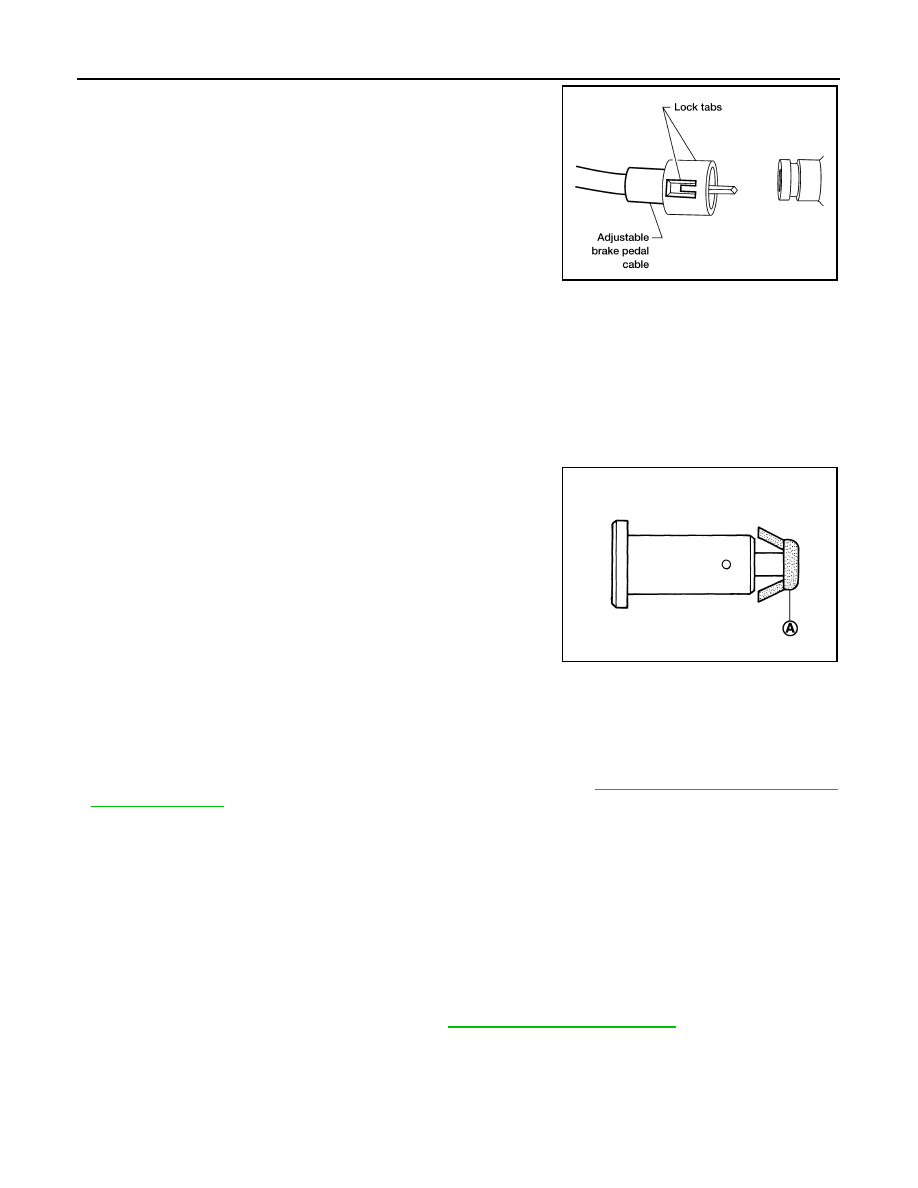

B R - 2 4

< ON-VEHICLE REPAIR >

BRAKE PEDAL

3.

Disconnect the adjustable brake pedal cable from the adjustable
pedal.
• Release the two lock tabs, then pull the adjustable brake pedal

cable to disconnect it from the adjustable brake pedal.

4.

Remove snap pin and clevis pin from the clevis of the brake booster.

5.

Remove the brake pedal assembly bolt.

6.

Remove the brake pedal assembly nuts and discard, then remove the pedal assembly.
• Temporarily install the nuts by hand to support the booster.

CAUTION:

Do not reuse the nuts for installation.

Inspection After Removal

Check brake pedal for following items:

• Cracking or deformation of the clevis pin stopper (A)
• Clevis pin deformation
• Crack of any welded portion
• Brake pedal bent or deformed

Installation

Installation is in the reverse order of removal.
• Check the brake pedal for smooth operation. There should be no binding or sticking when applying or

releasing the brake pedal.

• Check the adjustable feature for smooth operation. There should be no binding or sticking when adjusting

the brake pedal forward and backward.

• After installing the brake pedal assembly, adjust it as necessary. Refer to

BR-18, "Inspection and Adjustment

- Adjustable Pedal"

.

CAUTION:

Do not reuse the nuts for installation, discard and install with new lock nuts.

STANDARD BRAKE PEDAL

WARNING:

Do not deform the brake piping.

CAUTION:

• Do not disassemble the brake pedal assembly.
• Avoid damage from dropping the brake pedal assembly during handling.
• Keep the brake pedal assembly away from water.

Removal

1.

Remove the lower instrument panel LH. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the stop lamp switch and ASCD cancel switch from the pedal assembly.

3.

Remove snap pin and clevis pin from the clevis of the brake booster.

4.

Remove the brake pedal assembly bolt.

5.

Remove the brake pedal assembly nuts and discard, then remove the pedal assembly.
• Temporarily install the nuts by hand to support the booster.

LFIA0233E

PFIA0756J

2009 Pathfinder

BRAKE PEDAL

BR-25

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

Do not reuse the nuts for installation.

Inspection After Removal

Check brake pedal for following items:

• Cracking or deformation of clevis pin stopper (A)
• Clevis pin deformation
• Crack of any welded portion
• Brake pedal bent or deformed

Installation

Installation is in the reverse order of removal.
• Check the brake pedal for smooth operation. There should be no binding or sticking when applying or

releasing the brake pedal.

• After installing the brake pedal assembly, adjust it as necessary. Refer to

BR-17, "Inspection and Adjustment

- Standard Pedal"

.

CAUTION:

Do not reuse the nuts for installation, discard and install with new lock nuts.

PFIA0756J

2009 Pathfinder
