Nissan Pathfinder (2009 year). Manual - part 73





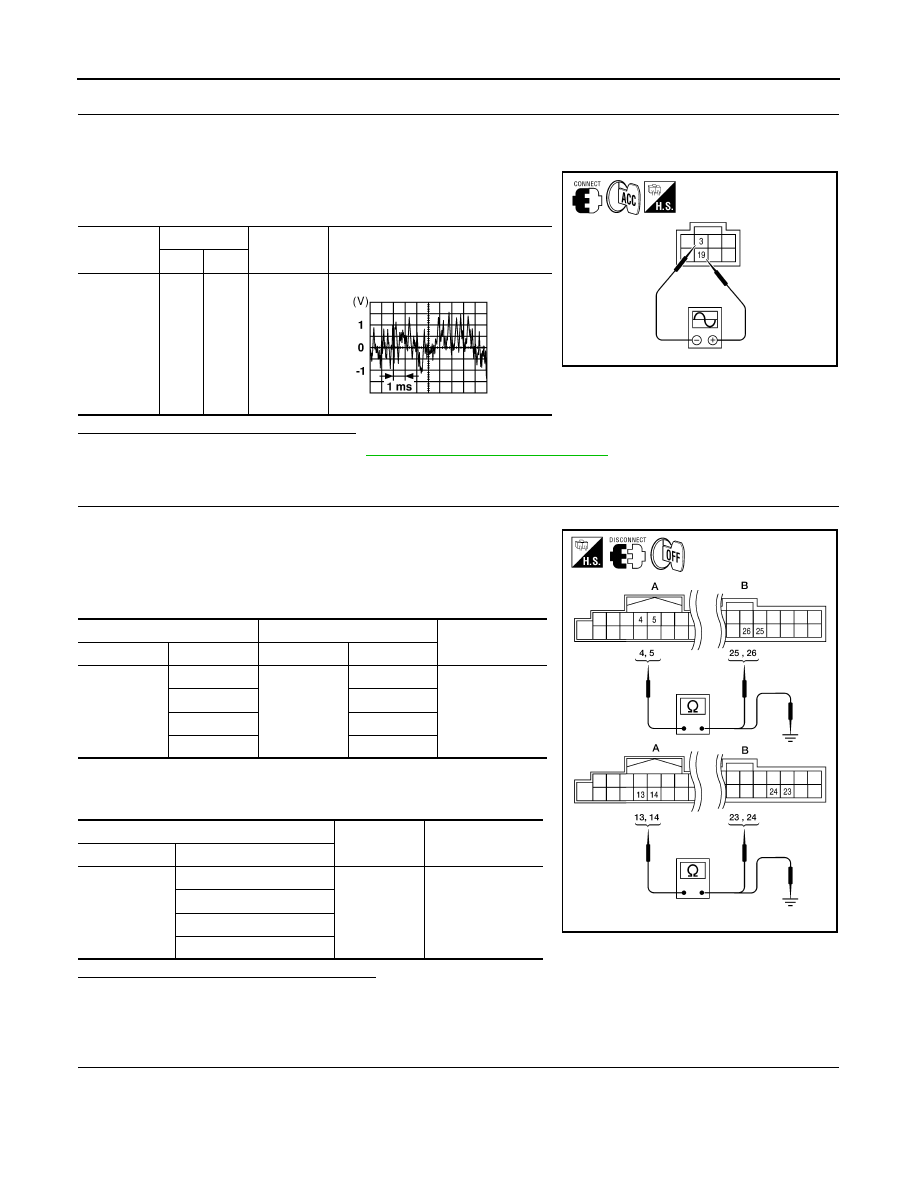

AV-396

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

SUBWOOFER

4.

SUBWOOFER AUDIO SIGNAL CHECK

1.

Connect BOSE speaker amp. connectors and subwoofer connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between BOSE speaker amp. harness connec-
tor B74 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace subwoofer. Refer to

AV-462, "Removal and Installation"

.

NO

>> GO TO 5

5.

HARNESS CHECK

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector M39 and BOSE speaker
amp. connector B75.

3.

Check continuity between AV control unit harness connector
M39 (A) and BOSE speaker amp. harness connector B75 (B).

4.

Check continuity between AV control unit harness connector
M39 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 6

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

6.

BACK DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B74

19

3

Receive au-
dio signal

ALNIA0879GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M39

4

B75

26

Yes

5

25

13

24

14

23

A

—

Continuity

Connector

Terminal

M39

4

Ground

No

5

13

14

ALNIA0551GB

2009 Pathfinder

AV

SUBWOOFER

AV-397

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

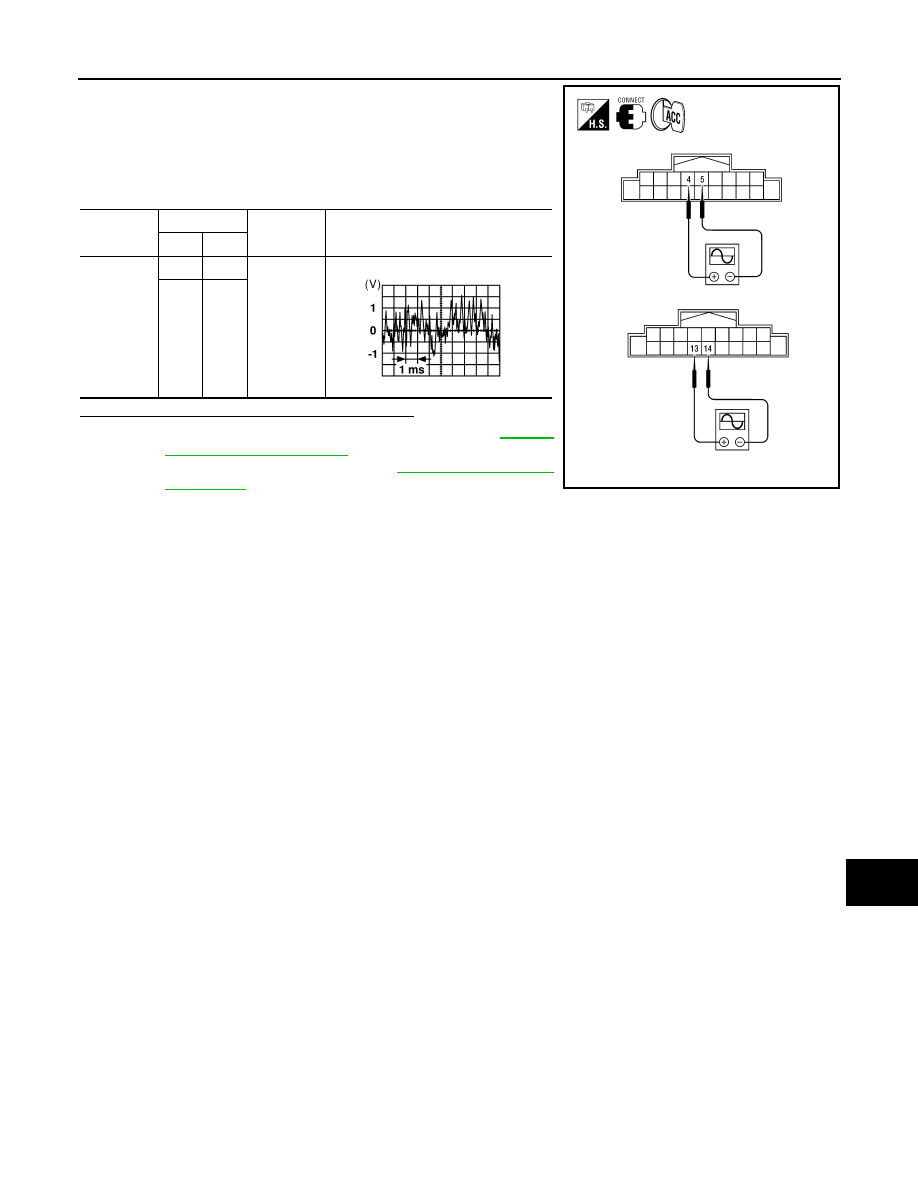

1.

Connect AV control unit connector M39 and BOSE speaker
amp. connector B75.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between AV control unit harness connector
M39 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-461,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-455, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M39

4

5

Receive
audio sig-
nal

13

14

AWNIA0034ZZ

SKIA0177E

2009 Pathfinder

AV-398

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

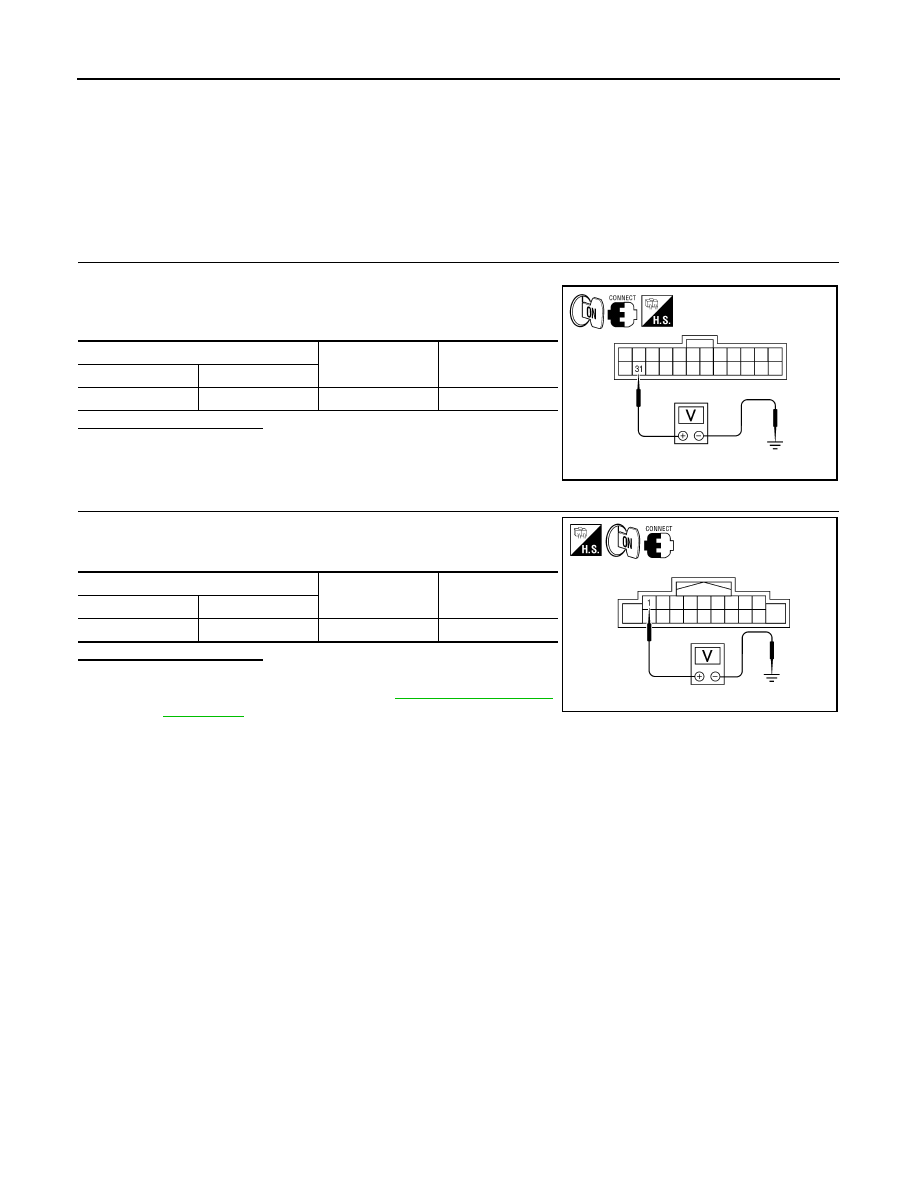

AMP ON SIGNAL CIRCUIT

AMP ON SIGNAL CIRCUIT

Description

INFOID:0000000003939266

When the audio system is turned on, a voltage signal is supplied from the AV control unit to the BOSE speaker
amp. When this signal is received, the BOSE speaker amp. will turn on.

Diagnosis Procedure

INFOID:0000000003939267

1.

CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)

1.

Turn audio system ON.

2.

Check voltage between BOSE speaker amp. harness connector
B75 terminal 31 and ground.

Is battery voltage present?

YES

>> Inspection End.

NO

>> GO TO 2

2.

CHECK AMP ON SIGNAL (AV CONTROL UNIT)

Check voltage between AV control unit harness connector M39 ter-
minal 1 and ground.

Is battery voltage present?

YES

>> Repair harness or connector.

NO

>> Replace AV control unit. Refer to

AV-455, "Removal and

Installation"

.

(+)

(-)

Value (Approx.)

Connector

Terminal

B75

31

Ground

Battery Voltage

ALNIA0539GB

(+)

(-)

Value (Approx.)

Connector

Terminal

M39

1

Ground

Battery Voltage

ALNIA1185ZZ

2009 Pathfinder

AV

STEERING SWITCH

AV-399

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

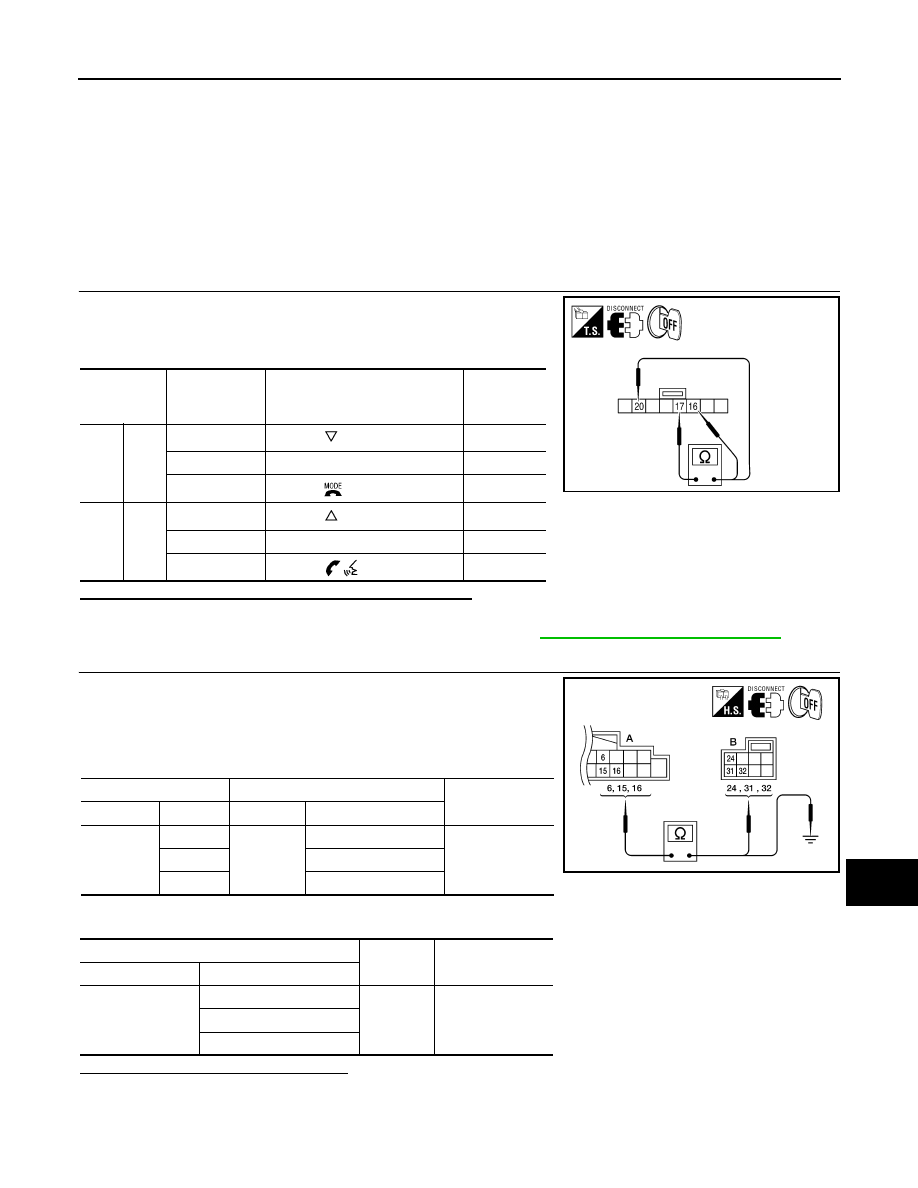

STEERING SWITCH

Description

INFOID:0000000003939268

When one of the steering wheel audio control switches is pushed, the resistance in the steering wheel audio
control switch circuit changes depending on which button is pushed.

Diagnosis Procedure

INFOID:0000000003939269

1.

CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect steering wheel audio control switch connector M102.

3.

Check resistance between steering switch connector terminals.

Do the steering wheel audio control switches check OK?

YES

>> GO TO 2

NO

>> Replace steering wheel audio control switch. Refer to

AV-468, "Removal and Installation"

.

2.

CHECK HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector M39 and spiral cable con-
nector M30.

3.

Check continuity between AV control unit harness connector
M39 (A) and spiral cable harness connector M30 (B).

4.

Check continuity between AV control unit connector M39 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness.

Terminal

Signal name

Condition

Resistance

(

Ω

)

(Approx.)

16

17

Seek (down)

Depress

switch.

165

Volume (down)

Depress VOL down switch.

487

Phone/Send

Depress

switch.

0

20

17

Seek (up)

Depress

switch.

165

Volume (up)

Depress VOL up switch.

487

Mode/End

Depress

switch.

0

WKIA4457E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M39

6

M30

24

Yes

15

31

16

32

A

—

Continuity

Connector

Terminal

M39

6

Ground

No

15

16

ALNIA0332GB

2009 Pathfinder

AV-400

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH

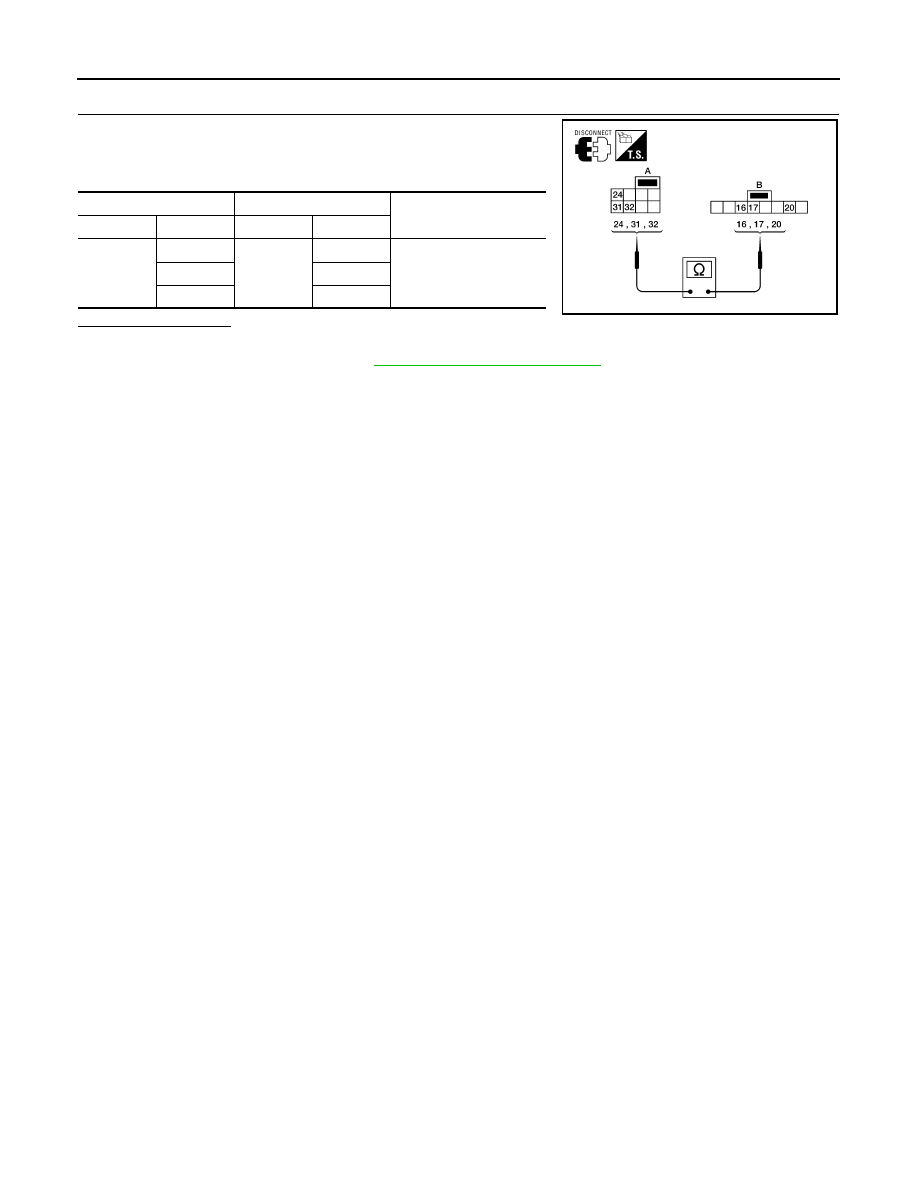

3.

SPIRAL CABLE CHECK

1.

Disconnect spiral cable connector M102.

2.

Check continuity between spiral cable harness connector M30
(A) and M102 (B).

Does continuity exist?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

SR-7, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M102

20

Yes

31

17

32

16

AWLIA1602ZZ

2009 Pathfinder

AV

MICROPHONE SIGNAL CIRCUIT

AV-401

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

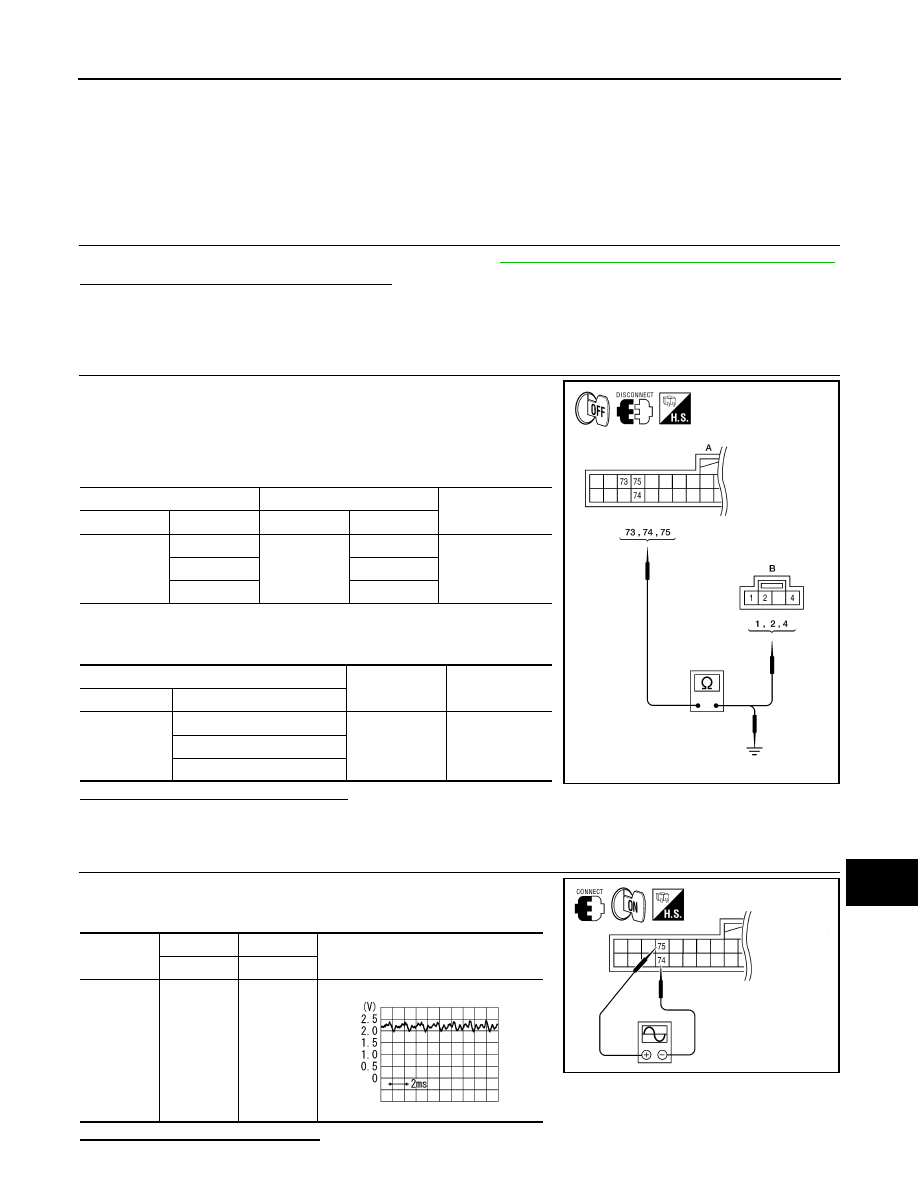

MICROPHONE SIGNAL CIRCUIT

Description

INFOID:0000000003939270

Voice signals are transmitted from the microphone to the AV control unit using the microphone signal circuits.

Diagnosis Procedure

INFOID:0000000003939271

1.

VERIFY MICROPHONE POWER AND GROUND SUPPLY

Check power and ground supply to the microphone. Refer to

AV-374, "MICROPHONE : Diagnosis Procedure"

.

Did the power and ground supply check OK?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

CHECK HARNESS BETWEEN AV CONTROL UNIT AND MICROPHONE

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and microphone connec-
tor.

3.

Check continuity between AV control unit harness connector
M48 (A) and microphone harness connector R8 (B).

4.

Check continuity between AV control unit harness connector
M48 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK MICROPHONE SIGNAL

Check signal between AV control unit harness connector M48 termi-
nals 74 and 75 with CONSULT-III or oscilliscope.

Are voltage readings as specified?

A

B

Continuity

Connector

Terminal

Connector

Terminal

M48

75

R8

1

Yes

74

2

73

4

A

—

Continuity

Connector

Terminal

M48

75

Ground

No

74

73

AWLIA1682ZZ

Connector

(+)

(-)

Reference signal

Terminal

Terminal

M48

75

74

While speaking into MIC

ALNIA0553GB

PKIB5037J

2009 Pathfinder

AV-402

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE SIGNAL CIRCUIT

YES

>> Replace AV control unit. Refer to

AV-455, "Removal and Installation"

.

NO

>> Replace microphone. Refer to

AV-469, "Removal and Installation"

.

2009 Pathfinder

AV

AV CONTROL UNIT

AV-403

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

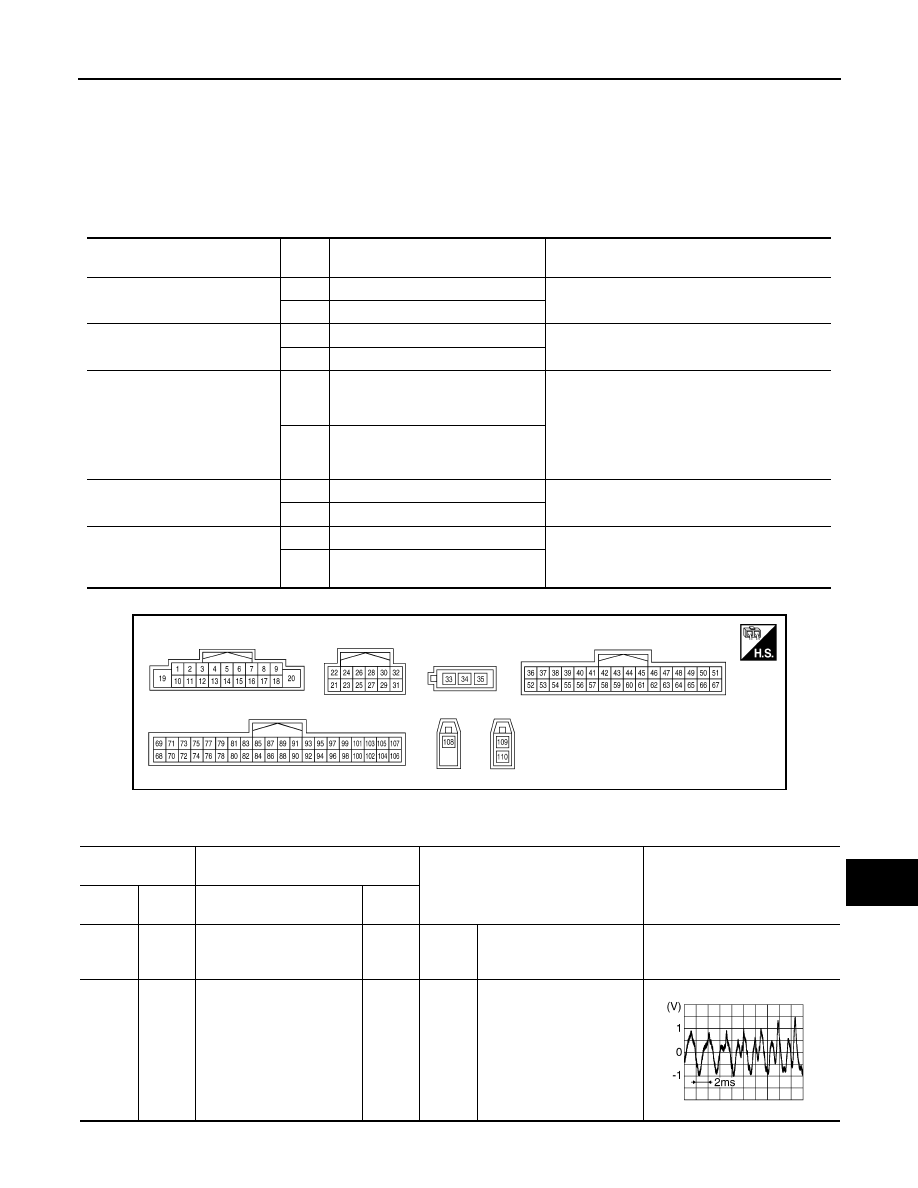

ECU DIAGNOSIS

AV CONTROL UNIT

Reference Value

INFOID:0000000003939272

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III data monitor item

TERMINAL LAYOUT

PHYSICAL VALUES

Display Item

Dis-
play

Vehicle status

Remarks

VHCL SPD SIG

ON

Vehicle speed >0 km/h (0 MPH)

Changes in indication may be delayed. This is
normal.

OFF

Vehicle speed =0 km/h (0 MPH)

PKB SIG

ON

Parking brake is applied.

Changes in indication may be delayed. This is
normal.

OFF

Parking brake is released.

ILLUM SIG

ON

Block the light beam from the auto
light optical sensor when the light
SW is ON.

—

OFF

Expose the auto light optical sensor
to light when the light SW is OFF or
ON.

IGN SIG

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

REV SIG

ON

Selector lever in R position

Changes in indication may be delayed. This is
normal.

OFF

Selector lever in any position other
than R

AWNIA0148ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(SB)

Ground

Amp. ON signal

Output

Ignition

switch

ON

—

Battery voltage

2

(BR)

3

(B)

Pre-amp. audio signal front
LH

Output

Ignition

switch

ON

Audio output

SKIB3609E

2009 Pathfinder
