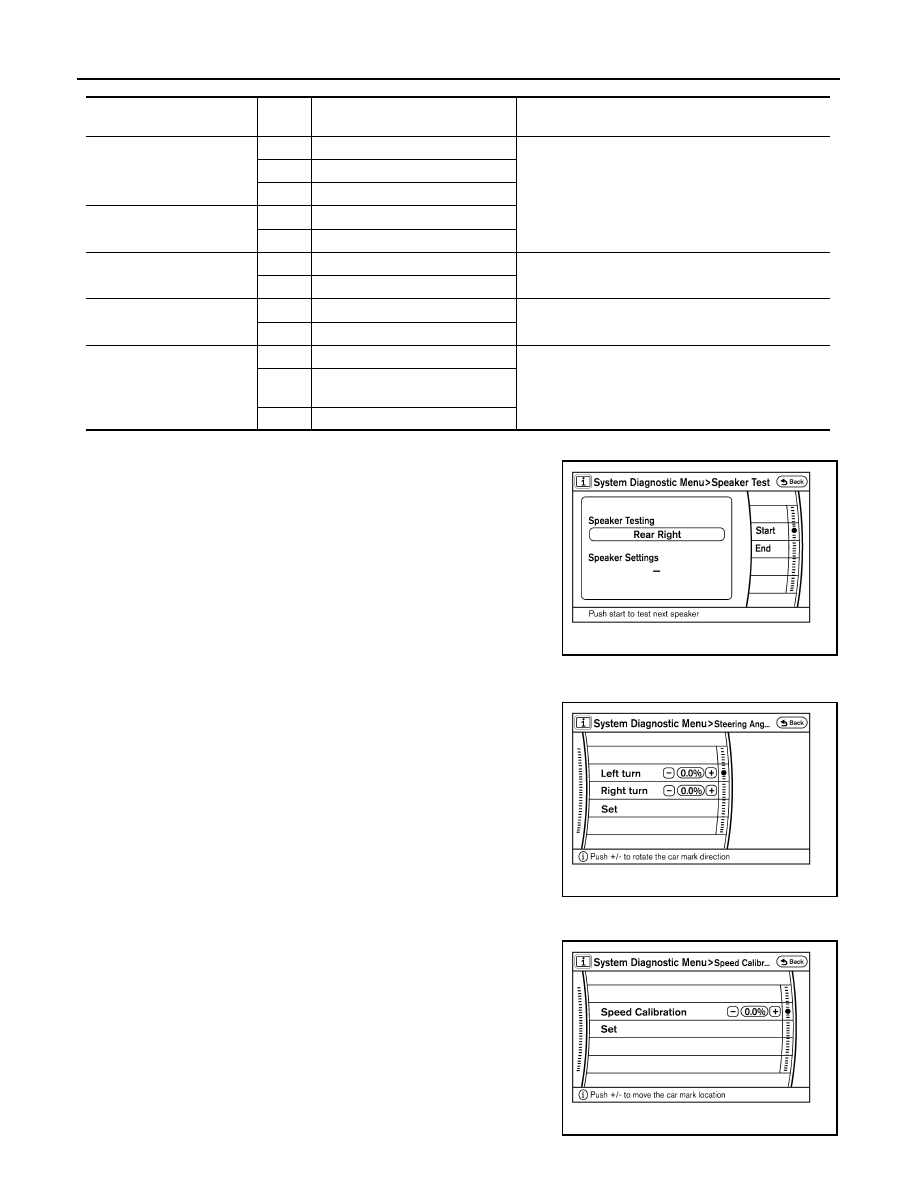

AV-332

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Speaker Test

Select “Speaker Test” to display the speaker diagnosis screen. Press
“Start” to generate a test tone in speakers. Touch “End” to stop the
test tones.

Navigation

STEERING ANGLE ADJUSTMENT
The steering angle output value detected with the gyroscope is
adjusted.

SPEED CALIBRATION
During normal driving, distance error caused by tire wear and tire
pressure change is automatically adjusted for by the automatic dis-
tance correction function. This function, on the other hand, is for
immediate adjustment, in cases such as driving with tire chain fitted
on tires.

Diagnosis item

Dis-
play

Vehicle status

Remarks

Vehicle speed

Vehicle speed > 0 km/h

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h

−

Ignition switch in ACC position

Parking brake

Parking brake is applied.

OFF

Parking brake is released.

Lights

Light switch ON

Block the light beam from the auto light optical sensor.

OFF

Light switch OFF

Ignition

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

Selector lever in R position

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Selector lever in any position other
than R

−

Ignition switch in ACC position

ALNIA0221GB

ALNIA0223GB

ALNIA0224GB

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

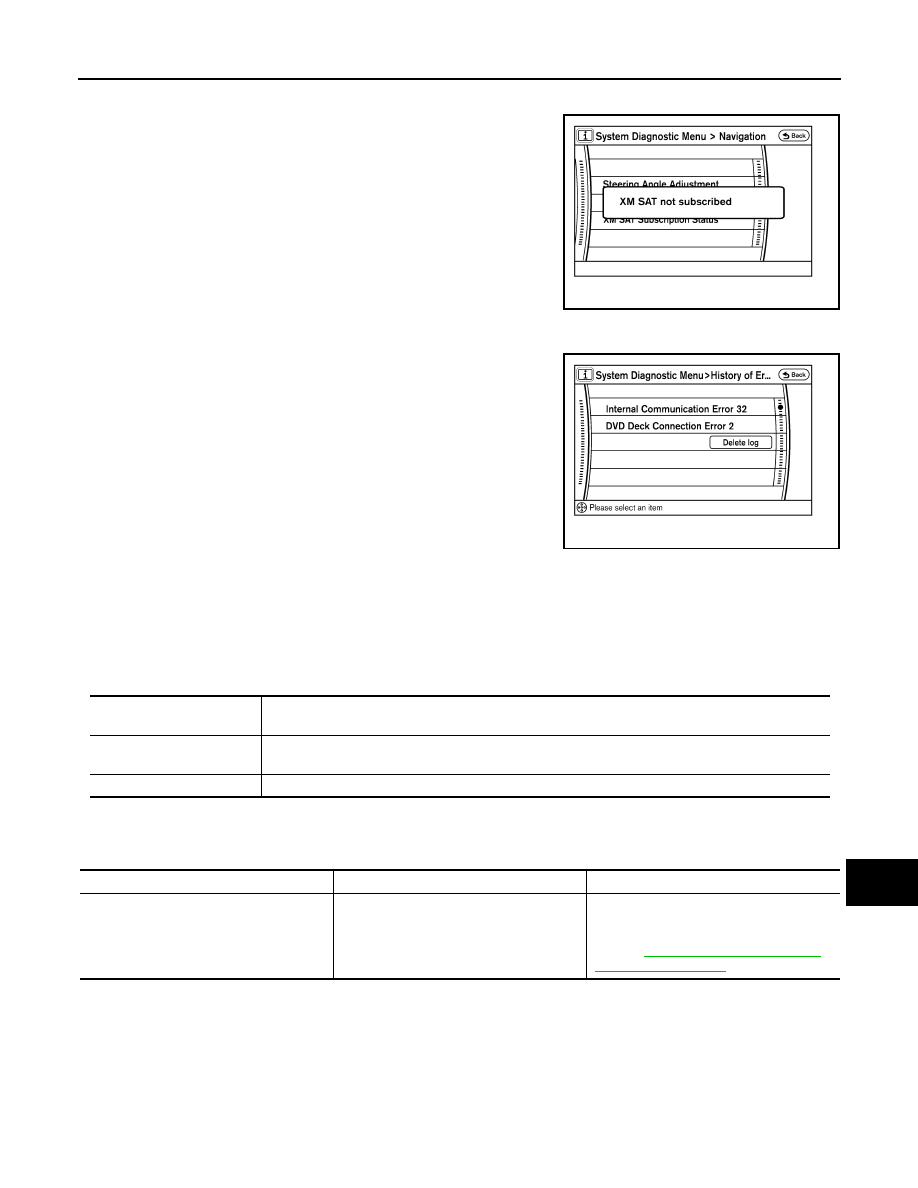

AV-333

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

XM SAT SUBSCRIPTION STATUS
The XM NavTraffic subscription status can be checked.

Error History

The self-diagnosis results are judged depending on whether any
error occurs from when "Self-diagnosis" isselected until the self-
diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has
occurred before the ignition SW is turned ON and then no error has
occurred until the self-diagnosis start. Check the "Error History" to
detect any error that may have occurred before the self-diagnosis
start because of this situation.
Count up method A
• The counter resets to 0 if an error occurs when IGN switch is

turned ON. The counter increases by 1 if thecondition is normal at
a next IGN ON cycle.

• The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error-

record display) with the "Delete log" switch or CONSULT-III.

Count up method B
• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even

ifthe condition is normal at the next IGN ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error-

record display) with the "Delete log" switch or CONSULT-III.

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

ALNIA0225GB

Display method of occur-

rence frequency

Error history diplay item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV communica-
tion)

Count up method B

Other than above

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed

Perform diagnosis with CONSULT-III, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
Refer to

AV-337, "AV CONTROL UNIT :

CONSULT-III Function"

ALNIA0226GB

2009 Pathfinder

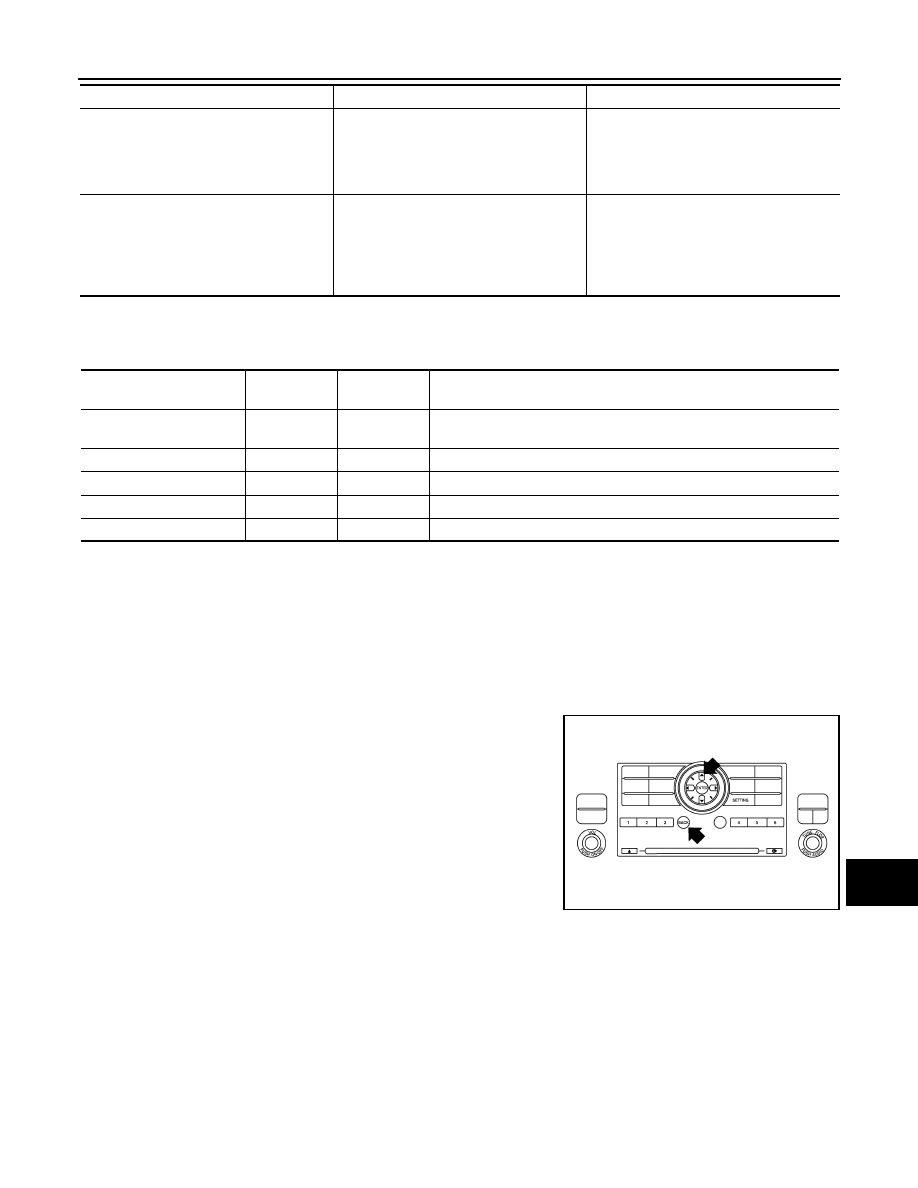

AV-334

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed

Replace the AV control unit. Refer to

AV-

287, "Removal and Installation"

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected

Connection Of Gyro

XM SERIAL COMM Error

CAN Controller Memory Error

Bluetooth Module Connection Error

HDD CONN Error

HDD READ Error

HDD WRITE Error

HDD COMM Error

HDD ACCESS Error

DSP CONN Error

DSP COMM Error

Internal Communication Error

AV control unit power supply and ground
circuit. Refer to

AV-367, "AV CONTROL

UNIT : Diagnosis Procedure"

GPS Communication Error

GPS malfunction is detected

An intermittent error caused by strong radio
interference may be detected unless any
symptoms (GPS reception error, etc.) oc-
cur.
Replace the AV control unit ff the malfunc-
tion occurs constantly. Refer to

AV-287,

"Removal and Installation"

GPS ROM Error

GPS RAM Error

GPS RTC Error

Front Display Connection Error

• Display unit power supply and ground

circuit malfunction is detected

• Malfunction is detected on communica-

tion circuit between display unit and AV
control unit

• Malfunction is detected on communica-

tion signal between display unit and AV
control unit

• Display unit power supply and ground

circuit. Refer to

AV-368, "DISPLAY UNIT

: Diagnosis Procedure"

• Communication circuit between display

unit and AV control unit

GPS Antenna Error

GPS antenna connection malfunction is de-
tected

GPS antenna

XM Antenna Connection Error

Poor connection is detected in satellite ra-
dio antenna

Satellite radio antenna

Camera Control Unit Connection Error

A malfunction is detected in the rear view
camera-connection recognition signal cir-
cuit

Rear view camera-connection recognition
signal circuit

• AV COMM CIRCUIT
• Switches Connection Error

• A/C and AV switch assembly power sup-

ply and ground circuit malfunction is de-
tected

• A malfunction is detected in AV commu-

nication circuit between AV control unit
and A/C and AV switch assembly

• A malfunction is detected in AV commu-

nication signal between AV control unit
and A/C and AV switch assembly

• A/C and AV switch assembly power sup-

ply and ground circuits. Refer to

AV-368,

"A/C AND AV SWITCH ASSEMBLY : Di-
agnosis Procedure"

• AV communication circuit between AV

control unit and A/C and AV switch as-
sembly

Error item

Description

Possible malfunction factor/Action to take

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

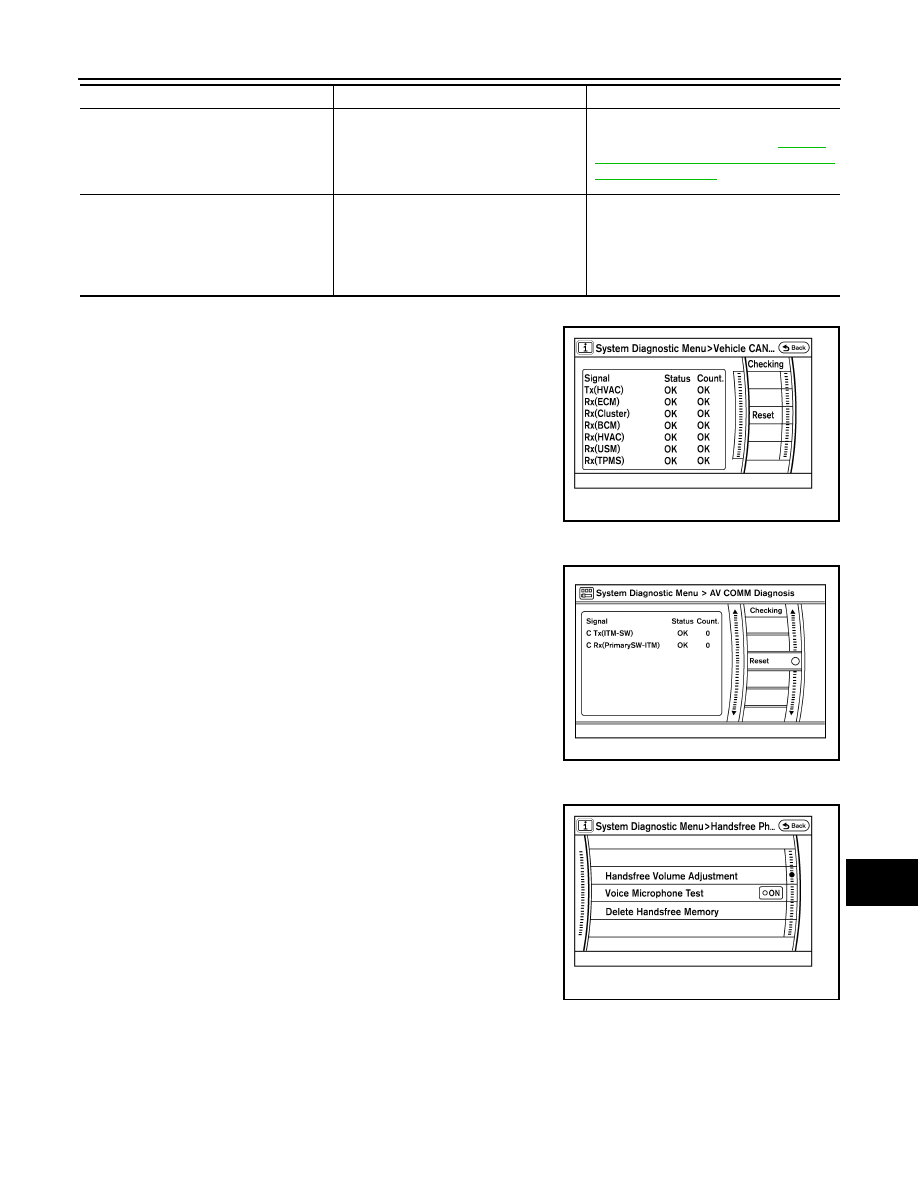

AV-335

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

AV COMM Diagnosis

• AV communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

Handsfree Phone

The hands-free phone reception volume adjustment, microphone
and speaker test, and memory erase functions are also available.

Bluetooth

Passkey confirmation/change

• AV COMM CIRCUIT
• Rear View Camera Connection Error

• A malfunction is detected in camera con-

trol unit power supply and ground circuits

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

Rear view camera control unit power sup-
ply and ground circuits. Refer to

AV-371,

"REAR VIEW CAMERA CONTROL UNIT :
Diagnosis Procedure"

• AV COMM CIRCUIT
• Rear View Camera Connection Error
• Rear View Camera Control Unit Connec-

tion Error

• Malfunction is detected in AV communi-

cation circuit between camera control
unit and AV control unit

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

AV communication circuit between Camera
control unit and AV control unit

Error item

Description

Possible malfunction factor/Action to take

ALNIA0227GB

ALNIA0265GB

ALNIA0228GB

2009 Pathfinder

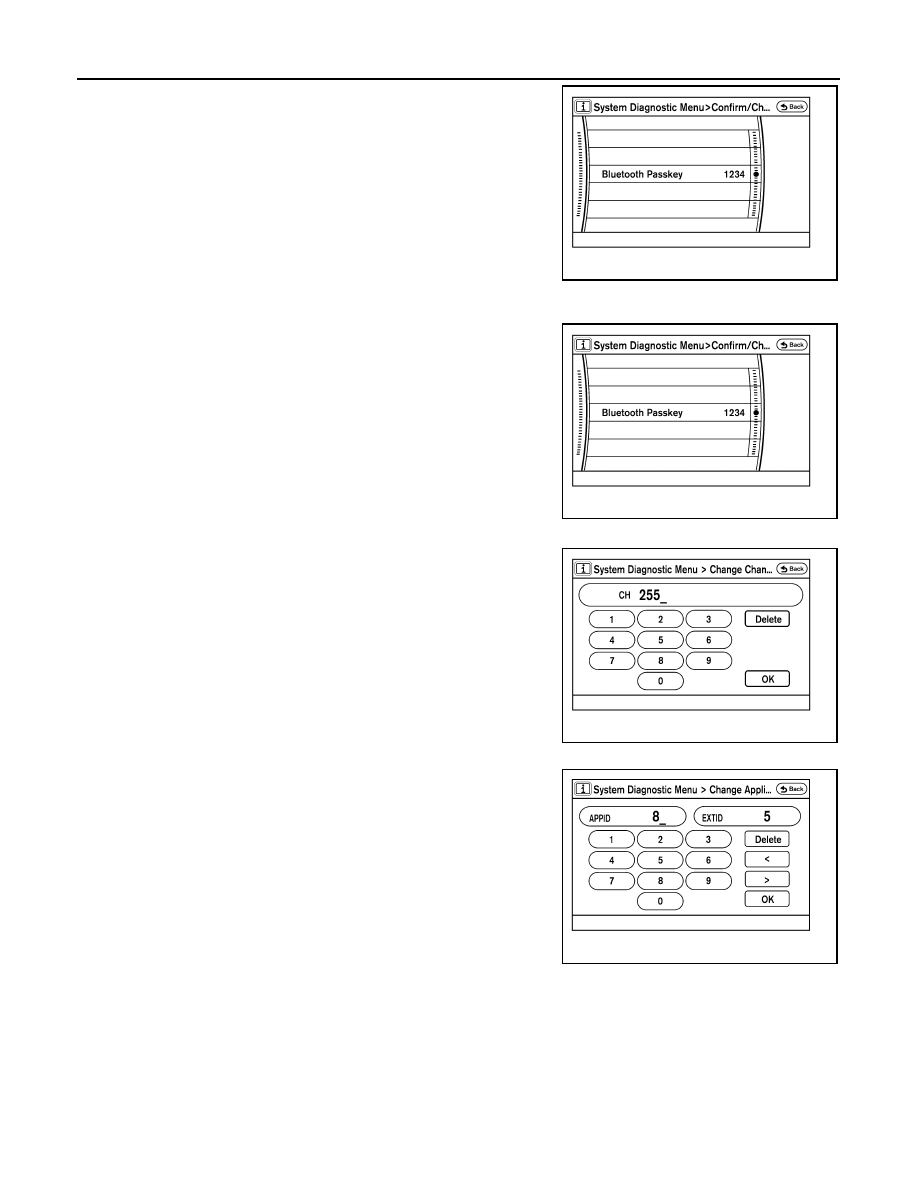

AV-336

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

• The passkey of Bluetooth can be confirmed and changed.
• The passkey can be changed by four digits within 0 to 9.

Device name check/change
• The device name of Bluetooth can be confirmed and changed.
• The device name can be changed by sixteen digits within A to Z

(small character can be used) and - (hyphen).

SAT

• Change Channel
- Any necessary channels required to receive traffic information from

the satellite radio system can be set.

• Change Application ID
- Any application ID's required to receive traffic information from the

satellite radio system can be set.

Delete Unit Connection Log

ALNIA0233GB

ALNIA0236GB

ALNIA0237GB

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

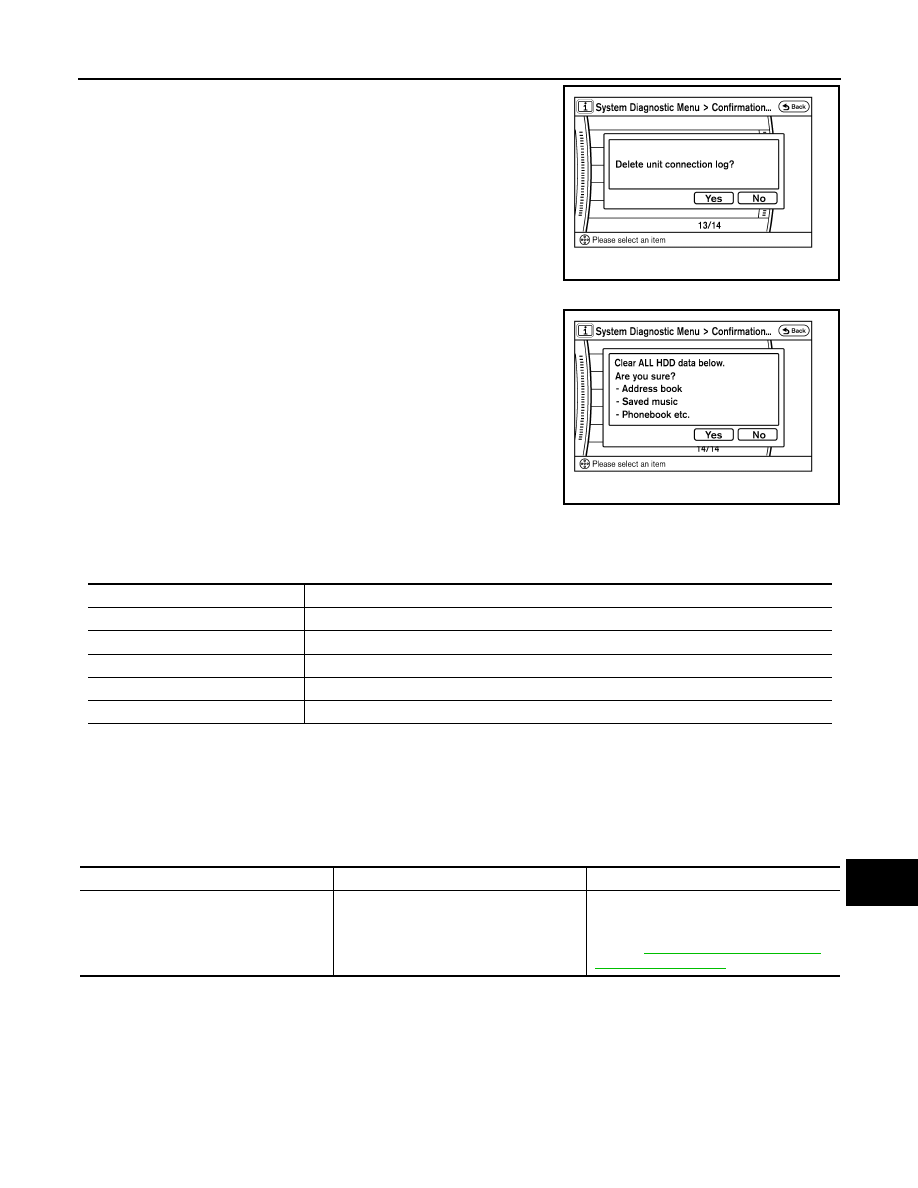

AV-337

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)

Inititialize Settings

Initializes the AV control unit memory.

AV CONTROL UNIT : CONSULT-III Function

INFOID:0000000003939174

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

Self-diagnosis results

• In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
• The current malfunction indicates “CRNT”. The past malfunction indicates “PAST”.
• The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

Self-diagnosis results display item

ALNIA0239GB

ALNIA0240GB

MULTI AV diagnosis mode

Description

SELF-DIAG RESULTS

Displays AV control unit self-diagnosis results.

DATA MONITOR

Displays AV control unit input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

AV COMM MONITOR

Allows the technician to monitor the status of the Multi AV system communication signals.

ECU PART NUMBER

The part number of AV control unit can be checked.

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT[U1000]

CAN communication malfunction is detect-
ed

Perform diagnosis with CONSULT-III, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
Refer to

AV-337, "AV CONTROL UNIT :

CONSULT-III Function"

2009 Pathfinder

AV-338

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

CONTROL UNIT (CAN) [U1010]

CAN initial diagnosis malfunction is detect-
ed

Replace the AV control unit

CONTROL UNIT (AV) [U1310]

AV communication circuit initial diagnosis
malfunction is detected

Control Unit FLASH-ROM [U1200]

AV control unit malfunction is detected

Gyro NO CONN [U1201]

CAN CONT [U1216]

BLUETOOTH CONN [U1217]

HDD CONN [U1218]

HDD READ [U1219]

XM SERIAL COMM [U1220]

HDD WRITE [U121A]

HDD COMM [U121B]

HDD ACCESS [U121C]

DSP CONN [U121D]

DSP COMM [U121E]

INTERNAL COMM [U121F]

AV control unit power supply and ground
circuit

GPS COMM [U1204]

GPS malfunction is detected

An intermittent error caused by strong radio
interference may be detected unless any
symptoms (GPS reception error, etc.) oc-
cur.
Replace the AV control unit if the malfunc-
tion occurs constantly.

GPS ROM [U1205]

GPS RAM [U1206]

GPS RTC [U1207]

FRONT DISP CONN [U1243]

• Display unit power supply and ground

circuit malfunction is detected

• Malfunction is detected on communica-

tion circuit between display unit and AV
control unit

• Malfunction is detected on communica-

tion signal between display unit and AV
control unit

• Display unit power supply and ground

circuit

• Communication circuit between display

unit and AV control unit

GPS ANTENNA CONN [U1244]

GPS antenna connection malfunction is de-
tected

GPS antenna

XM ANTENNA CONN [U1258]

Poor connection is detected in satellite ra-
dio antenna

Satellite radio antenna

CAMERA CONT. CONN [U1250]

A malfunction is detected in Camera-con-
nection recognition signal circuit

Camera-connection recognition signal cir-
cuit

• AV COMM CIRCUIT [U1300]
• SWITCHE CONN [U1240]

• Multifunction switch power supply and

ground circuit malfunction is detected

• A malfunction is detected in AV commu-

nication circuit between AV control unit
and multifunction switch

• A malfunction is detected in AV commu-

nication signal between AV control unit
and multifunction switch

• Multifunction switch power supply and

ground circuits

• AV communication circuit between AV

control unit and multifunction switch

Error item

Description

Possible malfunction factor/Action to take

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-339

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DATA MONITOR

Display Item List

A/C AND AV SWITCH ASSEMBLY

A/C AND AV SWITCH ASSEMBLY : Component Function Check

INFOID:0000000003939175

A/C and AV switch assembly self-diagnosis function

Description

The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.

Self-diagnosis mode

• Press the “BACK” button and the “UP” button within 10 seconds

after turning the ignition switch from OFF to ACC and hold them for
3 seconds or more. When the self-diagnosis mode starts, a beep
will sound and all LED indicators of the switch will illuminate.

• The continuity of each switch and control dial of the A/C and AV

switch assembly can be checked. If the switch is operating nor-
mally, the system will beep and the LED's will illuminate when each
switch is operated.

Finishing self-diagnosis mode

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

• A malfunction is detected in camera con-

trol unit power supply and ground circuits

• Malfunction is detected on AV communi-

cation signal between Camera control
unit and AV control unit

Camera control unit power supply and
ground circuits

• AV COMM CIRCUIT [U1300]
• CAMERA CONT. CONN [U1250]
• REAR CAMERA LAN CONN [U1252]

• Malfunction is detected on AV communi-

cation circuit between camera control
unit and AV control unit

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

AV communication circuit between camera
control unit and AV control unit

Error item

Description

Possible malfunction factor/Action to take

Display item [unit]

ALL

SIGNALS

SELECTION

FROM MENU

Description

VHCL SPD SIG [ON/OFF]

Displays “ON” when vehicle speed > 0 km/h. Displays “OFF” when ve-
hicle speed = 0 km/h.

PKB SIG [ON/OFF]

Displays [ON/OFF] condition of parking brake switch.

ILLUM SIG [ON/OFF]

Displays [ON/OFF] condition of lighting switch.

IGN SIG [ON/OFF]

Displays [ON/OFF] condition of ignition switch.

REV SIG [ON/OFF]

Displays [ON/OFF] condition of back-up lamp switch.

AWIIA0171GB

2009 Pathfinder

Content .. 63 64 65 66 ..
