AV-172

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

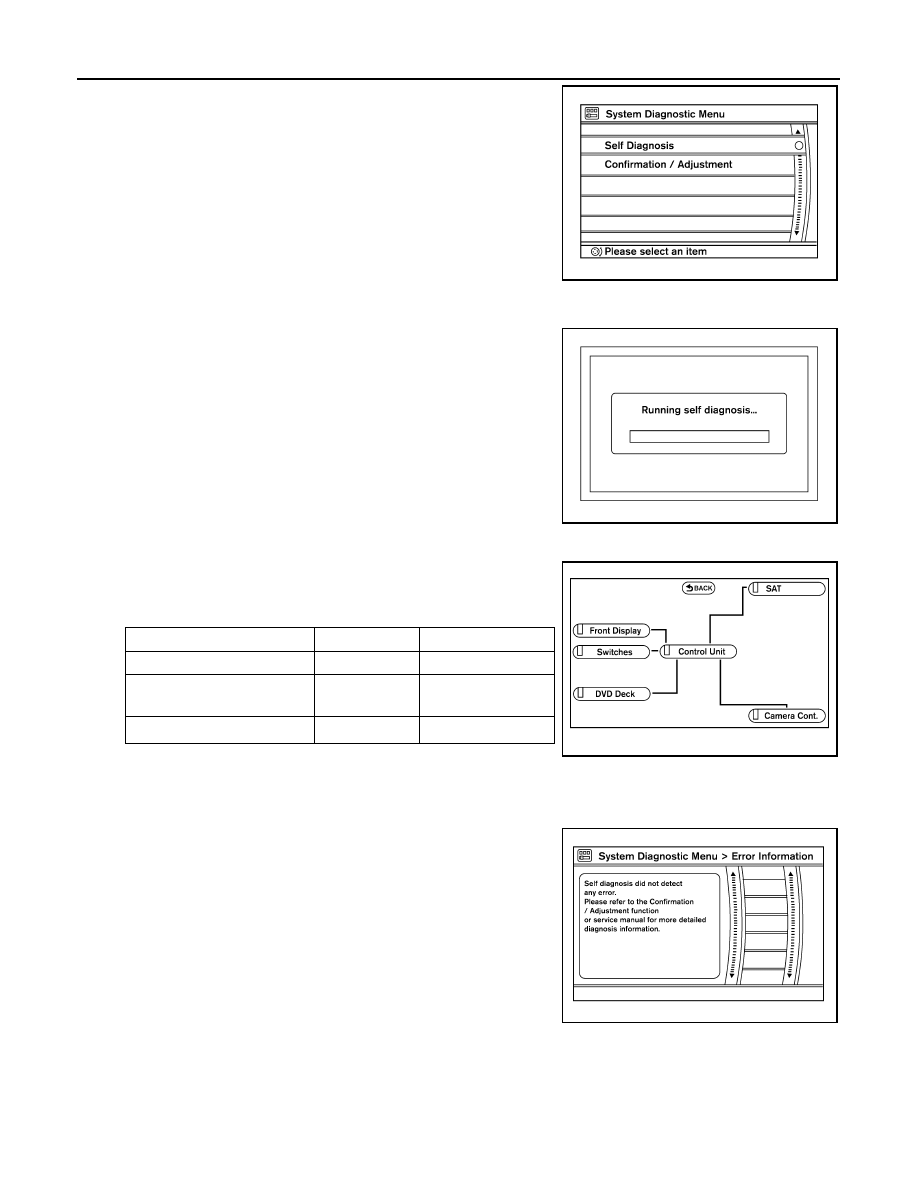

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

The initial trouble diagnosis screen will be displayed, and items
“Self-Diagnosis” and “Confirmation/Adjustment” can be
selected.

SELF-DIAGNOSIS

Perform self-diagnosis by selecting “Self-Diagnosis”.
• Self-diagnosis subdivision screen is displayed, and the self-

diagnosis mode starts.

• A bar graph visible on the center of the self-diagnosis subdivi-

sion screen indicates progress of the trouble diagnosis.

NOTE:
Self-diagnosis requires approximately 10 seconds to complete.

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

Note:

• Only the AV control unit is displayed in red.

• If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the follow-

ing order of priority: red > yellow > gray.

Select a component on the “Self Diagnosis” screen and com-
ments for the diagnosis results will be shown.

Self-Diagnosis Results

ALNIA0259GB

ALNIA0258GB

Diagnosis results

Unit

Connection line

Normal

Green

Connection malfunc-
tion

Gray

Yellow

Unit malfunction

Note

Red

Green

ALNIA0519GB

ALNIA0256GB

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-173

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

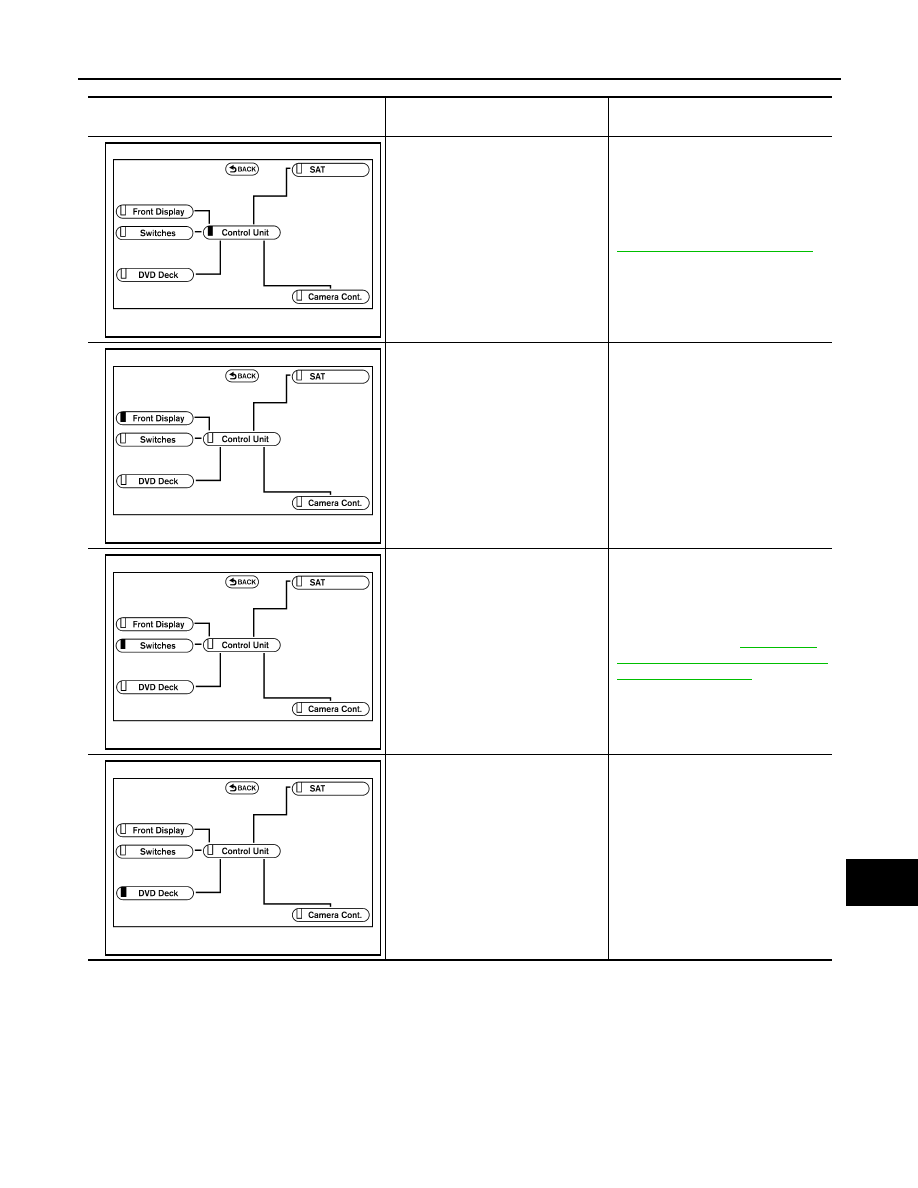

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

AV control unit malfunction is detect-
ed

Replace the AV control unit. Refer to

AV-142, "Removal and Installation"

Poor connection is detected for the
display unit

• Harness or connector
• AV control unit
• Display unit

Switch malfunction is dectected

Perform A/C and AV switch assembly
diagnostics. Refer to

AV-177, "A/C

AND AV SWITCH ASSEMBLY : Com-
ponent Function Check"

Poor connection is detected for the
DVD player.

• Harness or connector
• AV control unit
• DVD player

ALNIA0520GB

ALNIA0521GB

ALNIA0522GB

ALNIA0523GB

2009 Pathfinder

AV-174

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

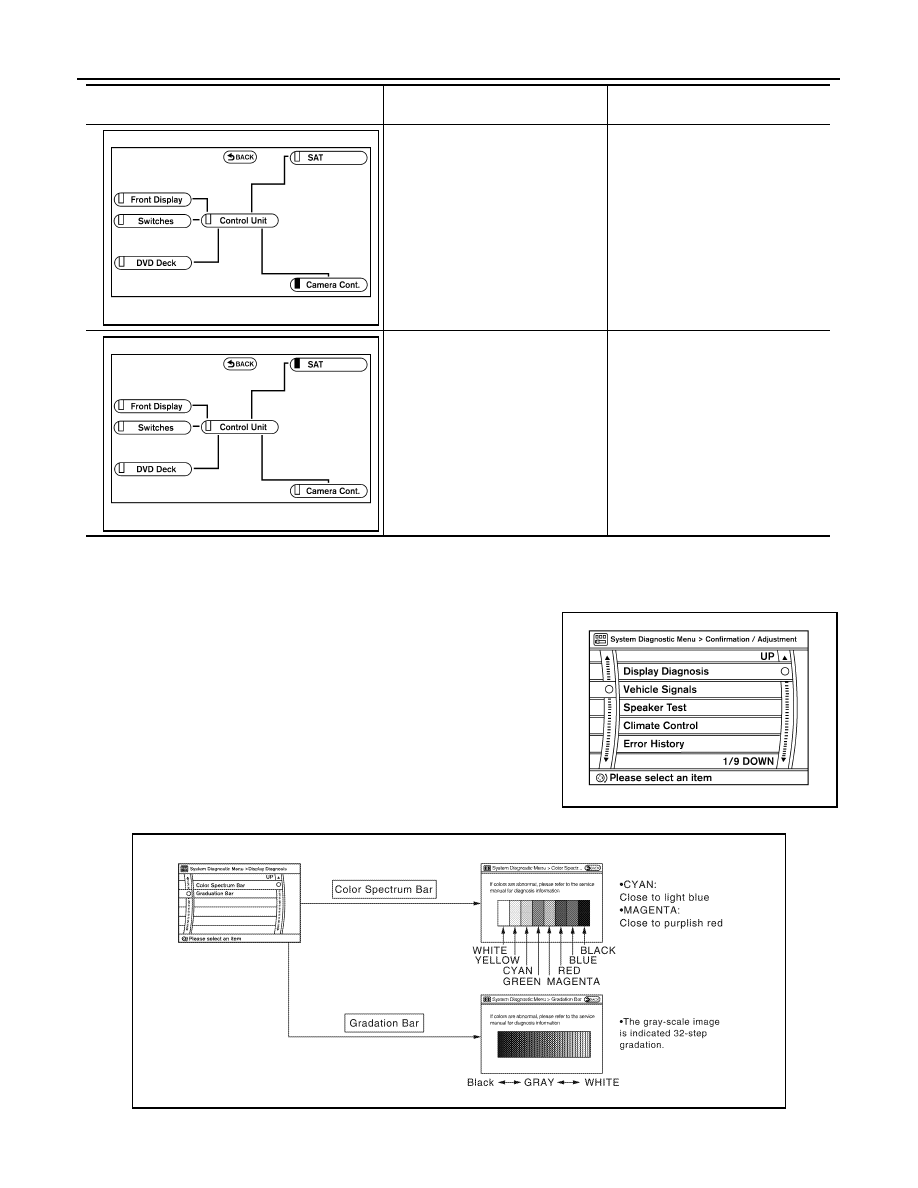

CONFIRMATION/ADJUSTMENT MODE

Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.

Select each item on the “Confirmation/Adjustment” mode screen
to display the relevant trouble diagnosis screen. Press the
“BACK” button or touch "BACK" on the touch screen to return to
the initial Confirmation/Adjustment Mode screen.

Display Diagnosis

Vehicle Signals

Poor connection is detected for the
rear view camera control unit.

• Harness or connector
• AV control unit
• Rear view camera control unit

Poor connection is detected for the
satellite radio tuner.

• Harness or connector
• AV control unit
• Satellite radio tuner

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

ALNIA0524GB

ALNIA0525GB

ALNIA0251GB

ALNIA0260GB

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-175

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

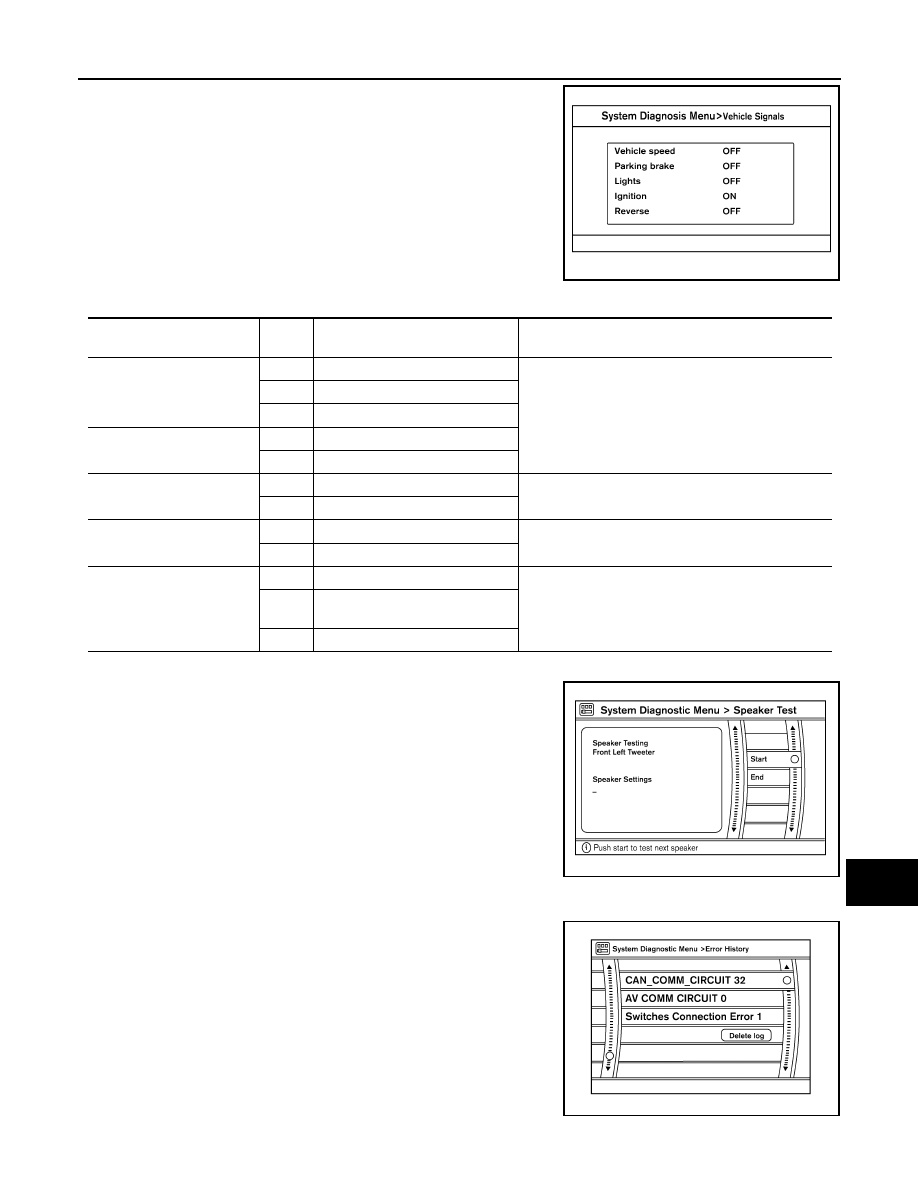

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

Speaker Test

Select “Speaker Test” to display the speaker diagnosis screen. Press
“Start” to generate a test tone in speakers. Touch “End” to stop the
test tones.

Error History

The self-diagnosis results are judged depending on whether any
error occurs from when "Self-diagnosis" isselected until the self-
diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has
occurred before the ignition SW is turned ON and then no error has
occurred until the self-diagnosis start. Check the "Error History" to
detect any error that may have occurred before the self-diagnosis
start because of this situation.
Count up method A
• The counter resets to 0 if an error occurs when IGN switch is

turned ON. The counter increases by 1 if the condition is normal at
a next IGN ON cycle.

ALNIA0261GB

Diagnosis item

Dis-
play

Vehicle status

Remarks

Vehicle speed

Vehicle speed > 0 km/h

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h

−

Ignition switch in ACC position

Parking brake

Parking brake is applied.

OFF

Parking brake is released.

Lights

Light switch ON

Block the light beam from the auto light optical sensor.

OFF

Light switch OFF

Ignition

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

Selector lever in R position

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Selector lever in any position other
than R

−

Ignition switch in ACC position

ALNIA0262GB

ALNIA0263GB

2009 Pathfinder

AV-176

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

• The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error-

record display) with the "Delete log" switch or CONSULT-III.

Count up method B
• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even

ifthe condition is normal at the next IGN ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error-

record display) with the "Delete log" switch or CONSULT-III.

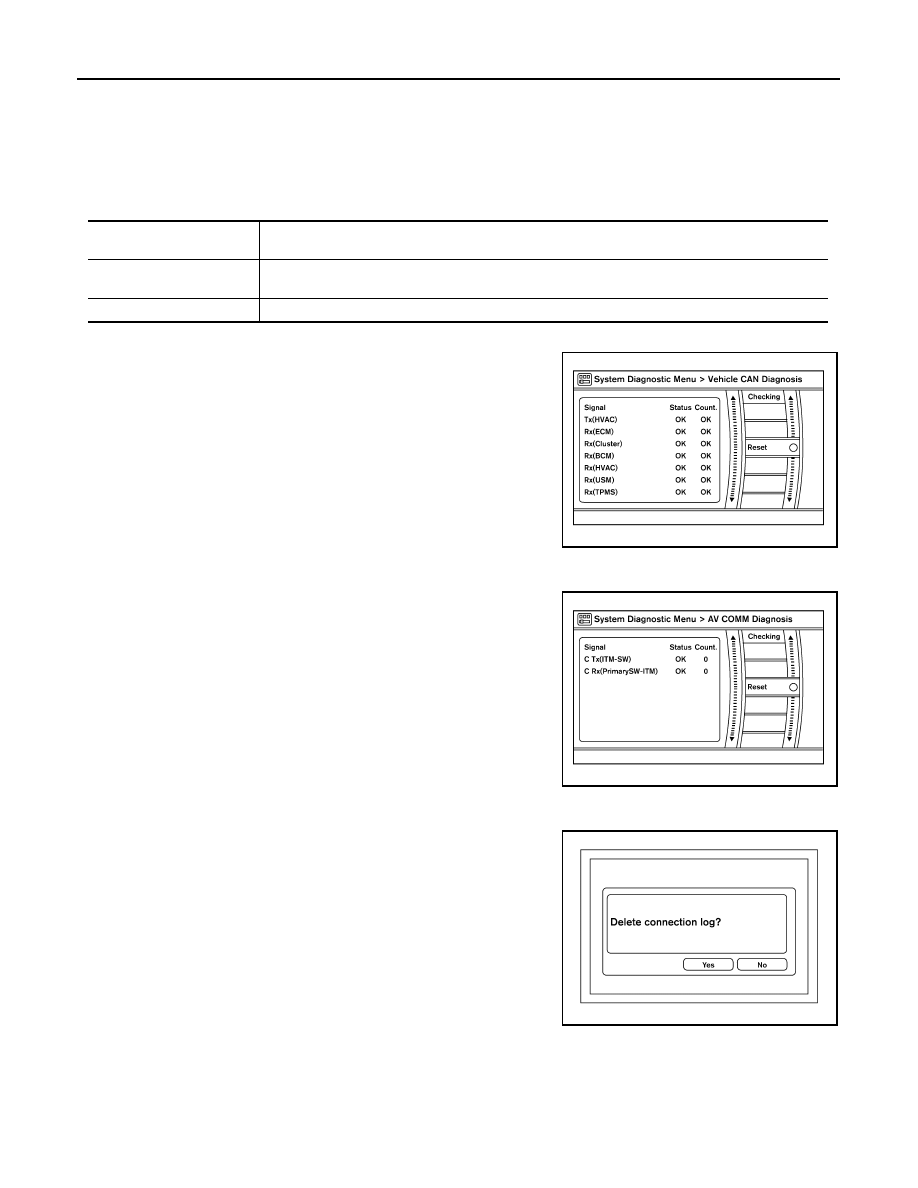

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

AV COMM Diagnosis

• AV communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

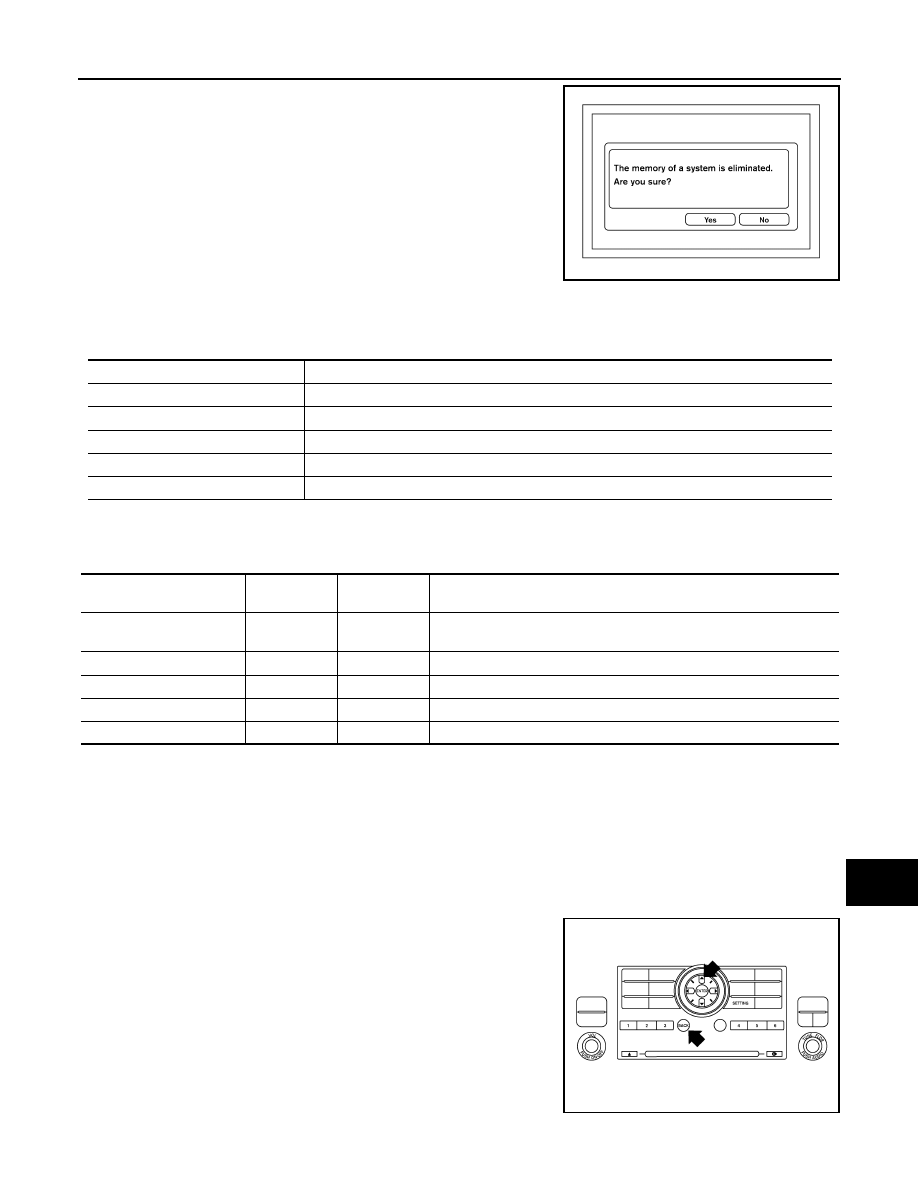

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)

Inititialize Settings

Display method of occur-

rence frequency

Error history diplay item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV communica-
tion)

Count up method B

Other than above

ALNIA0264GB

ALNIA0265GB

ALNIA0266GB

2009 Pathfinder

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-177

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

Initializes the AV control unit memory.

AV CONTROL UNIT : CONSULT-III Function

INFOID:0000000003939056

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

DATA MONITOR

Display Item List

A/C AND AV SWITCH ASSEMBLY

A/C AND AV SWITCH ASSEMBLY : Component Function Check

INFOID:0000000003939057

A/C and AV switch assembly self-diagnosis function

Description

The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.

Self-diagnosis mode

• Press the “BACK” button and the “UP” button within 10 seconds

after turning the ignition switch from OFF to ACC and hold them for
3 seconds or more. When the self-diagnosis mode starts, a beep
will sound and all LED indicators of the switch will illuminate.

• The continuity of each switch and control dial of the A/C and AV

switch assembly can be checked. If the switch is operating nor-
mally, the system will beep and the LED's will illuminate when each
switch is operated.

Finishing self-diagnosis mode

ALNIA0267GB

MULTI AV diagnosis mode

Description

SELF-DIAG RESULTS

Displays AV control unit self-diagnosis results.

DATA MONITOR

Displays AV control unit input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

AV COMM MONITOR

Allows the technician to monitor the status of the Multi AV system communication signals.

ECU PART NUMBER

The part number of AV control unit can be checked.

Display item [unit]

ALL

SIGNALS

SELECTION

FROM MENU

Description

VHCL SPD SIG [ON/OFF]

Displays “ON” when vehicle speed > 0 km/h. Displays “OFF” when ve-
hicle speed = 0 km/h.

PKB SIG [ON/OFF]

Displays [ON/OFF] condition of parking brake switch.

ILLUM SIG [ON/OFF]

Displays [ON/OFF] condition of lighting switch.

IGN SIG [ON/OFF]

Displays [ON/OFF] condition of ignition switch.

REV SIG [ON/OFF]

Displays [ON/OFF] condition of back-up lamp switch.

AWIIA0171GB

2009 Pathfinder

AV-178

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

2009 Pathfinder

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

AV-179

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

Diagnosis Description

INFOID:0000000004468088

The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically
every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-
cian using the steering wheel audio control switches prior to trouble diagnosis.

BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure
• Bluetooth antenna connection open or shorted
• Steering wheel audio control switches (SEND/END) stuck closed
• Vehicle speed pulse count
• Microphone connection test (with playback to operator)
• Bluetooth inquiry check

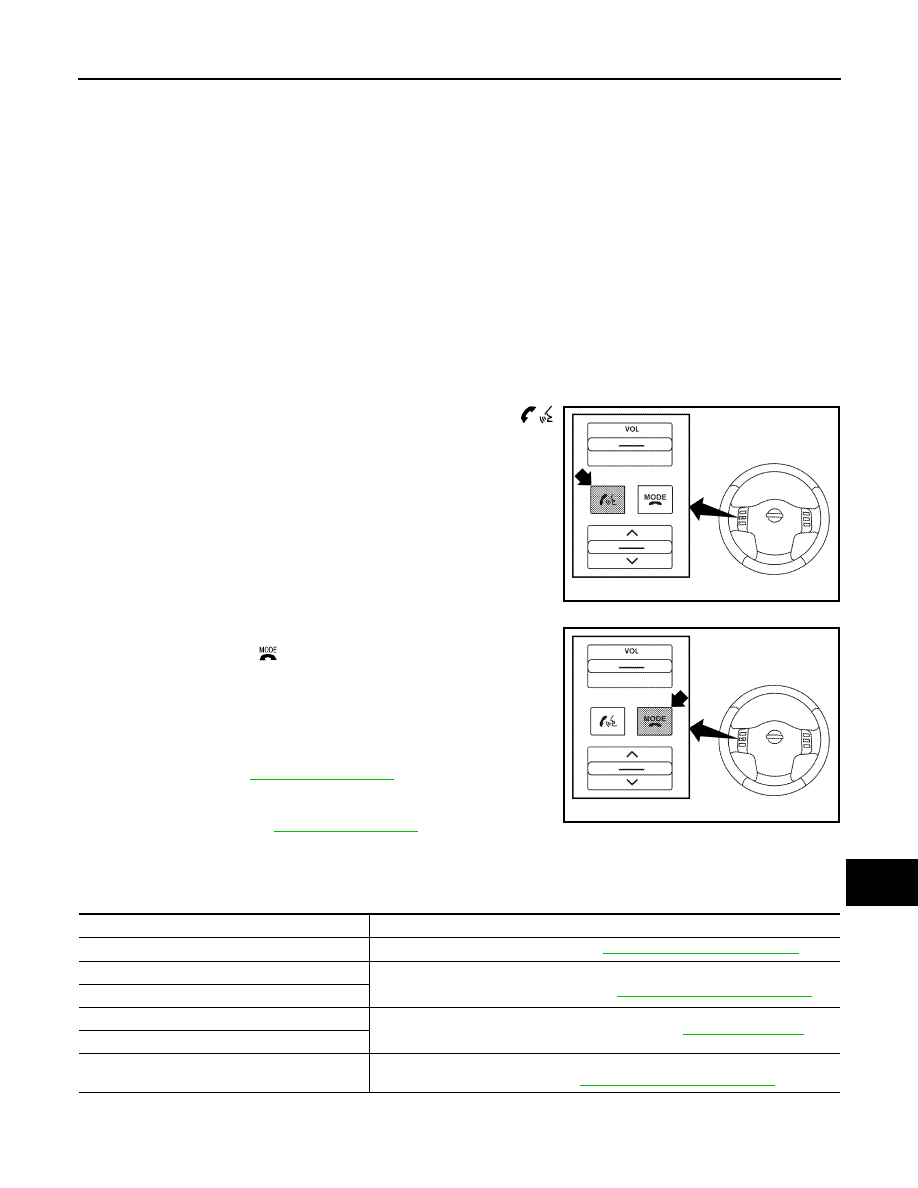

OPERATION PROCEDURE

Turn ignition switch to ACC or ON.

Wait for the Bluetooth system to complete initialization. This may take up to 10 seconds.

Press and hold the steering wheel audio control switch
button for at least 5 seconds. The Bluetooth system will begin to
play a verbal prompt.

While the prompt is playing, press and hold the steering wheel
audio control switch

button until you hear the “Diagnostics

mode” prompt. The Bluetooth system will sound a 5 second
beep.

While the beep is sounding, press and hold the steering wheel
audio control switch END button again until you hear prompts.

The Bluetooth system has now entered into the diagnostic
mode. Results of the diagnostic checks will be verbalized to the
technician. Refer to

AV-179, "Work Flow"

After the failure records are reported, an interactive microphone
test will be performed. Follow the voice prompt. If the micro-
phone test fails refer to

AV-179, "Work Flow"

Self-diagnosis mode is complete when the voice prompt says “All diagnostic functions completed”.

Work Flow

INFOID:0000000004468089

ALNIA0448GB

ALNIA0449GB

Failure Message

Action

“Internal failure”

Replace Bluetooth control unit. Refer to

AV-296, "Removal and Installation"

“Bluetooth antenna open”
