Nissan Pathfinder (2009 year). Manual - part 42





AV-148

< ON-VEHICLE REPAIR >

[MID AUDIO]

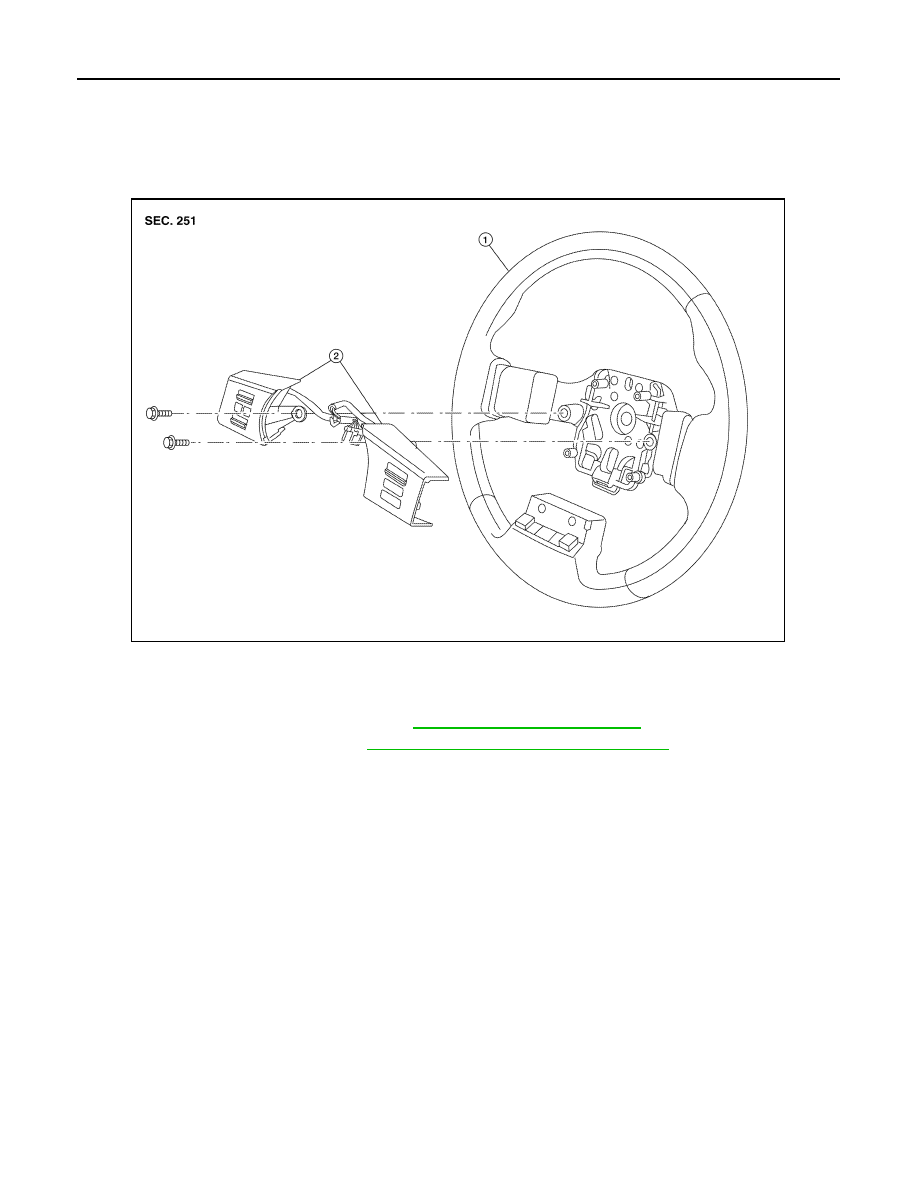

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000003939034

Removal and Installation

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-12, "On-Vehicle Inspection and Service"

.

3.

Remove the steering wheel rear cover.

4.

Remove the steering wheel audio control switch assembly screws.

5.

Disconnect the steering wheel audio control switches connector and remove the steering wheel audio
control switches.

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

2009 Pathfinder

AV

DVD ENTERTAINMENT SYSTEM

AV-149

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000004449447

REMOVAL DVD PLAYER

1.

Disconnect the battery negative terminal.

2.

Remove the center console assembly. Refer to

IP-11, "Removal and Installation"

.

3.

Disconnect the DVD player connector (A).

4.

Remove the DVD player screws (B), then remove the DVD
player (1).

5.

Remove the DVD player bracket screws and then remove DVD
player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of DVD Video Monitor

INFOID:0000000004449448

REMOVAL

1.

Release the clips and remove the DVD video monitor finisher
from headlining.

2.

Press the release tabs and remove the cover.

3.

Remove the video monitor screws.

4.

Gently lower the assembly and disconnect the connector, then
remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

2009 Pathfinder

AV-150

< ON-VEHICLE REPAIR >

[MID AUDIO]

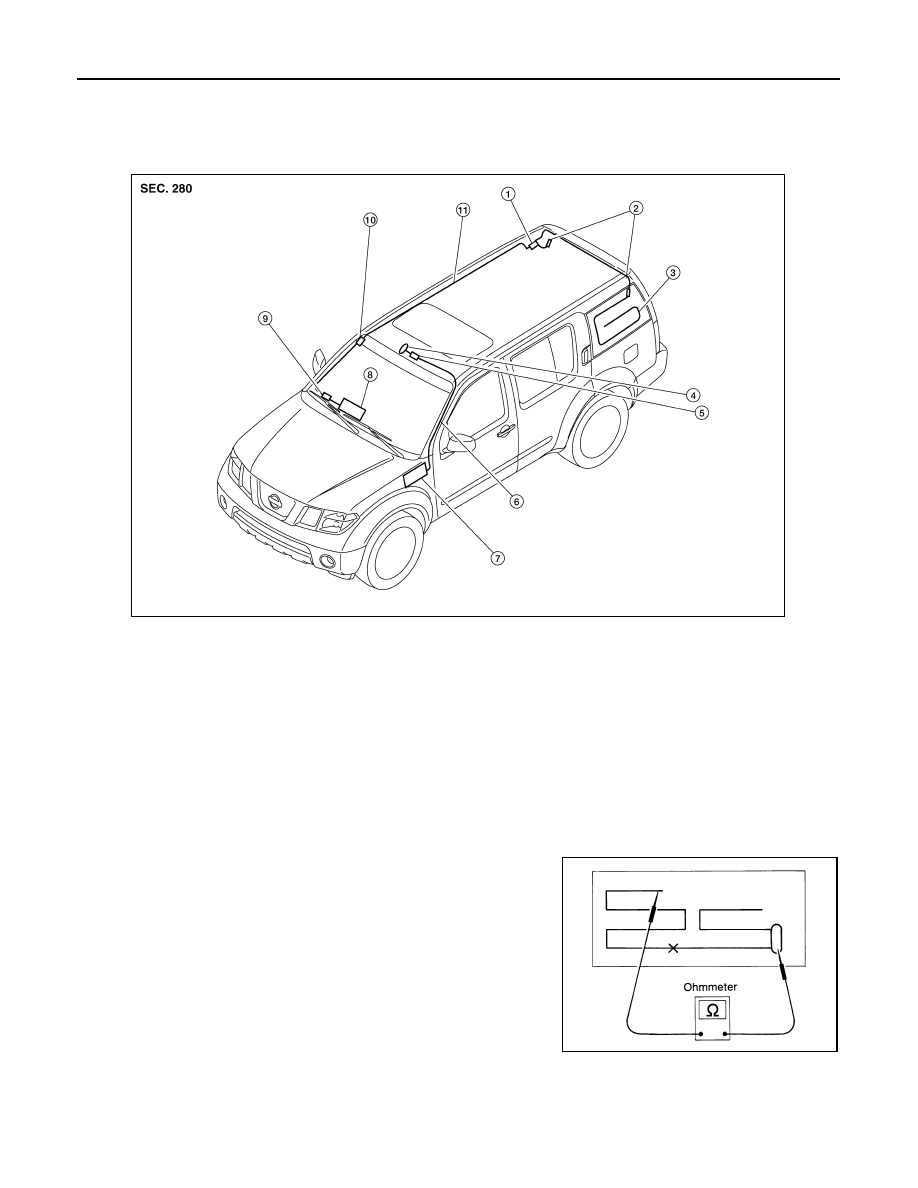

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antenna

INFOID:0000000003939036

Window Antenna Repair

INFOID:0000000003939037

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

AV control unit M44

9.

Harness connector
M78, M501

10. Harness connector

M502, M601

11.

Antenna feeder

WKIA4984E

SEL250I

2009 Pathfinder

AV

AUDIO ANTENNA

AV-151

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

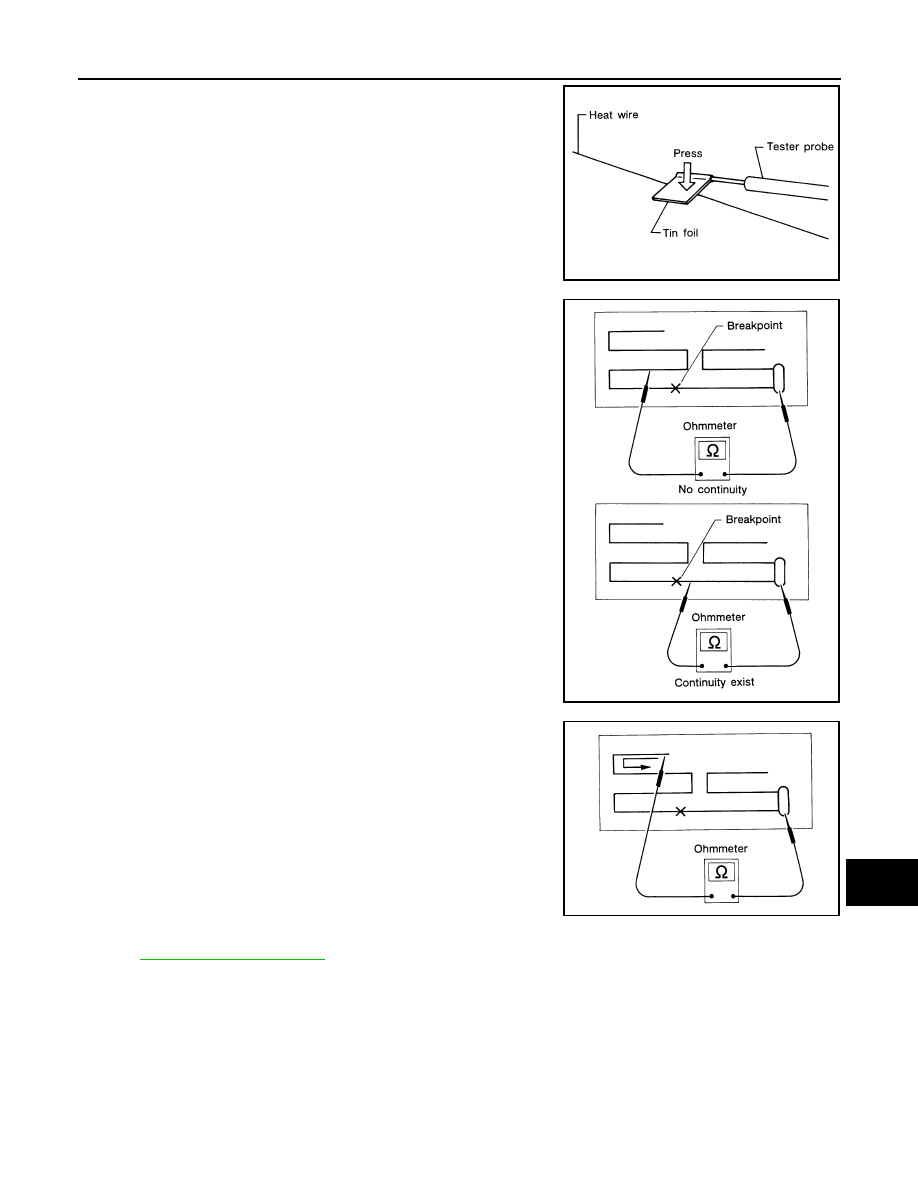

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-
ger.

2.

If an element is broken, no continuity will exist.

3.

To locate a break, move probe along element. Tester indication
will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-42, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

2009 Pathfinder

AV-152

< ON-VEHICLE REPAIR >

[MID AUDIO]

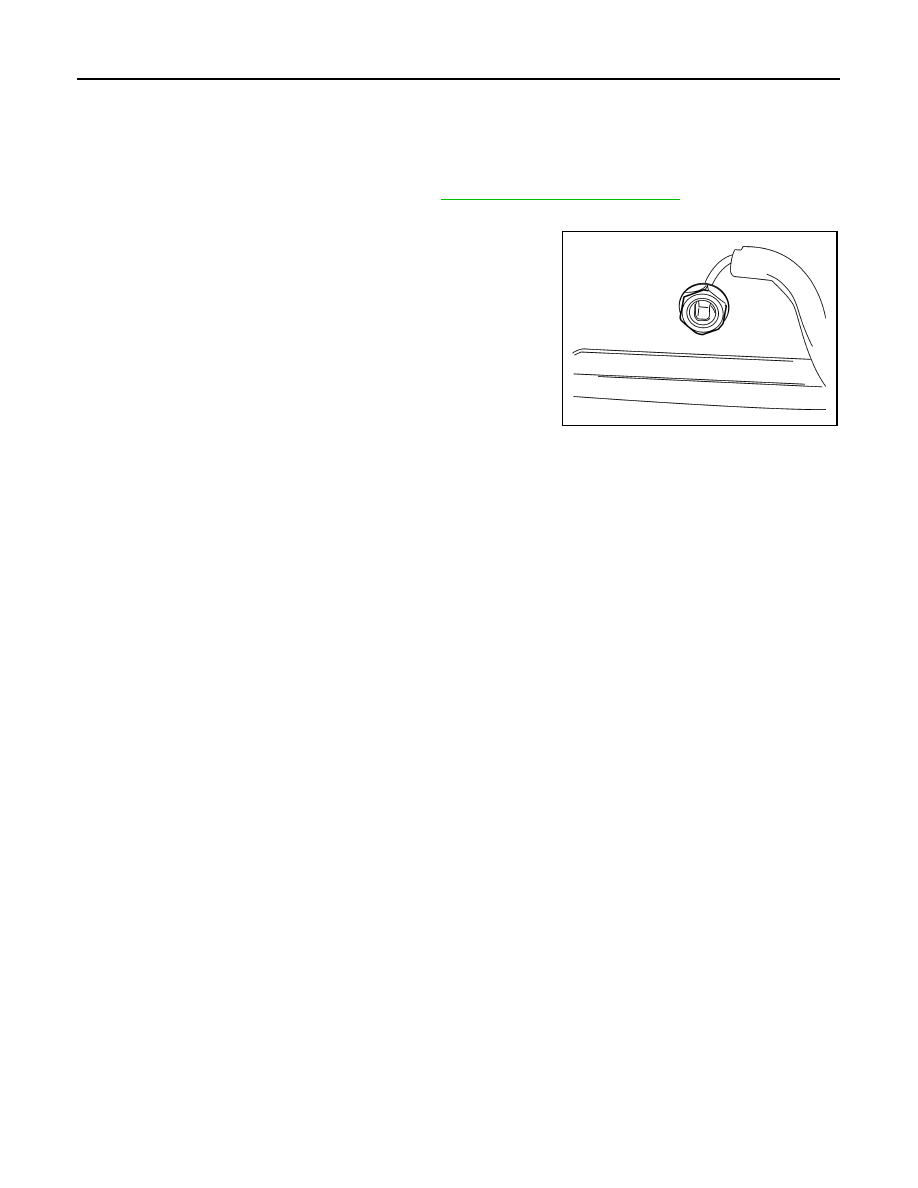

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000003939038

REMOVAL

1.

Remove the front roof console finisher. Refer to

INT-20, "Removal and Installation"

.

2.

Disconnect the satellite radio antenna connector.

3.

Remove the satellite radio antenna nut.

4.

Remove the satellite radio antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

2009 Pathfinder

AV

SATELLITE RADIO TUNER

AV-153

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

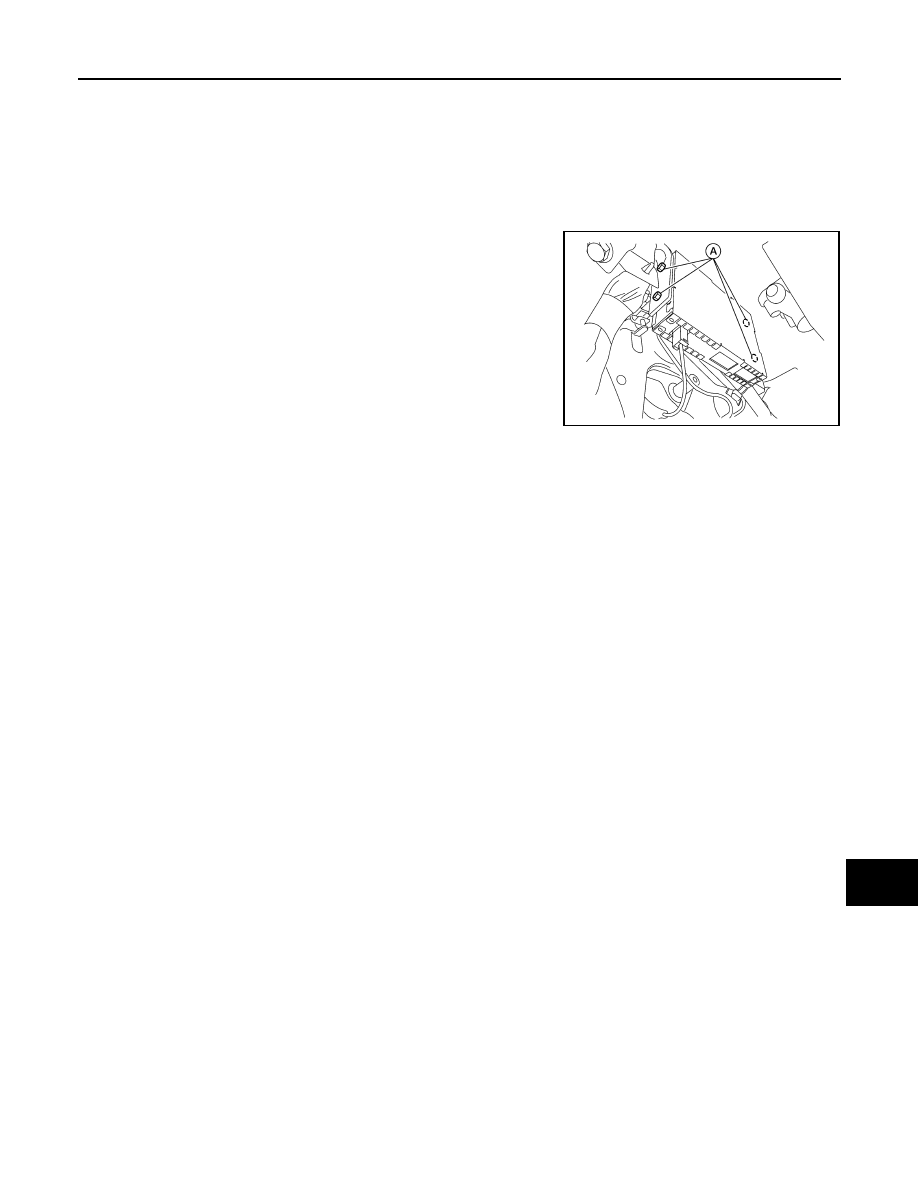

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000003939039

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Disconnect the satellite radio tuner connectors.

3.

Remove satellite radio tuner screws (A), and remove satellite
radio tuner from above the parking brake pedal.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0684E

2009 Pathfinder

AV-154

< ON-VEHICLE REPAIR >

[MID AUDIO]

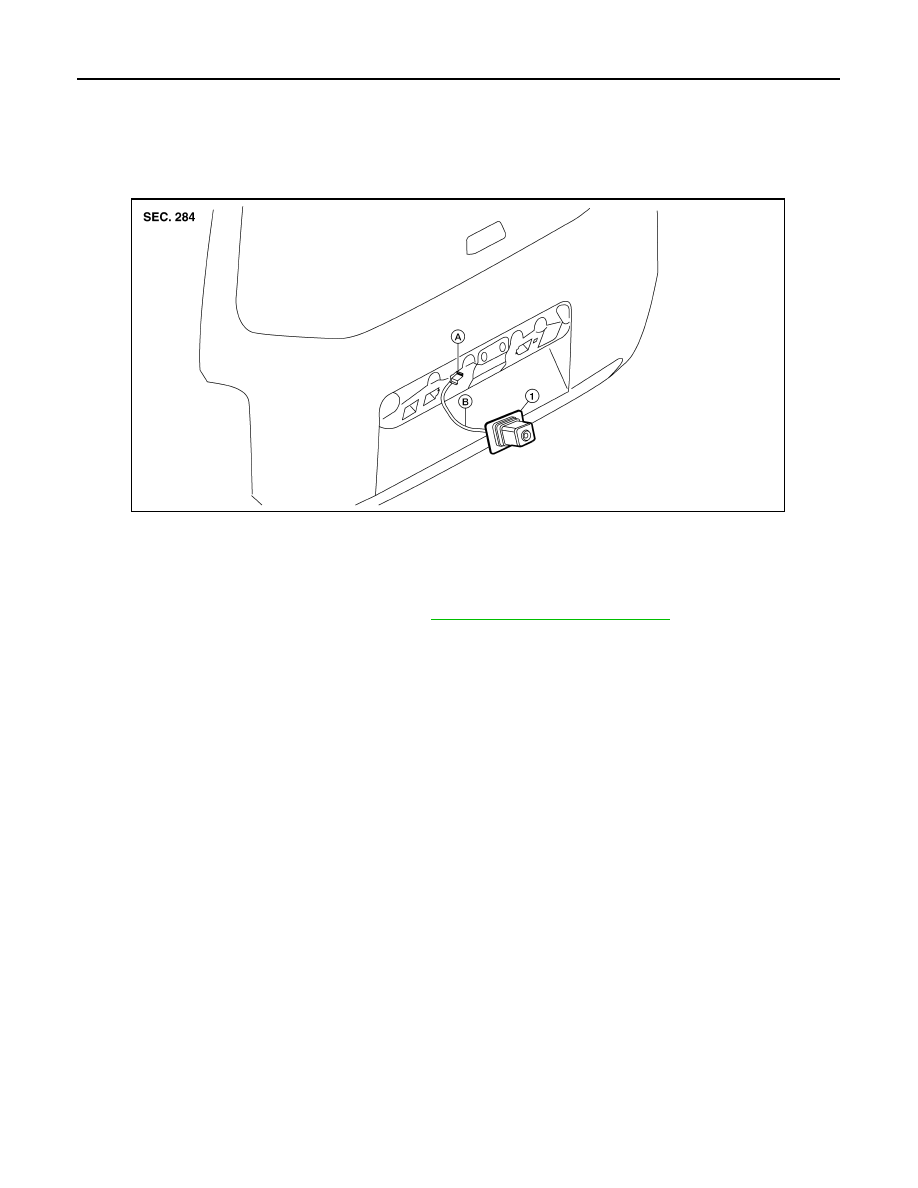

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000004414815

Rear View Camera

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Remove the back door lower finisher. Refer to

INT-25, "Removal and Installation"

.

3.

Disconnect the rear view camera connector.

4.

Detach the rear view camera harness clip.

5.

Detach the rear view camera to release, then pull out to remove the rear view camera while feeding the
rear view camera harness and connector through the back door.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear view camera

A.

Rear view camera connector

B.

Rear view camera harness clip

ALNIA1182ZZ

2009 Pathfinder

AV

REAR VIEW CAMERA CONTROL UNIT

AV-155

< ON-VEHICLE REPAIR >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

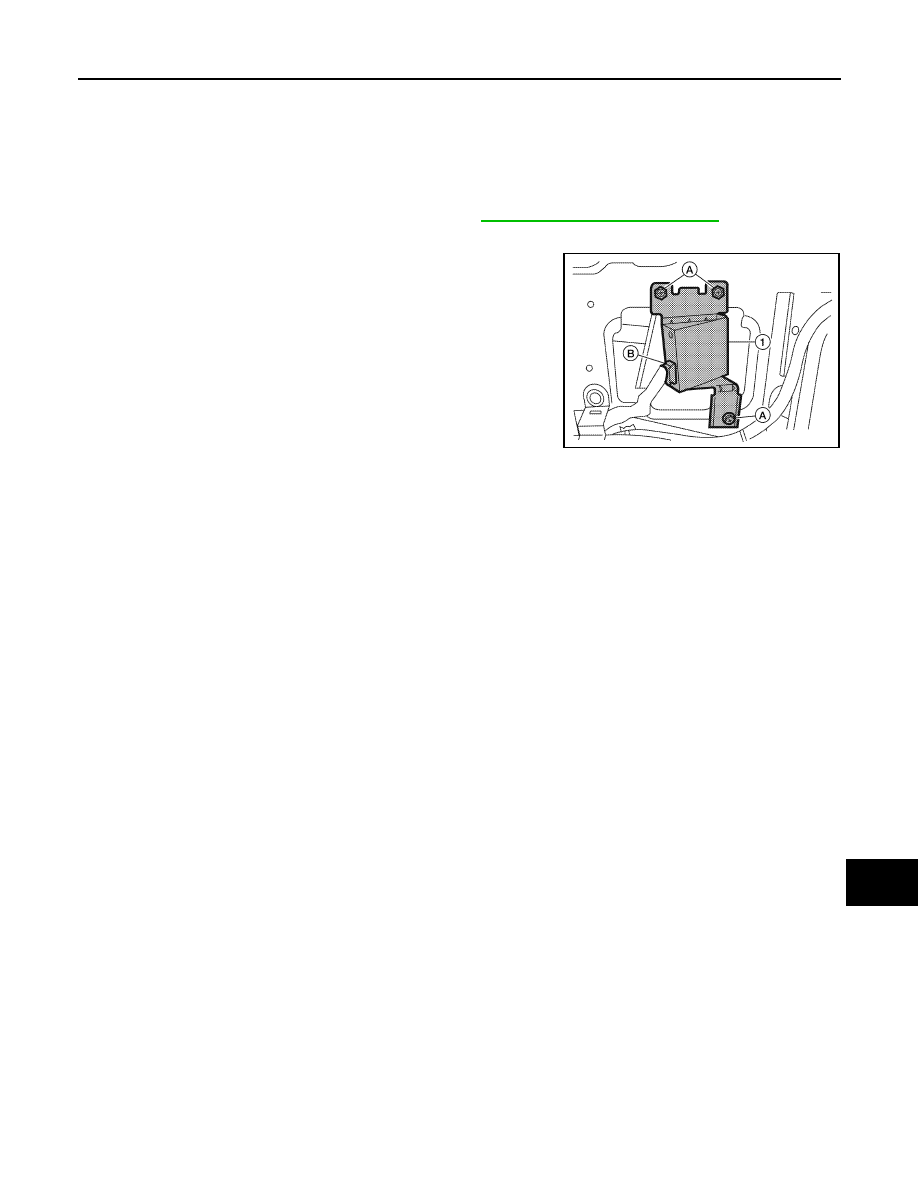

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000003939041

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Remove the luggage side lower finisher RH. Refer to

INT-23, "Removal and Installation"

.

3.

Remove the rear HVAC duct tube (C103) fastener and remove the HVAC duct tube.

4.

Remove the rear view camera control unit screws (A), discon-
nect the rear view camera control unit connector (B) and remove
the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0377ZZ

2009 Pathfinder
